A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

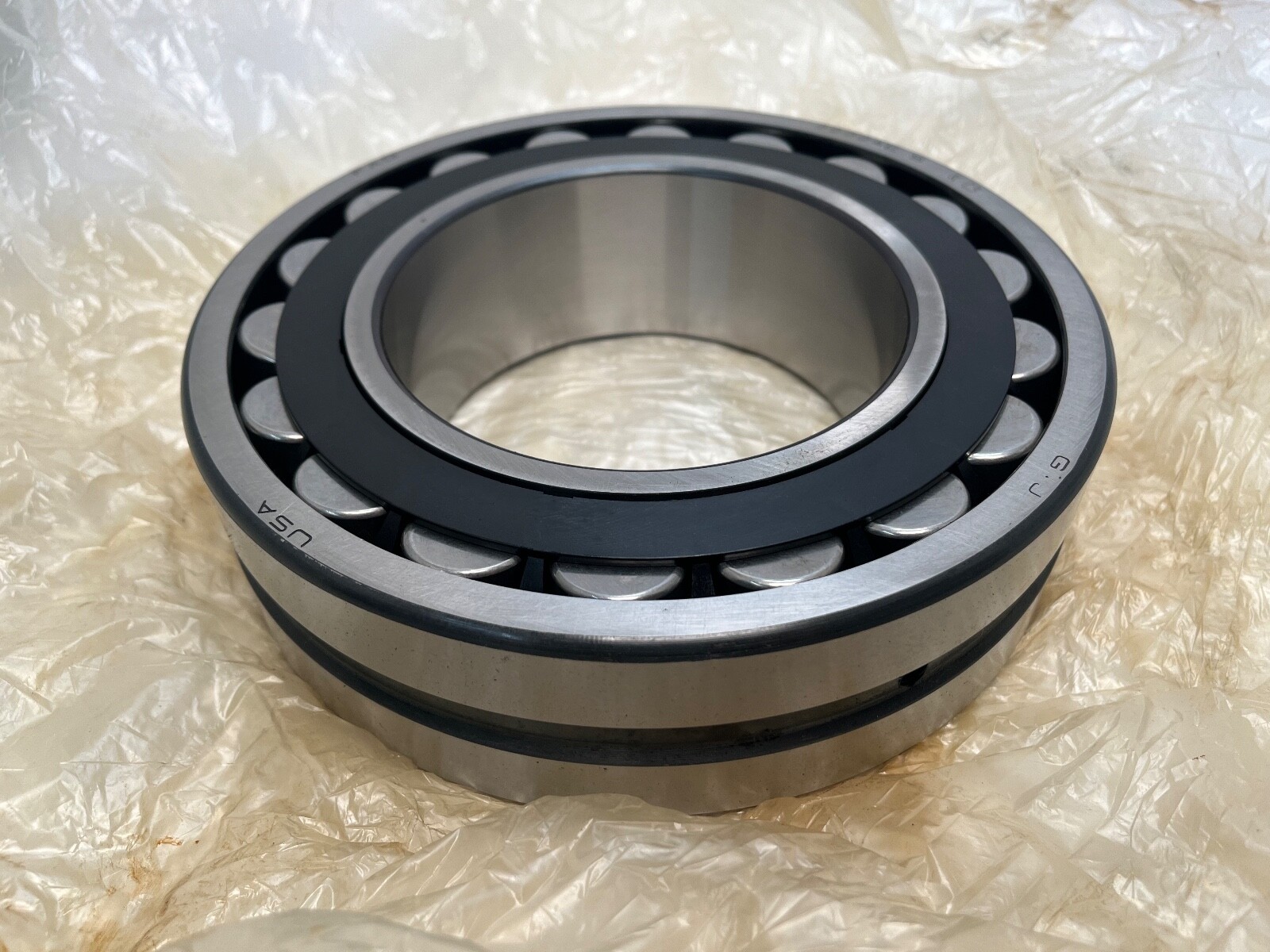

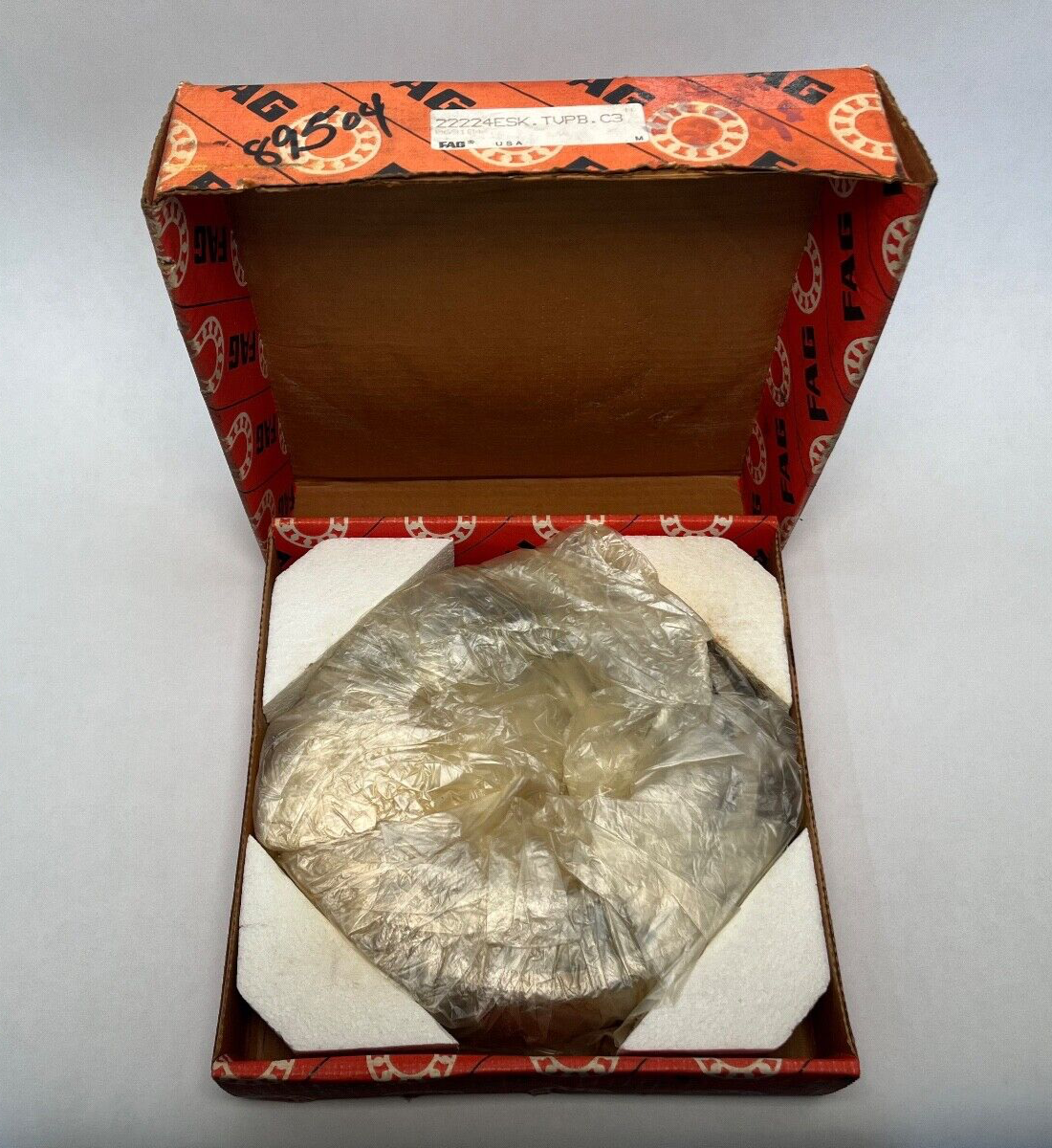

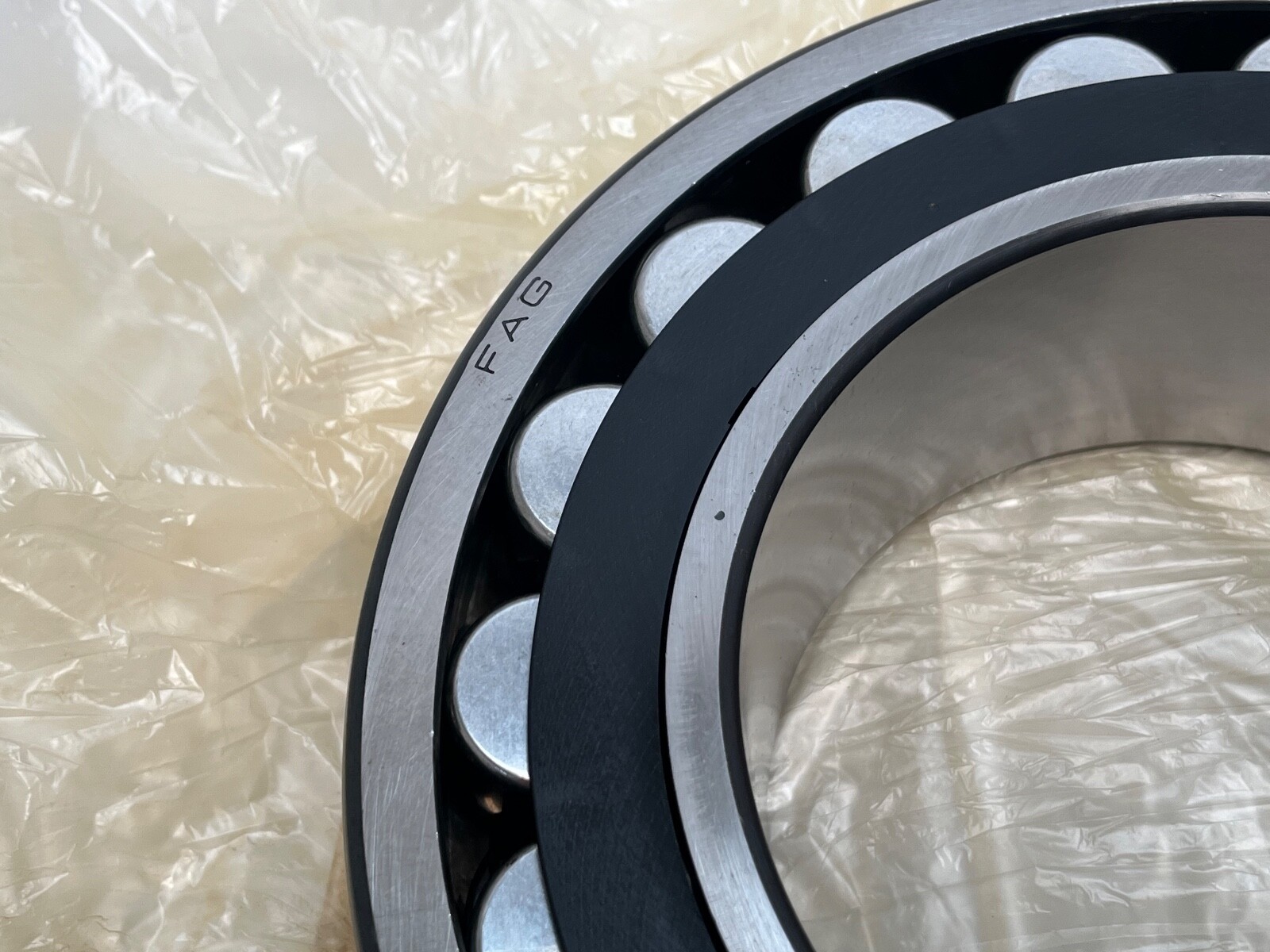

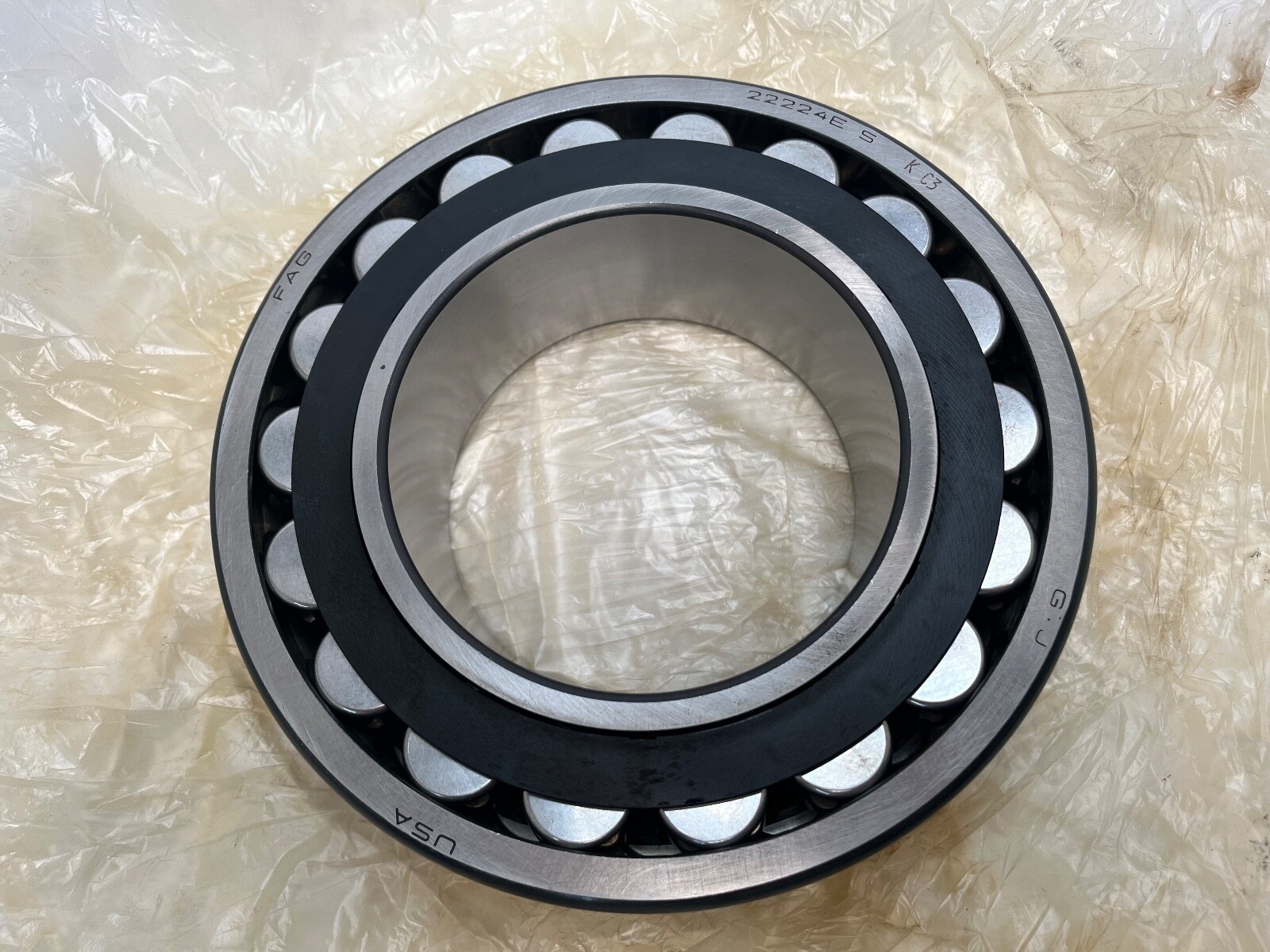

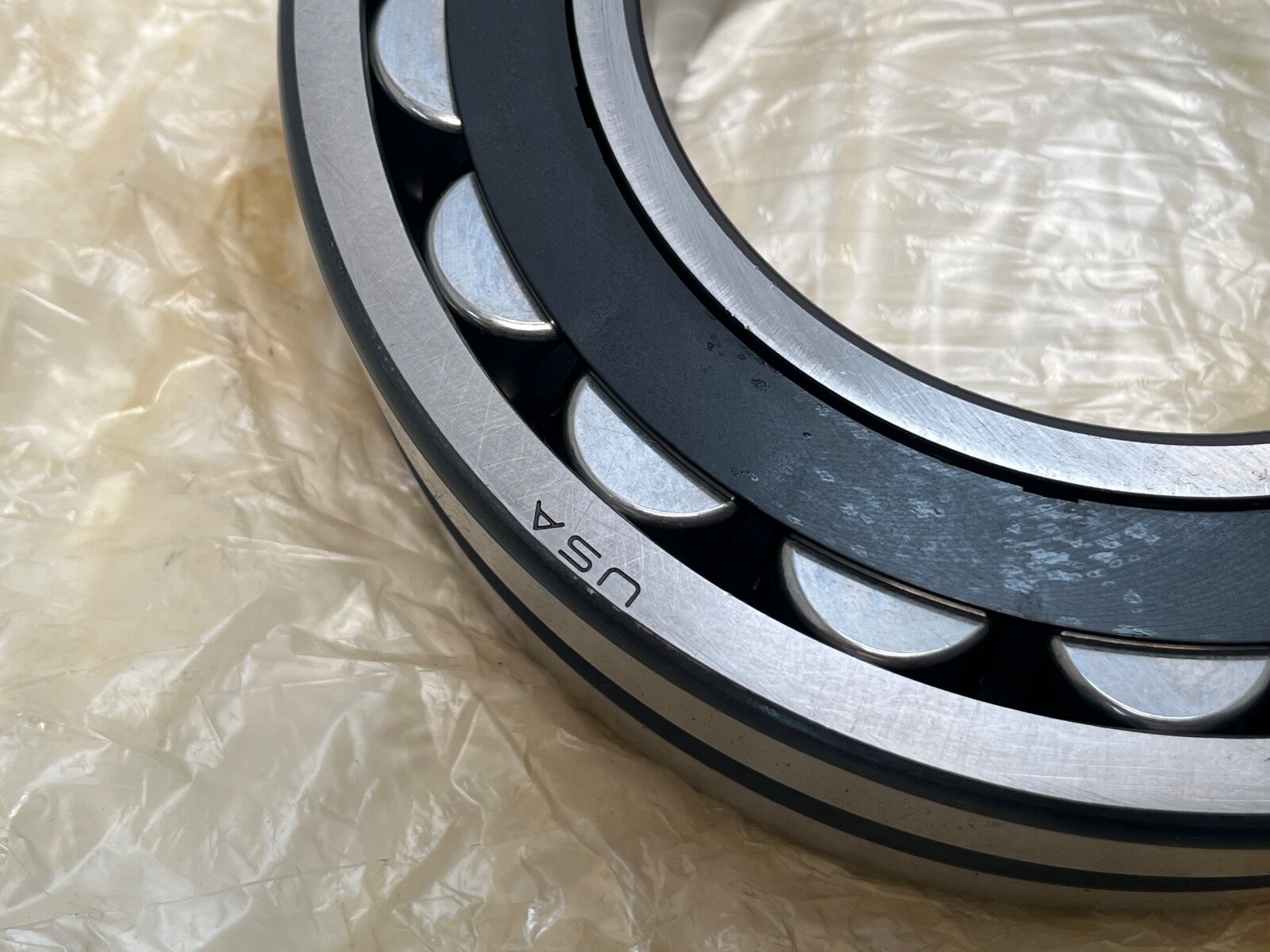

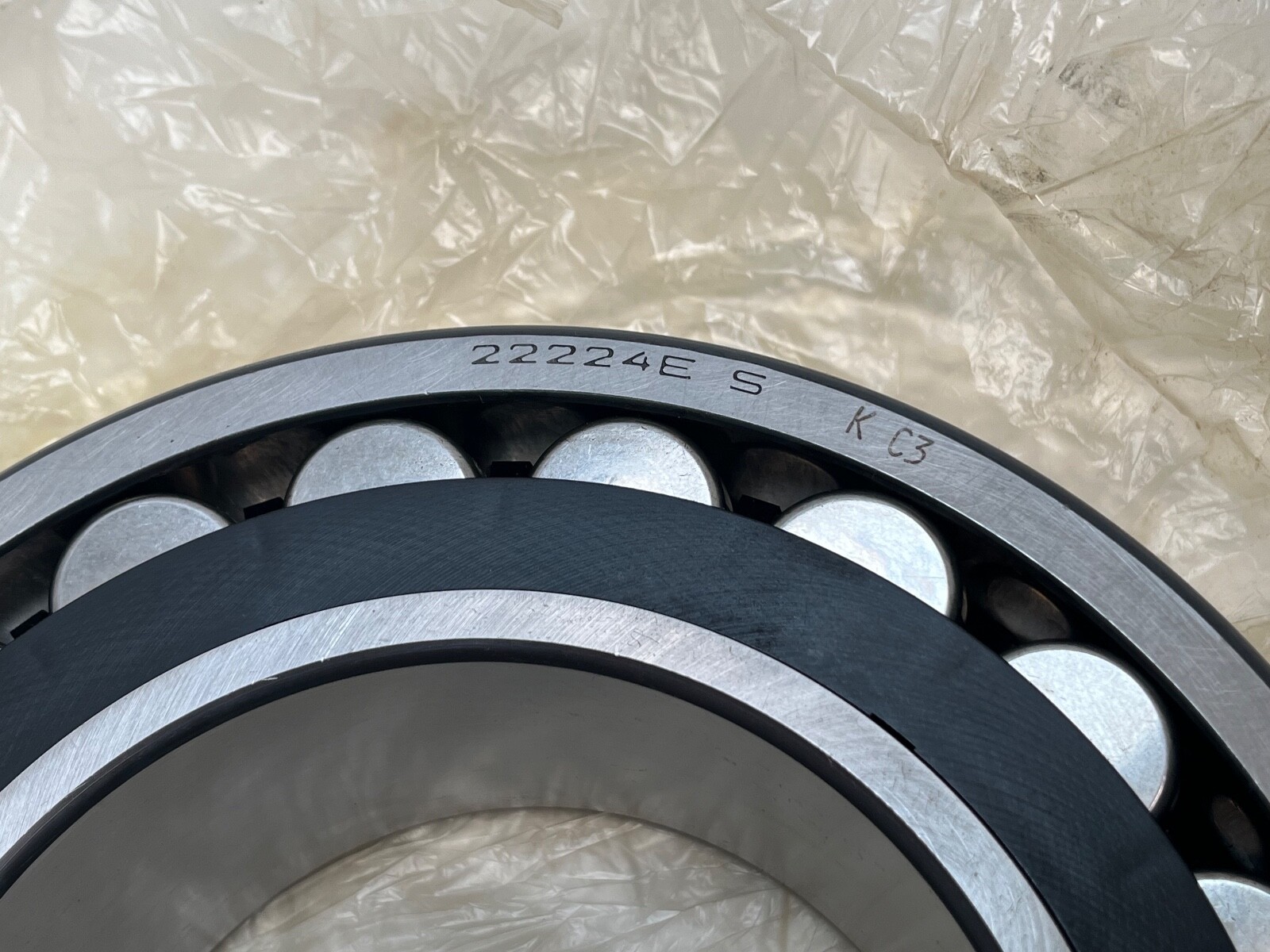

FAG 22224-ES-K-TVP-C3 spherical roller bearing, 120 x 215 x 58 mm, 1:12 tapered bore, C3 clearance, W33 lubrication groove, polyamide cage. Mounts on an H3124 adapter sleeve.
List Price
$235.58
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22224ESKTVPC3W33 |
| Model | 22224 ESK/CKY/ASK TVP C3 W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 120 mm |
| OD | 215 mm |
| Width | 58 mm |
| Base Number | 22224 |
|---|---|
| Industry Terms | spherical roller bearing, double row spherical roller bearing, tapered bore, W33 lubrication groove, self-aligning roller bearing |
| Common Misspellings | 22224ESKTVPC3, 22224 ESK TVPC3, 22224-ESK-TVP-C3, 22224ESK C3 |
| Application Types | Conveyors, crushers, vibrating screens, fans, paper machines, gearboxes, plummer block housings |
| Overall Width | 58 mm |
| Relubrication | Lubrication groove and holes in outer ring (S / W33) |
| Mpn Variants | 22224ESK.TVP.C3, 22224-ES-K-TVP-C3, 22224-ES-K-TVP-C3-W33, 22224 ESK TVP C3 W33, 22224 ESK/CKY/ASK TVP C3 W33 |
| Additional Attributes | Rolling Elements: Spherical Roller; Adapter sleeve: H3124; Withdrawal sleeve: AHX3124; Compatible With / Replaces: FAG 22224-E1-XL-K-C3 (current execution); Successor 22224-E1-XL-K-C3 data: Dynamic load rating 640,000 N; Static load rating 740,000 N; Fatigue load limit 70,000 N; Limiting speed 3,650 rpm; Reference speed 2,700 rpm; Mass 8.65 kg; e 0.25; Y1 2.71; Y2 4.04; Y0 2.65; Lubrication hole diameter 6.3 mm; Lubrication groove width 12.2 mm; Shaft shoulder 132-141 mm; Housing shoulder 203 mm; Max recess radius 2.1 mm; Min chamfer 2.1 mm; Operating temperature -30 °C to +200 °C; Cage sheet steel JPA |
| Cage Material | Glass-fibre reinforced polyamide |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Lubricant | grease or oil |
| Cross Reference 1 | SKF 22224 EK/C3 |
|---|---|
| Cross Reference 2 | NSK 22224EAKE4C3 |
FAG 22224-ES-K-TVP-C3 (22224ESK.TVP.C3) is a double-row spherical roller bearing in the 222 series with a tapered bore and outer-ring lubrication groove. Bearing type: Spherical roller bearing. Bore Diameter: 120 mm. Outside Diameter: 215 mm. Overall Width: 58 mm. Number Of Rows: 2.
222 — spherical roller bearing, dimension series 22.
24 — bore code, 24 x 5 = 120 mm.
E — FAG increased-capacity internal design.
S — lubrication groove in the outer ring outside surface with radial lubrication holes, equivalent to W33.
K — tapered bore, taper 1:12.
TVP — glass-fibre reinforced polyamide cage.
C3 — radial internal clearance larger than CN.
Bore Type: Tapered 1:12. Cage Material: Glass-fibre reinforced polyamide. Internal Clearance: C3. Relubrication: Lubrication groove and holes in outer ring (S / W33). Lubricant: grease or oil. Seal type: Open. Closure Type: Open. The two roller rows run on a spherical outer raceway, so the bearing carries heavy radial load with axial load in both directions and accommodates shaft misalignment. The groove and holes feed grease or oil directly between the roller rows.
Successor 22224-E1-XL-K-C3 data (Schaeffler medias): Dynamic load rating 640,000 N. Static load rating 740,000 N. Fatigue load limit 70,000 N. Limiting speed 3,650 rpm. Reference speed 2,700 rpm. Mass 8.65 kg. Load factors e 0.25, Y1 2.71, Y2 4.04, Y0 2.65. Operating temperature −30 °C to +200 °C. Lubrication hole diameter 6.3 mm, lubrication groove width 12.2 mm. The successor uses a sheet steel JPA cage.
Adapter sleeve: H3124. Withdrawal sleeve: AHX3124. Successor 22224-E1-XL-K-C3 data: shaft shoulder diameter 132 to 141 mm, housing shoulder diameter 203 mm, maximum recess radius 2.1 mm, minimum chamfer 2.1 mm, minimum sleeve cavity diameter 128 mm, minimum sleeve cavity width 11 mm.
Compatible With / Replaces: FAG 22224-E1-XL-K-C3 is the current Schaeffler execution on this envelope. Cross-Reference: SKF 22224 EK/C3, NSK 22224EAKE4C3. MPN Variants: 22224ESK.TVP.C3, 22224-ES-K-TVP-C3, 22224-ES-K-TVP-C3-W33, 22224 ESK TVP C3 W33.
