Availability:
3 in stock
Spherical roller bearing, 95 mm tapered bore x 170 mm OD x 43 mm, polyamide cage, CN clearance, W33 lube groove. Mounts on an H319 adapter sleeve.
List Price
$137.11
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22219ESKTVPB |
| Model | 22219-ES-K-TVPB |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 95 mm |
| OD | 170 mm |
| Width | 43 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Lubricant | grease or oil |
| Base Number | 22219 |
| Industry Terms | spherical roller bearing; self-aligning roller bearing; taper bore roller bearing; adapter sleeve bearing; W33 roller bearing |
| Application Types | Conveyor pulleys; gearboxes and reducers; fans and blowers; vibrating screens; paper machine rolls |
| Mpn Variants | 22219ESK.TVPB; 22219-ES-K-TVPB; 22219ESKTVPB; 22219 ES K TVPB; 22219E; 22219EK |
| Compatible With Replaces | Adapter sleeve FAG H319 (85 mm shaft seat), KM19 locknut, MB19 lock washer |
| Rolling Elements | Spherical Roller |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Tapered |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Relubrication Feature | W33 groove and three radial holes |
| Harmonization Code | 8482.30.00 |
| Cross Reference 1 | SKF 22219 EK |
|---|---|
| Cross Reference 2 | NSK 22219EAKE4 |
| Cross Reference 3 | Timken 22219KEJW33 |
| Cross Reference 4 | Koyo 22219RHKW33 |
| Cross Reference 6 | FAG 22219-E1-XL-K – current FAG design |

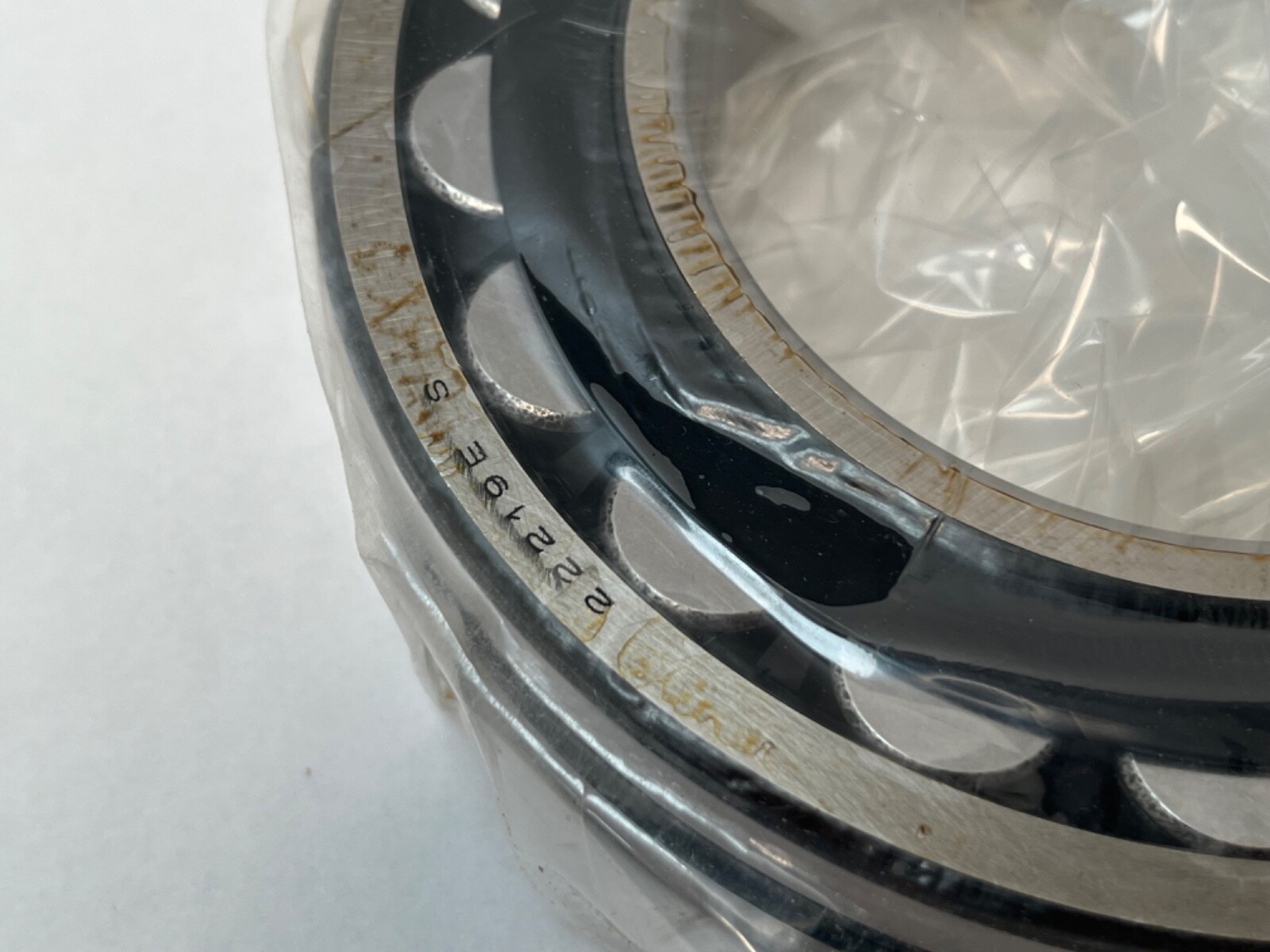

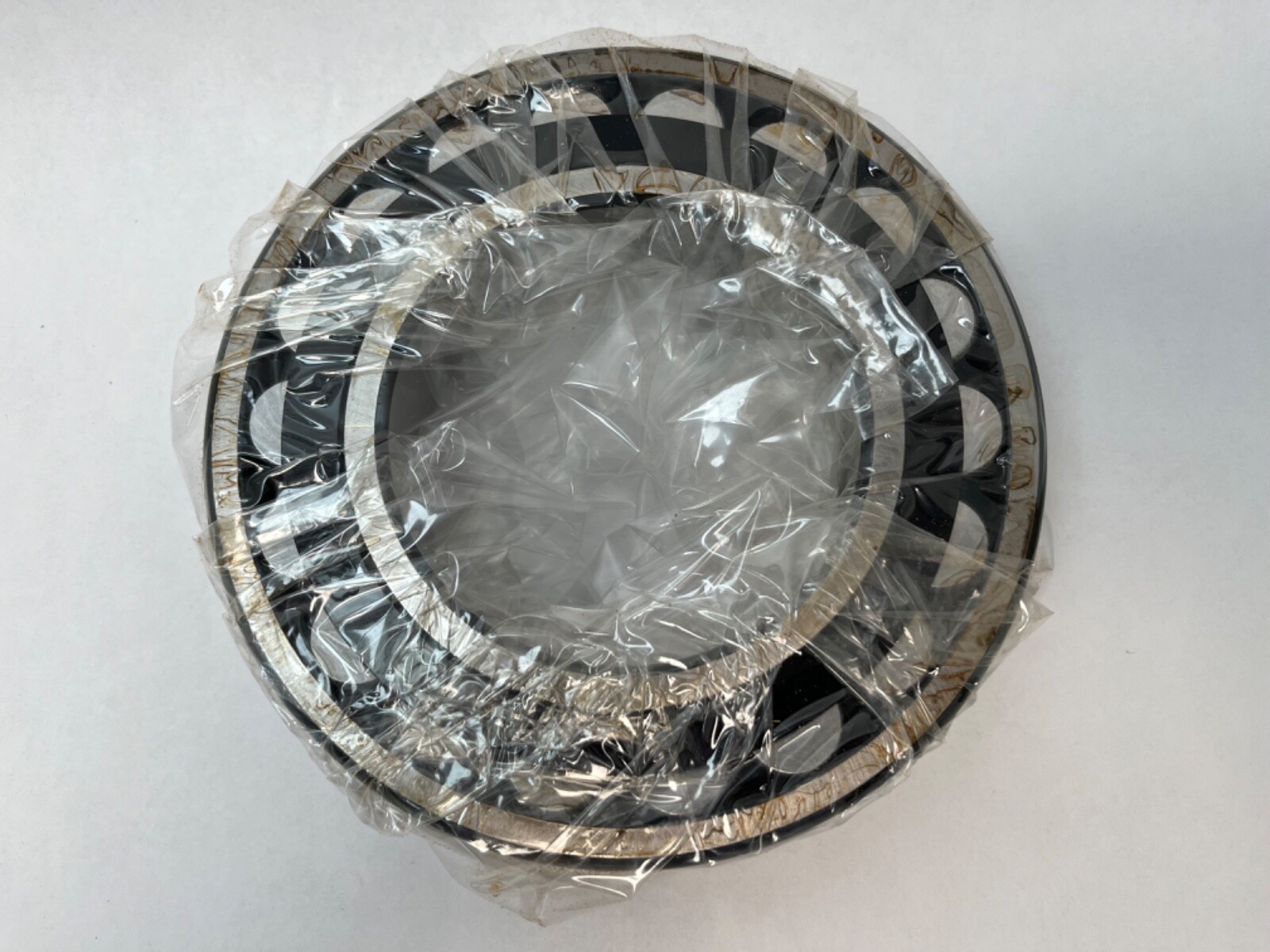

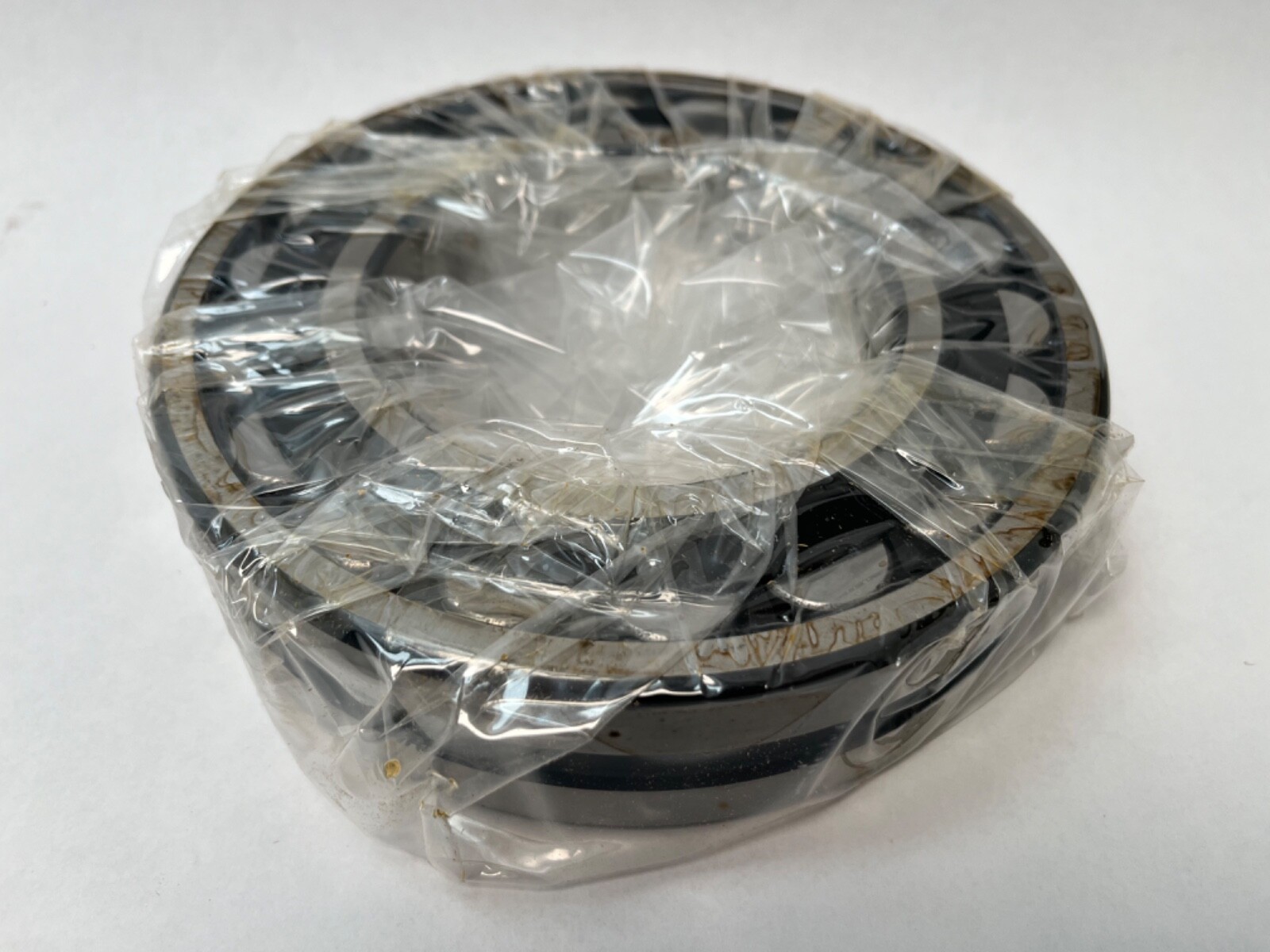

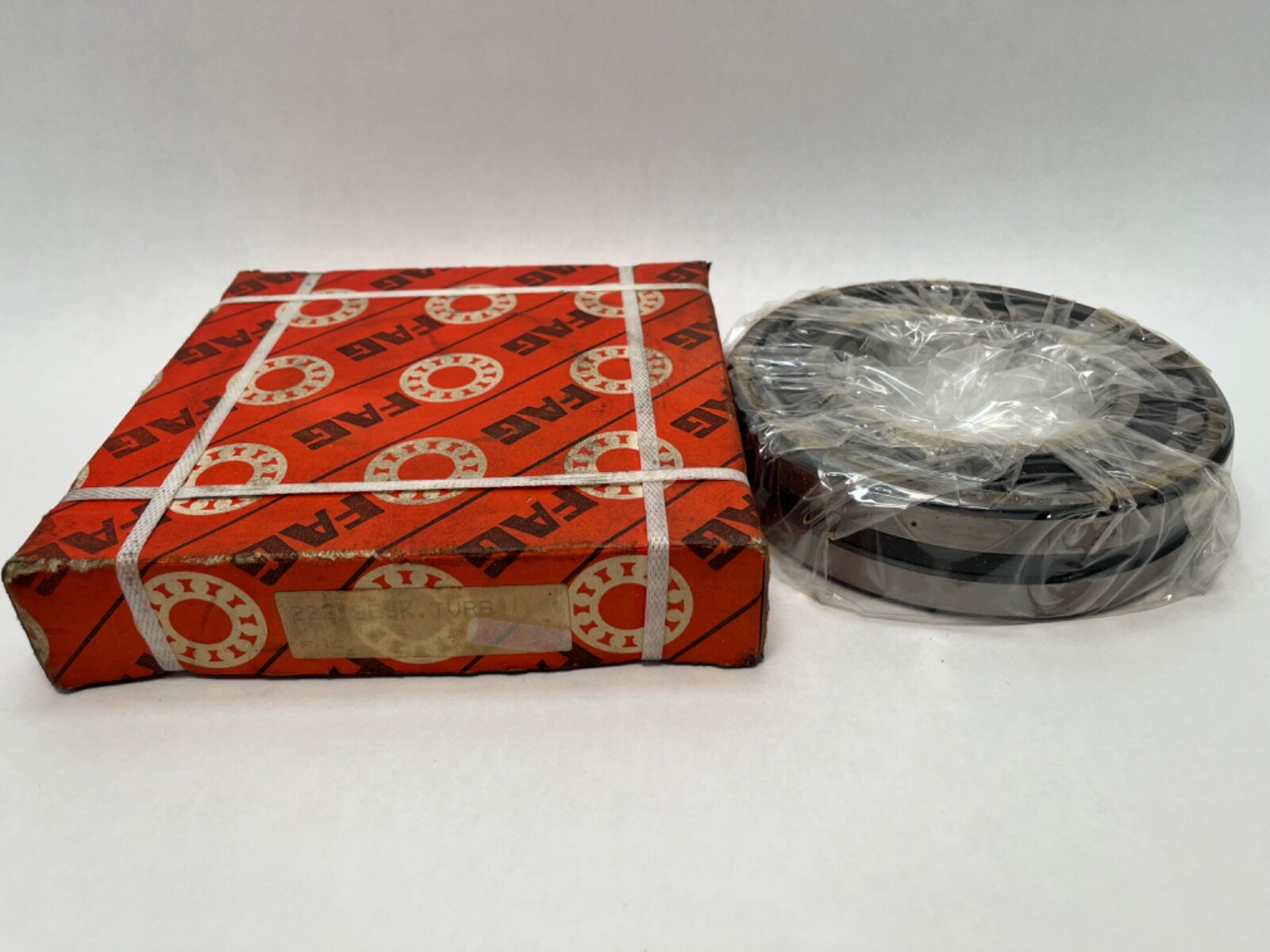

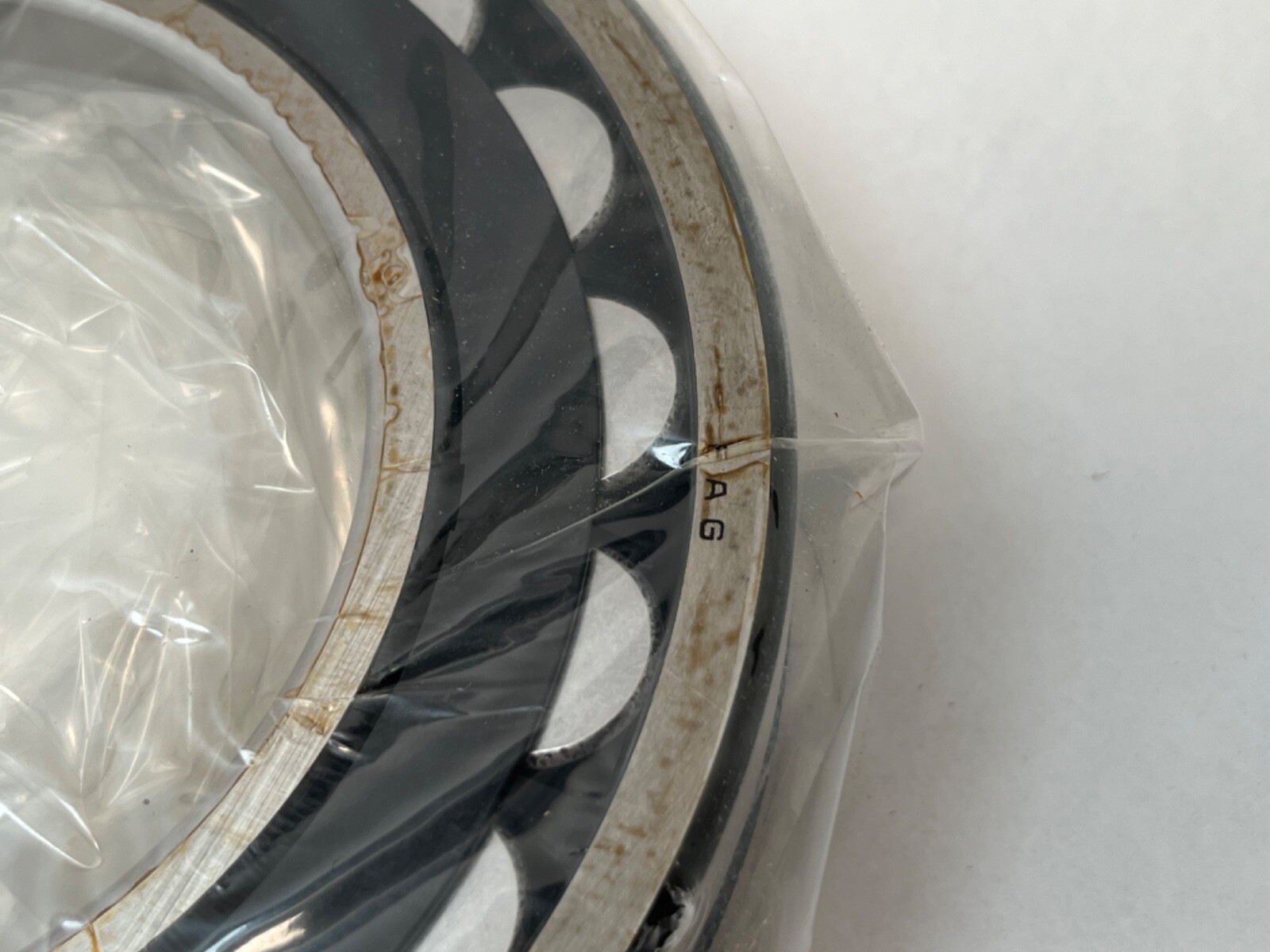

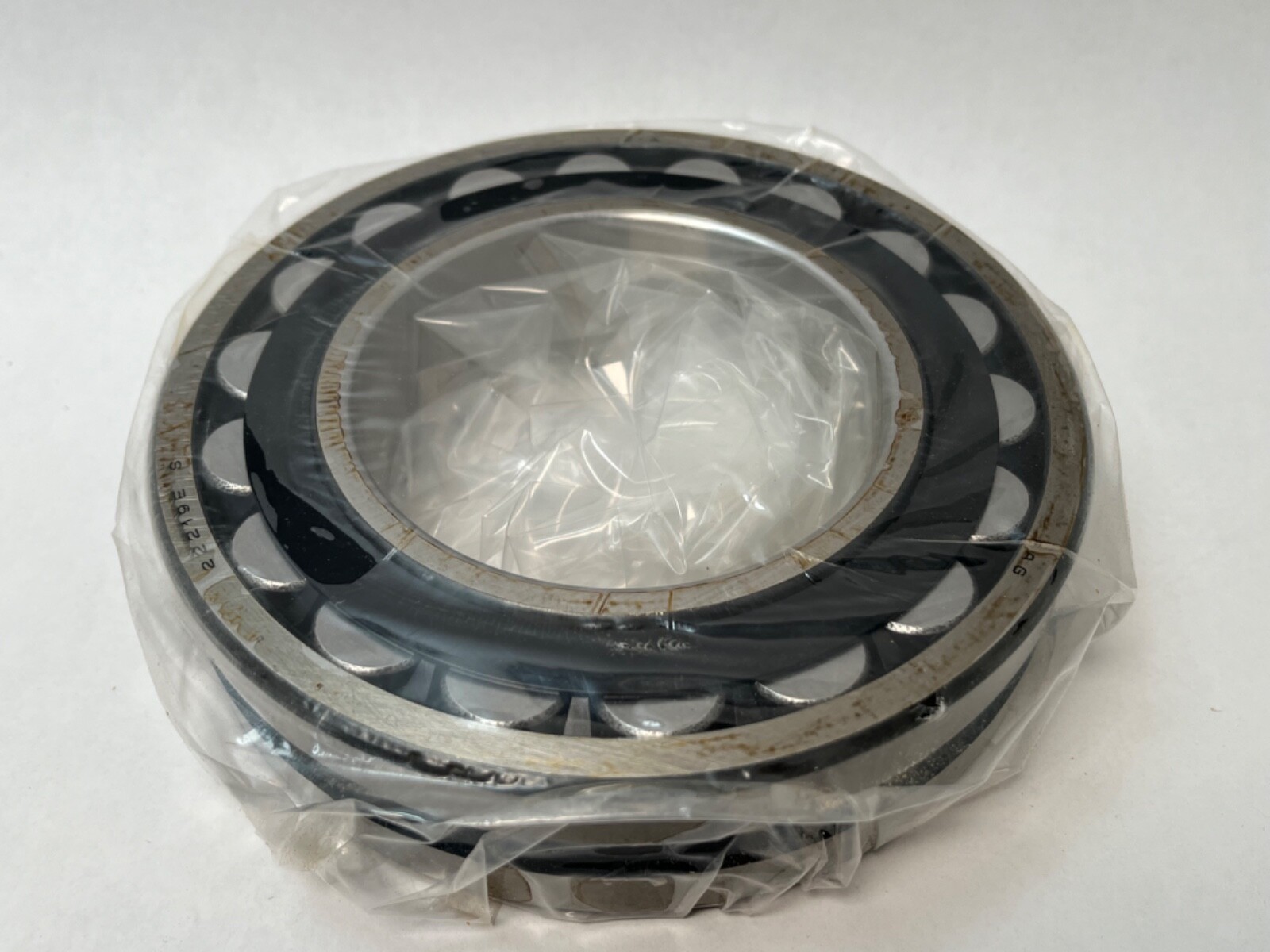

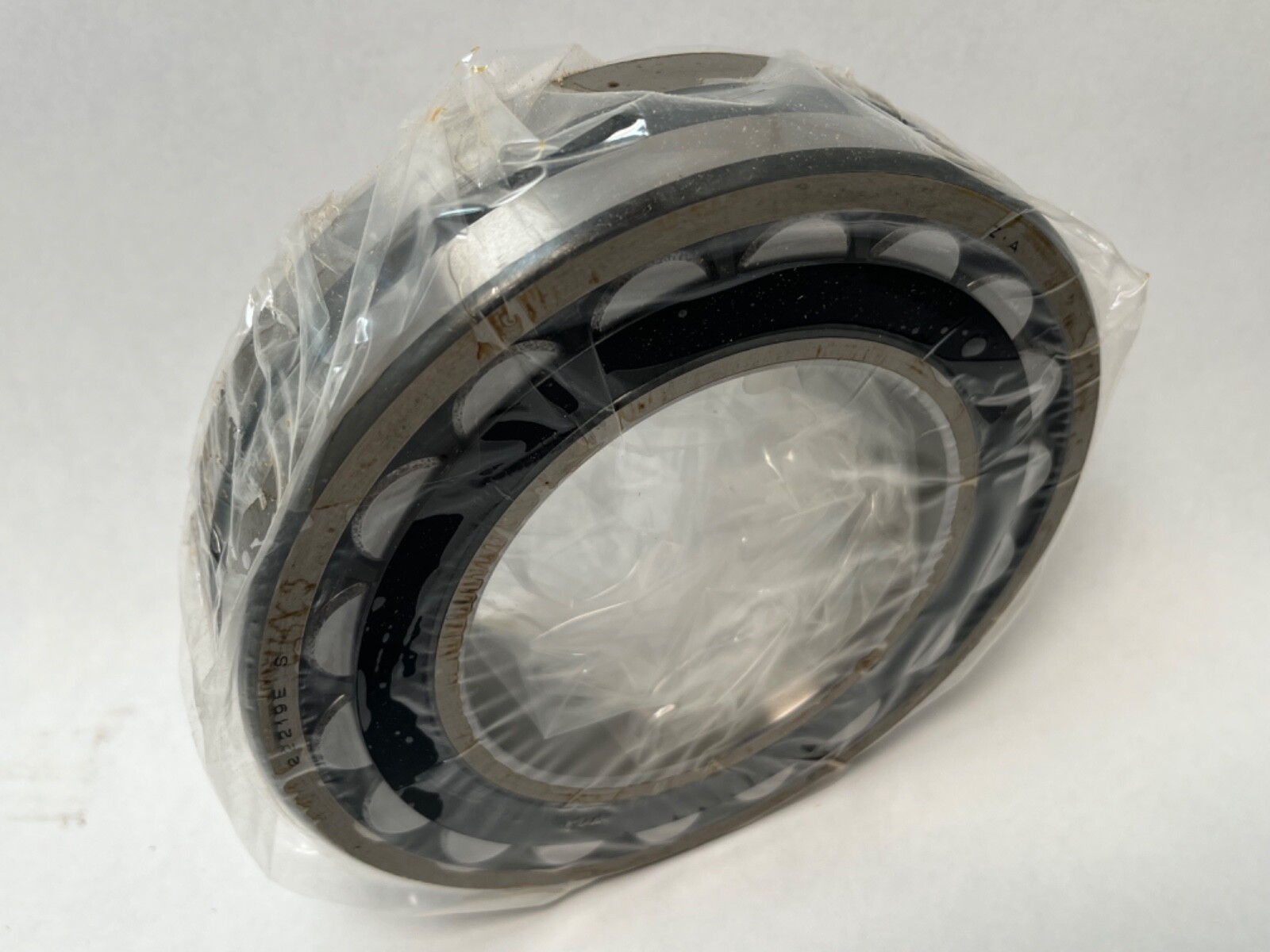

FAG 22219ESK.TVPB double-row spherical roller bearing with a 1:12 tapered bore. Bore Diameter: 95 mm. Outside Diameter: 170 mm. Width: 43 mm. Number Of Rows: 2. Seal Type: Open.
222 — double-row spherical roller bearing, 22 dimension series.
19 — bore code, 19 × 5 = 95 mm.
E — FAG reinforced E internal design.
S — lubrication groove and three radial holes in the outer ring, the W33 feature.
K — 1:12 tapered bore.
TVPB — glass-fibre reinforced polyamide cage.
The spherical outer raceway lets the bearing align itself to shaft deflection and housing misalignment while carrying heavy radial load and thrust in both directions. Cage Material: Polyamide, light and low-friction. Internal Clearance: CN. Lubricant: grease or oil, fed through the outer-ring groove and holes.
Bore Type: Tapered 1:12. Adapter sleeve for a cylindrical shaft: FAG H319, 85 mm shaft seat, with KM19 locknut and MB19 lock washer.
Unit Quantity: 1 Pc. Bearing only.
Cross-Reference: SKF 22219 EK, NSK 22219EAKE4, Timken 22219KEJW33, Koyo 22219RHKW33 — same envelope, tapered bore and normal clearance, with each maker’s own cage. Current FAG design of the same size: 22219-E1-XL-K.
