FAG 22216ES.TVPB spherical roller bearing, 80 x 140 x 33 mm, straight bore, polyamide cage, outer-ring lubrication groove and holes. Normal CN clearance.
List Price
$75.82
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22216ES.TVPB |
| Model | 22216-ES-TVPB-W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 80 mm |
| OD | 140 mm |
| Width | 33 mm |
| Series | 22200 |
|---|---|
| Closure Type | Open |
| Cage Type | Window, roller-guided |
| Rolling Elements | Spherical Roller |
| Cage Material | Glass-fibre reinforced polyamide |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Relubrication Feature | Yes |
| Harmonization Code | 8482.30.00.40 |
| Internal Clearance | CN |
| Base Number | 22216 |
| Overall Width | 33 mm |
| Mpn Variants | 22216ES.TVPB, 22216-ES-TVPB, 22216ESTVPBW33, 22216-ES-TVPB-W33, 22216E |
| Compatible With Replaces | Successor: Schaeffler 22216-E1-XL |
| Lubricant | Grease or oil |
| Cross Reference 1 | FAG 22216-E1-XL - current designation |
|---|---|
| Cross Reference 2 | SKF 22216 E - no W33 groove |
| Cross Reference 3 | NSK 22216EAE4 |
| Cross Reference 4 | NTN 22216EAW33 |
| Cross Reference 5 | Timken 22216EJW33 |
| Cross Reference 6 | Koyo 22216RHRW33 |

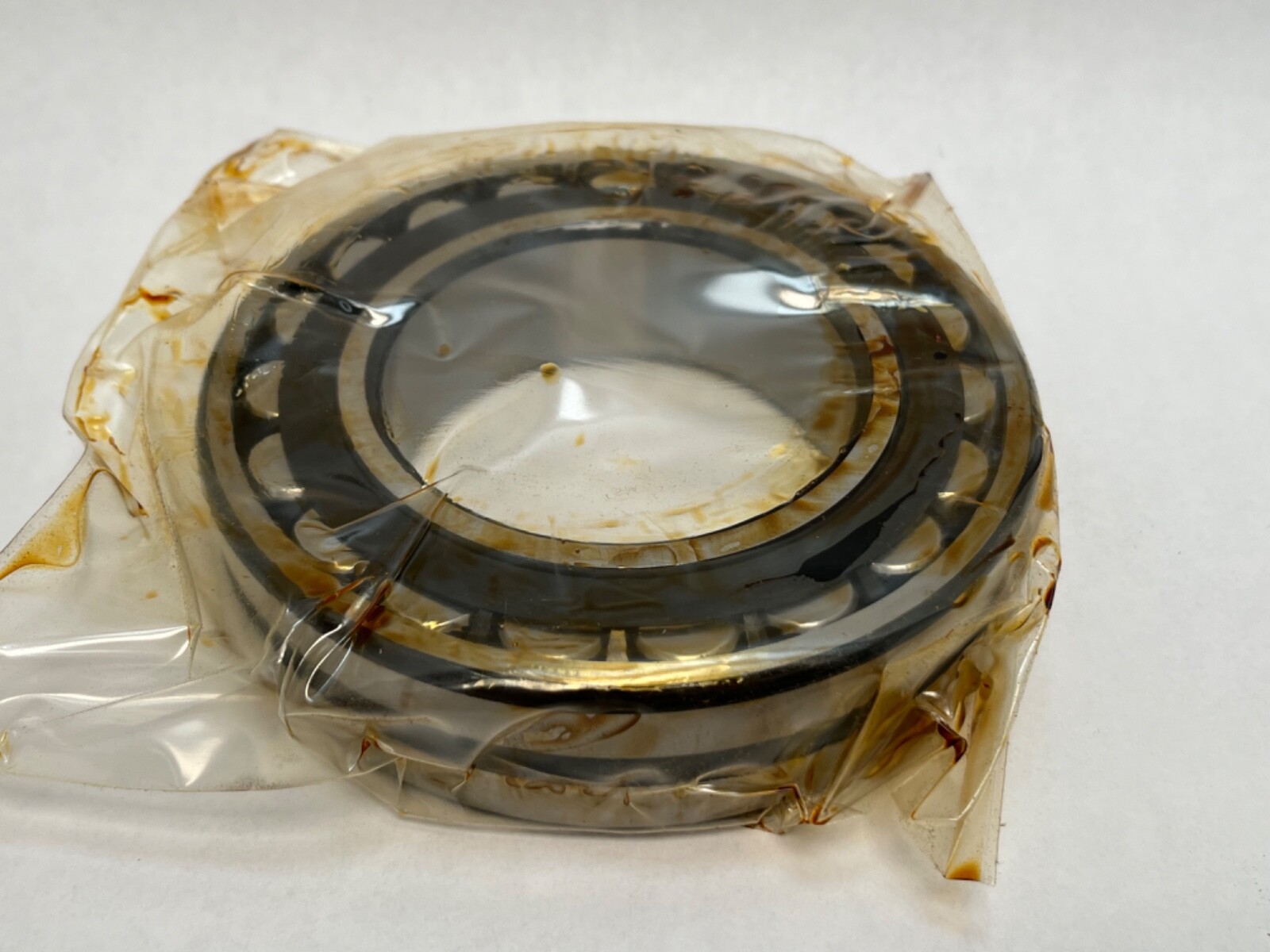

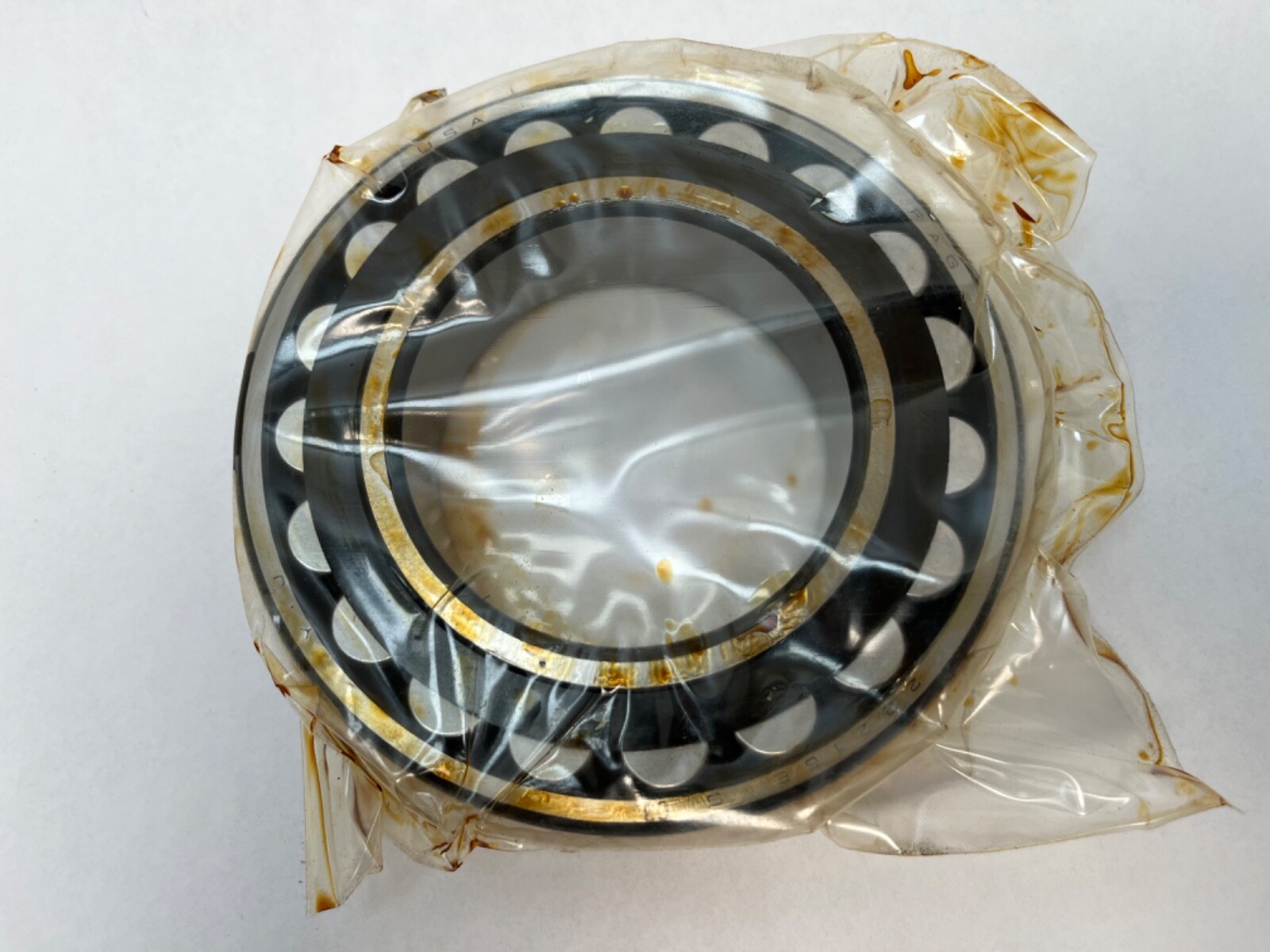

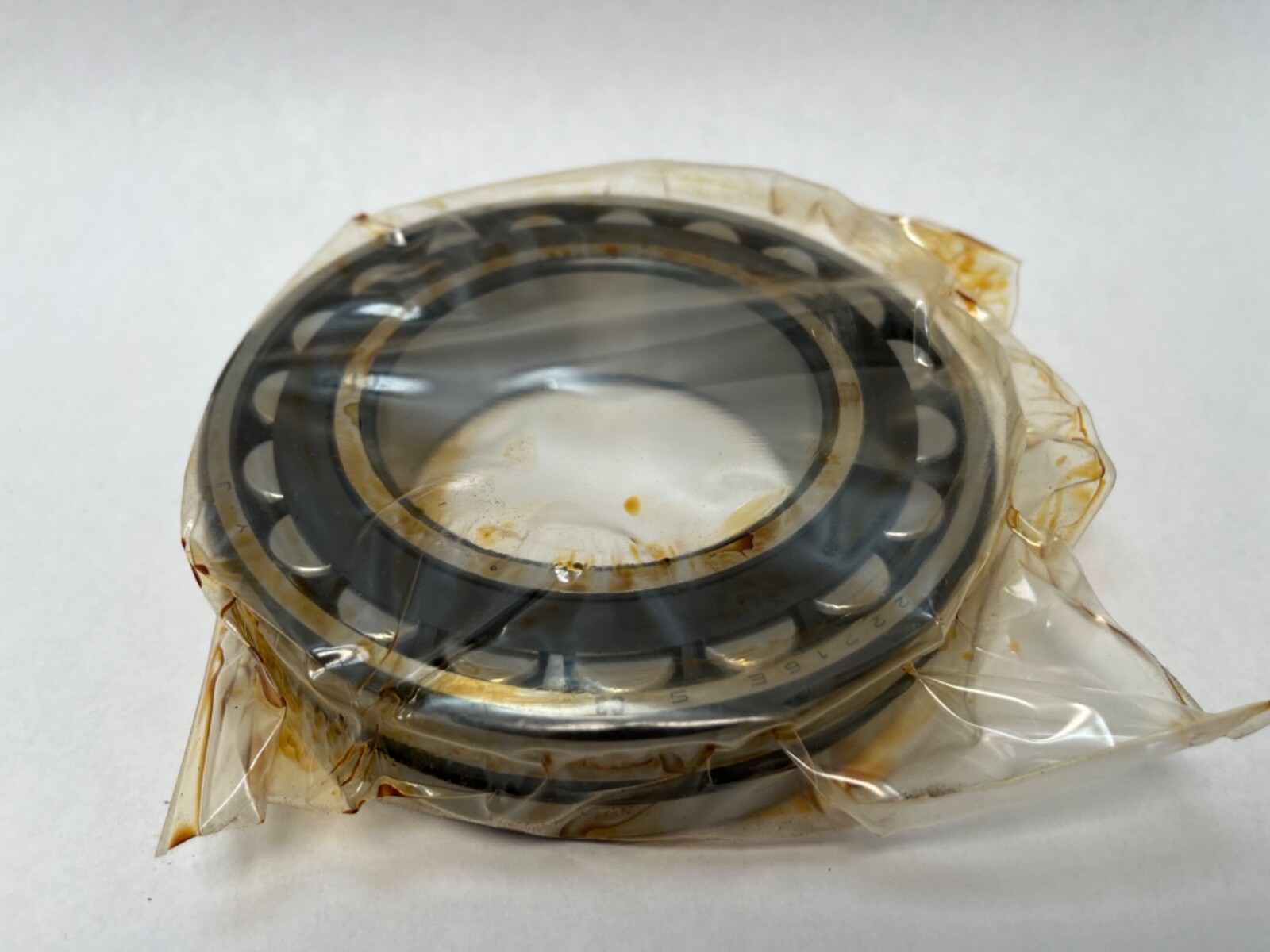

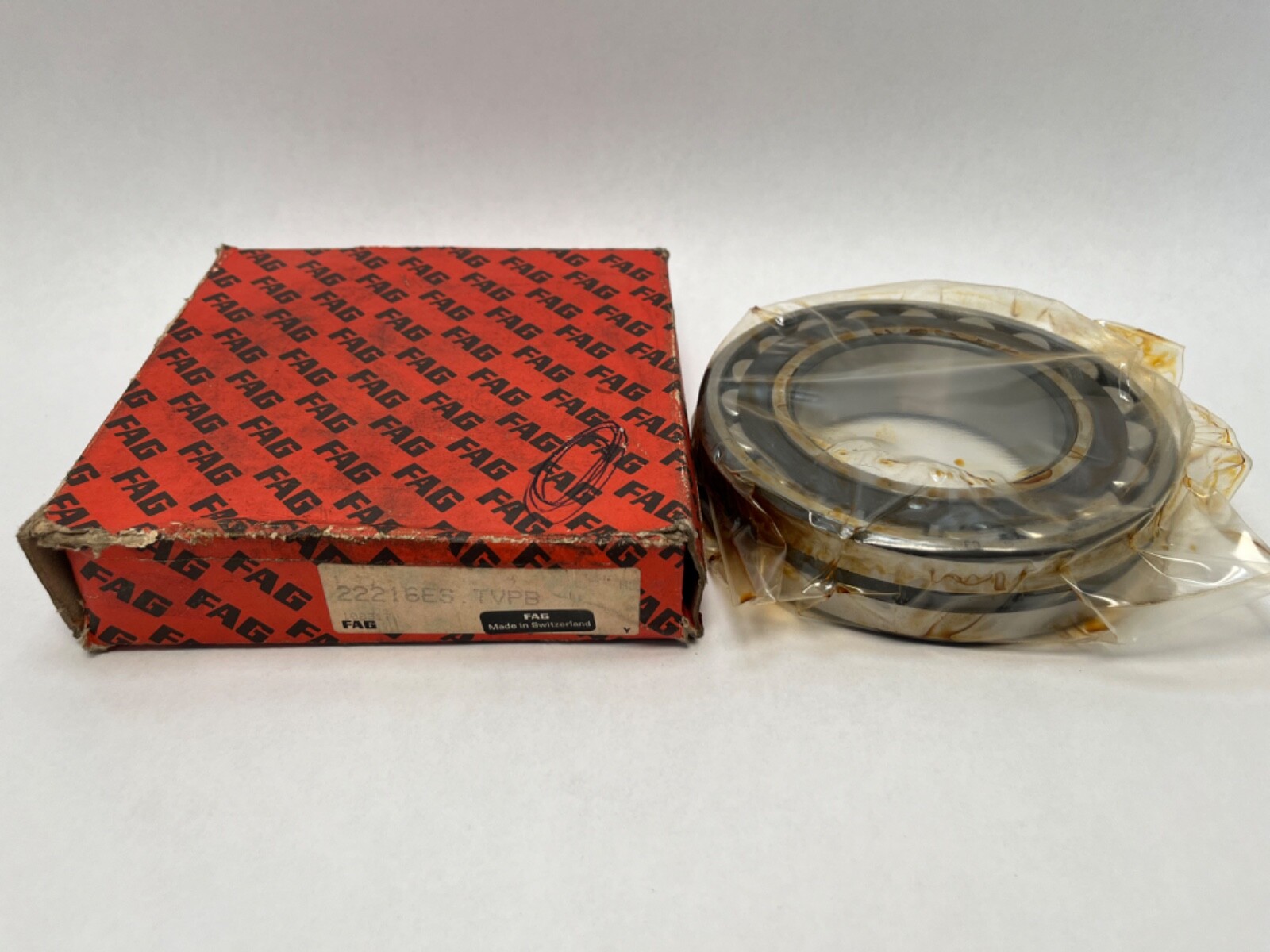

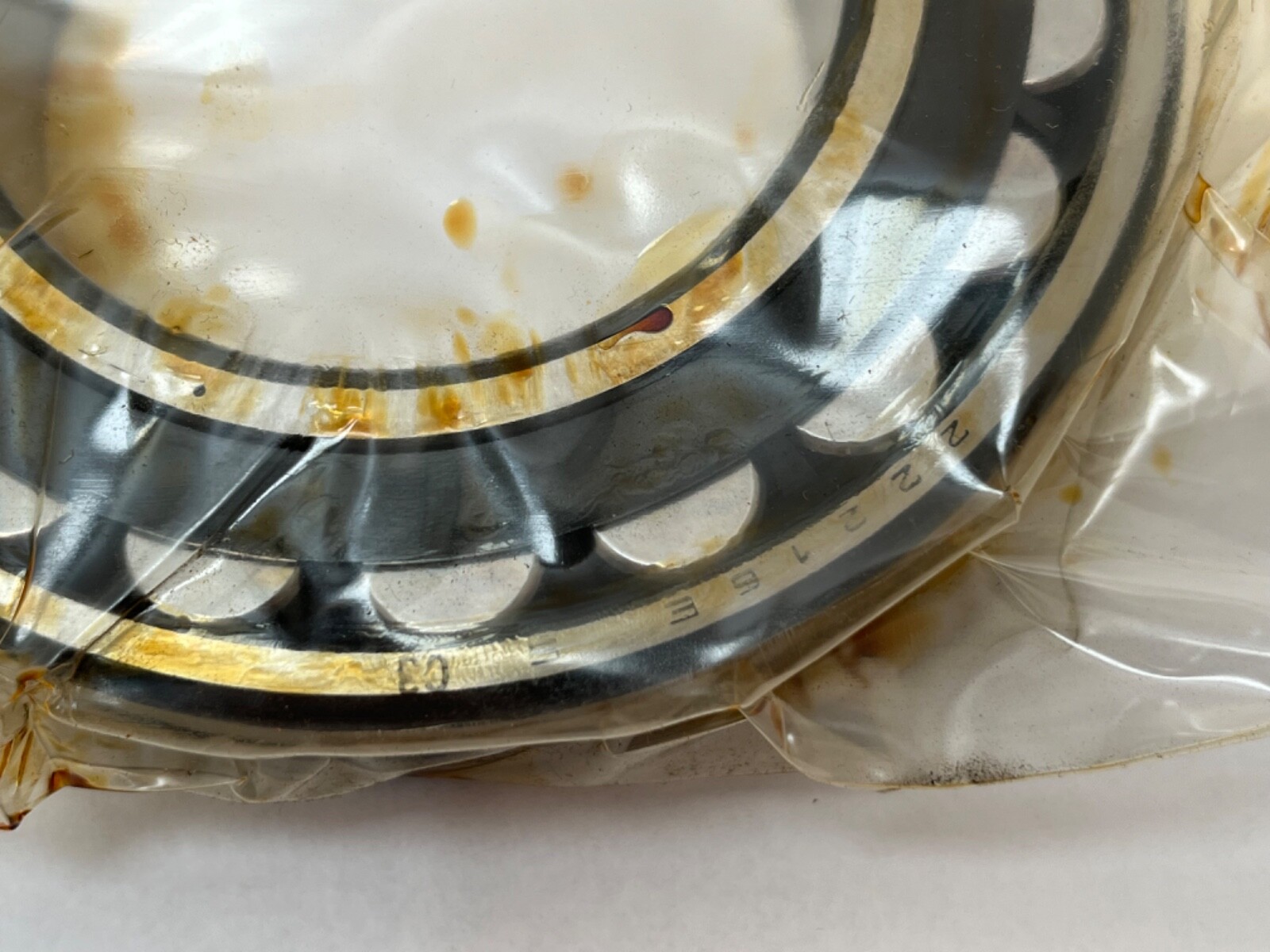

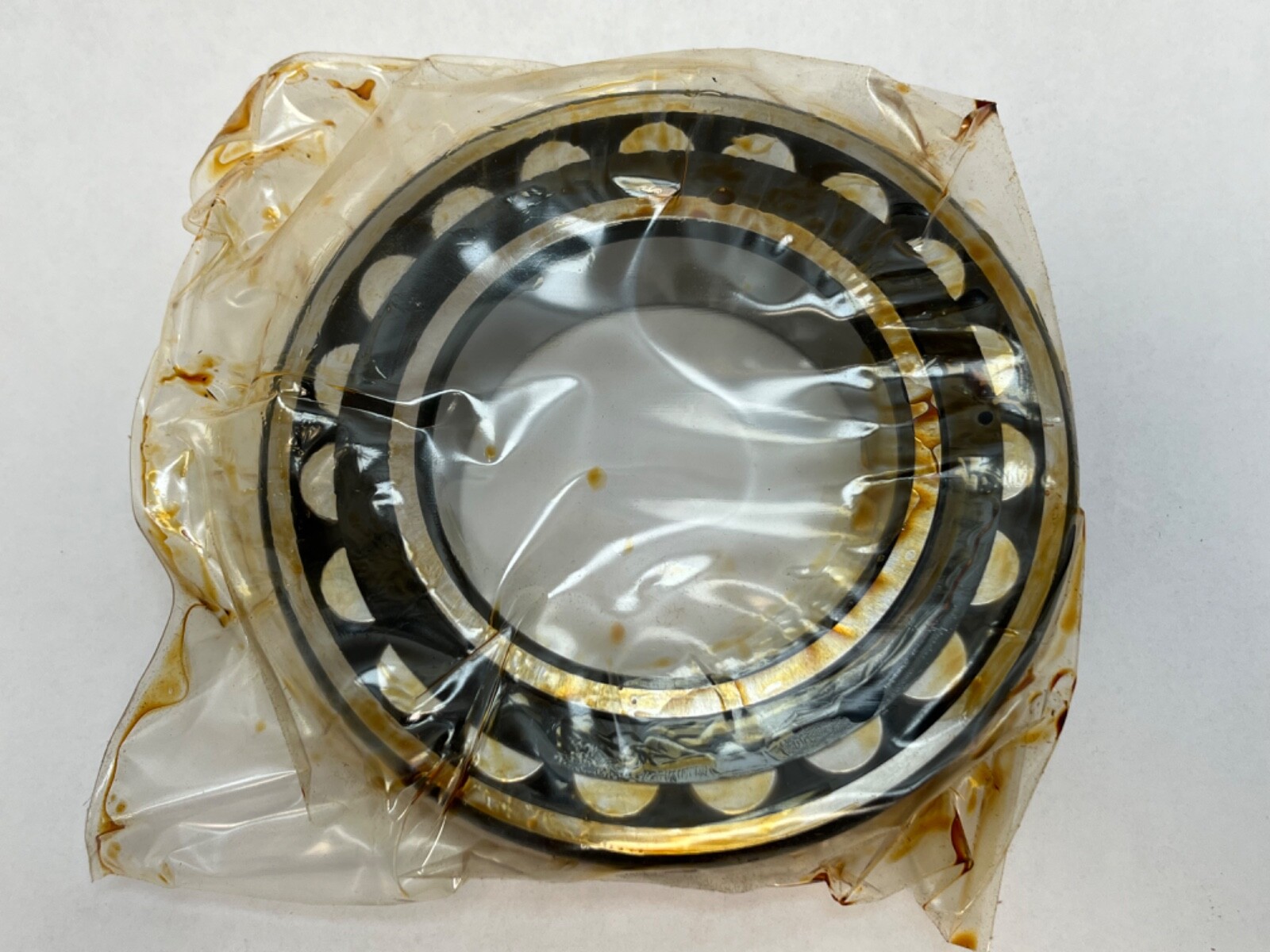

FAG 22216ES.TVPB double-row spherical roller bearing with a straight bore, a lubrication groove with radial feed holes in the outer ring, and a glass-fibre polyamide cage. Bore Diameter: 80 mm. Outside Diameter: 140 mm. Overall Width: 33 mm. The spherical outer raceway self-aligns under shaft deflection and mounting misalignment. Unit Quantity: 1 Pc.
222 — spherical roller bearing, dimension series 22 (light width, 02 diameter series).
16 — bore code; 16 x 5 = 80 mm bore.
E — FAG reinforced internal design.
S — lubrication groove and three radial lubrication holes in the outer ring, the W33 provision.
TVPB — glass-fibre reinforced polyamide cage, roller-guided.
Bearing Type: Spherical Roller Bearing. Bore Diameter: 80 mm. Outside Diameter: 140 mm. Overall Width: 33 mm. Rolling Elements: Spherical Roller. Number Of Rows: 2. Bore Type: Straight (cylindrical). Cage Material: Glass-fibre reinforced polyamide. Cage Type: Window, roller-guided. Closure Type: Open. Internal Clearance: CN. Lubricant: grease or oil, fed through the outer-ring groove and holes. Relubrication Feature: Yes. Series: 22200. Base Number: 22216. Unit Quantity: 1 Pc.
Straight bore, 80 mm. Outer-ring lubrication groove with three radial feed holes (W33).
Cross-references: FAG 22216-E1-XL (current Schaeffler designation). SKF 22216 E (no W33 groove). NSK 22216EAE4. NTN 22216EAW33. Timken 22216EJW33. Koyo 22216RHRW33. Searchable forms: 22216ES.TVPB, 22216-ES-TVPB, 22216ESTVPBW33, 22216-ES-TVPB-W33, 22216E.
Bore Diameter: 80 mm. Outside Diameter: 140 mm. Overall Width: 33 mm. Bore Type: Straight (cylindrical).
A glass-fibre reinforced polyamide cage, roller-guided.
Internal Clearance: CN. Cage Material: Glass-fibre reinforced polyamide.
