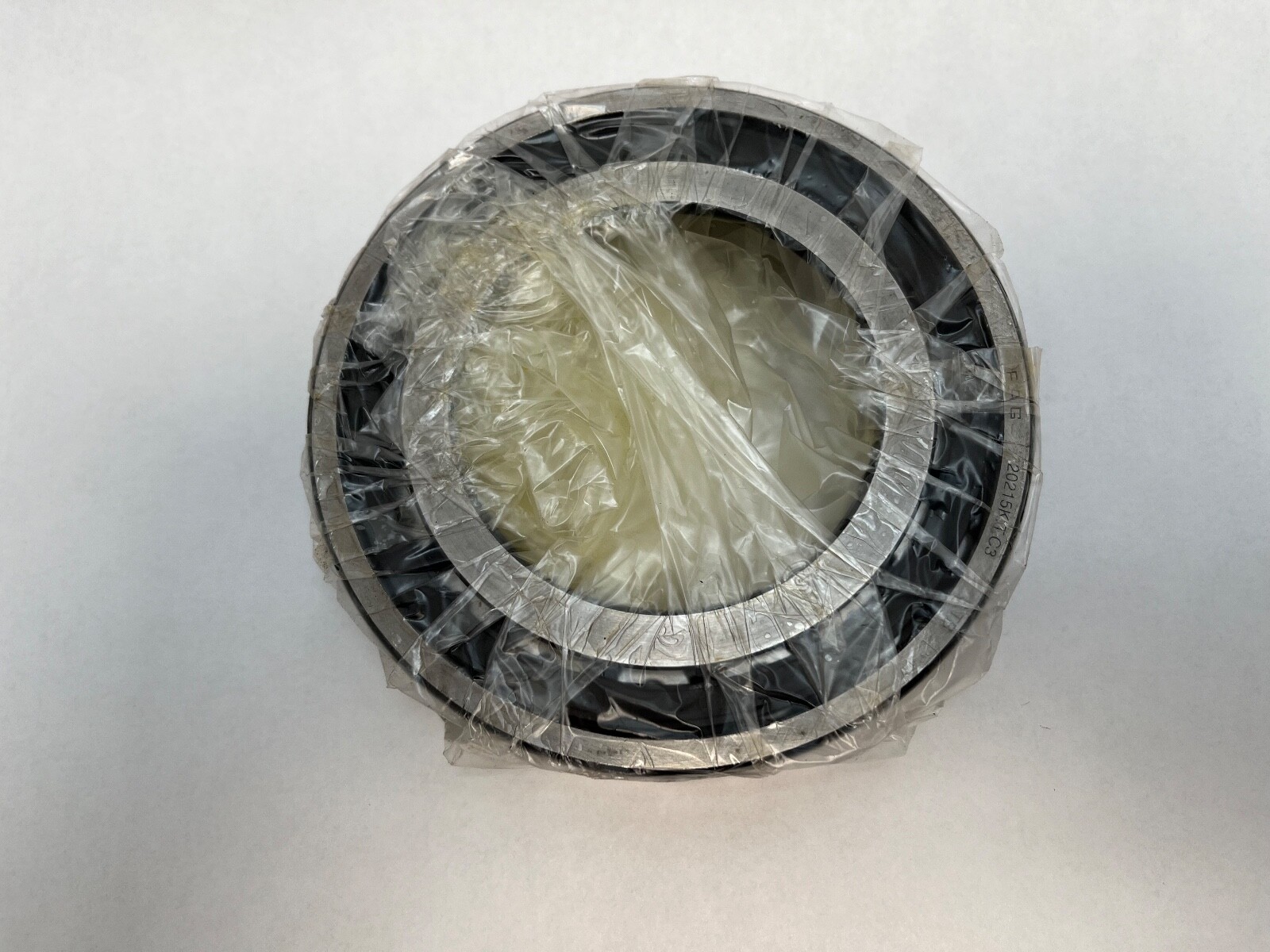

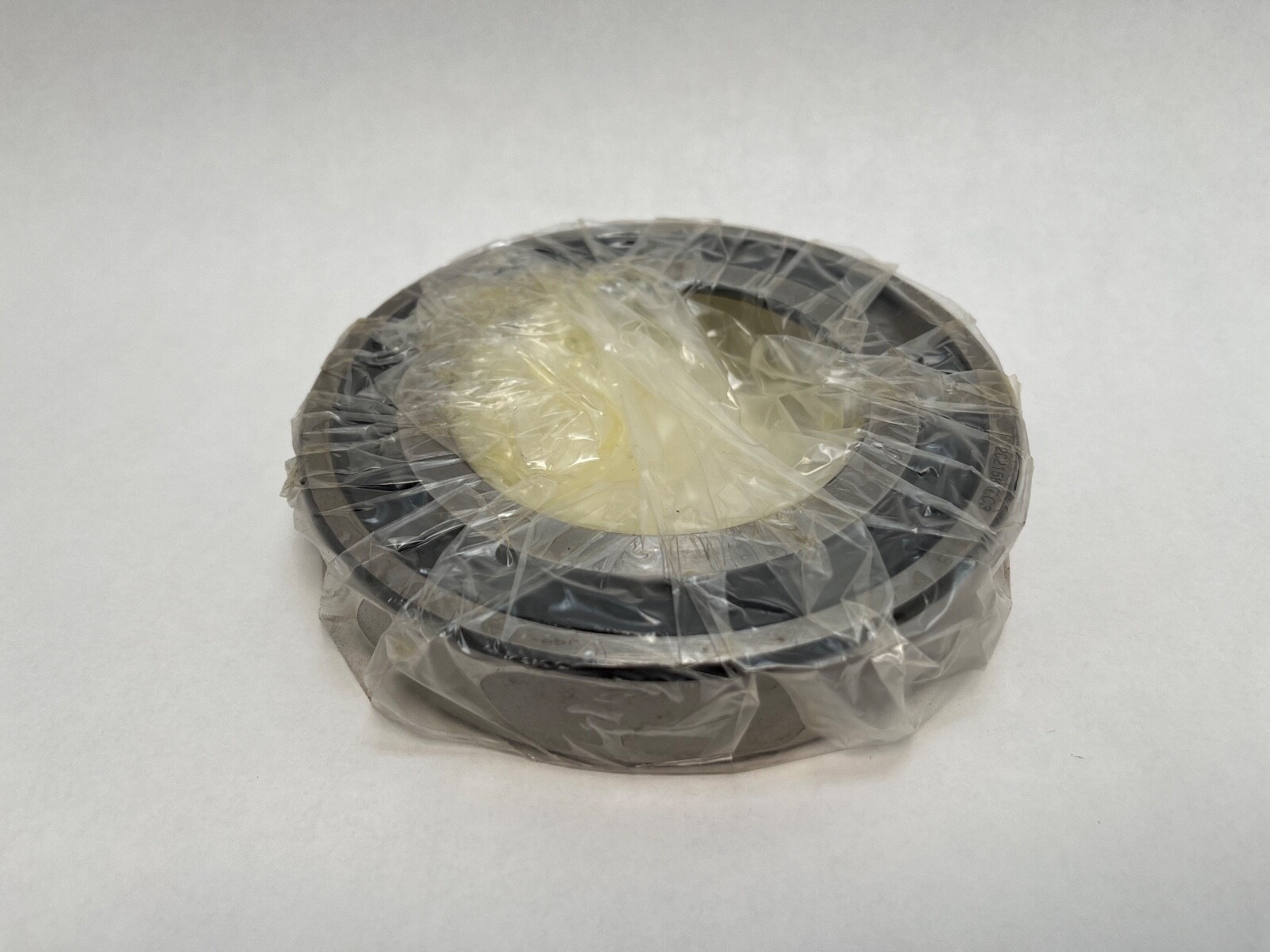

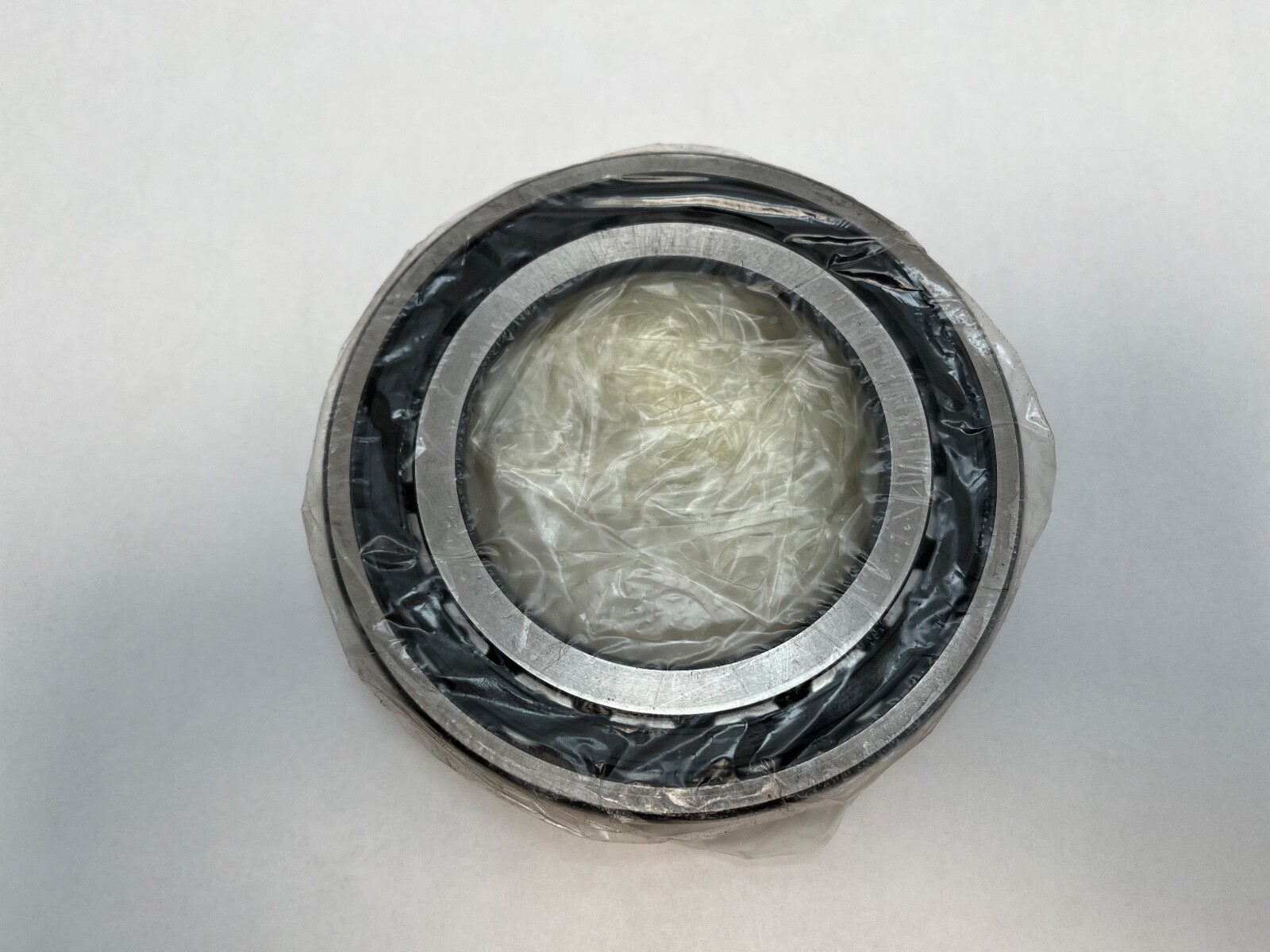

Single-row barrel roller bearing, 75 mm tapered bore x 130 mm OD x 25 mm wide, 1:12 taper, laminated fabric cage, C3 clearance, self-aligning and radial-load only. Bearing only, sold as 1 Pc.
List Price
$147.42
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 20215K.T.C3 |
| GTIN | 4012801014014 |
| Model | 20215K.T.C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 25 mm |
| Material | Bearing Steel |
|---|---|
| Series | 20200 |
| Base Number | 20215K |
| Industry Terms | barrel roller bearing, spherical roller bearing single row, self aligning roller bearing, tapered bore roller bearing, adapter sleeve bearing, C3 clearance bearing |
| Common Misspellings | FAG 20215KTC3, 2O215K T C3, FAG 20215 K.T.C3, FAG 20215KTC-3, 20215-KTC3 |
| Application Types | Fans and blowers, conveyor pulleys, gear drives, paper machine rolls, agitators |
| Bore Shaft Size | 75 mm (2.9528 in), tapered 1:12 |
| Mpn Variants | 20215K.T.C3, 20215-K-T-C3, 20215 K T C3, 20215KTC3, 20215K, 20215KC3 |
| Manufacturer Status | FAG is part of Schaeffler |
| Compatible With Replaces | Adapter sleeve H215 for a 70 mm shaft, ordered separately |
| Rolling Elements | Roller |
| Number Of Rows | 1 |
| Bore Type | Tapered |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.30.00 |
| Part Number | 20215K.T.C3 |
| Cross Reference 1 | SKF 20215 K/C3 |
|---|---|
| Cross Reference 2 | NSK 20215KC3 |
| Cross Reference 3 | SKF 22215 K – double row, takes thrust; not a substitute |
| Cross Reference 4 | FAG 20215-T-C3 – straight bore, not tapered |

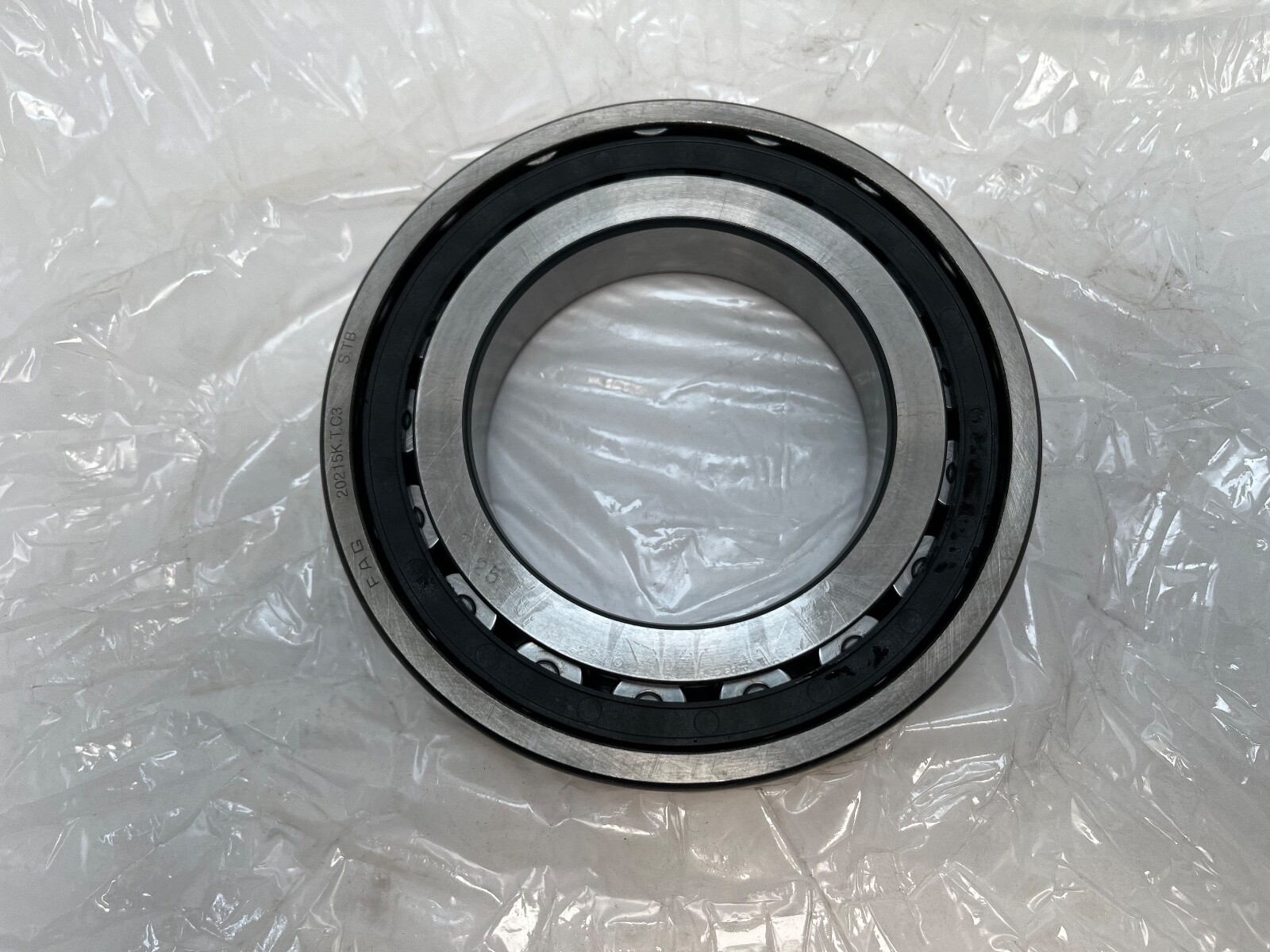

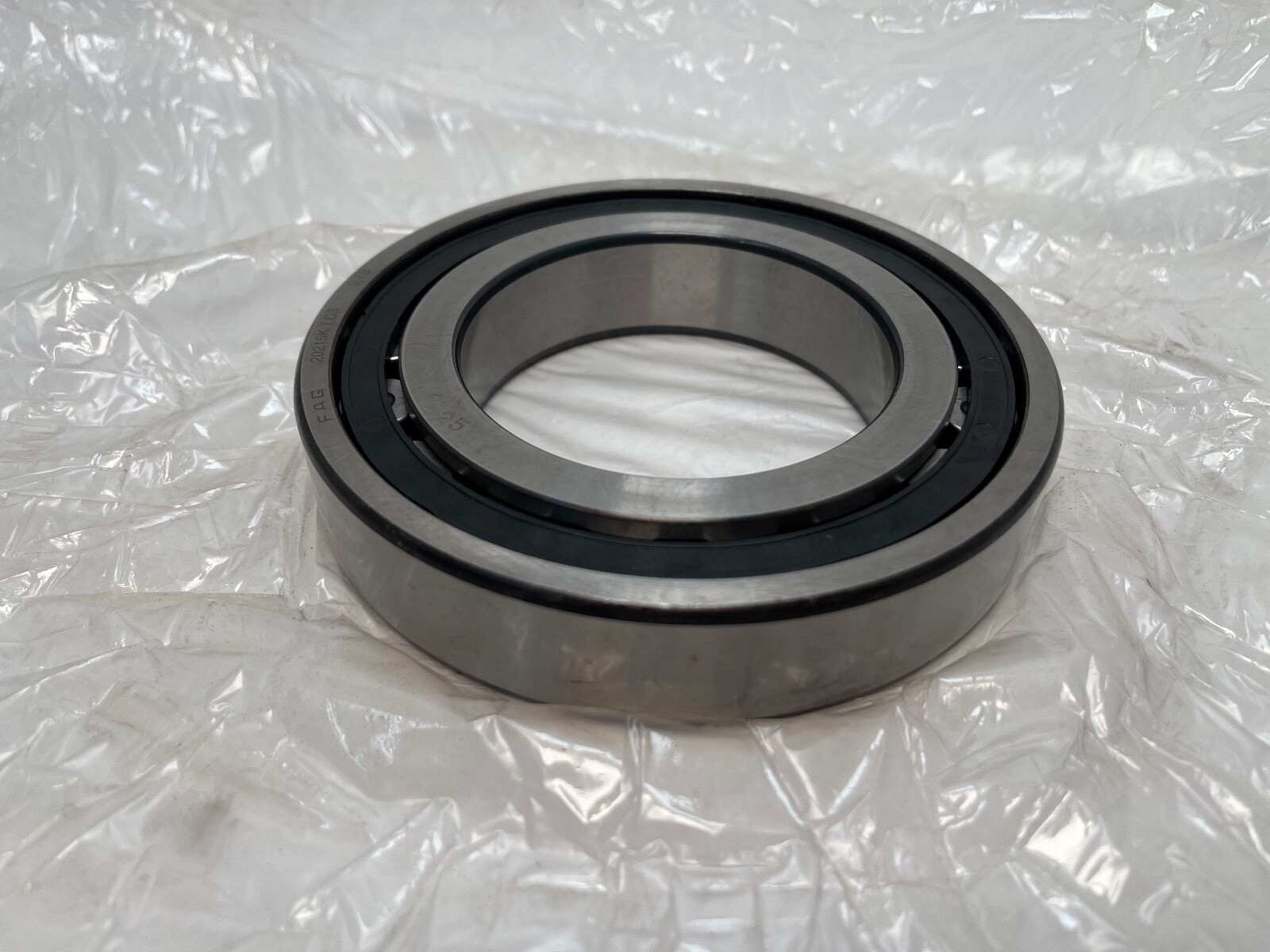

A FAG 20215-K-T-C3 single-row barrel roller bearing with a 75 mm tapered bore, a 130 mm outside diameter and a 25 mm width. It has a laminated fabric cage, C3 internal clearance and a self-aligning spherical outer raceway.

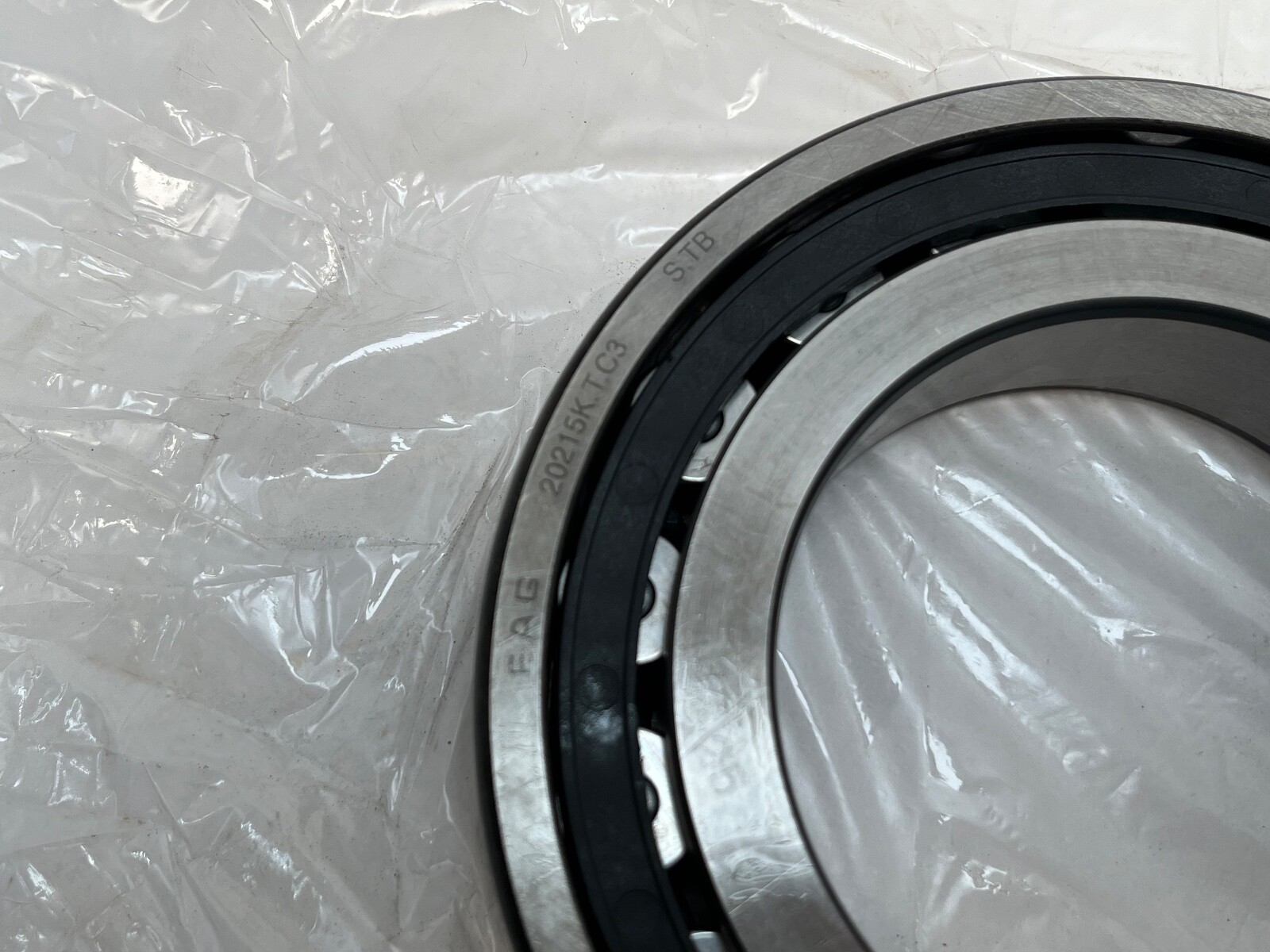

202: FAG single-row barrel roller series. 15: bore code 15, 75 mm bore, 130 mm OD, 25 mm width. K: 1:12 tapered bore. T: laminated fabric cage. C3: greater than normal radial internal clearance.
One row of short convex rollers on a spherical outer raceway gives high radial capacity in a narrow section and lets the inner ring swivel, so the bearing tolerates shaft misalignment and housing deflection without edge loading. It takes radial load only: a single barrel row has no axial capacity, so thrust is carried by another bearing in the arrangement. A double-row 22xxx spherical roller bearing does take thrust in both directions, which is why the two types are not interchangeable. C3 clearance leaves extra room for thermal growth and for the loss of clearance that comes with an interference fit, which is what keeps a hot or heavily fitted bearing from running pinched. The laminated fabric cage is light and quiet and tolerates marginal lubrication, with a lower temperature ceiling than brass.
Bore: 75 mm (2.9528 in), tapered 1:12. Outside diameter: 130 mm (5.1181 in). Width: 25 mm (0.9843 in). Number of rows: 1. Rolling elements: barrel rollers. Cage material: laminated fabric. Internal clearance: C3. Axial load capacity: none, radial load only. Self-aligning: yes, spherical outer raceway. Closure: open.

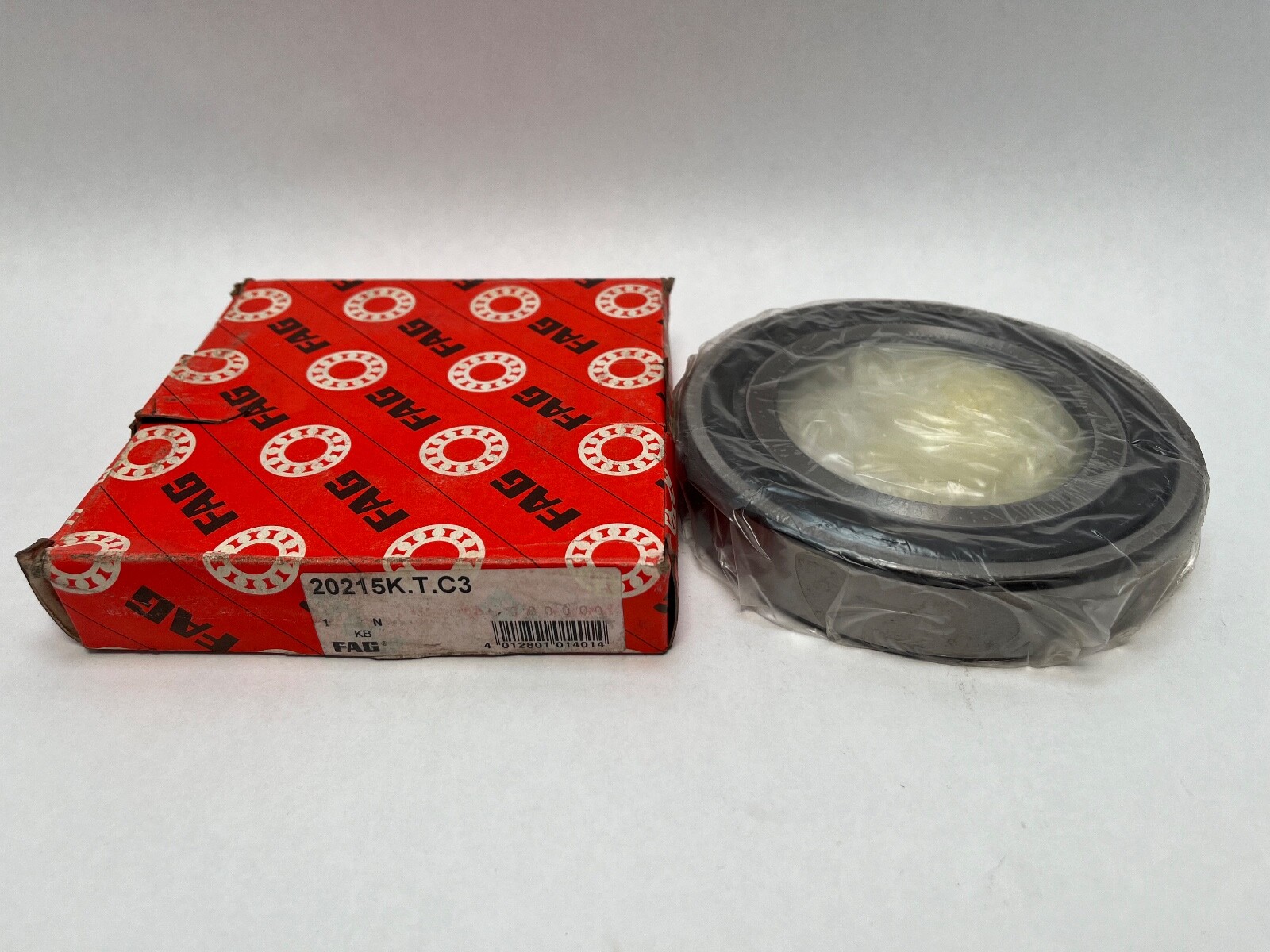

One bearing. The adapter sleeve is not included.
Supplied as 1 Pc.
The 1:12 tapered bore mounts on an adapter sleeve, H215, which seats on a 70 mm plain shaft; the sleeve is ordered separately. The bearing can also mount directly on a matching 1:12 tapered shaft journal.
Single-row tapered-bore barrel roller bearings of the same 75x130x25 mm size with C3 clearance: SKF 20215 K/C3 and NSK 20215KC3. The 22215 K double-row spherical roller is a different part, because it carries thrust in both directions. The straight-bore 20215 T needs a plain 75 mm shaft seat and no sleeve, and a CN-clearance version changes the mounted fit.
