Single-row barrel roller bearing, 80 x 140 x 26 mm, 1:12 tapered bore, machined brass cage, C3 clearance, radial load with self-alignment. 1 Pc.
List Price
$191.23
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 20216K.MB.C3 |
| Model | 20216 K MB C3 |
| Bearing Type | Barrel Roller Bearing, Open |
| ID | 80 mm |
| OD | 140 mm |
| Width | 26 mm |
| Material | Bearing Steel |
|---|---|
| Series | 20200 |
| Base Number | 20216 |
| Industry Terms | barrel roller bearing, self-aligning roller bearing, tapered bore roller bearing, 20200 series |
| Application Types | Paper machines, fans and blowers, crushers, long deflecting shafts, plummer block mountings |
| Bore Shaft Size | 80 mm (3.1496 in) |
| Locking Method | Tapered bore - tapered shaft seat or adapter sleeve required |
| Mpn Variants | 20216-K-MB-C3, 20216K.MB.C3, 20216KMBC3, 20216K |
| Manufacturer Status | FAG is part of Schaeffler; the same series appears in INA/FAG catalogues |
| Rolling Elements | Barrel Roller |
| Number Of Rows | 1 |
| Bore Type | Tapered |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.30.00 |
| Part Number | 20216 K MB C3 |

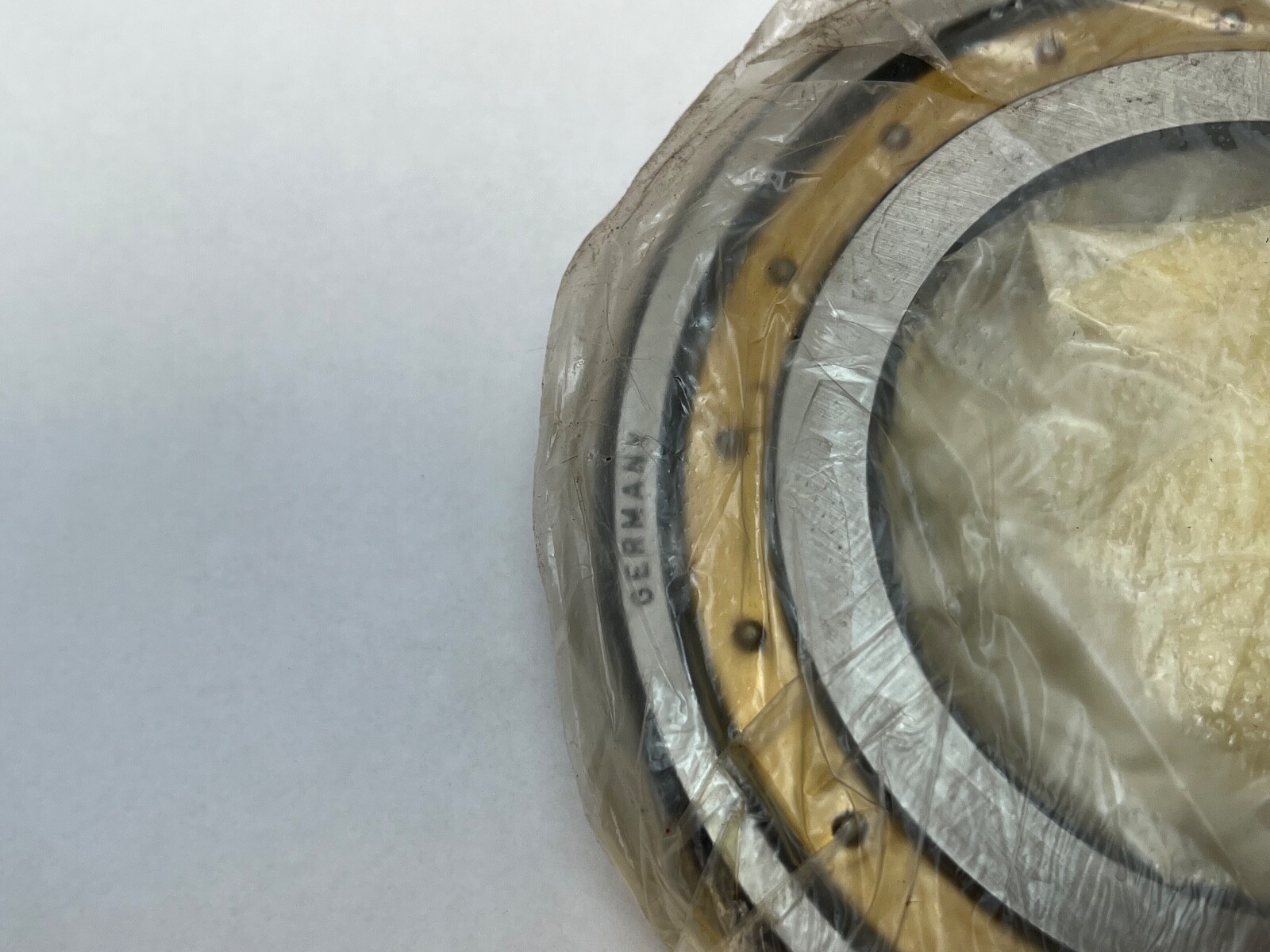

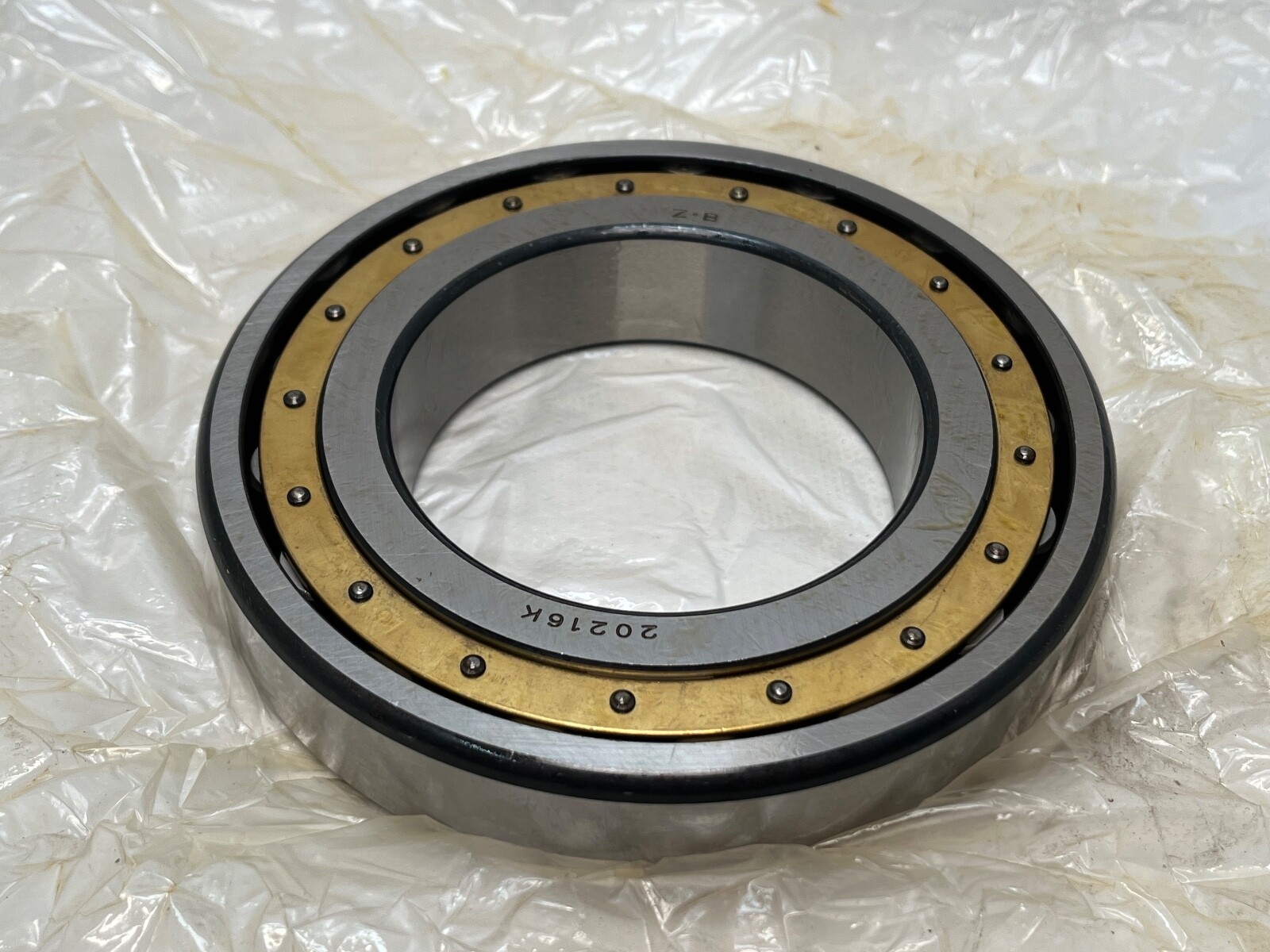

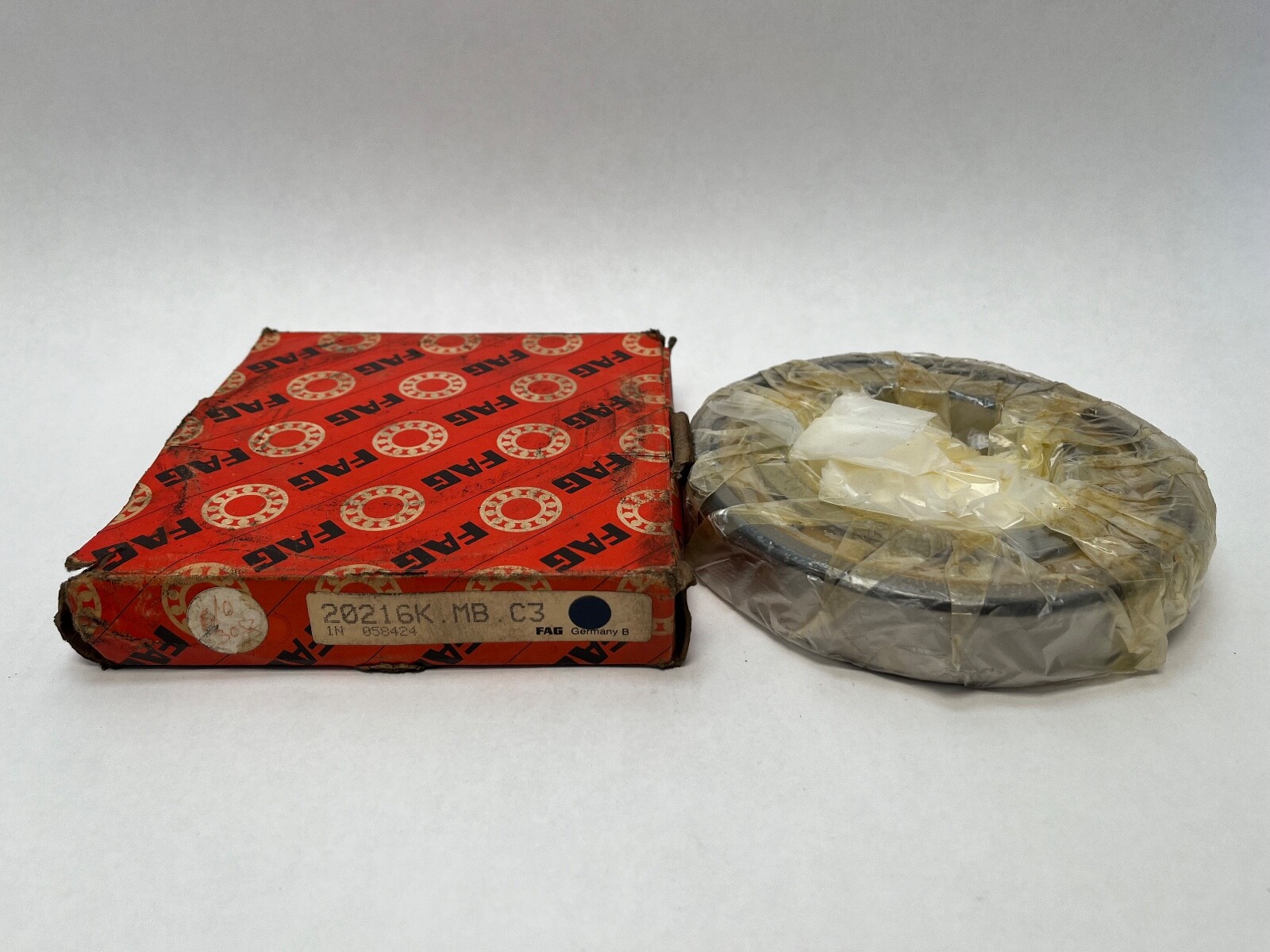

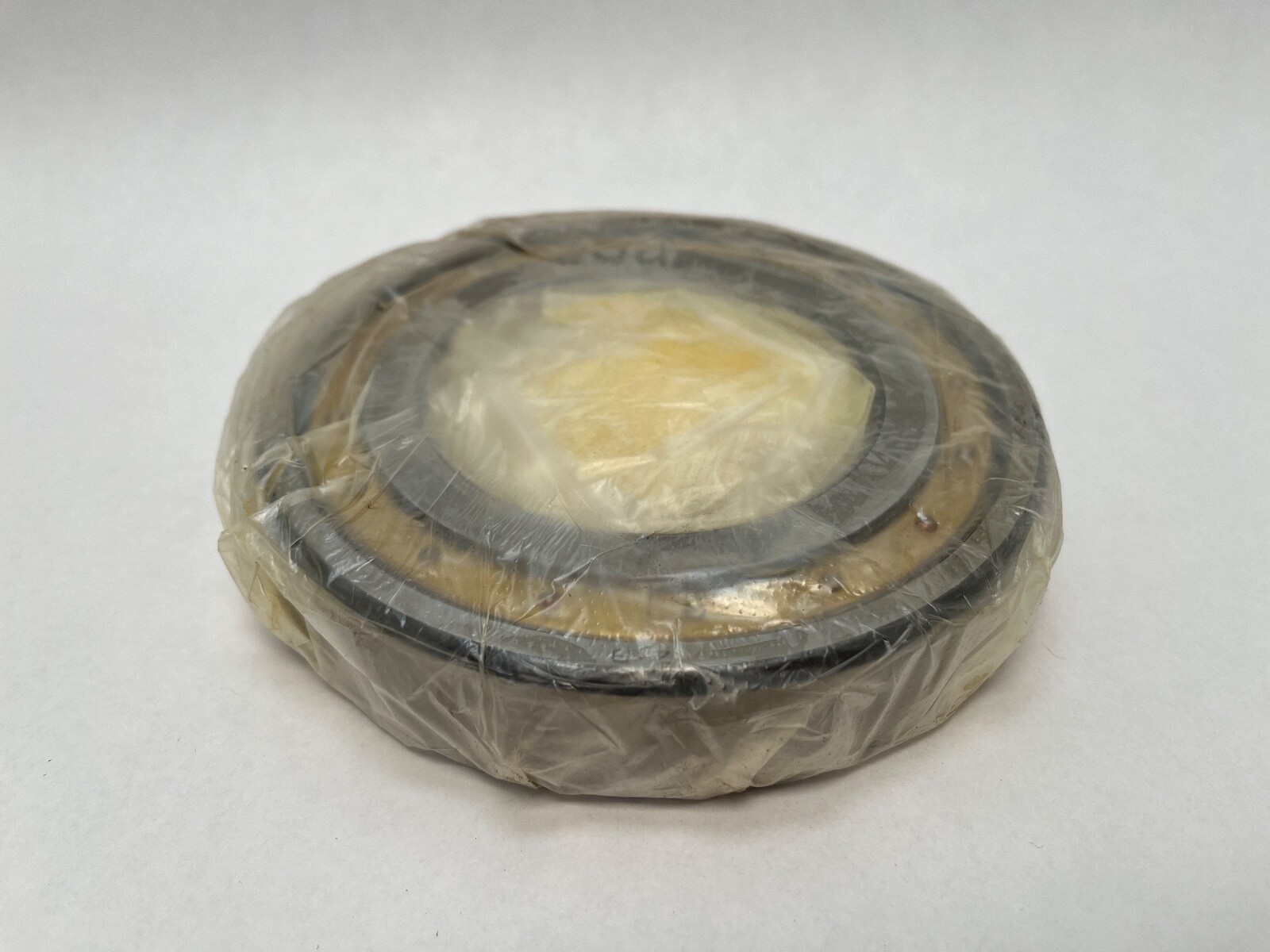

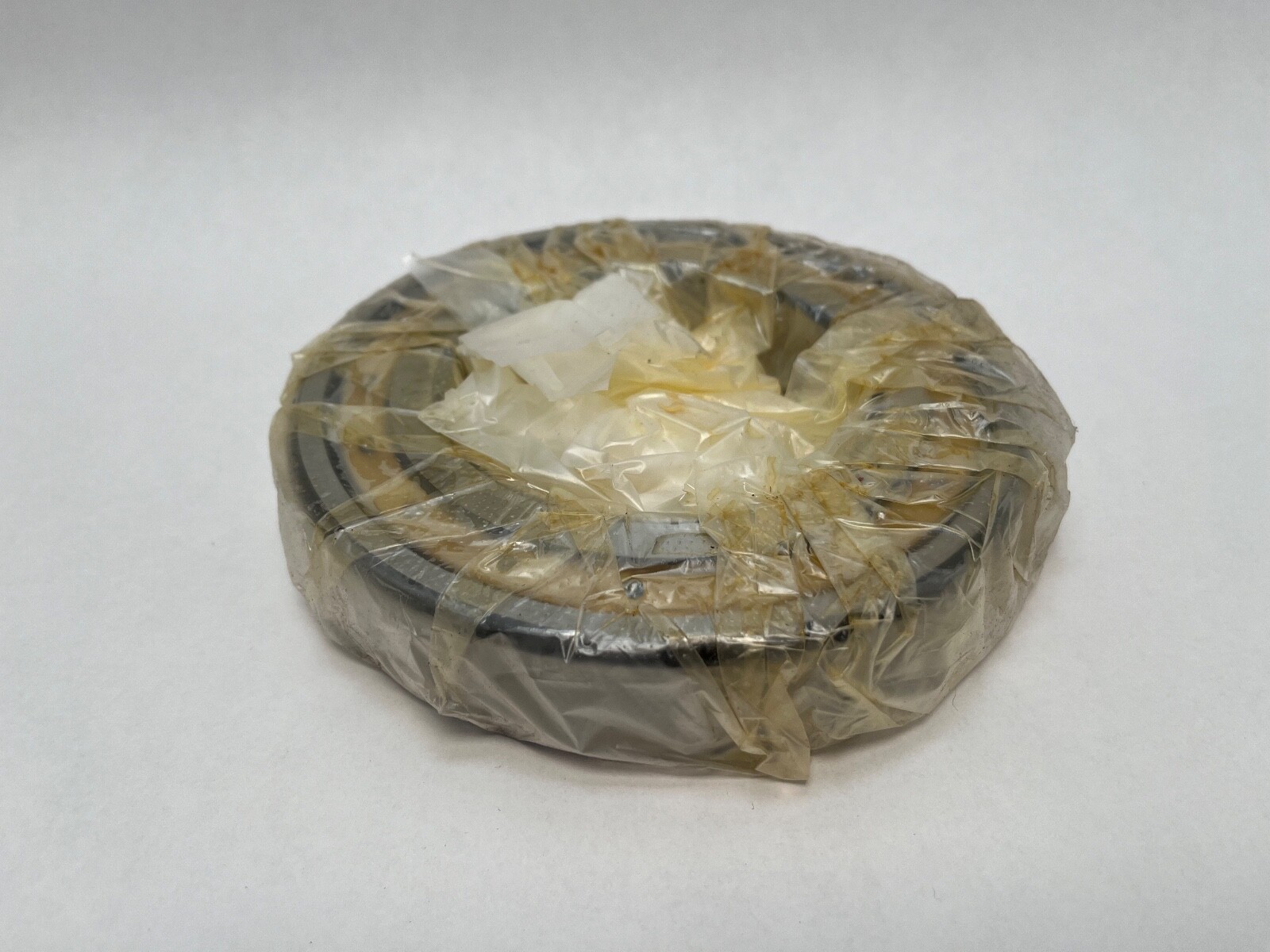

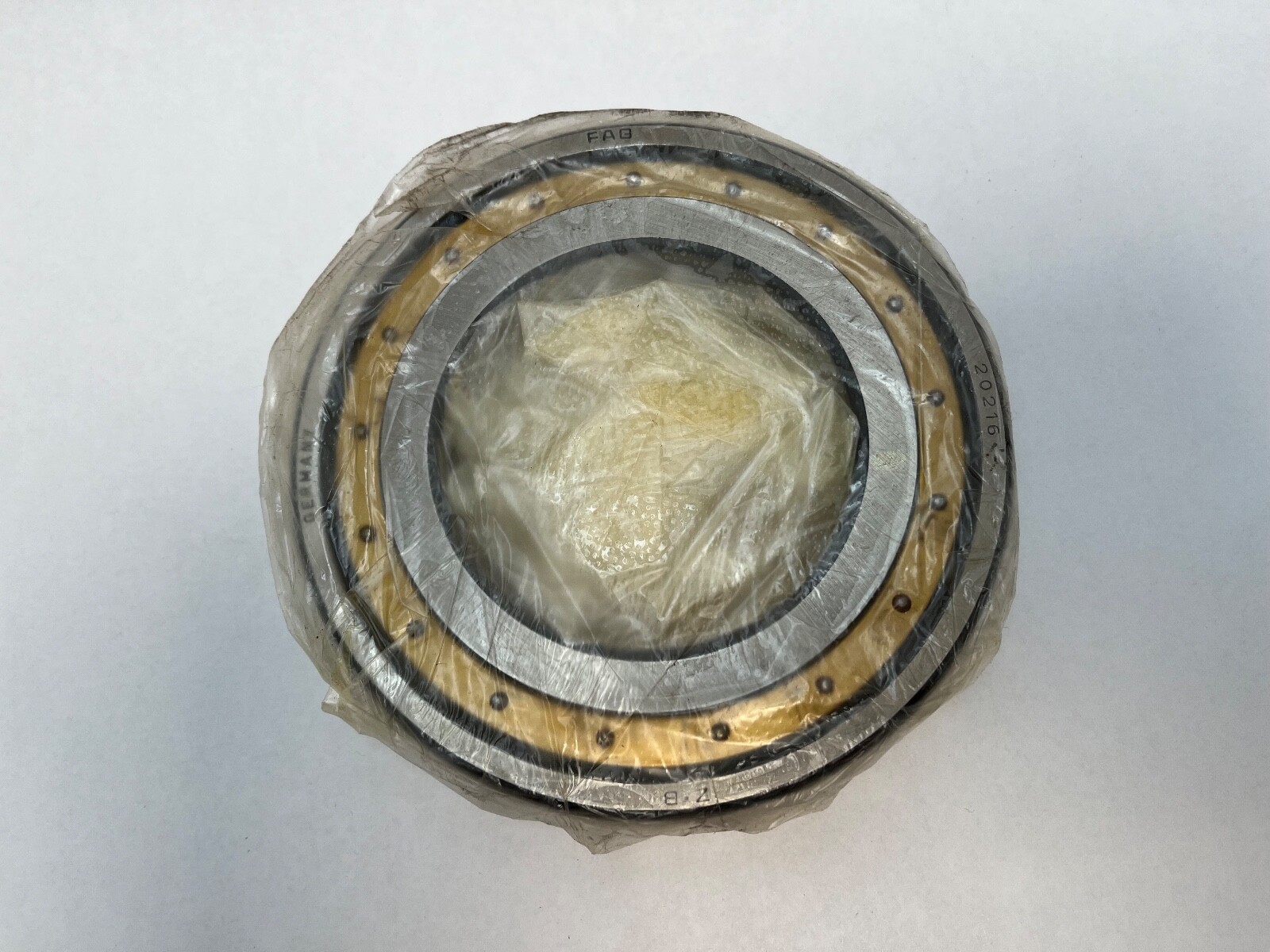

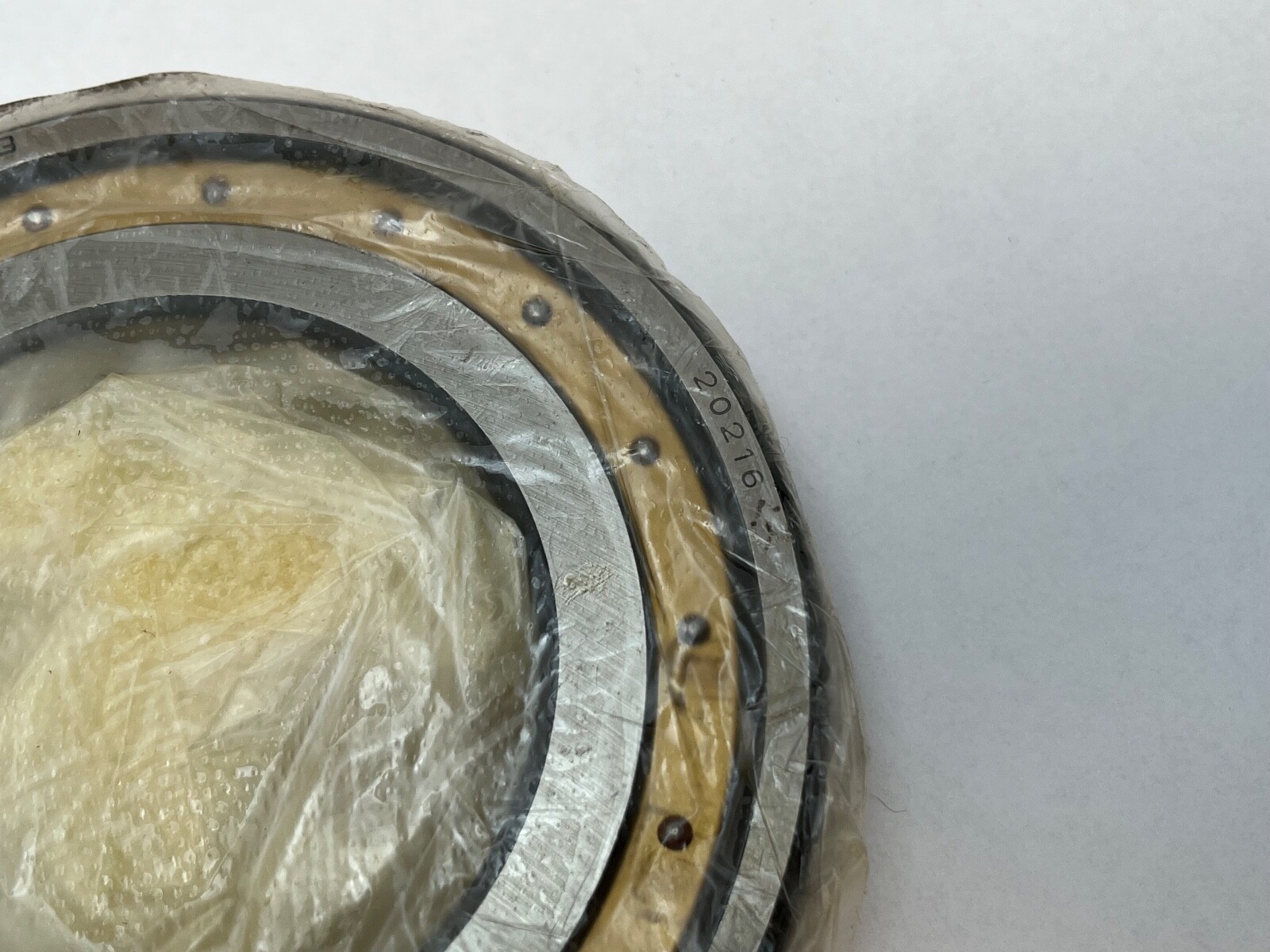

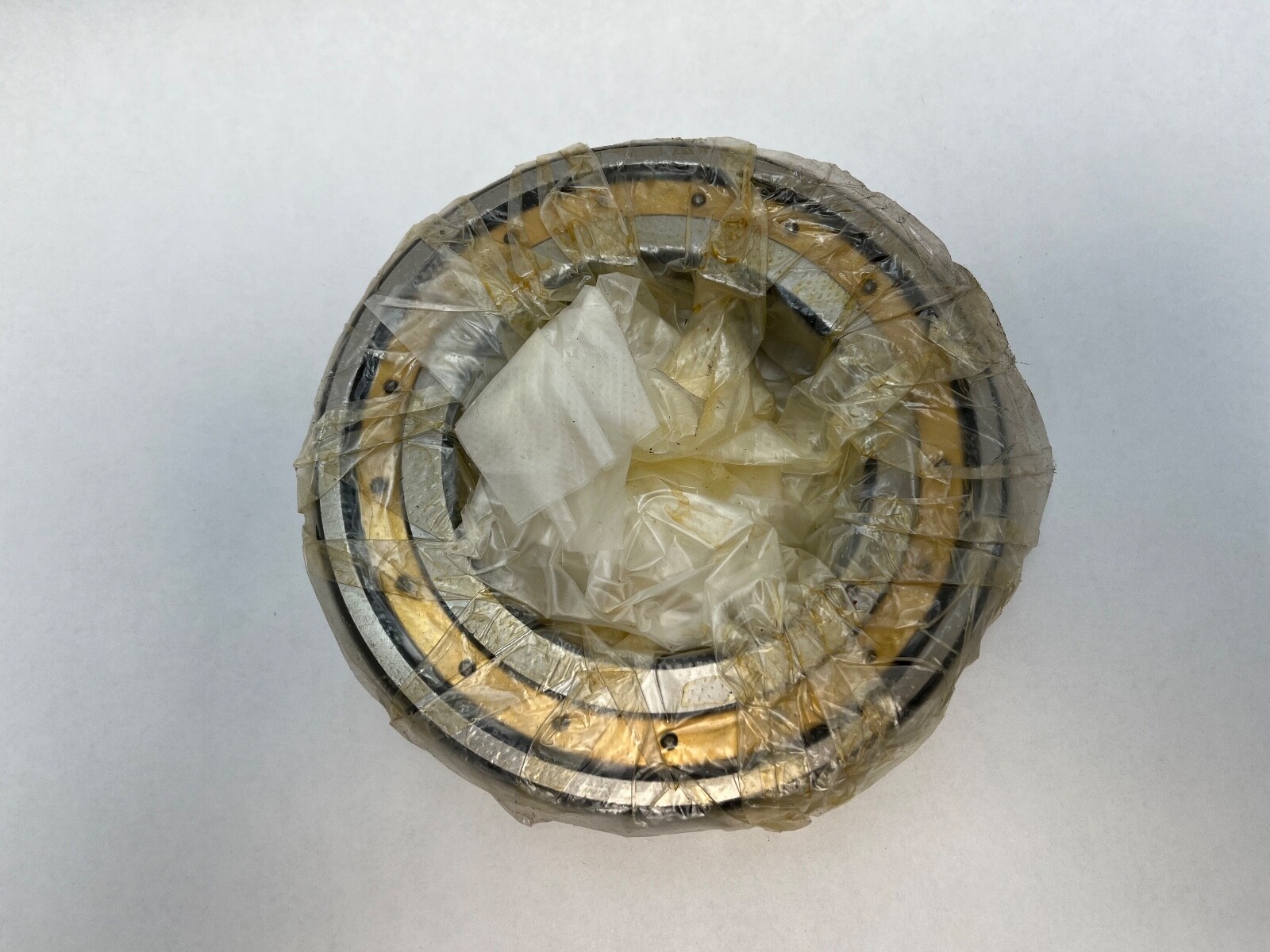

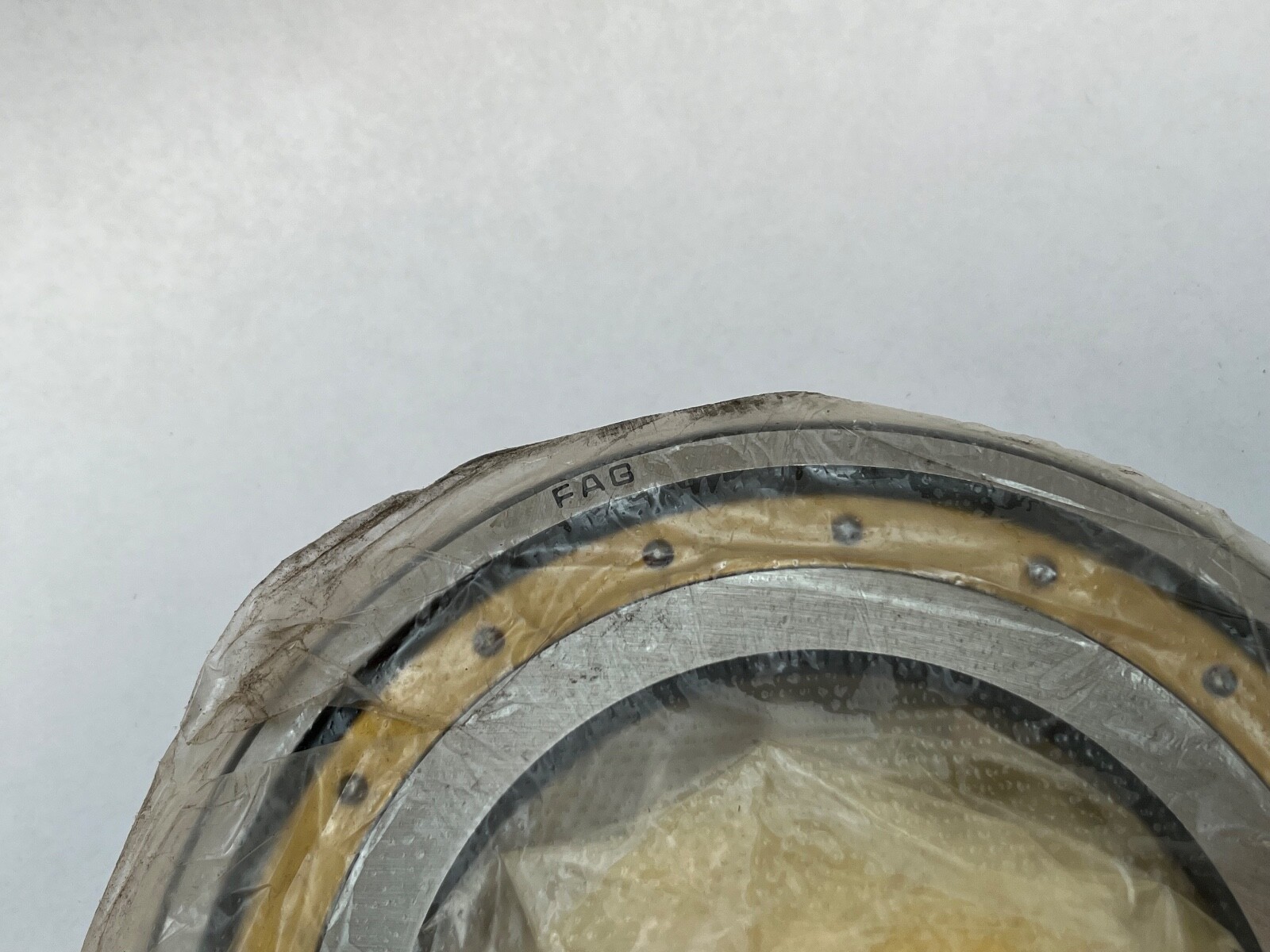

FAG 20216-K-MB-C3, a single-row barrel roller bearing. One row of barrel-shaped rollers runs on a spherical outer raceway, so the inner ring, roller set and cage swivel inside the outer ring. Boundary dimensions 80 mm bore × 140 mm outside diameter × 26 mm width. Tapered bore, 1:12. Bearing only. Unit Quantity: 1 Pc.
20 — barrel roller, single row.
2 — ISO dimension series.
16 — bore code, 16 × 5 = 80 mm bore.
K — tapered bore, taper 1:12.
MB — machined brass cage, inner-ring guided.
C3 — radial internal clearance greater than normal.
Bore Diameter: 80 mm (3.1496 in). Outside Diameter: 140 mm (5.5118 in). Width: 26 mm (1.0236 in). Number Of Rows: 1. Rolling Elements: Barrel roller. Bore Type: Tapered, 1:12. Cage Material: Machined brass, MB. Internal Clearance: C3. Series: 202. Base Number: 20216. Load: radial, self-aligning. Unit Quantity: 1 Pc.
Bore: 80 mm, tapered 1:12. Outside diameter: 140 mm. Width: 26 mm. The tapered bore mounts on a tapered shaft seat or an adapter sleeve. The spherical outer raceway takes shaft deflection and housing misalignment.
Part number variants: 20216-K-MB-C3, 20216K.MB.C3, 20216KMBC3, 20216K. The cylindrical-bore 20216-MB has a different bore form. The 20216-TVP carries a polyamide cage. The 22216K is a double-row spherical roller bearing, a different bearing type.
A single-row barrel roller bearing with a 1:12 tapered bore and a machined brass cage.
Radial internal clearance greater than normal.
Bore Diameter: 80 mm. Outside Diameter: 140 mm. Width: 26 mm.
