FAG20217KSingle Row Barrel Roller Bearing – Tapered 1:12 Bore, 85 mm ID, 150 mm OD, 28 mm Width, Open, Self-Aligning

Product Description

What this part is:

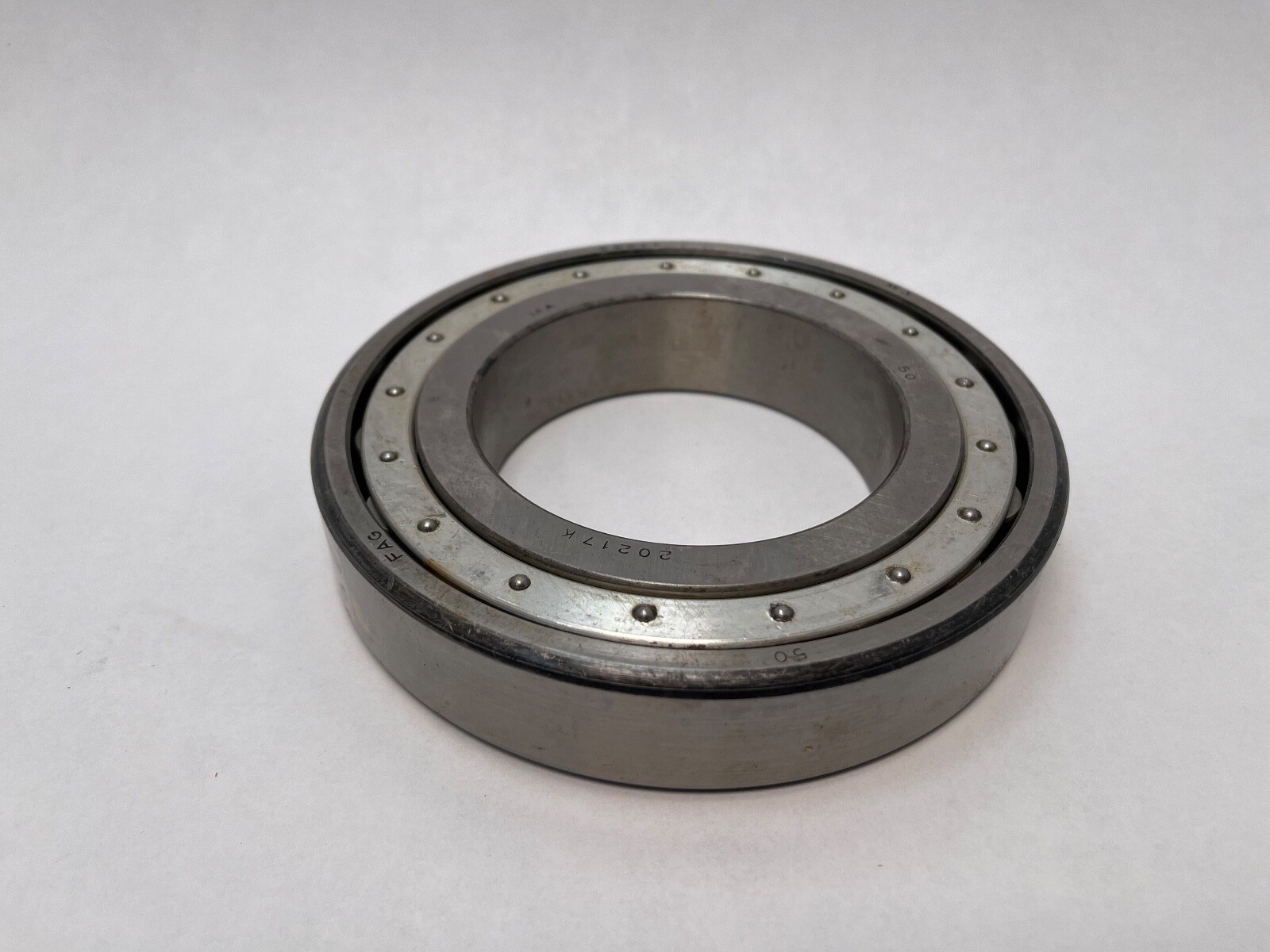

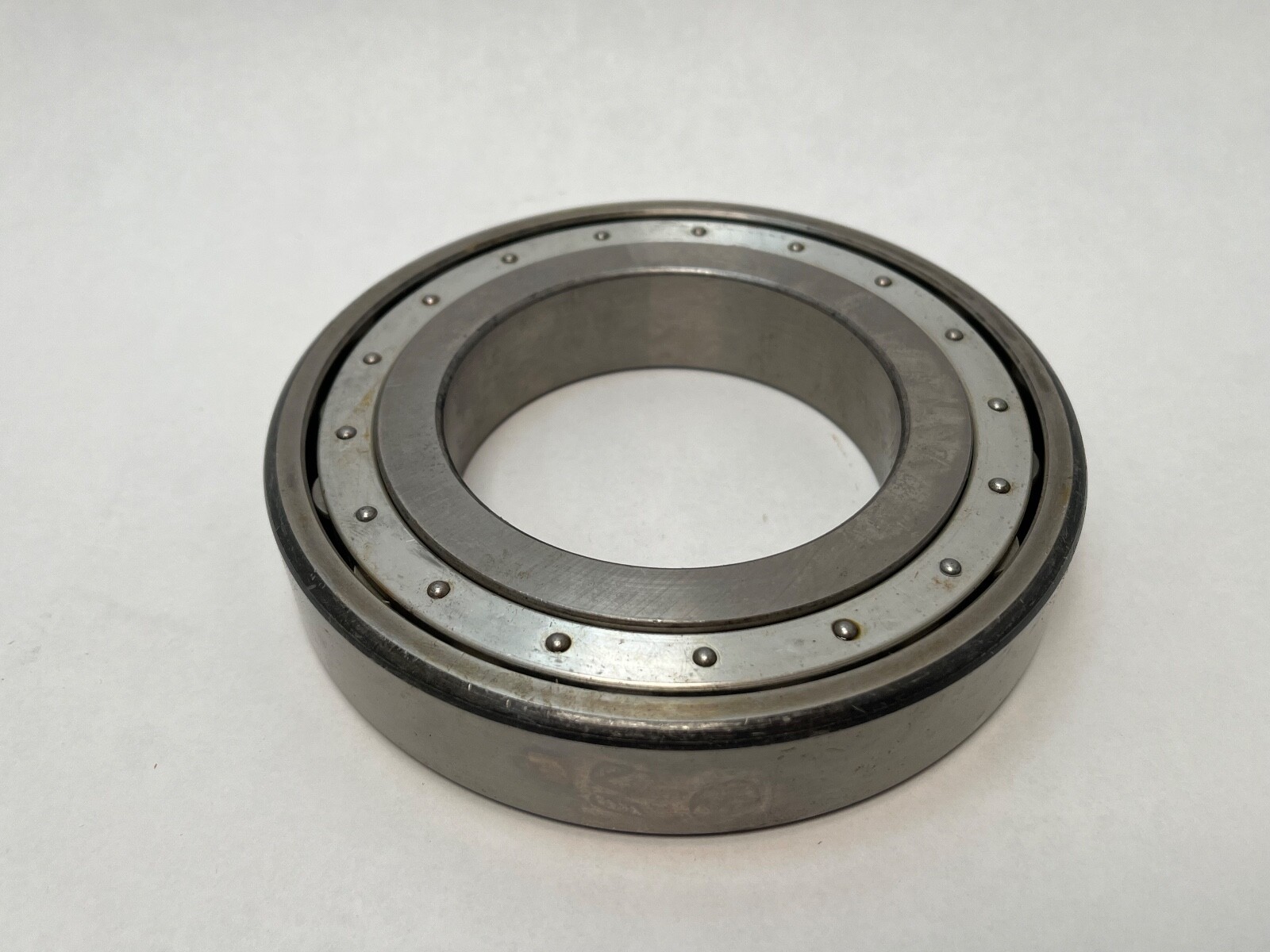

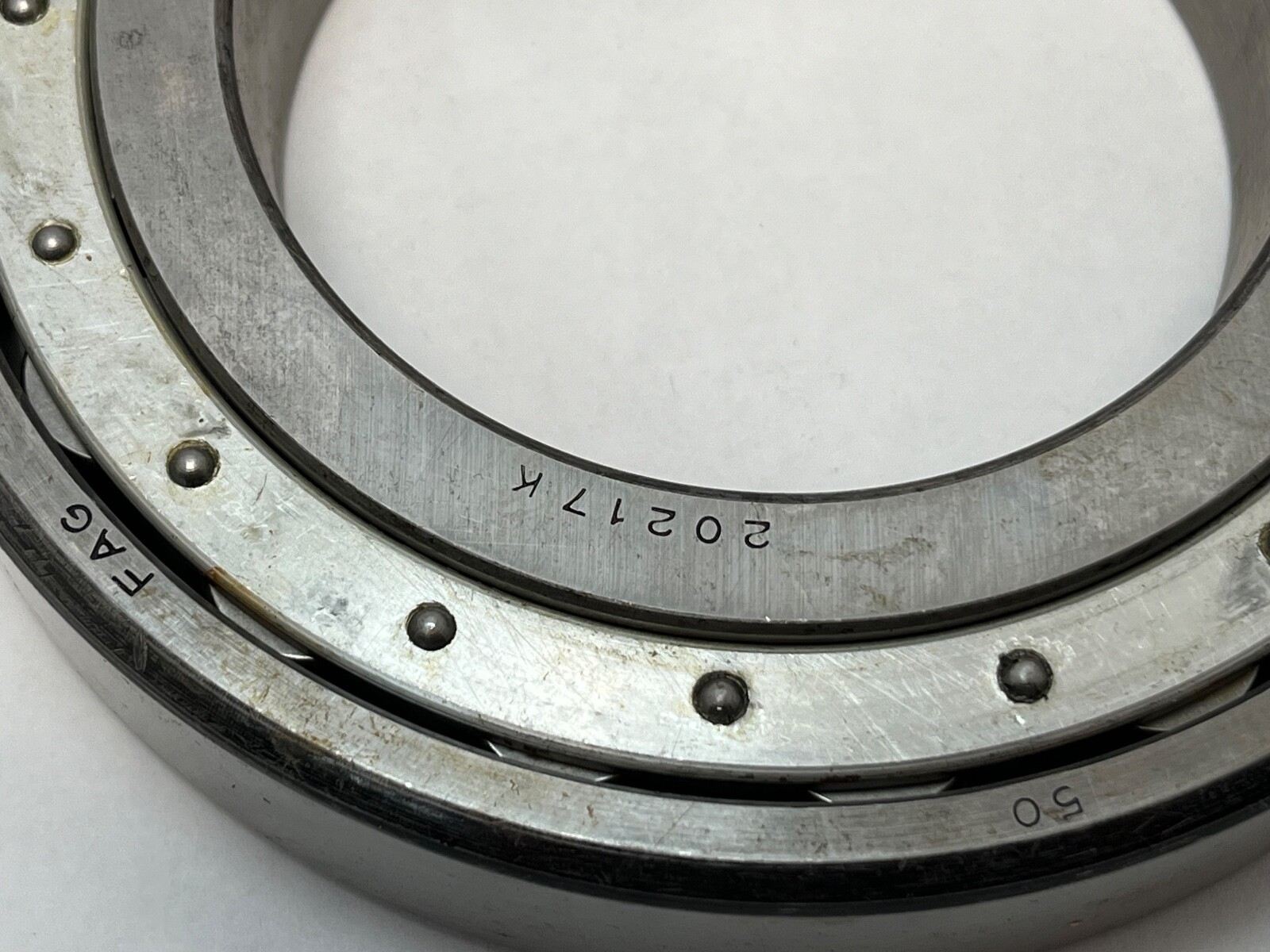

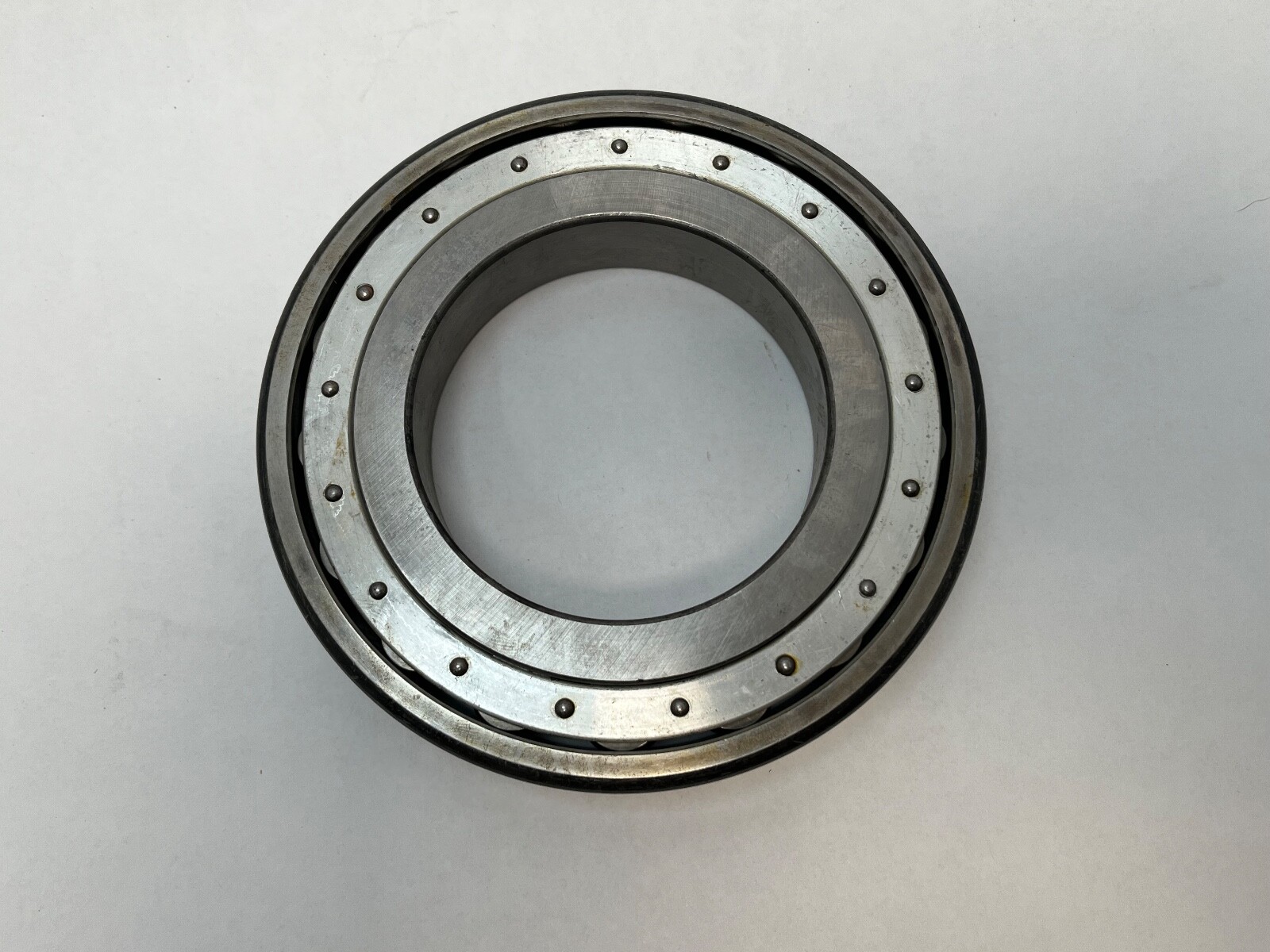

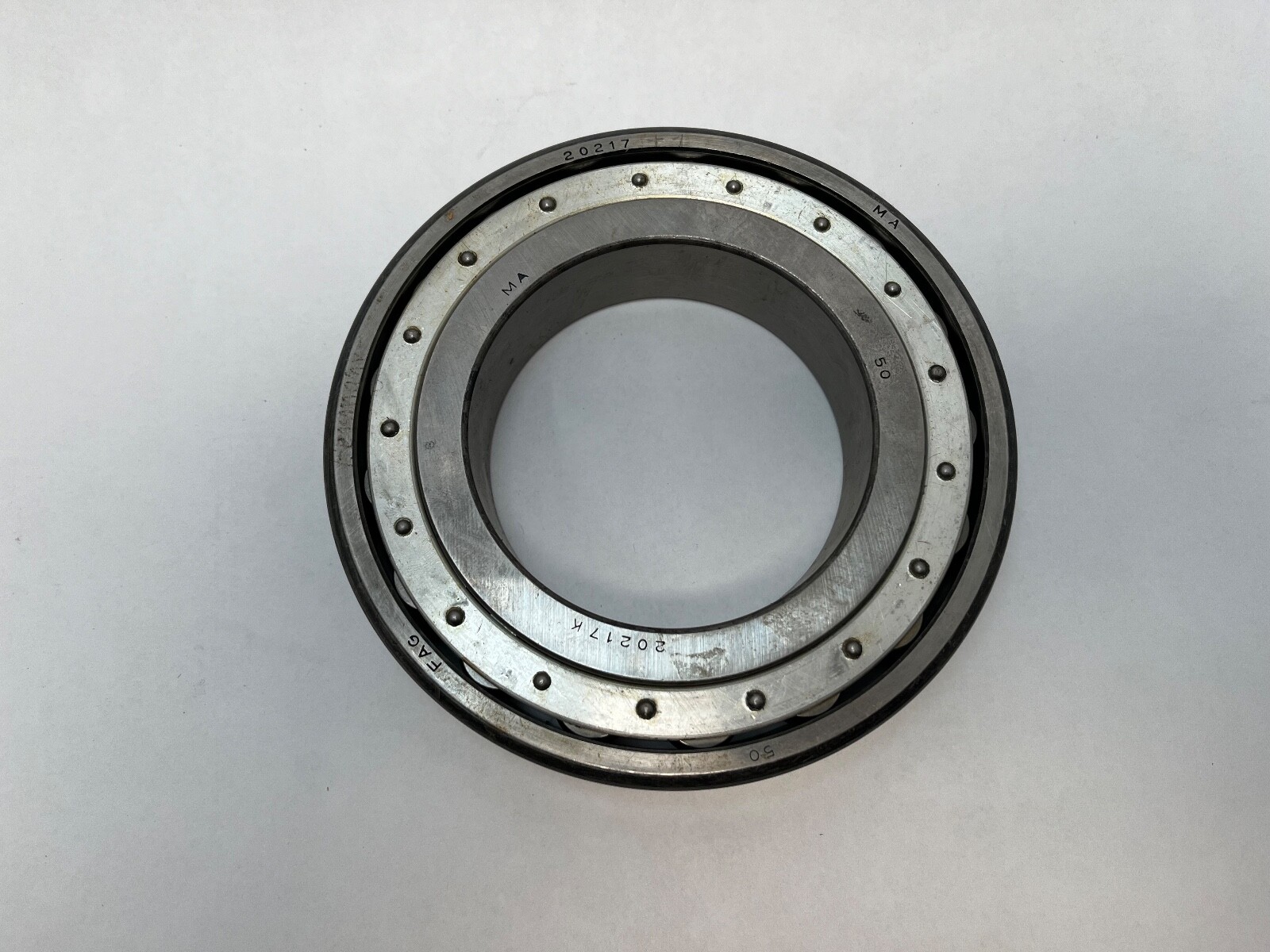

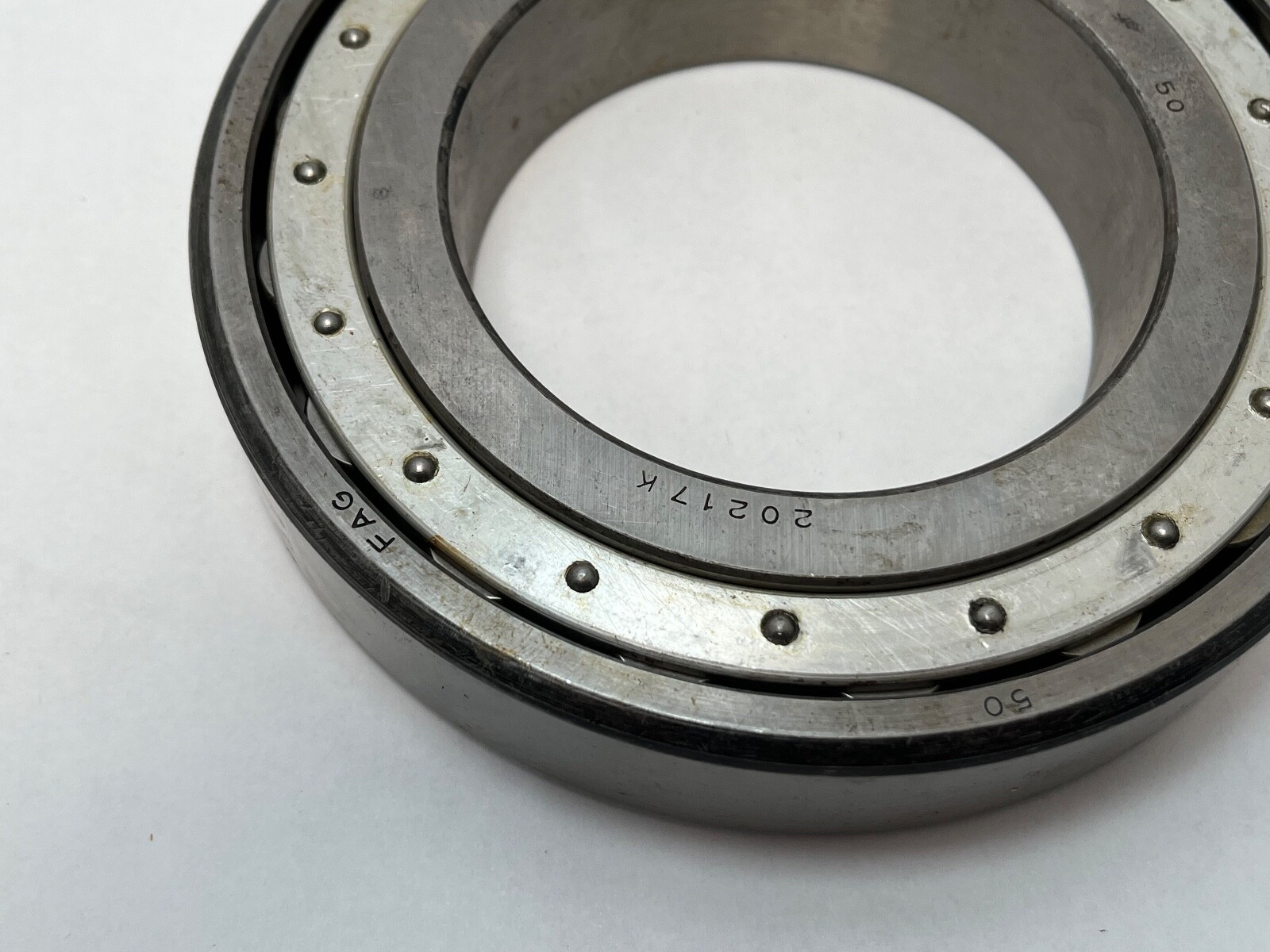

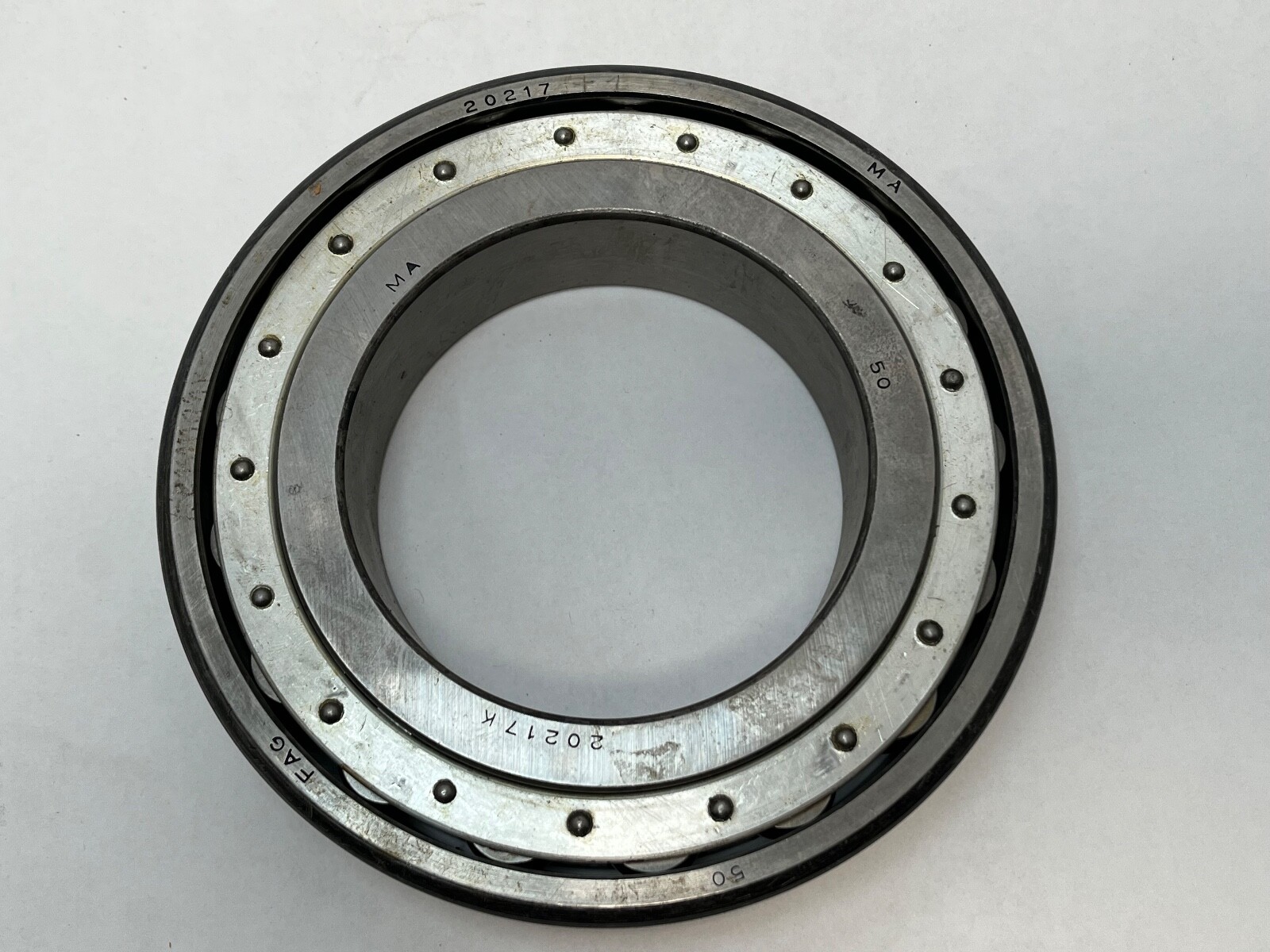

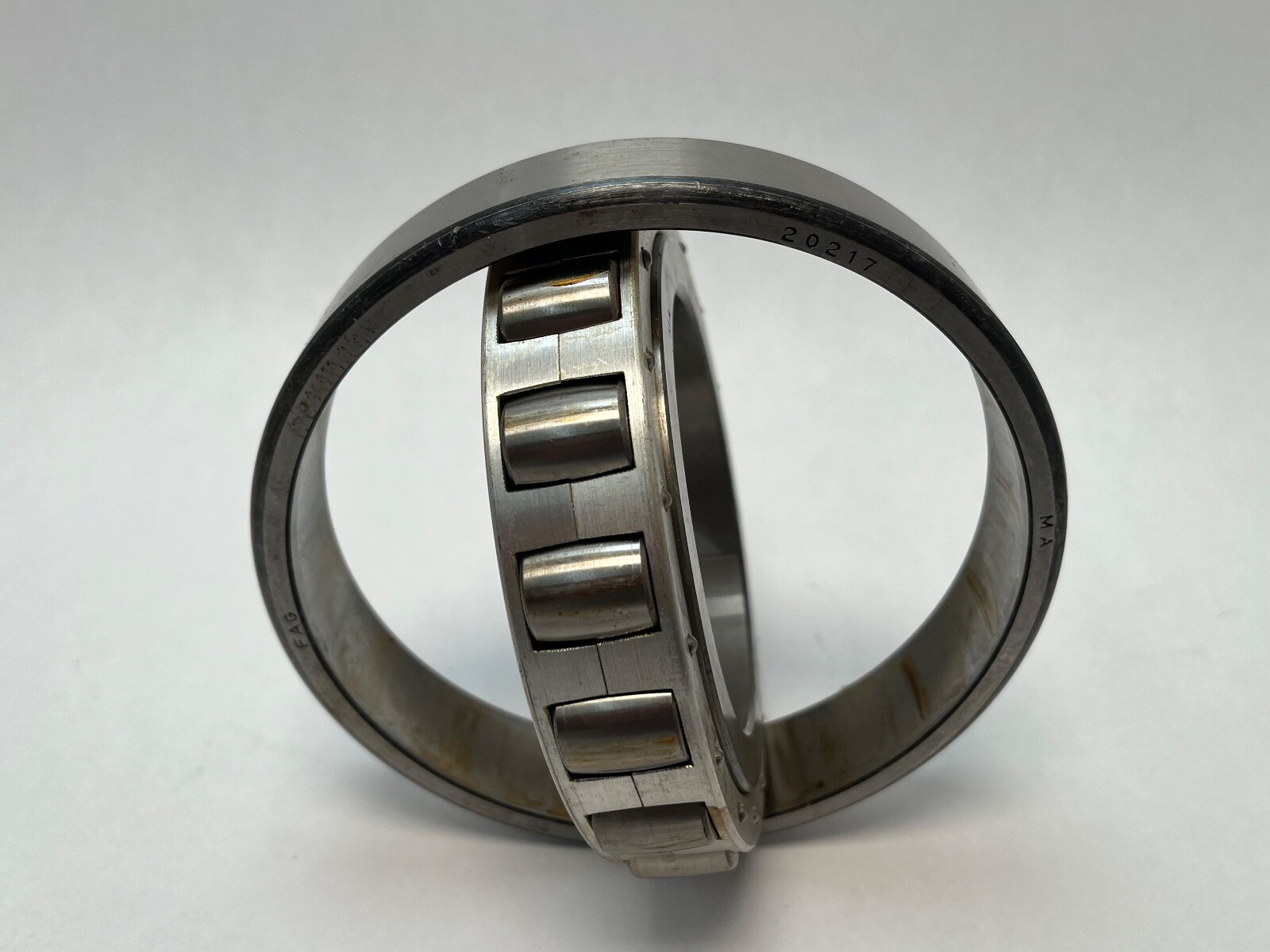

FAG 20217K is a single-row barrel roller bearing with a 1:12 tapered bore. Bore 85 mm, outside diameter 150 mm, width 28 mm. One row of barrel-shaped rollers runs in a spherical outer raceway, which makes the bearing self-aligning. Bearing only, 1 Pc. Country of origin: Germany.

Decoding the designation:

202xx — FAG’s single-row barrel roller series. The 20217 size is 85 x 150 x 28 mm.

K — tapered bore, 1:12 taper.

Specifications:

Bearing Type: single-row barrel roller bearing, self-aligning.

Bore Diameter: 85 mm (3.3465 in).

Outside Diameter: 150 mm.

Width: 28 mm.

Bore Type: tapered, 1:12.

Number Of Rows: 1.

Rolling Elements: barrel rollers.

Closure Type: open.

Axial Load: negligible; the bearing carries radial load.

Dimensions and mounting:

The 1:12 tapered bore seats on a tapered shaft seat or on an adapter sleeve. Matching adapter sleeve: FAG H217, 75 mm shaft seat.

Compatibility and replacement:

The straight-bore version of this bearing is the 20217, with a cylindrical bore. Variants of the number: 20217-K, 20217 K, 20217MB.K, 20217KMB.

Frequently asked questions:

What size is the FAG 20217K?

85 mm tapered bore, 150 mm outside diameter and 28 mm width.

Is the FAG 20217K a spherical roller bearing?

No. It is a single-row barrel roller bearing with one row of barrel-shaped rollers; a double-row spherical roller bearing is the 222xx or 223xx series.

What does the K mean in 20217K?

K is a tapered bore with a 1:12 taper. The matching adapter sleeve is the FAG H217.
