Availability:
1 in stock
Angular contact ball bearing, 7212 envelope: 60 mm bore, 110 mm OD, 22 mm width, 15° angle, phenolic separator, ABEC 5. NDH duplex tandem, light preload.
List Price
$67.25
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NDH |
|---|---|
| MPN | Q20212DTL5A |
| Model | Q 20212 DT L5A |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 60 mm |
| OD | 110 mm |
| Width | 22 mm |
| Series | 7200 |
|---|---|
| Lubricant | Oil |
| Preload | Light |
| Rolling Elements | Balls |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Contact Angle | 15° |
| Mounting Arrangement | Duplex tandem (DT) |
| Mpn Variants | Q20212DTL5A, Q-20212-DT-L5A, Q 20212 DT L5A, 20212DTL5 |
| Precision Class | ABEC 5 / P5 |
| Cage Material | Phenolic |
| Cross Reference 1 | SKF 7212 CD |
|---|---|
| Cross Reference 2 | NSK 7212C |
| Cross Reference 3 | FAG B7212-C |
| Cross Reference 4 | Fafnir 2MM212WI |

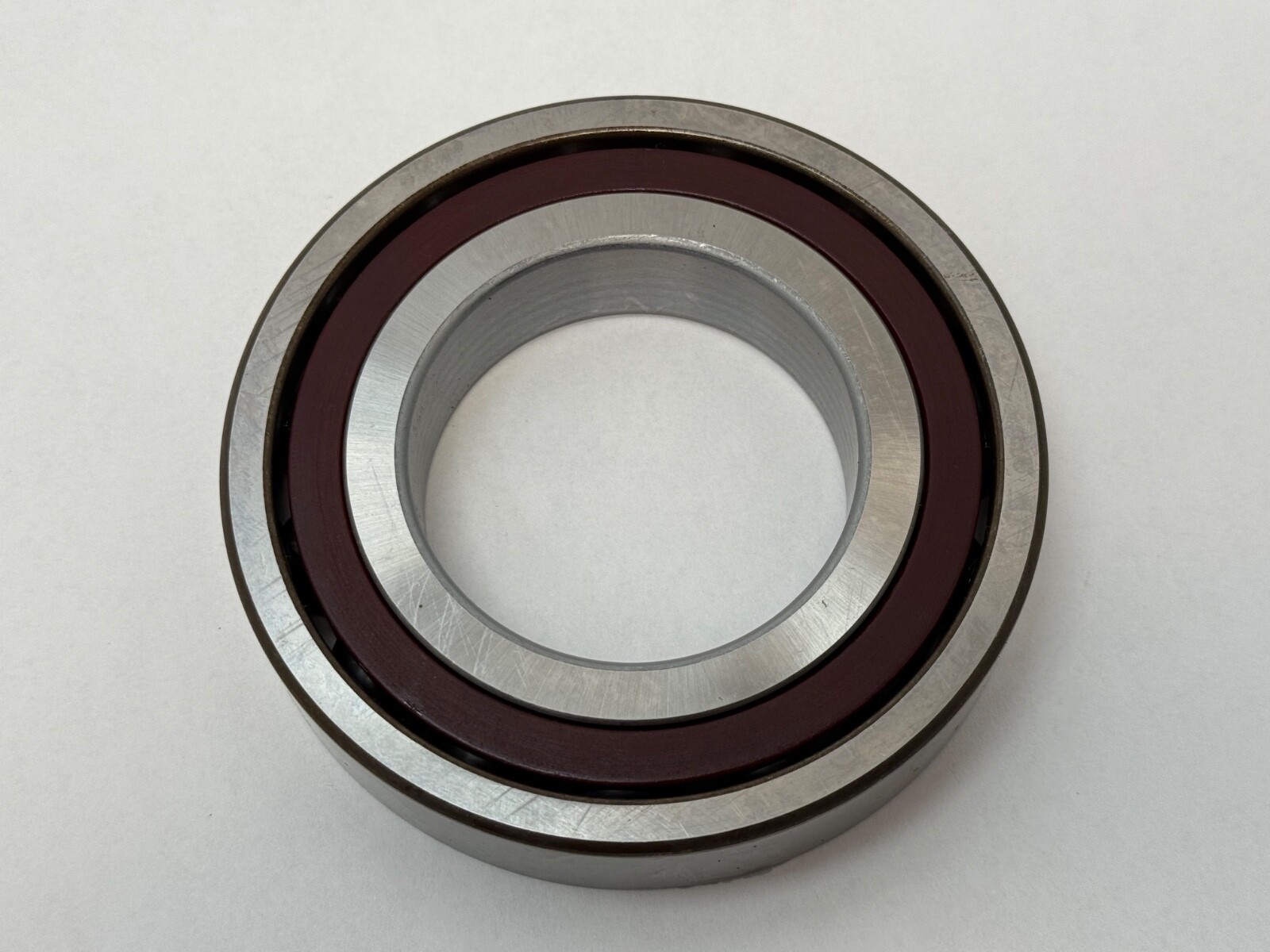

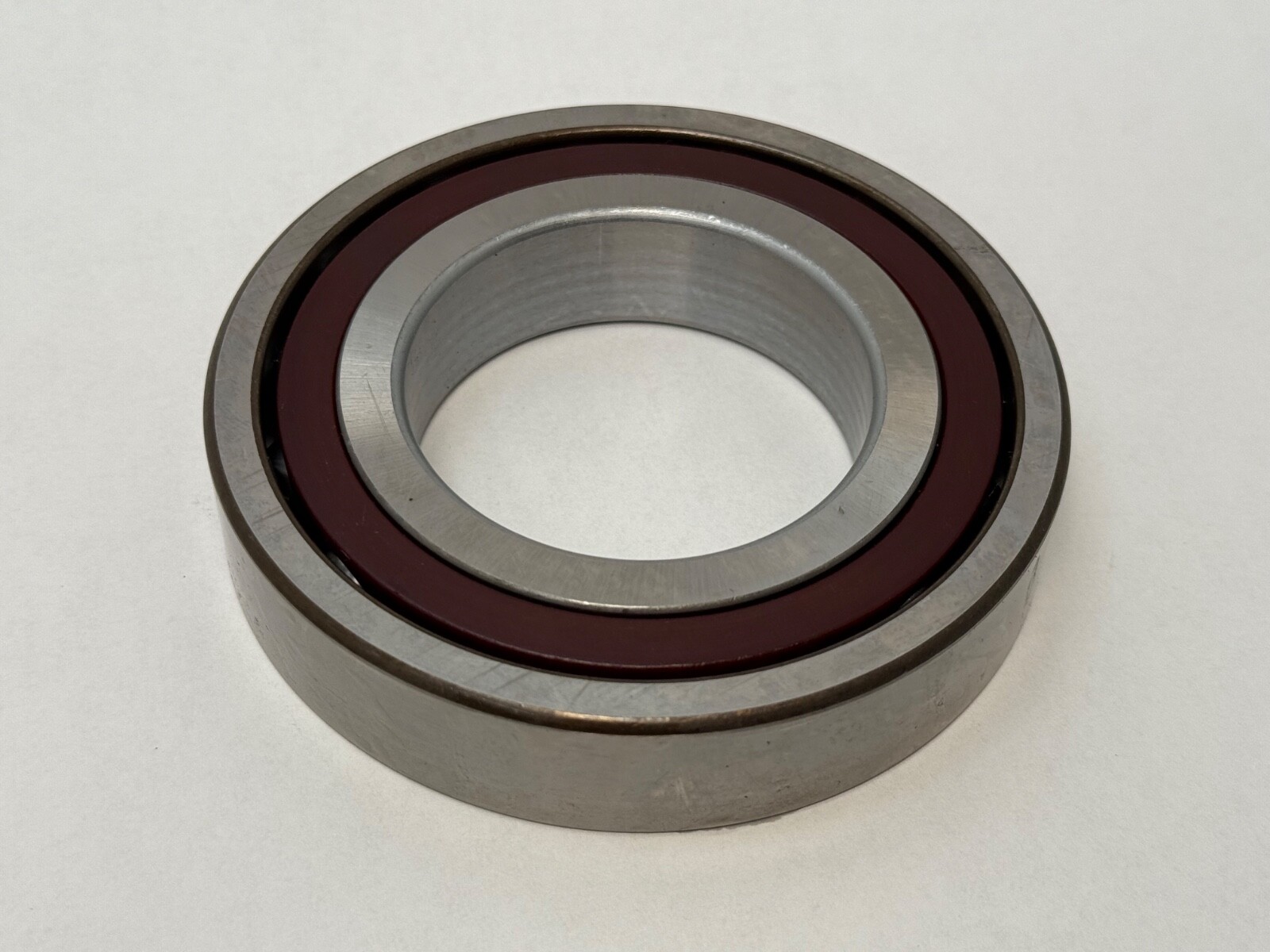

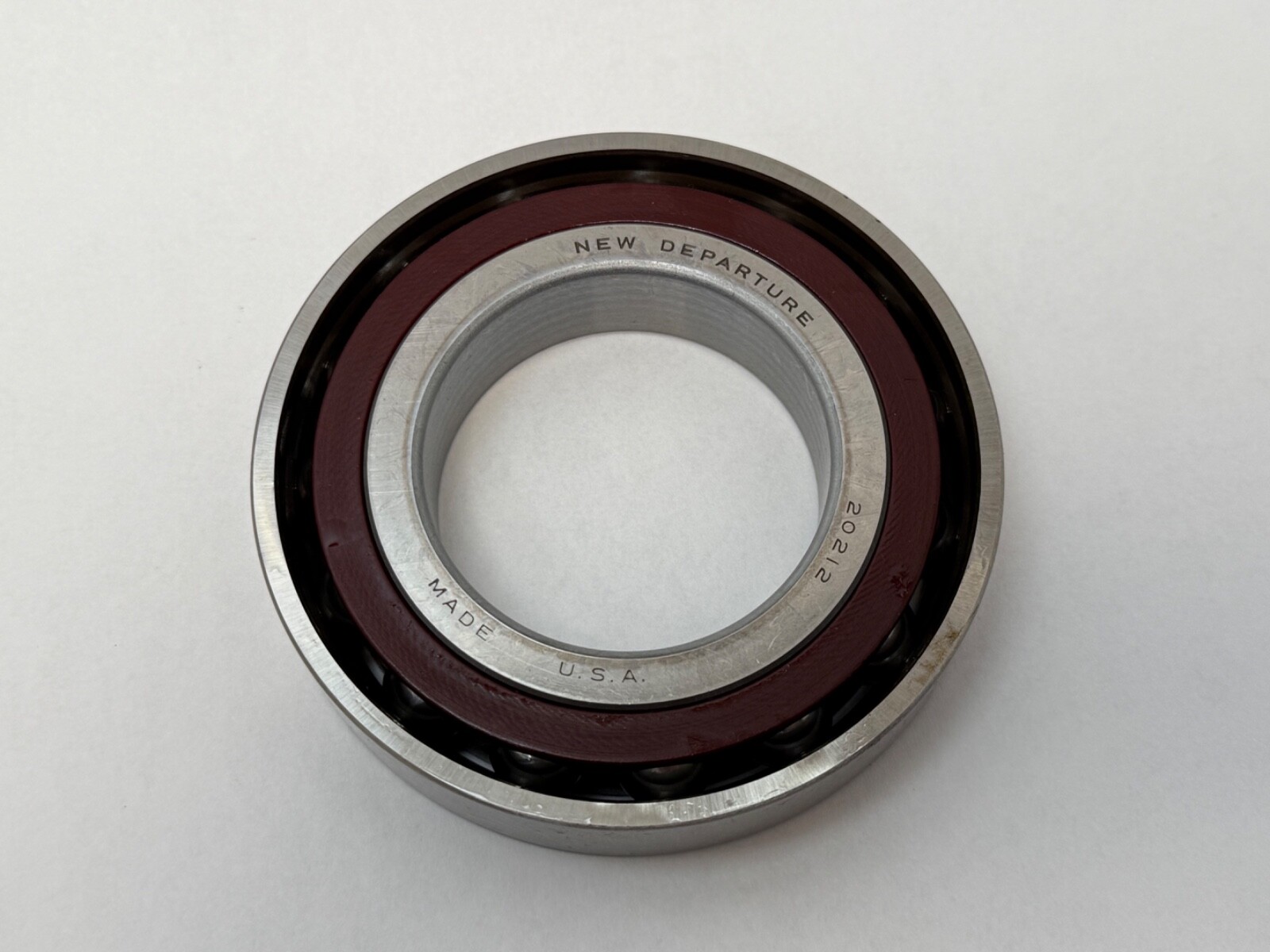

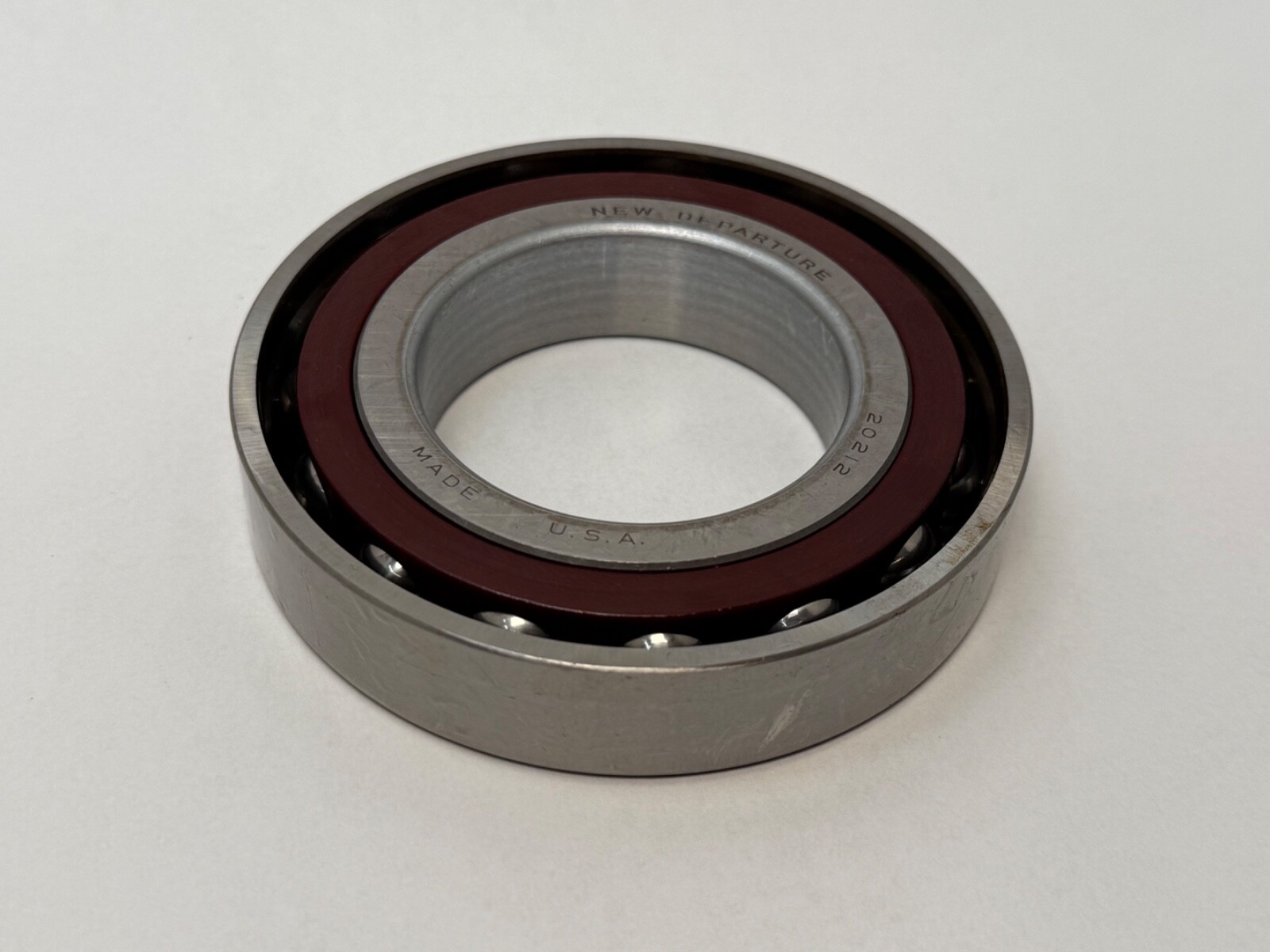

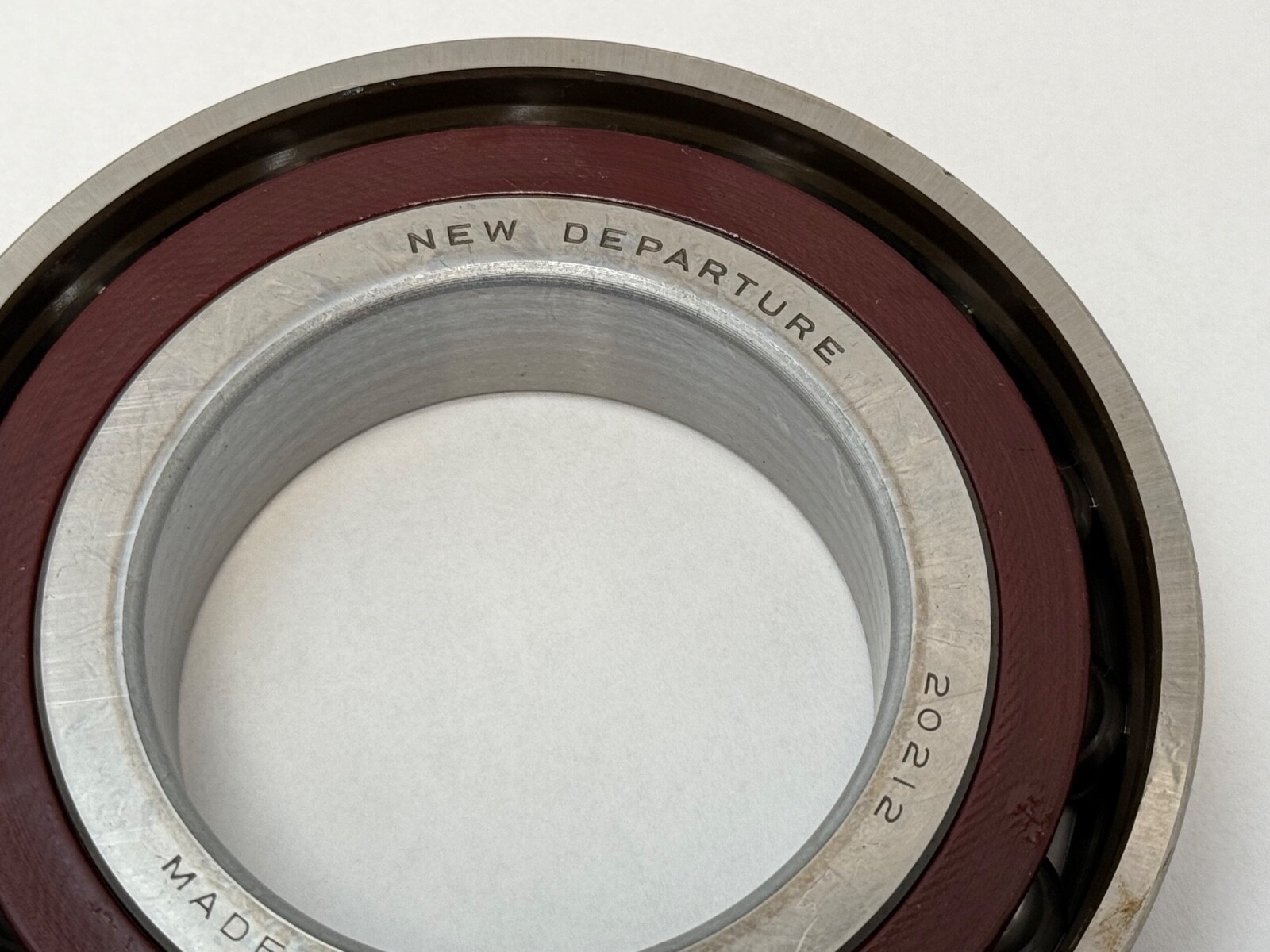

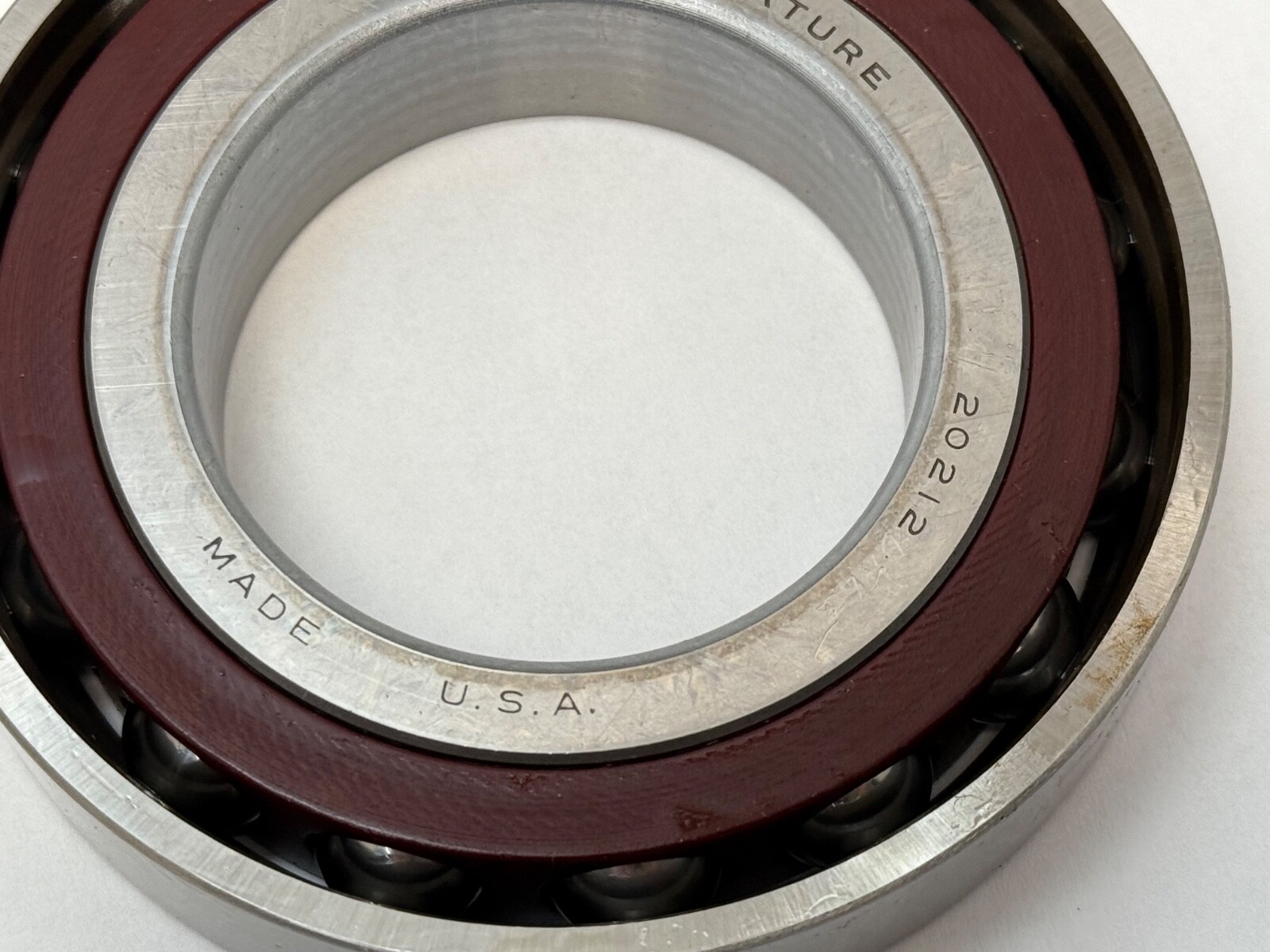

NDH Q20212DTL5A is a single-row angular contact ball bearing in the ISO 7212 envelope, made by New Departure Hyatt for duplex tandem mounting at light preload, with a phenolic separator and ABEC 5 tolerance.
Q — NDH phenolic separator.
20212 — NDH number for the ISO 7212 size, 60 x 110 x 22 mm. The 20-series prefix is the 15° angular contact family.
DT — duplex tandem. Bearings ground for a matched set mounted facing the same direction.
L — NDH light preload.
5 — ABEC 5 tolerance class.
Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 22 mm. Contact Angle: 15°. Cage Material: Phenolic. Precision Class: ABEC 5 / P5. Mounting Arrangement: Duplex tandem (DT). Preload: Light. Unit Quantity: 1 Pc.
Same envelope and angle as the 7212C size: SKF 7212 CD, NSK 7212C, FAG B7212-C, Fafnir 2MM212WI.
What is the contact angle?
15°.
What preload is it ground for?
Light preload, duplex tandem.
What size is it?
60 mm bore, 110 mm outside diameter, 22 mm width.
