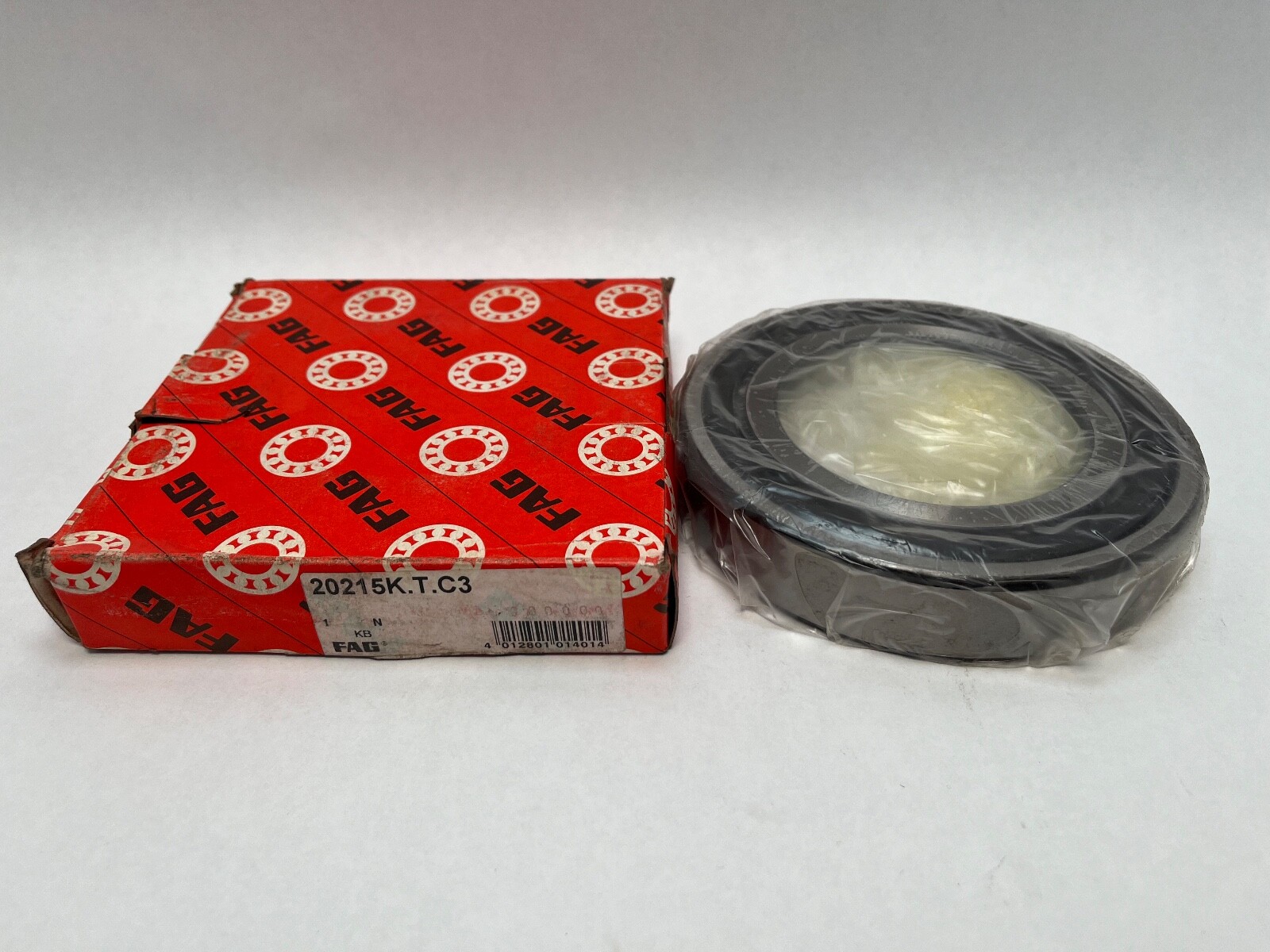

FAG20215K.T.C3Barrel Roller Bearing – Tapered Bore, 75 mm ID, 130 mm OD, 25 mm Width, Open, C3 Internal Clearance

Product Description

What this part is:

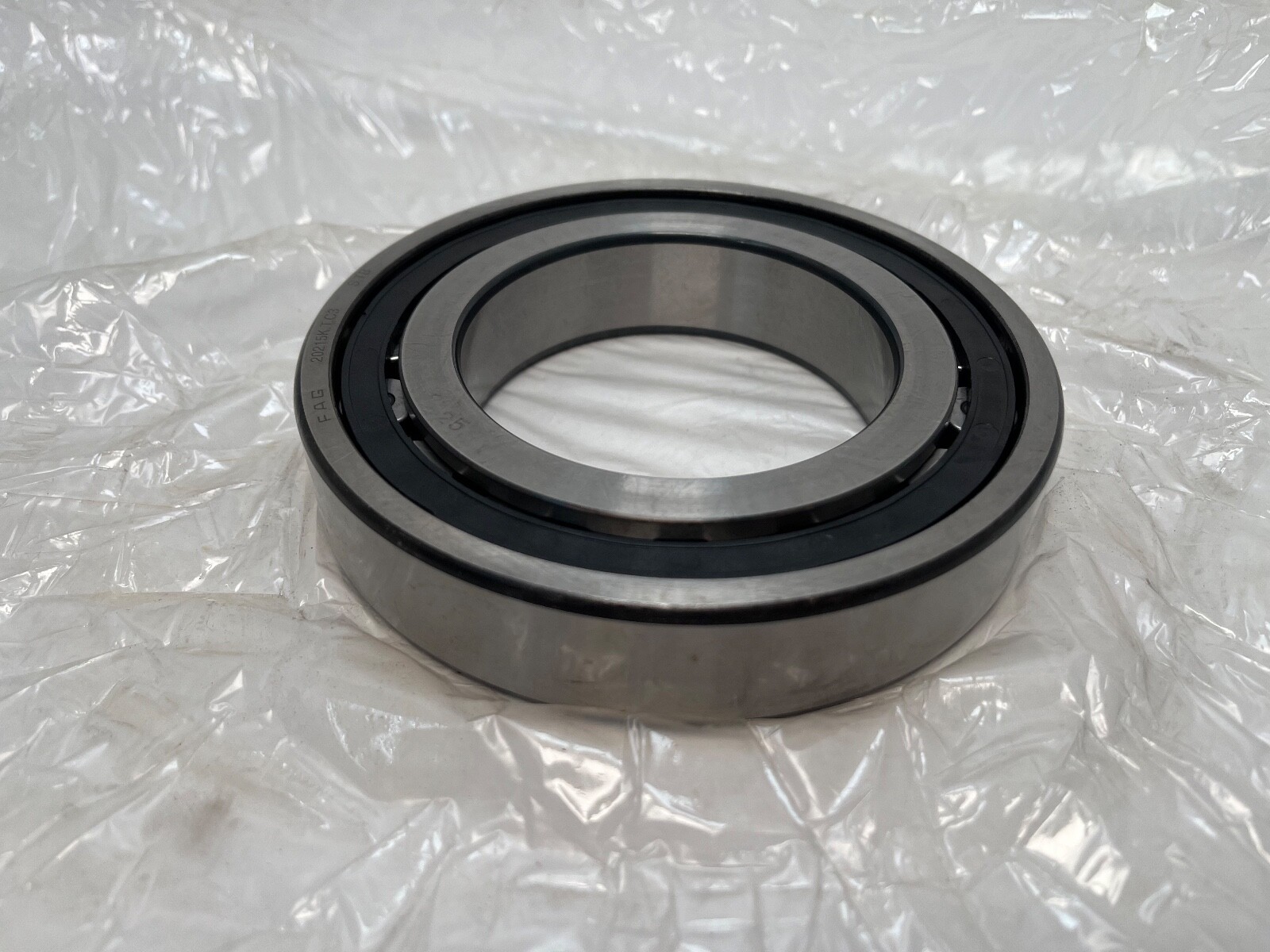

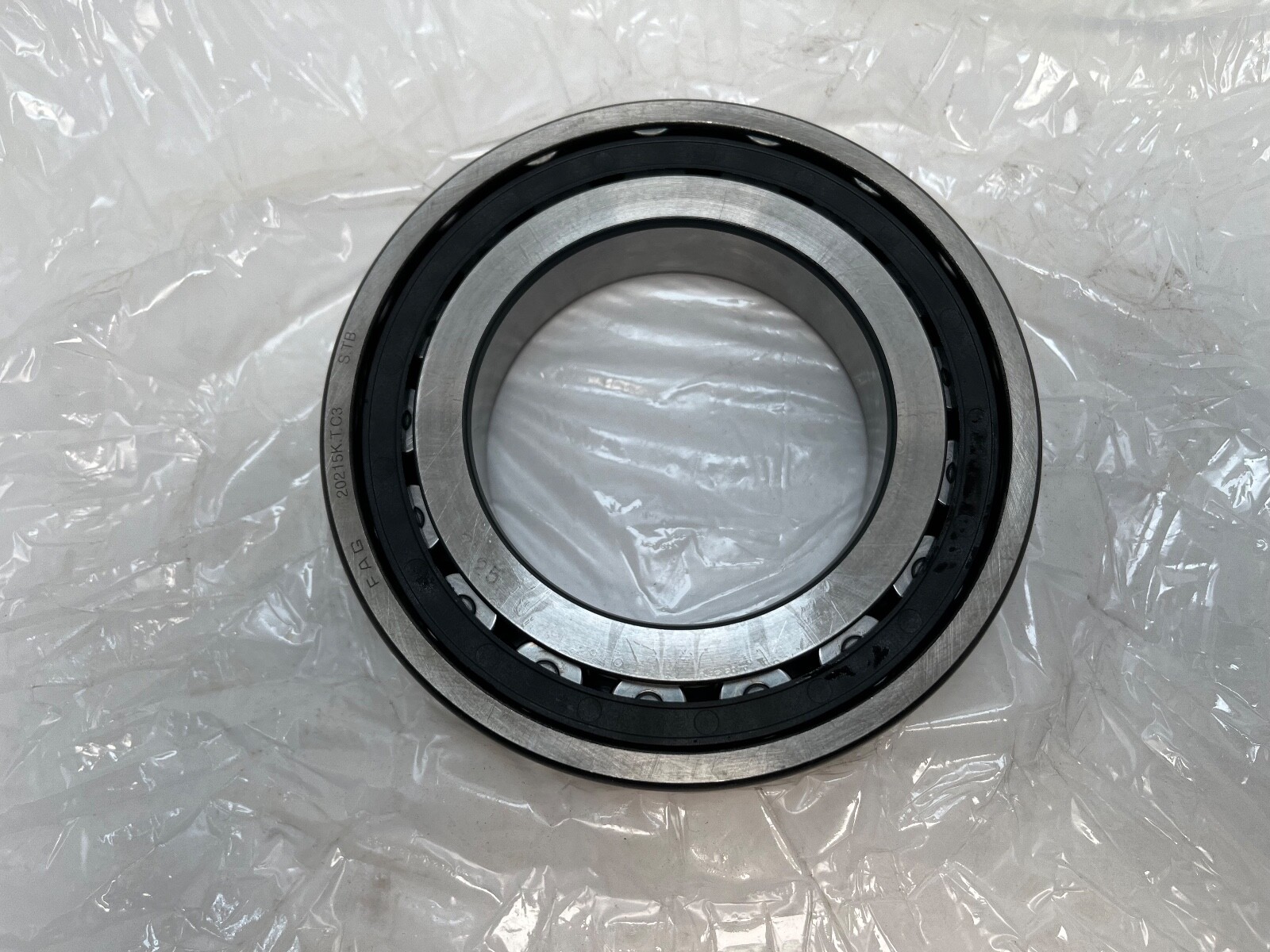

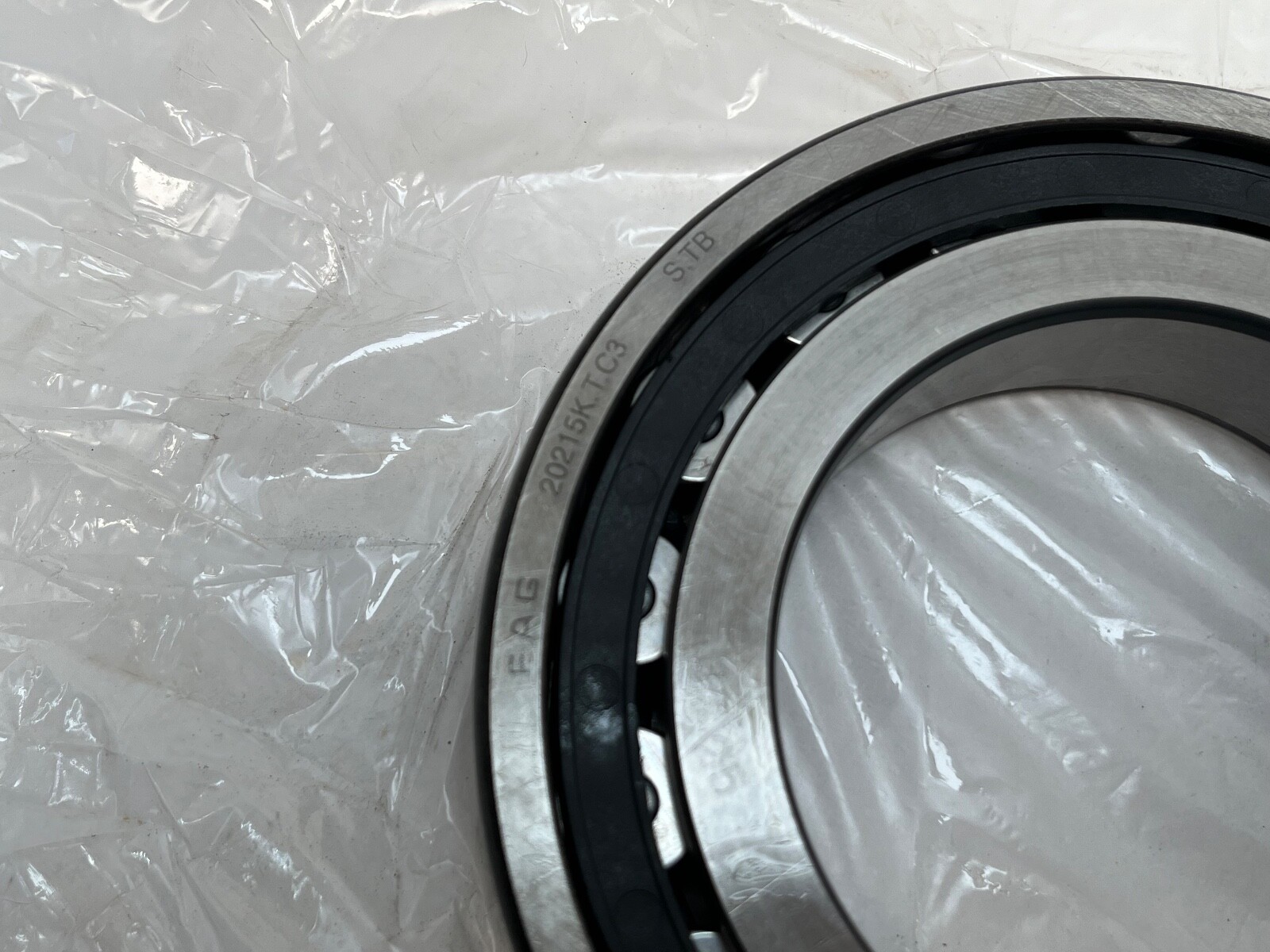

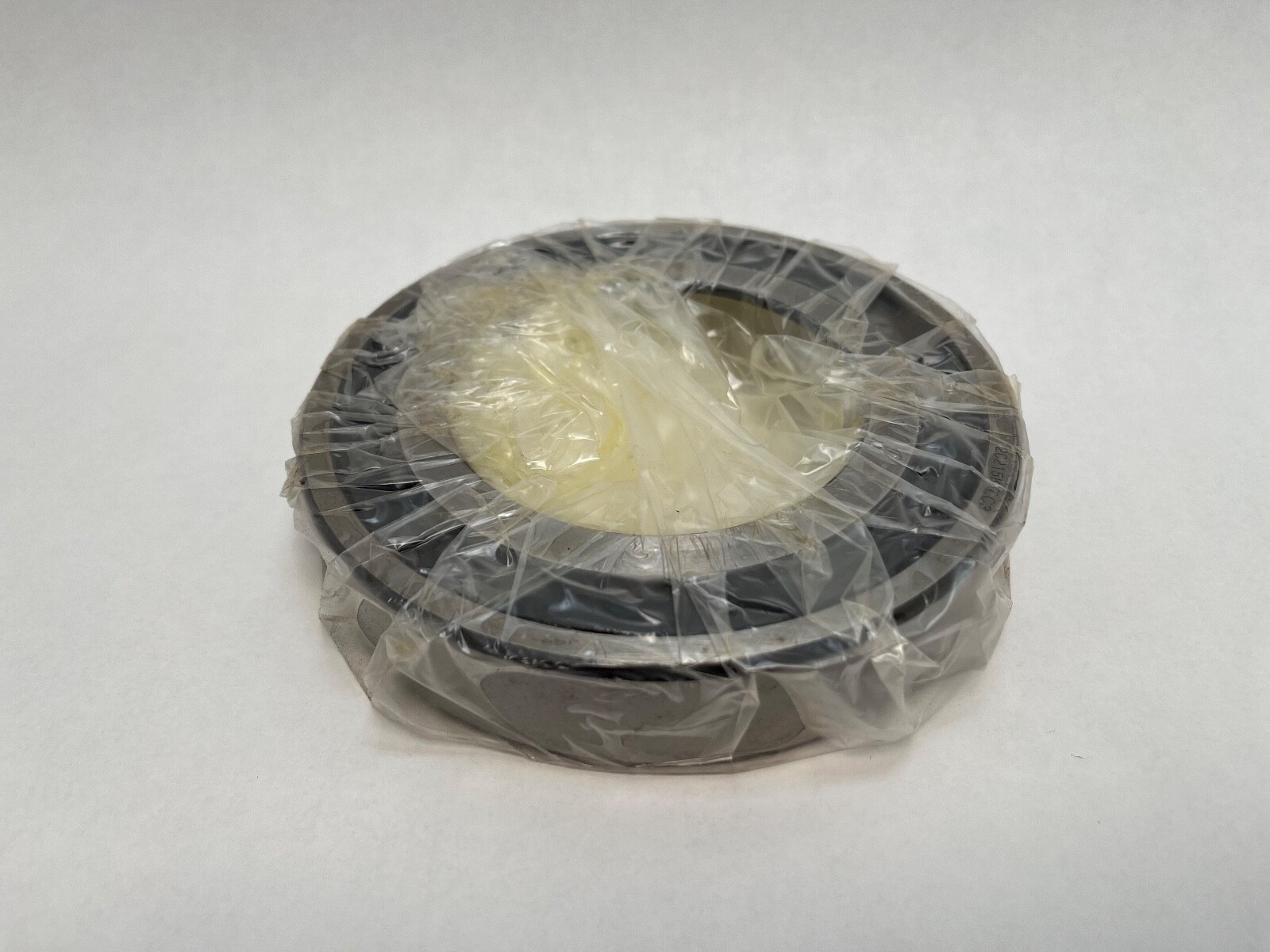

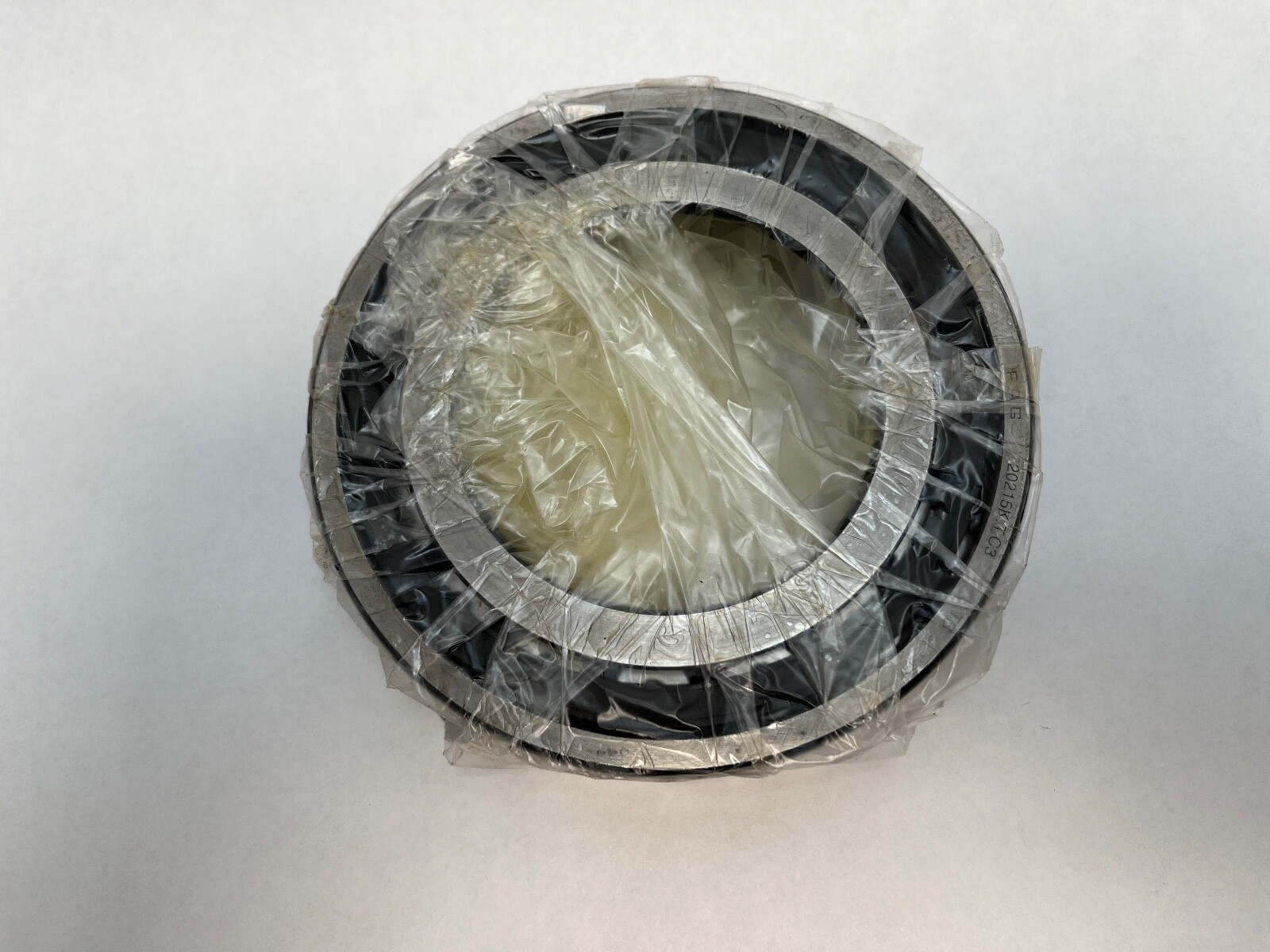

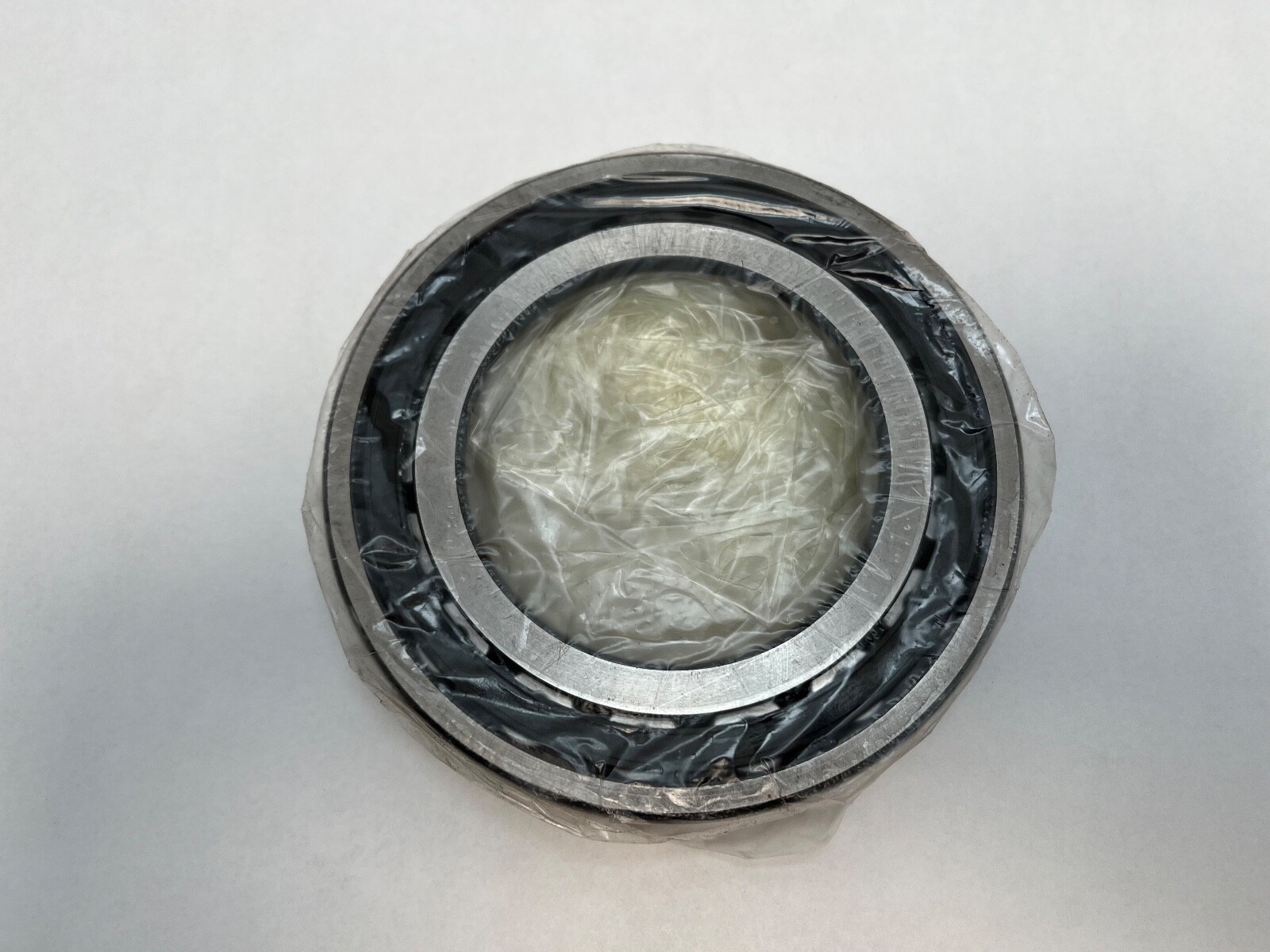

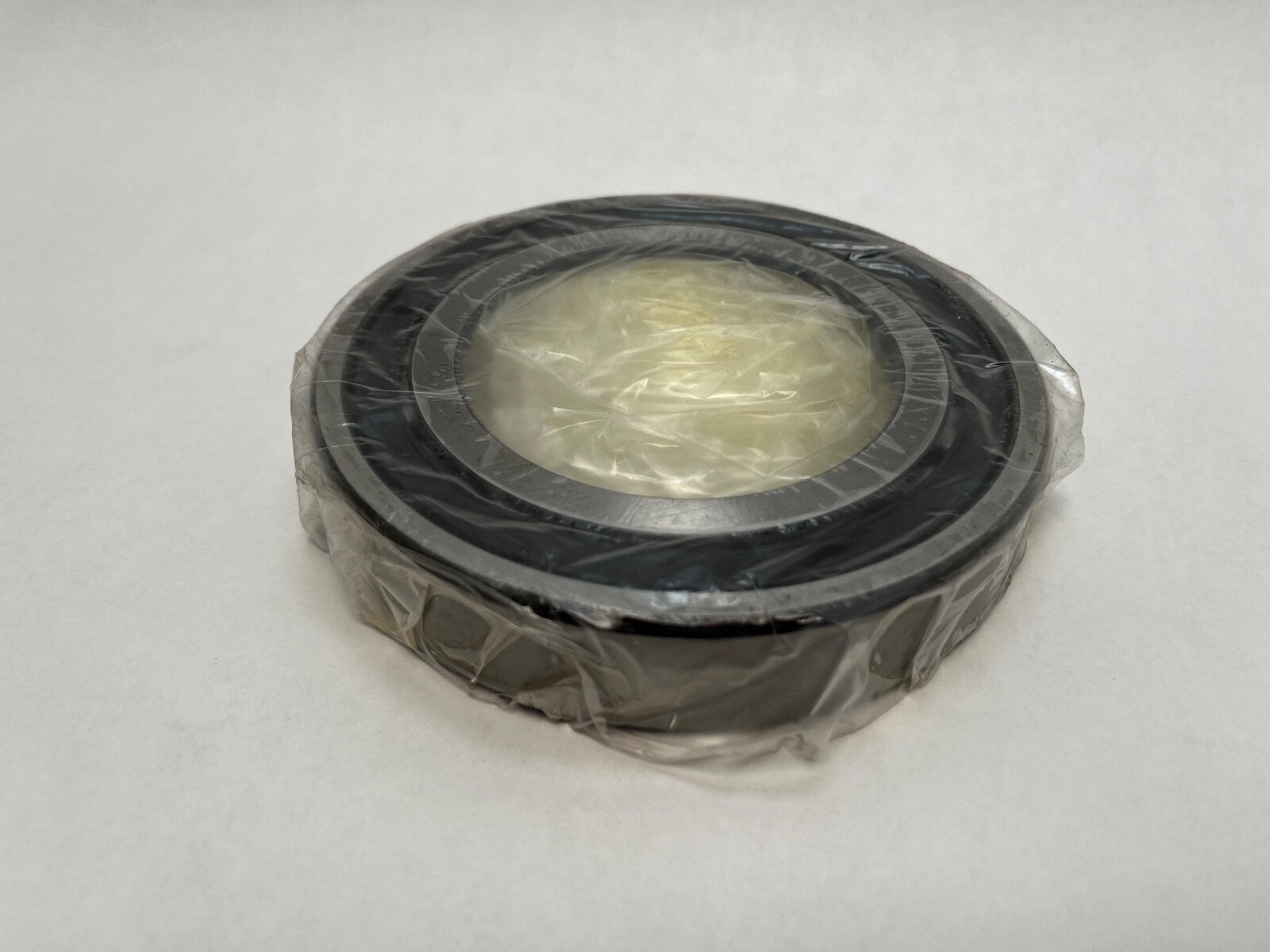

FAG 20215-K-T-C3 single-row barrel roller bearing with a 75 mm tapered bore (1:12), 130 mm outside diameter and 25 mm width. Laminated fabric cage, C3 internal clearance, self-aligning spherical outer raceway, open. Bearing only; Unit Quantity: 1 Pc.

Decoding the designation:

202 — FAG single-row barrel roller series.

15 — bore code 15, a 75 mm bore.

K — 1:12 tapered bore.

T — laminated fabric cage.

C3 — radial internal clearance greater than normal.

Specifications:

Bore Diameter: 75 mm (2.9528 in), tapered 1:12. Outside Diameter: 130 mm (5.1181 in). Overall Width: 25 mm (0.9843 in). Number Of Rows: 1. Rolling Elements: Barrel roller. Cage Material: Laminated fabric. Internal Clearance: C3. Bore Type: Tapered. Closure Type: Open. Series: 20200. Base Number: 20215K. Self-aligning: Yes, spherical outer raceway. Load direction: radial.

Dimensions and mounting:

Bore taper: 1:12. Width: 25 mm (0.9843 in).

Compatibility and replacement:

Cross-references: SKF 20215 K/C3 and NSK 20215KC3, single-row tapered-bore barrel roller bearings of the same 75 x 130 x 25 mm size with C3 clearance. Related parts: FAG 20215-T-C3 is the straight-bore version; SKF 22215 K is a double-row spherical roller bearing, a different bearing type. Searchable forms of the number: 20215K.T.C3, 20215-K-T-C3, 20215 K T C3, 20215KTC3, 20215K and 20215KC3.

Frequently asked questions:

Is the FAG 20215-K-T-C3 a spherical roller bearing?

No. The 202 series is a single-row barrel roller bearing with a spherical outer raceway; a double-row spherical roller bearing is the 222 series.

What does K mean in 20215-K-T-C3?

K is a 1:12 tapered bore. The bore is 75 mm at the large end of the taper.

What are the dimensions and clearance of the 20215-K-T-C3?

Bore 75 mm (2.9528 in), outside diameter 130 mm (5.1181 in), width 25 mm (0.9843 in), C3 radial internal clearance.
