Availability:
1 in stock

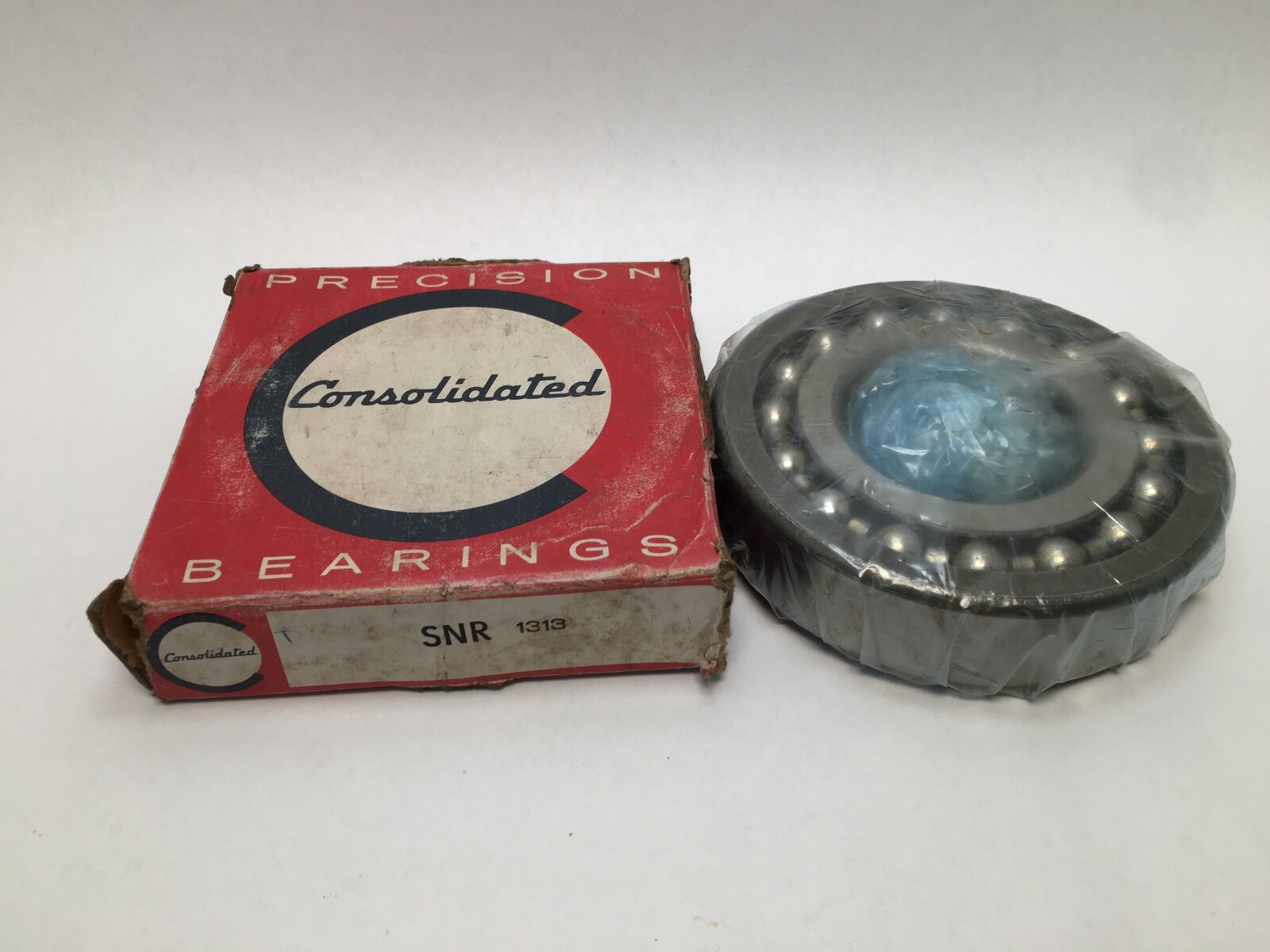

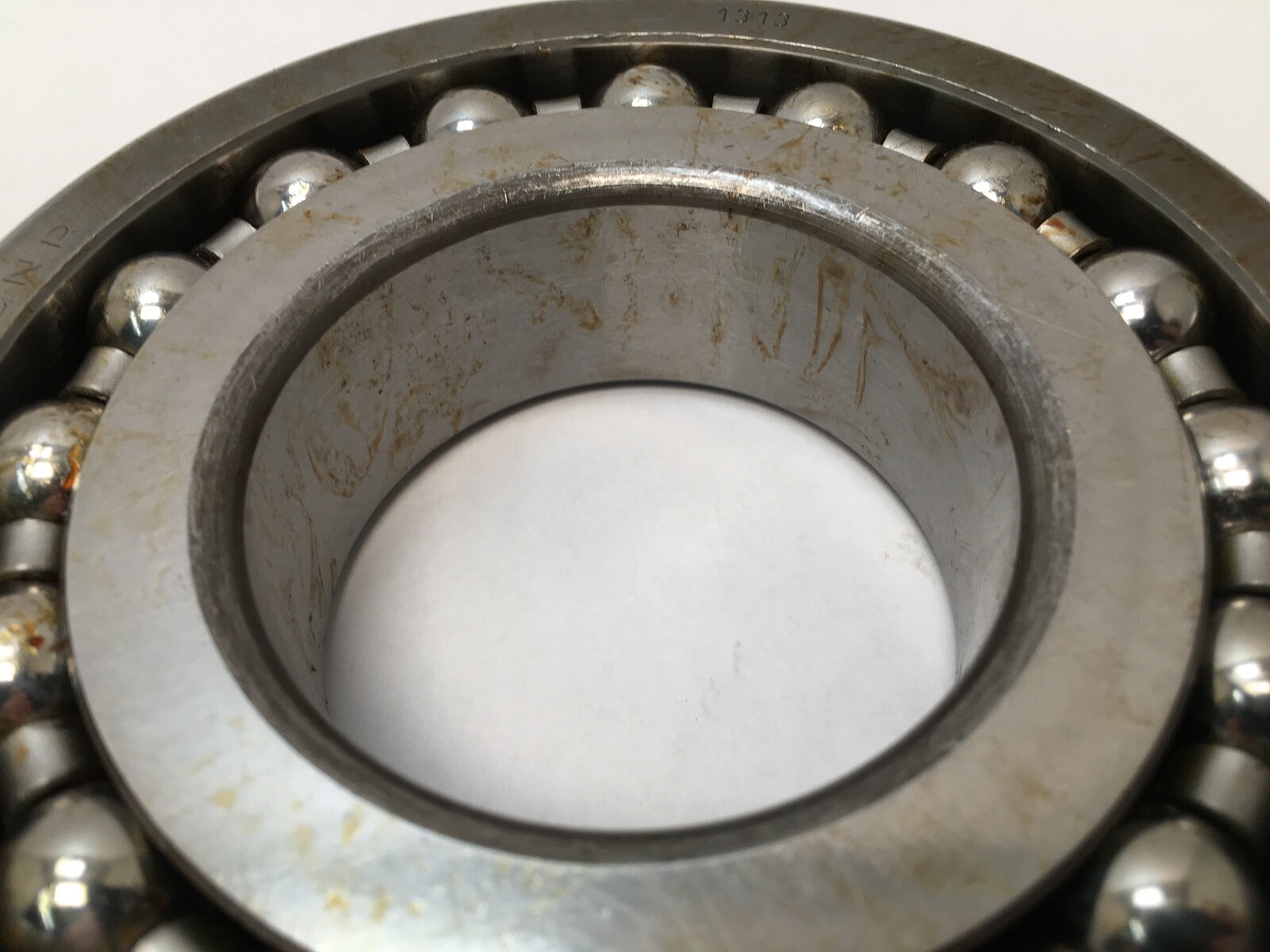

Double-row self-aligning ball bearing, 65 mm cylindrical bore x 140 mm OD x 33 mm wide, open, normal CN clearance. ISO 13 medium series, SNR 1313.
List Price
$45.88
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNR |
|---|---|
| MPN | 1313 |
| Model | 1313 |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 65 mm |
| OD | 140 mm |
| Width | 33 mm |
| Series | 1300 |
|---|---|
| Material | Bearing Steel |
| Base Number | 1313 |
| Industry Terms | self-aligning ball bearing, double row ball bearing, cylindrical bore bearing, 1300 series, medium series |
| Common Misspellings | 1331, 131 3, 13I3, 1318 |
| Overall Width | 33 mm |
| Mpn Variants | 1313, SNR 1313, 1313 CN, 1313 open |
| Precision Class | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.10.50 |
| Cross Reference 1 | SKF 1313 |
|---|---|
| Cross Reference 2 | FAG 1313-TVH |
| Cross Reference 3 | NSK 1313 |
| Cross Reference 4 | NTN 1313 |
| Cross Reference 5 | Koyo 1313 |

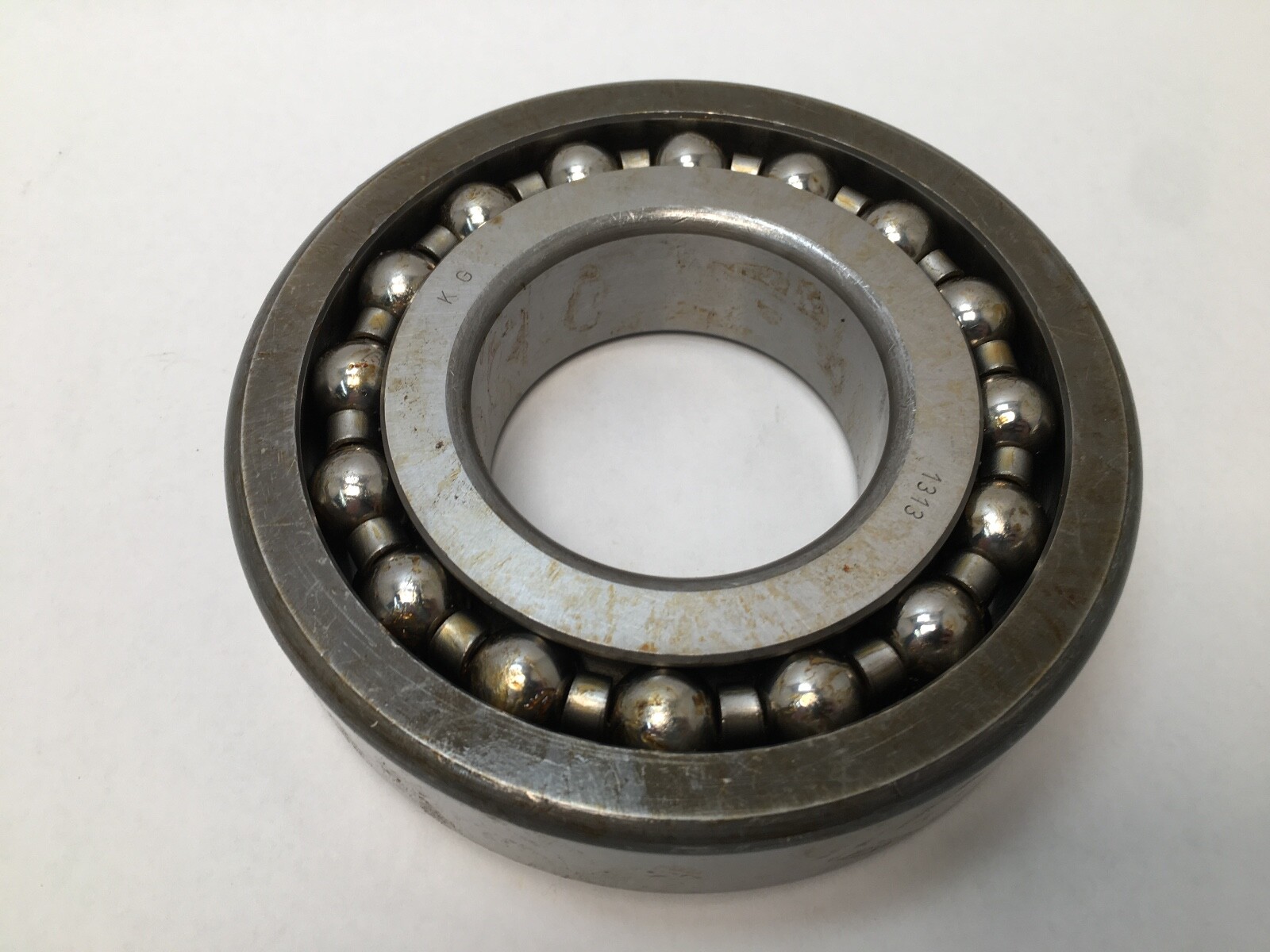

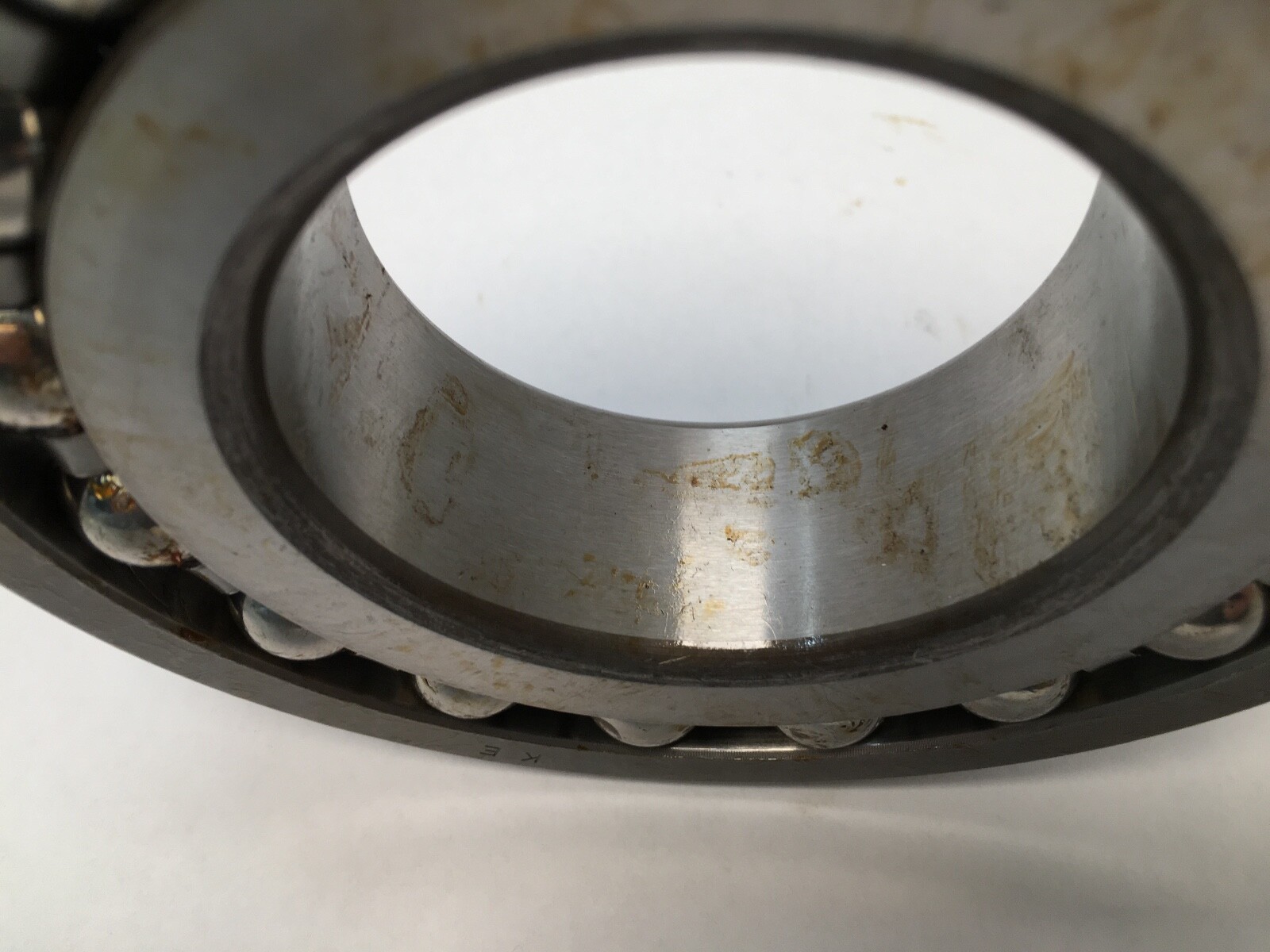

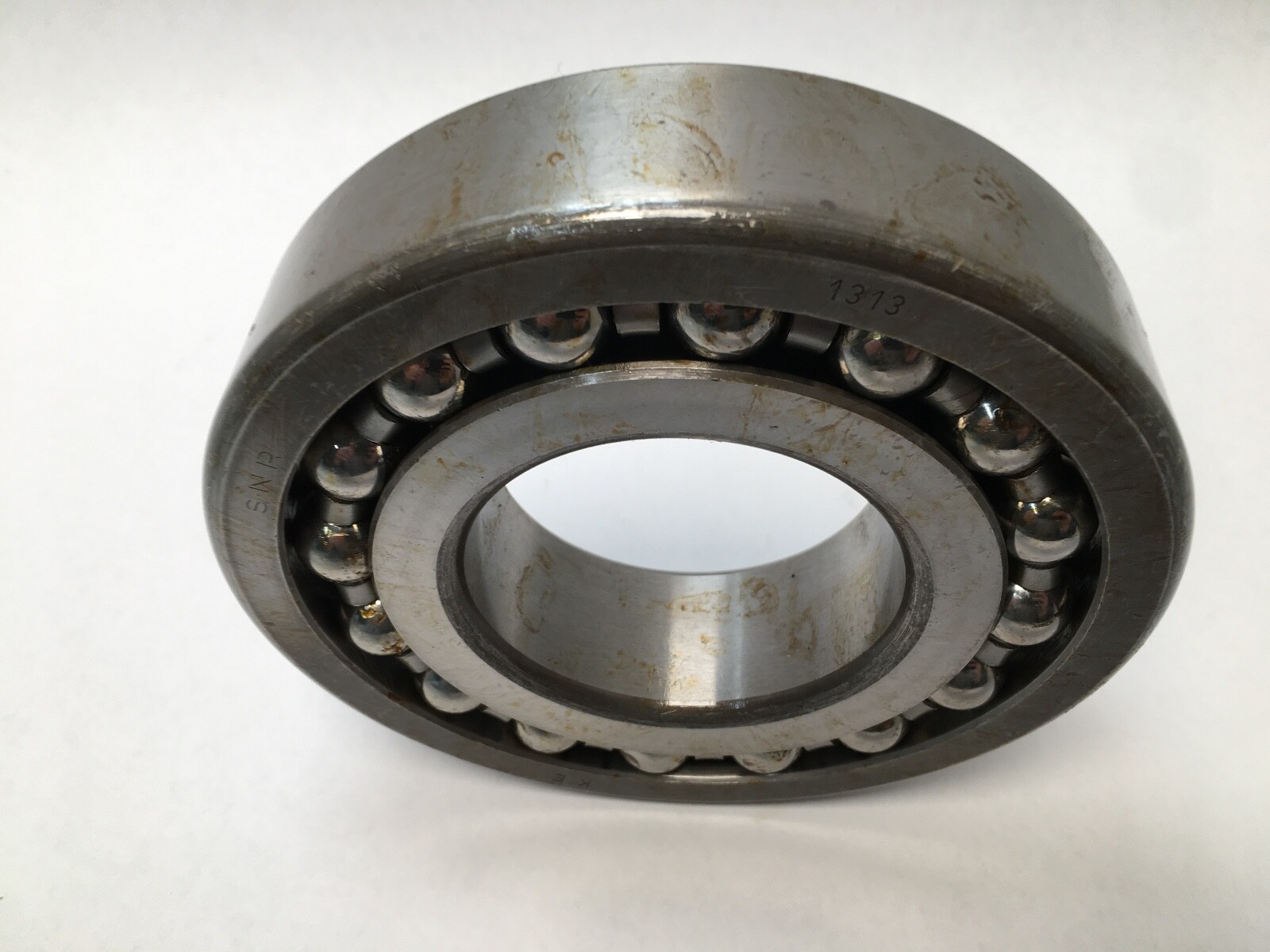

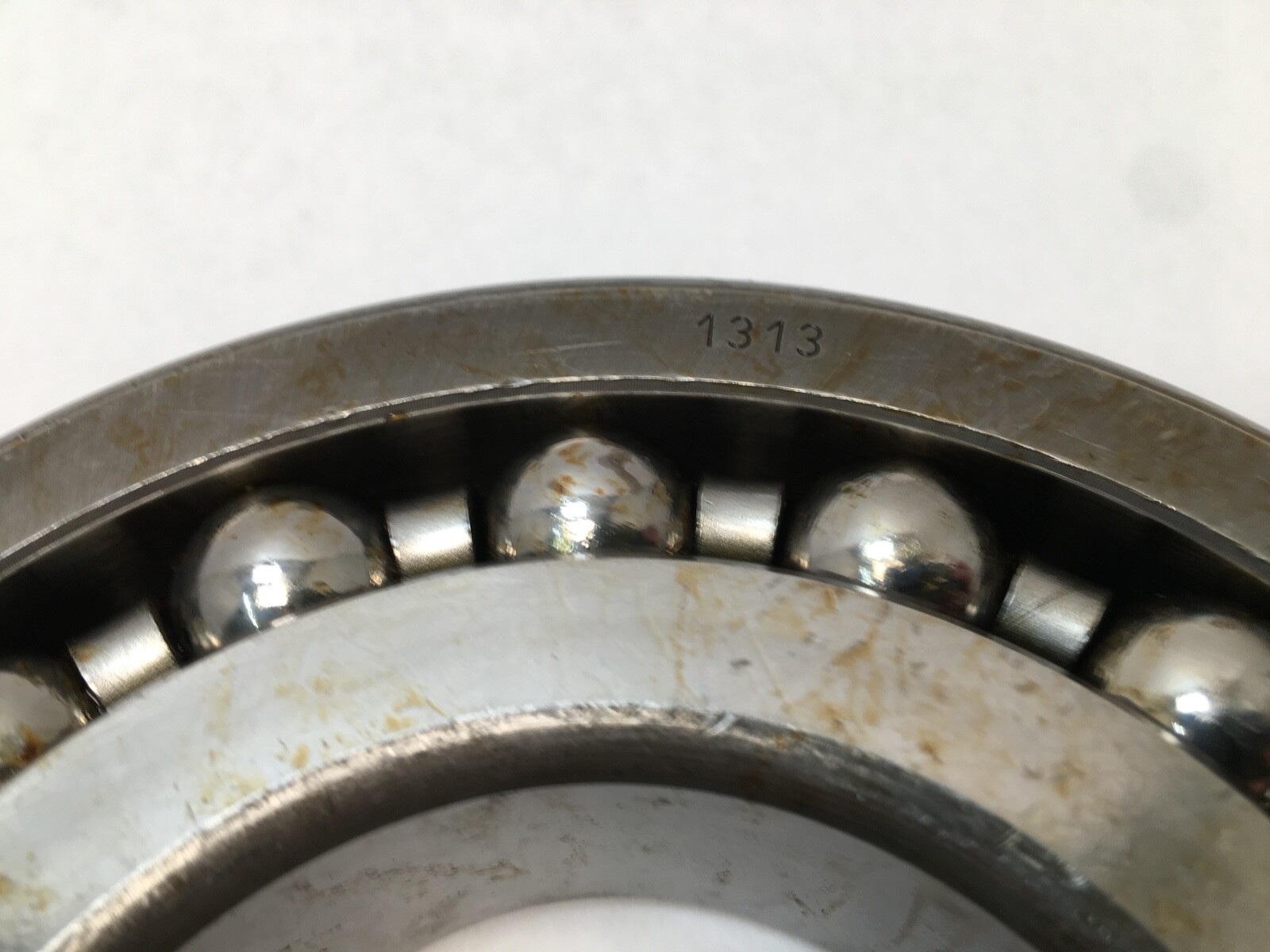

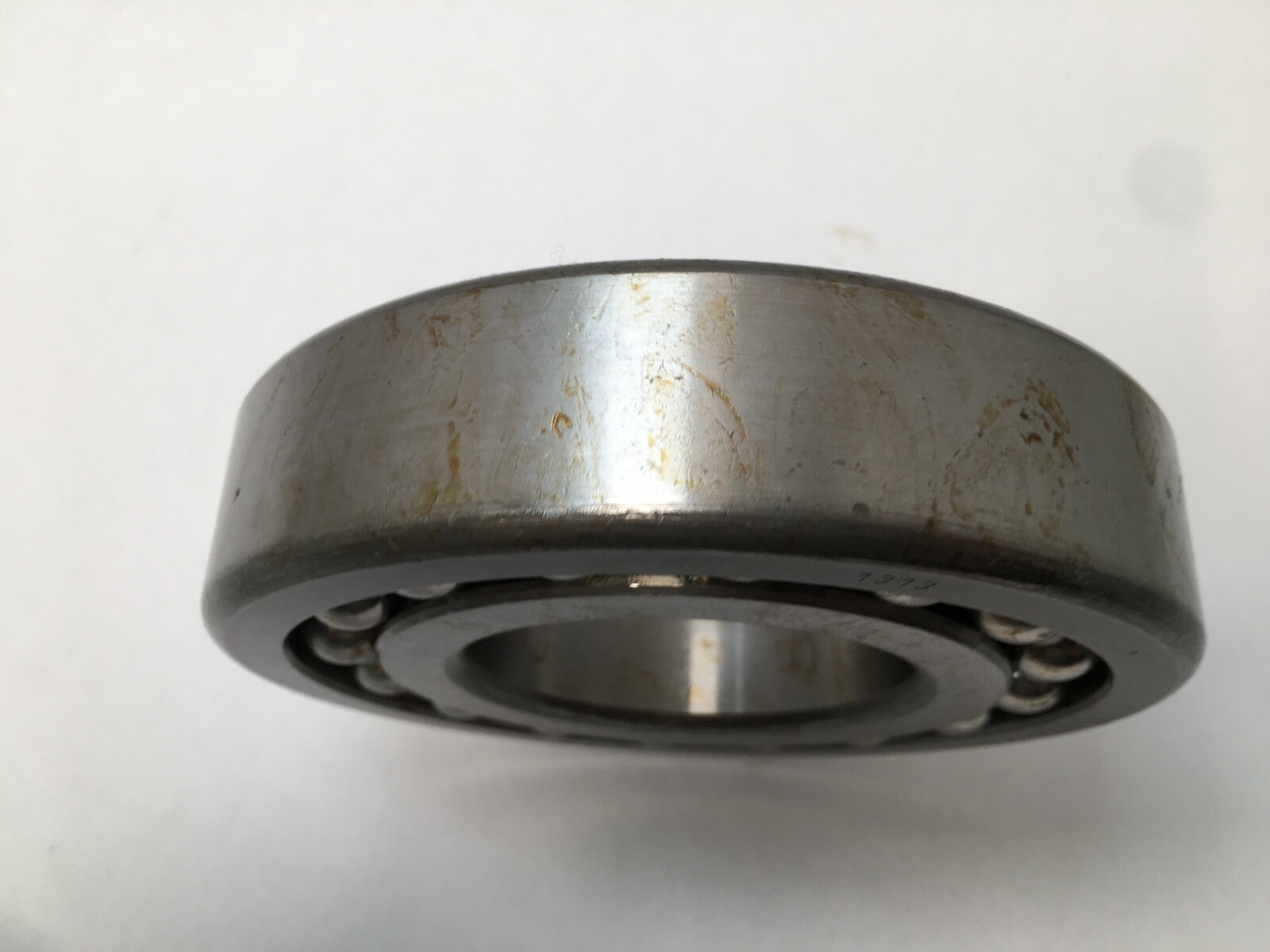

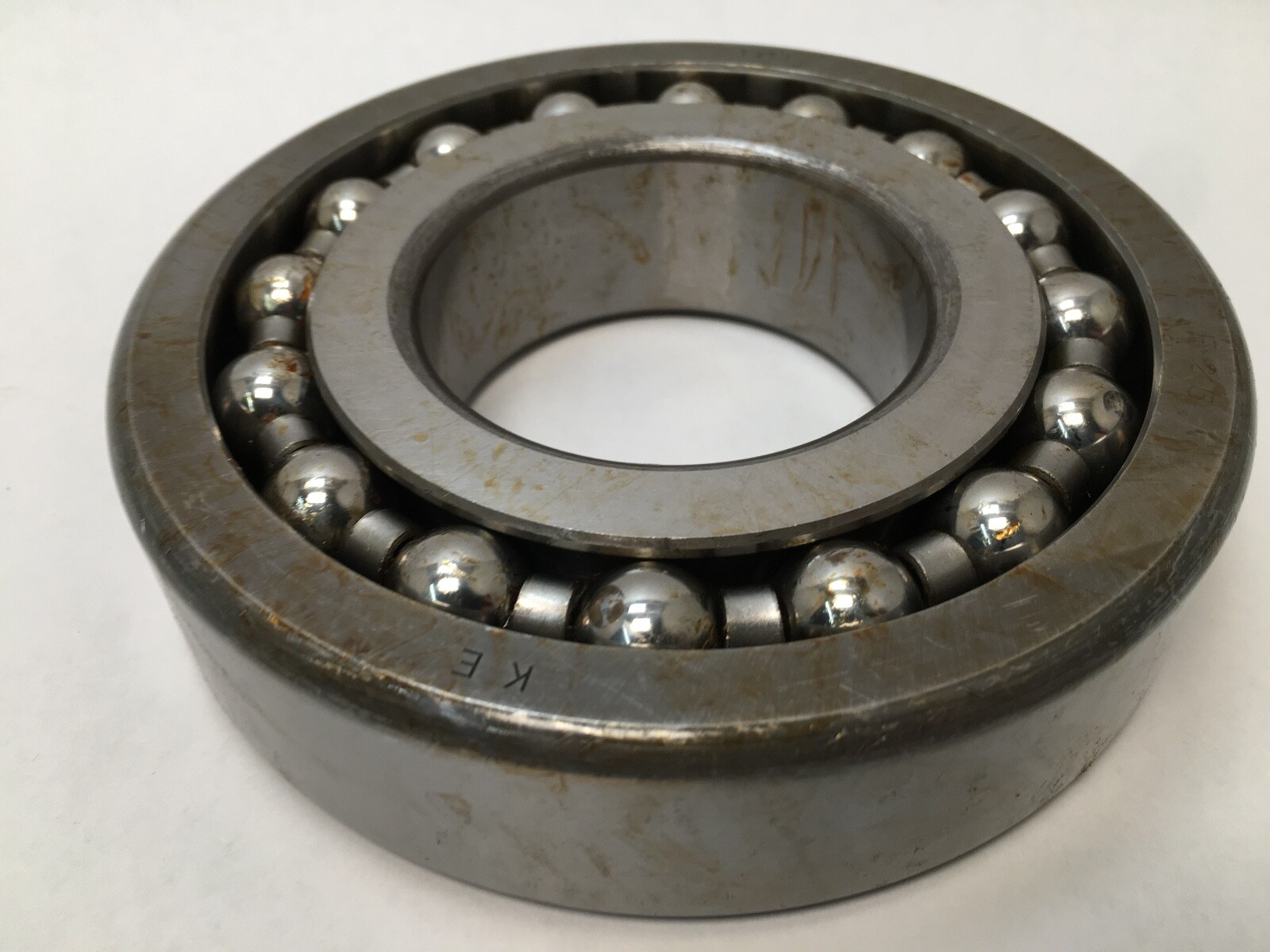

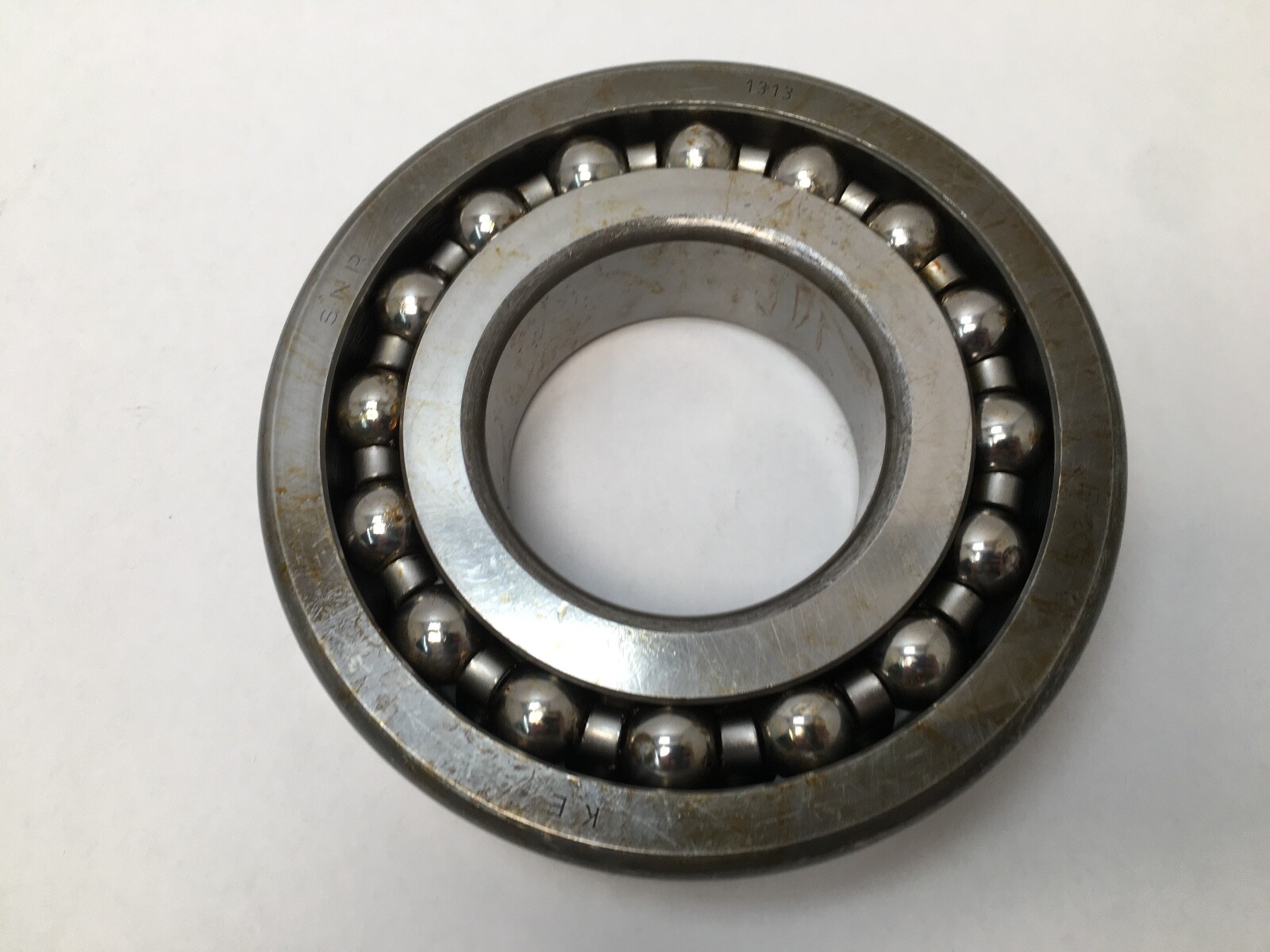

The SNR 1313 is a double-row self-aligning ball bearing with a cylindrical bore, from the ISO 13 medium series. Bore Diameter: 65 mm. Outside Diameter: 140 mm. Overall Width: 33 mm. Two rows of balls run on a common spherical raceway in the outer ring, so the inner ring, balls and cage swivel relative to the outer ring and absorb shaft deflection and housing misalignment.
13 — double-row self-aligning ball bearing, ISO dimension series 03 (medium).
13 — bore code 13: 65 mm bore, 140 mm outside diameter, 33 mm width.
Rolling Elements: Ball. Number Of Rows: 2. Bore Type: Straight. Closure Type: Open. Internal Clearance: CN. Precision Class: ABEC 1 / P0. The medium 13 series carries more load than the 12 series of the same bore through a larger section and larger balls. The self-aligning geometry keeps both ball rows loaded when the shaft runs out of line with the housing, which suits line shafts, fans, conveyors and textile and agricultural machinery. The open design takes grease or oil lubrication.
Cylindrical bore for a 65 mm shaft seat. Snap Ring Included: No.
Unit Quantity: 1 Pc.
Same 65 x 140 x 33 mm envelope, double-row self-aligning ball design and cylindrical bore: SKF 1313, FAG 1313-TVH, NSK 1313, NTN 1313, Koyo 1313. The FAG equivalent carries a polyamide cage. A 1313K has a tapered bore for an adapter sleeve and is a different part.
