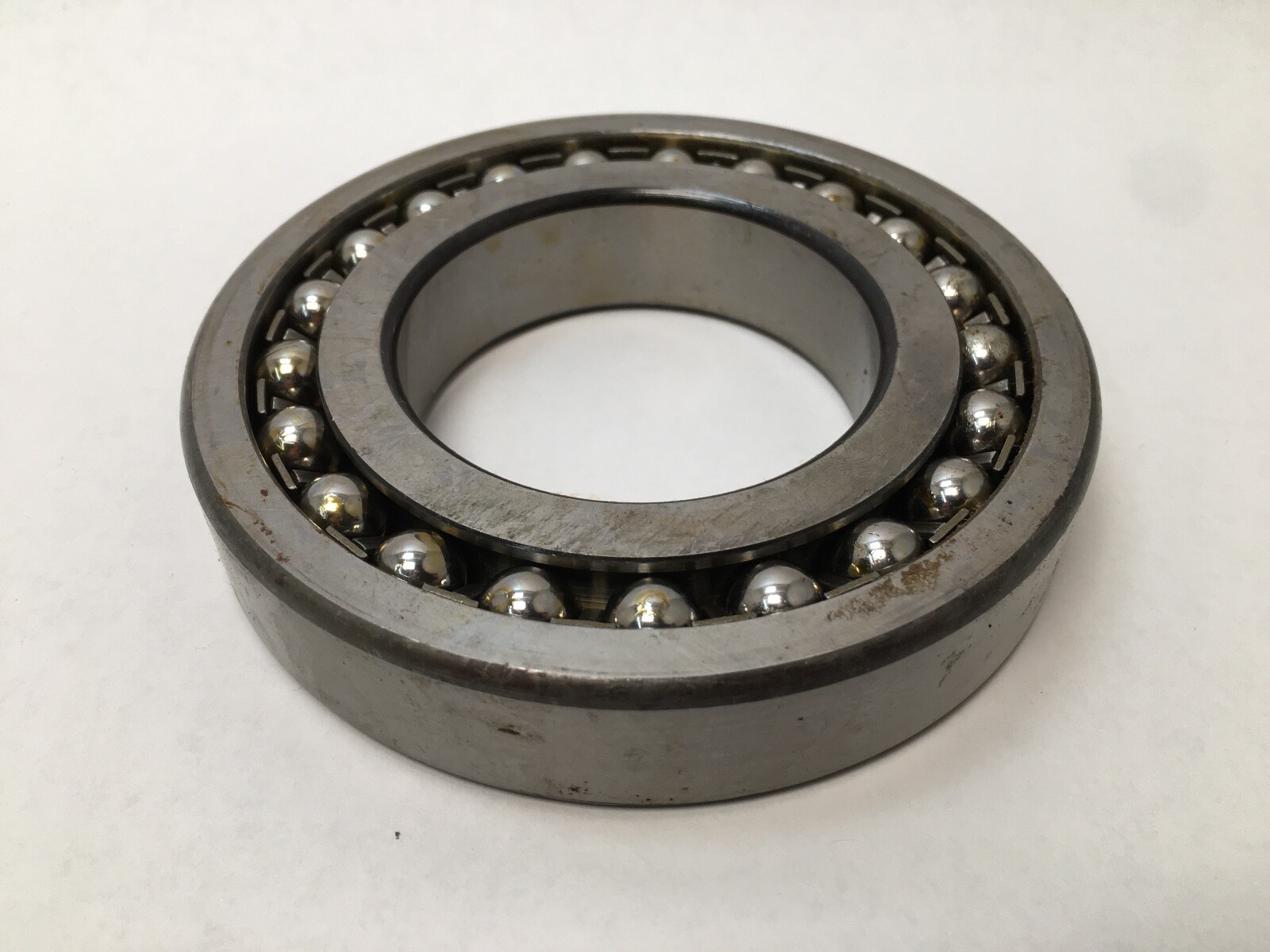

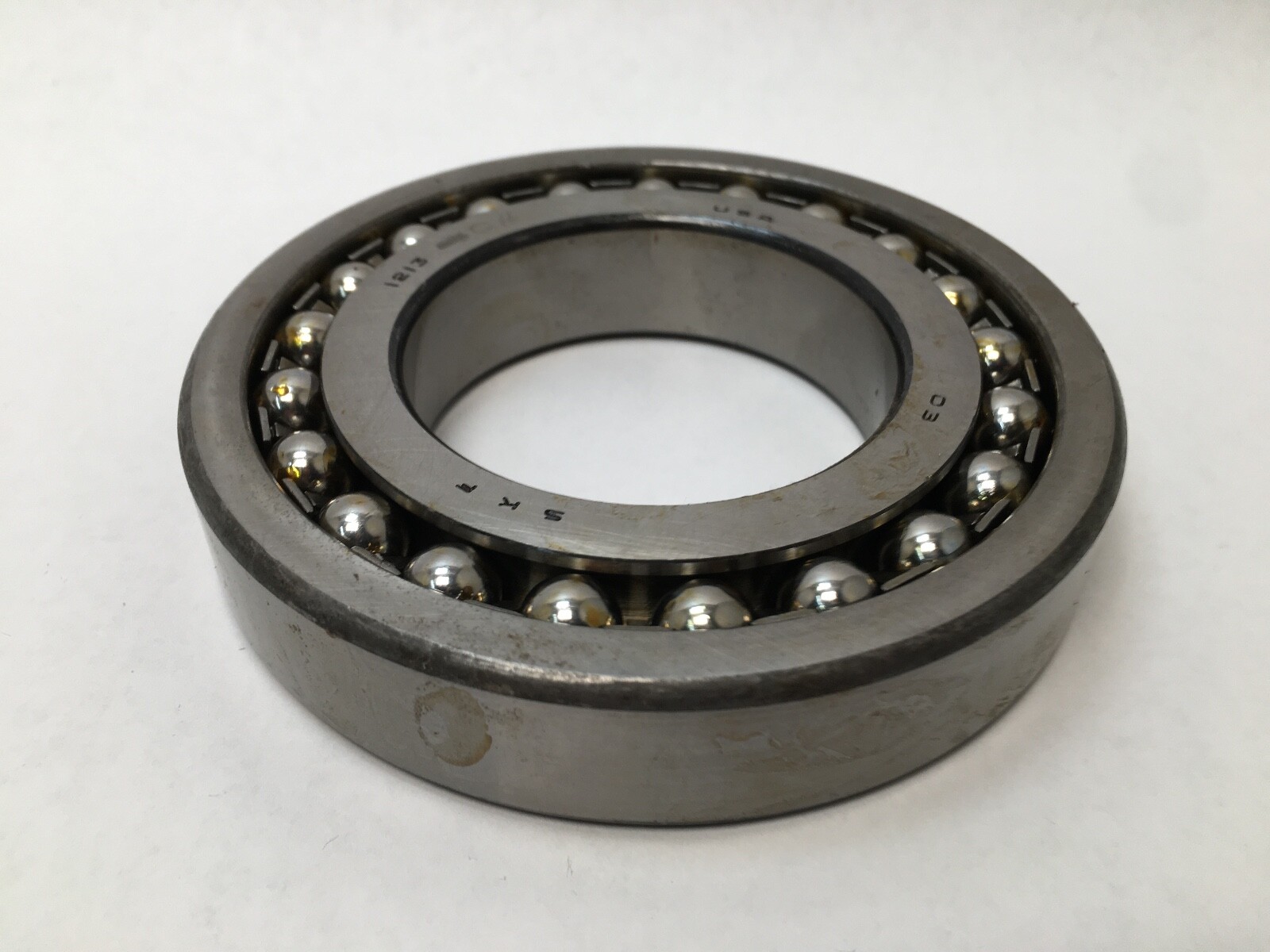

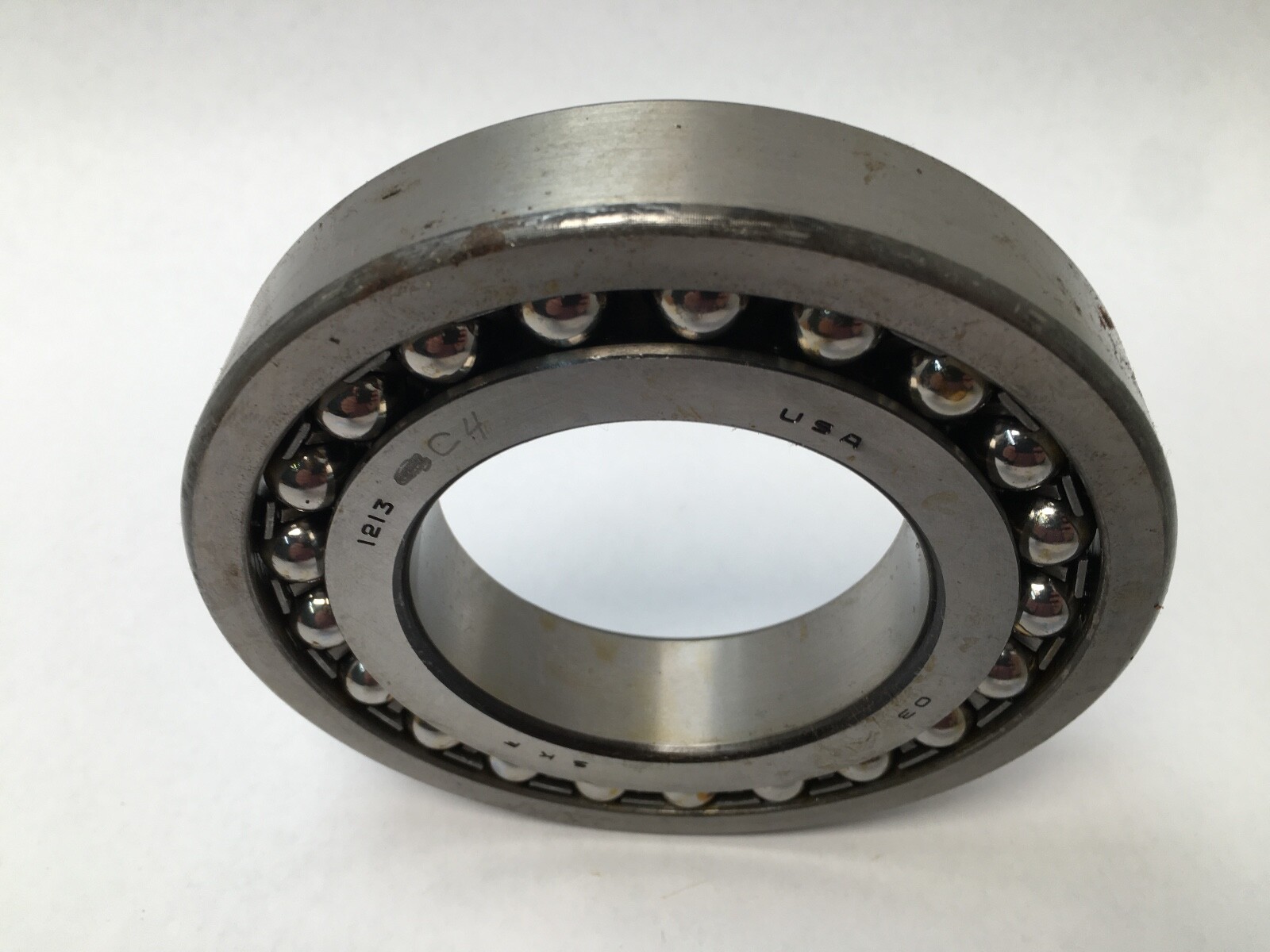

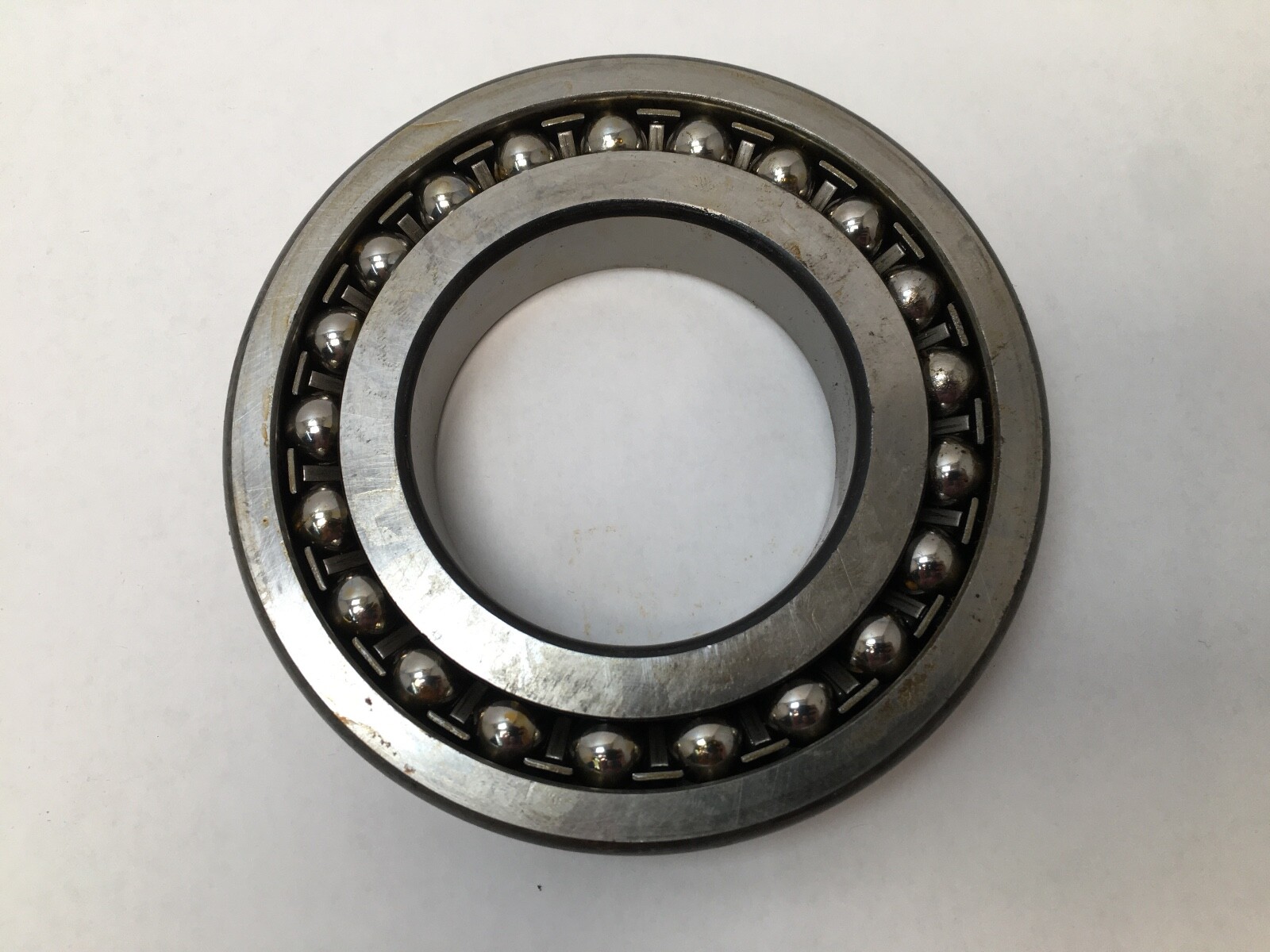

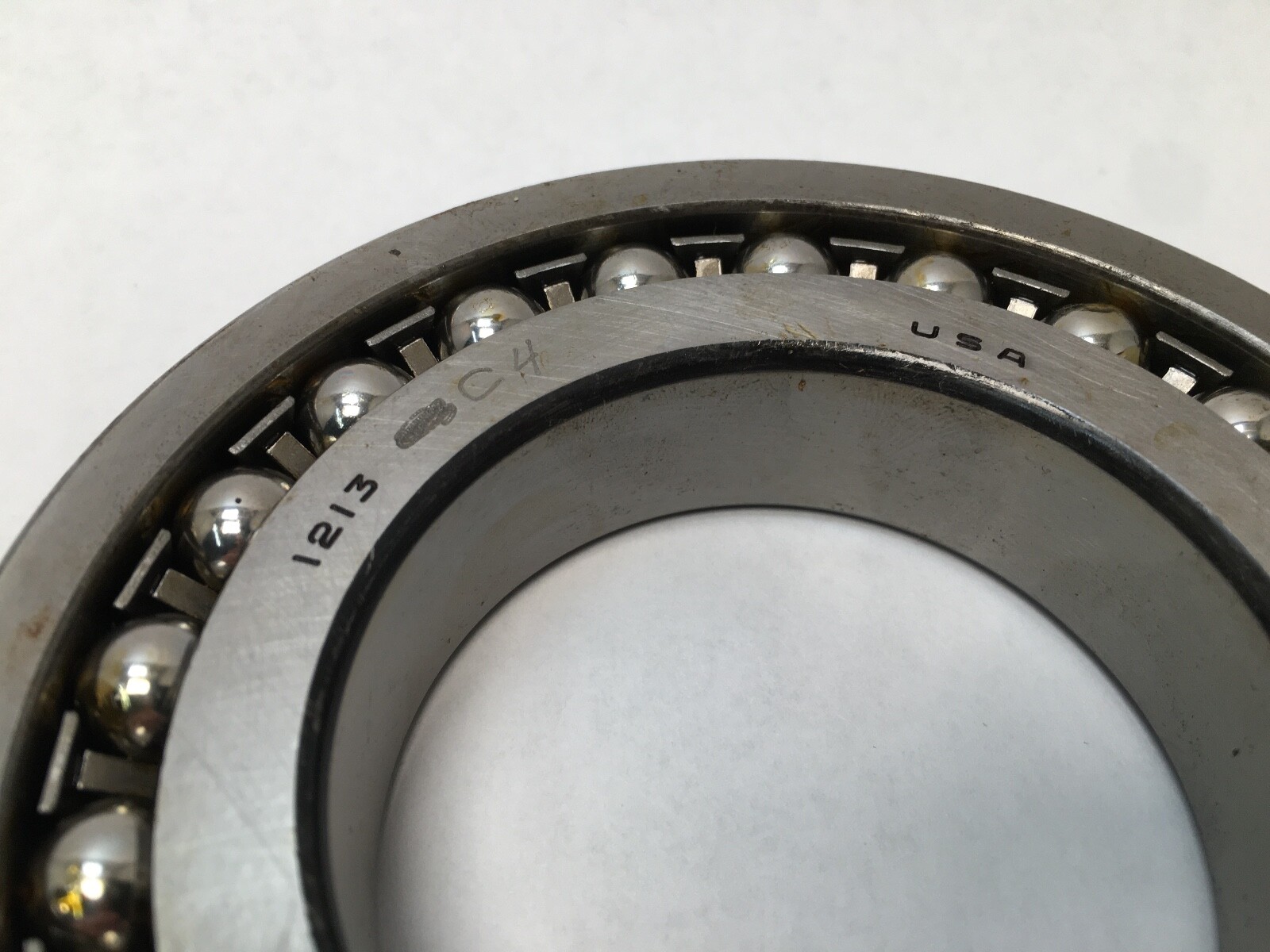

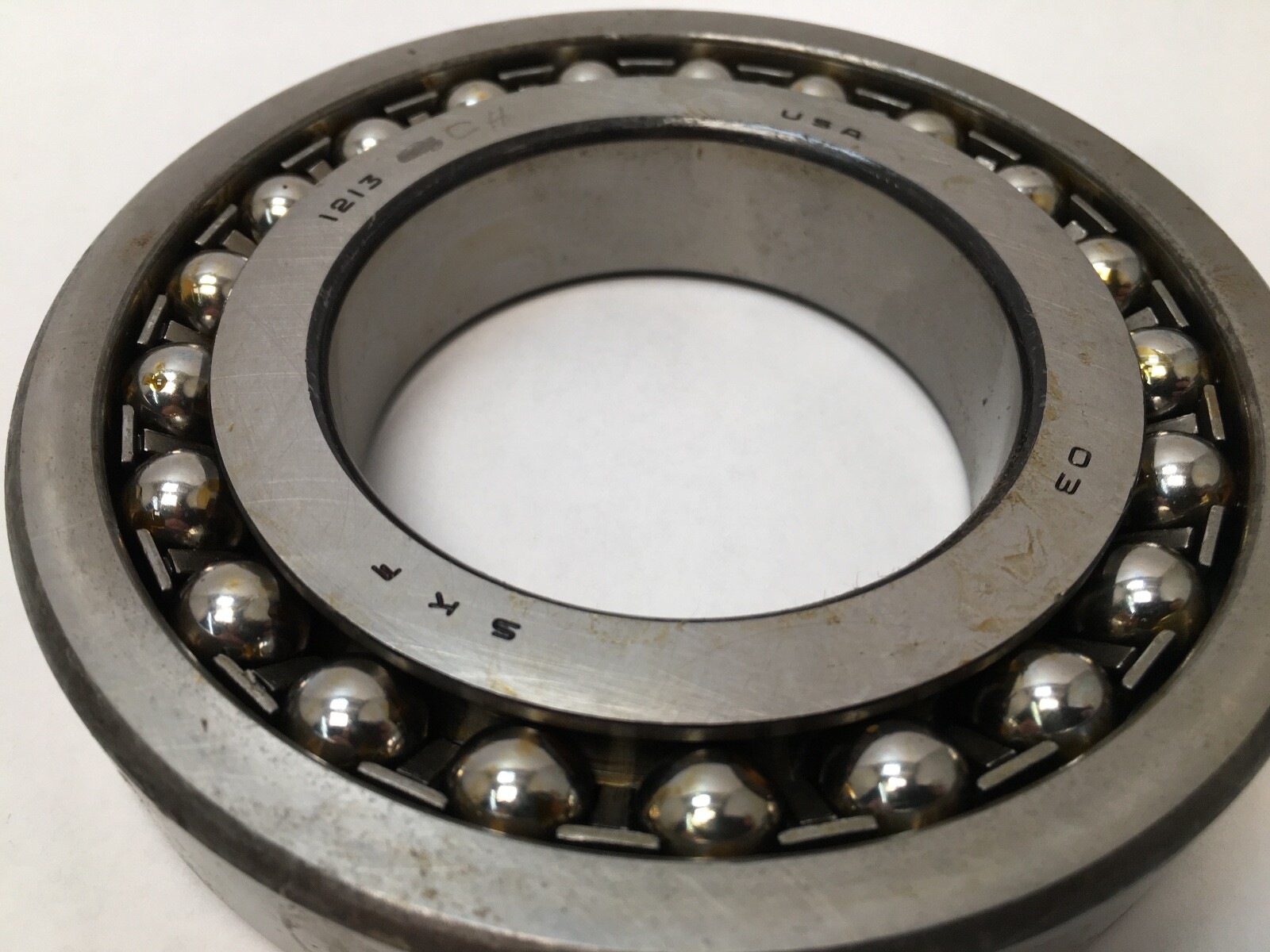

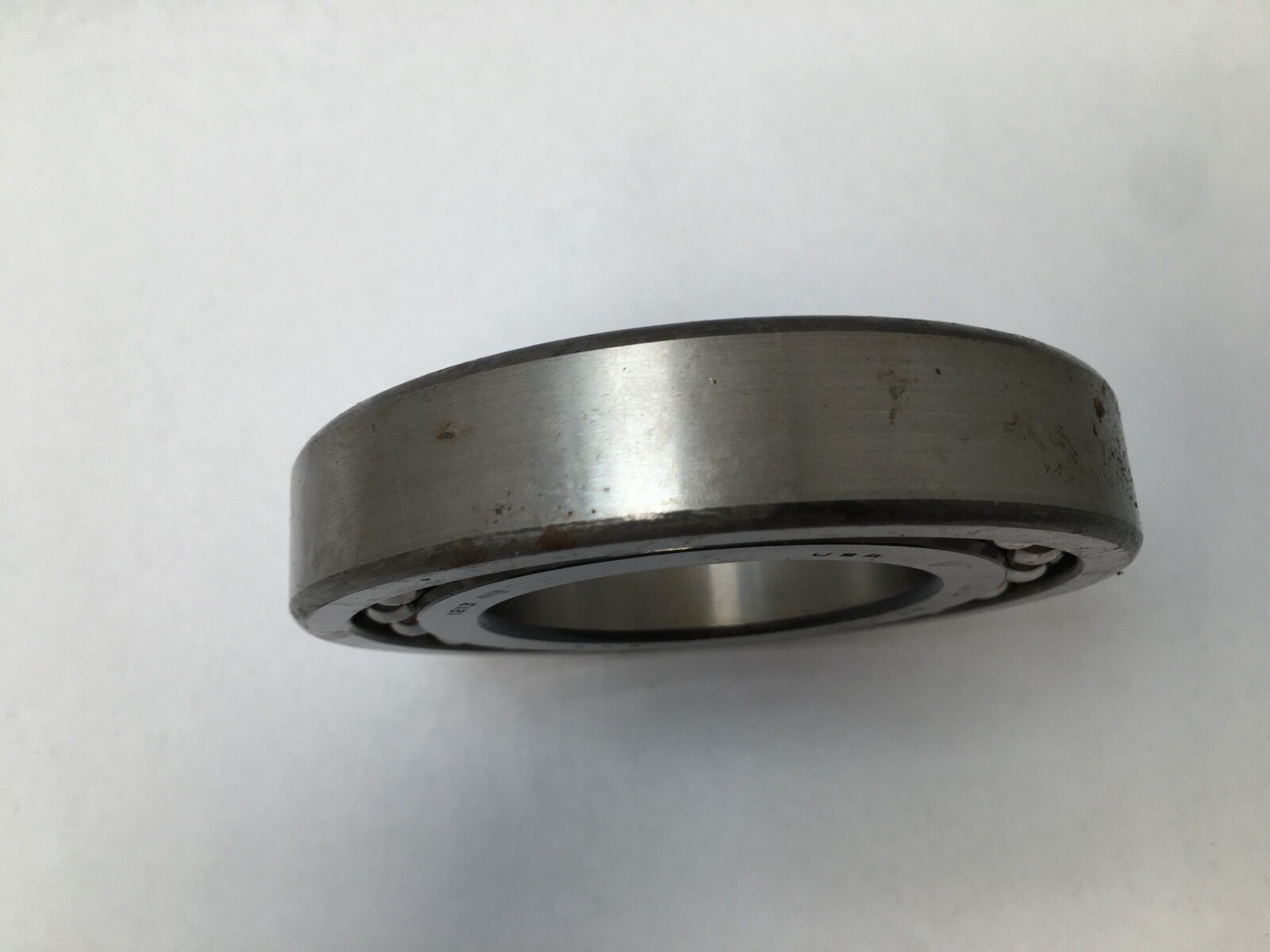

Self-aligning ball bearing, 65 mm bore, 120 mm OD, 23 mm wide, C4 clearance, pressed steel cage. Two pieces of SKF 1213 J/C4, double-row, open.
List Price
$51.36
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 1213 J/C4 |
| Model | 1213JC4 |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 65 mm |
| OD | 120 mm |
| Width | 23 mm |
| Series | 12 |
|---|---|
| Material | Bearing Steel |
| Rolling Elements | Ball |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Internal Clearance | C4 |
| Maximum Permissible Misalignment | 2.5° |
| Base Number | 1213 |
| Overall Width | 23 mm |
| Mpn Variants | 1213JC4, 1213-J-C4, 1213 J C4, 1213J/C4 |
| Industry Terms | self-aligning ball bearing; double row self aligning bearing; 12 series self-aligning ball bearing |
| Common Misspellings | SKF 1213JC4; SFK 1213 J/C4; SKF 1213 C4J; SKF1213 J C4 |
| Application Types | Shafts with misalignment or deflection; general machinery shaft supports |
| Cross Reference 1 | FAG 1213-TVH-C4 - polyamide cage |
|---|---|
| Cross Reference 2 | NSK 1213C4 |
| Cross Reference 3 | NTN 1213C4 |
| Cross Reference 4 | SKF 1213 ETN9/C4 - polyamide cage |
| Cross Reference 5 | SNR 1213 C4 |

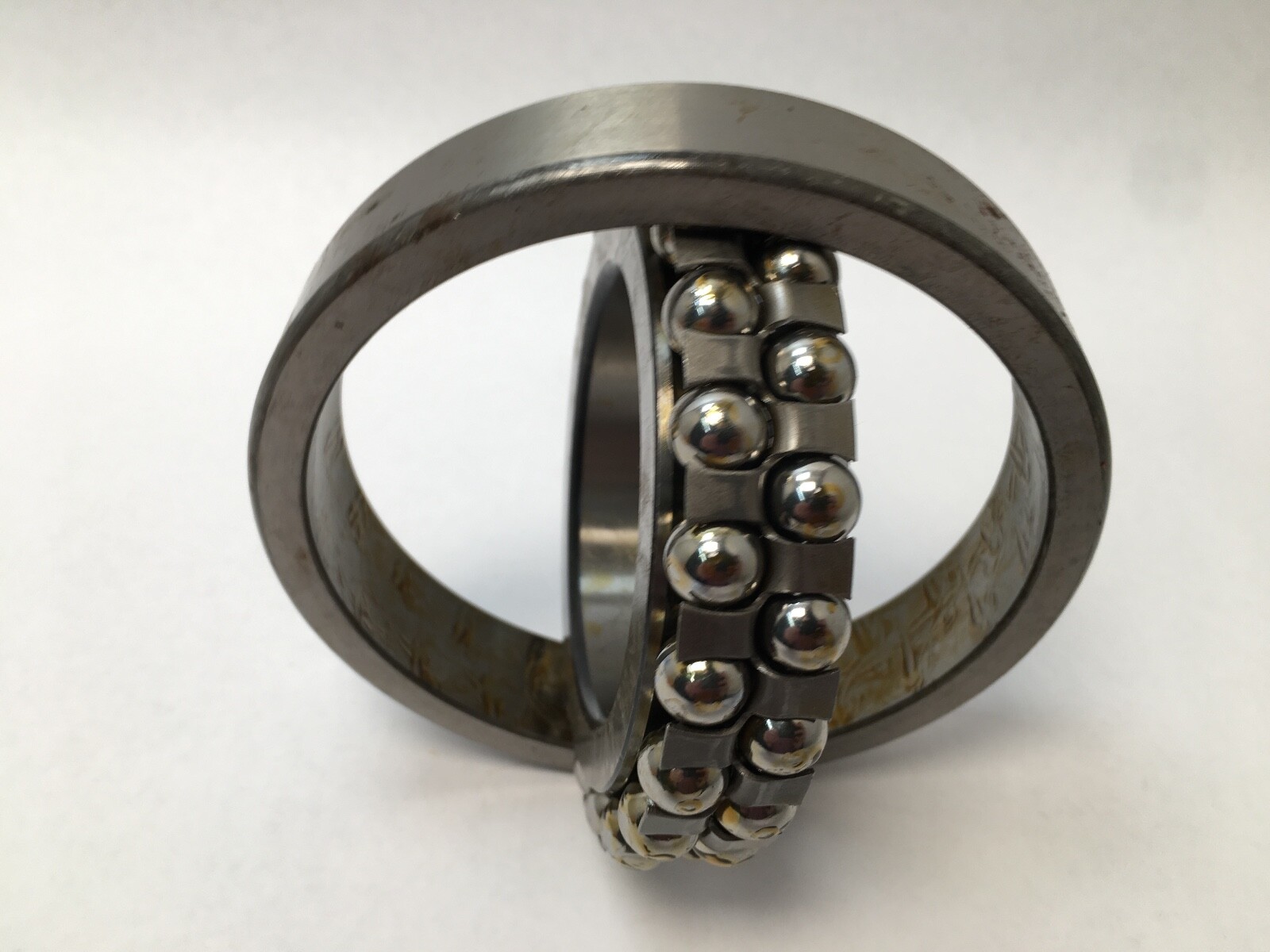

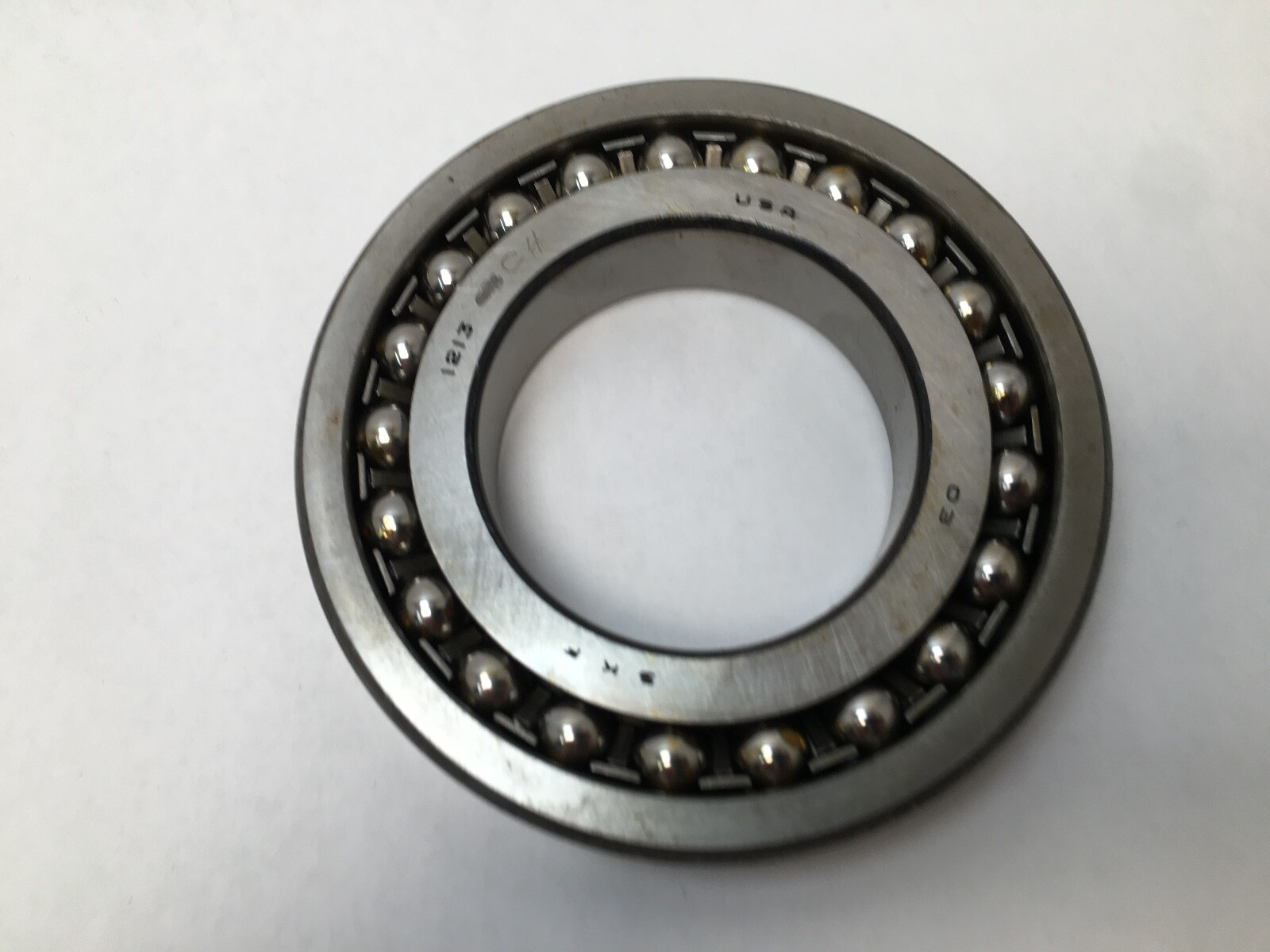

The SKF 1213 J/C4 is a double-row self-aligning ball bearing from the 12 series, with a common sphered outer raceway that lets the inner ring, balls and cage swivel to follow shaft misalignment. This listing is two bearings.
1213 — SKF self-aligning ball bearing, 12 dimension series, bore code 13 = 65 mm.
J — pressed steel cage.
C4 — radial internal clearance greater than C3.
Bearing Type: Self-Aligning Ball Bearing. Rolling Elements: Ball. Number Of Rows: 2. Bore Type: Straight. Cage Material: Pressed steel. Closure Type: Open. Internal Clearance: C4. Maximum Permissible Misalignment: 2.5°. Series: 12. Unit Quantity: 2 Pcs.
Bore Diameter: 65 mm. Outside Diameter: 120 mm. Overall Width: 23 mm.
Crosses: FAG 1213-TVH-C4 (polyamide cage), NSK 1213C4, NTN 1213C4, SNR 1213 C4 and SKF 1213 ETN9/C4 (polyamide cage).

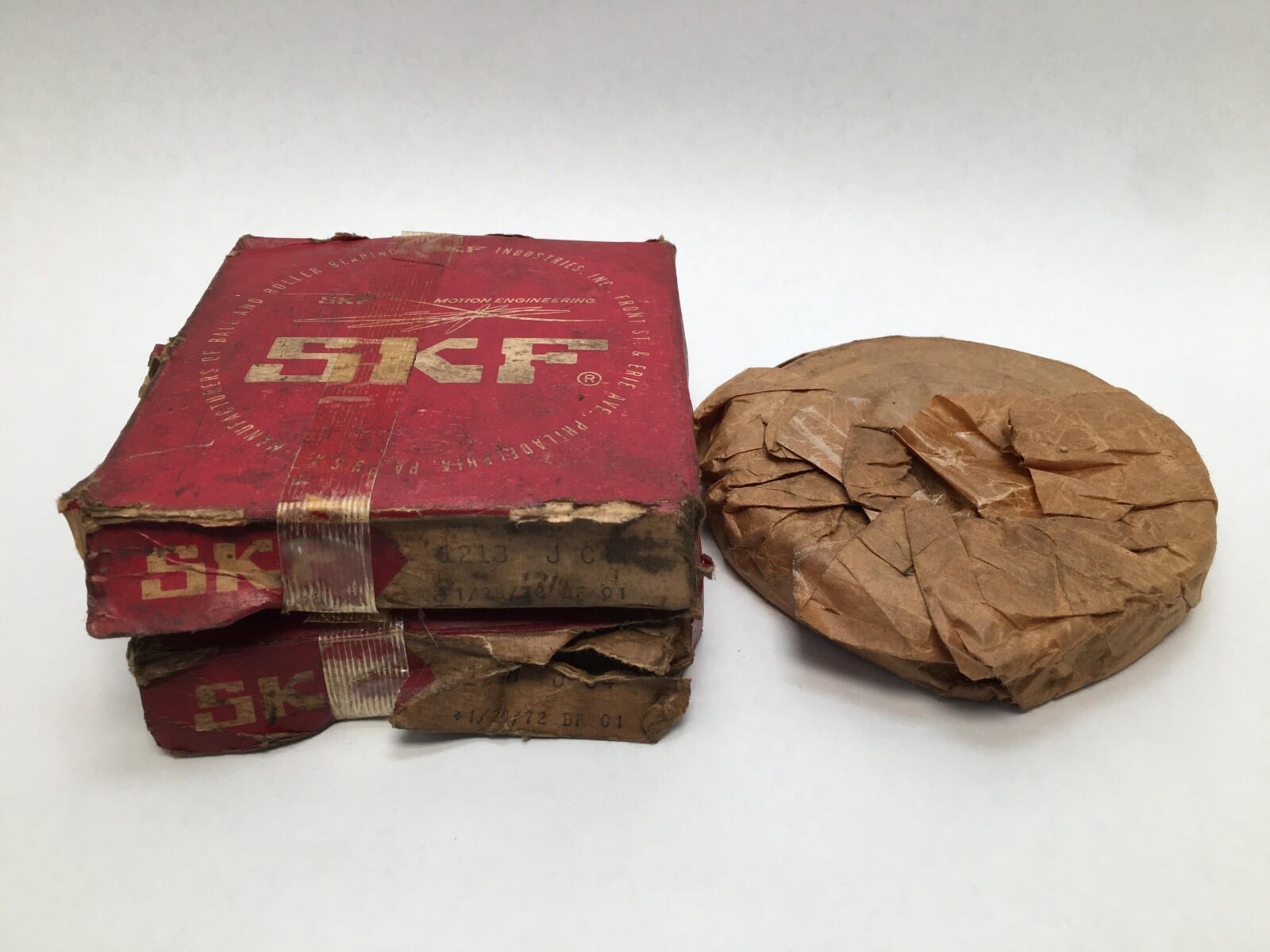

Two SKF 1213 J/C4 bearings.
65 mm bore, 120 mm outside diameter and 23 mm width.
Radial internal clearance larger than C3, for heavy interference fits or high operating temperatures.
