Availability:
1 in stock

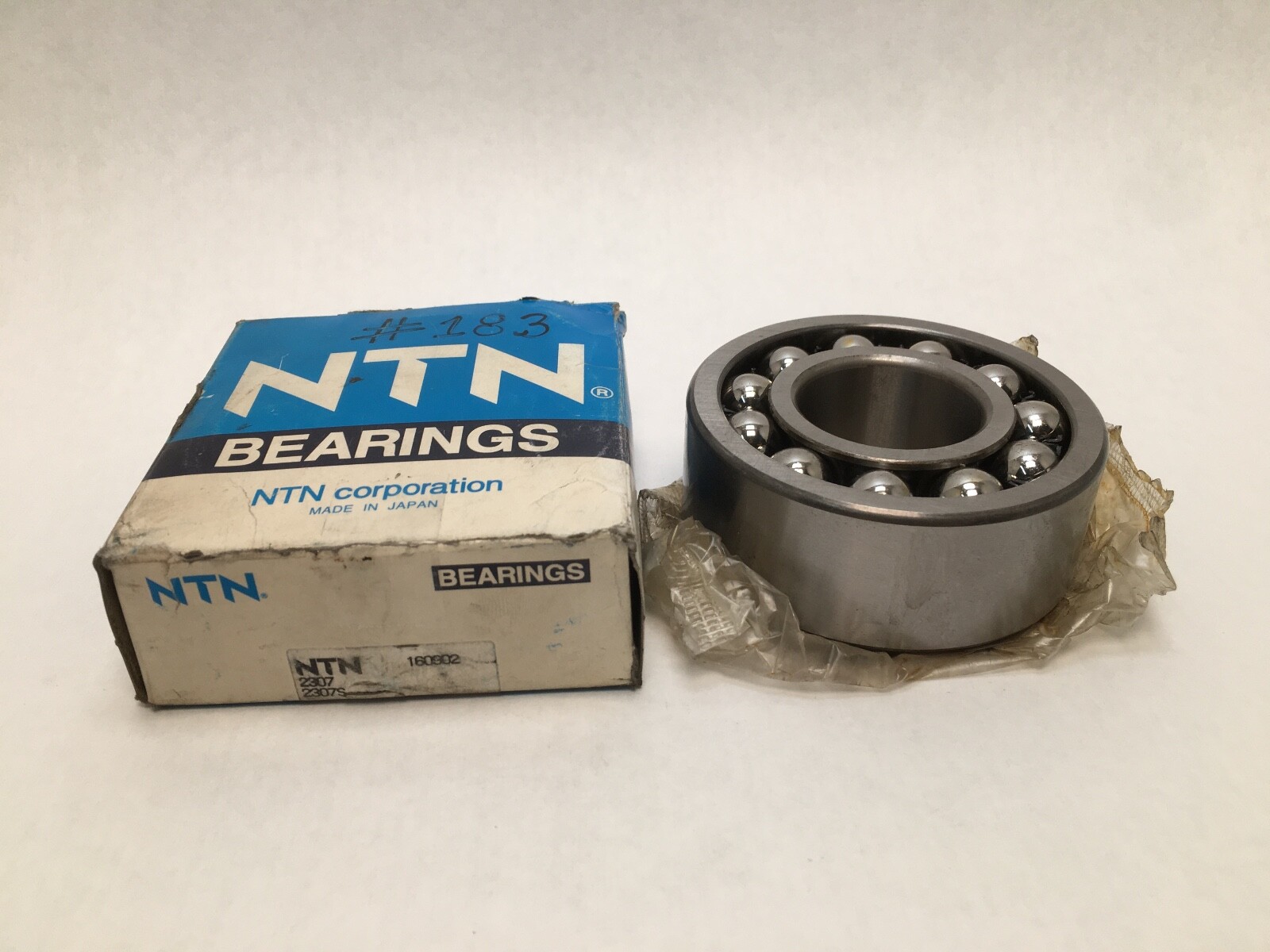

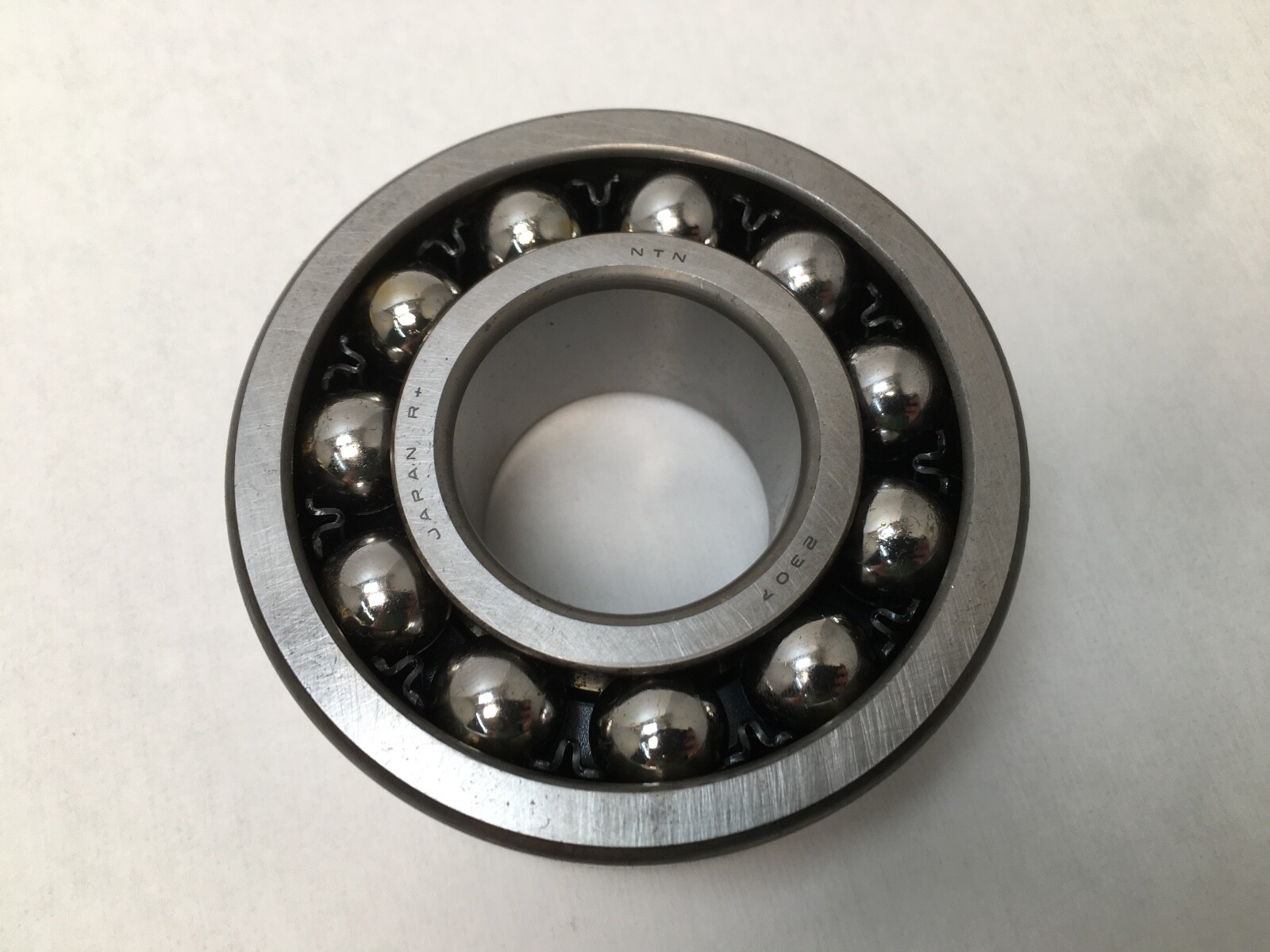

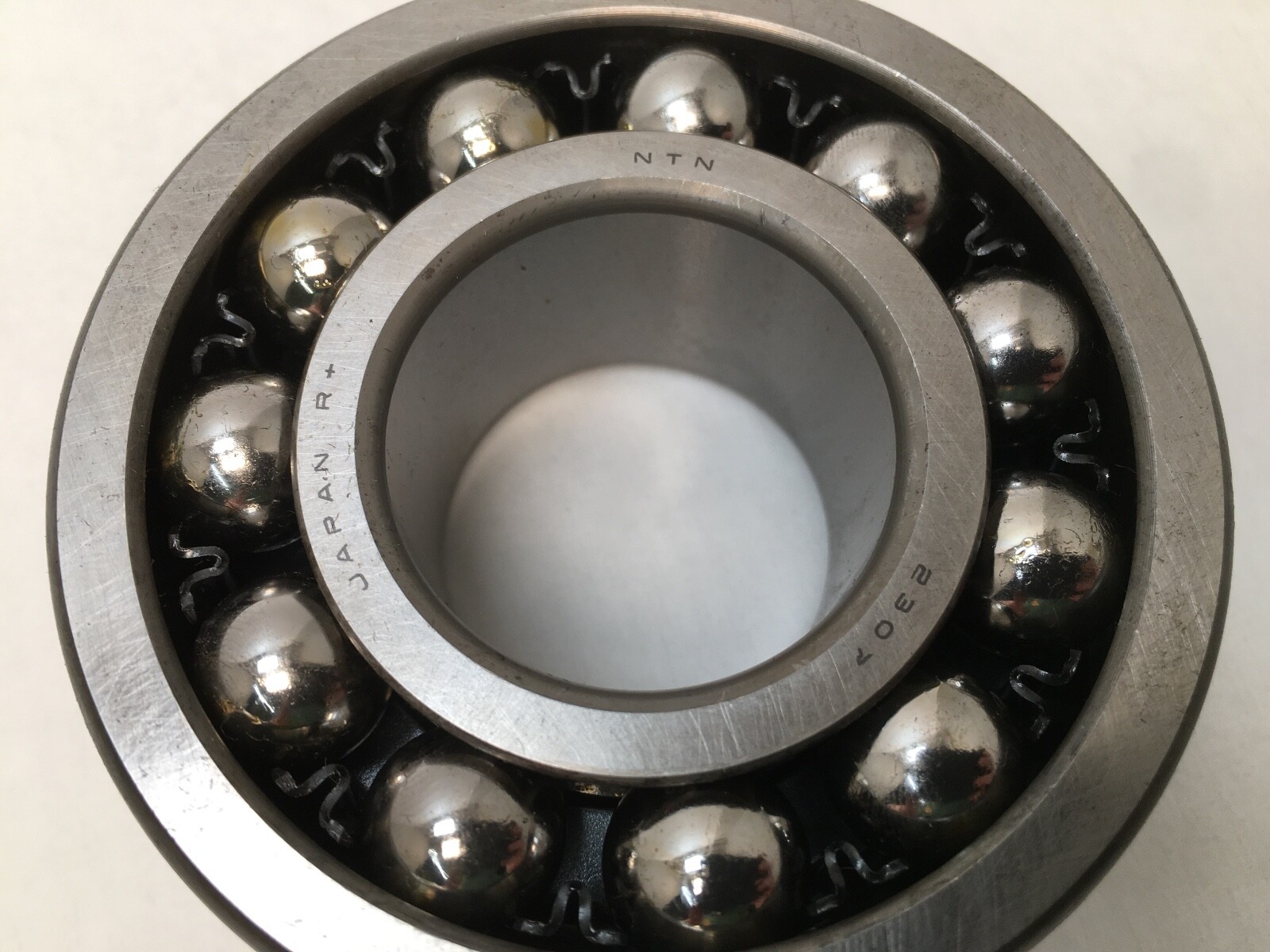

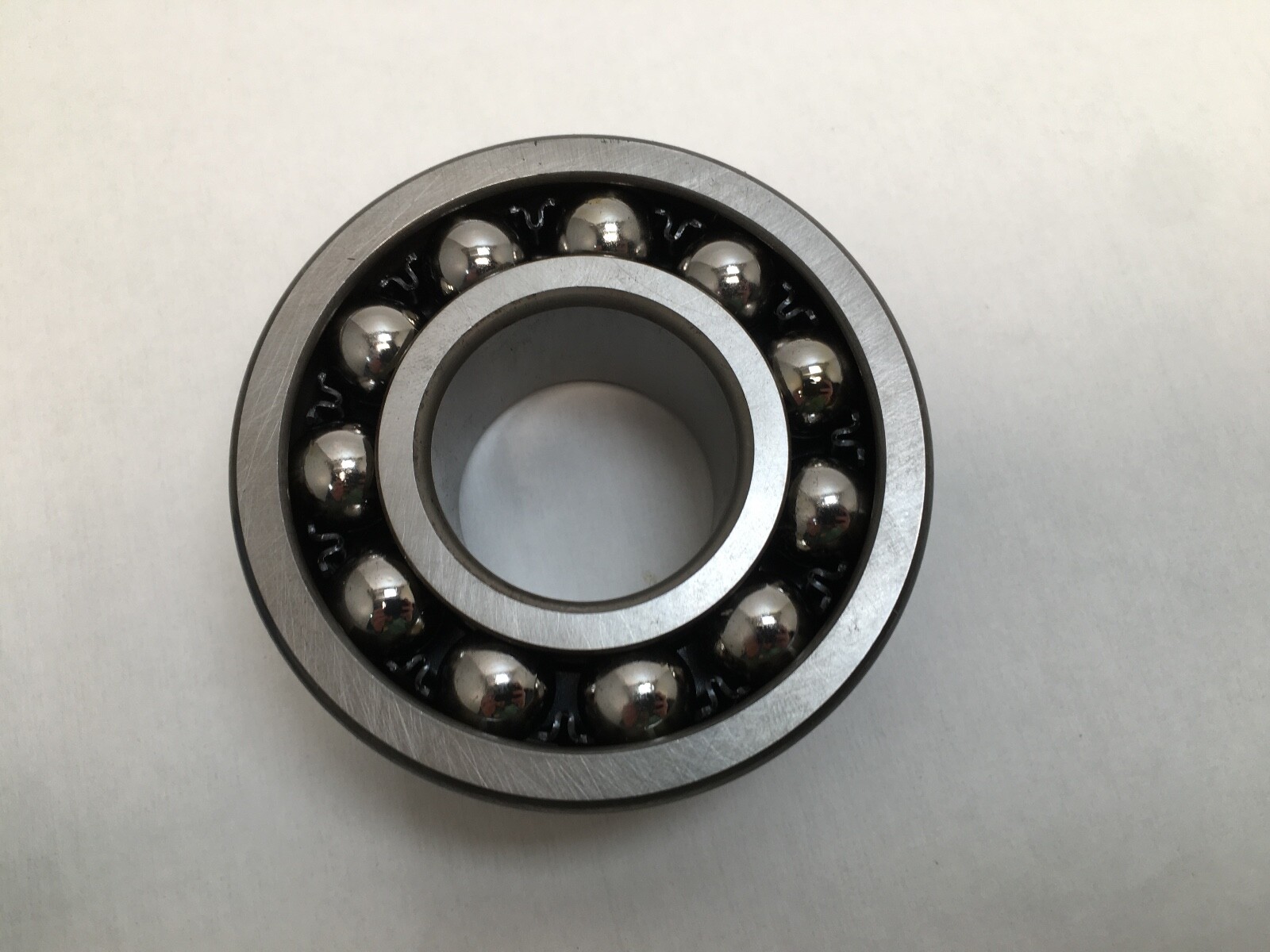

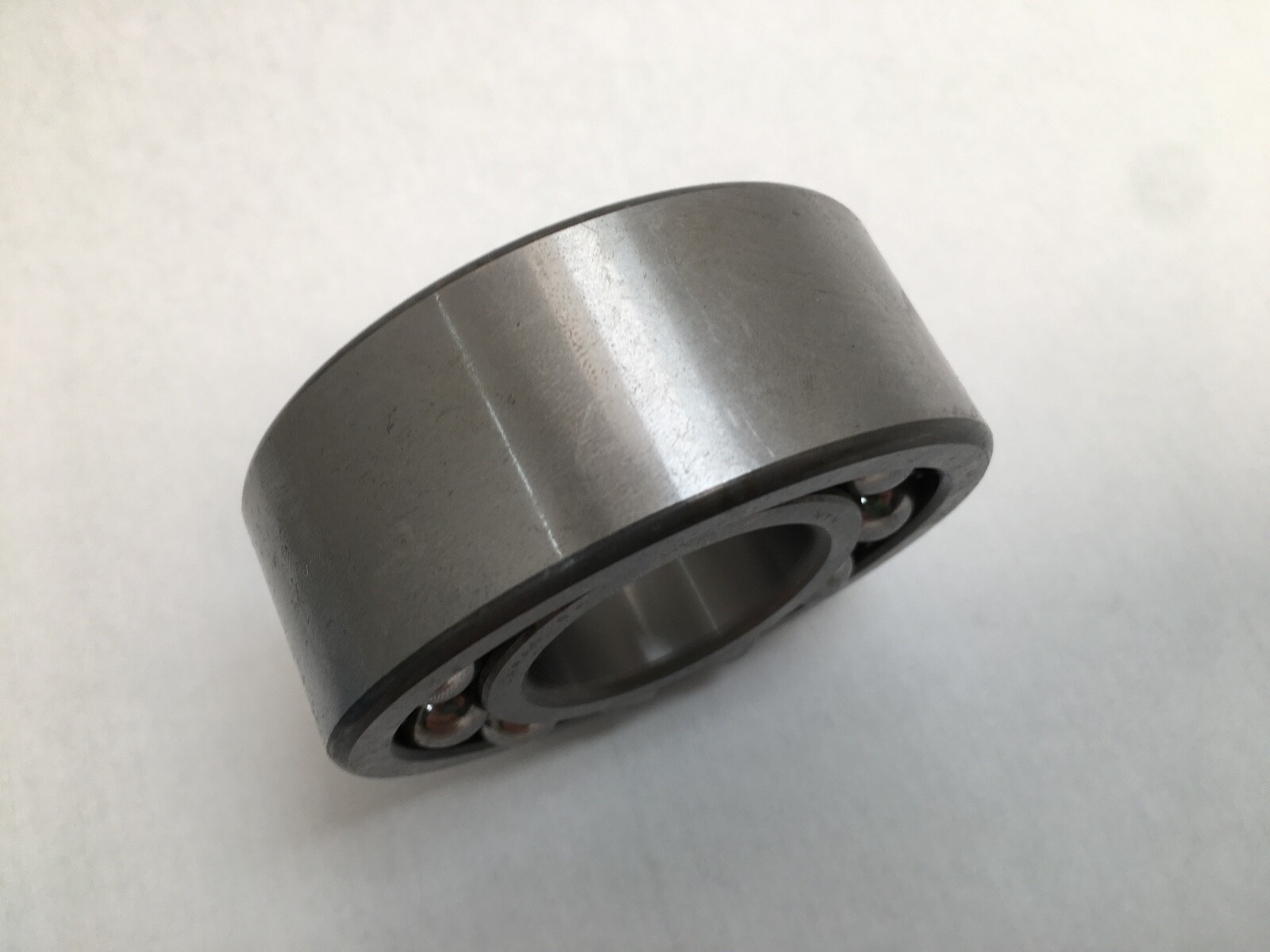

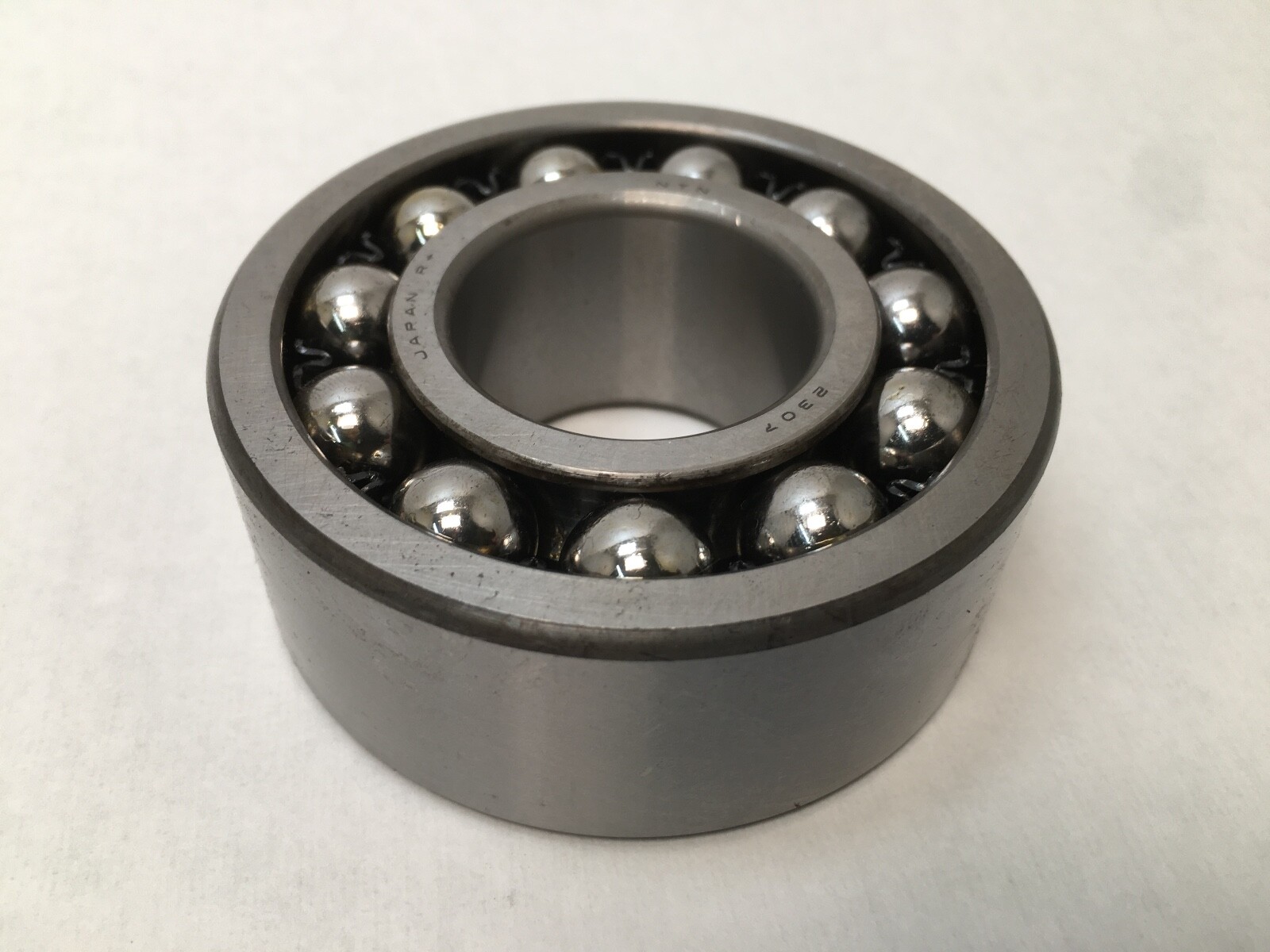

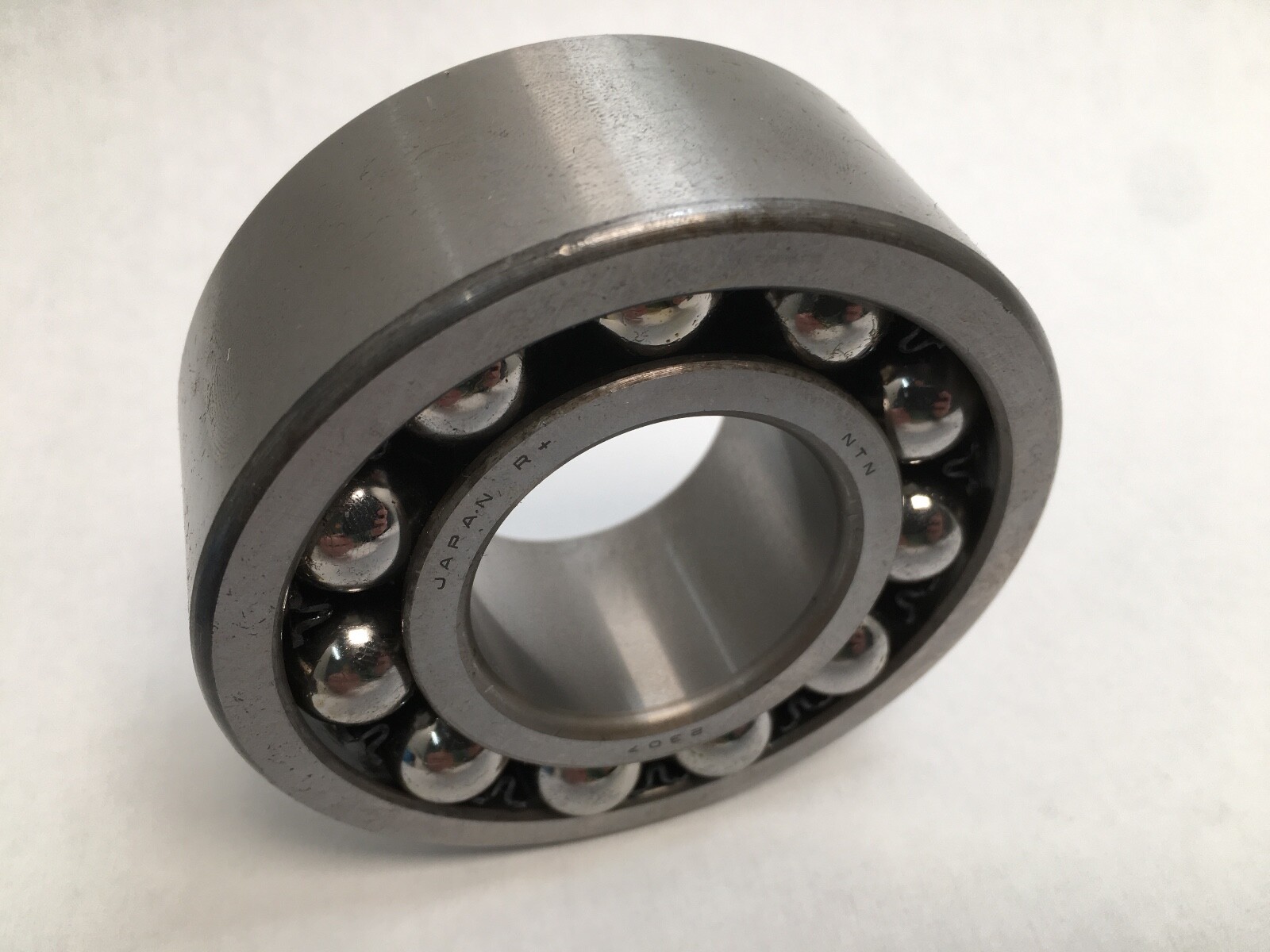

Self-aligning ball bearing, 35 x 80 x 31 mm, open, cylindrical bore, 40,000 N dynamic rating. NTN 2307 wide 23 series, pressed steel cage, CN clearance.
List Price
$49.64
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 2307 |
| Model | 2307 |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 35 mm |
| OD | 80 mm |
| Width | 31 mm |
| Series | 2300 |
|---|---|
| Material | High Carbon Chrome Steel |
| Mpn Variants | 2307, 2307 open |
| Min Temp | -40 °C |
| Cage Type | Pressed |
| Dynamic Load Rating | 40,000 N |
| Static Load Rating | 11,300 N |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.670 kg (1.473 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Cylindrical |
| Snap Ring Included | No |
| Limiting Speed | 7,100 rpm grease; 9,000 rpm oil |
| Internal Clearance | CN |
| Harmonization Code | 8482.10.50 |
| Maximum Permissible Misalignment | 3° |
| Cross Reference 1 | SKF 2307 E |
|---|---|
| Cross Reference 2 | FAG 2307 |
| Cross Reference 3 | NSK 2307 |
| Cross Reference 4 | Koyo 2307 |
NTN 2307 is an open double-row self-aligning ball bearing with a cylindrical bore. Bore Diameter: 35 mm. Outside Diameter: 80 mm. Width: 31 mm. Cage Material: Pressed steel. Internal Clearance: CN. Item Weight: 0.670 kg (1.473 lb).
2 — wide width series. The 23 series is wider than the 13 series on the same bore and outside diameter, with more load capacity.
3 — diameter series 3, the medium section.
07 — bore code, 07 x 5 = 35 mm.

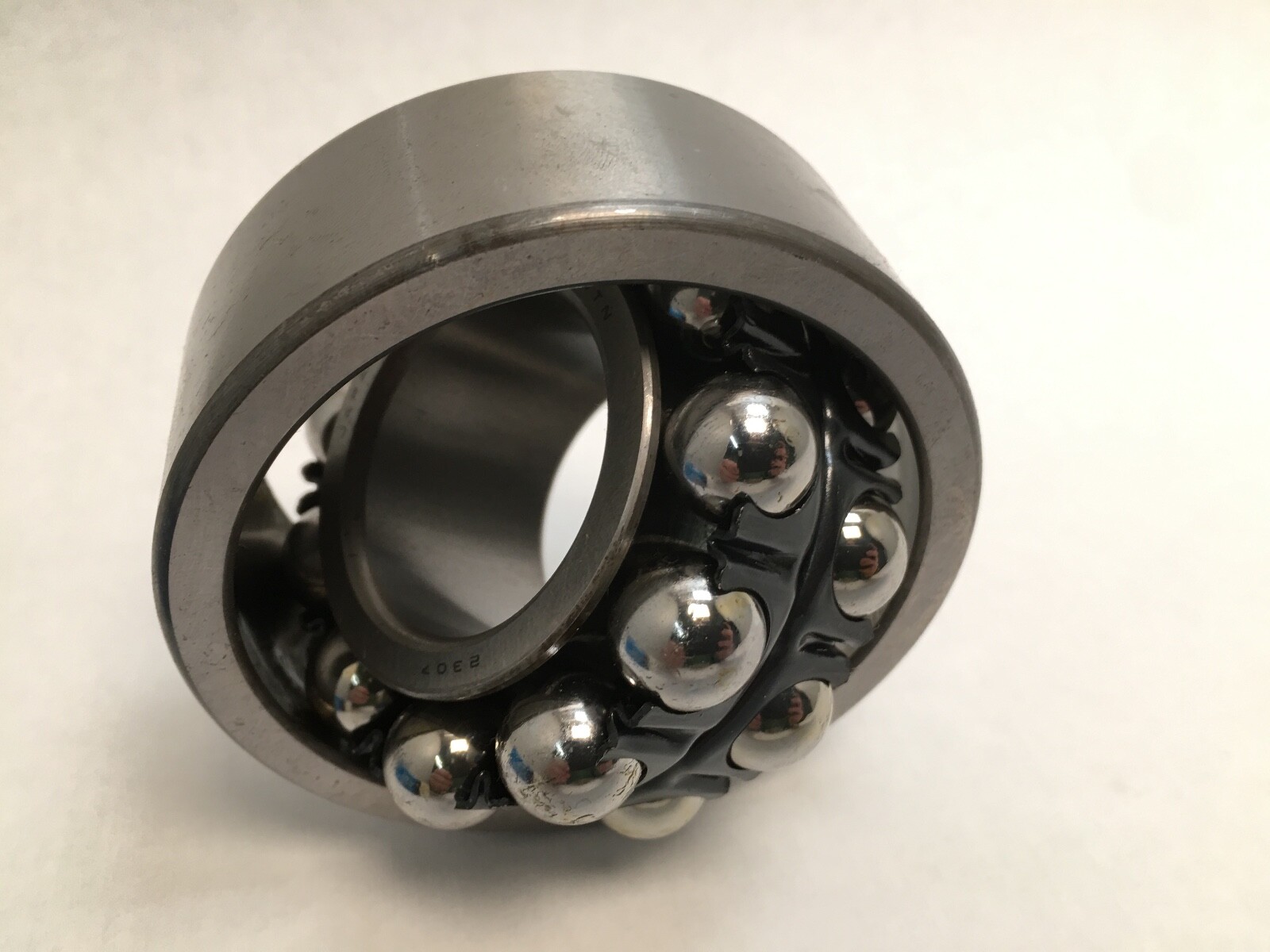

Dynamic Load Rating: 40,000 N. Static Load Rating: 11,300 N. Limiting Speed: 7,100 rpm grease; 9,000 rpm oil. Operating Temperature Range: -40 to 120 °C. The outer ring raceway is a sphere, so the inner ring, balls and cage swivel to follow shaft deflection and housing misalignment. Axial load factors: Y1 1.40, Y2 2.10, Y0 1.40.
Chamfer Dimension r min: 1.5 mm. Shaft Abutment Diameter da min: 43 mm. Housing Abutment Diameter Da max: 72 mm. Fillet Radius ras max: 1.5 mm.
Unit Quantity: 1 Pc. Single open bearing.
2307 is an ISO boundary-dimension designation and interchanges directly with SKF 2307 E, FAG 2307, NSK 2307 and Koyo 2307.
