FAGDeep Groove Ball Bearing – 80 mm Bore, 170 mm OD, 39 mm Width, Open, Heavy 63 Series

Product Description

What this part is

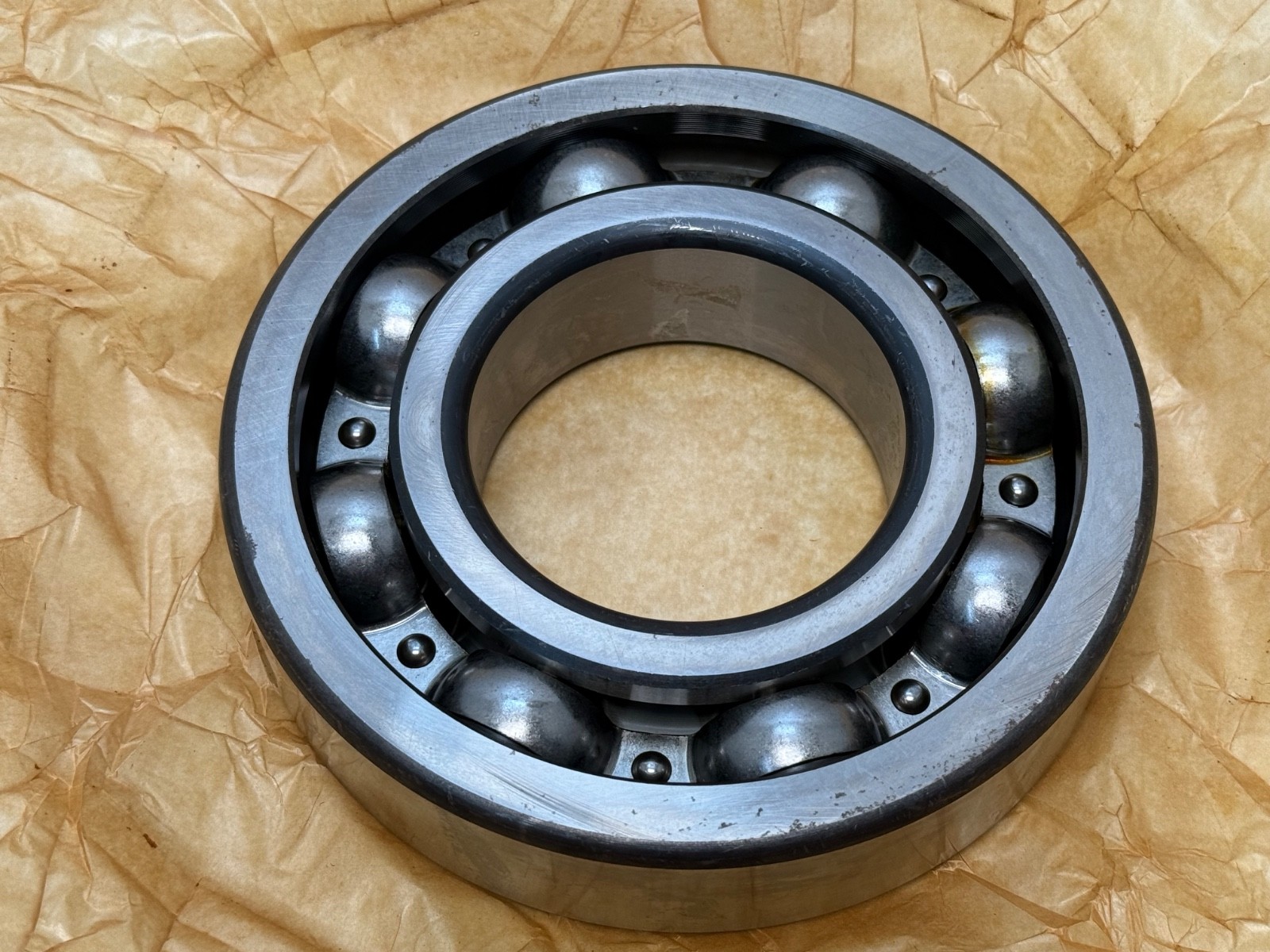

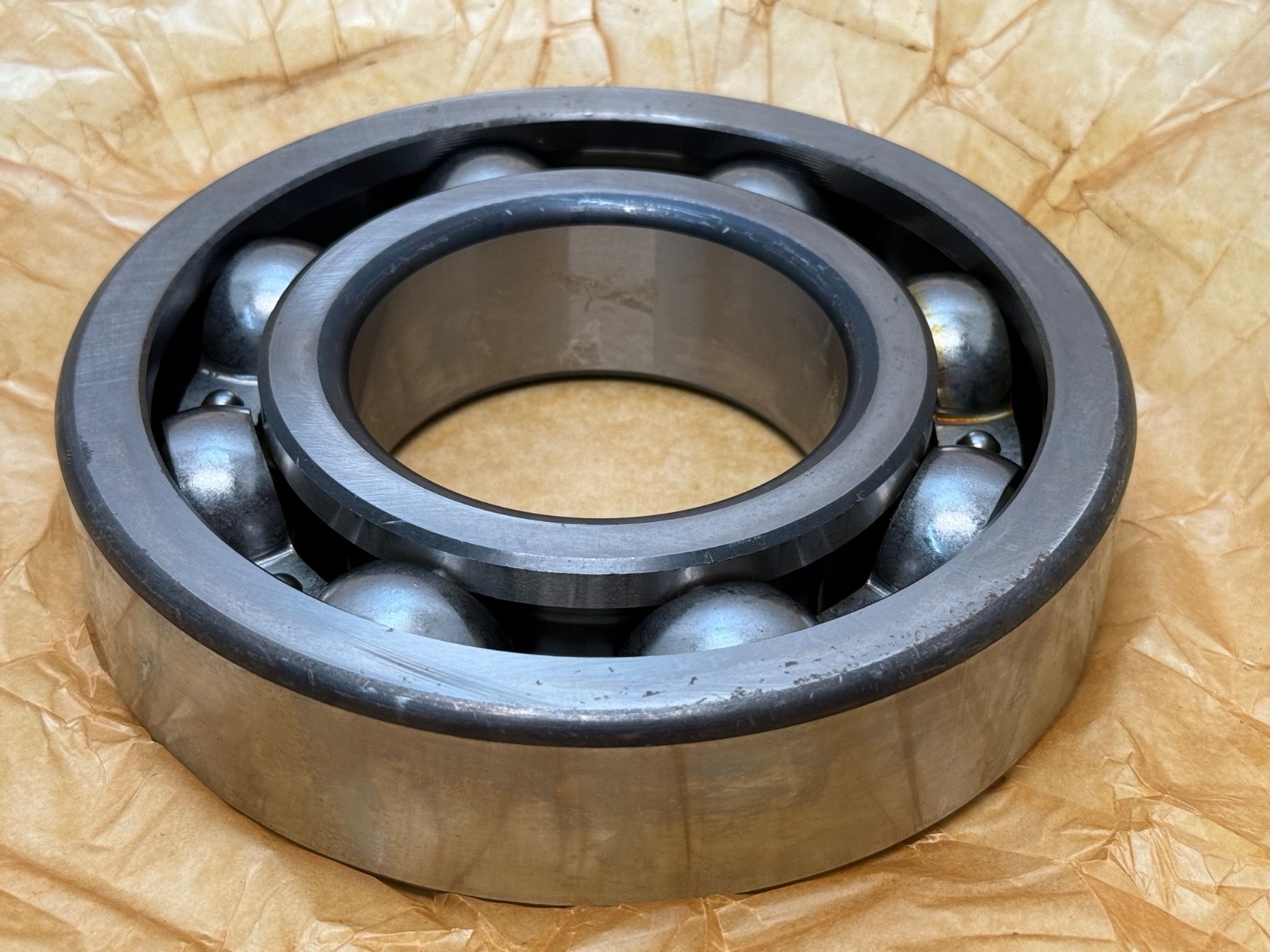

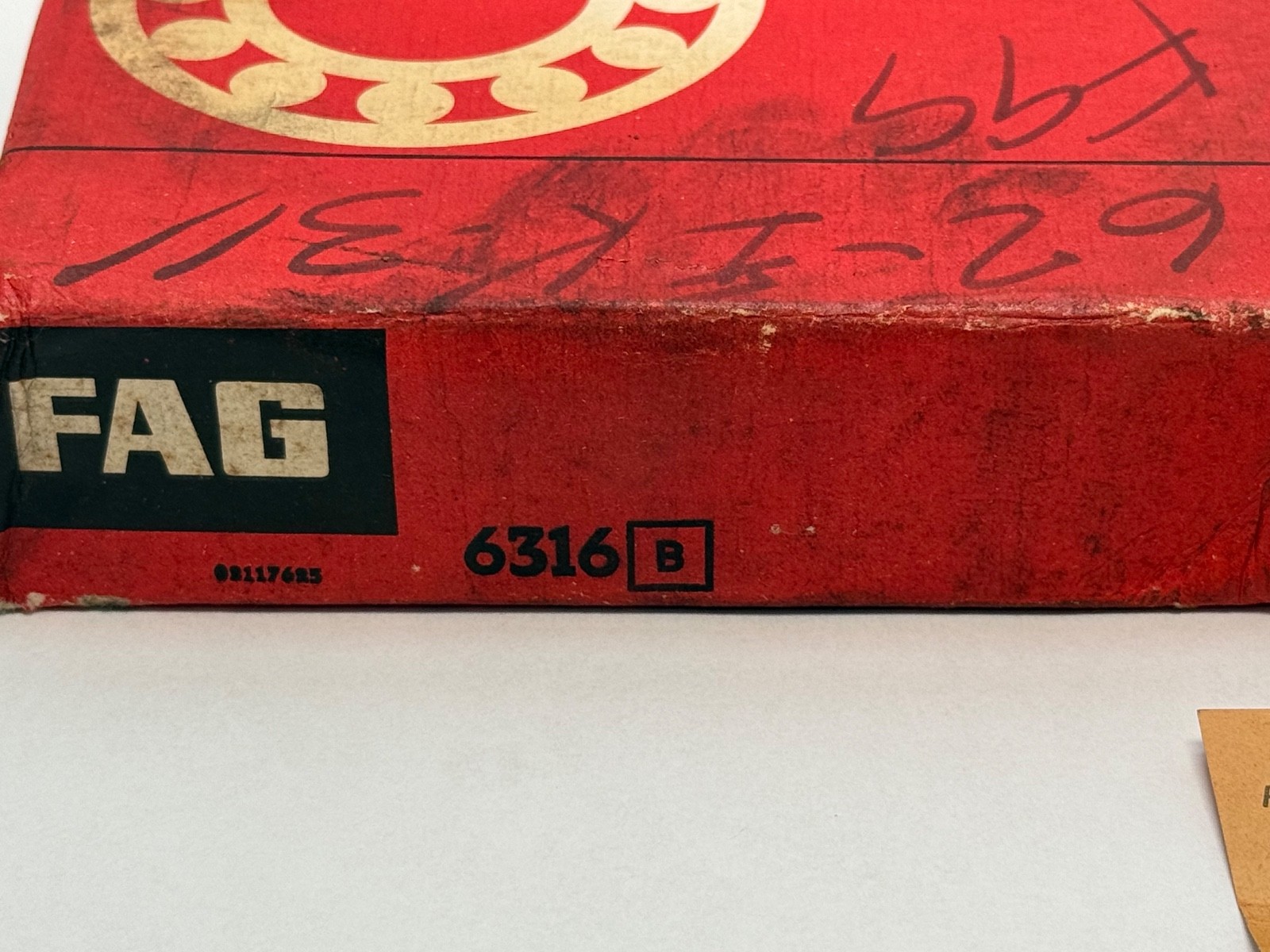

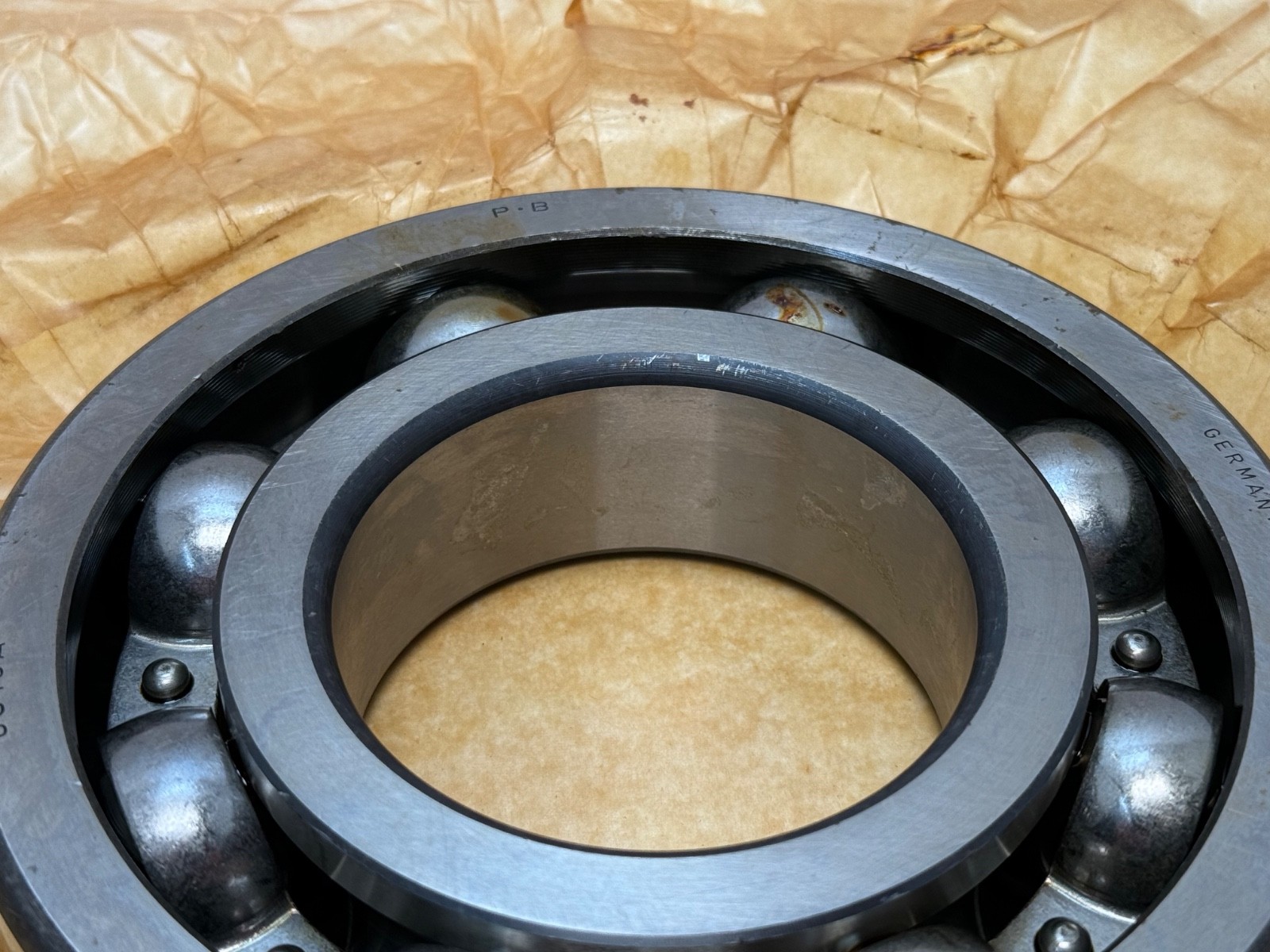

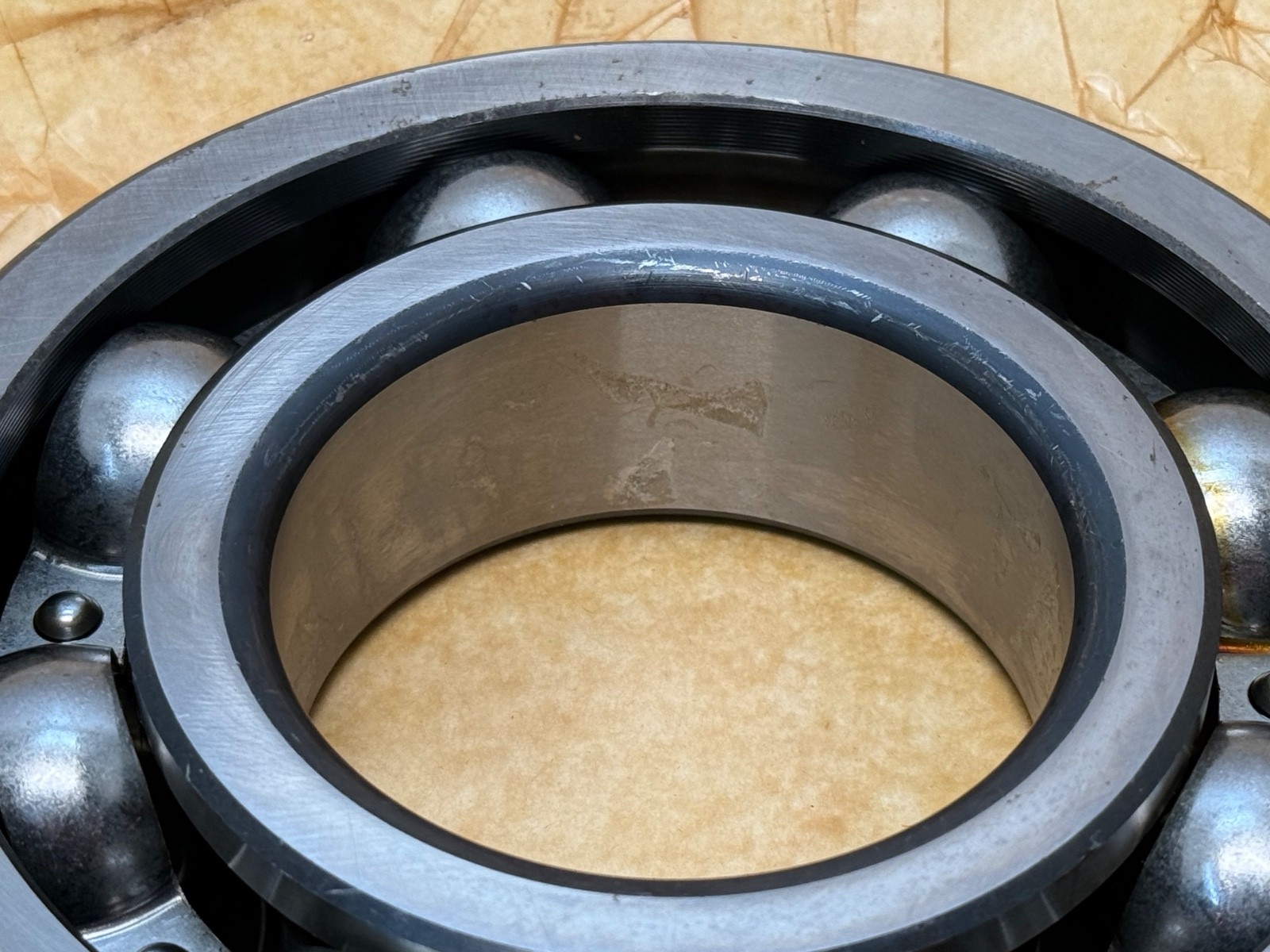

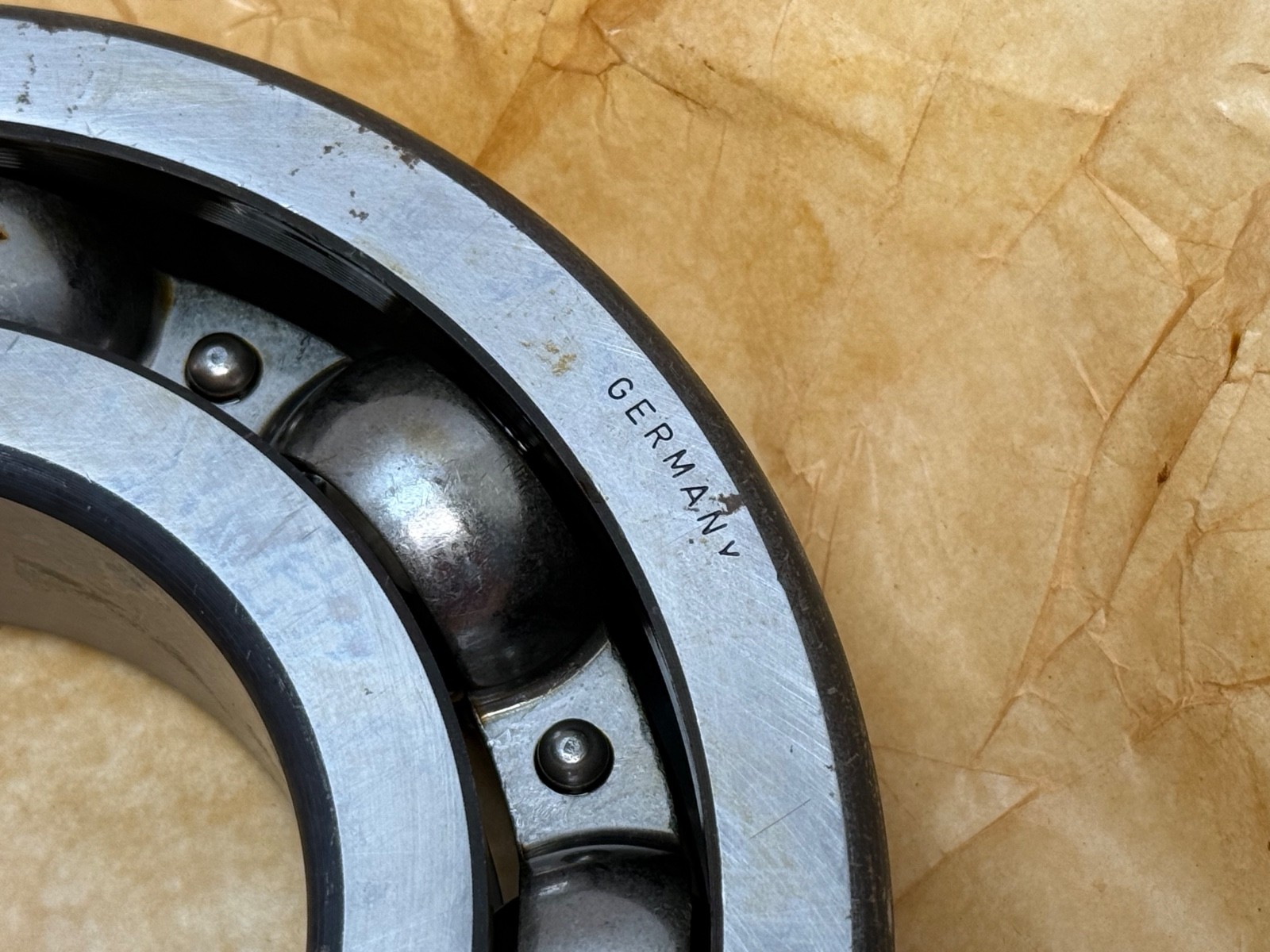

FAG 6316 deep groove ball bearing, single row, open on both faces. Bore / Shaft Size: 80 mm. Outside Diameter: 170 mm. Overall Width: 39 mm. Dynamic Load Rating: 131,000 N. Static Load Rating: 87,000 N. Fatigue Load Limit: 5,400 N. Limiting Speed: 5,400 rpm. Reference Speed: 5,500 rpm. Weight: 3.75 kg. Internal Clearance: CN. Precision Class: PN, normal to ISO 492:2023. Cage Material: pressed steel. Cage Type: sheet metal. Bore Type: cylindrical. Closure Type: open. Number Of Rows: 1. Rolling Elements: balls. Operating Temperature: –30 °C to 150 °C. Series: 63. Base Number: 6316. Bearing Material: chrome steel. Design Units: Metric.

Decoding the designation

63 — the heavy dimension series, which puts a 170 mm outside diameter and a 39 mm width over an 80 mm bore.

16 — the bore code: 16 x 5 gives the 80 mm bore.

JN — pressed steel sheet metal cage.

CN — normal radial internal clearance.

What these specs mean in practice

The 63 heavy series carries a larger ball complement in a thicker section than a 62 or 60 bearing on the same shaft, so it takes markedly more radial load. Dynamic Load Rating: 131,000 N governs rotating life. Static Load Rating: 87,000 N sets the shock and stationary ceiling. Fatigue Load Limit: 5,400 N is the load below which fatigue life is effectively unlimited. Closure Type: open. With no seals or shields the bearing takes its lubricant from the housing, so it suits circulating oil, splash oil and central grease systems, and it relubricates freely. Operating Temperature: up to 150 °C, with the rings dimensionally stabilised to that figure. Internal Clearance: CN is the normal group, correct against a standard interference fit on the shaft and a standard housing bore.

Mounting data

Shaft seat 80 mm; housing bore 170 mm; seat length 39 mm. Minimum diameter of shaft shoulder da min: 92 mm. Maximum diameter of housing shoulder Da max: 158 mm. Maximum fillet radius ra max: 2.1 mm. Minimum chamfer dimension r min: 2.1 mm. Shoulder diameter of the outer ring D1: 141.92 mm. Shoulder diameter of the inner ring d1: 108.56 mm. Weight 3.75 kg.

Quantity and configuration

Unit Quantity: 1 Pc.

Interchange guidance

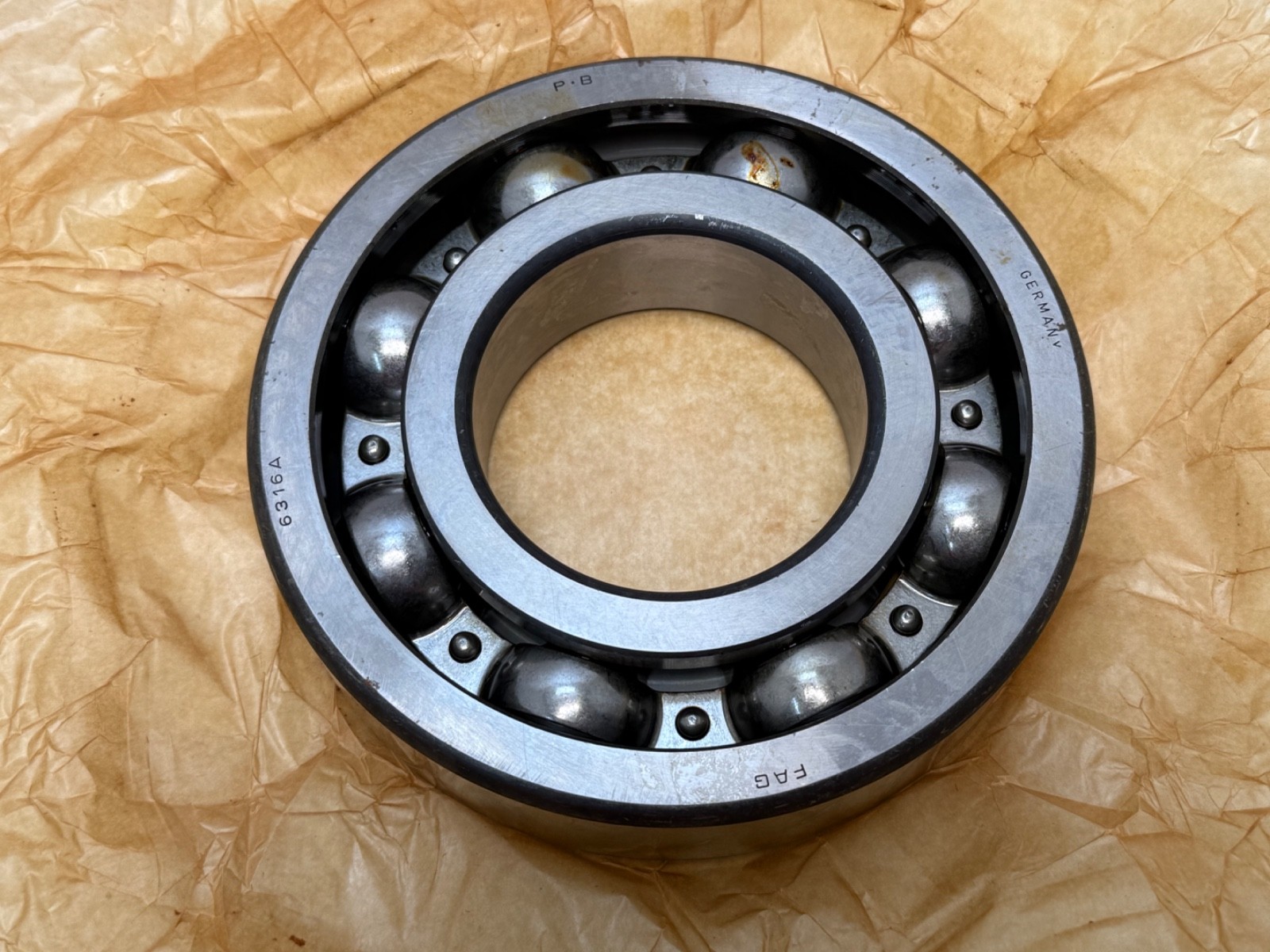

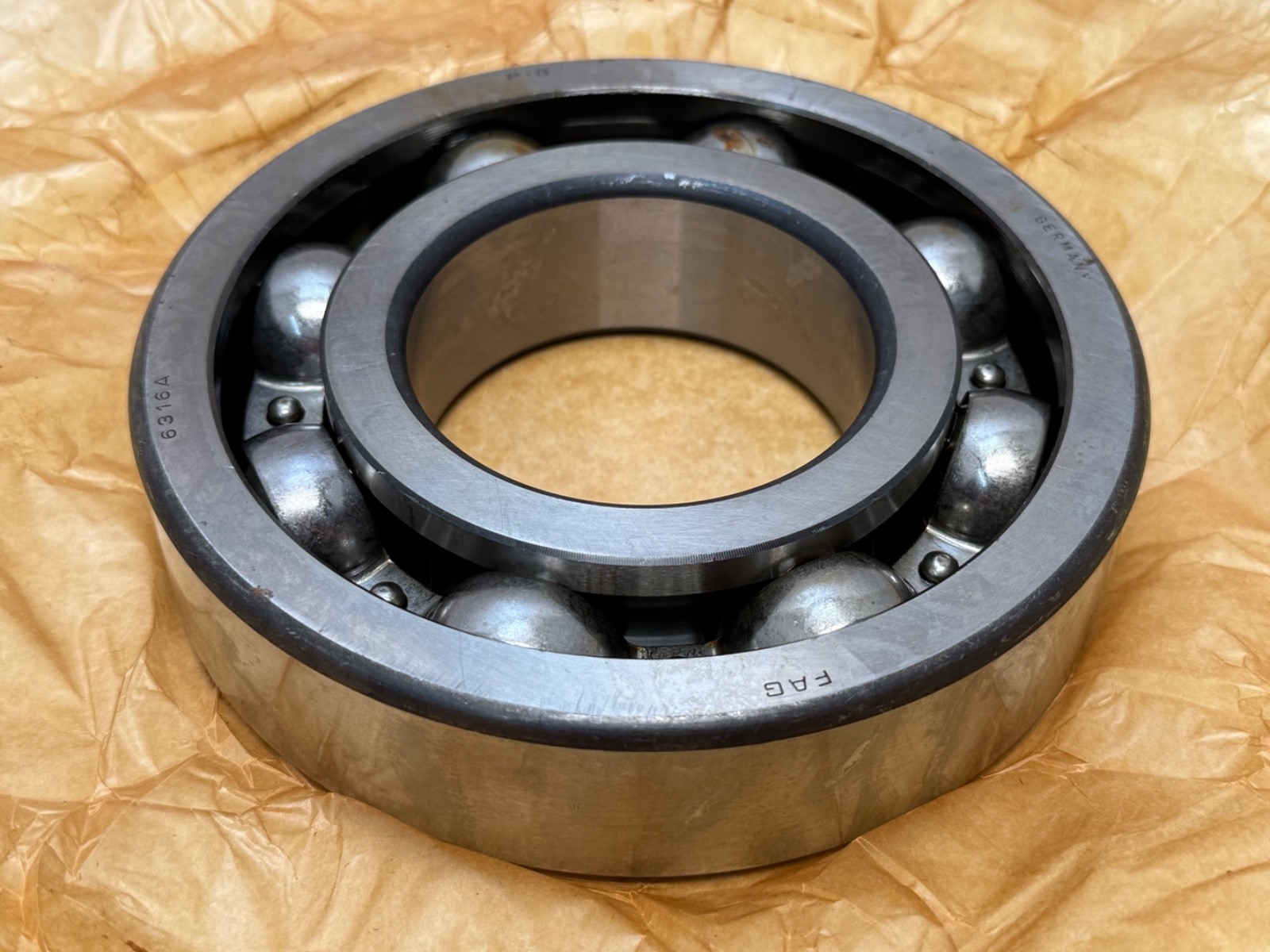

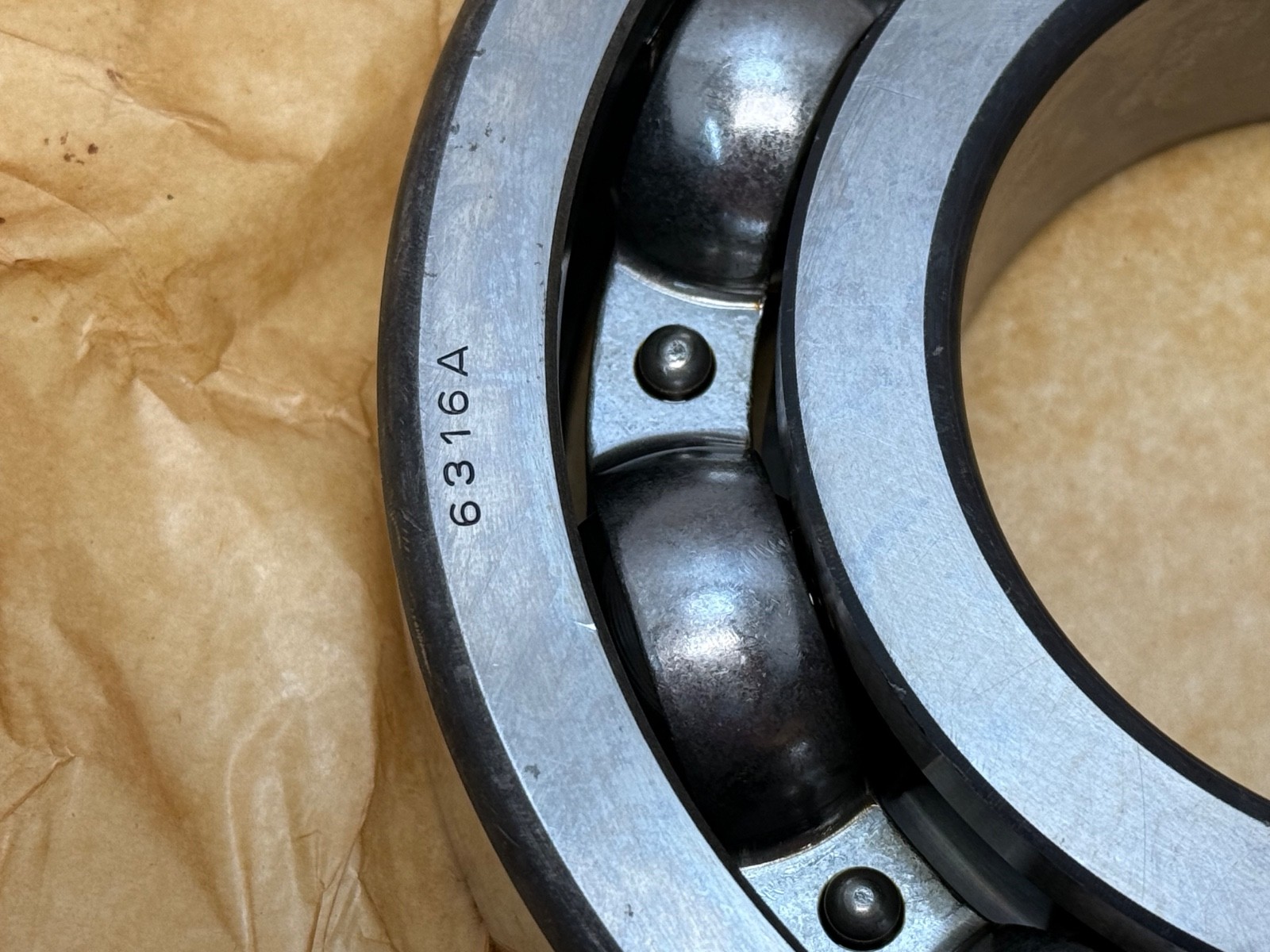

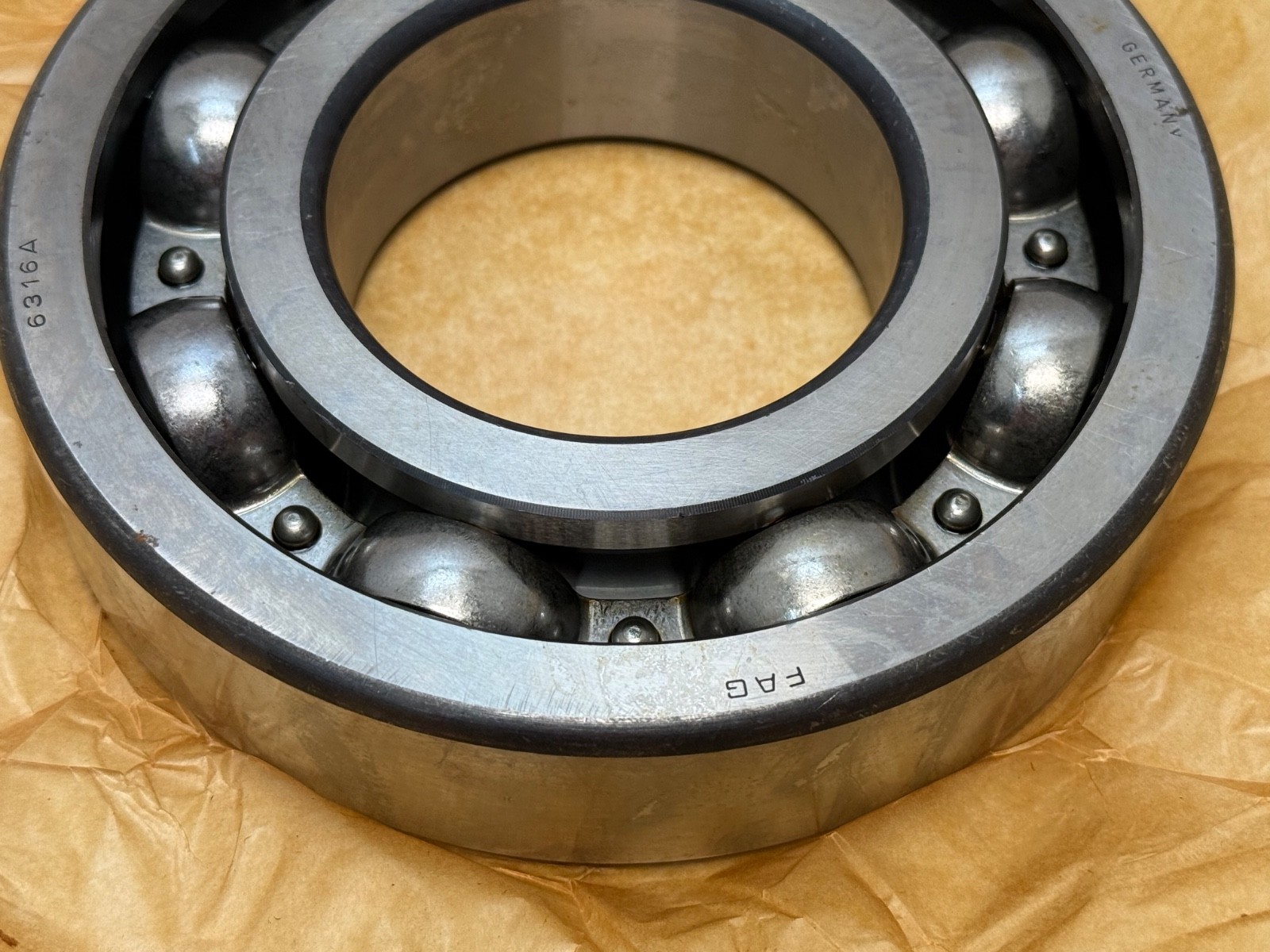

6316 is the ISO designation for this 80 x 170 x 39 mm envelope and is carried across makers. Schaeffler lists 6316-C3, 6316-C4, 6316-2Z, 6316-2Z-C3, 6316-2RSR and 6316-2RSR-C3 in the same size; those change the clearance group and the closure and are related executions rather than like-for-like swaps. Searchable variants of the part number: 6316A, 6316 J, 6316 JEM, 316.
