Availability:
1 in stock

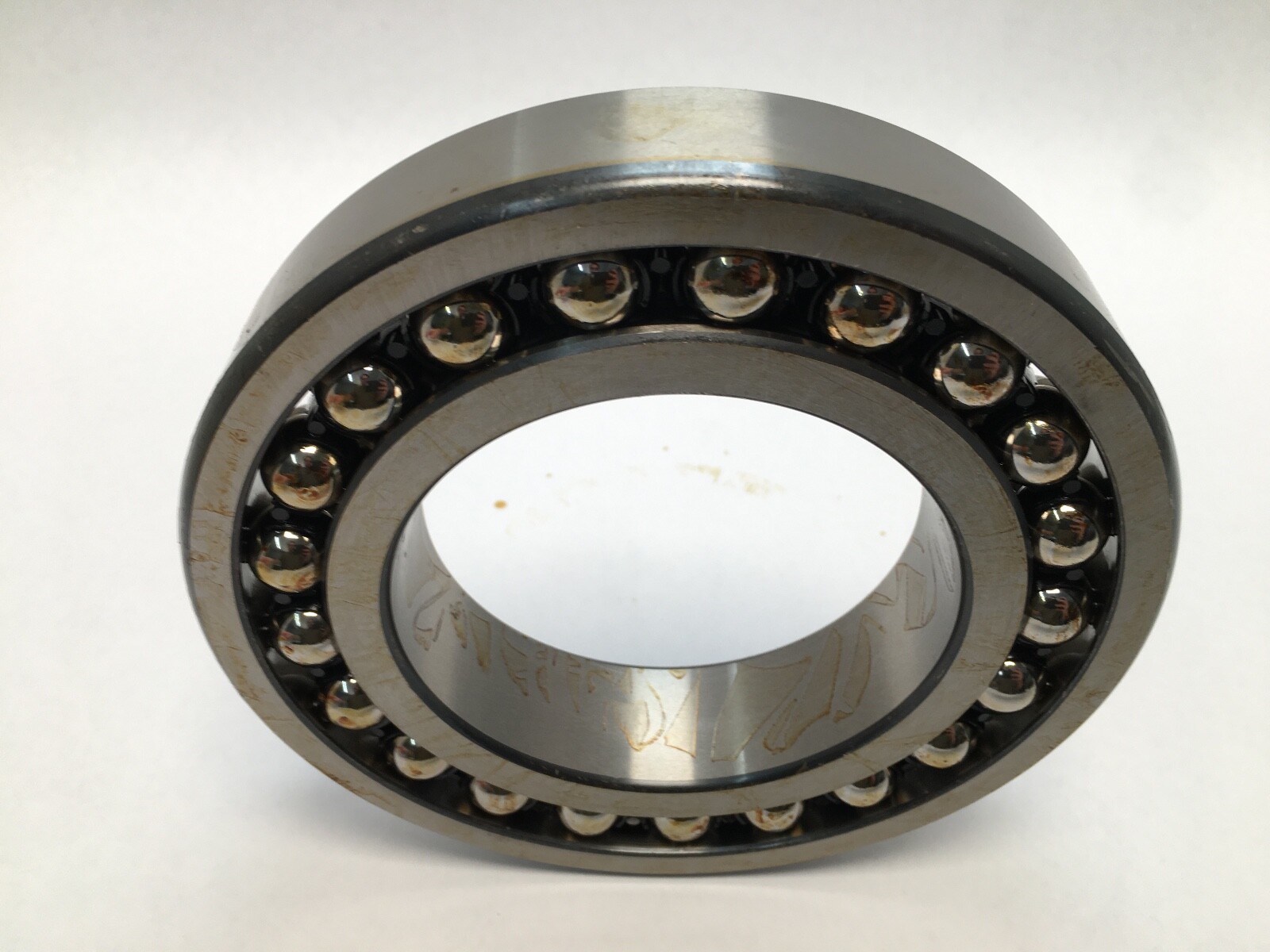

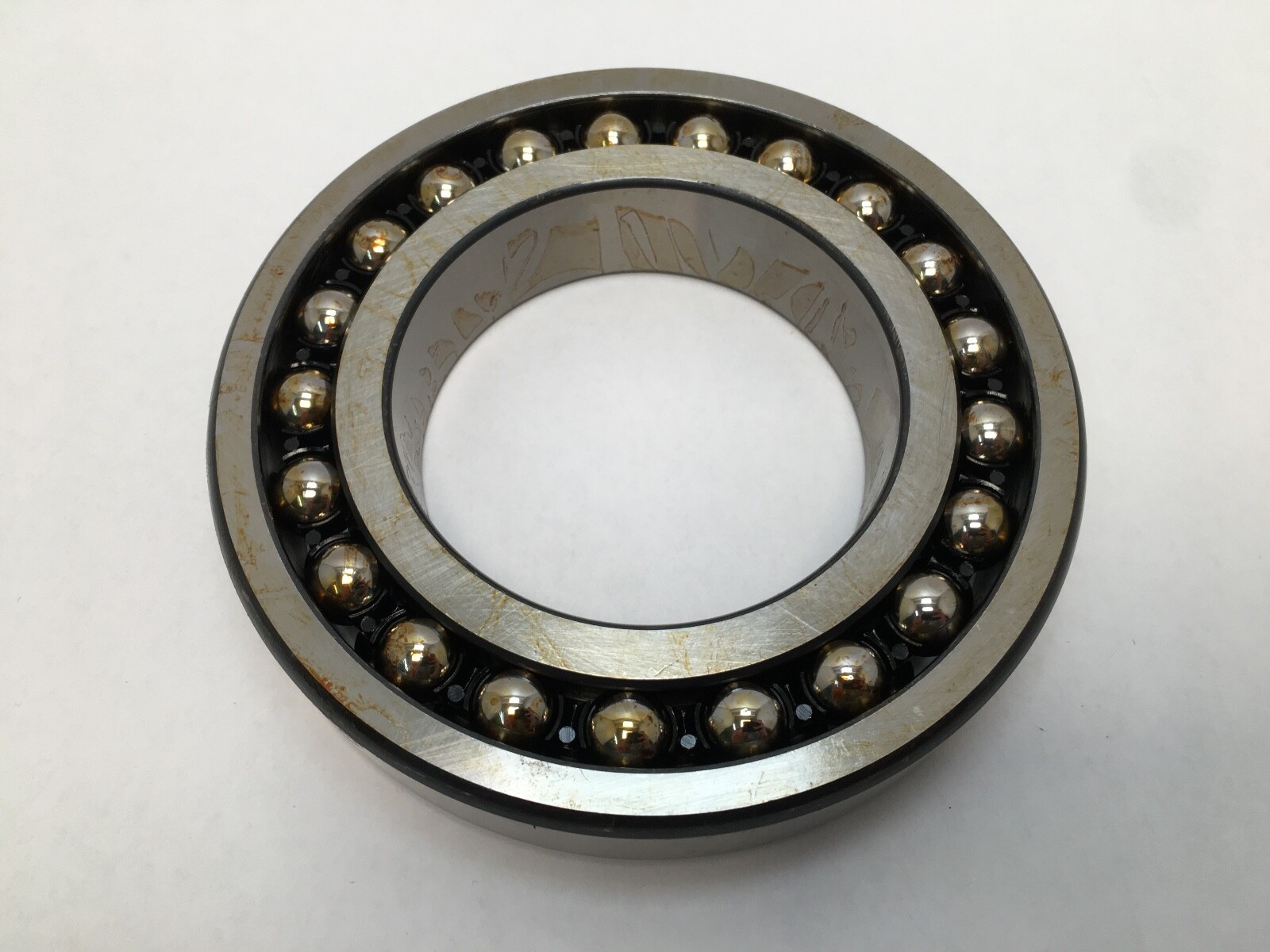

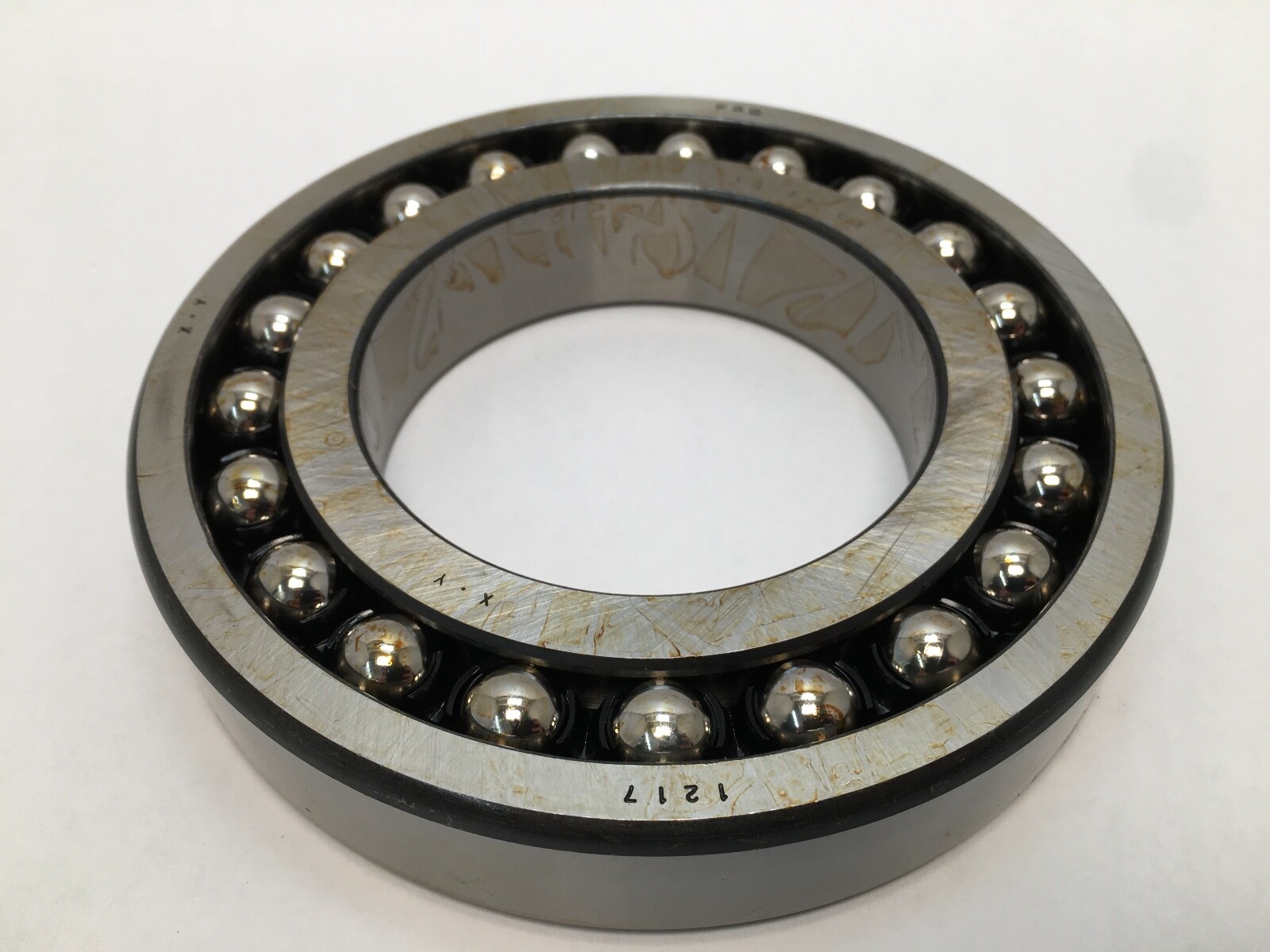

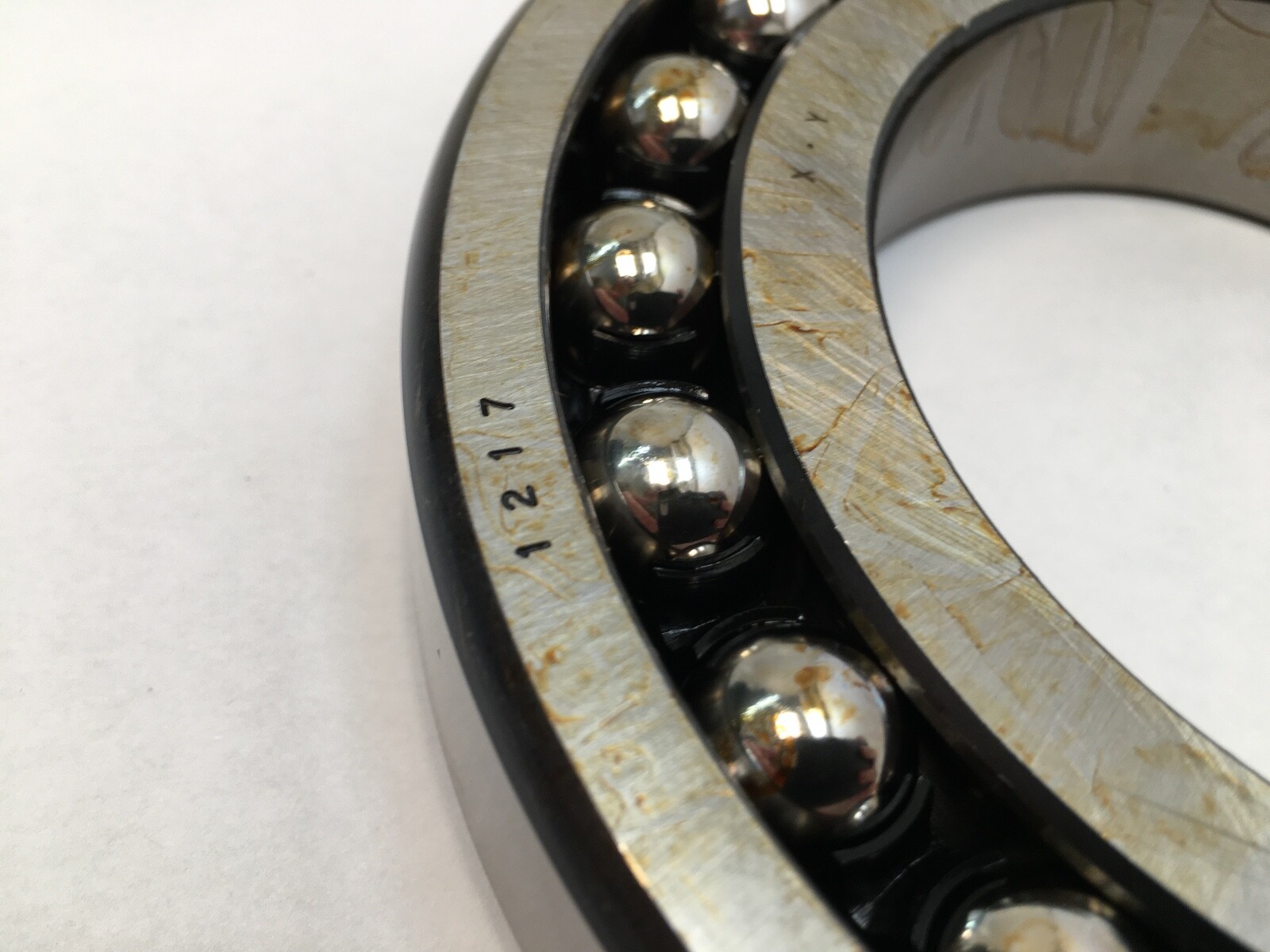

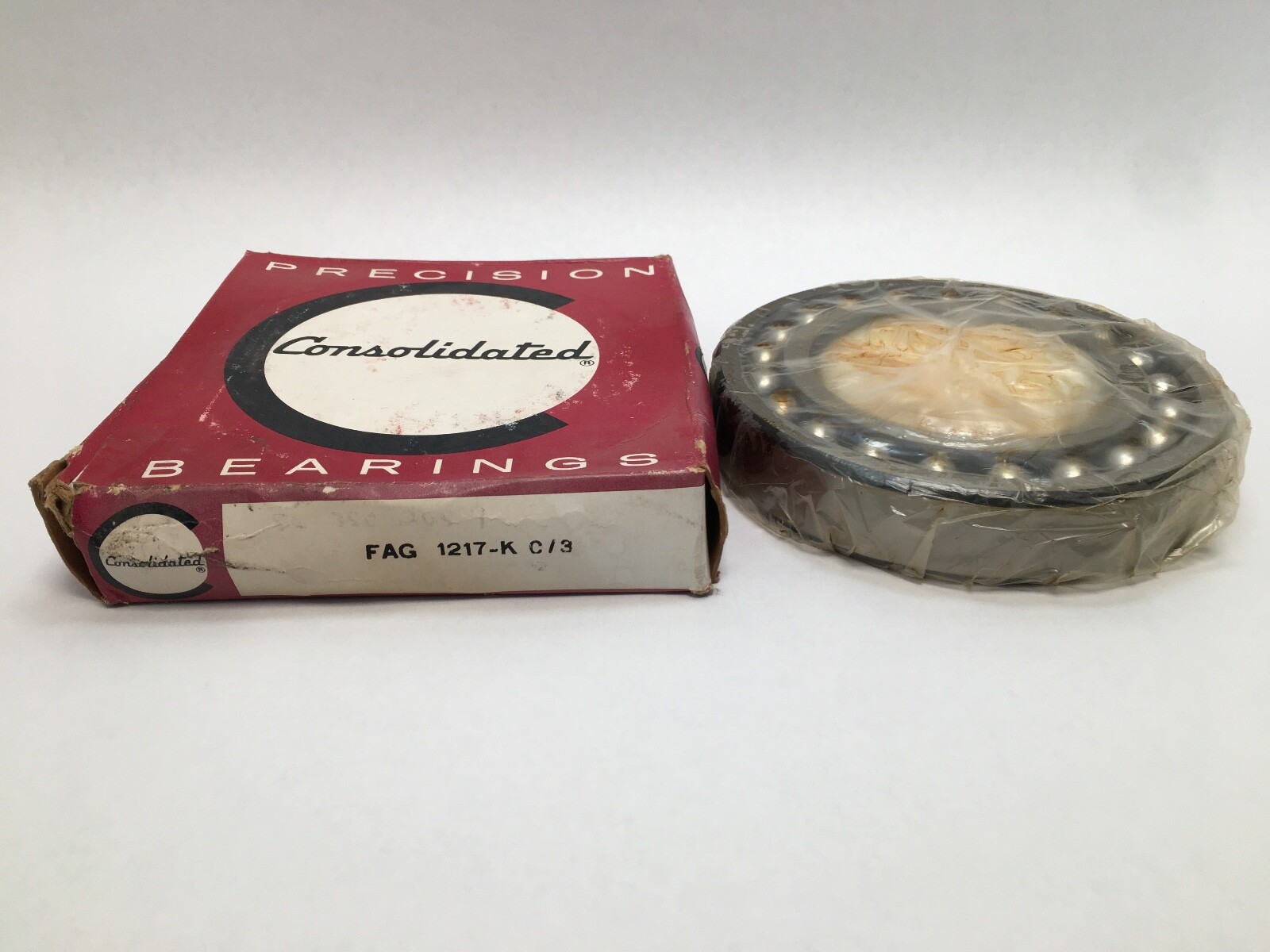

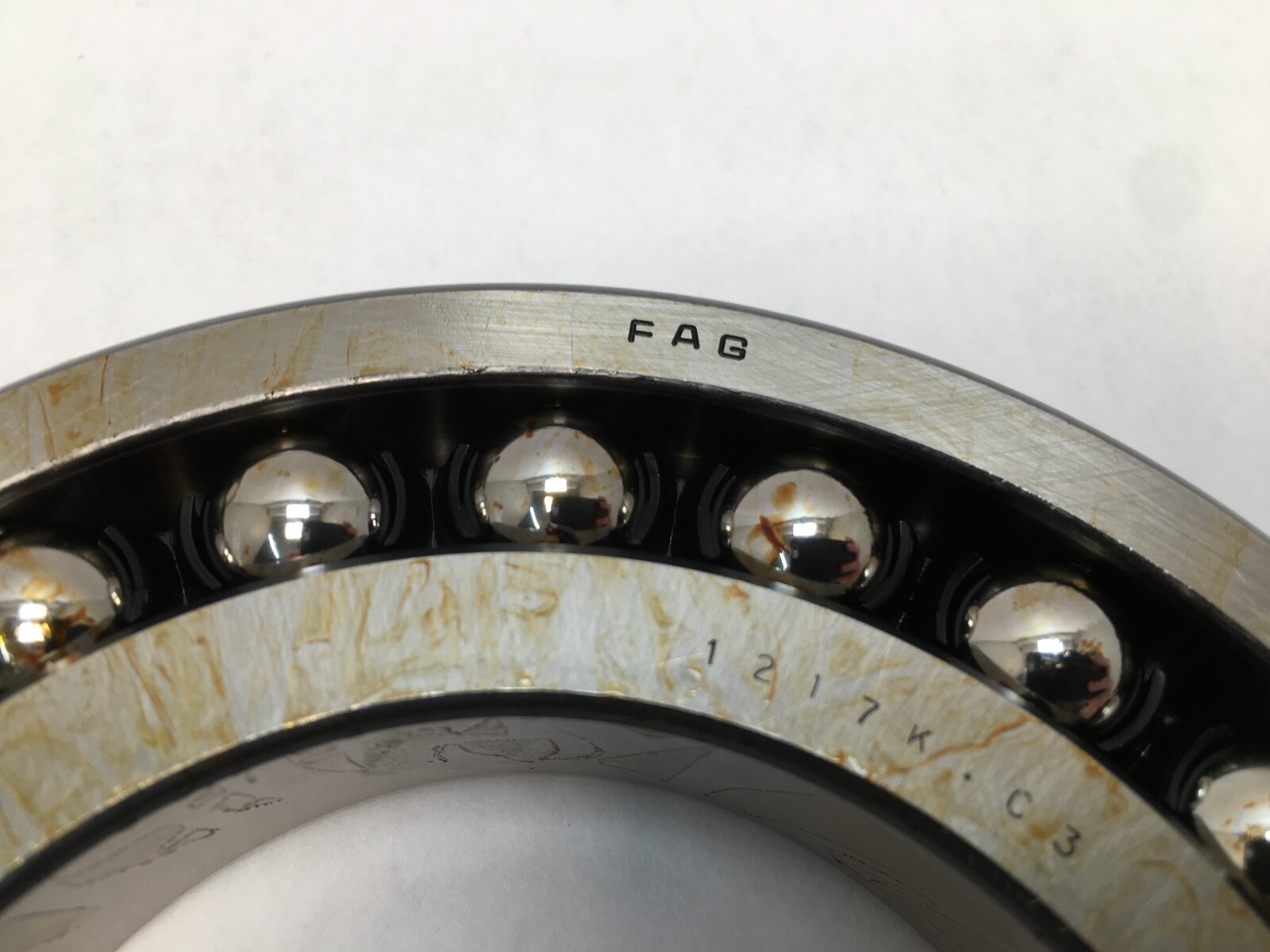

FAG 1217K.C3 self-aligning ball bearing, 85 x 150 x 28 mm, 1:12 tapered bore, C3 clearance. Mounts on adapter sleeve H217. Successor FAG 1217-K-TVH-C3.
List Price
$44.83
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 1217KC3 |
| Model | 1217K.C3 |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 85 mm |
| OD | 150 mm |
| Width | 28 mm |
| Series | 12 |
|---|---|
| Dynamic Load Rating | 49,500 N |
| Static Load Rating | 20,800 N |
| Rolling Elements | Ball |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Limiting Speed | 4,900 rpm |
| Harmonization Code | 8482.10 |
| Internal Clearance | C3 |
| Industry Terms | self-aligning ball bearing, double row self aligning bearing, tapered bore bearing, adapter sleeve mount |
| Overall Width | 28 mm |
| Mpn Variants | 1217K.C3, 1217-K-C3, 1217KC3, 1217 K C3, 1217-K C3 |
| Compatible With Replaces | Successor: FAG 1217-K-TVH-C3; adapter sleeve H217 |
| Additional Attributes | Successor 1217-K-TVH-C3 data: Dynamic load rating 49,500 N; Static load rating 20,800 N; Limiting speed 4,900 rpm; Reference speed 4,950 rpm; Weight 1.989 kg; Adapter sleeve: H217 |
| Cross Reference 1 | SKF 1217 K/C3 |
|---|---|
| Cross Reference 2 | NTN 1217SKC3 |
| Cross Reference 3 | NSK 1217KC3 |
| Cross Reference 4 | Koyo 1217KC3 |
FAG 1217K.C3 is a double-row self-aligning ball bearing with a 1:12 tapered bore and C3 clearance. Bore Diameter: 85 mm. Outside Diameter: 150 mm. Overall Width: 28 mm. Bore Type: Tapered 1:12. Number Of Rows: 2. Internal Clearance: C3.
12 — self-aligning ball bearing, dimension series 02.
17 — bore code, 85 mm.
K — tapered bore, taper 1:12.
C3 — radial internal clearance larger than normal.

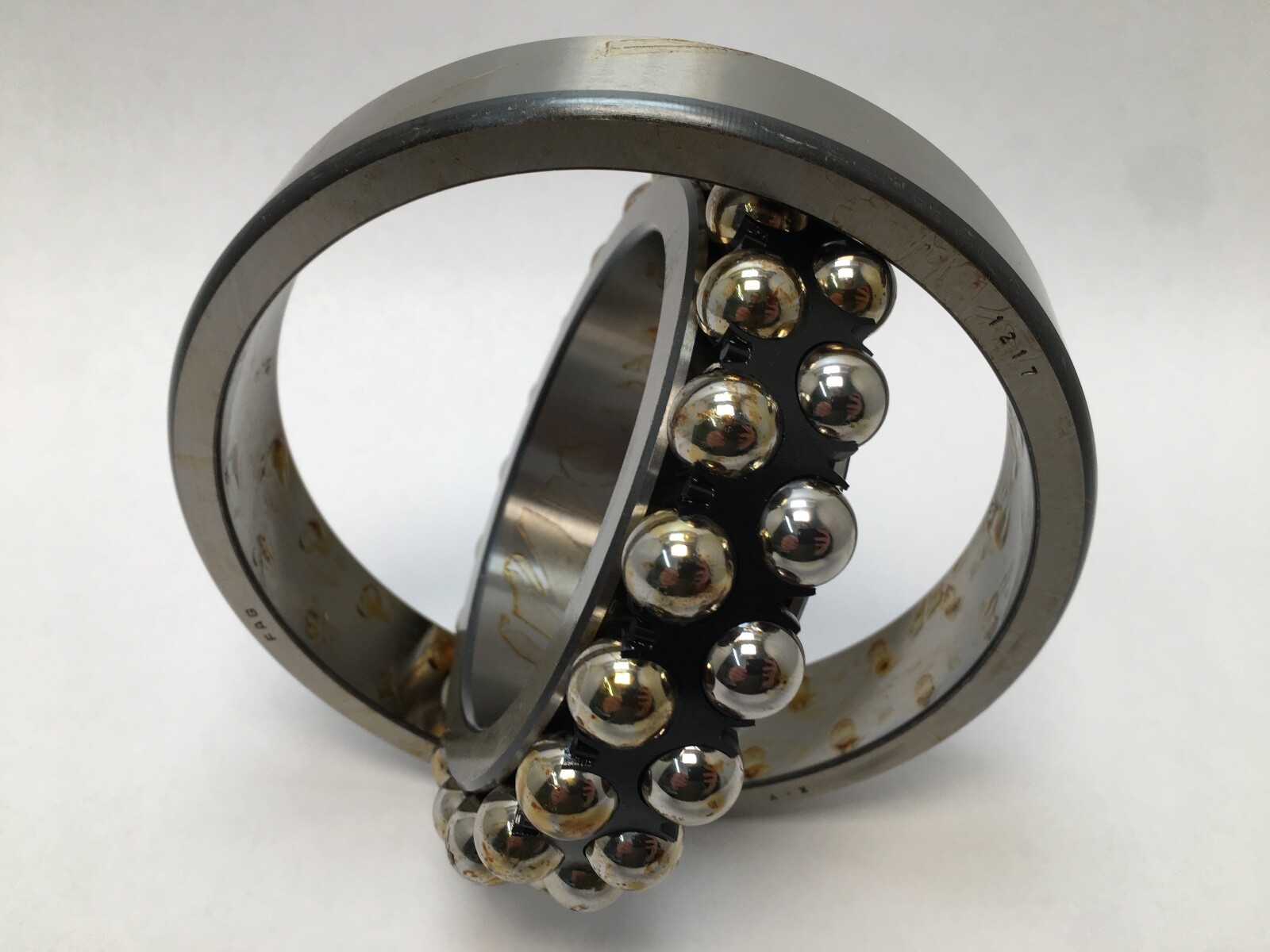

Successor 1217-K-TVH-C3 data: Dynamic Load Rating: 49,500 N. Static Load Rating: 20,800 N. Limiting Speed: 4,900 rpm. Reference Speed: 4,950 rpm. Fatigue Limit Load: 1,210 N. Item Weight: 1.989 kg (4.39 lb). The spherical outer raceway lets the inner ring and ball set swivel, accommodating shaft misalignment.
Adapter Sleeve: H217 (mounts on a 75 mm shaft). Successor 1217-K-TVH-C3 data: Chamfer r min: 2 mm. Fillet ra max: 2 mm. Shaft Abutment da min: 96 mm. Shaft Abutment da max: 105 mm. Sleeve Abutment db min: 90 mm. Housing Abutment Da max: 139 mm. Spacer Width Ba min: 7 mm.
Unit Quantity: 1 Pc.
Equivalent tapered-bore C3 self-aligning ball bearings: SKF 1217 K/C3, NSK 1217KC3, NTN 1217SKC3, Koyo 1217KC3. Current FAG successor: 1217-K-TVH-C3.
