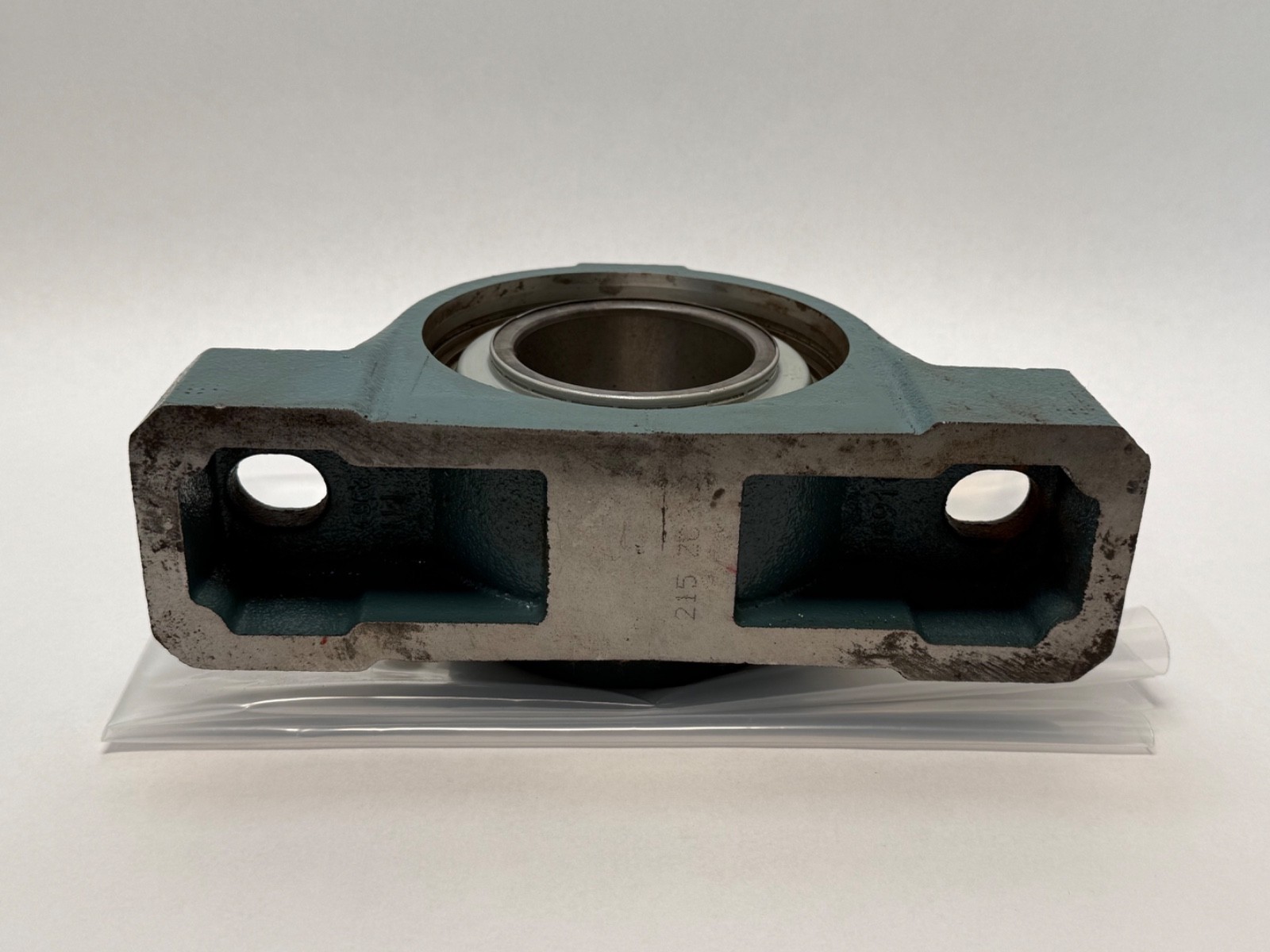

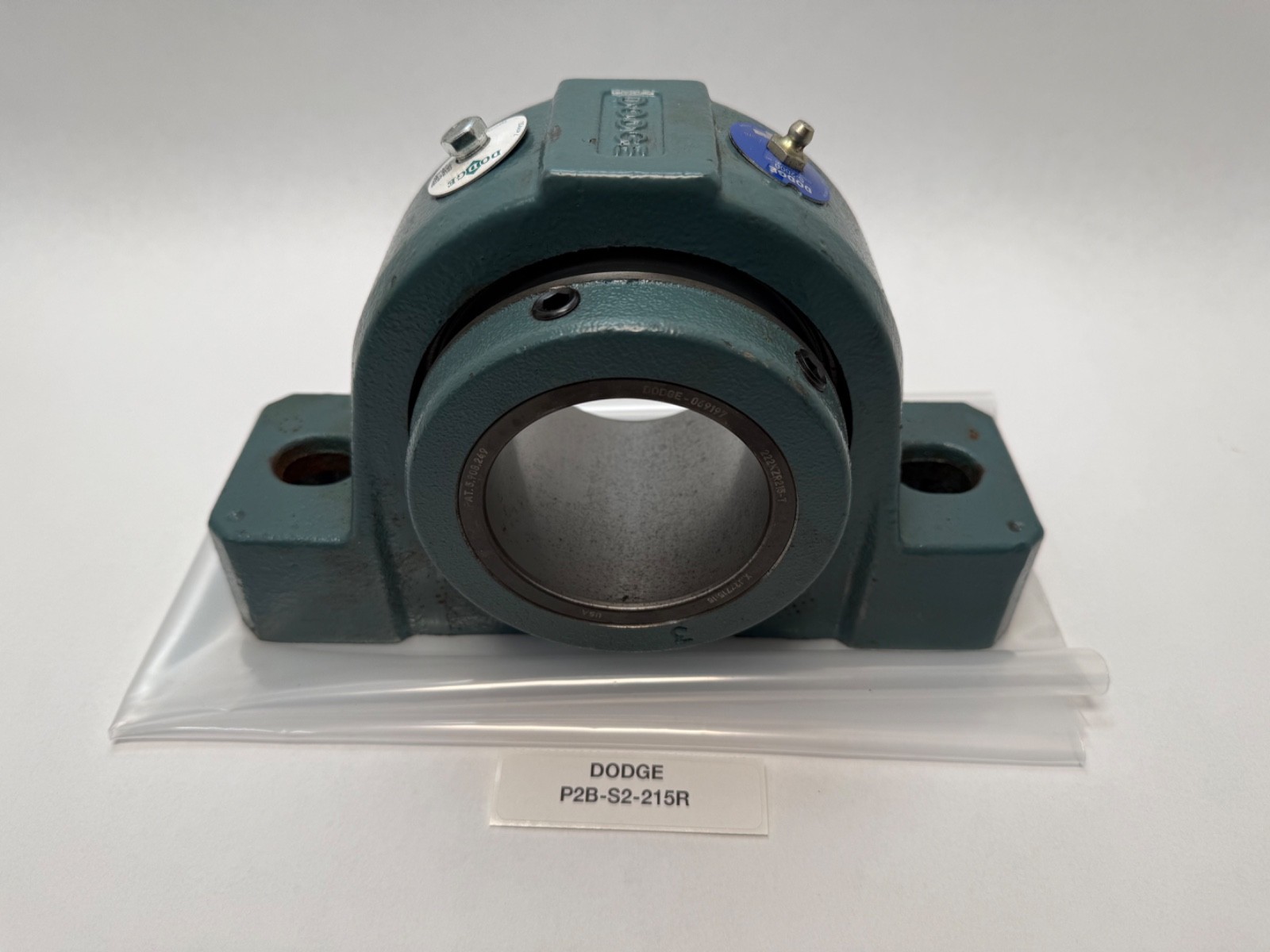

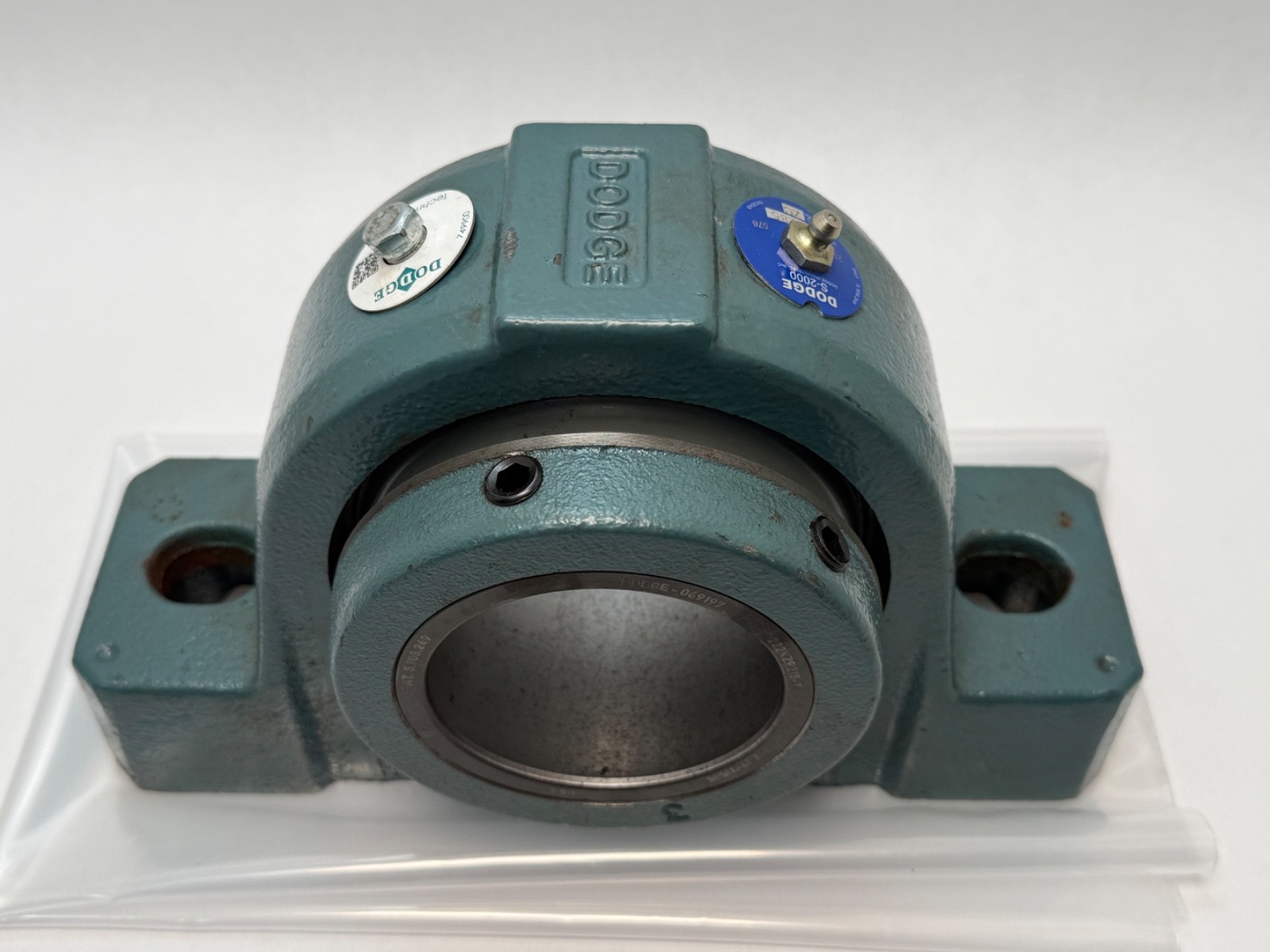

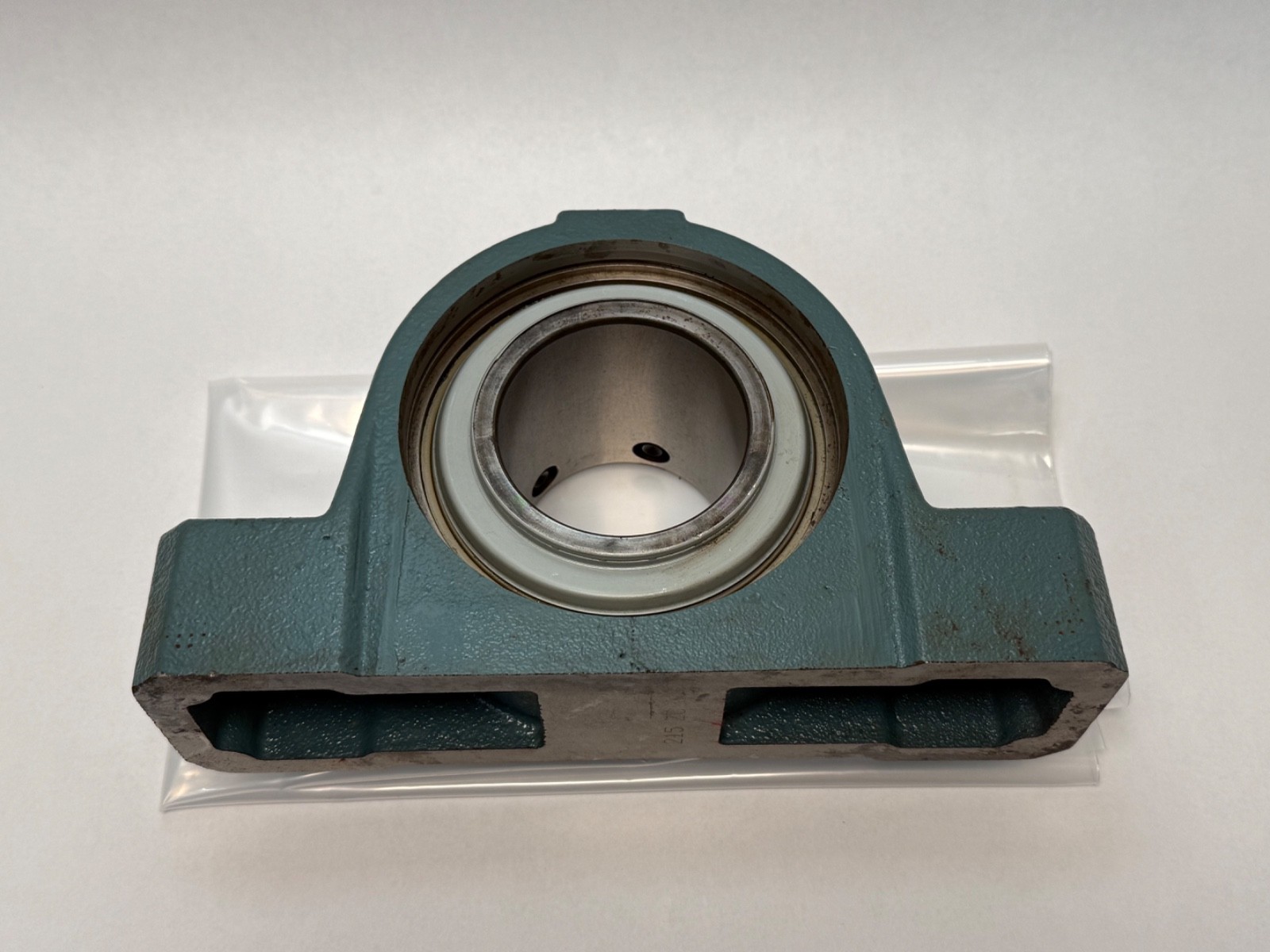

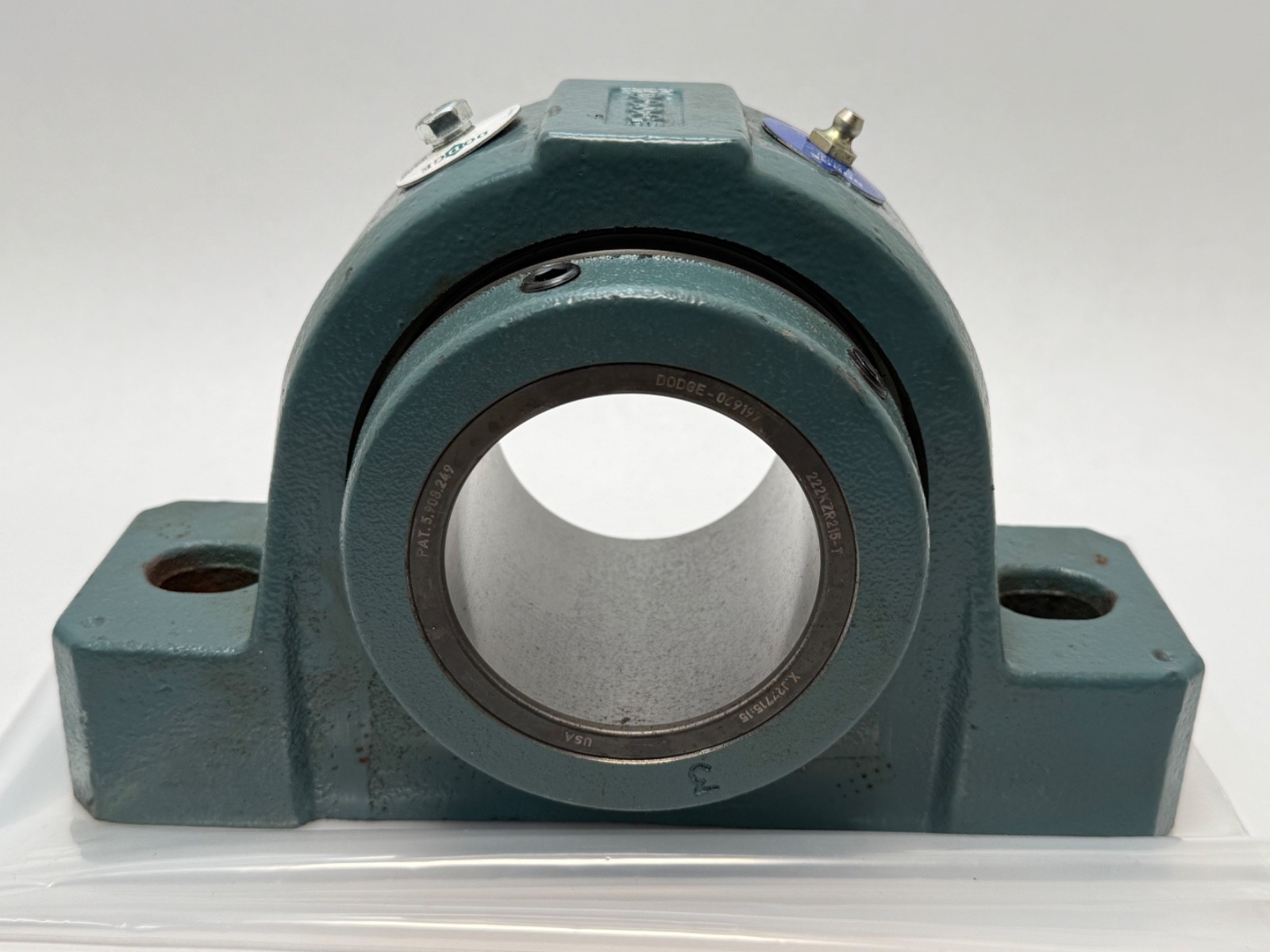

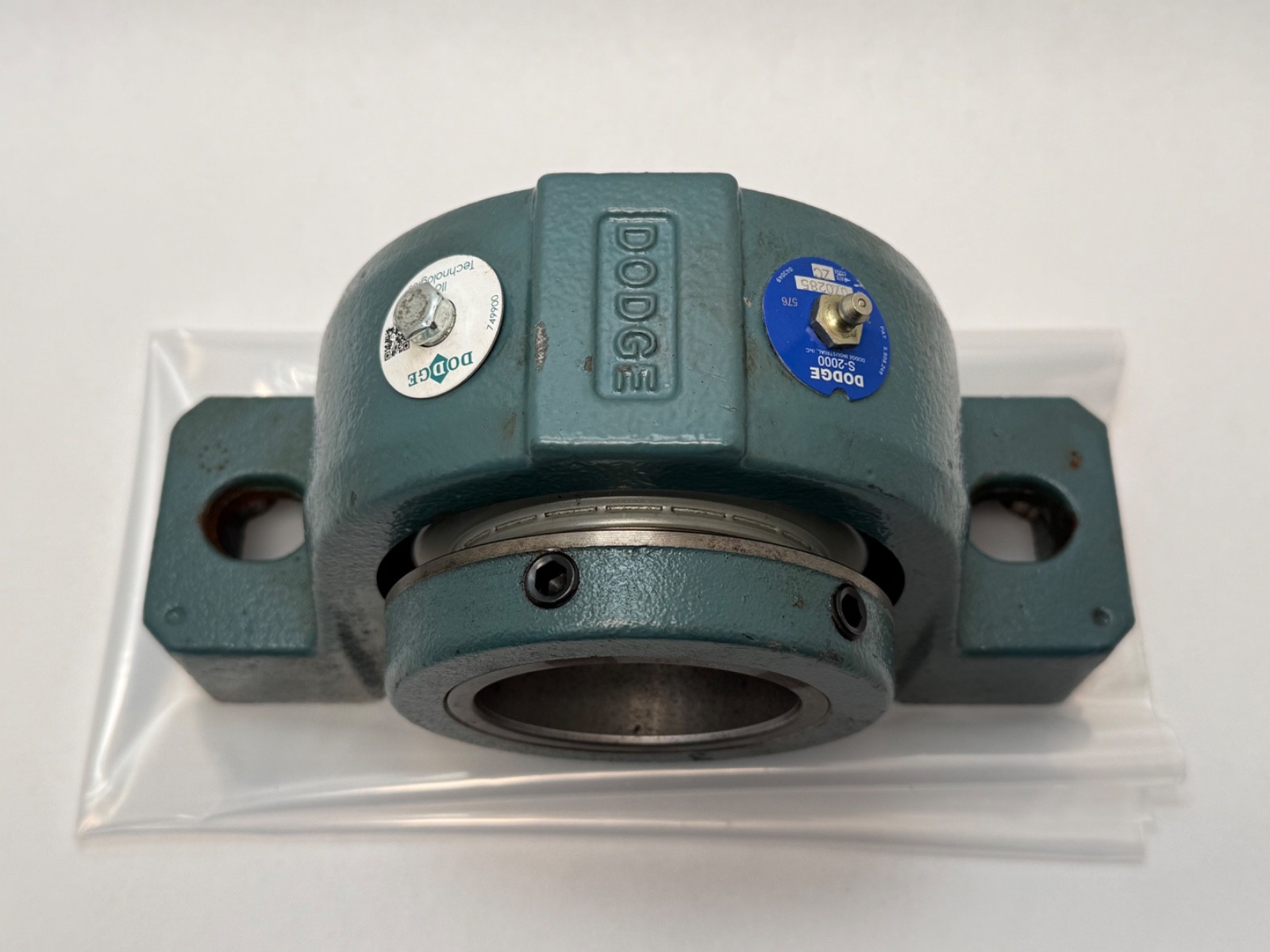

Spherical roller pillow block, 2-15/16 in bore, two-bolt cast iron housing, set screw lock, 3.25 in centre height. Dodge S-2000 P2B-S2-215R, 070285.
List Price
$278.34
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Spherical Roller Pillow Block — 1-3/16 in Bore, 2-Bolt Base, Cast Iron, 65° Set Screw Collar, Triple-Lip Seal, Non-Expansion$159.87
Spherical Roller Pillow Block Bearing - 3-7/16 in Bore, Two-Bolt, Cast Iron, Set Screw, Non-Expansion$365.27
Ball Bearing Pillow Block - 1-3/16 in Bore, Two-Bolt, Cast Iron, Eccentric Collar, Non-Expansion$31.88
Two-Bolt Pillow Block Bearing - 1 in Shaft, Eccentric Collar Locking, Cast Iron, Wide Inner Ring$31.94| MFR / Brand | Dodge |
|---|---|
| MPN | P2B-S2-215R |
| GTIN | 782475305919 |
| Model | P2BS2215R / 070285 |
| ID | 2-15/16 in |
| Material | Cast Iron |
|---|---|
| Type | Pillow Block Bearing |
| Bolt Center To Center | 7.94-8.31 in |
| Number Of Bolt Holes | 2 |
| Bolt Center To Center Length | 7.94-8.31 in |
| Number Of Bolt Holes For Fasteners | 2 |
| Bearing Insert Type | Spherical Roller |
| Centre Height Pillow Block | 3.2500 in |
| Centre Height | 3.2500 in |
| Housing Style | Two-Bolt Pillow Block, Solid |
| Mpn Variants | P2B-S2-215R, P2BS2215R, P2B S2 215R, 070285 |
| Dynamic Load Rating | 41,500 lbf (184,600 N) |
| Static Load Rating | 53,000 lbf (235,760 N) |
| Series | S-2000 |
| Rolling Elements | Spherical Roller |
| Bearing Type | Spherical Roller Pillow Block Unit |
| Item Weight | 9.14 kg (20.15 lb) |
| Limiting Speed | 1,490 rpm |
| Lubricant | Grease (Mobilgrease XHP 222) |

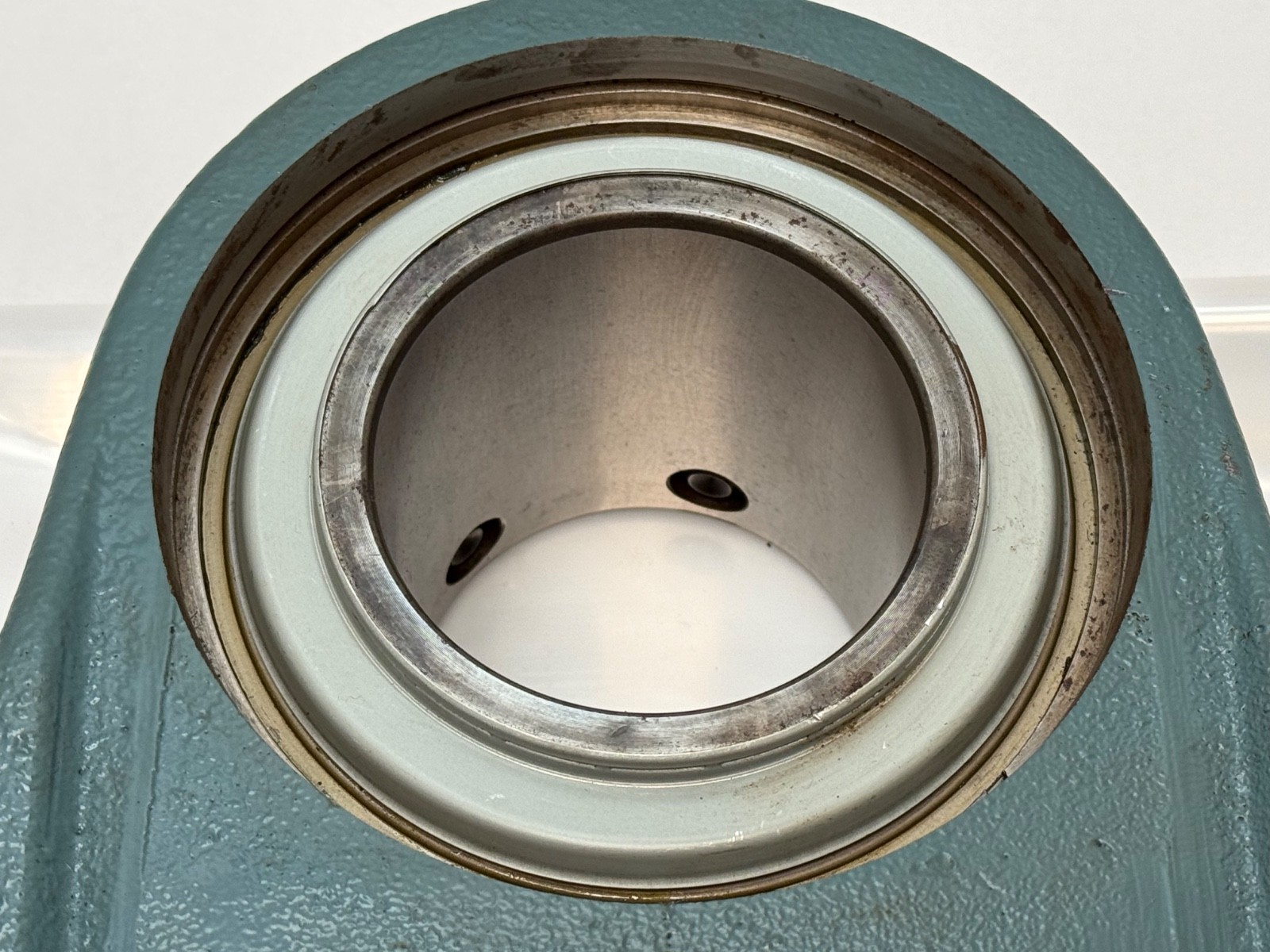

| Locking Device | Set Screw |
| Harmonization Code | 8483.20.80.80 |
| Housing Material | Cast Iron |
| Expansion Type | Non-Expansion (Fixed) |

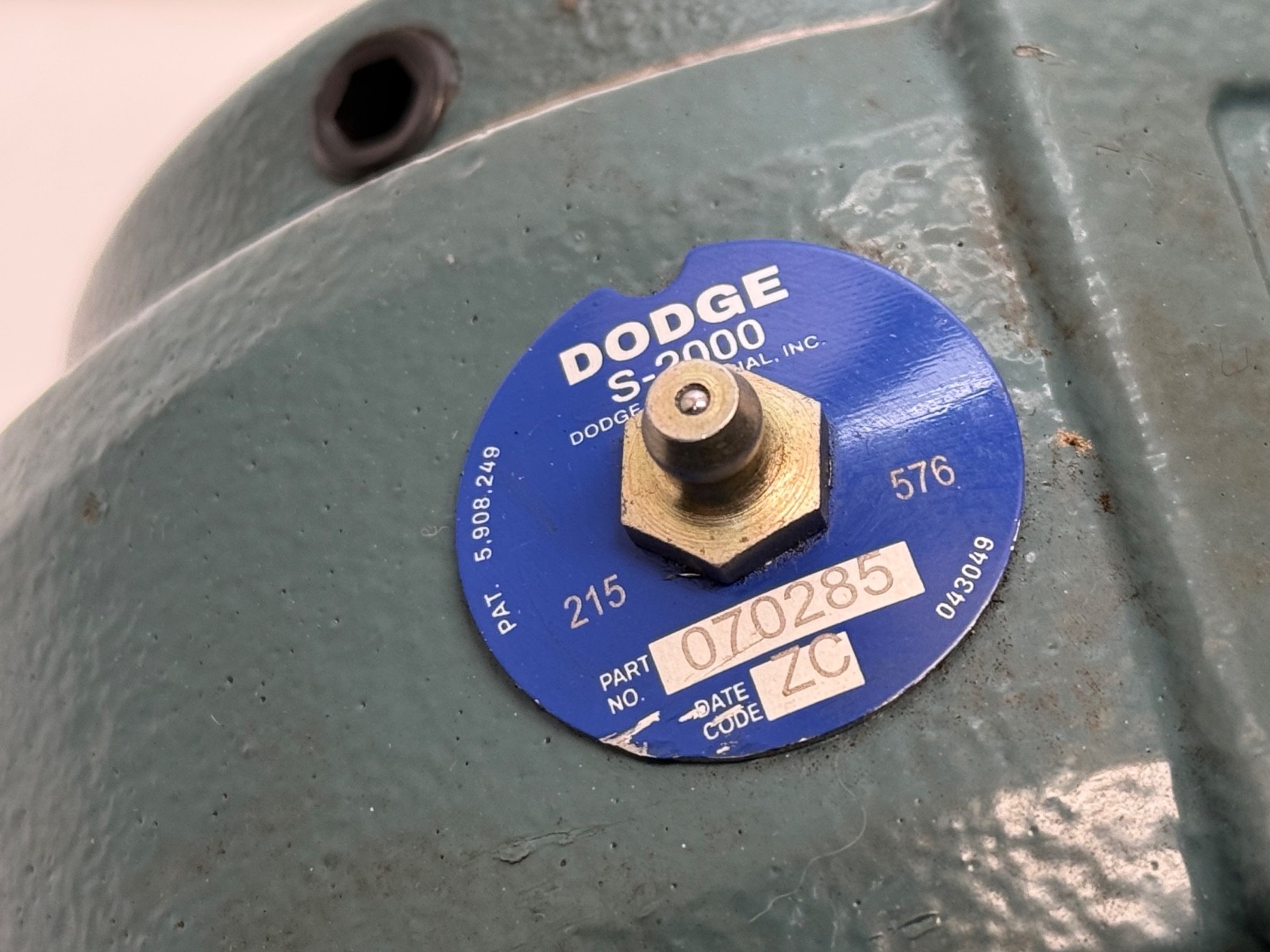

Dodge P2B-S2-215R two-bolt pillow block from the S-2000 mounted spherical roller bearing line, Dodge part number 070285. Bore Diameter: 2-15/16 in (2.9375 in). Bearing Type: Spherical roller. Housing Type: Two-bolt pillow block, solid housing. Housing Material: Cast iron. Locking Device: Set screw. Expansion Type: Non-expansion (fixed).
P2B — Dodge two-bolt pillow block housing.
S2 — Dodge S-2000 mounted spherical roller bearing series.
215 — shaft size, 2-15/16 in: first digit whole inches, last two digits sixteenths.
R — Dodge non-expansion (fixed) unit.

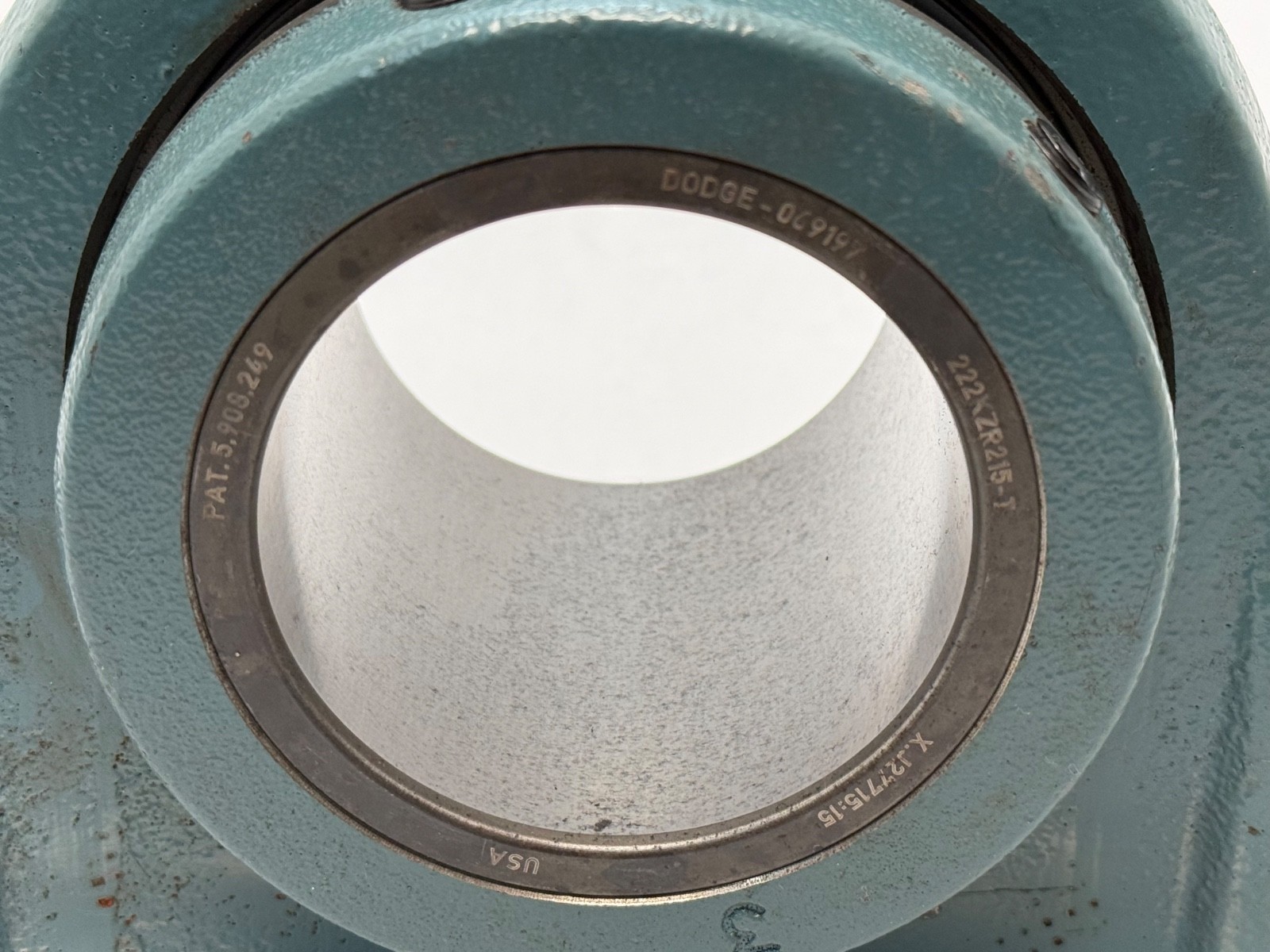

Dynamic Load Rating: 41,500 lbf (184,600 N). Static Load Rating: 53,000 lbf (235,760 N). Maximum Speed: 1,490 rpm. The spherical roller insert carries heavy radial load with thrust and accommodates shaft misalignment. Seal Type: Triple-lip contact seal. Lubricant: Grease, factory fill Mobilgrease XHP 222. Greasable: Yes. Sensor Ready: Yes.
Centre Height: 3.2500 in base to bore centreline. Bolt Center To Center: 7.94 to 8.31 in slotted. Bolt Diameter: 0.750 in. Length Through Bore: 3.59 in. Item Weight: 9.14 kg (20.15 lb).
Related Dodge parts: end cover S2EC15 (211-300), part 069975, and S2ECO-15-215, part 070249. Dodge lists take-up frames HD-250 and LD-45 for this unit size.
