Torrington HJ-182620 heavy duty needle roller bearing, 1.125 in roller bore, 1.625 in OD, 1.250 in wide, machined outer ring and steel cage. Carton HJTR-182620.
List Price
$23.79
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | TORRINGTON |
|---|---|
| MPN | HJ-182620 |
| Model | HJ-182620 |
| Bearing Type | Needle Roller Bearing |
| ID | 1.1250 in (28.575 mm) |
| OD | 1.6250 in (41.275 mm) |
| Width | 1.250 in (31.75 mm) |
| Series | HJ |
|---|---|
| Condition | New |
| Number Of Rows | 1 |
| Base Number | HJ-182620 |
| Closure Type | Open |
| Industry Terms | heavy duty needle bearing, machined ring needle roller bearing, HJ needle bearing |
| Mpn Variants | HJ-182620, HJ182620, HJ 182620, HJTR-182620, HJTR182620 |
| Additional Attributes | Roller complement bore Fw 1.1250 in; housing fillet ra max 1.0 mm; housing shoulder 36.5 mm; matching inner rings IR-141820, IR-151820; lubrication groove and hole in outer ring OD; meets MS 51961 |
| Dynamic Load Rating | 42,900 N |
| Static Load Rating | 66,300 N |
| Rolling Elements | Needle Roller |
| Cage Material | Steel |
| Limiting Speed | 16,000 rpm |
| Cross Reference 1 | Koyo HJ-182620 |
|---|---|
| Cross Reference 2 | Timken HJ-182620 |

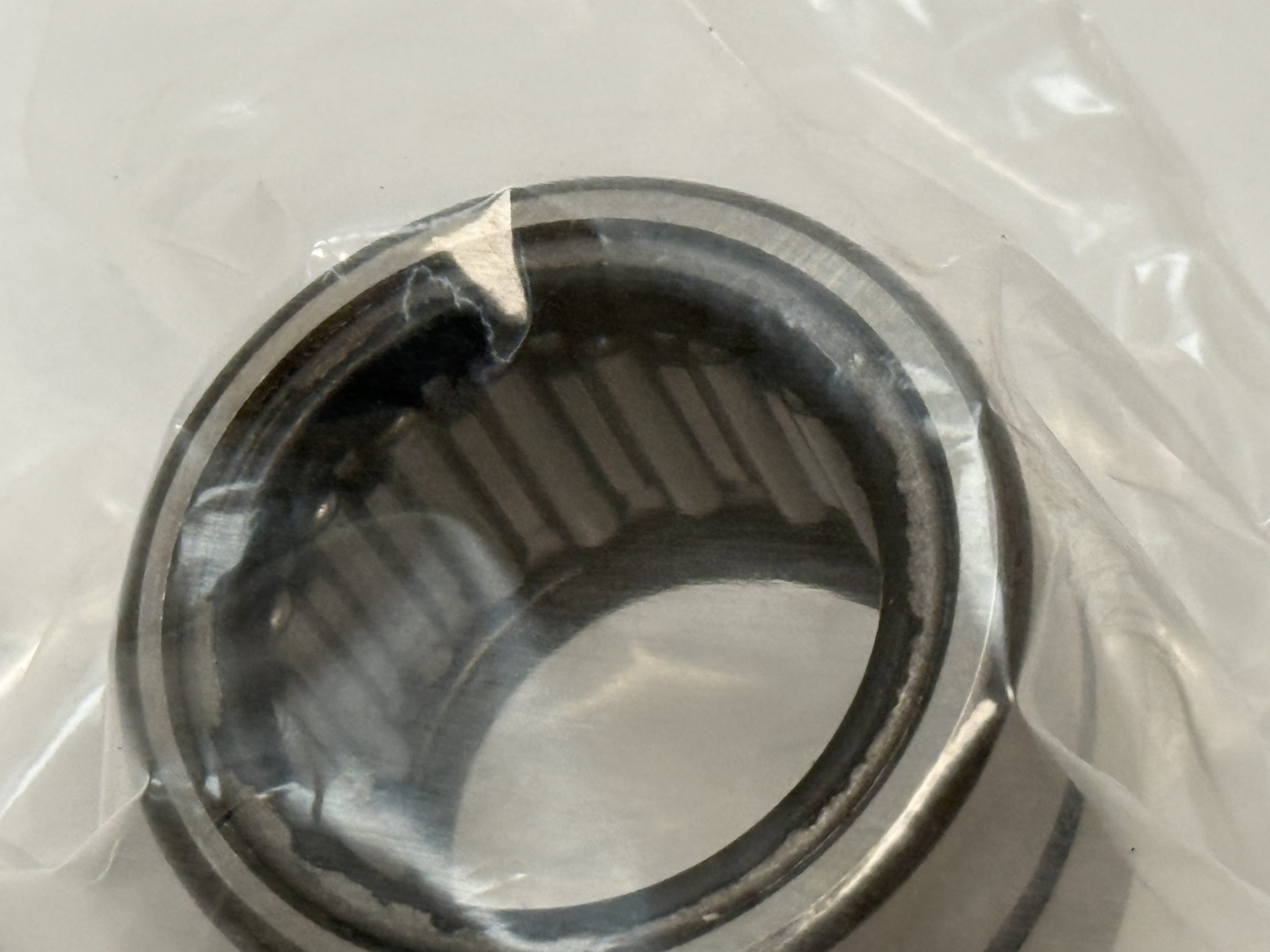

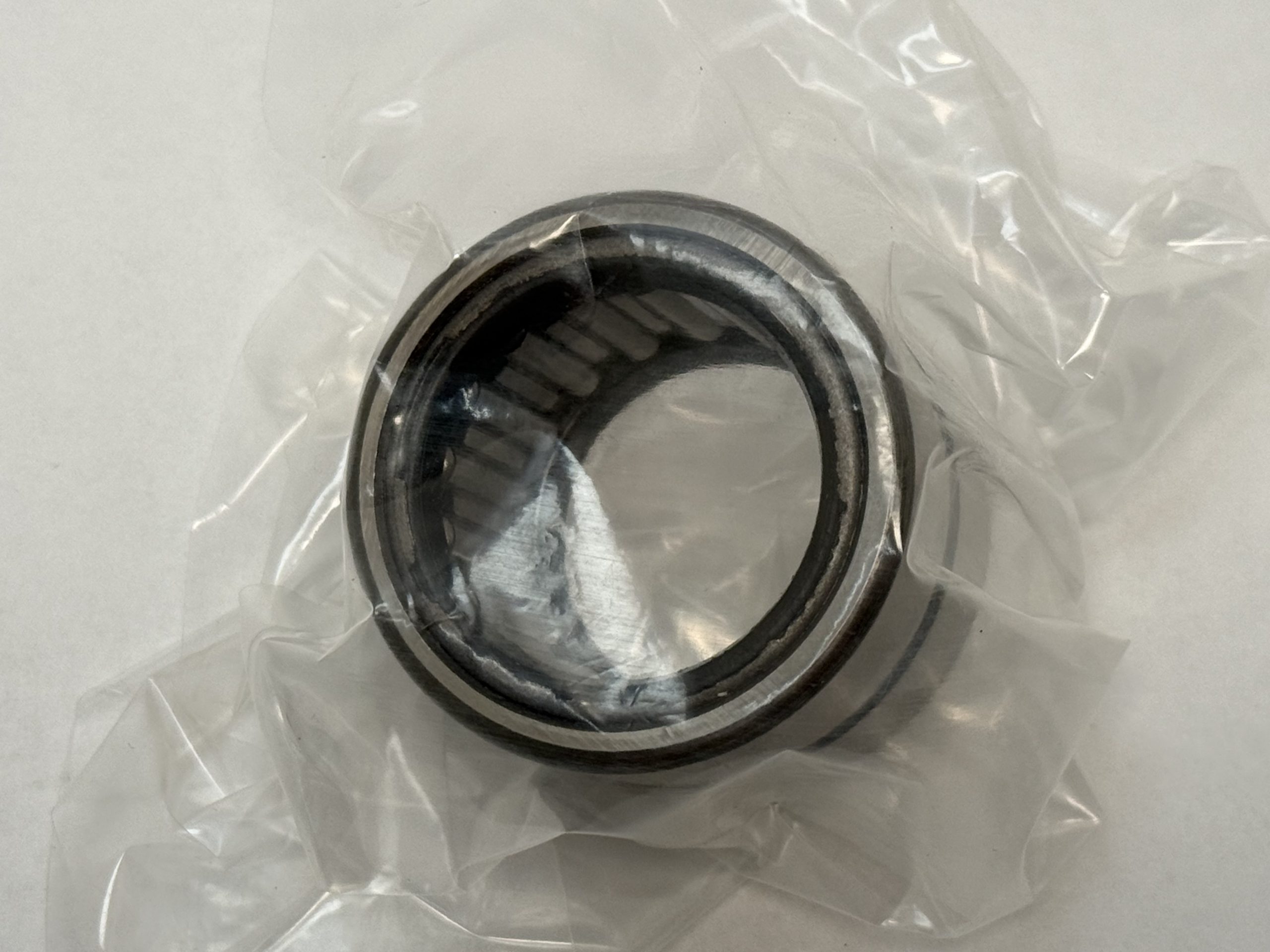

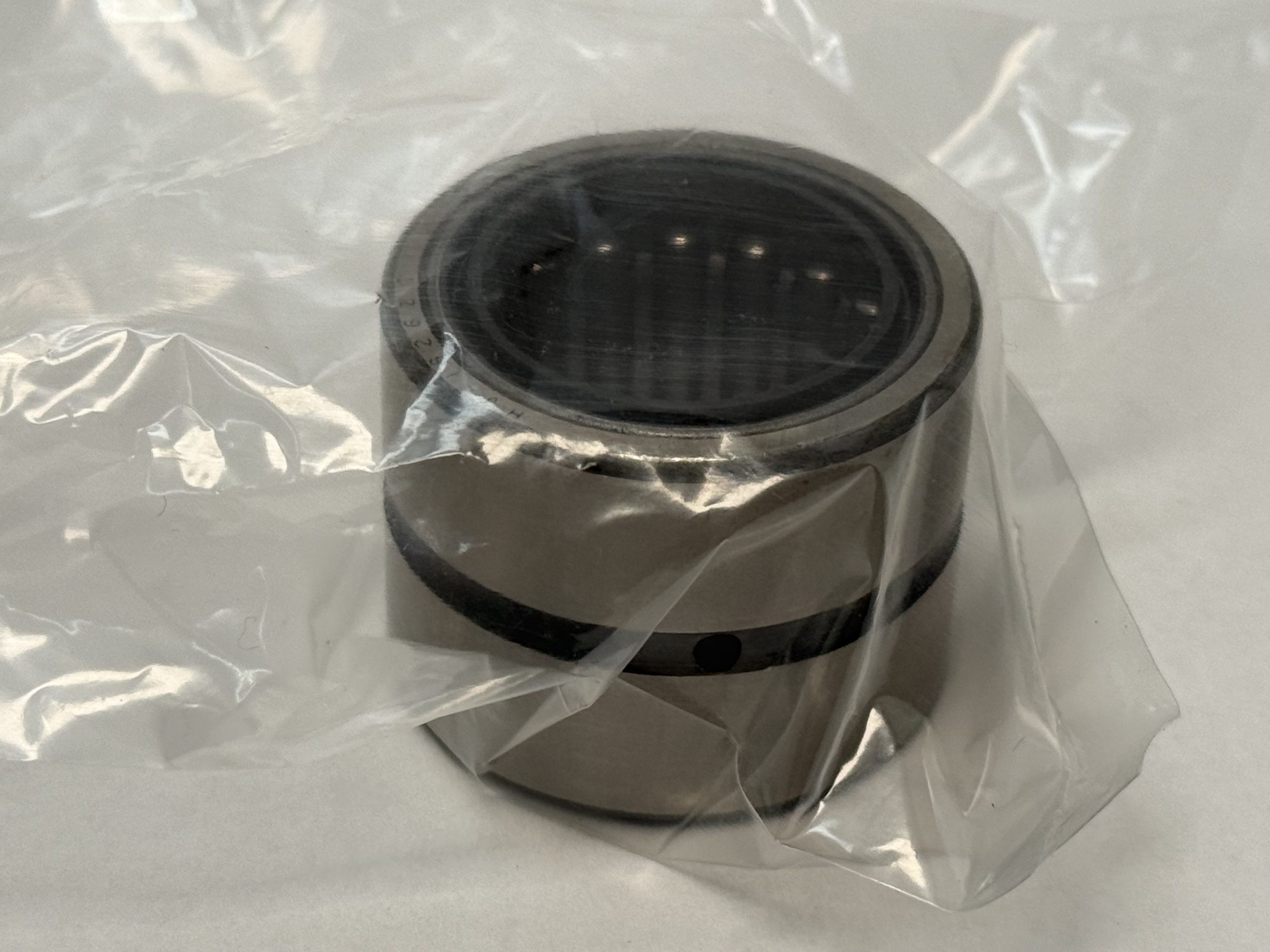

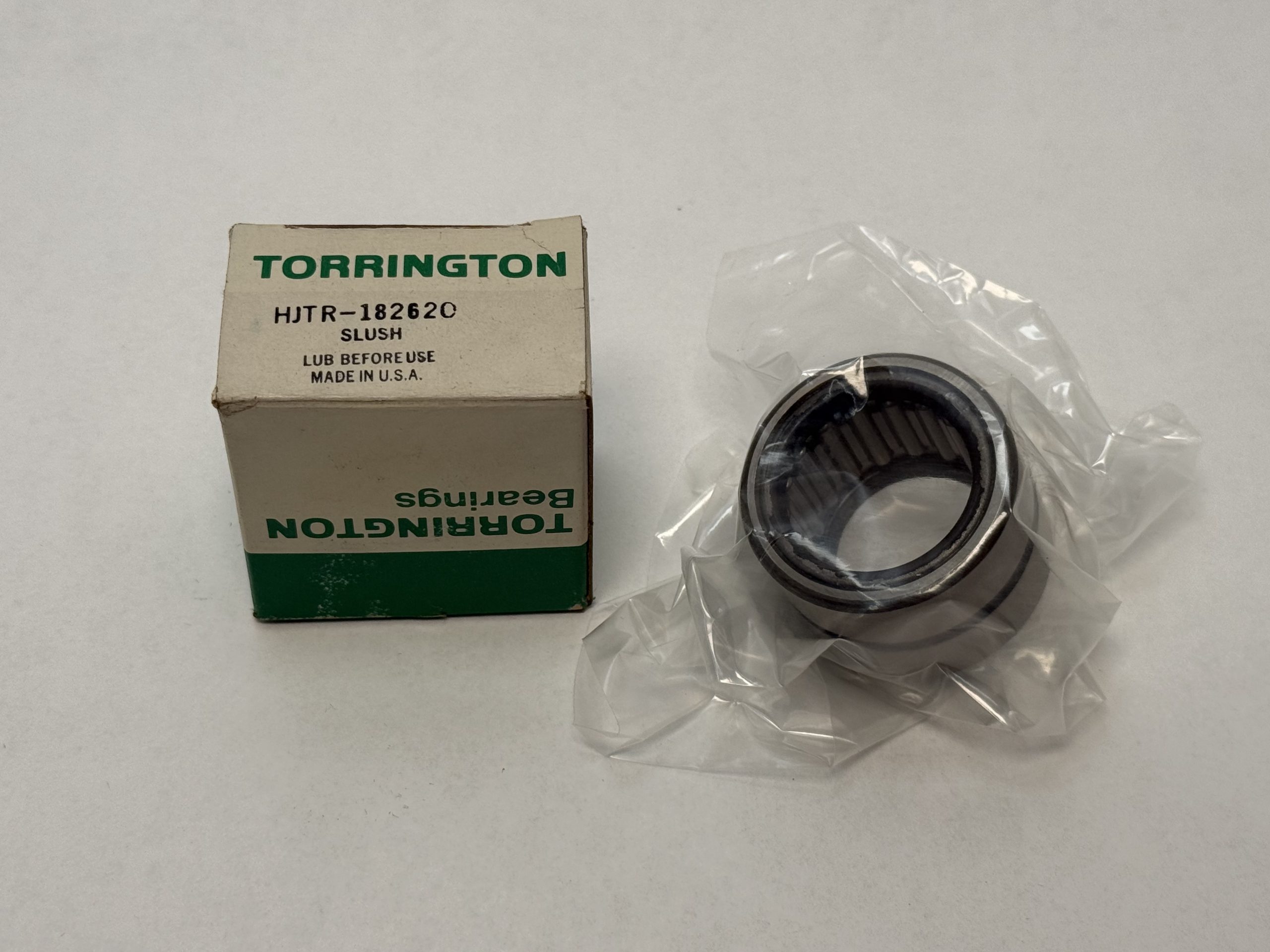

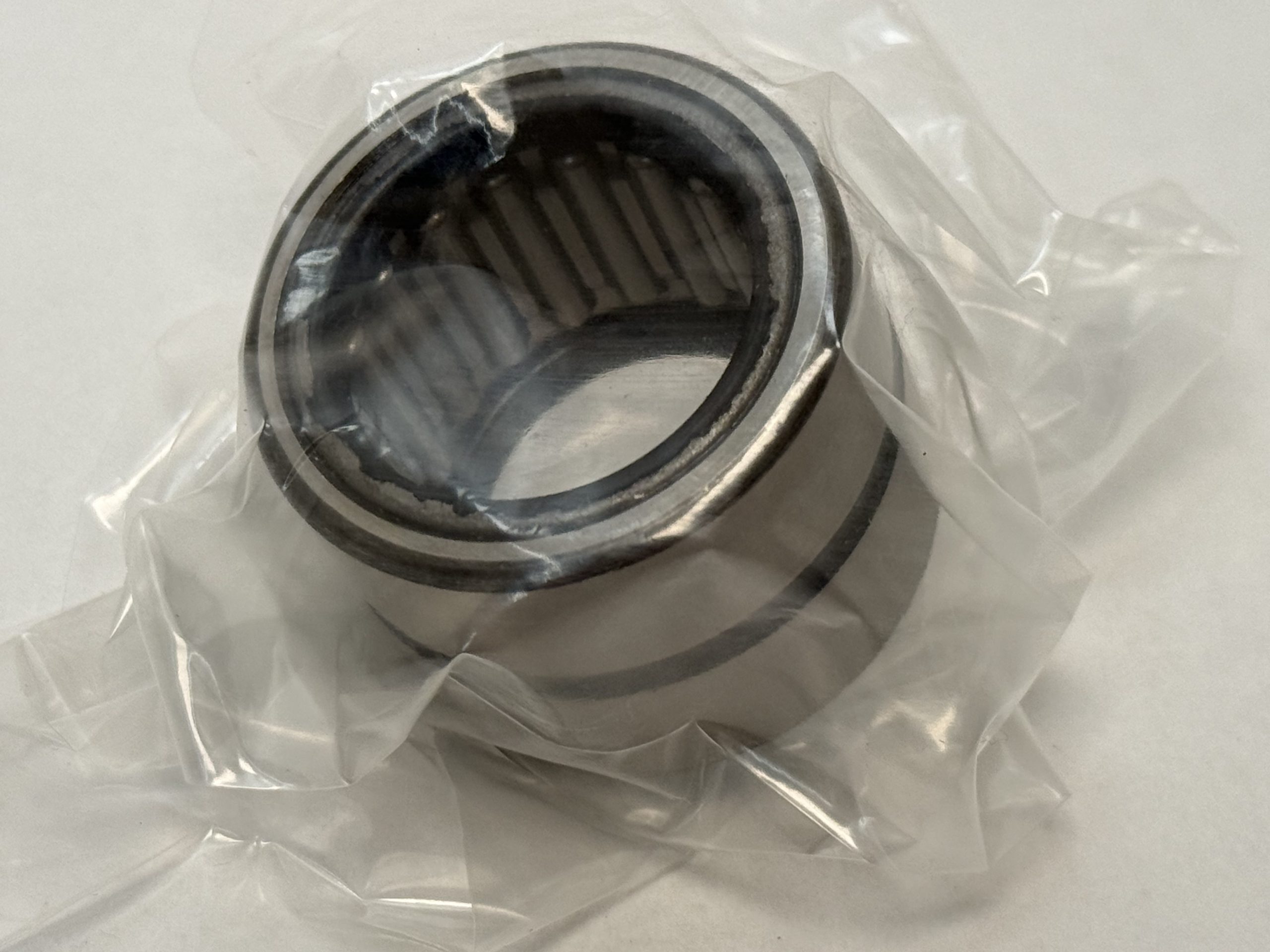

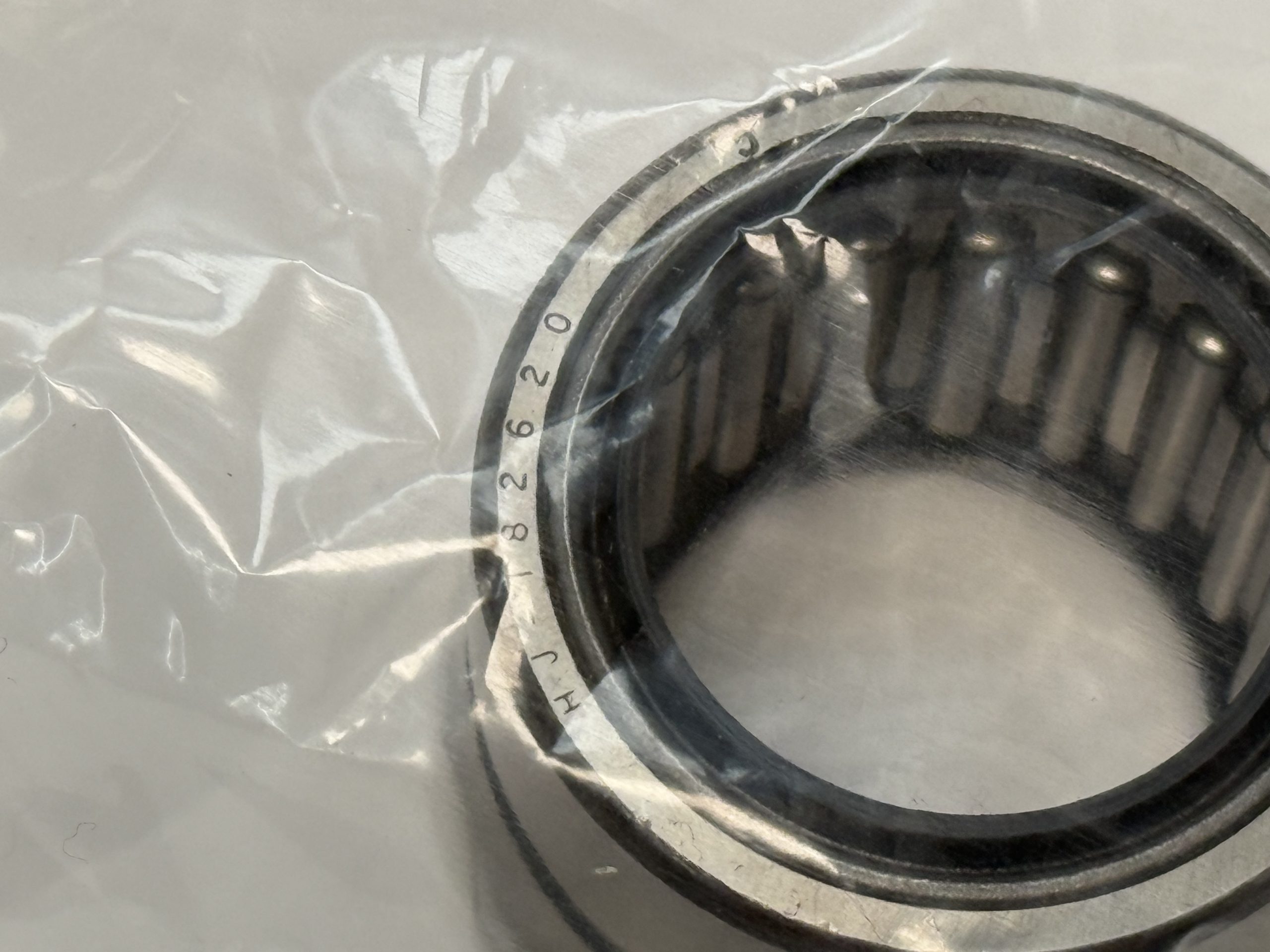

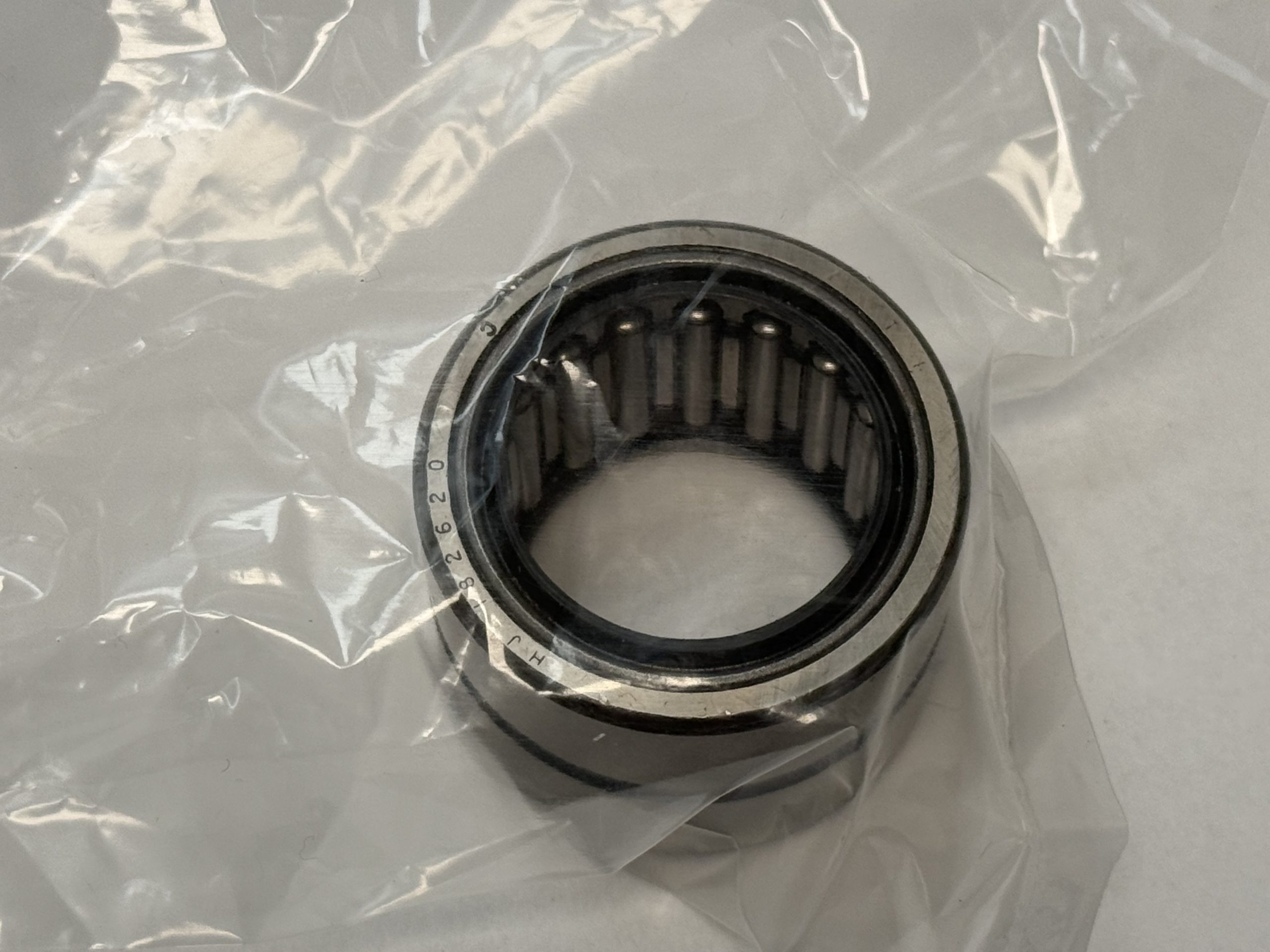

Torrington HJ-182620 heavy duty needle roller bearing, carton marking HJTR-182620. A one-piece channel-shaped machined outer ring with integral end flanges, a steel cage and a single row of needle rollers. No inner ring: the rollers run on a hardened shaft raceway (58 HRC minimum) or on a separate IR inner ring. The outer ring carries a lubrication groove and hole in the OD. Meets Military Standard MS 51961.
HJ — Torrington heavy duty needle roller bearing, inch nominal dimensions.
18 — roller complement bore Fw in sixteenths of an inch: 1.1250 in (28.575 mm).
26 — outside diameter in sixteenths: 1.6250 in (41.275 mm).
20 — width in sixteenths: 1.250 in (31.75 mm).
Bore Diameter: 1.1250 in (28.575 mm). Outside Diameter: 1.6250 in (41.275 mm). Overall Width: 1.250 in (31.75 mm). Dynamic Load Rating: 42,900 N (9,650 lbf, ISO 281). Static Load Rating: 66,300 N (14,900 lbf). Limiting Speed: 16,000 rpm. Rolling Elements: Needle Roller. Number Of Rows: 1. Cage Material: Steel. The thick outer ring gives high radial capacity and shock resistance in a small radial section.
Housing Fillet ra max: 1.0 mm (0.04 in). Housing Shoulder Diameter: 36.5 mm (1-7/16 in). Clearance fit: shaft raceway 1.1245–1.1250 in, housing bore 1.6250–1.6260 in. Tight transition fit: shaft raceway 1.1237–1.1242 in, housing bore 1.6237–1.6247 in. Matching inner rings: IR-141820 or IR-151820.
Unit Quantity: 1 Pc. Outer ring, cage and needle rollers as one assembly.
Torrington heavy duty needle roller bearings are now produced by Koyo/JTEKT and listed by Timken under the same HJ-182620 number, 1-1/8 x 1-5/8 x 1-1/4 in.
