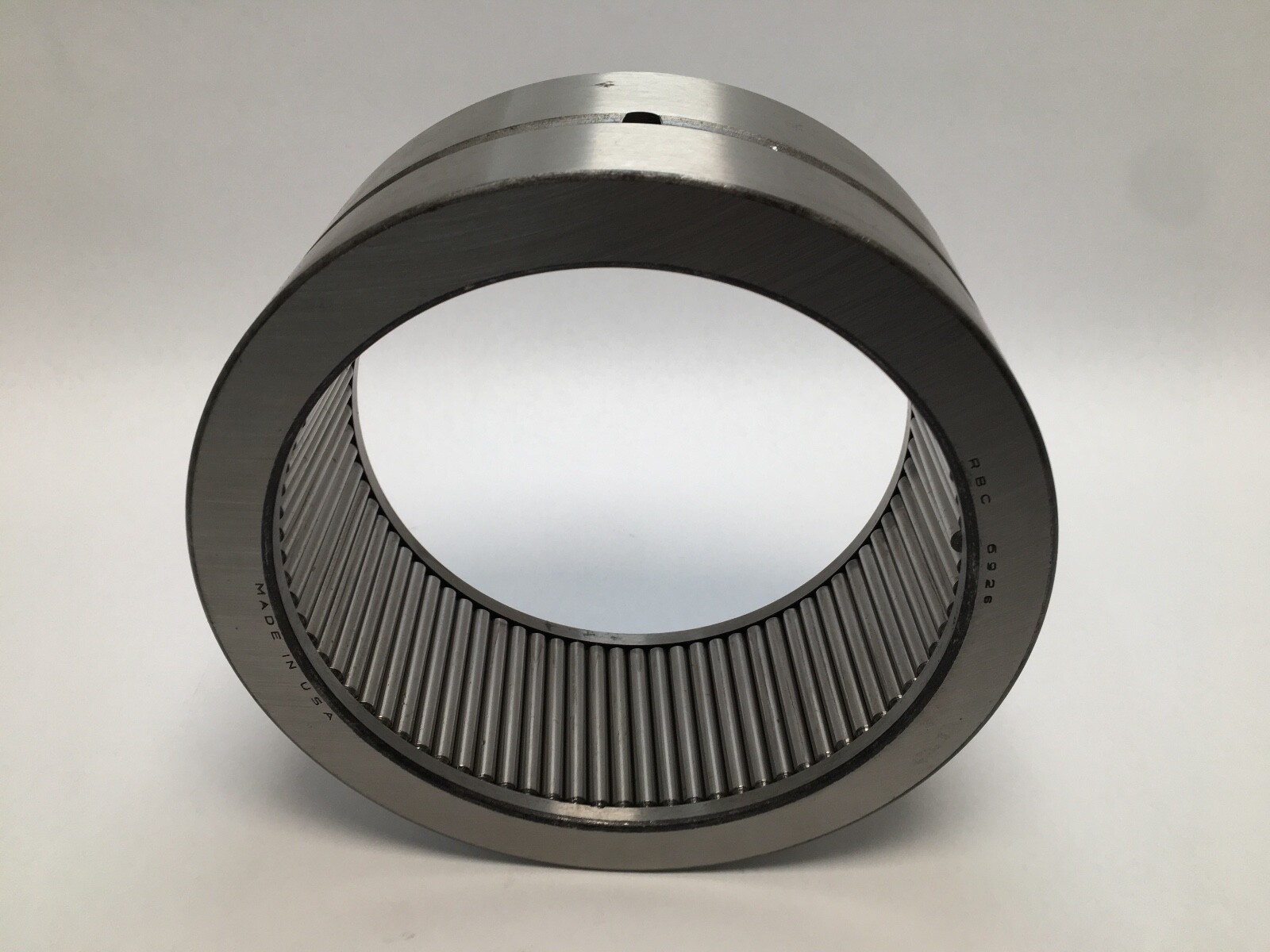

RBCSJ 6926Heavy Duty Needle Roller Bearing – 6 in Roller Bore, 7-1/2 in OD, 3 in Width, Without Inner Ring

Product Description

What this part is:

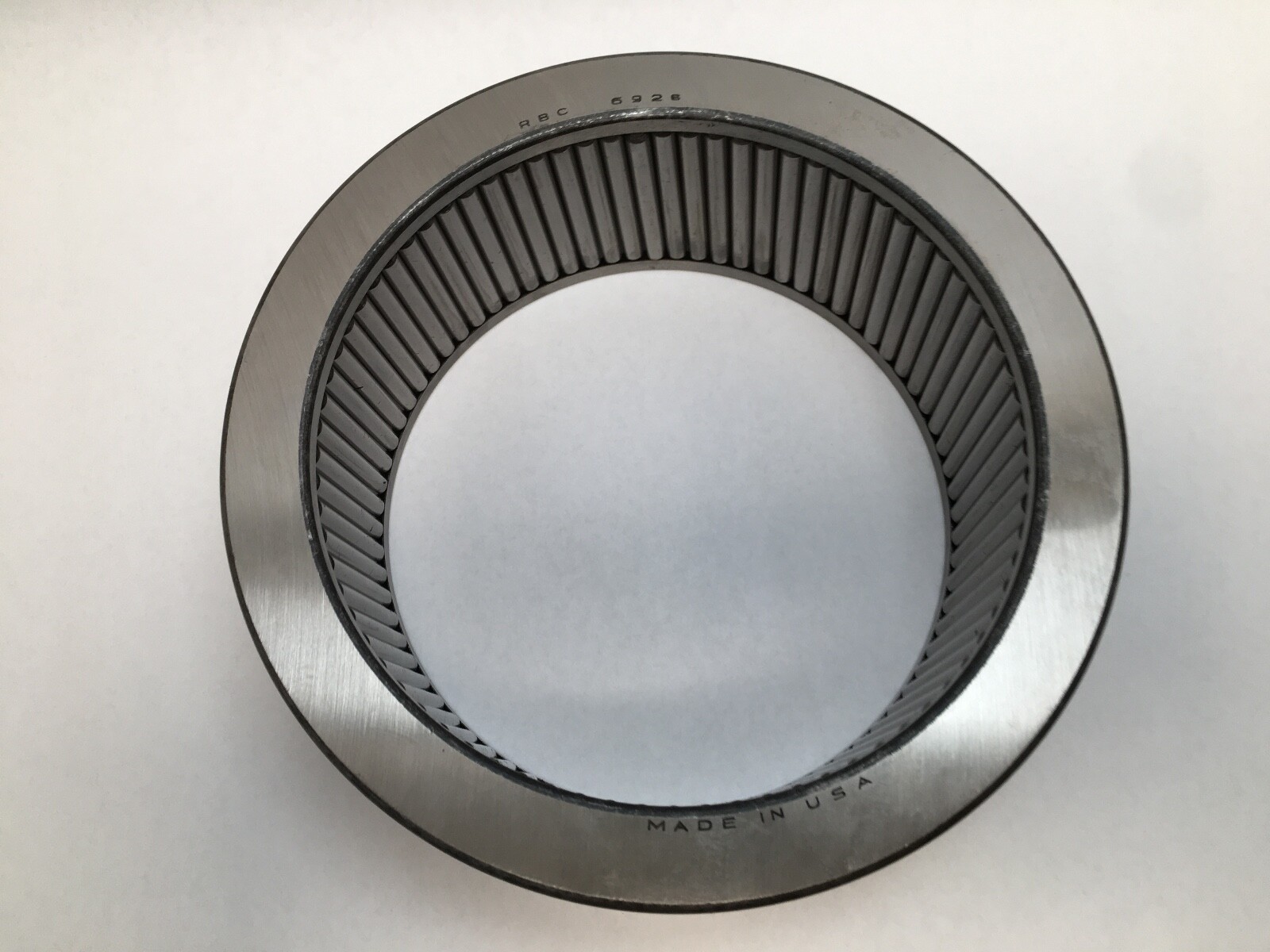

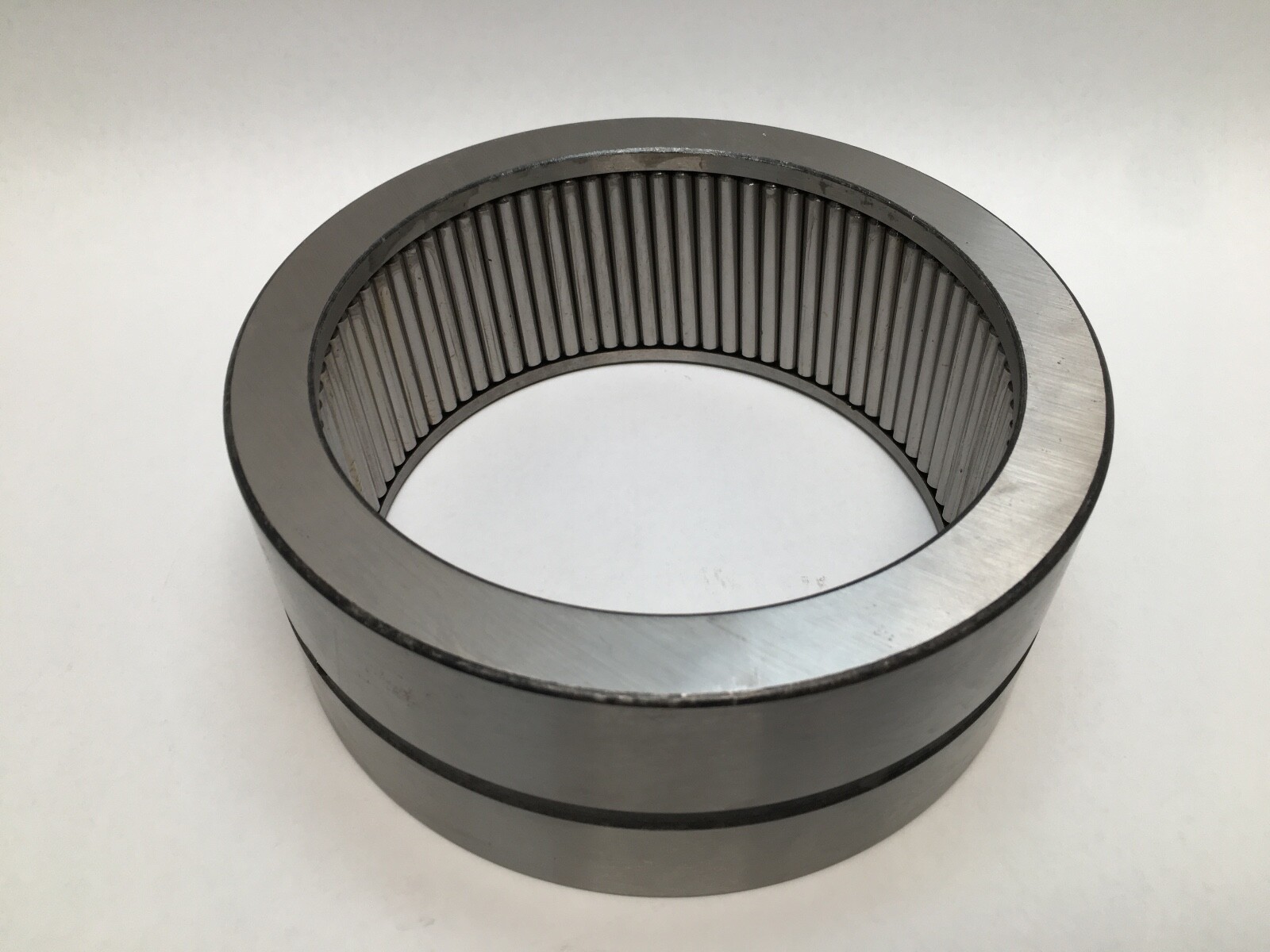

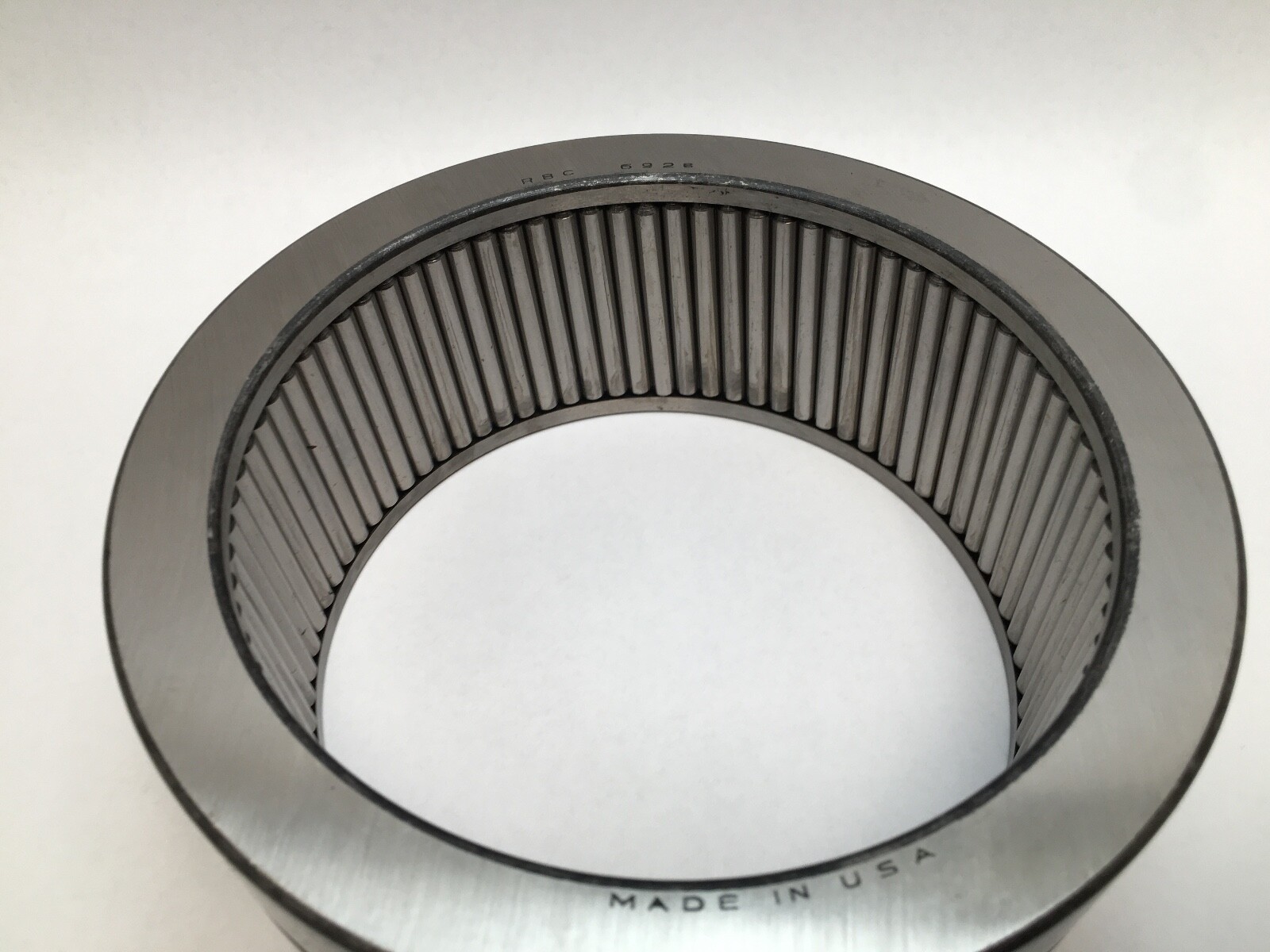

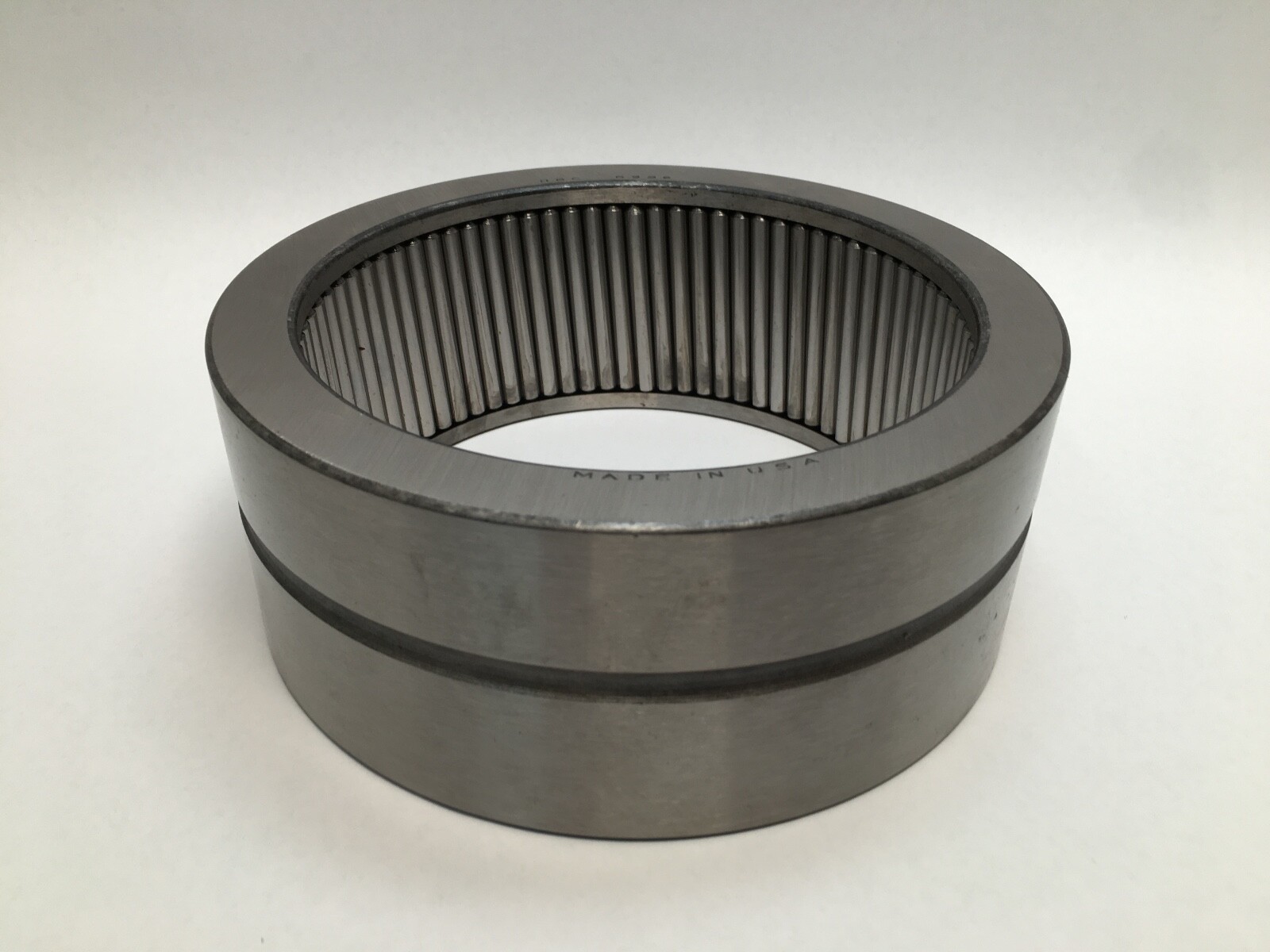

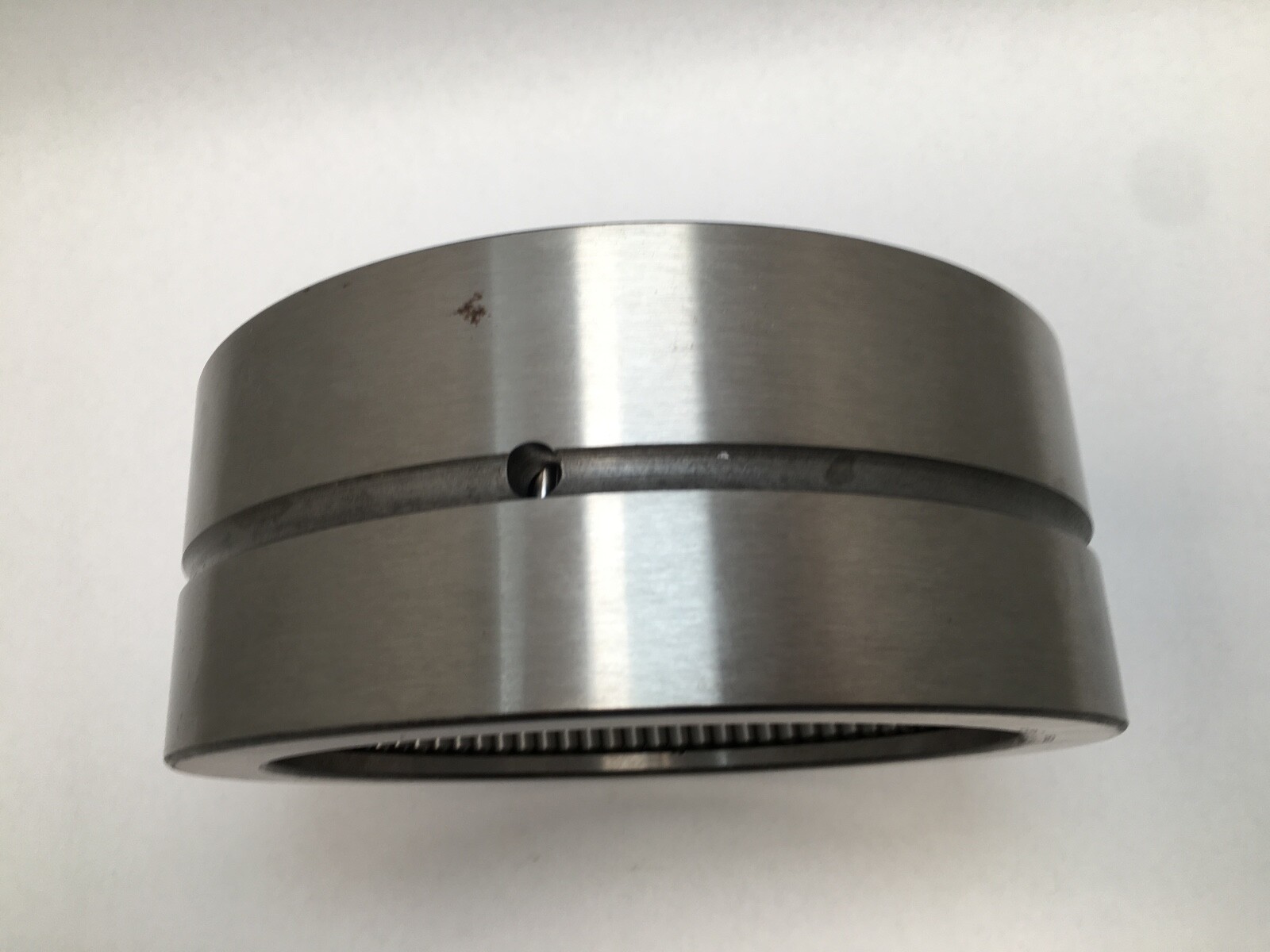

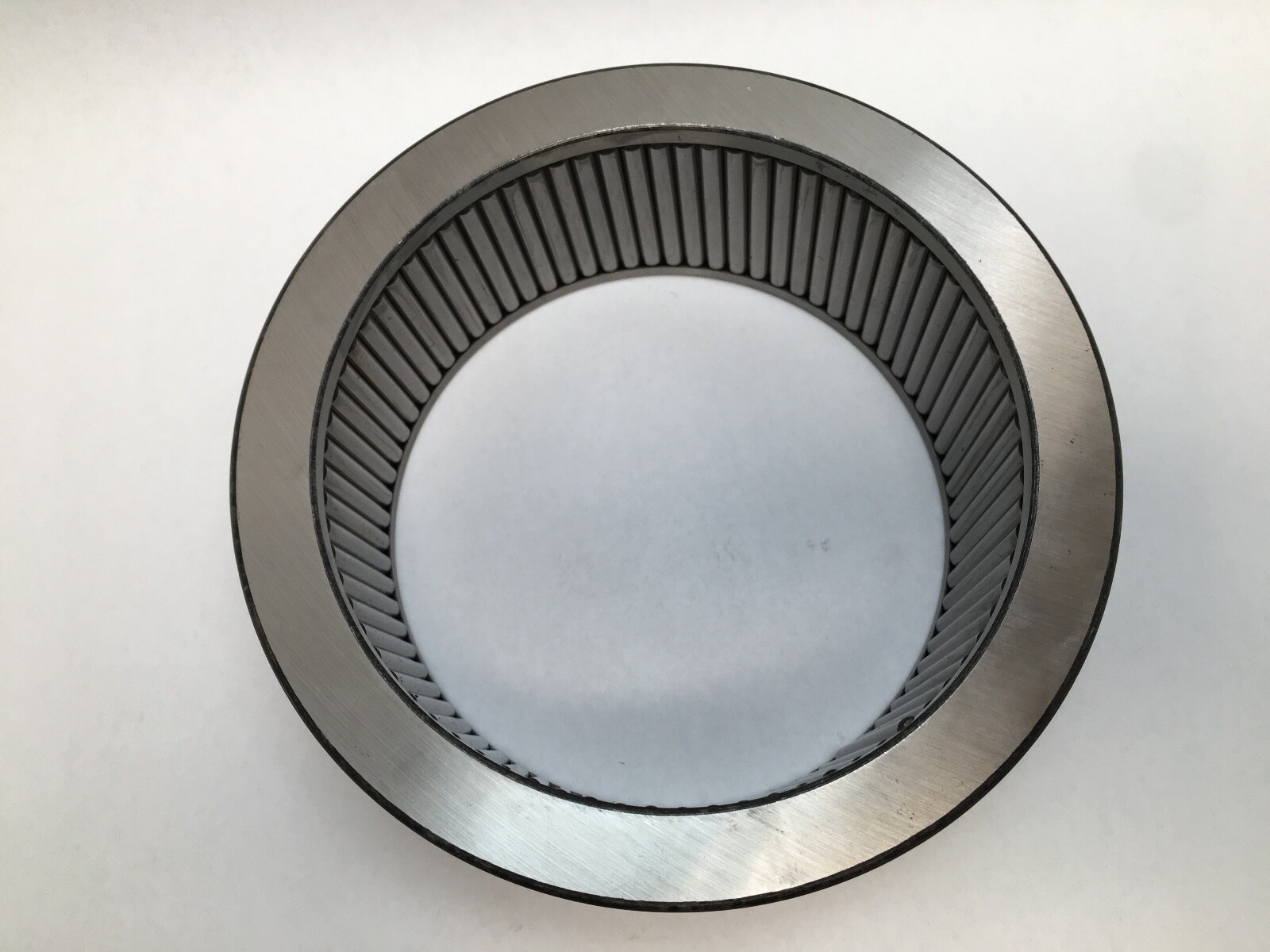

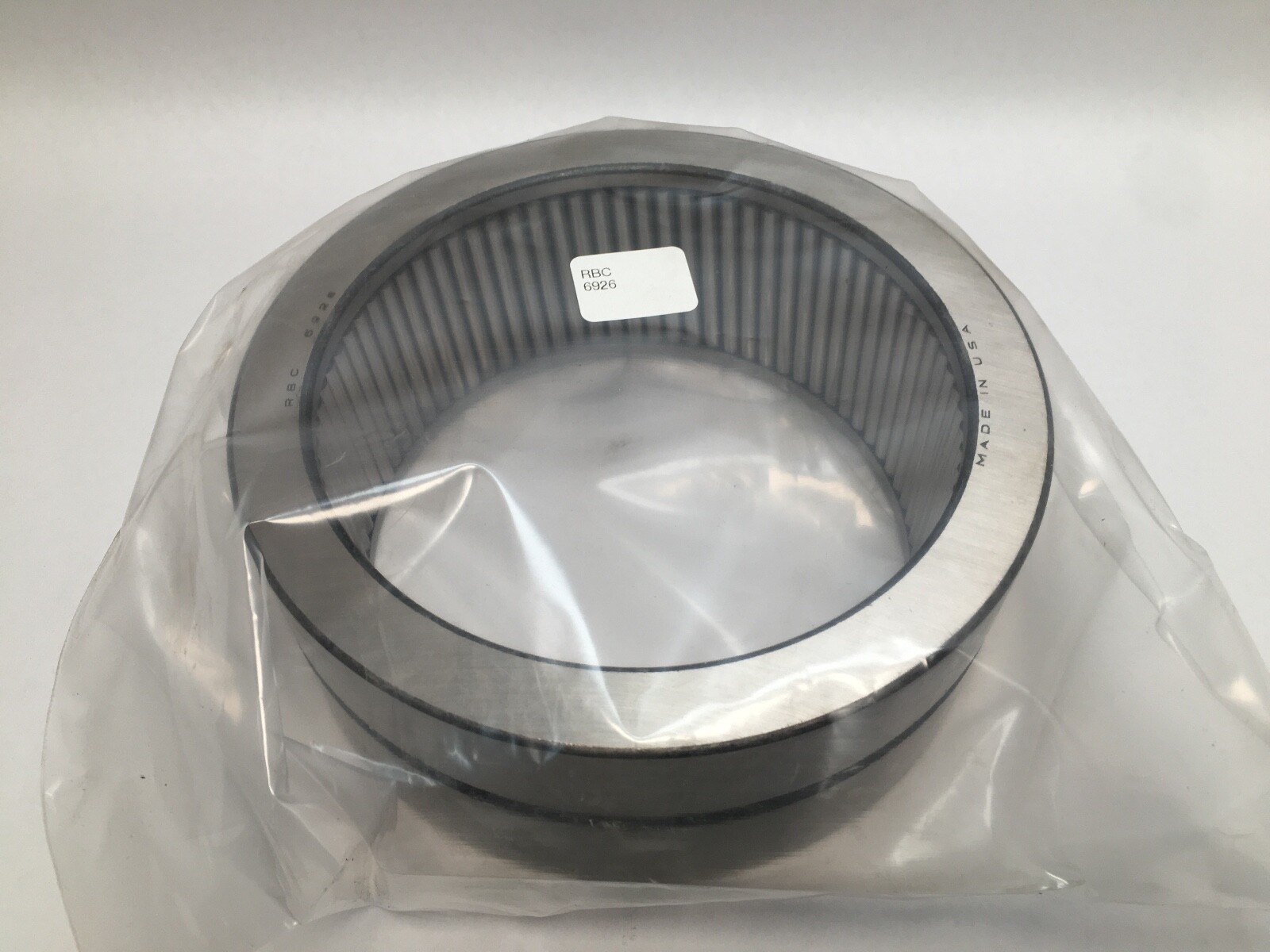

RBC SJ 6926 Pitchlign precision ground heavy duty needle roller bearing, outer ring and roller assembly without inner ring. Roller Complement Bore (Fw): 6 in nominal, 6.0013–6.0027 in. Outside Diameter: 7.5000 in. Overall Width: 3.000 in. Dynamic Load Rating: 66,500 lbf. Static Load Rating: 189,000 lbf. Item Weight: 10.37 lb.

Decoding the designation:

SJ — RBC prefix for a heavy duty needle roller bearing supplied without inner ring.

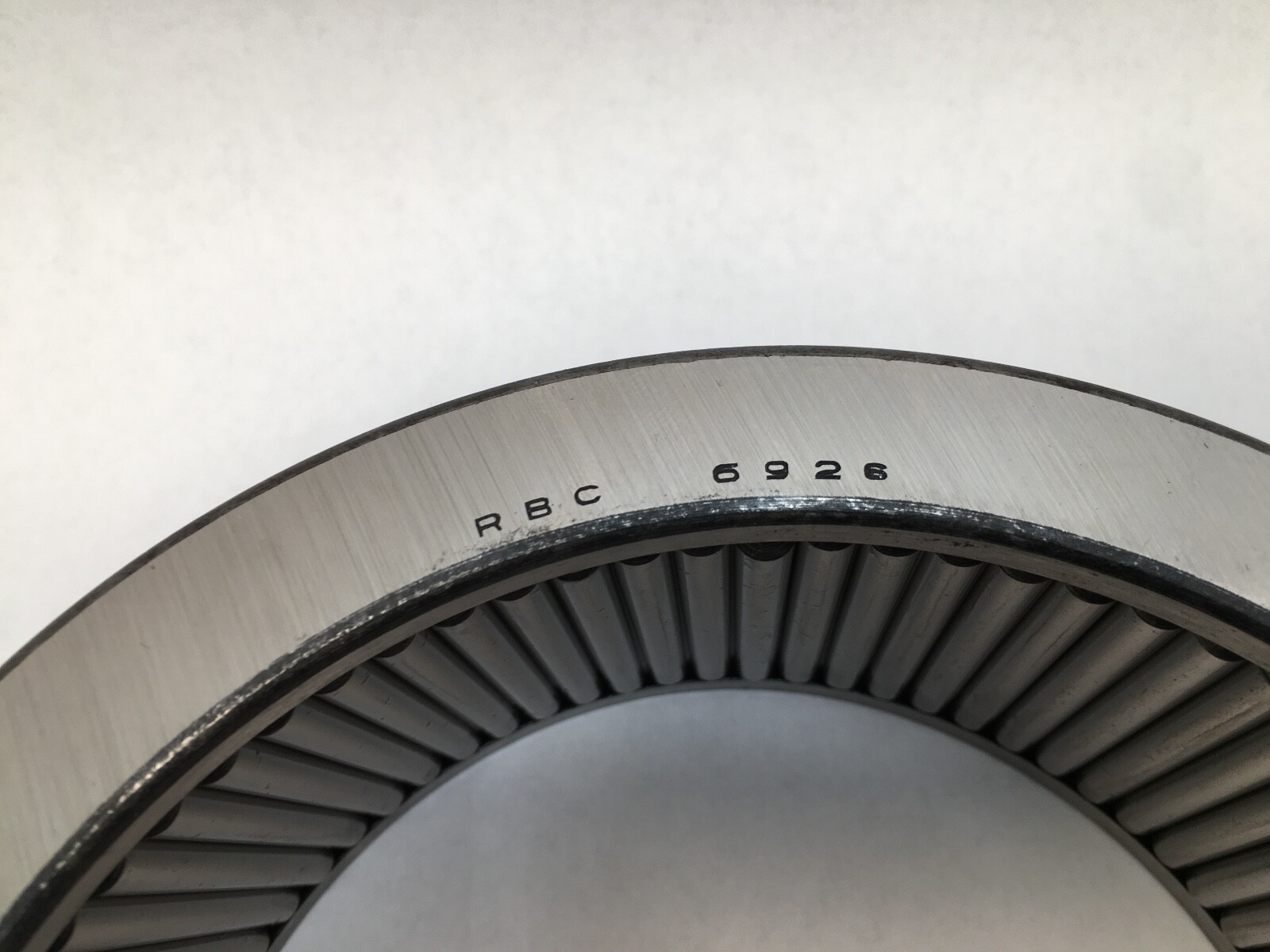

6926 — RBC size number for the 6 x 7-1/2 x 3 in envelope.

What these specs mean in practice:

Rolling Elements: Needle Roller. The rollers run directly on a hardened and ground shaft, or on a separate inner ring, giving very high radial capacity in a thin radial section.

Mounting data:

Housing Fillet r1 Max: 0.12 in. Housing Shoulder Diameter: 6-5/8 in. Matching inner ring: RBC IR 6926.

Quantity and configuration:

Unit Quantity: 1 Pc.

Interchange guidance:

RBC IR 6926 is the matching inner ring. RBC publishes a Pitchlign interchange table against Torrington heavy duty needle bearings for this size range.

Frequently asked questions:

What is the RBC SJ 6926?

It is a Pitchlign precision ground heavy duty needle roller bearing, an outer ring and roller assembly with a 6 in roller complement bore, 7.5000 in outside diameter and 3.000 in width.

What are its load ratings?

Dynamic Load Rating is 66,500 lbf and Static Load Rating is 189,000 lbf. Item weight is 10.37 lb.

What inner ring matches it?

The matching inner ring is RBC IR 6926. Without an inner ring, the rollers run directly on a hardened and ground shaft.
