Availability:
1 in stock
Drawn cup needle roller bearing, 3/8 in bore x 9/16 in OD x 5/8 in wide, sealed both ends, inch series to ABMA 18.2. 5,800 N dynamic rating.
List Price
$33.99
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | INA |
|---|---|
| MPN | SCE610PP |
| GTIN | 035373120109 |
| Model | SCE610-PP |
| Bearing Type | Needle Roller Bearing, Double Rubber Seal |
| ID | 0.3750 in (9.525 mm) |
| OD | 0.5625 in (14.288 mm) |
| Material | Steel |
|---|---|
| Lubricant | Lithium Grease |
| Series | SCE |
| Duty Type | Standard |
| Base Number | SCE610 |
| Overall Width | 0.6250 in (15.875 mm) |
| Mpn Variants | SCE 610 PP; SCE610-PP; SCE610PP; SCE-610-PP |
| Additional Attributes | ABMA 18.2-1982 inch drawn cup series; bore in sixteenths 6/16 in, width in sixteenths 10/16 in; open execution SCE610 of the same size is rated 7,400 N dynamic at 25,000 rpm |
| Min Temp | -20 °C |
| Dynamic Load Rating | 5,800 N |
| Static Load Rating | 6,600 N |
| Rolling Elements | Needle Roller |
| Max Temp | 100 °C |
| Item Weight | 0.007 kg (0.02 lb) |
| Limiting Speed | 15,000 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Design Units | Inch |
| Bearing Material | Chrome steel |
| Cross Reference 1 | Timken Torrington SCE610PP |
|---|

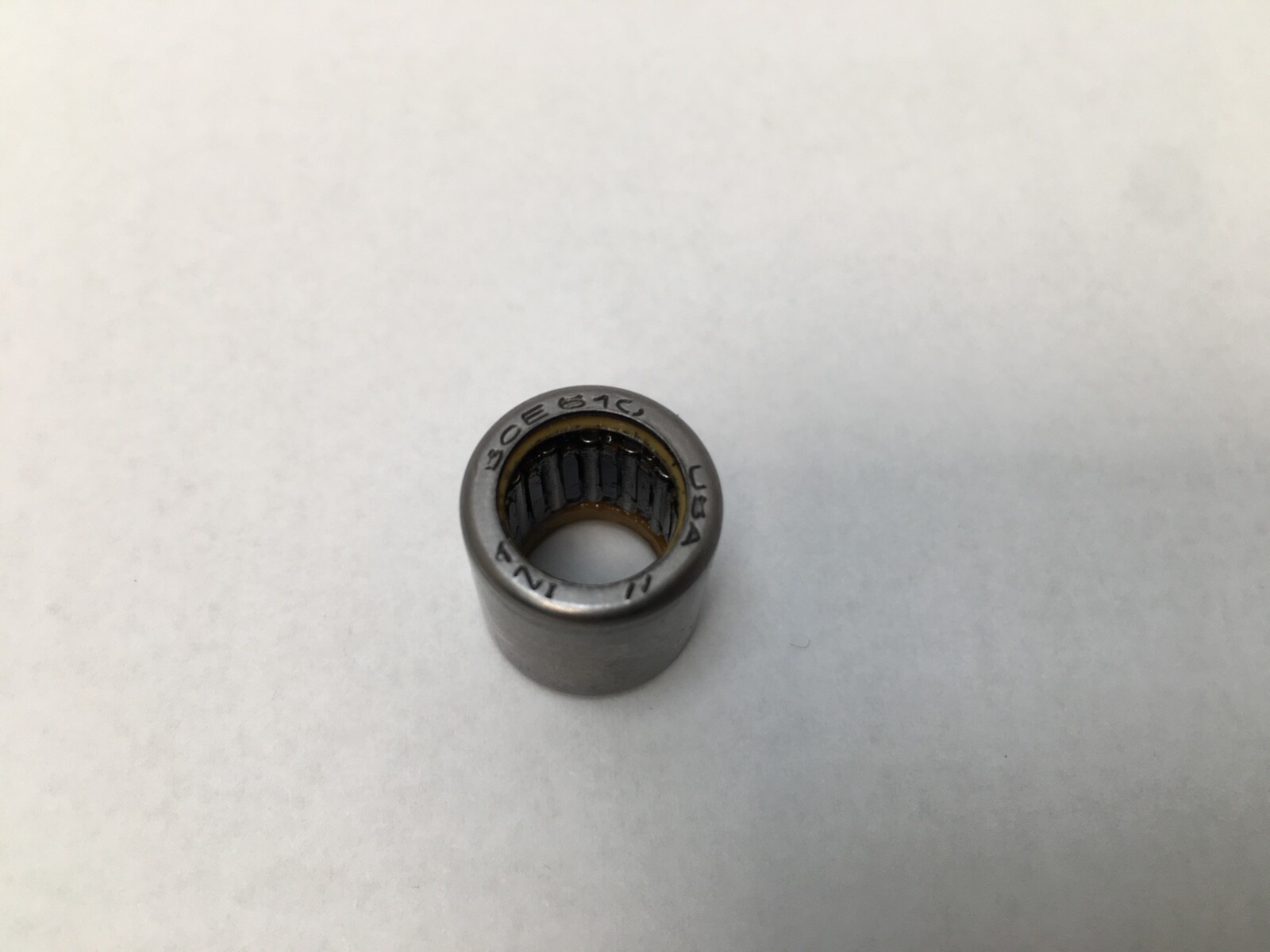

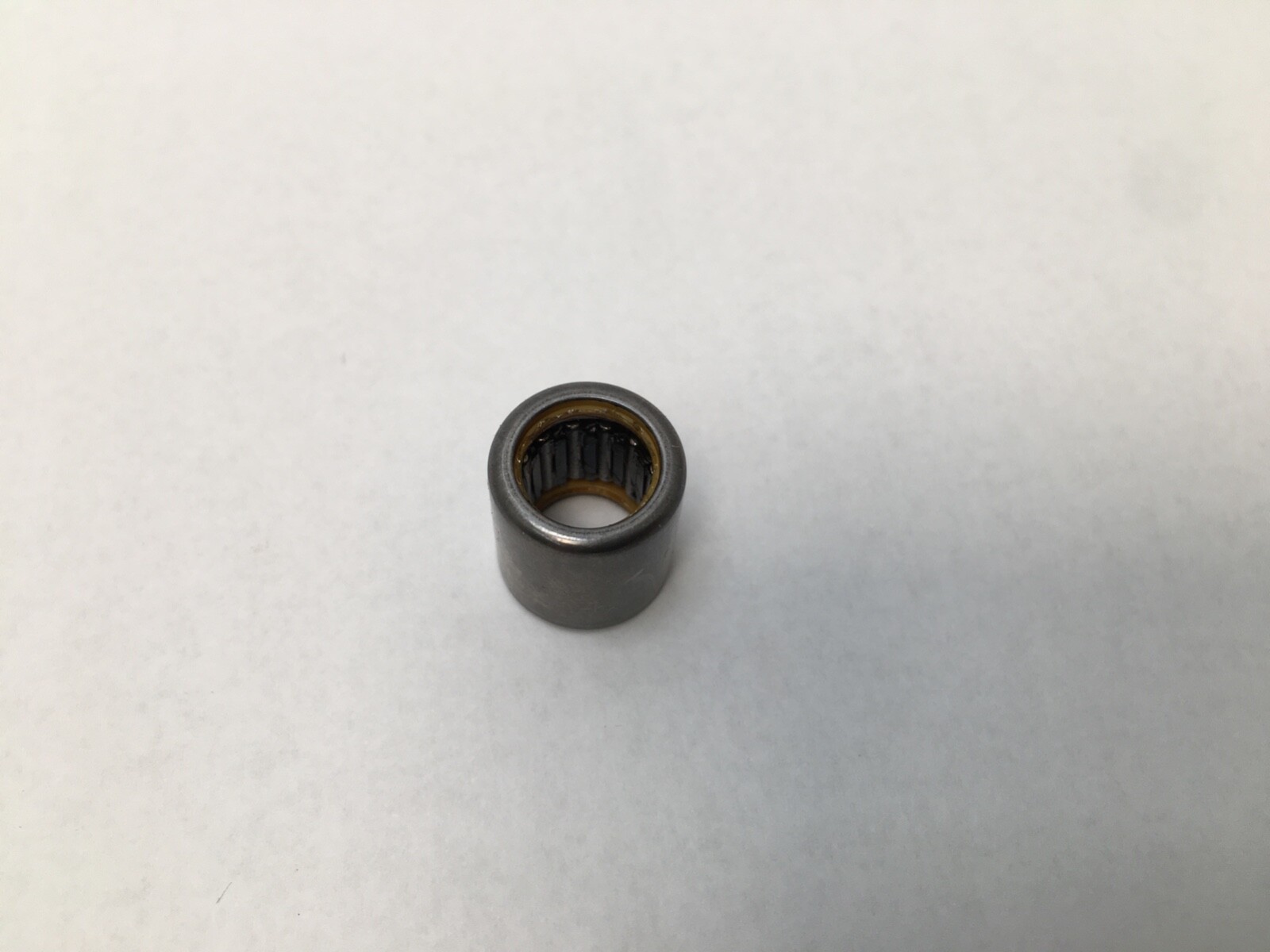

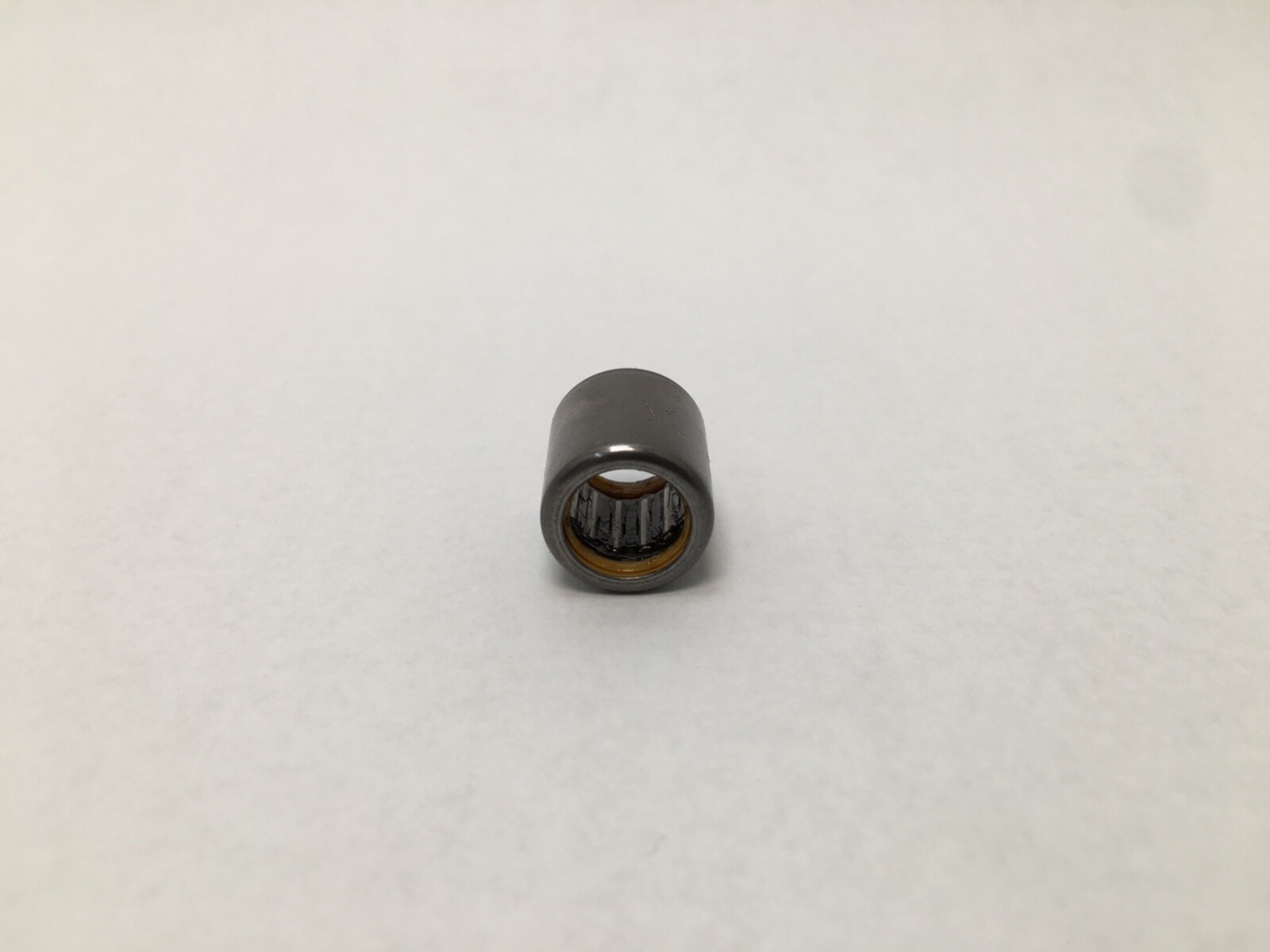

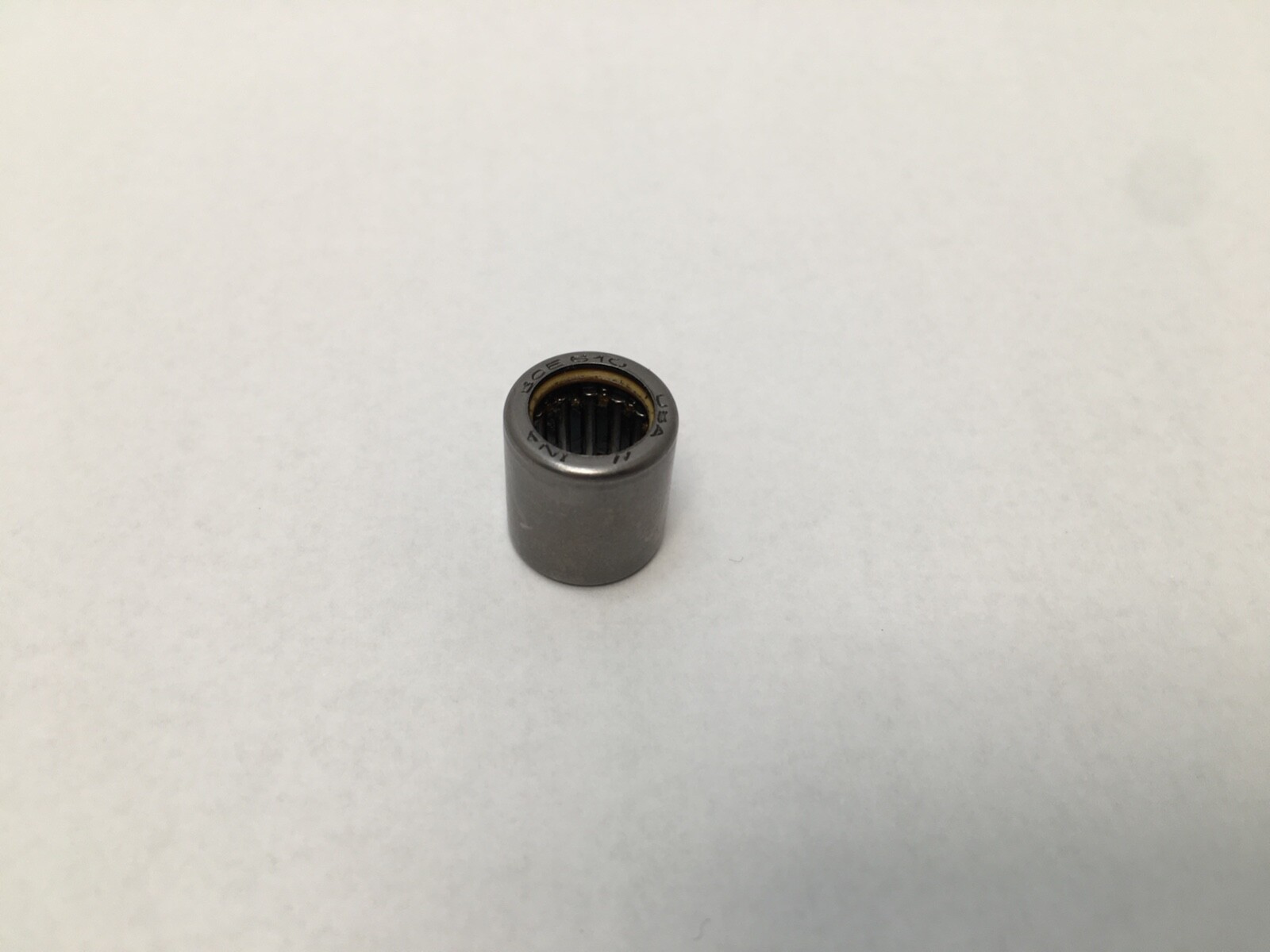

INA SCE610-PP drawn cup needle roller bearing, inch series to ABMA 18.2-1982. The outer ring is a thin drawn steel cup rather than a machined race, and the needle rollers run directly on the shaft. Bore Diameter: 0.3750 in (9.525 mm). Outside Diameter: 0.5625 in (14.288 mm). Overall Width: 0.6250 in (15.875 mm). Dynamic Load Rating: 5,800 N. Static Load Rating: 6,600 N. Limiting Speed: 15,000 rpm. Rolling Elements: Needle Roller. Number Of Rows: 1. Bore Type: Straight. Closure Type: Sealed both ends. Item Weight: 0.007 kg (0.02 lb). Series: SCE. Base Number: SCE610. GTIN: 035373120109.
SC — drawn cup needle roller bearing in the inch series.
E — the caged roller execution, as distinct from the full-complement inch drawn cups.
6 — bore in sixteenths of an inch: 6/16, or 3/8 in.
10 — width in sixteenths of an inch: 10/16, or 5/8 in.
PP — seals fitted at both ends of the cup.

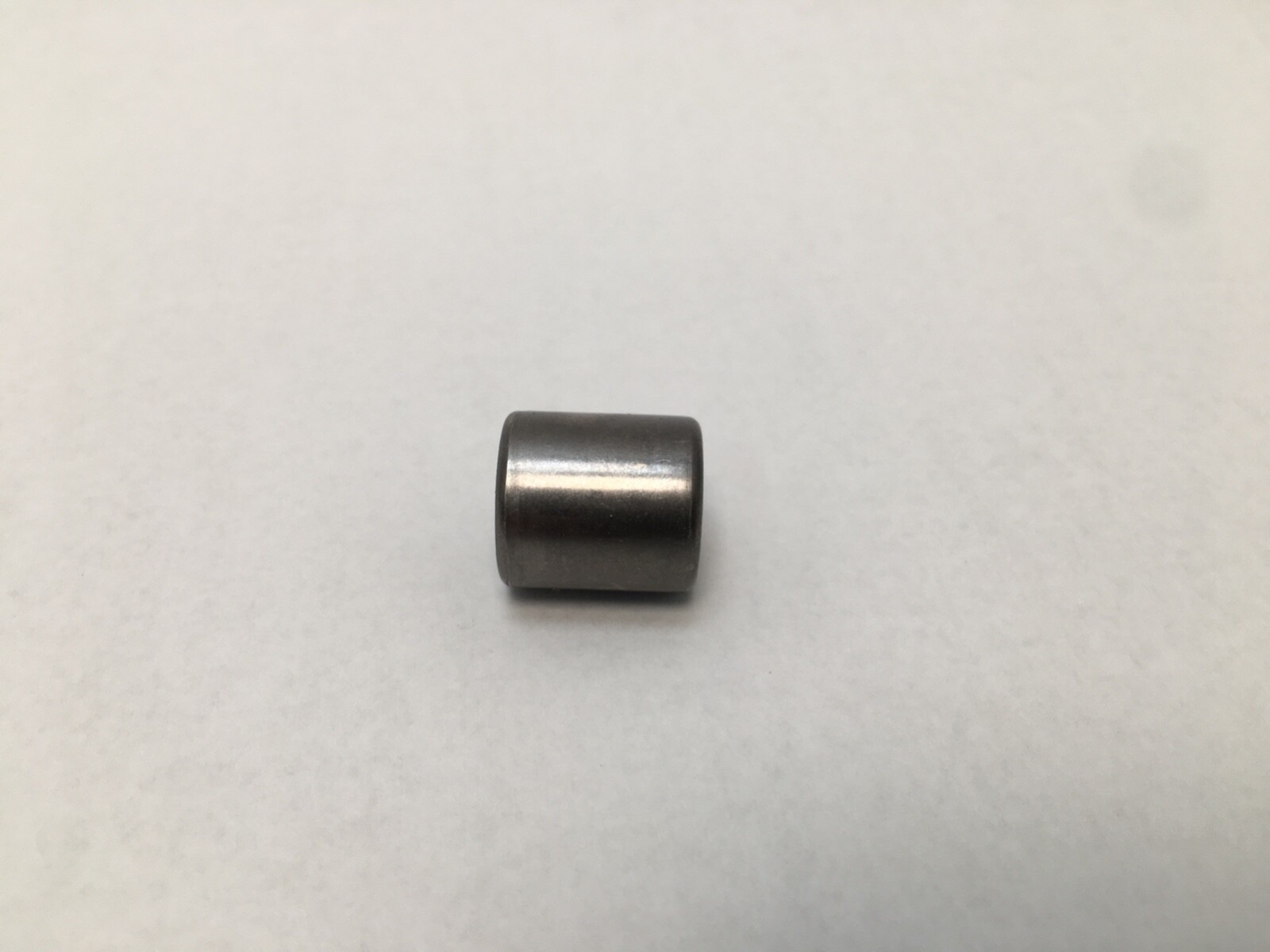

A drawn cup is a press fit into a housing bore with no shoulder, and the housing bore becomes the outer raceway support. That makes it the smallest and cheapest way to put a needle bearing into a light section, which is why the type dominates gearbox, linkage and pump positions in inch machinery.
The seals cap the limiting speed at 15,000 rpm and the maximum operating temperature at 100 °C, and they retain grease where no external supply exists.
Operating temperature range: −20 °C to 100 °C.
Housing bore: 0.5625 in (14.288 mm), pressed fit. The shaft is the inner raceway and needs a ground finish hardened to 670 HV or better.

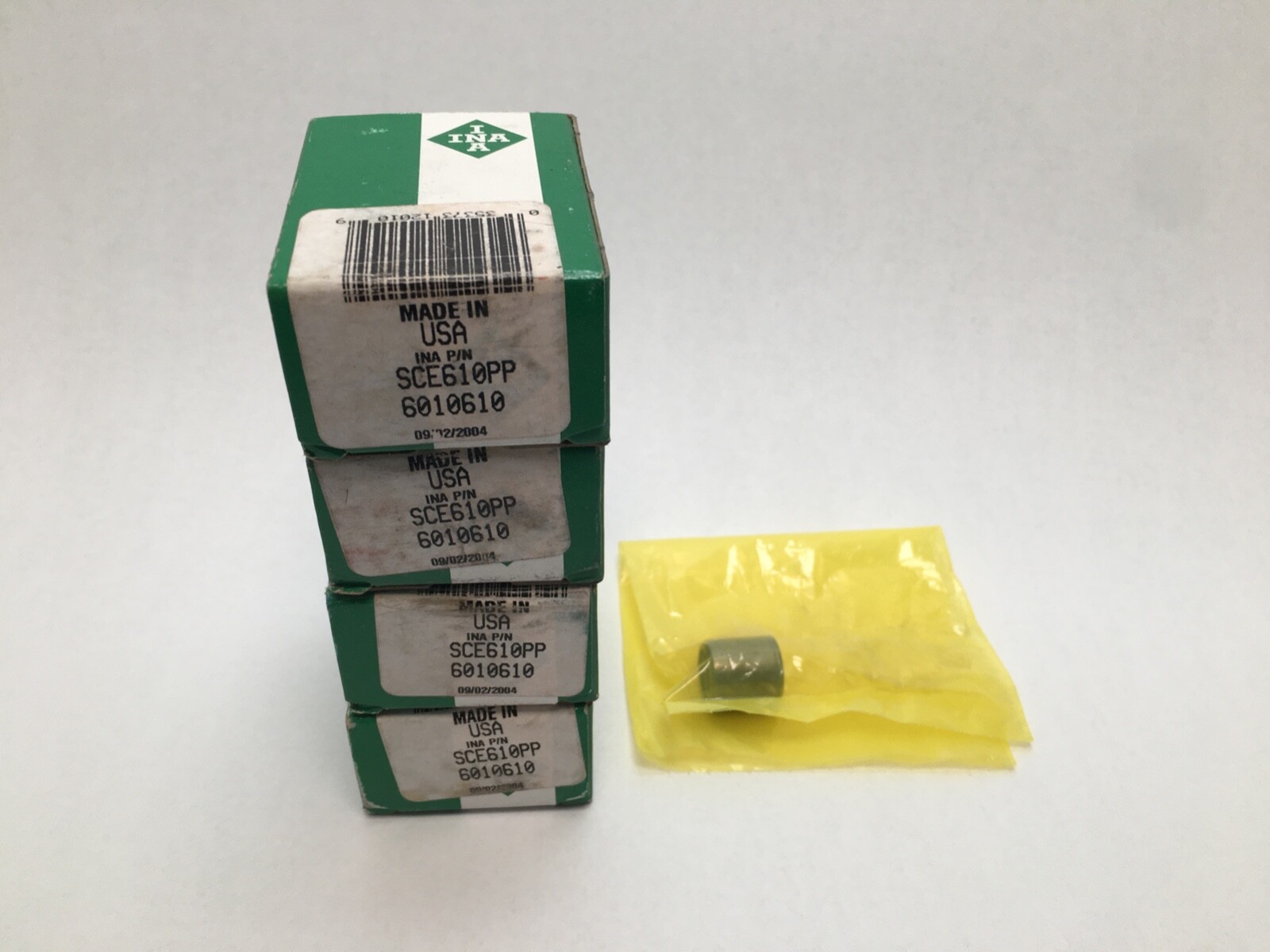

Unit Quantity: 4 Pcs. Four drawn cup bearings, each sealed at both ends.
The SCE inch drawn cup designation is shared between Schaeffler and Timken Torrington, and the 3/8 x 9/16 x 5/8 in envelope is standard to ABMA 18.2. The B-610 and BA610 numbers used by the Japanese makers are the same envelope in the open execution, which is a different seal specification and a different rating. Designation variants: SCE 610 PP, SCE610-PP, SCE610PP, SCE-610-PP.
