Availability:
Out of stock
Drawn cup needle roller bearing, open ends, 12 mm under-roller x 18 mm OD x 12 mm wide. Dynamic load rating 6,500 N; 12,000 rpm grease. Two pieces per purchase.
List Price
$16.99
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Needle Roller and Cage Assembly - 35 mm Inner, 42 mm Outer, 18 mm Width, Single Row, 2 Pcs$14.44
Combined Needle Roller and Angular Contact Ball Bearing - 17 mm ID, 30 mm OD, 20 mm Width, With Inner Ring$25.04
Machined Needle Roller Bearing With Inner Ring, 10 x 22 x 16 mm, Open, X-life — 11.4 kN Dynamic$25.48
Combined Needle Roller and Axial Ball Bearing - 10 mm ID, 19 mm OD, 23 mm Height, Single Direction Axial$26.56| MFR / Brand | INA |
|---|---|
| MPN | HK1212 |
| Model | HK 1212 / HK1212-B |
| Bearing Type | Needle Roller Bearing |
| ID | 12 mm |
| OD | 18 mm |
| Width | 12 mm |
| Material | Bearing Steel |
|---|---|
| Series | HK Series |
| Number Of Rows | 1 |
| Base Number | HK1212 |
| Closure Type | Open |
| Mpn Variants | HK1212, HK-1212, HK 1212, HK1212-B, HK1212B, 6007040 |
| Compatible With Replaces | Inner ring IR8X12X12,5-XL or LR8X12X12,5; seal SD12X18X3 or G12X18X3 |
| Min Temp | -30 °C |
| Cage Type | Caged |
| Dynamic Load Rating | 6,500 N |
| Static Load Rating | 7,300 N |
| Rolling Elements | Needle Roller |
| Max Temp | 140 °C |
| Limiting Speed | 12,000 rpm grease; 20,000 rpm oil |
| Inner Ring | None |
| Cross Reference 1 | Koyo HK1212 |
|---|---|
| Cross Reference 2 | SKF HK 1212 |

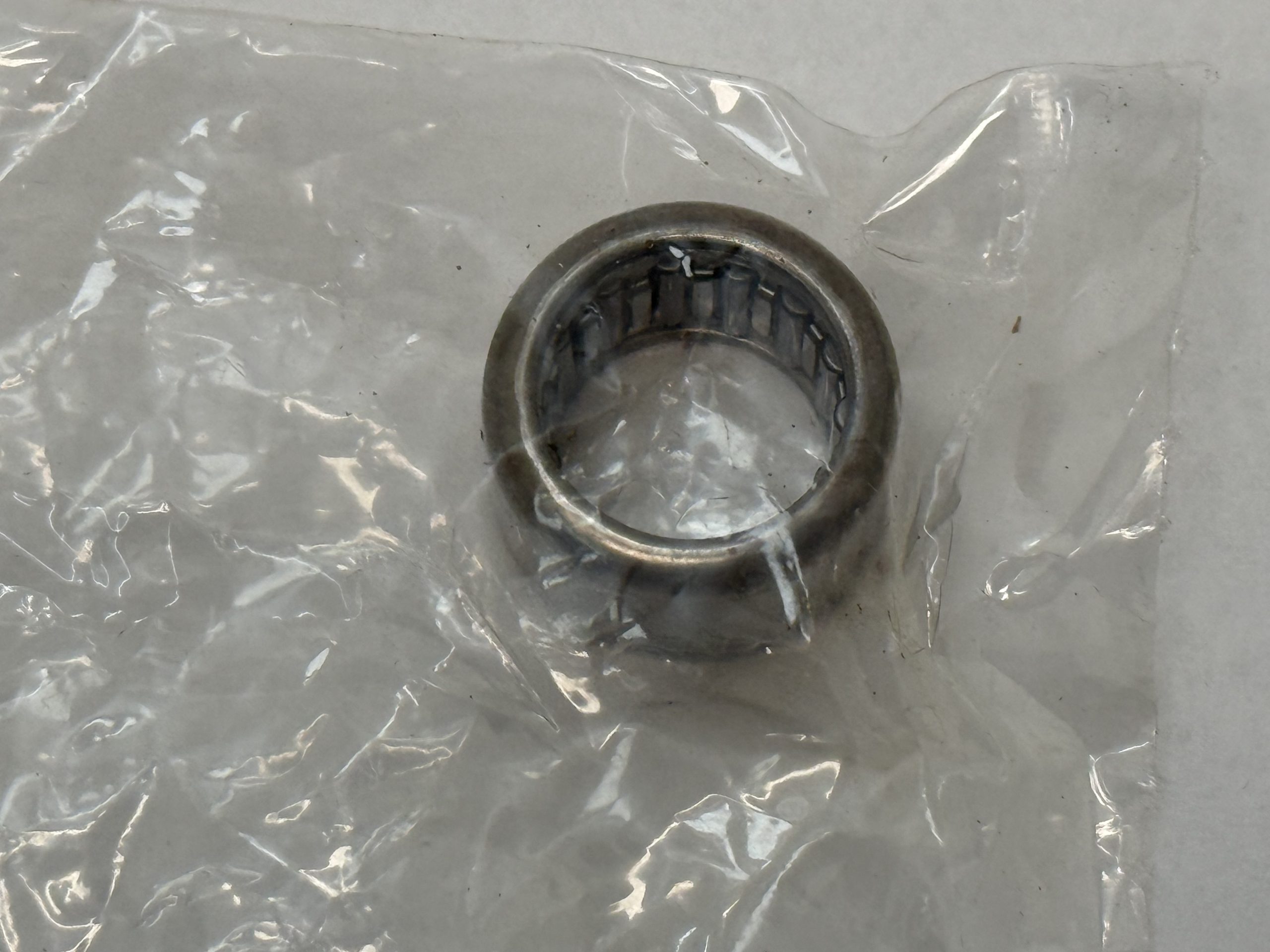

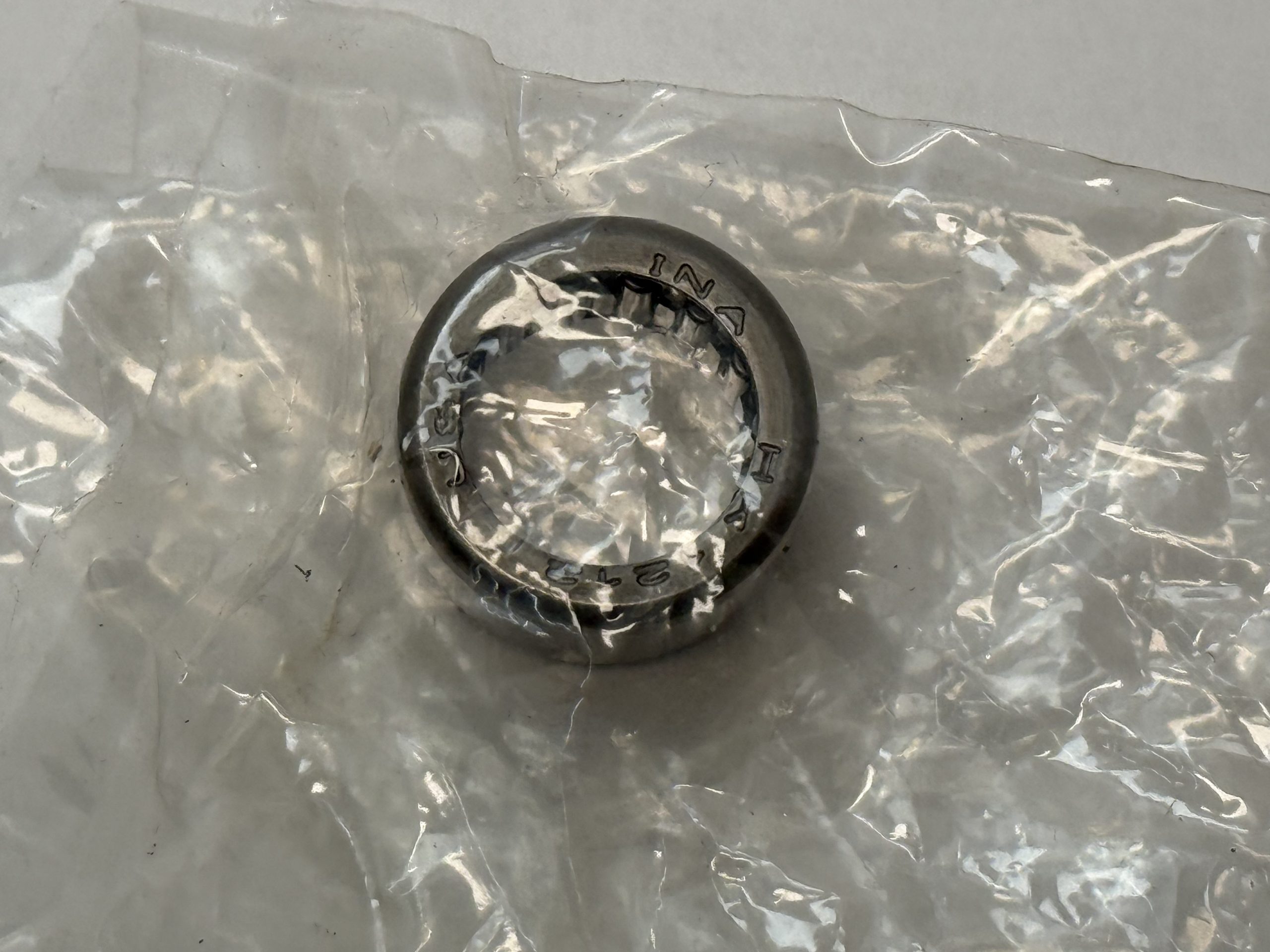

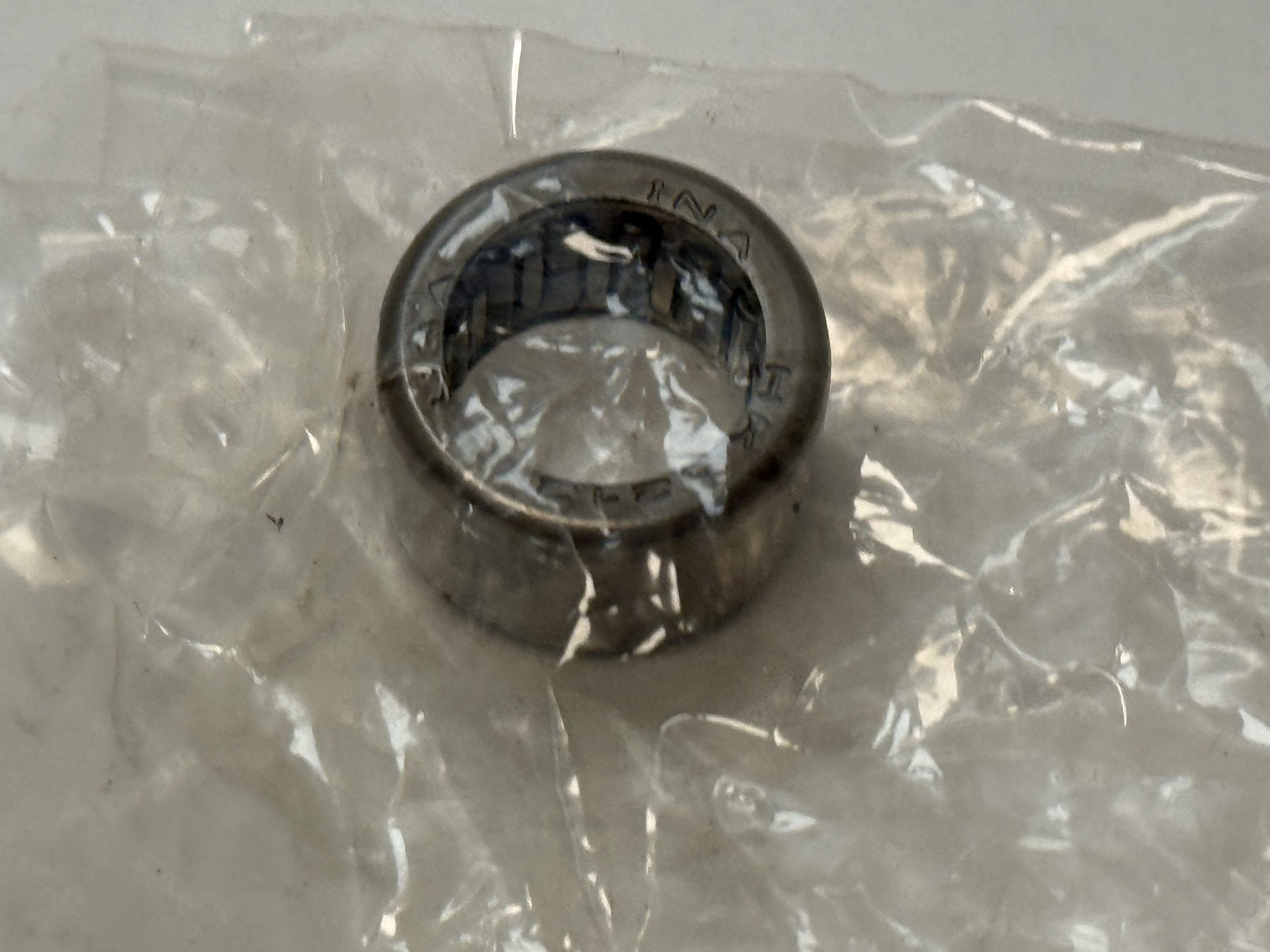

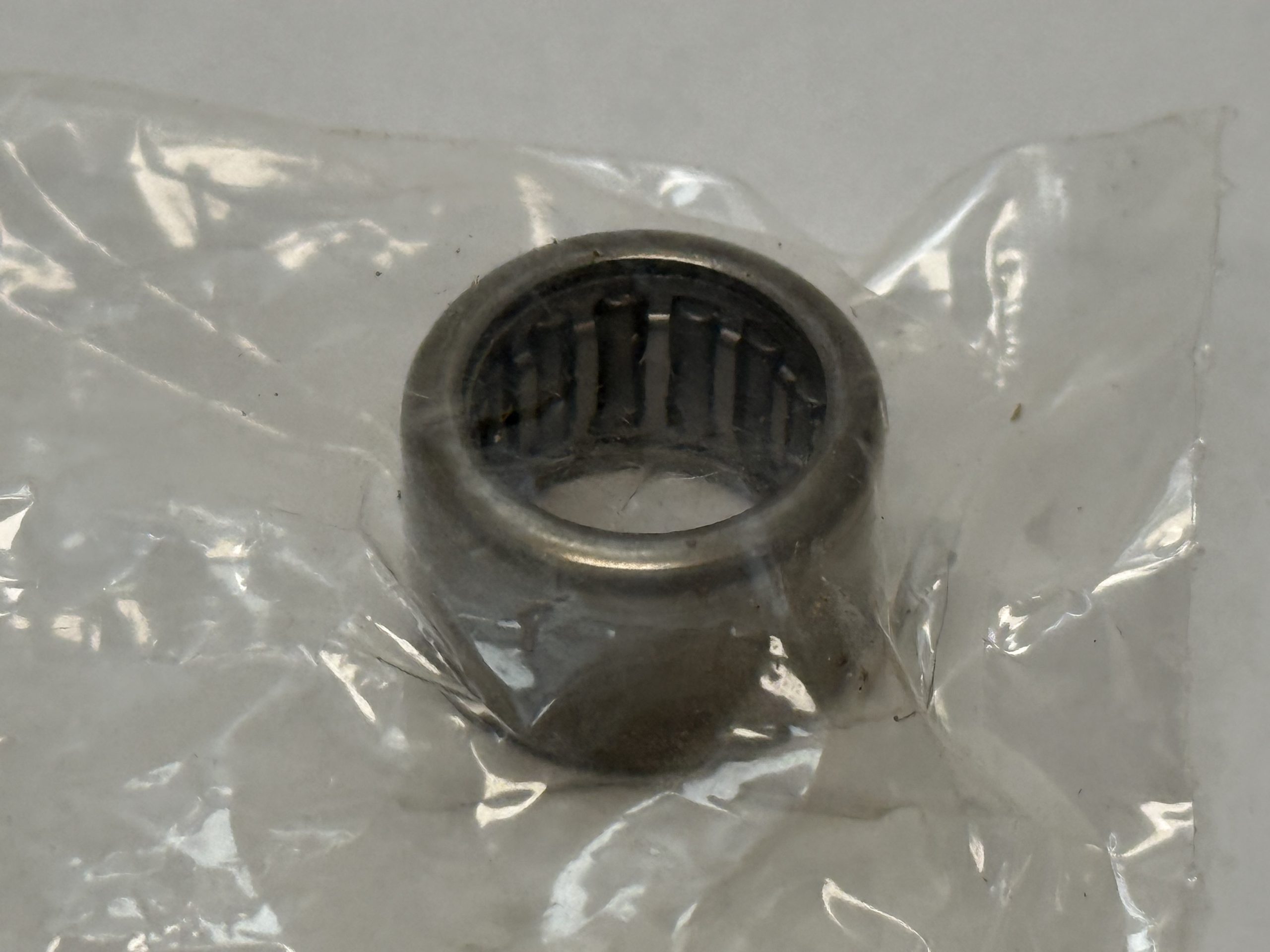

INA HK1212 is a drawn cup needle roller bearing with open ends, to DIN 618 / ISO 3245. Under-Roller Diameter (Fw): 12 mm. Outside Diameter: 18 mm. Overall Width: 12 mm. Rolling Elements: Needle Roller. The thin-walled drawn steel cup carries a caged needle set that runs directly on the shaft, giving needle-bearing capacity in a 3 mm radial section. Unit Quantity: 2 Pcs.
HK — drawn cup needle roller bearing, caged, open at both ends.
12 — under-roller diameter Fw = 12 mm.
12 — width = 12 mm.
Dynamic Load Rating: 6,500 N. Static Load Rating: 7,300 N. Fatigue Load Limit: 880 N. Limiting Speed: 12,000 rpm grease; 20,000 rpm oil. Reference Speed: 15,500 rpm. Operating Temperature: -30 to 140 °C. Minimum Chamfer: 0.8 mm. Closure Type: Open.
Matching inner rings: IR8X12X12,5-XL or LR8X12X12,5. Matching seals: SD12X18X3 or G12X18X3. The cup is a press fit in the housing bore.
Two HK1212 bearings, one per box. Carton marking: INA part number 6007040.
Current Schaeffler catalogue designation for this size: HK1212 (also HK1212-B). Same envelope as Koyo HK1212 and SKF HK 1212.
