Stainless steel insert ball bearing, 1 in bore, 52 mm spherical OD, wide inner ring, set screw locking, contact seals, relubricatable. NTN F-UC205-100D1.
List Price
$51.17
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Insert Ball Bearing - 1-7/16 in Bore, 72 mm OD, Eccentric Locking Collar, Cylindrical OD, Snap Ring, Contact Seals$38.83
Insert Ball Bearing - 1-1/8 in (28.575 mm) Bore, 62 mm Cylindrical OD, Set Screw Lock, Contact Seals Both Sides, Snap Ring, Relubricatable$45.90
RHP 1020-20G Self-Lube Insert Bearing Set Screw 20x47x31 mm 1020 20G$14.02
Sealmaster SL-19 Insert Bearing SL19 SL-19 1-3/16" ID Cylindrical OD Morse NOS$17.81| MFR / Brand | NTN |
|---|---|
| MPN | F-UC205-100D1 |
| Model | FUC205-100D1 |
| ID | 1.0000 in (25.400 mm) |
| OD | 52 mm |
| Width | 34.1 mm |
| Series | UC200 |
|---|---|
| Type | Insert Bearing |
| Lubricant | Grease |
| Material | Bearing Steel |
| Mpn Variants | F-UC205-100D1, FUC205-100D1, FUC205100D1, FUC-205-100-D1, F-UC205-16 |
| Precision Class | ISO Class 0 |
| Min Temp | -40 °C |
| Dynamic Load Rating | 14,000 N |
| Static Load Rating | 7,850 N |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Bearing Type | Insert Ball Bearing |
| Item Weight | 0.20 kg (0.44 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 5,900 rpm grease |
| Internal Clearance | CN |
| Locking Device | Set Screw |
| Insert Outer Ring | Spherical |
| Relubrication Feature | Yes |
| Harmonization Code | 8482.1 |
| Cross Reference 1 | NTN UC205-100D1 (chrome steel version) |
|---|

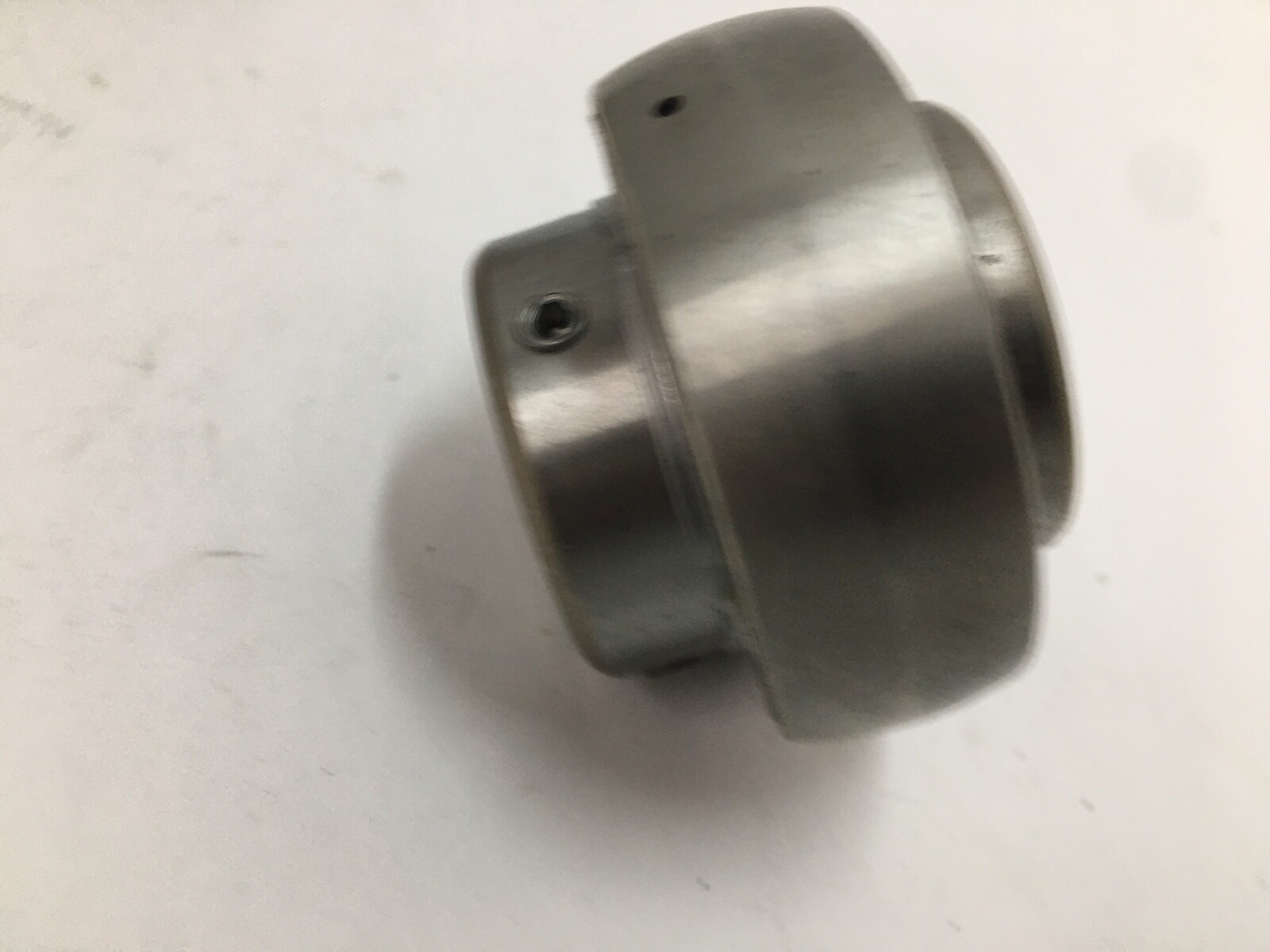

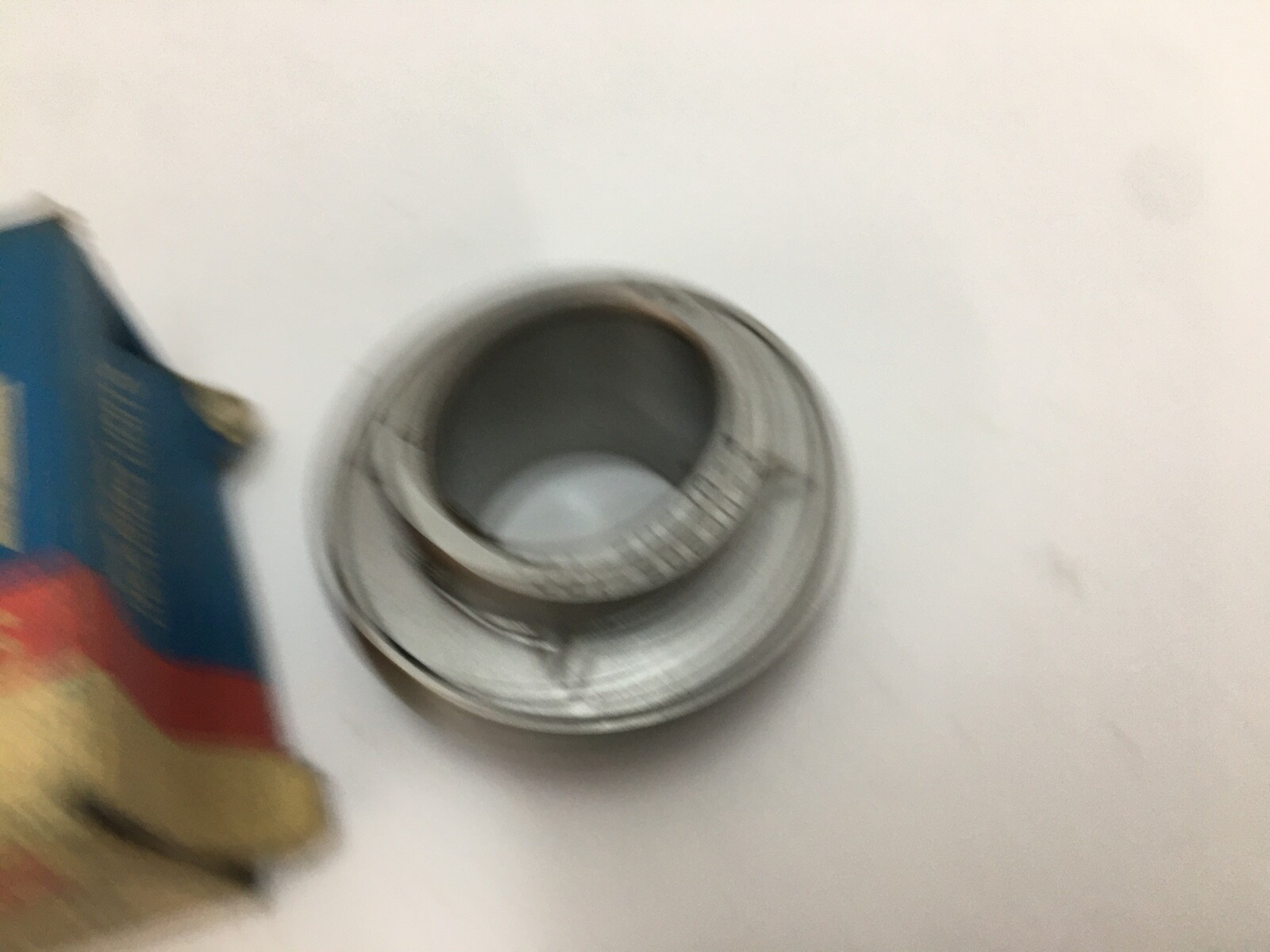

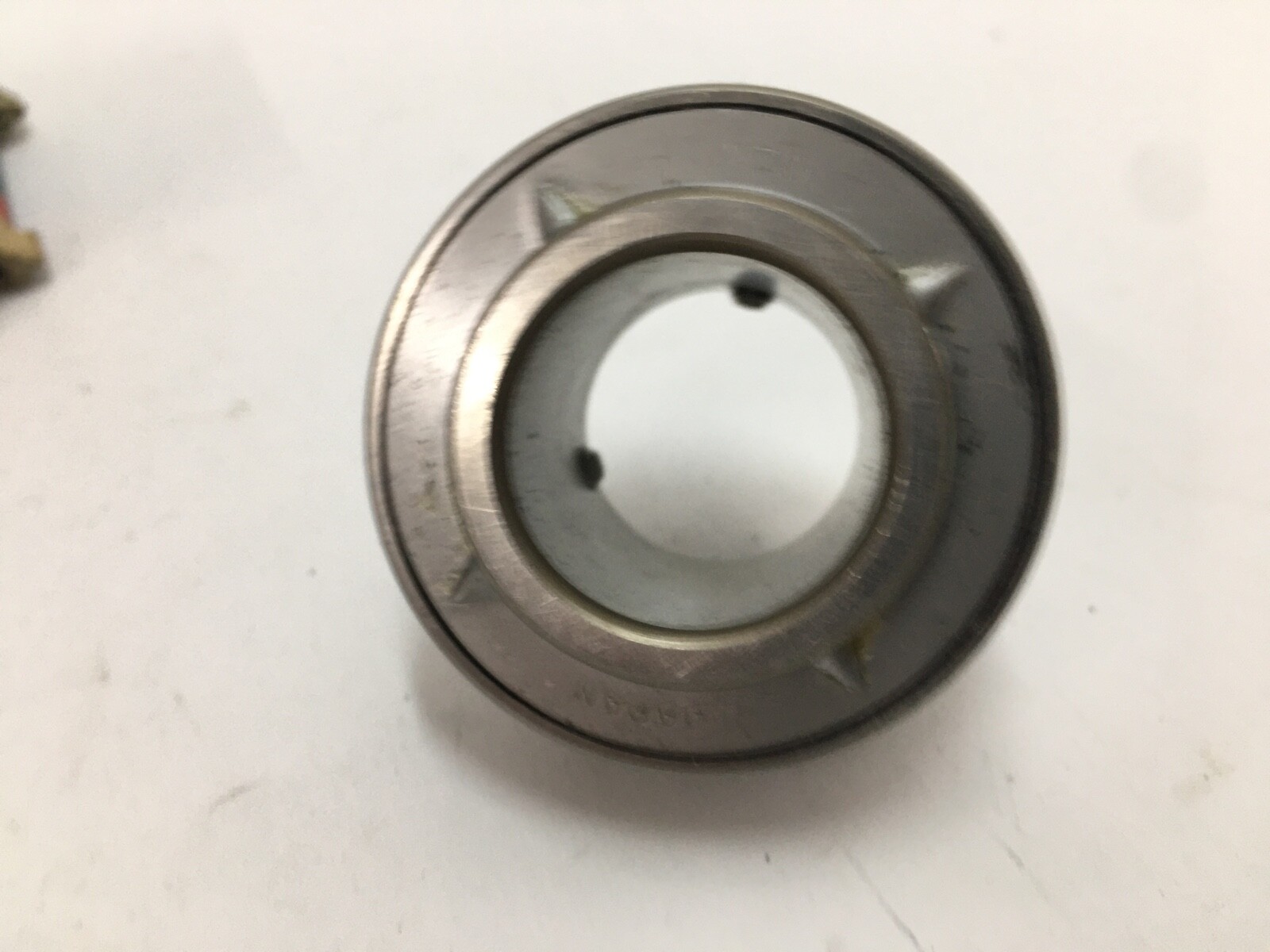

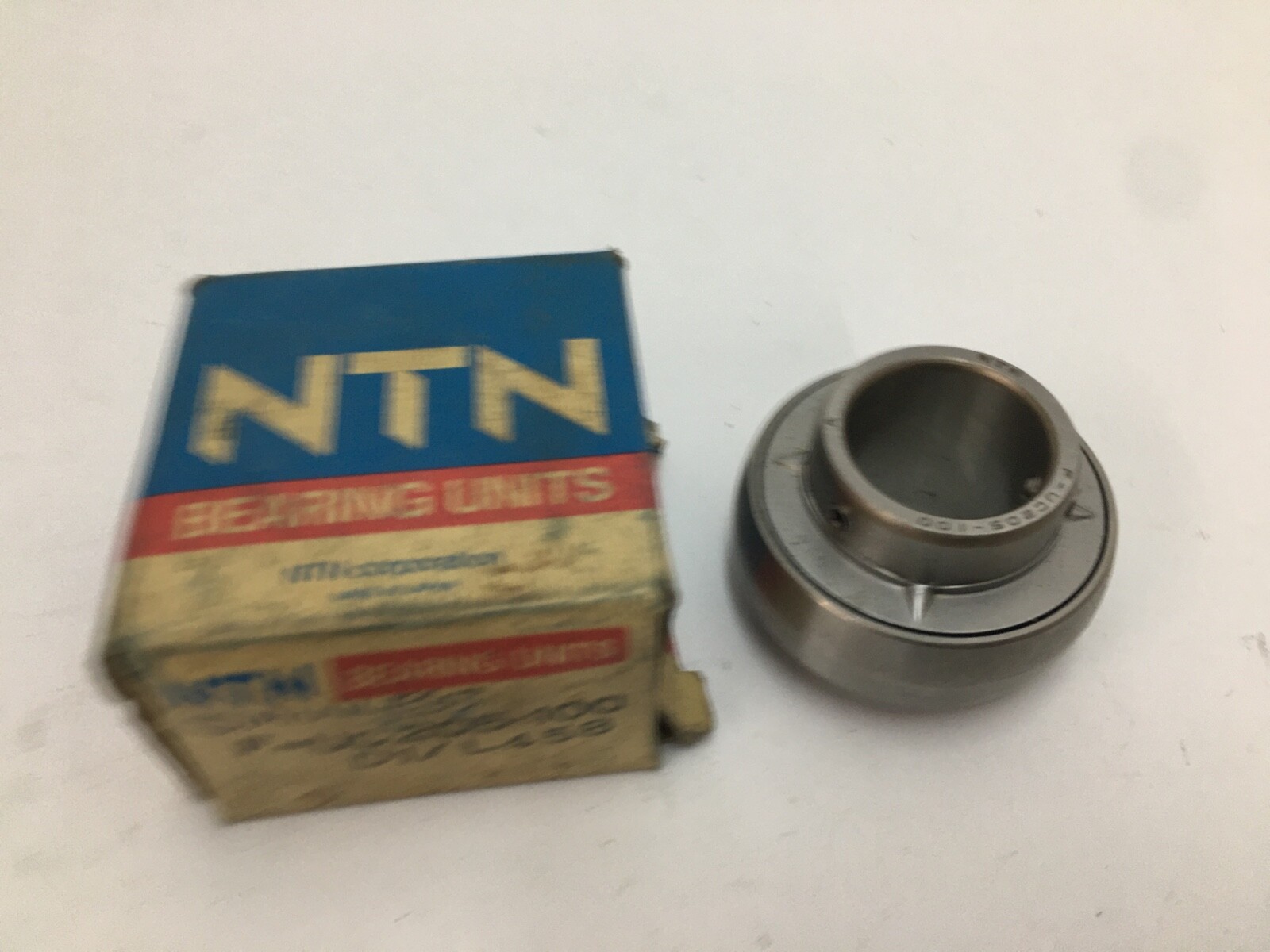

NTN F-UC205-100D1 stainless steel insert ball bearing with a spherical outside diameter, wide inner ring and set screw locking, for mounting in a 205 size housing. Bore Diameter: 1.0000 in (25.400 mm). Outside Diameter: 52 mm. Inner Ring Width: 34.1 mm. Outer Ring Width: 17 mm. Material: Stainless Steel. Seal Type: Contact seals both sides, nitrile rubber. Locking Device: Set Screw.
F — stainless steel rings and components.
UC — wide inner ring insert, set screw locking, with flinger.
2 — light series.
05 — 205 outer ring size, 52 mm OD.
100 — 1 in inch bore.
D1 — relubricatable type.
Dynamic Load Rating: 14,000 N. Static Load Rating: 7,850 N. Limiting Speed: 5,900 rpm grease. Precision Class: ISO Class 0. Internal Clearance: CN. Item Weight: 0.20 kg (0.44 lb). Operating Temperature Range: -40 to 120 °C. Relubrication Feature: Yes. Stainless construction resists corrosion in washdown and wet service.
Set Screw Size: 10-32 UNF. Spherical OD Width: 17 mm. Set Screw Position from Ring Face: 14.3 mm. Relube Hole Position (S1): 19.8 mm. Inner Ring Shoulder Diameter: 33.9 mm. Fillet Radius r: 1.0 mm.
Unit Quantity: 1 Pc. Insert only.
NTN UC205-100D1 shares every dimension in chrome steel. The insert fits NTN 205 size housings for UC inserts.
