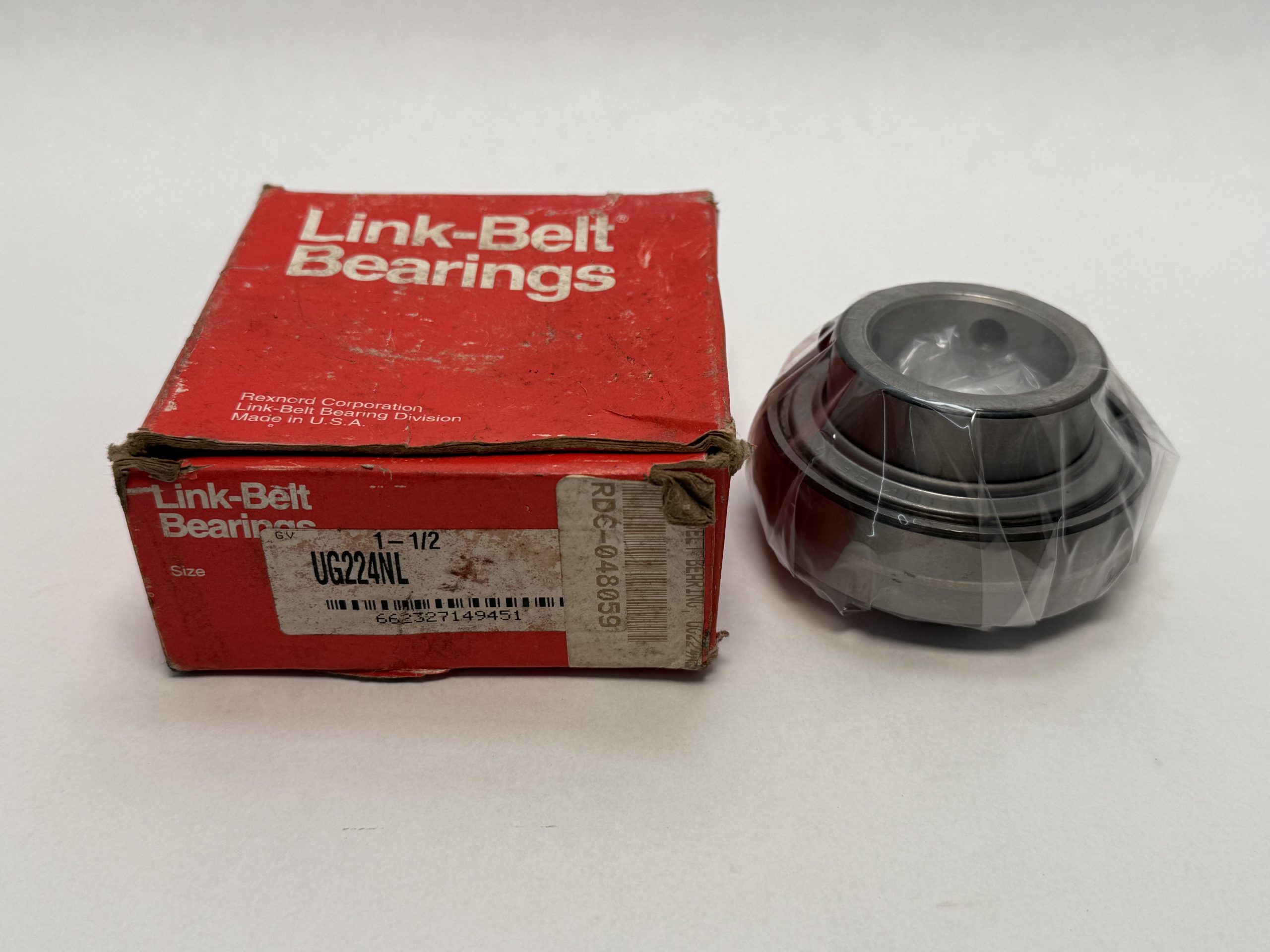

Ball bearing insert, 1-1/2 in bore x 80 mm spherical OD, setscrew locking, C3 clearance, single-lip Buna seal. Link-Belt 200 series, Regal 10429322.
List Price
$38.24
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Link Belt |
|---|---|
| GTIN | 662327149451 |
| Model | UG-224-NL |
| Bearing Type | , Single-lip contact seal, Buna |
| OD | 3.150 in (80 mm) |
| Bearing Insert Type | Ball |
|---|---|
| Locking Method | Set Screw |
| Mpn Variants | UG224NL, UG-224-NL, UG 224 NL, UG224-NL, 10429322 |
| Material | Steel |
| Dynamic Load Rating | 32,605 N (7,330 lbf) |
| Static Load Rating | 19,839 N (4,460 lbf) |
| Series | 200 |
| Rolling Elements | Ball |
| Max Temp | 225 °F (107 °C) |
| Item Weight | 0.81 kg (1.785 lb) |
| Cage Material | Nylon |
| Limiting Speed | 6,000 rpm |
| Internal Clearance | C3 |
| Duty Type | Standard |
| Relubrication Feature | Yes |
| Bearing Material | Steel |
| Outer Ring Width | 0.866 in (22 mm) |
| Inner Ring Width | 1.906 in (48.4 mm) |
| Cross Reference 1 | UC208-24 - same 1-1/2 in bore and 80 mm OD |
|---|

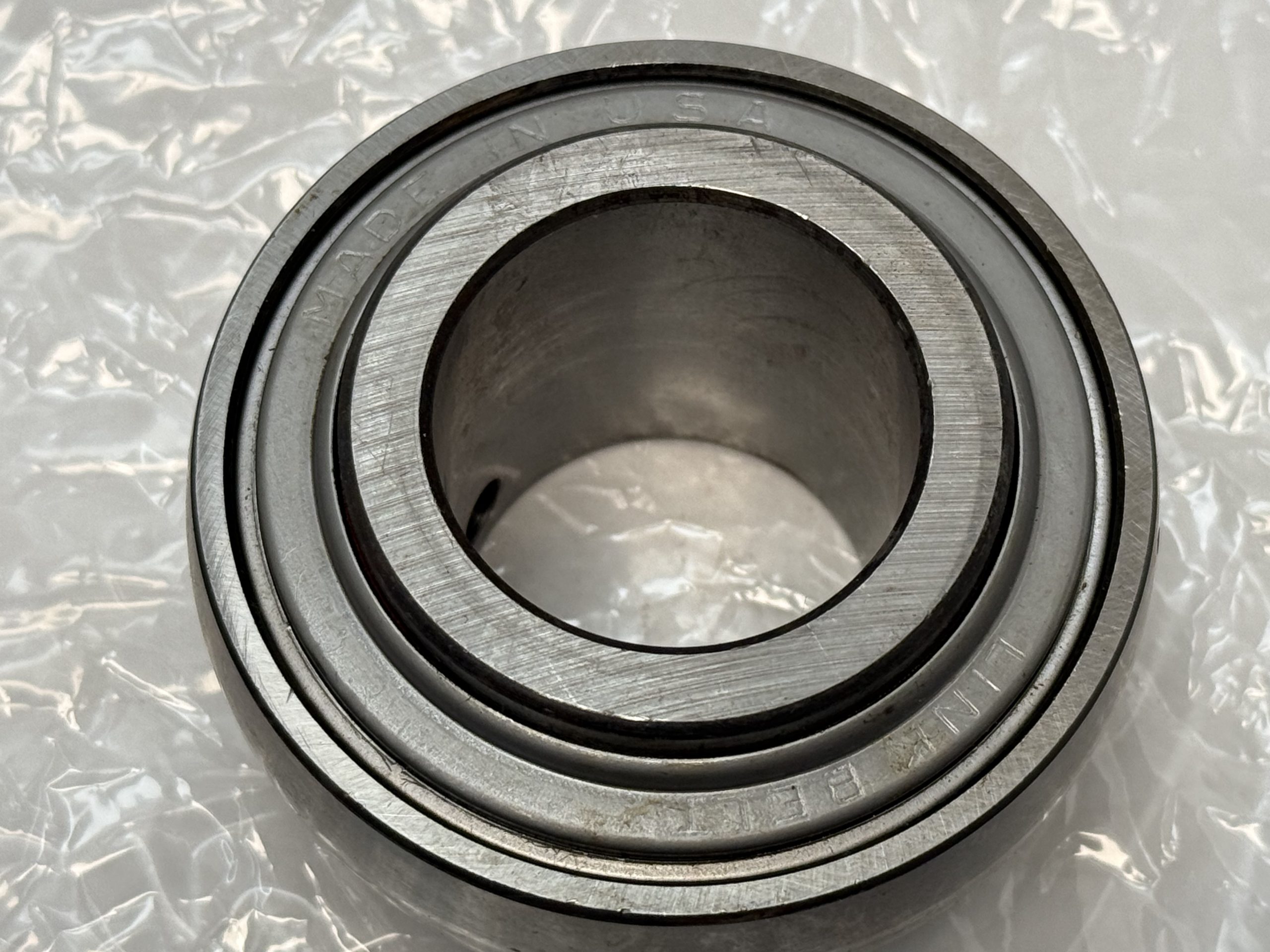

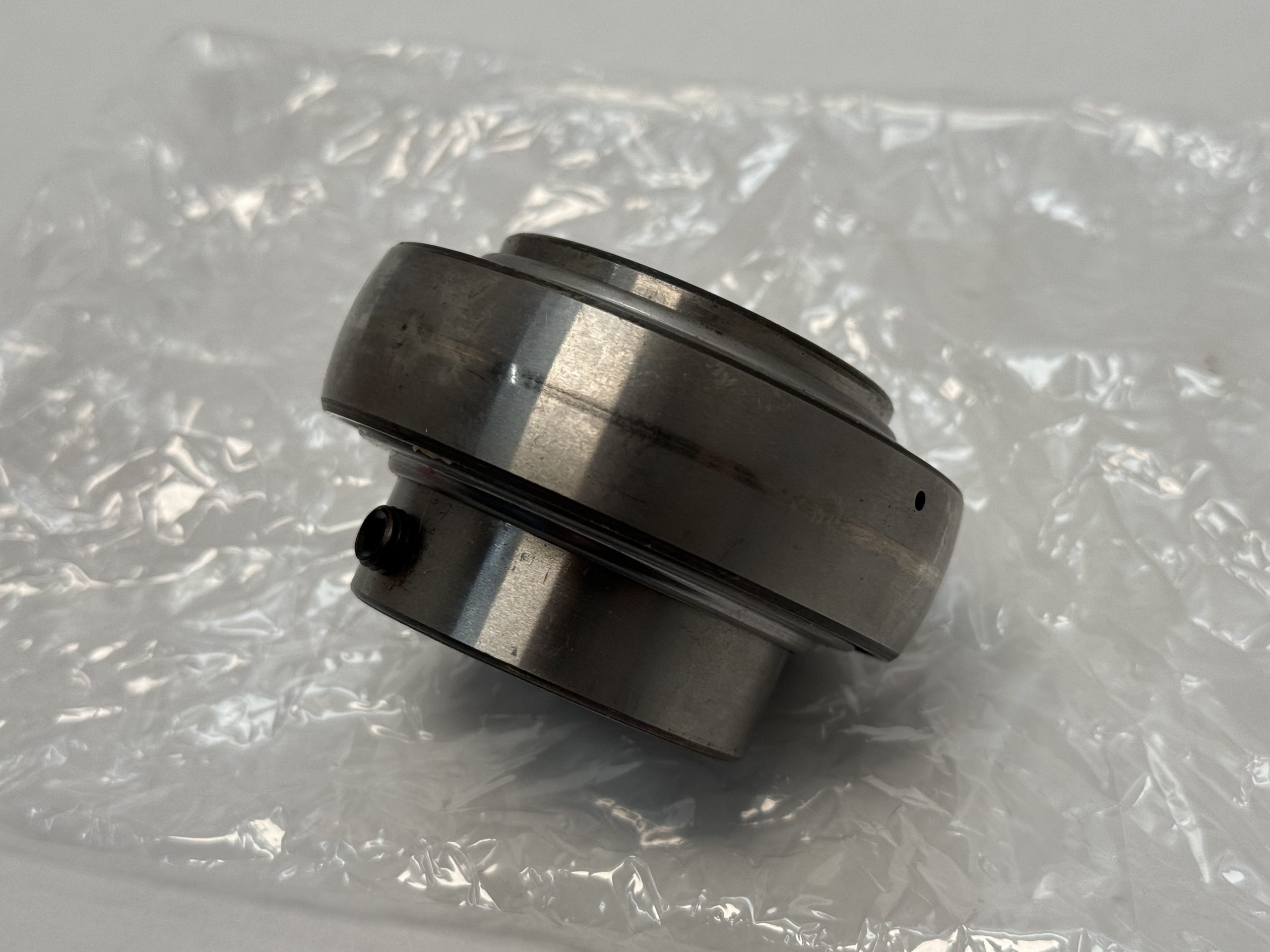

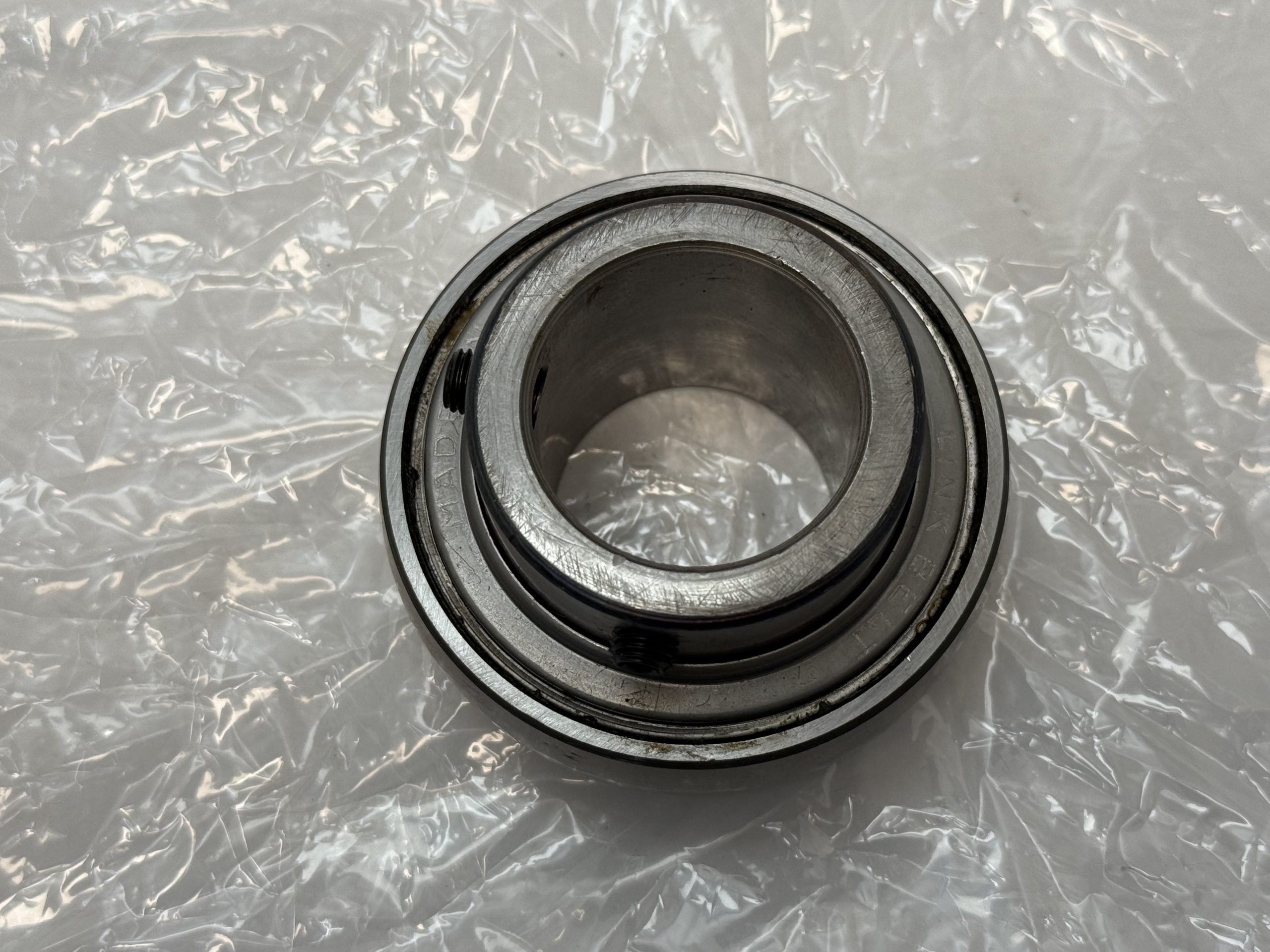

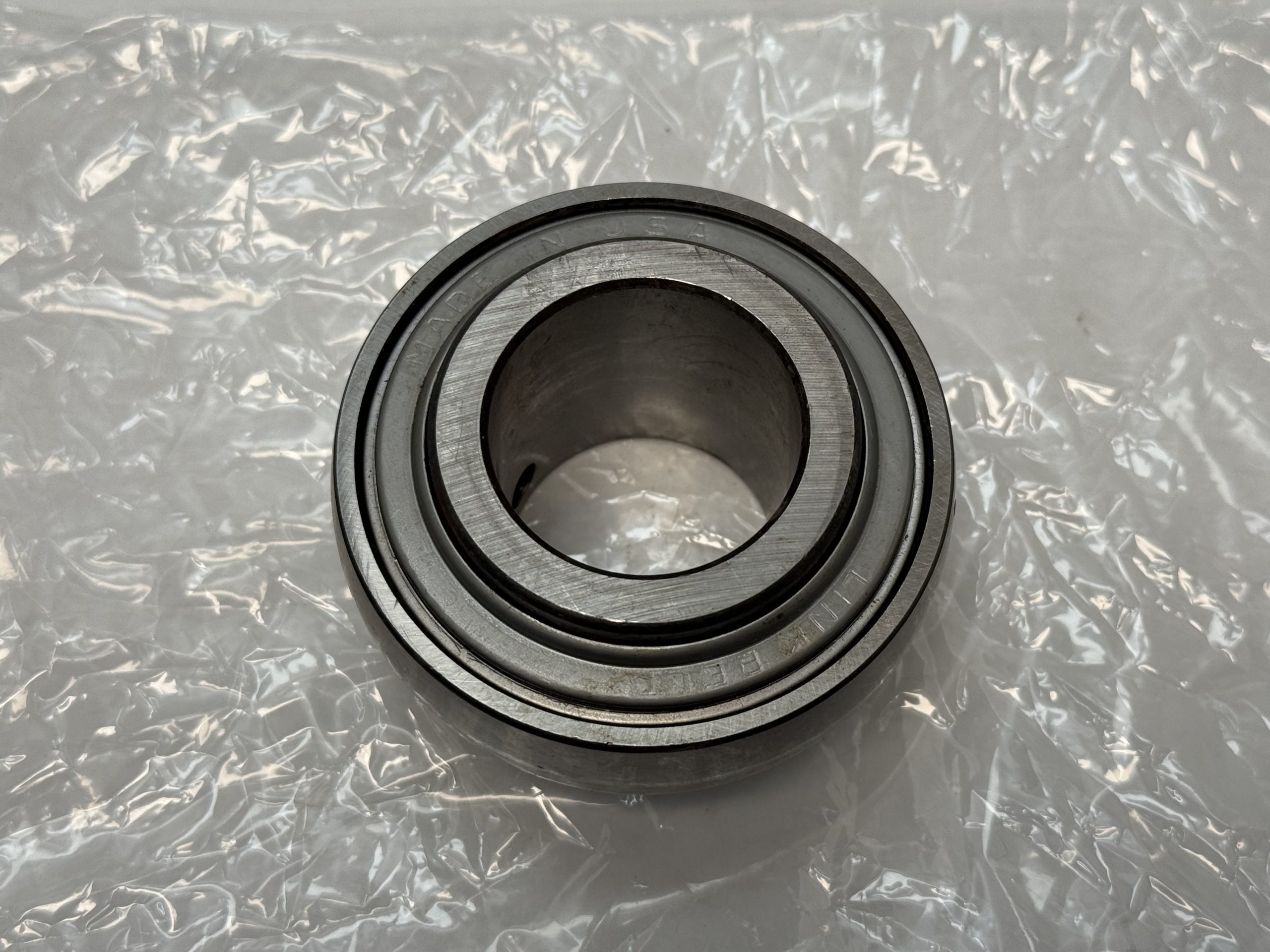

The Link-Belt UG224NL is an unmounted ball bearing insert: a wide inner ring with setscrew locking and a spherical outside diameter that self-aligns in a matching pillow block, flange or take-up housing. Regal Rexnord part number: 10429322. Unit Quantity: 1 Pc. One bearing insert with inner-ring setscrews and seals.
UG — Link-Belt unmounted ball bearing insert, setscrew locking.
2 — 200 series, standard duty.
24 — 1-1/2 in bore.
Type: Insert Bearing. Bearing Insert Type: Ball. Rolling Elements: Ball. Bearing Material: Steel. Cage Material: Nylon.
Dynamic Load Rating: 32,605 N (7,330 lbf). Static Load Rating: 19,839 N (4,460 lbf). Limiting Speed: 6,000 rpm. Max Temp: 225 °F (107 °C).
Internal Clearance: C3. Greater-than-normal internal clearance, for service where the inner ring runs warmer than the outer ring.
Seal Type: Single-lip contact seal, Buna. Relubrication Feature: Yes. Country of Origin: United States.
Bore Diameter: 1-1/2 in (38.1 mm). Outside Diameter: 3.150 in (80 mm). Outer Ring Shape: Spherical. Outer Ring Width: 0.866 in (22 mm). Inner Ring Width: 1.906 in (48.4 mm). Hub Diameter: 2.083 in (52.9 mm). Short Hub Length: 0.734 in (18.6 mm).
Locking Method: Set Screw. Setscrew Size: 5/16-24. Item Weight: 0.81 kg (1.785 lb).
Cross-Reference 1: UC208-24, a setscrew insert with the same 1-1/2 in bore and 80 mm OD. Designation variants: UG224NL, UG-224-NL, UG 224 NL, UG224-NL, 10429322.
What bore size is the UG224NL?
The bore is 1-1/2 in (38.1 mm) with an outside diameter of 3.150 in (80 mm).
How is the UG224NL locked to the shaft?

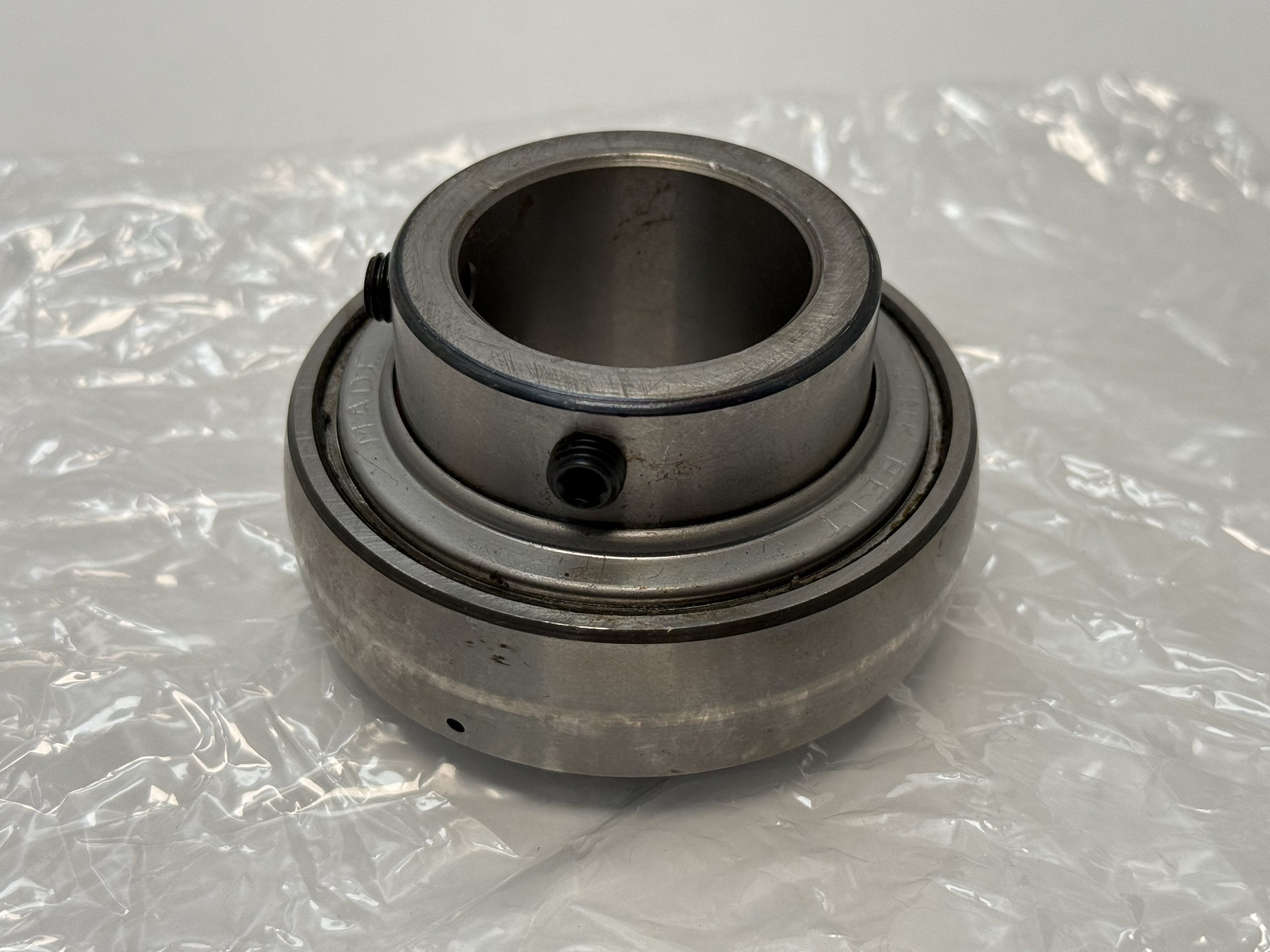

Two setscrews, size 5/16-24, in an extended inner ring.
What internal clearance does it have?
C3, greater than normal clearance.
