Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

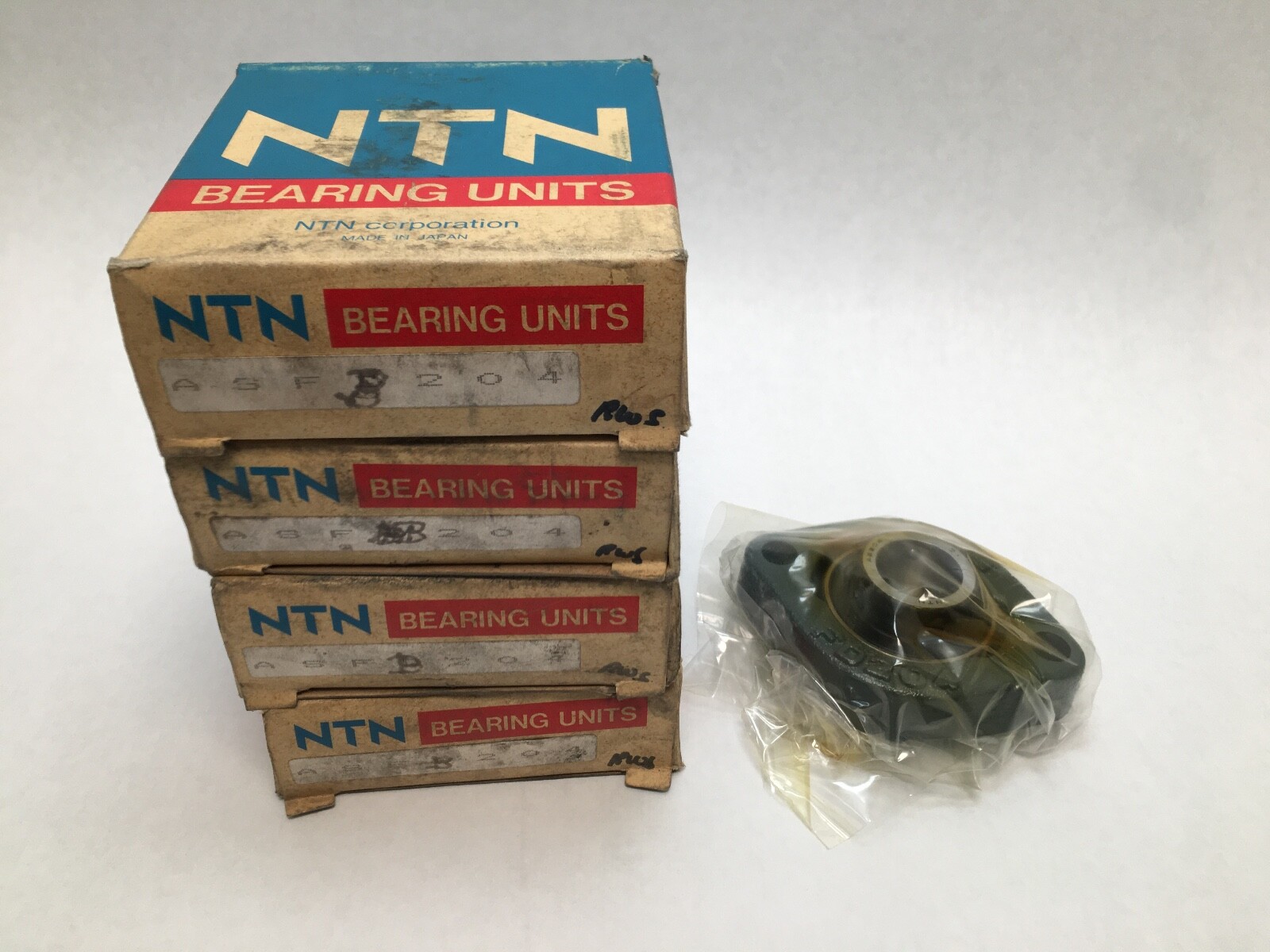

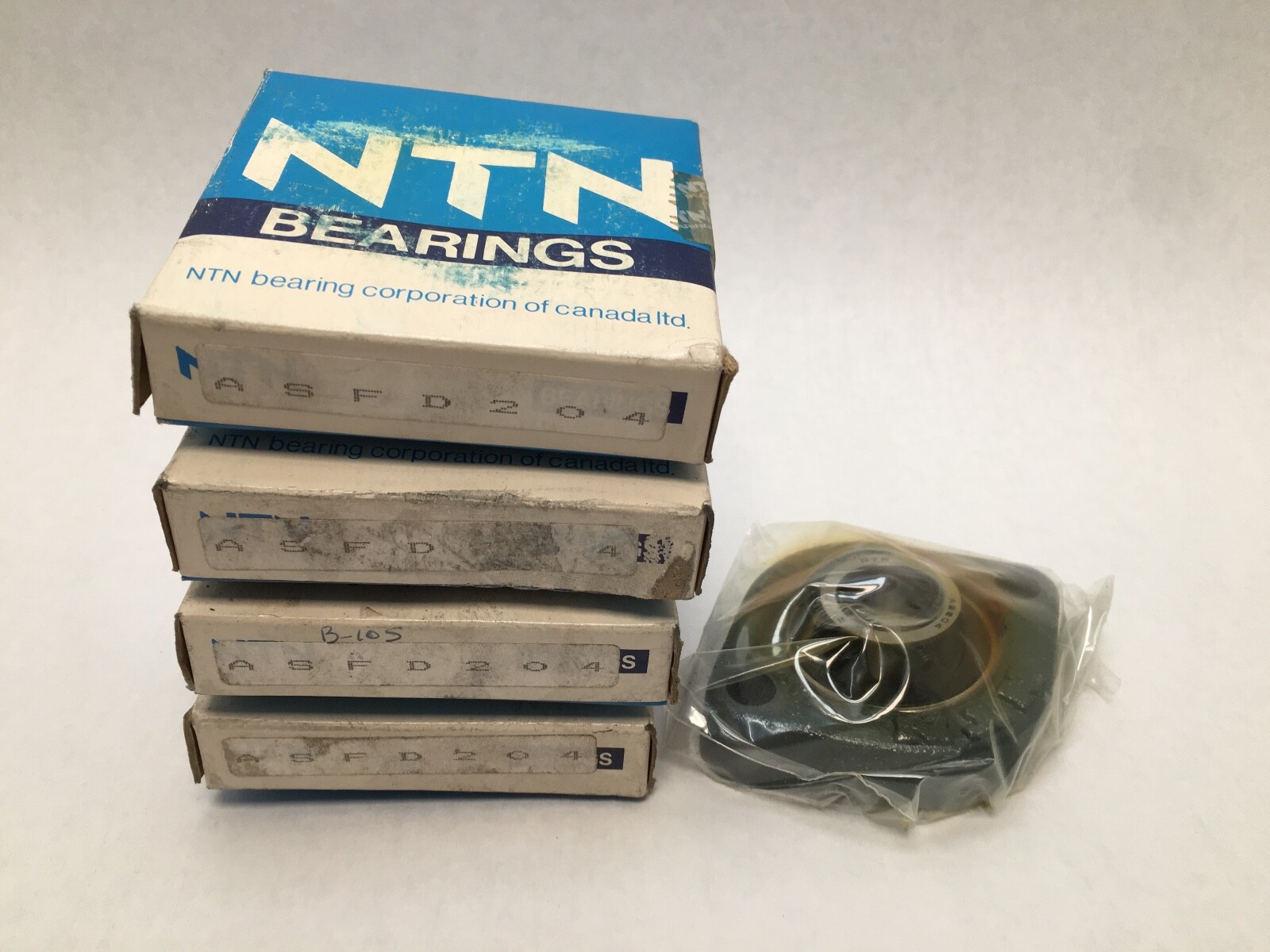

NTN ASFD204 two-bolt rhombus flange unit, 20 mm bore, cast iron housing, set screw locking, AS204 insert with contact seals. Four units per listing.
List Price
$55.68
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | ASFD204 |
| Model | AS FD 204 |
| ID | 20 mm |
| Type | Flanged Mount Bearing Unit |
|---|---|
| Bolt Center To Center Length | 71 mm |
| Mpn Variants | ASFD204, ASFD 204, AS FD 204, AS204 FD204 |
| Precision Class | ISO Class 0 |
| Material | Cast Iron housing, bearing steel insert |
| Min Temp | -40 °C |
| Dynamic Load Rating | 12,800 N |
| Static Load Rating | 6,650 N |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Bearing Type | Two-Bolt Flanged Unit |
| Item Weight | 0.41 kg (0.90 lb) |
| Cage Material | Pressed steel |
| Internal Clearance | CN |
| Locking Device | Set Screw |
| Housing Material | Cast Iron |

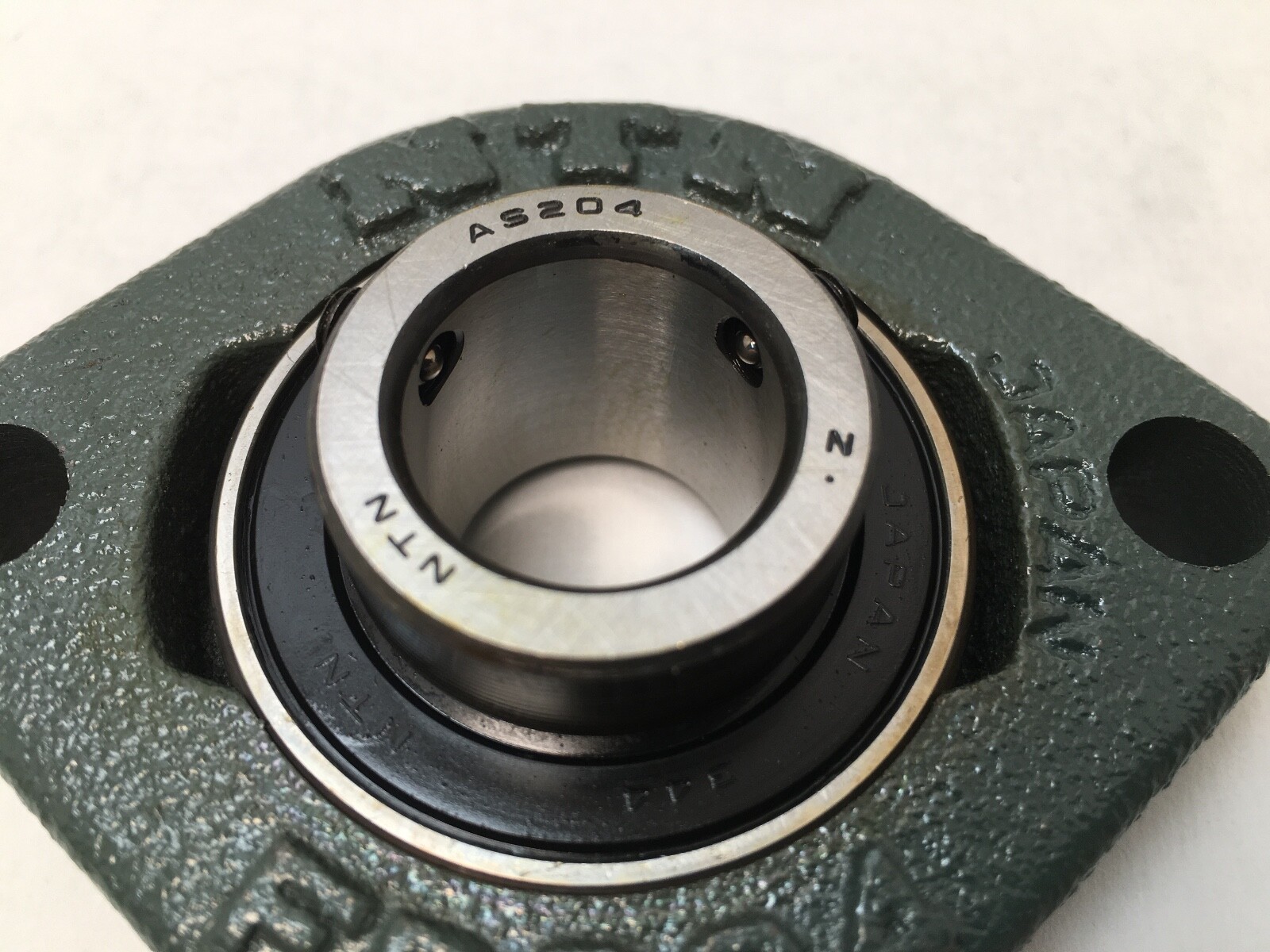

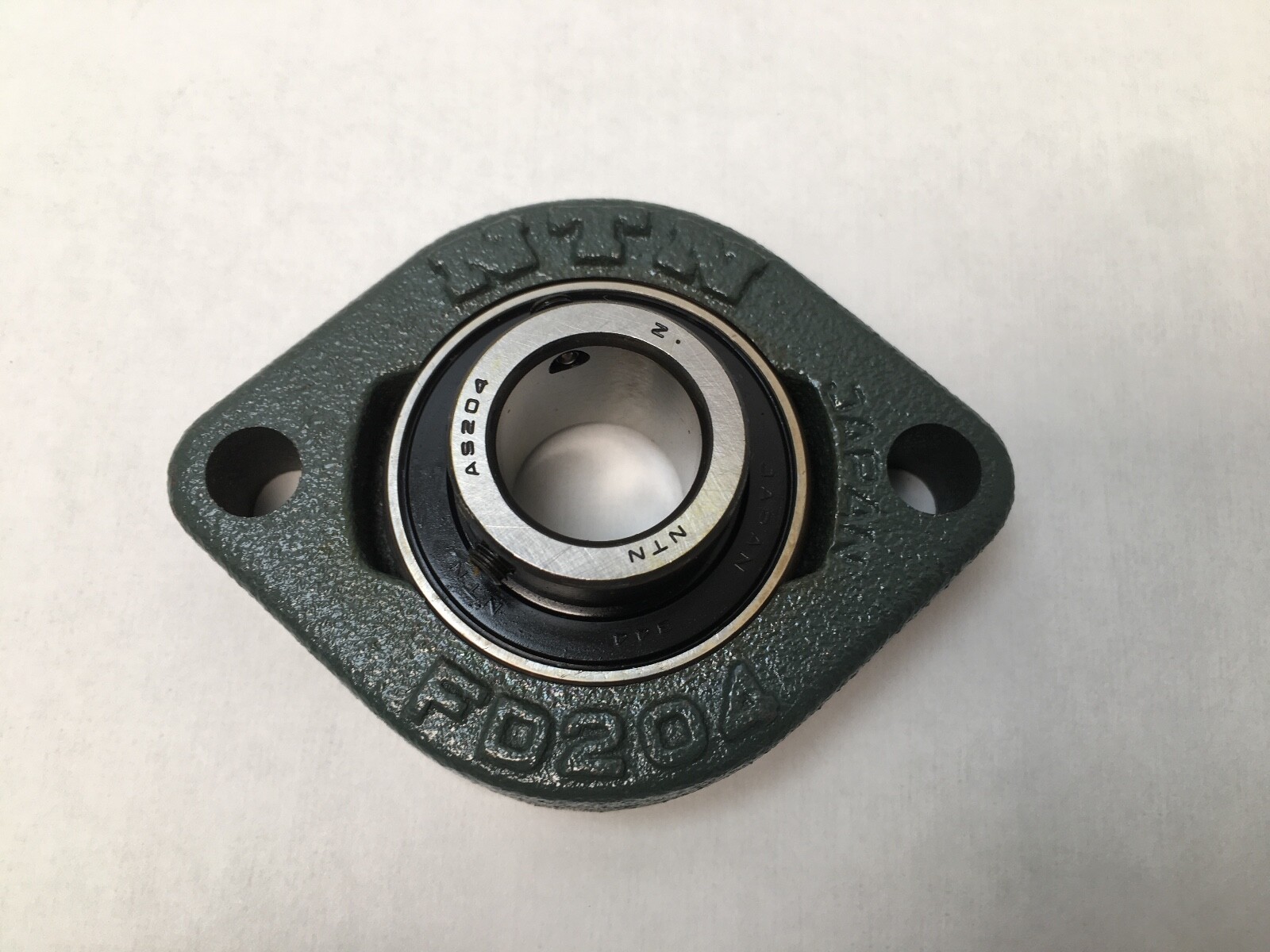

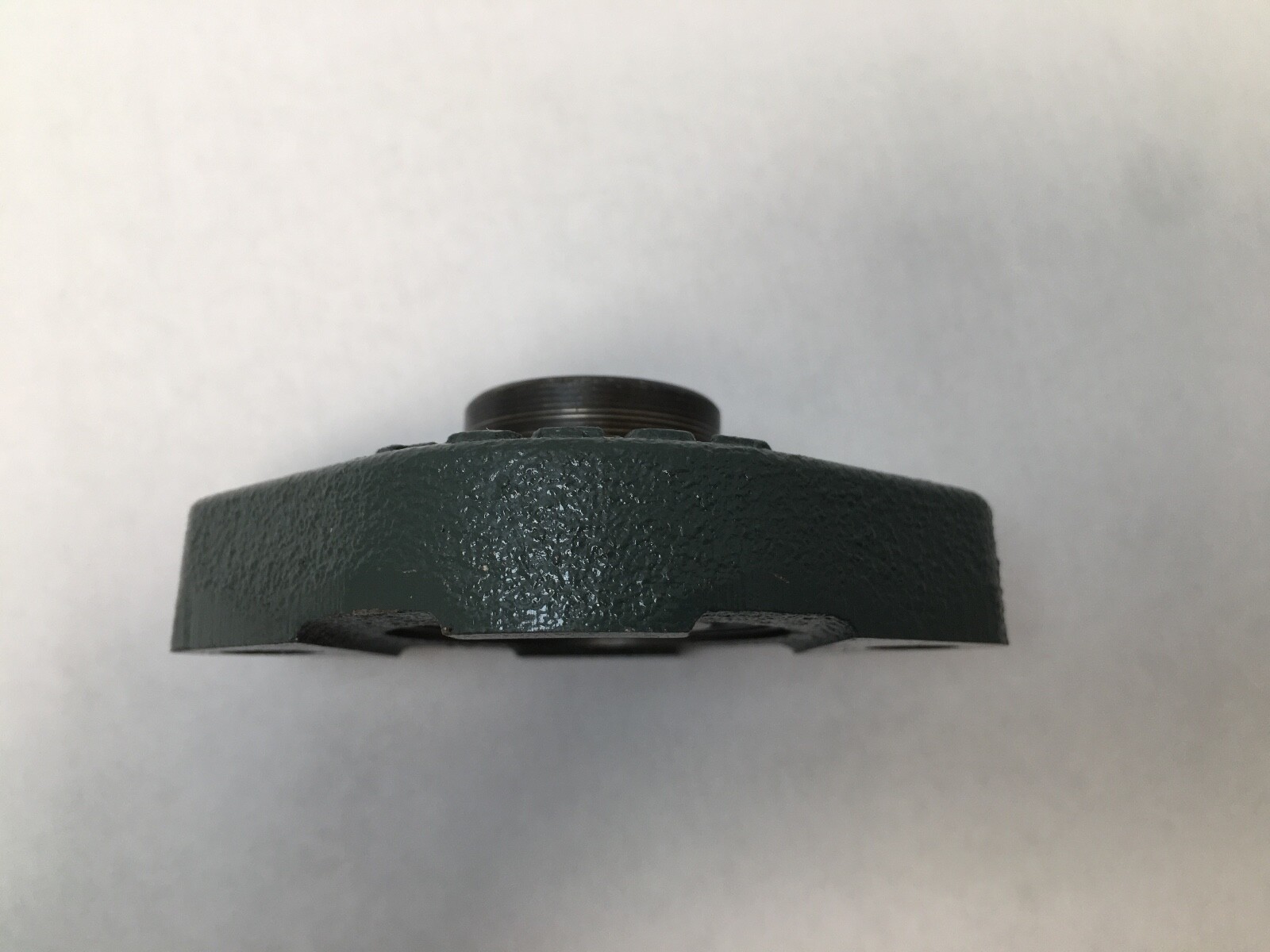

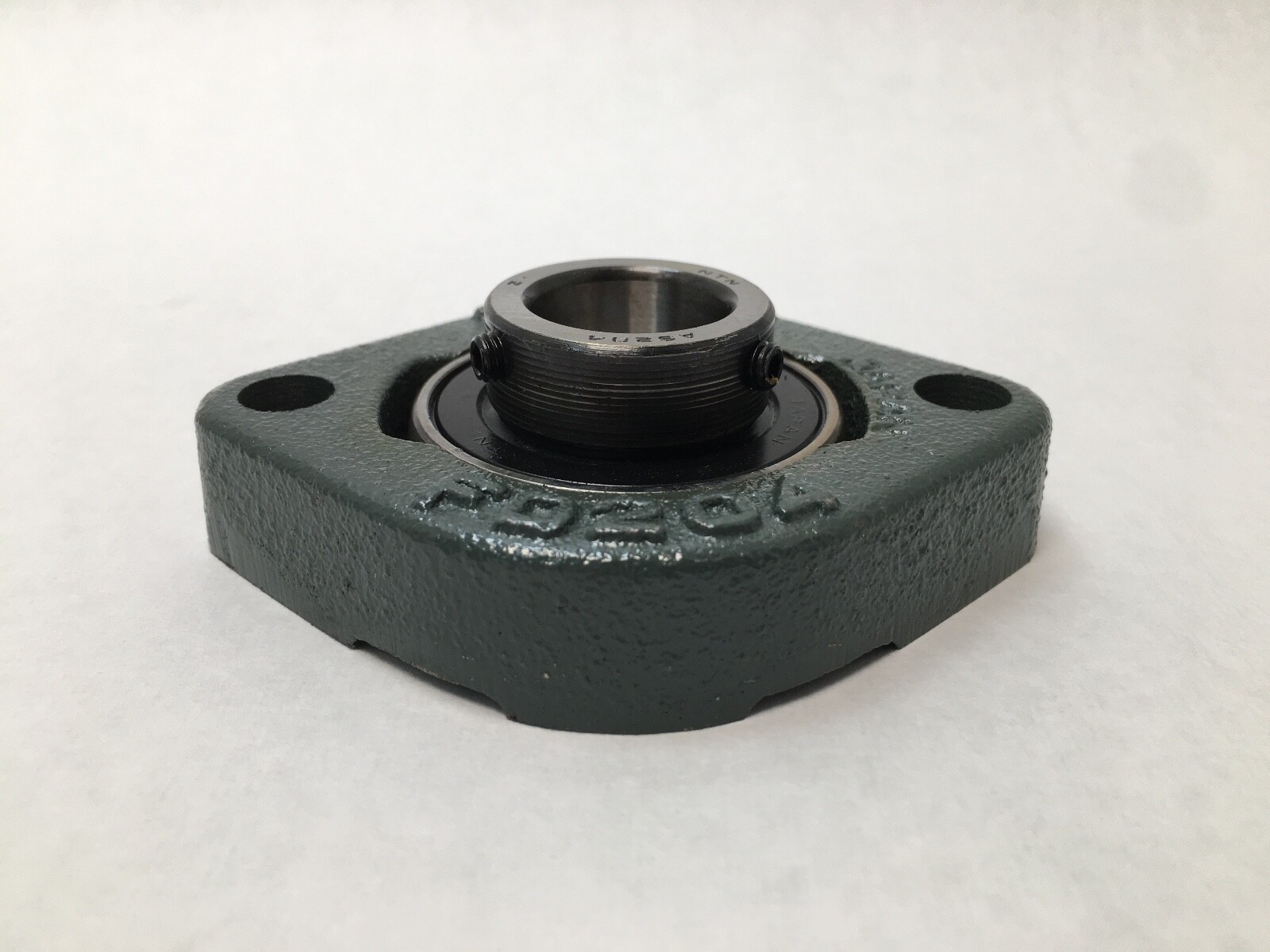

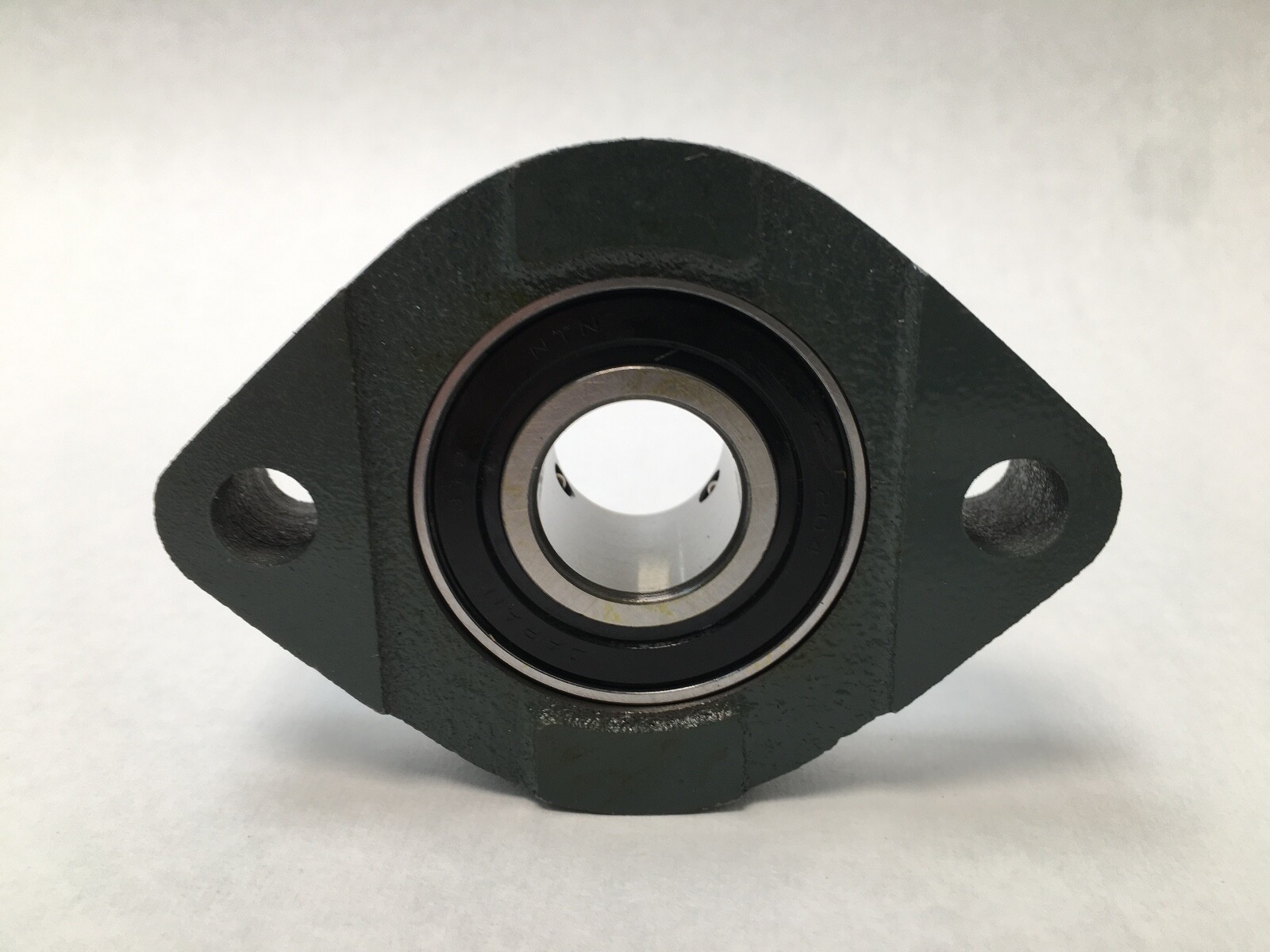

NTN ASFD204 two-bolt rhombus flanged unit: an AS204 set-screw ball bearing insert in an FD204 one-piece cast iron housing. Unit Quantity: 4 Pcs. Four complete flange units, each an FD204 housing with an AS204 insert. Bore Diameter: 20 mm. Housing Material: Cast Iron. Locking Device: Set Screw. Seal Type: Contact seals both sides, nitrile rubber. End Type: Open.
AS — narrow inner ring insert, set screw locking.
FD — flanged unit, cast housing, short two-bolt rhombus flange.
2 — light series.
04 — 20 mm bore.
Dynamic Load Rating: 12,800 N. Static Load Rating: 6,650 N. Precision Class: ISO Class 0. Internal Clearance: CN. Cage Material: Pressed steel. Rolling Elements: Ball. Item Weight: 0.41 kg (0.90 lb) per unit. Operating Temperature Range: -40 to 120 °C.
Flange Length: 90 mm. Bolt Center To Center: 71 mm. Flange Width: 67 mm. Flange Thickness: 17 mm. Mounting Face to Insert Face: 27.5 mm. Bolt Hole Diameter: 10 mm. Insert Inner Ring Width: 25 mm. Set Screw Position from Ring Face: 7 mm.
Insert: NTN AS204. Housing: NTN FD204.
20 mm.
Bolt center to center 71 mm, bolt hole diameter 10 mm.
An AS204 set-screw insert and an FD204 one-piece cast iron two-bolt flange housing.
