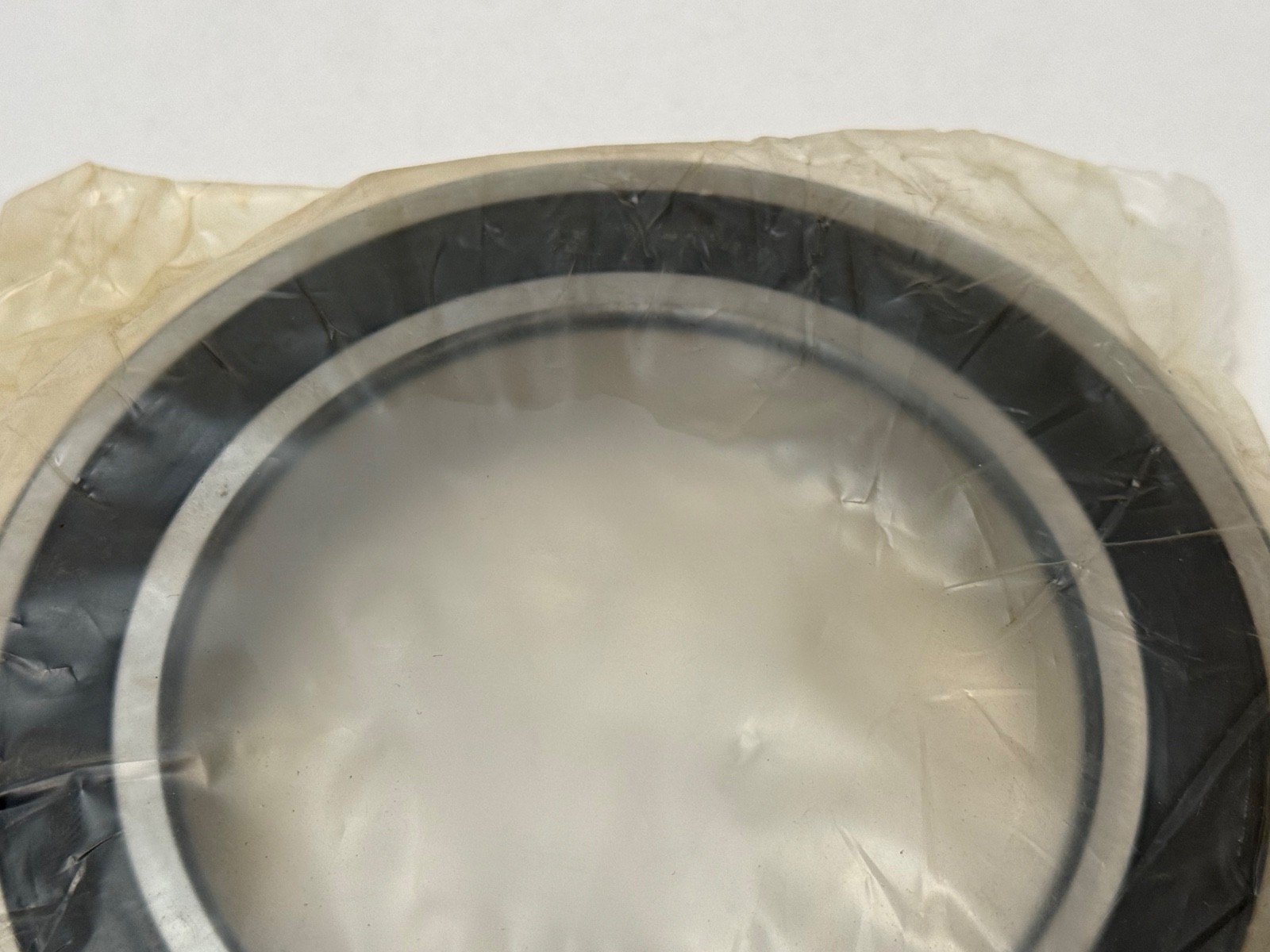

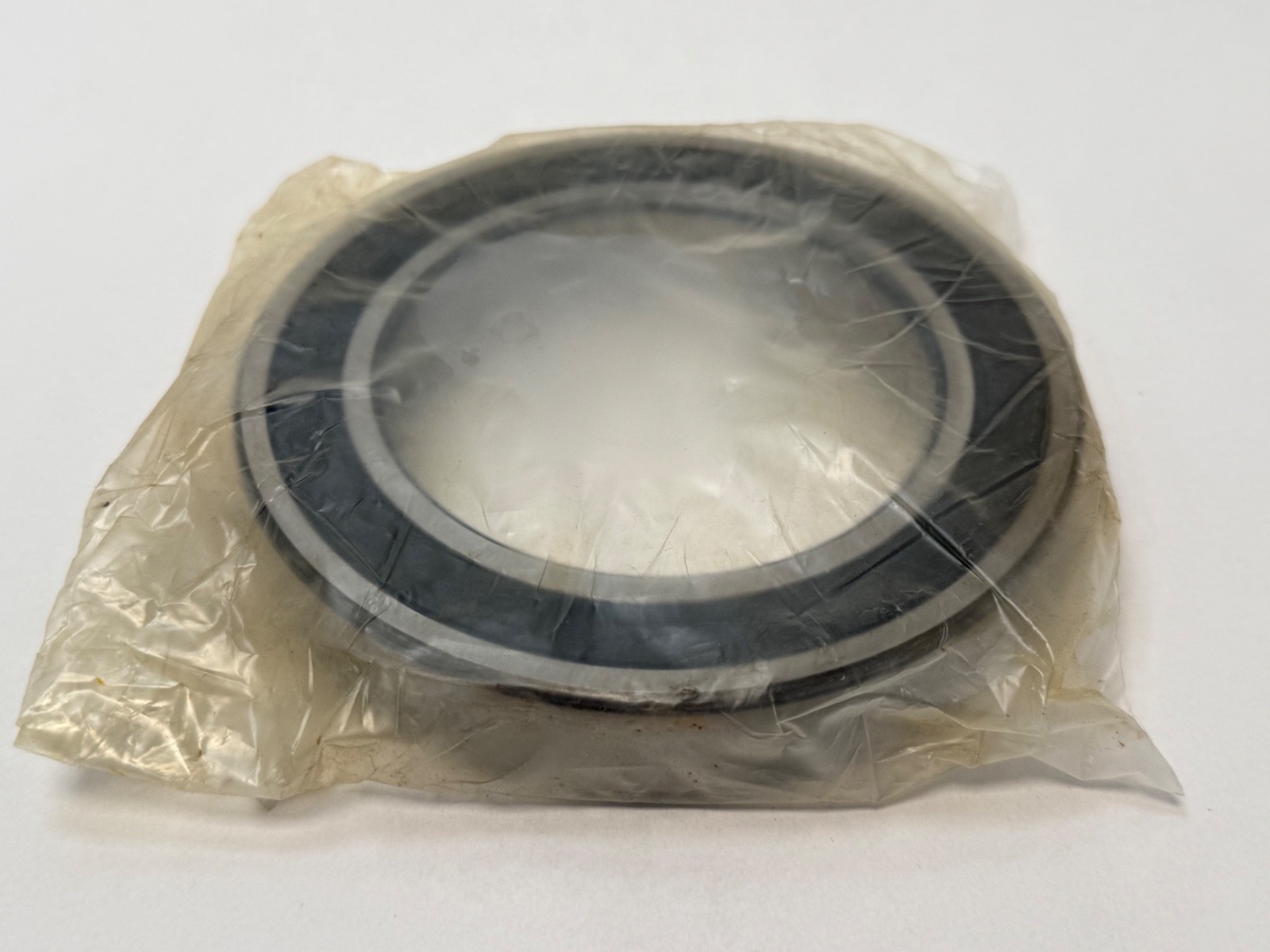

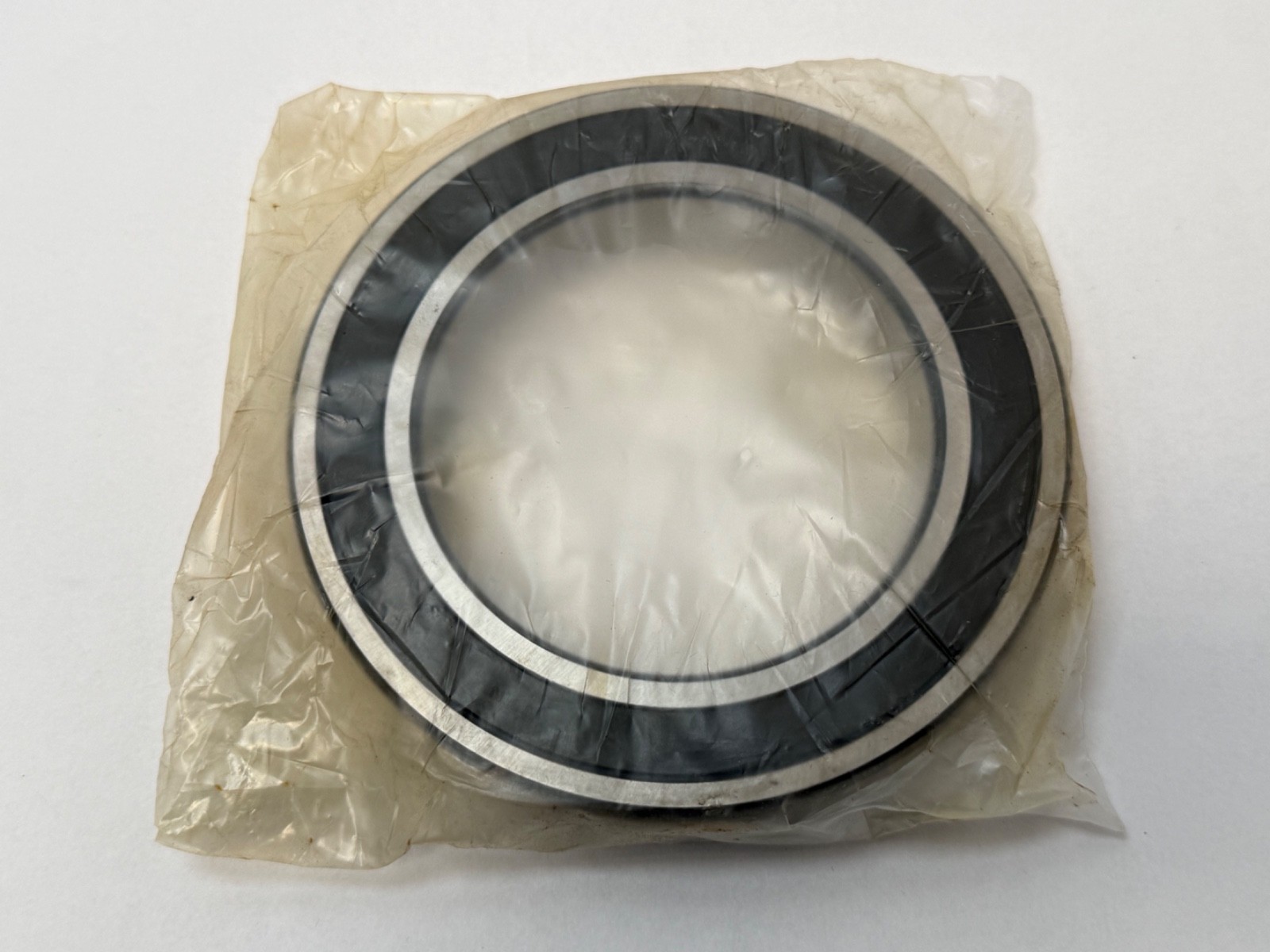

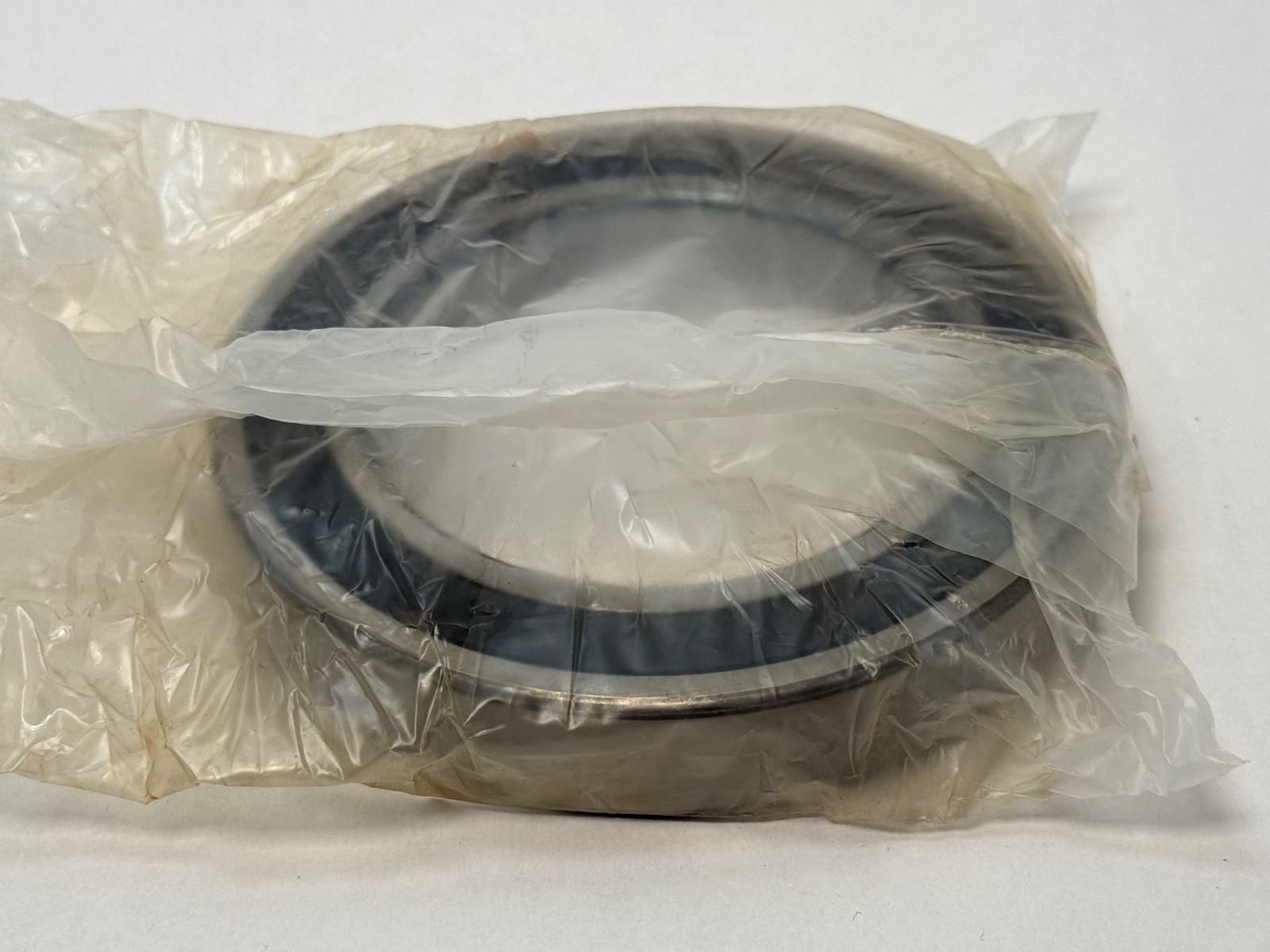

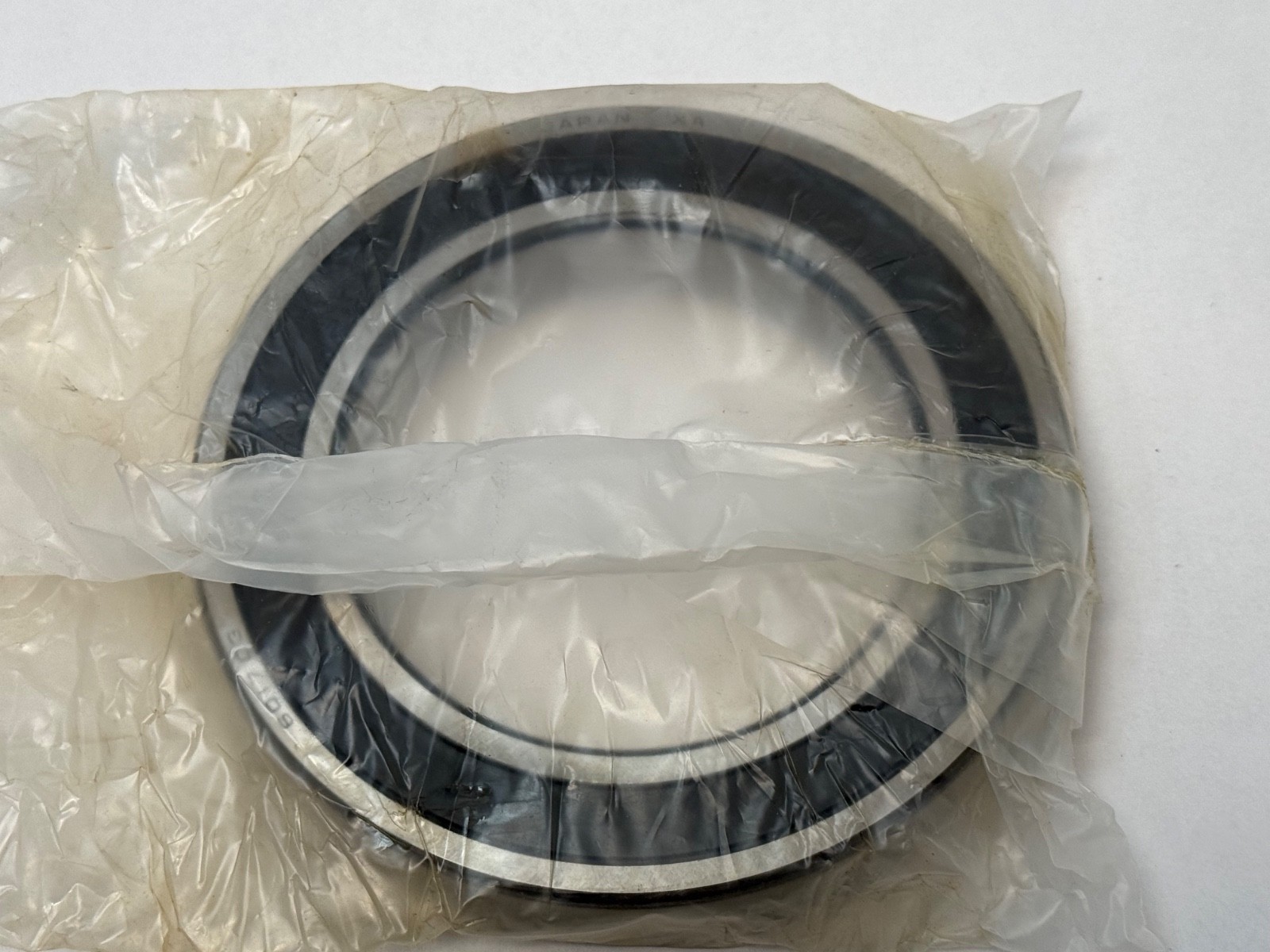

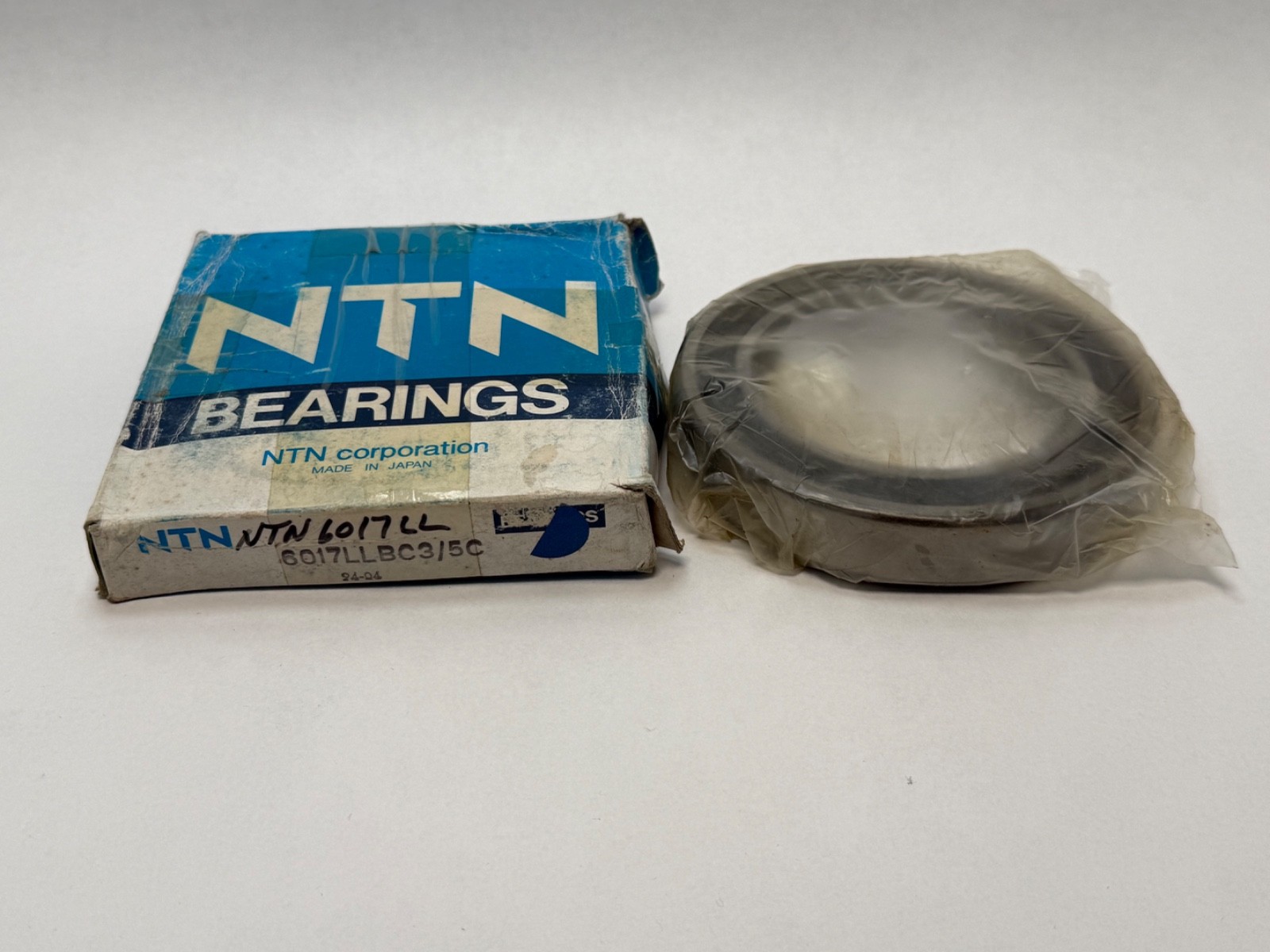

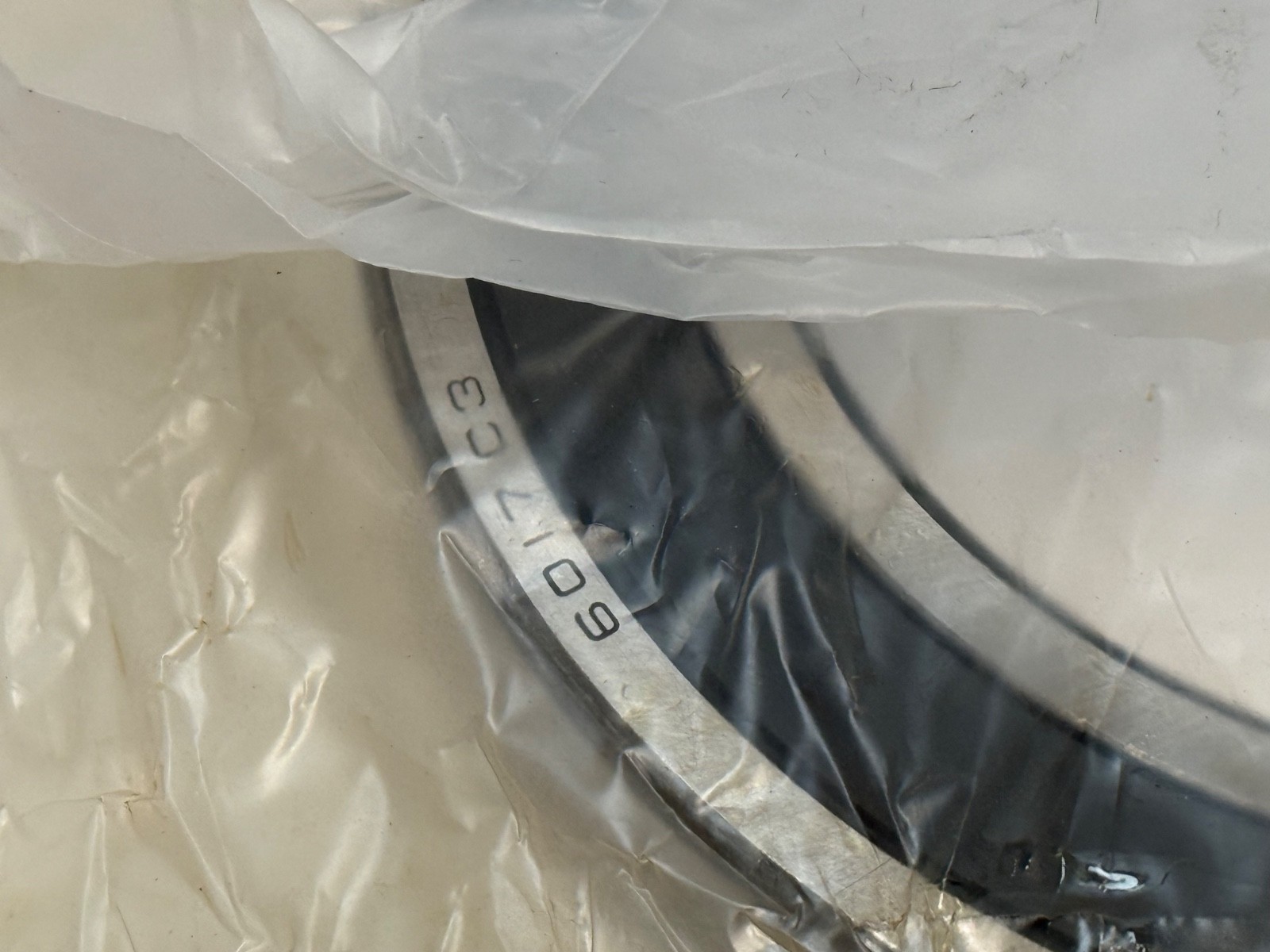

Deep groove ball bearing, 85 mm bore x 130 mm OD x 22 mm wide, non-contact rubber seals both sides, C3 clearance, 55,000 N dynamic rating. NTN 6017LLBC3.
List Price
$33.06
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 6017LLBC3 |
| Model | 6017-LLB-C3 / 6017-2RS / 6017RS |
| Bearing Type | Deep Groove Ball Bearing, Non-contact seals both sides |
| ID | 85 mm |
| OD | 130 mm |
| Width | 22 mm |
| Material | Steel |
|---|---|
| Mpn Variants | 6017LLBC3, 6017-LLB-C3, 6017LLB/C3 |
| Precision Class | ABEC 1 / P0 |
| Min Temp | -40 °C (-40 °F) |
| Cage Type | Pressed |
| Dynamic Load Rating | 55,000 N |
| Static Load Rating | 43,000 N |
| Series | 6000 |
| Rolling Elements | Ball |
| Max Temp | 120 °C (250 °F) |
| Item Weight | 0.908 kg (2.00 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 5,000 rpm grease |
| Internal Clearance | C3 |
| Cross Reference 1 | SKF 6017-2RZ/C3 |
|---|---|
| Cross Reference 2 | NSK 6017VVC3 |
| Cross Reference 3 | Koyo 6017-2RUC3 |
NTN 6017LLBC3 single row deep groove ball bearing with non-contact rubber seals on both sides and C3 internal clearance. Bore Diameter: 85 mm. Outside Diameter: 130 mm. Overall Width: 22 mm. Closure Type: Non-contact seals both sides. Seal Material: Nitrile rubber. Internal Clearance: C3. Precision Class: ABEC 1 / P0. Cage Type: Pressed. Cage Material: Pressed steel. Rolling Elements: Ball. Bearing Material: High carbon chrome steel. Series: 6000.
6017 — single row deep groove ball bearing, 60 extra-light series, bore code 17 = 85 mm bore.
LLB — non-contact rubber seals on both sides.
C3 — radial internal clearance greater than normal.
Dynamic Load Rating: 55,000 N. Static Load Rating: 43,000 N. Limiting Speed: 5,000 rpm grease. Item Weight: 0.908 kg (2.00 lb). Operating Temperature Range: -40 to 120 °C (-40 to 250 °F). Non-contact seals exclude contamination and retain the factory grease fill without seal-lip friction. C3 clearance allows for shaft and housing interference fits and ring temperature difference in service.
Chamfer Dimension r min: 1.1 mm. Shaft Abutment Diameter da: 91.5 to 97 mm. Housing Abutment Diameter Da max: 123.5 mm. Fillet Radius ras max: 1.0 mm.
Non-contact sealed C3 equivalents in the 85 x 130 x 22 mm envelope: SKF 6017-2RZ/C3, NSK 6017VVC3 and Koyo 6017-2RUC3.
