Deep Groove Ball Bearings: The Industry Default and When to Reach for Something Else
If you pulled a bearing off general industrial equipment at random, there’s a good chance
Availability:
1 in stock
MRC 209SZZG Conrad deep groove ball bearing, 45 x 85 x 19 mm, two rubber contact seals and snap ring, 33,200 N dynamic rating, 5,000 rpm grease.
List Price
$37.19
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | MRC |
|---|---|
| MPN | 209SZZG |
| Model | 209-SZZG |
| Bearing Type | Deep Groove Ball Bearing, Two rubber contact seals |
| ID | 45 mm |
| OD | 85 mm |
| Width | 19 mm |
| Mpn Variants | 209SZZG, 209-SZZG, 209 SZZG, 6209-2RS-NR, 6209RS, 6209NR |
|---|---|
| Compatible With Replaces | SKF 6209-2RS1NR, NSK 6209DDUNR, NTN 6209LLUNR, FAG 6209-2RSR-NR |
| Additional Attributes | Max Fillet Radius: 1.0 mm; Construction: Conrad type |
| Dynamic Load Rating | 33,200 N |
| Static Load Rating | 21,600 N |
| Series | MRC 200-S Light Series |
| Rolling Elements | Ball |
| Snap Ring Included | Yes |
| Limiting Speed | 5,000 rpm grease |
| Industry Terms | 209 SZZG bearing; 6209 2RS NR bearing; 45x85x19 sealed ball bearing; snap ring deep groove bearing; Conrad type sealed bearing |
| Common Misspellings | MRC 209 SZZG; MRC 209SZZ; MRC 209-S-ZZG; M.R.C. 209SZZG; MRC 209SZG |
| Application Types | Electric motors; pumps; gearboxes; conveyors; general industrial machinery |
| Cross Reference 1 | SKF 6209-2RS1NR |
|---|---|
| Cross Reference 2 | NSK 6209DDUNR |
| Cross Reference 3 | NTN 6209LLUNR |
| Cross Reference 4 | FAG 6209-2RSR-NR |

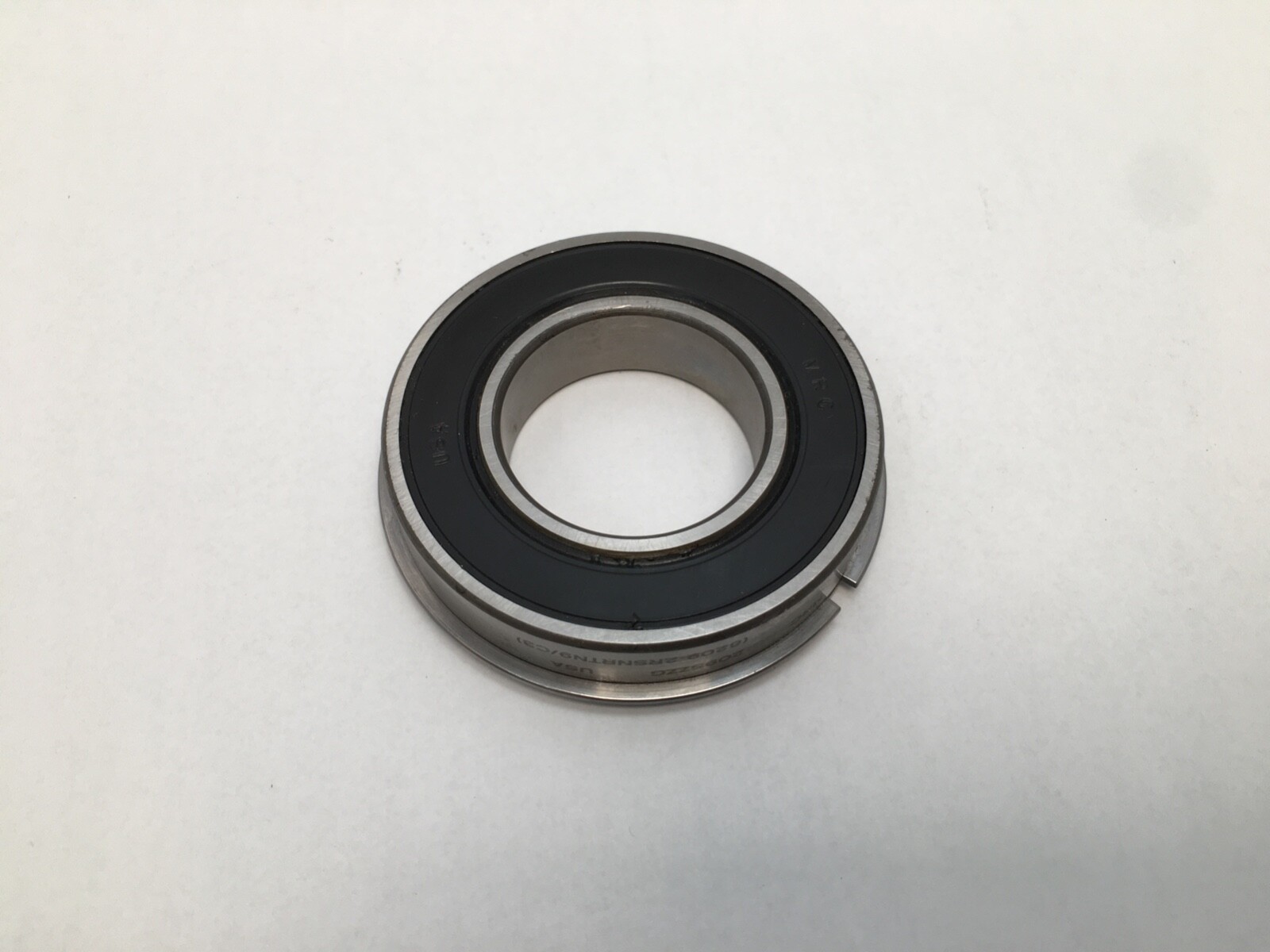

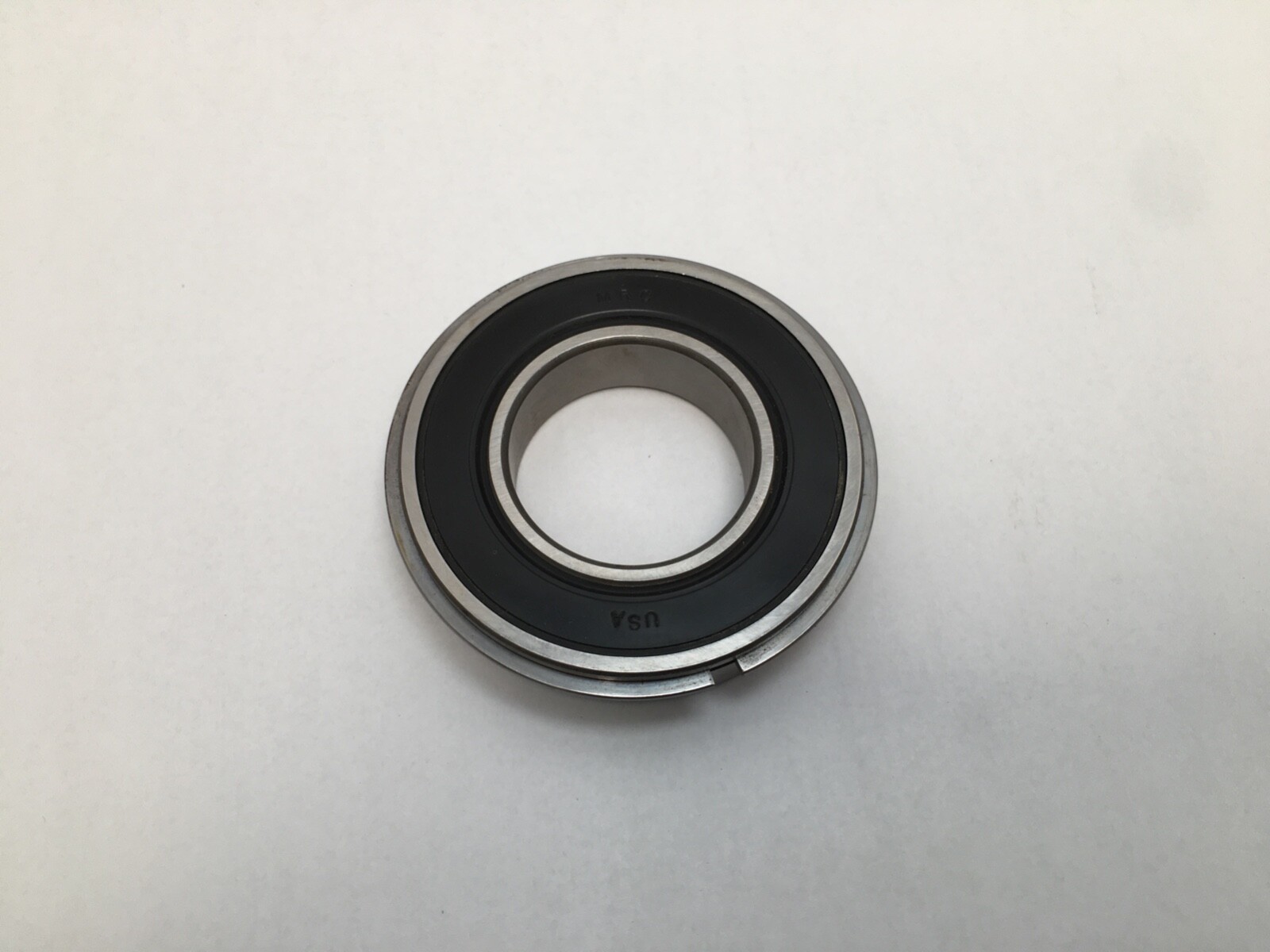

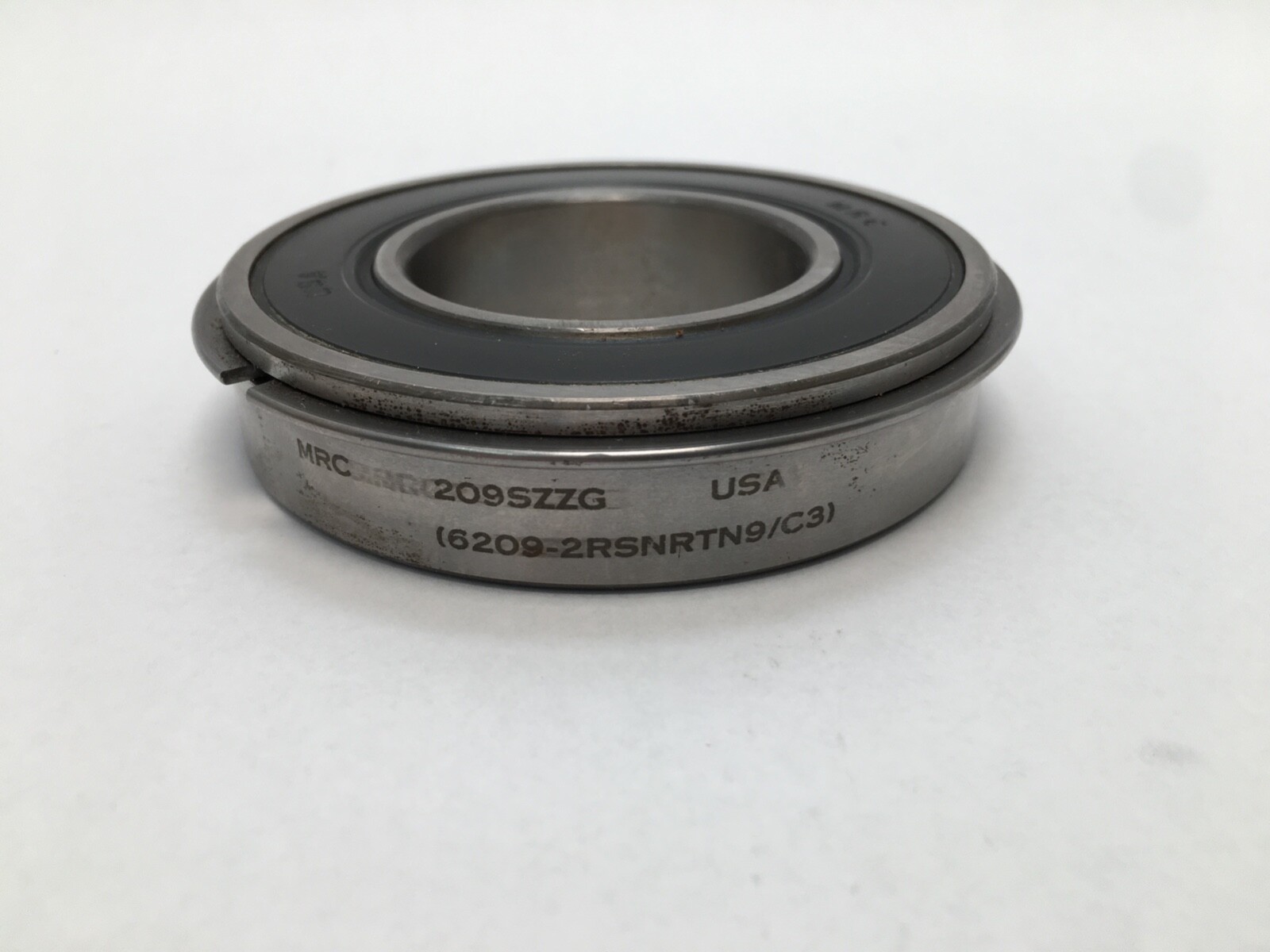

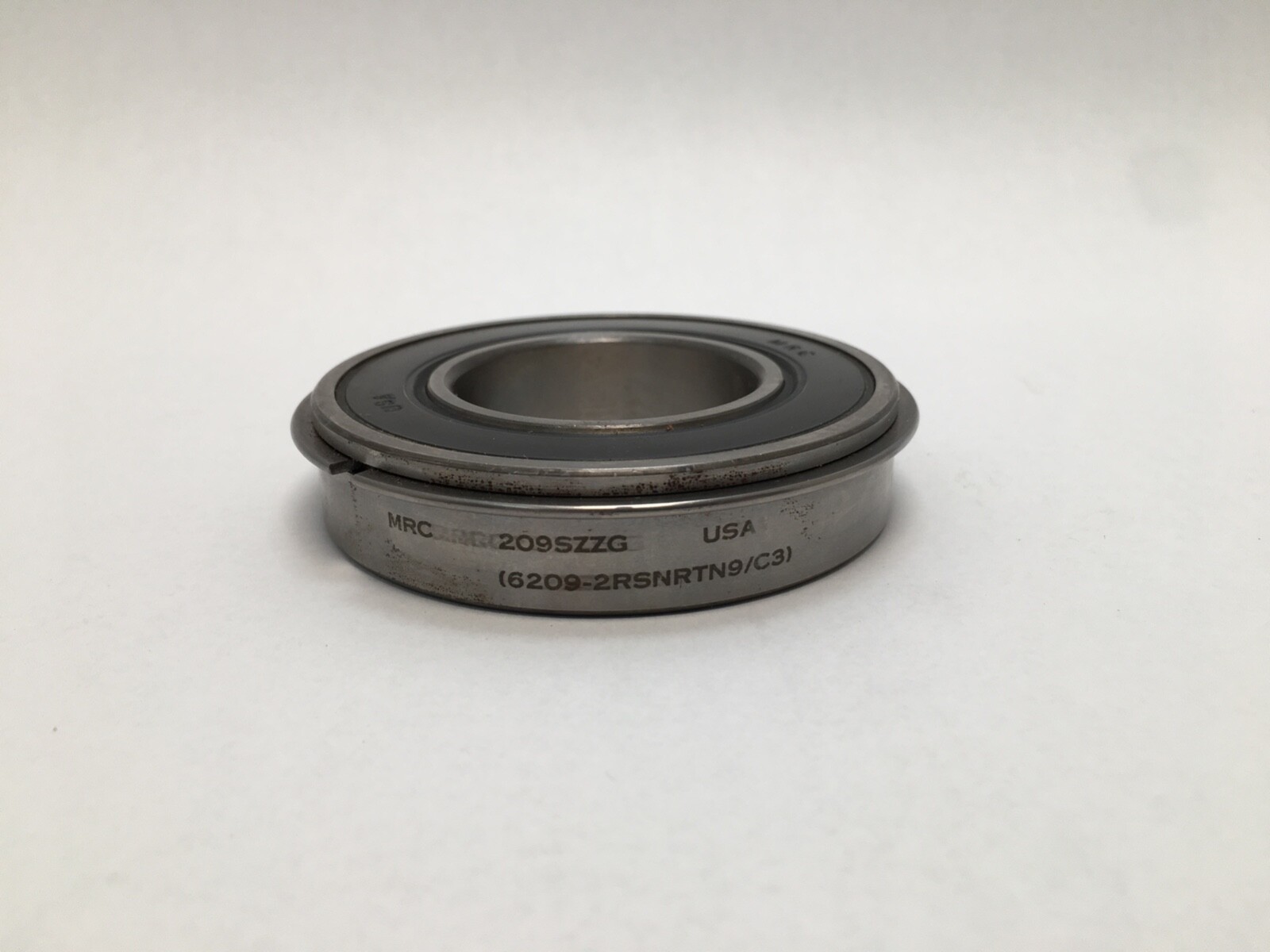

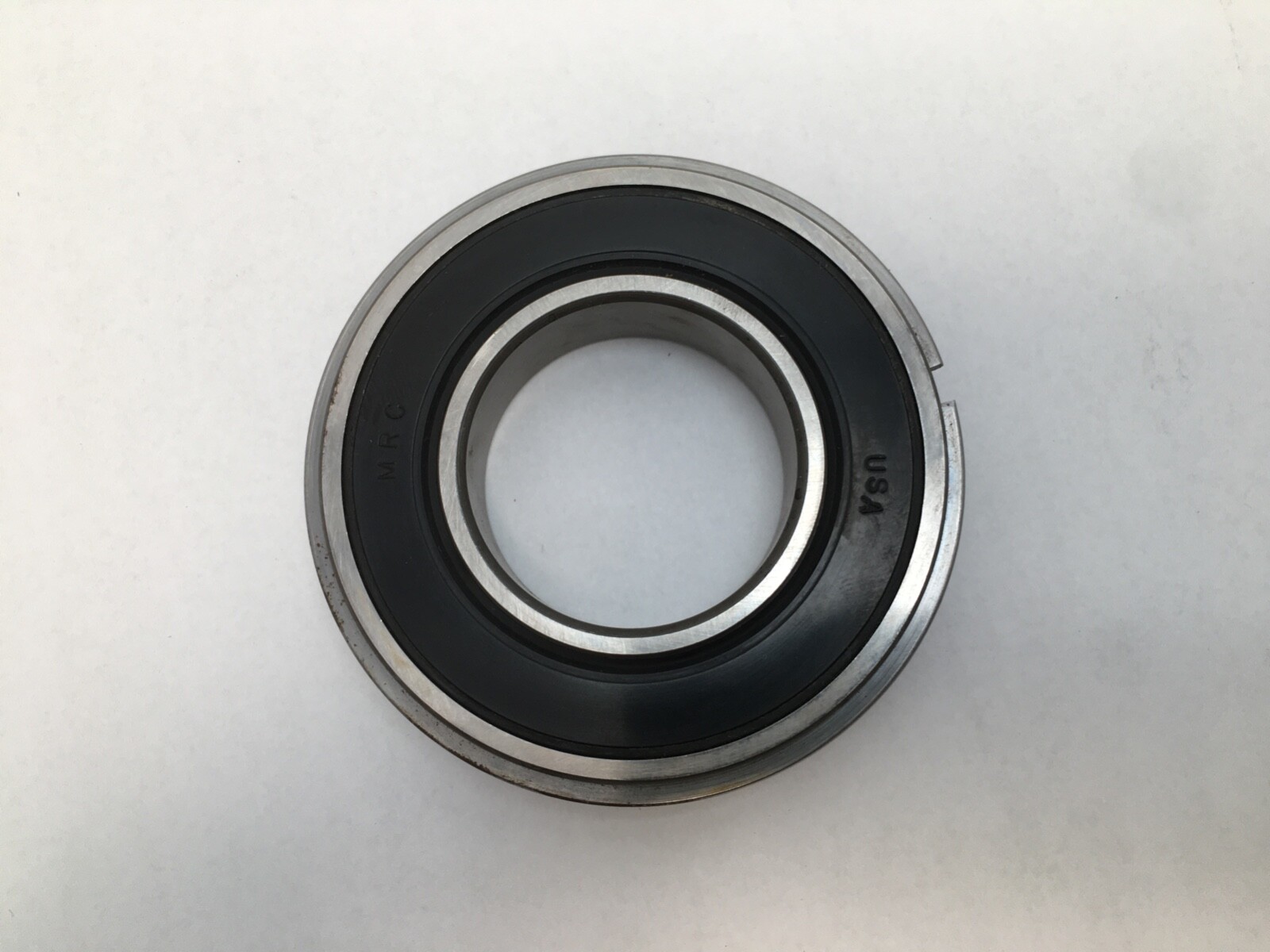

MRC 209SZZG is a single-row Conrad-type deep groove ball bearing from the MRC 200-S Light Series, with rubber contact seals on both sides and a snap ring on the outer ring. Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 19 mm. Unit Quantity: 1 Pc.
209 — 200 light series, 45 mm bore.
S — Conrad-type single-row deep groove construction.
ZZ — two rubber seals. On MRC bearings Z denotes a seal and F denotes a shield.
G — snap ring fitted in an outer-ring groove for axial location in the housing.
Dynamic Load Rating: 33,200 N. Static Load Rating: 21,600 N. Limiting Speed: 5,000 rpm grease. Closure Type: Contact seals both sides. Snap Ring: Yes. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight.
Max Fillet Radius ra: 1.0 mm. Construction: Conrad type, carries radial load and thrust in either direction.
Cross-references for the 45 x 85 x 19 mm two-contact-seal snap-ring size: SKF 6209-2RS1NR, NSK 6209DDUNR, NTN 6209LLUNR, FAG 6209-2RSR-NR. Written as 209SZZG, 209-SZZG, 209 SZZG, 6209-2RS-NR, 6209RS, 6209NR.
45 mm bore, 85 mm outside diameter, 19 mm wide.
Rubber contact seals on both sides, plus a snap ring in the outer ring.
Dynamic Load Rating: 33,200 N. Static Load Rating: 21,600 N.
