Availability:
2 in stock
Thin-section deep groove ball bearing, 65 mm bore, 85 mm OD, 10 mm wide, steel shields both sides, 12,800 N dynamic rating, 6800 series, pressed steel cage.
List Price
$61.99
2 in stock
On the Shelf & Ready to Ship
Ships same day by 6pm ET
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 6813ZZ |
| Model | 6813-Z |
| Bearing Type | Deep Groove Ball Bearing, Shields both sides |
| ID | 65 mm |
| OD | 85 mm |
| Width | 10 mm |
| Material | Chrome Steel |
|---|---|
| Series | 6800 |
| Lubricant | Grease |
| Mpn Variants | 6813ZZ, 6813-Z, 6813 ZZ, 6813Z, 6813ZZ 2AS, 61813-2Z |
| Precision Class | ABEC 1 / P0 |
| Dynamic Load Rating | 12,800 N |
| Static Load Rating | 11,000 N |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Item Weight | 0.120 kg (0.265 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 7,400 rpm grease |
| Internal Clearance | CN |
| Harmonization Code | 8482.10.50.68 |
| Closure Type | Shields both sides |
| Industry Terms | thin section deep groove ball bearing; 6813 shielded bearing; 65x85x10 bearing; 61813-2Z equivalent |
| Common Misspellings | NTN 6813 ZZ; NTN6813ZZ; NTN 6813-ZZ; NTN 6813 2Z; NTN 6813ZZ C3 |
| Application Types | Compact gearboxes; electric motors; pumps; industrial machinery |
| Cross Reference 1 | SKF 61813-2Z |
|---|---|
| Cross Reference 2 | FAG 61813-2Z |
| Cross Reference 3 | NSK 6813ZZ |
| Cross Reference 4 | Koyo 6813ZZ |
| Cross Reference 5 | Nachi 6813ZZ |

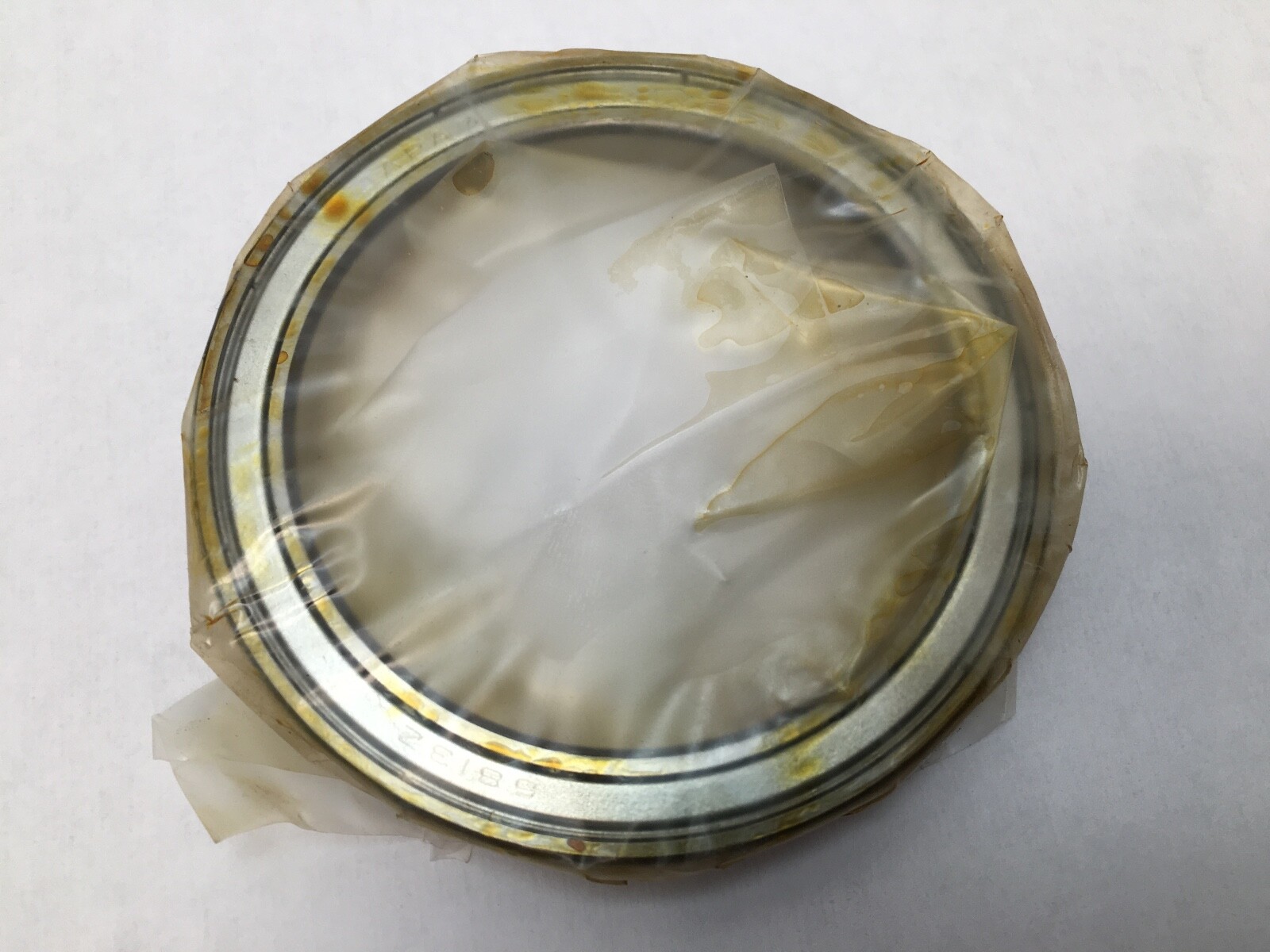

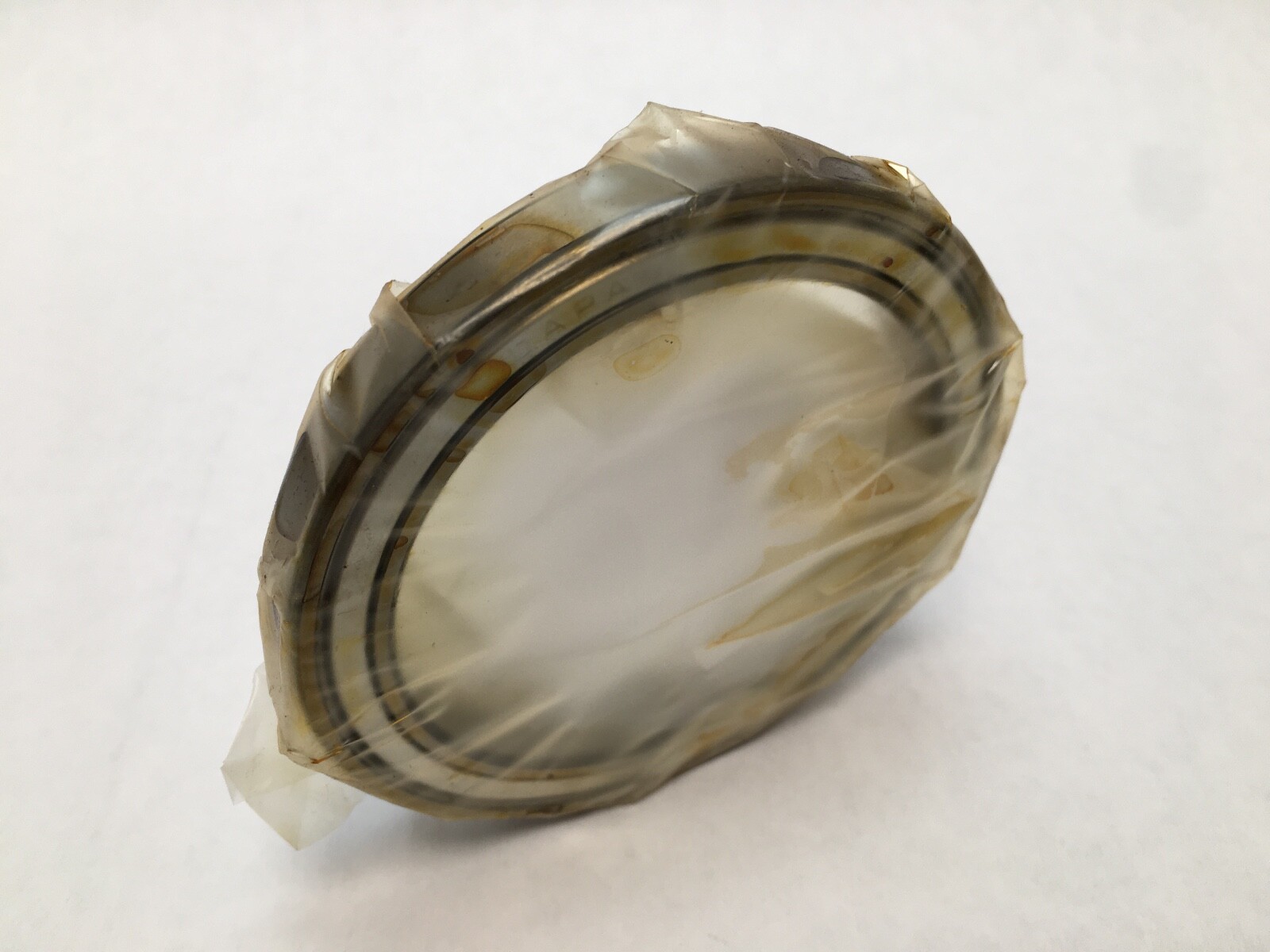

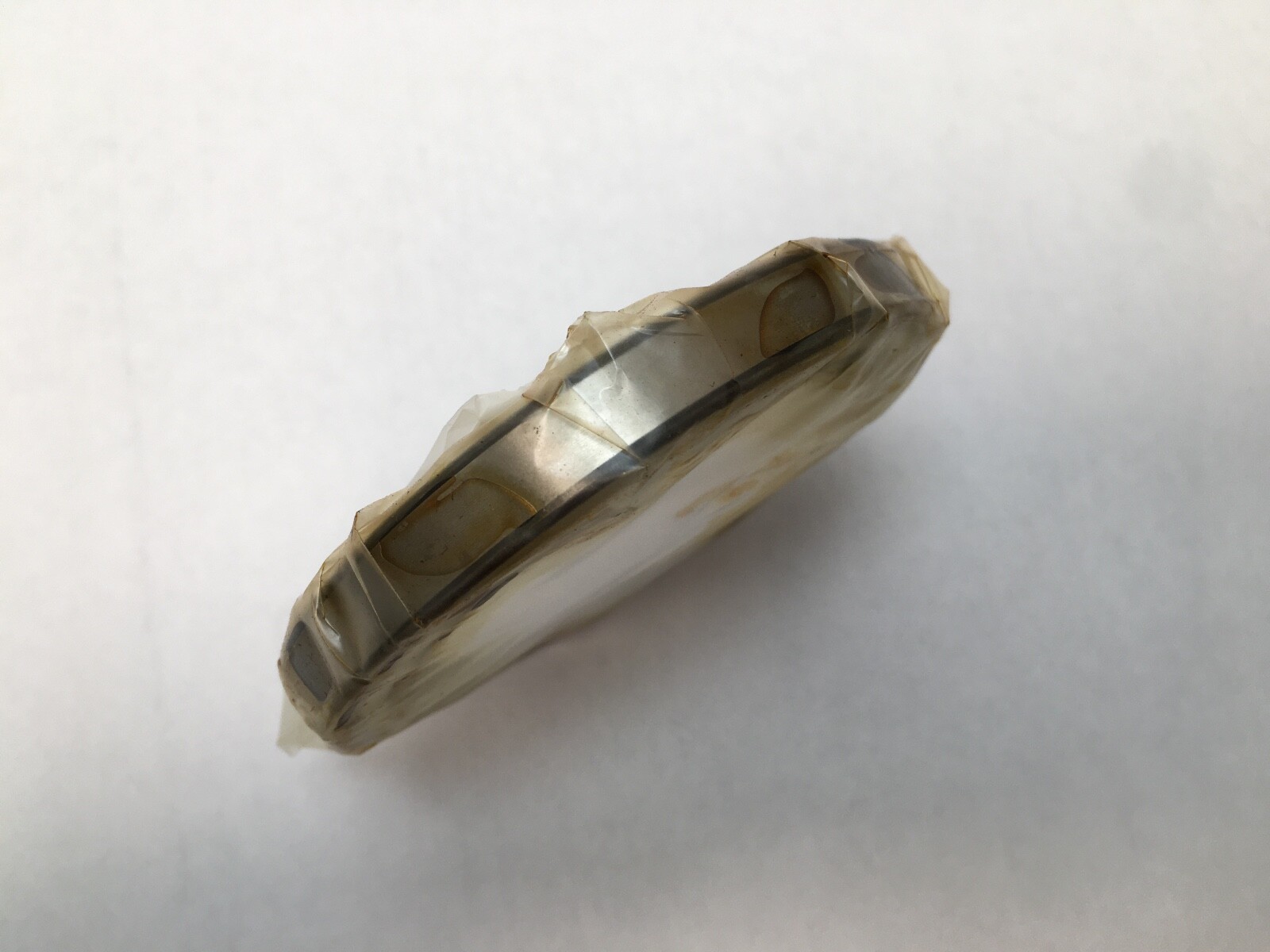

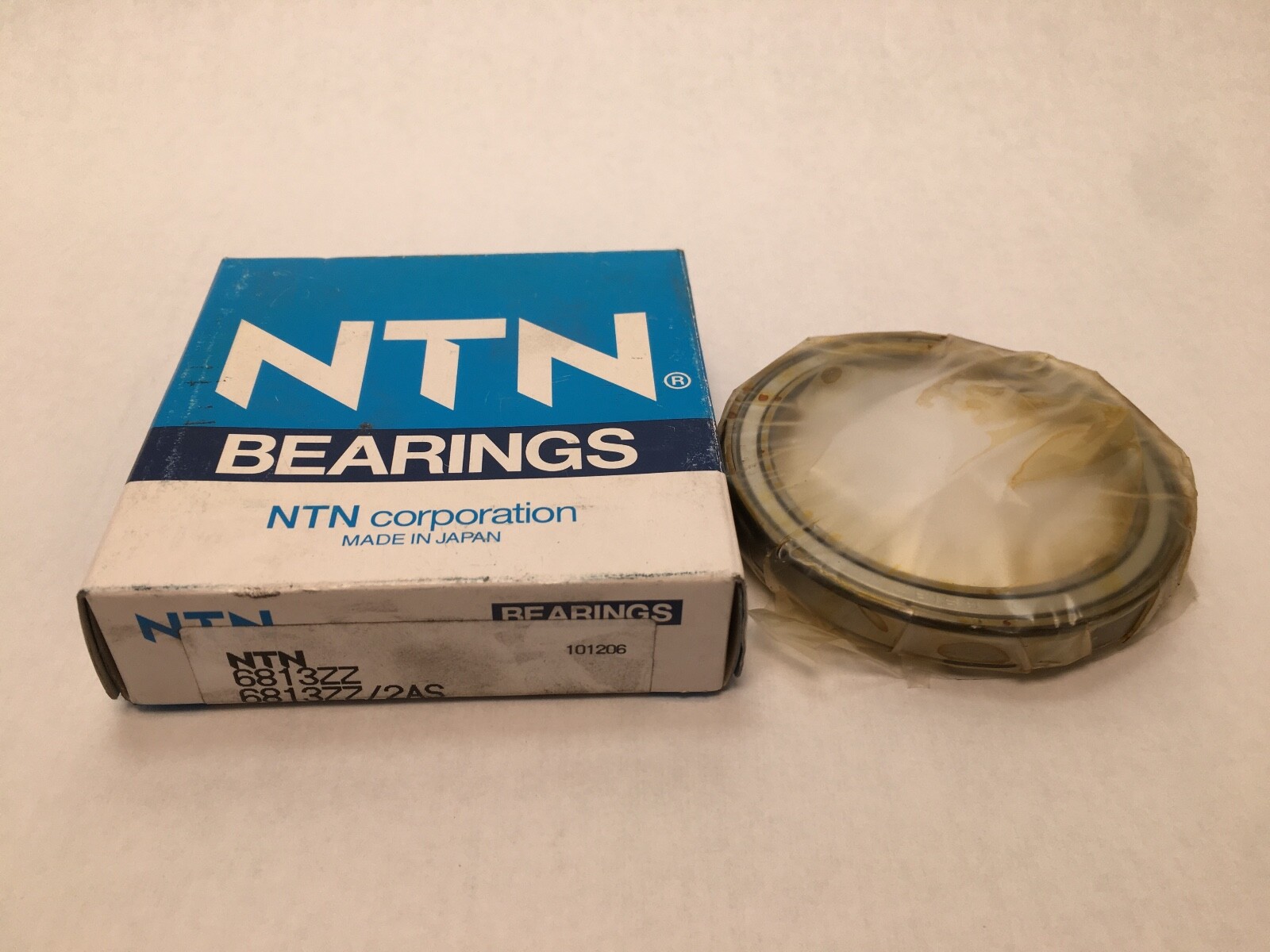

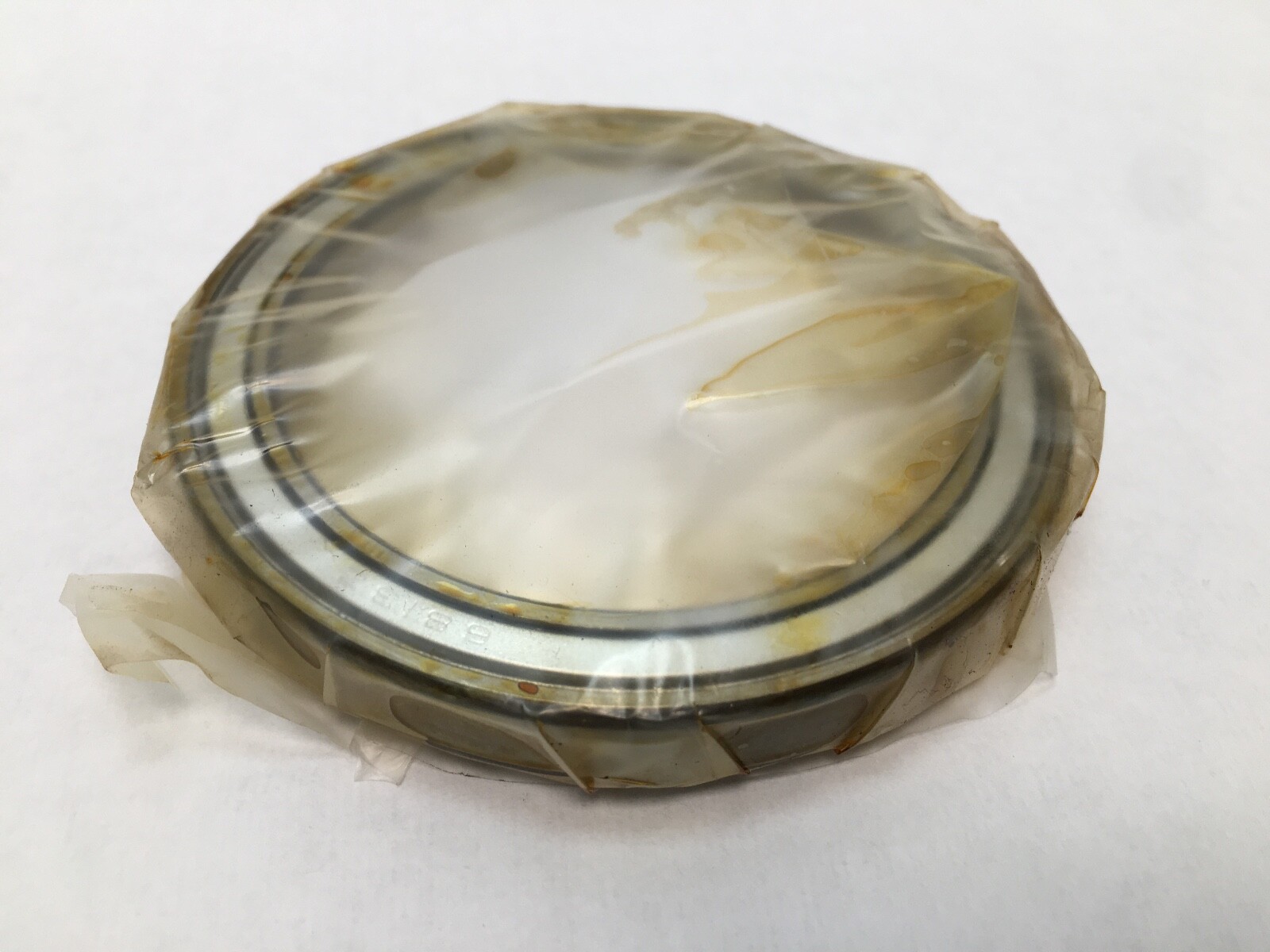

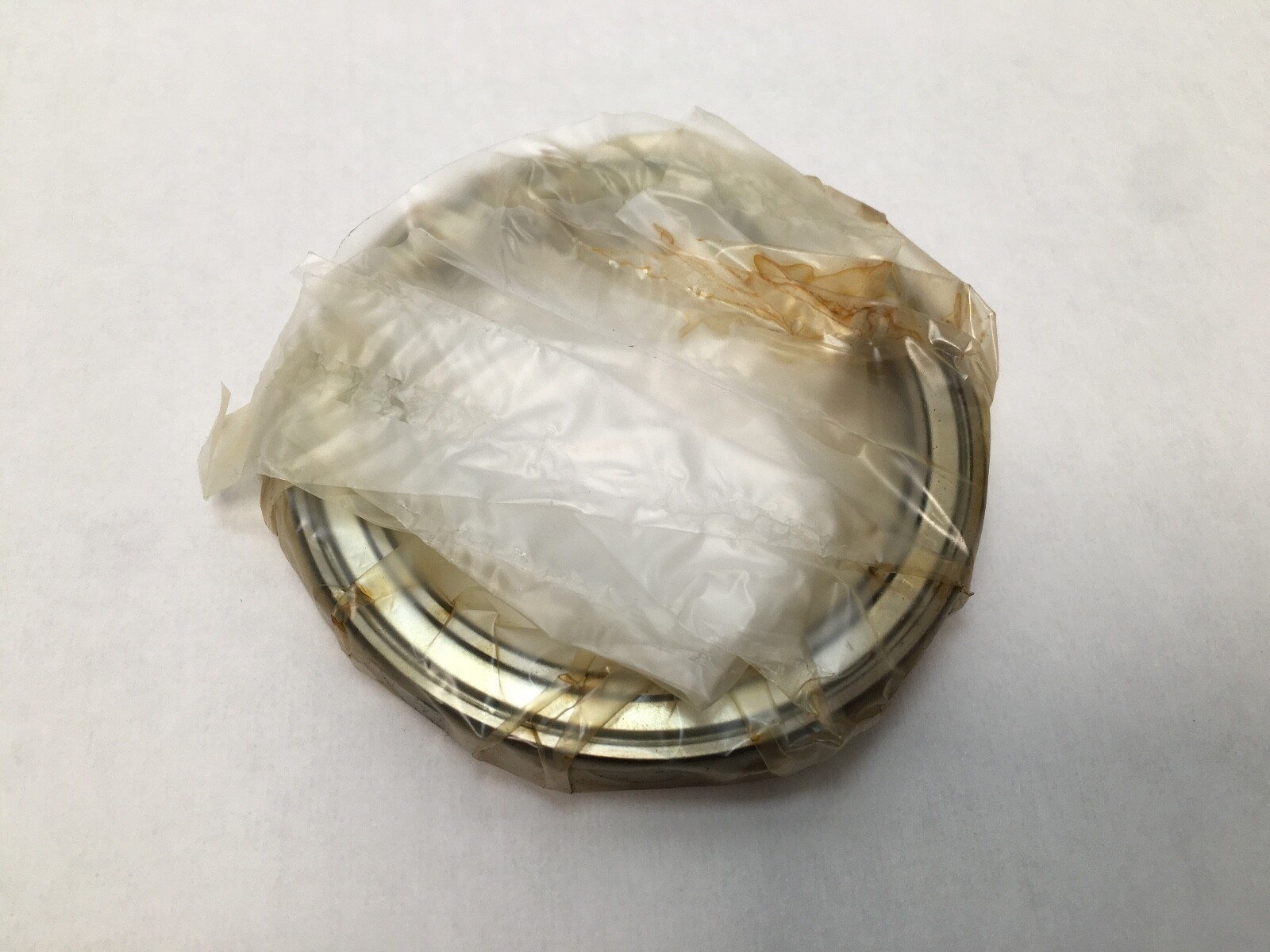

NTN 6813ZZ single-row thin-section deep groove ball bearing with a steel shield on each side. Bore Diameter: 65 mm. Outside Diameter: 85 mm. Overall Width: 10 mm. Bore Type: Straight. Closure Type: Shields both sides. Cage Material: Pressed steel. Rolling Elements: Ball. Internal Clearance: CN. Precision Class: ABEC 1 / P0. Series: 6800. Unit Quantity: 1 Pc.
6813 — 68 series thin-section deep groove ball bearing (ISO 618); bore code 13 gives a 65 mm bore.
ZZ — steel shields both sides.
2AS — factory fill of Shell Alvania 2 grease.
Dynamic Load Rating: 12,800 N. Static Load Rating: 11,000 N. Limiting Speed: 7,400 rpm grease. Item Weight: 0.120 kg (0.265 lb). Lubricant: Grease.
Bore Diameter: 65 mm. Outside Diameter: 85 mm. Overall Width: 10 mm. Shaft abutment diameter da min: 69 mm. Housing abutment diameter Da max: 81 mm. Fillet radius ras max: 0.6 mm.
Cross-references: SKF 61813-2Z; FAG 61813-2Z; NSK 6813ZZ; Koyo 6813ZZ; Nachi 6813ZZ. All are 65 x 85 x 10 mm double-shielded deep groove ball bearings.
Bore Diameter: 65 mm. Outside Diameter: 85 mm. Overall Width: 10 mm.
ZZ — steel shields both sides. Closure Type: Shields both sides.
Dynamic Load Rating: 12,800 N. Static Load Rating: 11,000 N. Limiting Speed: 7,400 rpm grease.
