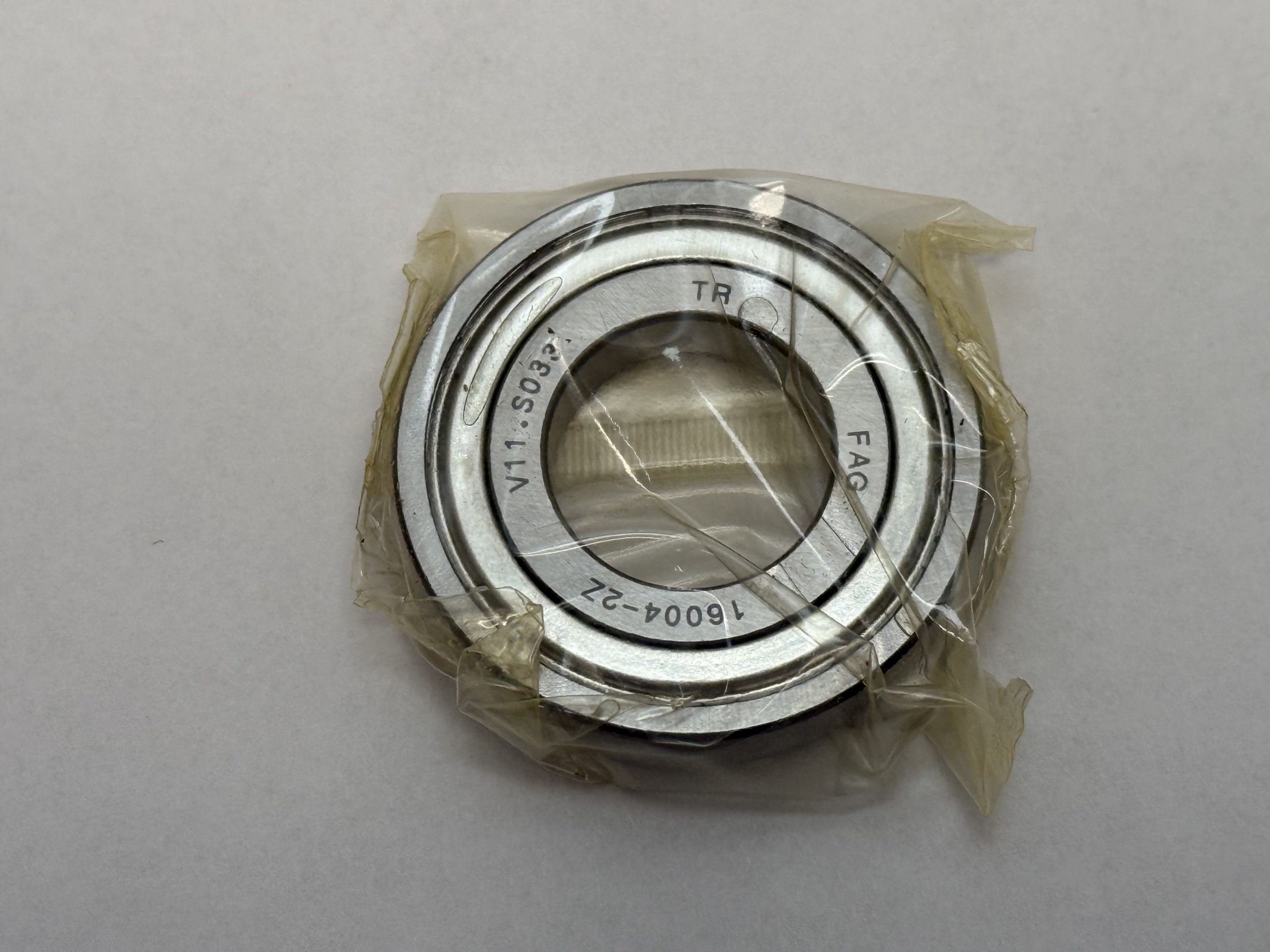

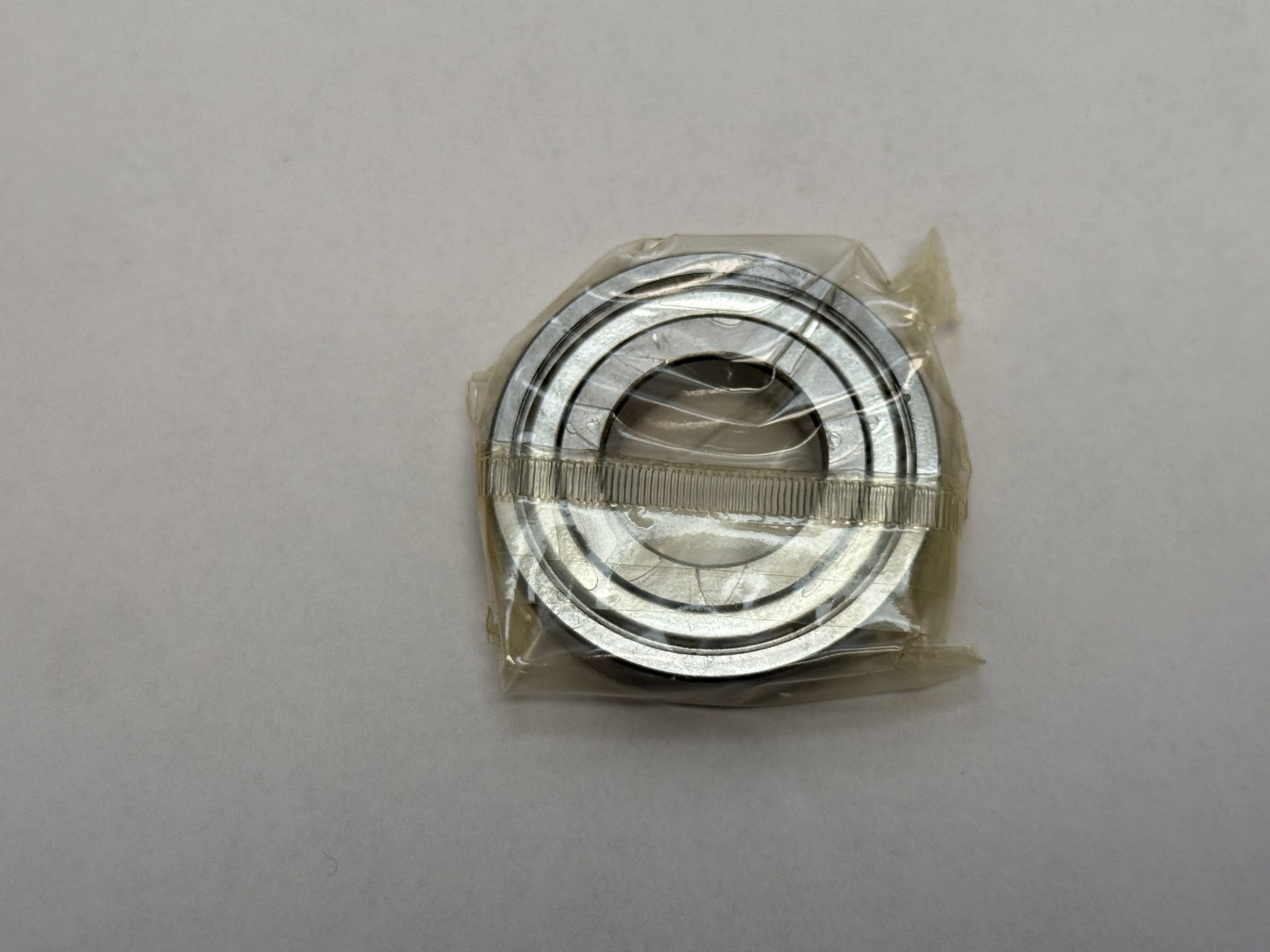

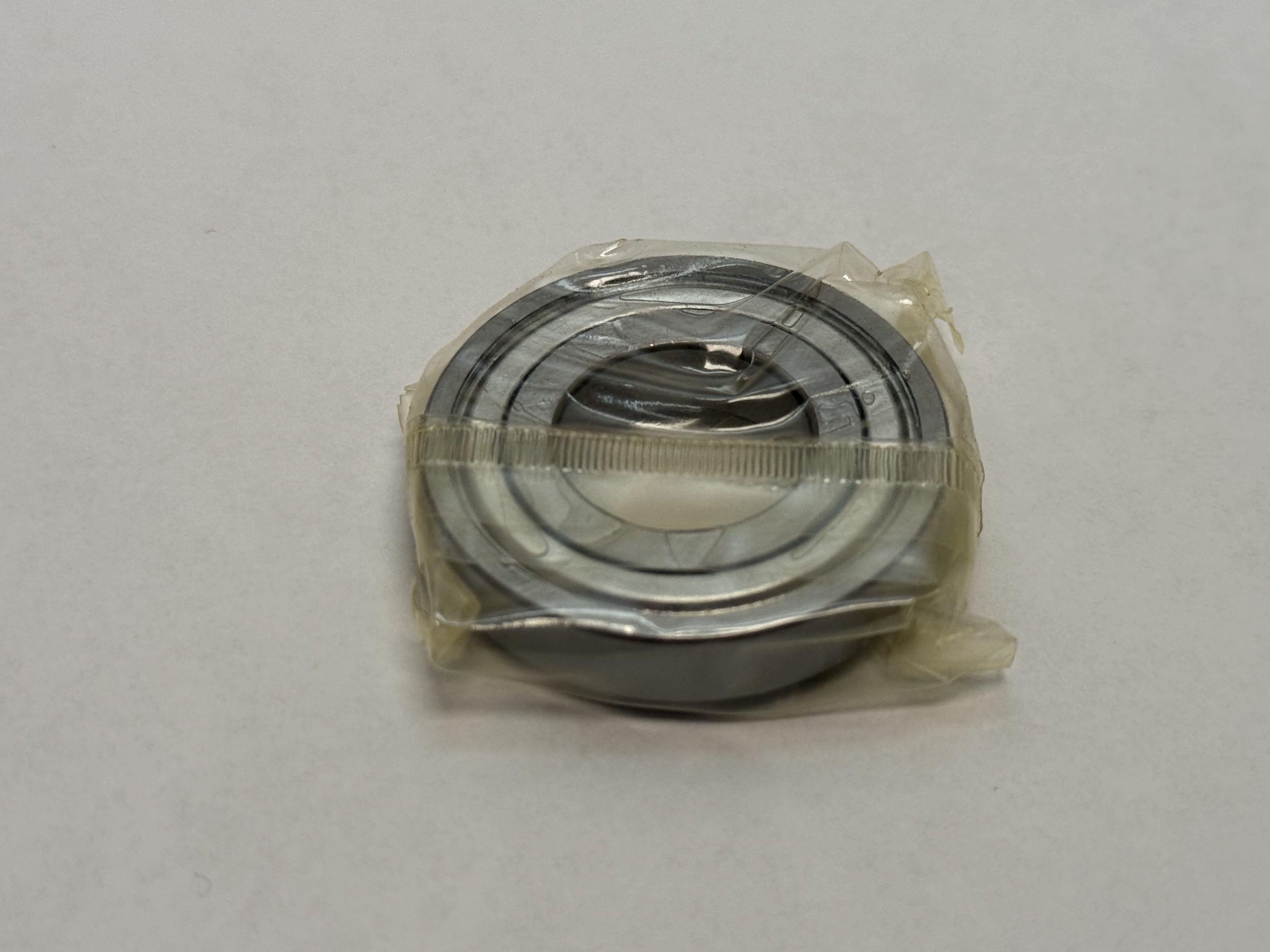

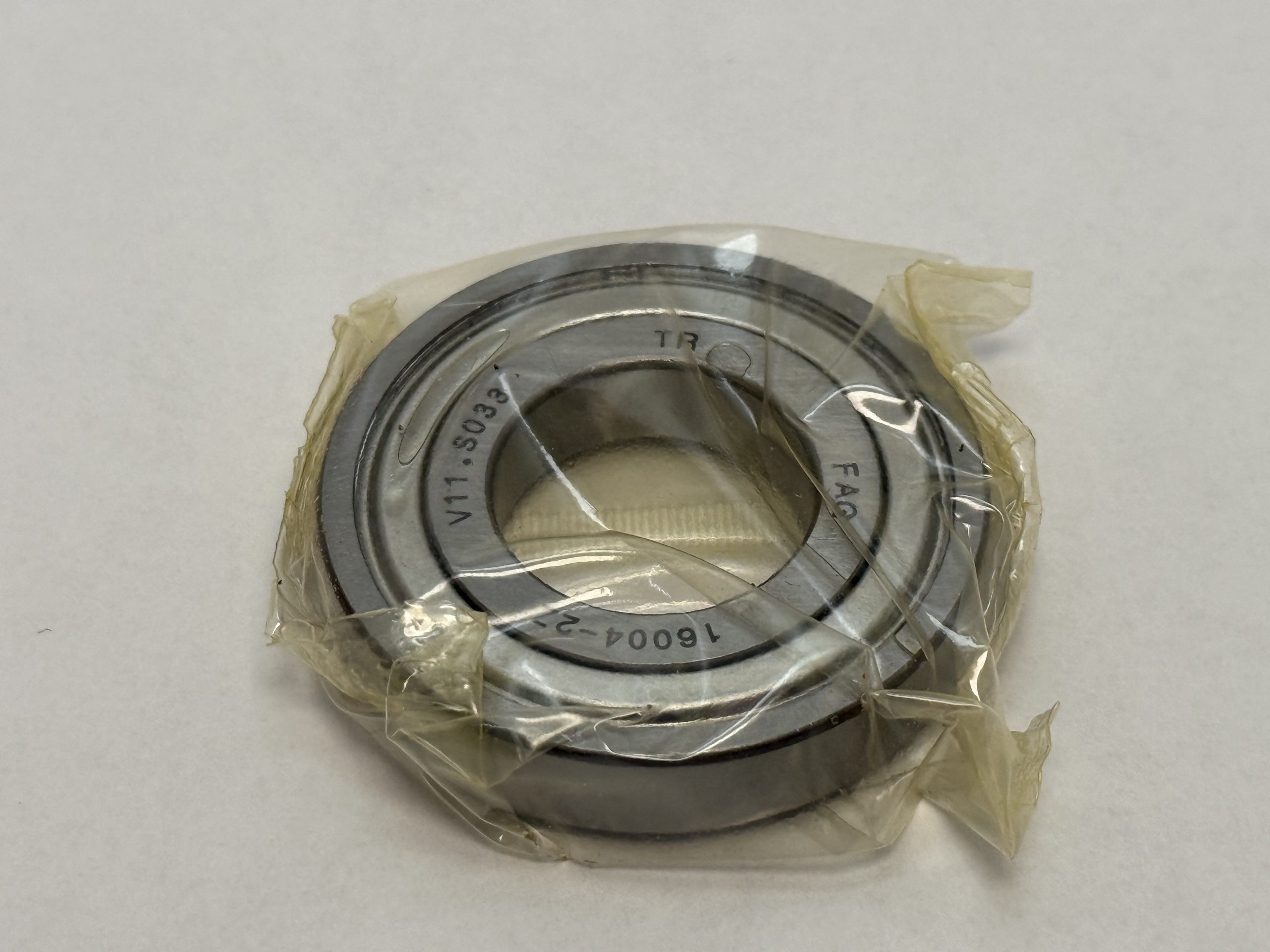

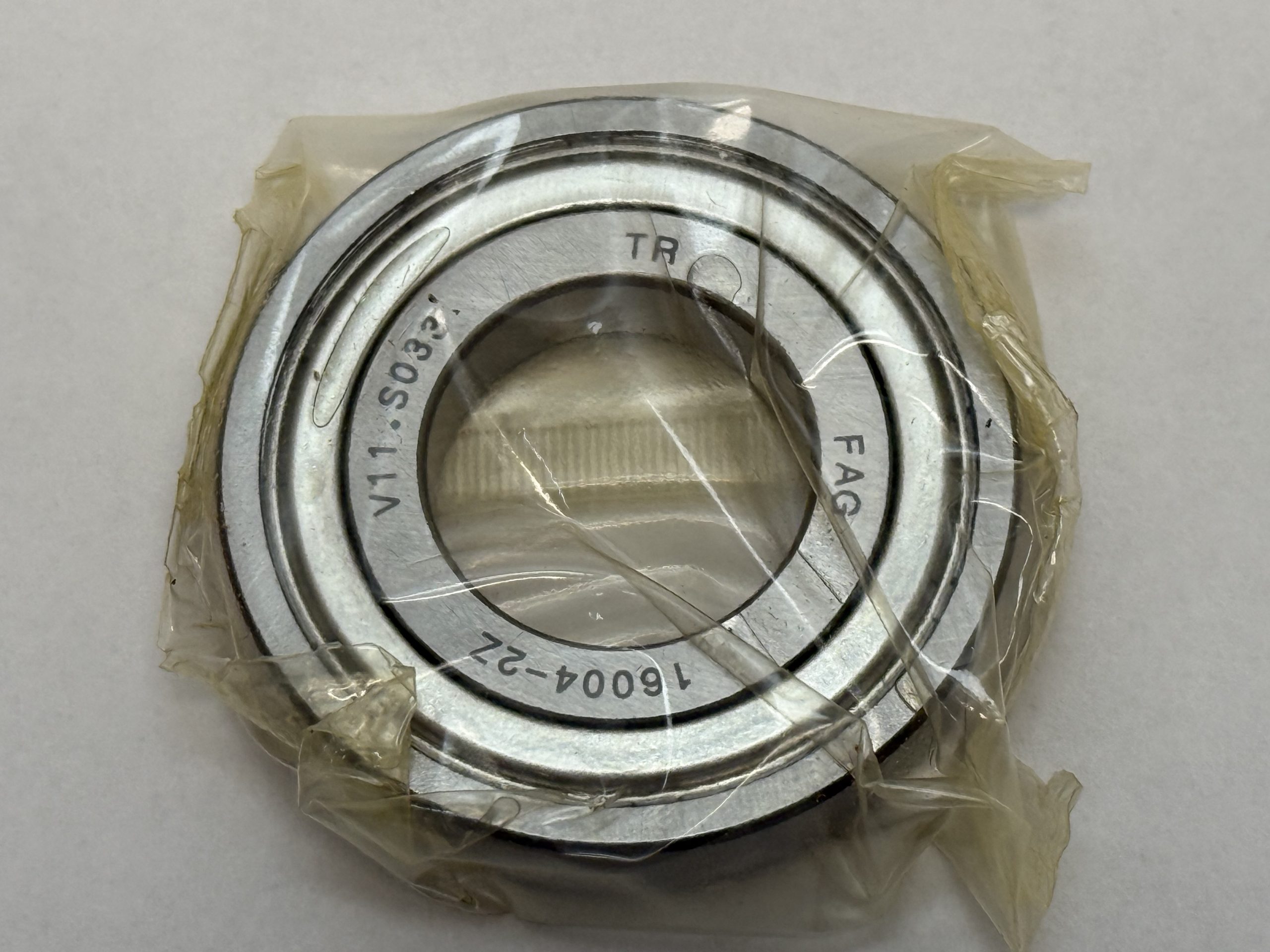

FAG 16004-A-2Z deep groove ball bearing, 20 x 42 x 8 mm, steel shields both sides, 7,100 N dynamic rating. Ten pieces, individually boxed.
List Price
$127.49
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Open Extra-Heavy Deep Groove Ball Bearings 20 x 72 x 19 mm, 64 Series, Normal Clearance, 2 Pcs$42.48
Deep Groove Ball Bearing - 100 mm Bore, 150 mm OD, 16 mm Extra-Thin Section, Open$65.31
Deep Groove Ball Bearing – 80 mm Bore, 170 mm OD, 39 mm Width, Open, Heavy 63 Series$66.43
Deep Groove Ball Bearing – 80 mm Bore, 170 mm OD, 39 mm Width, Contact Seals Both Sides, C3 Clearance$69.19| MFR / Brand | FAG |
|---|---|
| MPN | 16004-A-2Z |
| GTIN | 4012802335699 |
| Model | 16004-A-2Z |
| Bearing Type | Deep Groove Ball Bearing, Shields both sides |
| ID | 20 mm |
| OD | 42 mm |
| Width | 8 mm |
| Overall Width | 8 mm |
|---|---|
| Mpn Variants | 16004-A-2Z, 16004-2Z, 16004ZZ, 16004.A.2Z, 16004 A 2Z |
| Precision Class | ABEC 1 / P0 |
| Additional Attributes | Fatigue Load Limit: 240 N. Thermal Speed Rating: 13,800 rpm. |
| Material | Steel |
| Min Temp | -20 °C |
| Dynamic Load Rating | 7,100 N |
| Static Load Rating | 4,100 N |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.051 kg (0.11 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Cylindrical |
| Snap Ring Included | No |
| Limiting Speed | 22,100 rpm grease |
| Internal Clearance | CN |
| Cross Reference 1 | SKF 16004-2Z |
|---|---|
| Cross Reference 2 | NSK 16004ZZ |
| Cross Reference 3 | NTN 16004ZZ |
| Cross Reference 4 | Koyo 16004ZZ |
FAG 16004-A-2Z is a single-row deep groove ball bearing in the extra-light 160 series, with non-contact sheet steel shields on both sides. Bore Diameter: 20 mm. Outside Diameter: 42 mm. Overall Width: 8 mm. The 8 mm width is narrower than a 6004 on the same bore and OD, for radially and axially tight spaces.
16004 — 160 extra-light series deep groove ball bearing, bore code 04 = 20 mm.
A — Schaeffler design variant A.
2Z — non-contact steel shield on both sides.
Dynamic Load Rating: 7,100 N. Static Load Rating: 4,100 N. Fatigue Load Limit: 240 N. Limiting Speed: 22,100 rpm grease. Thermal Speed Rating: 13,800 rpm. Item Weight: 0.051 kg (0.11 lb) each. Cage Material: Pressed steel. Internal Clearance: CN. Precision Class: ABEC 1 / P0. Lubricant: grease, factory filled. Operating temperature: -20 °C to 120 °C.
Minimum shaft shoulder diameter: 22 mm. Maximum housing shoulder diameter: 40 mm. Maximum fillet radius: 0.3 mm. Minimum chamfer: 0.3 mm.

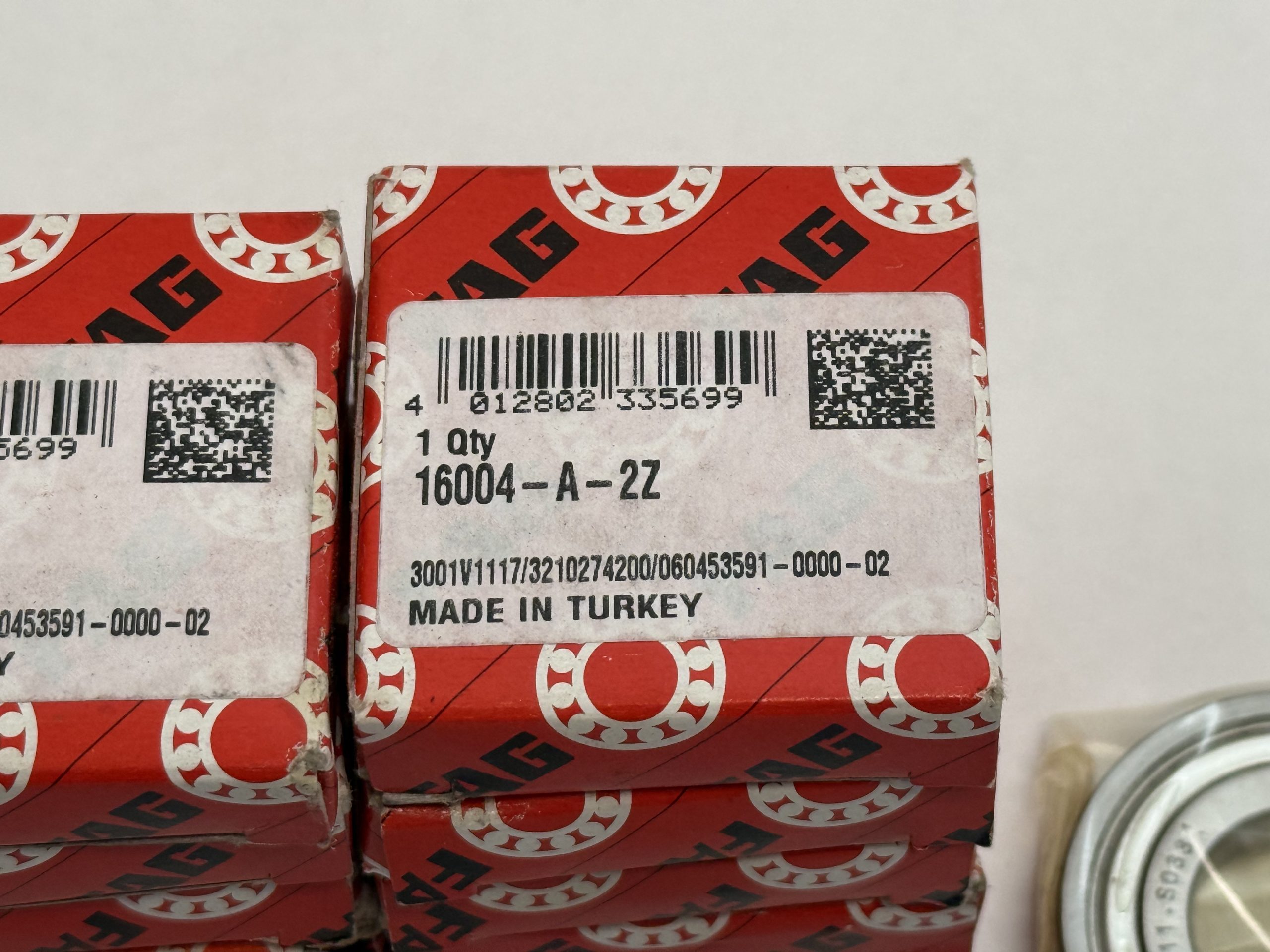

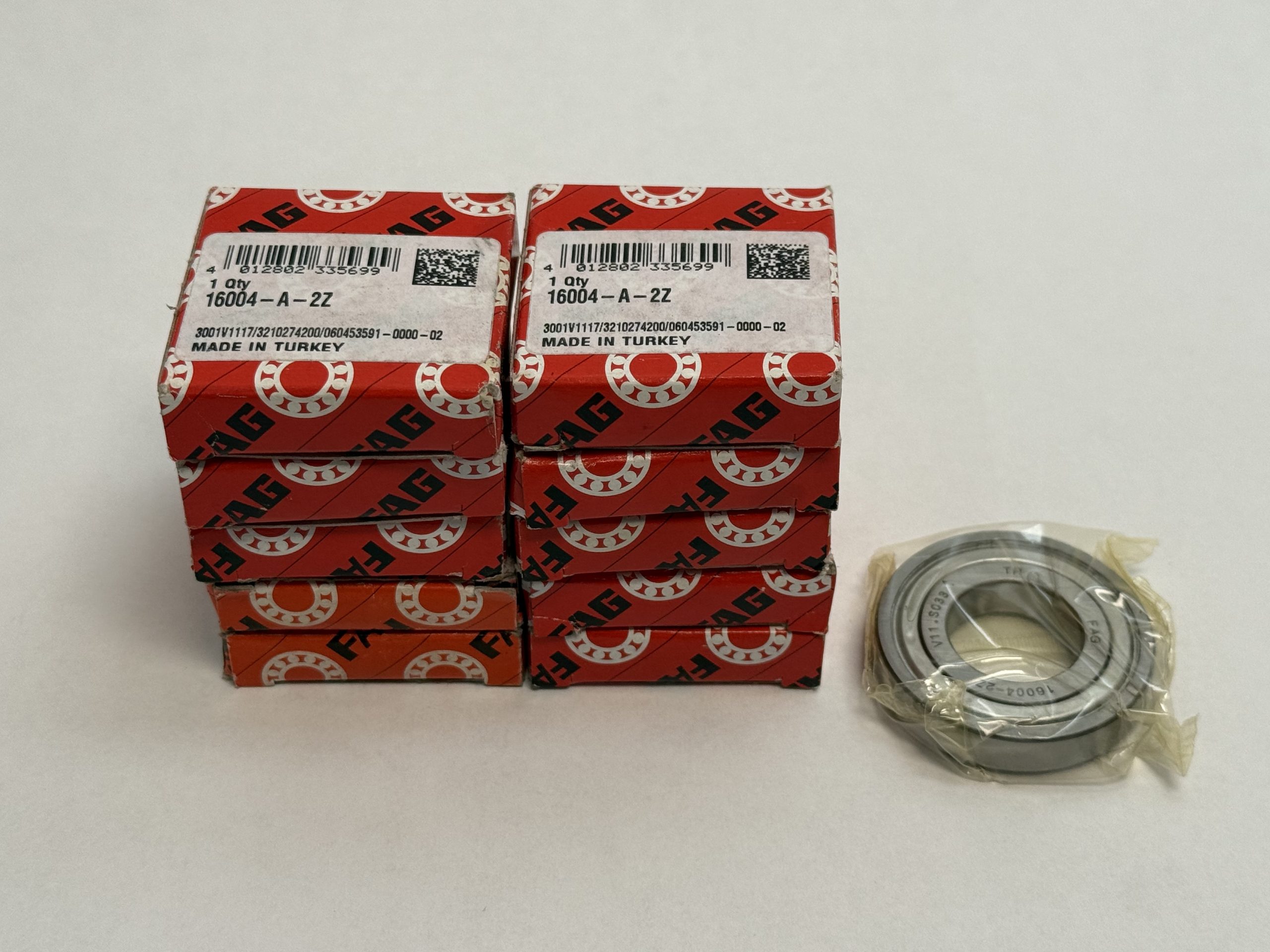

Unit Quantity: 10 Pcs. Ten individually boxed bearings sold together. GTIN: 4012802335699 (single bearing).
Equivalent shielded 16004 executions: SKF 16004-2Z, NSK 16004ZZ, NTN 16004ZZ, Koyo 16004ZZ, SNR 16004ZZ. Also marked 16004-2Z, 16004ZZ and 16004.A.2Z.
