FAGDeep Groove Ball Bearing – 80 mm Bore, 170 mm OD, 39 mm Width, Contact Seals Both Sides, C3 Clearance

Product Description

What this part is

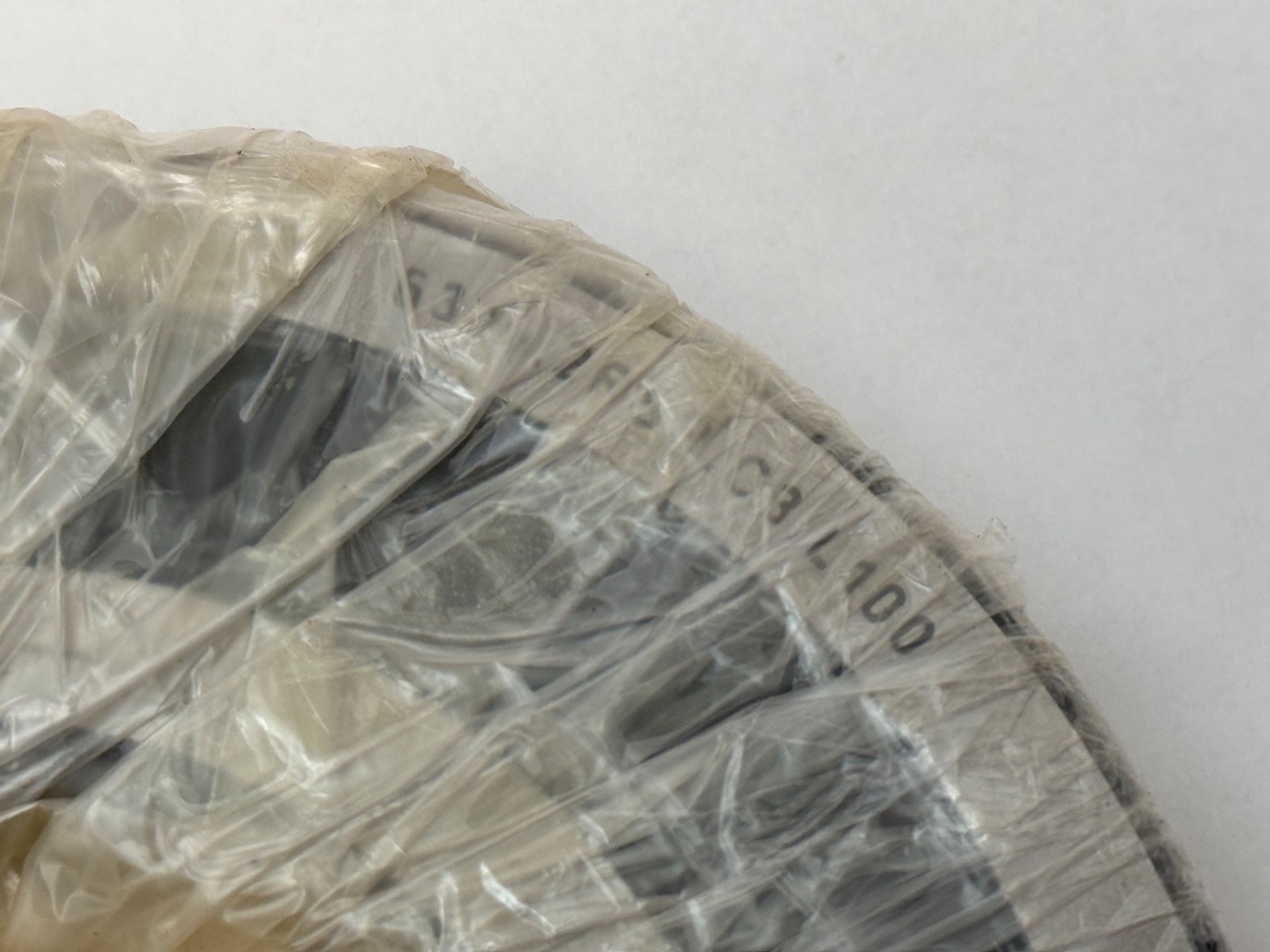

FAG 6316-2RSR-C3 deep groove ball bearing, single row, sealed on both sides. Bore / Shaft Size: 80 mm. Outside Diameter: 170 mm. Overall Width: 39 mm. Dynamic Load Rating: 131,000 N. Static Load Rating: 87,000 N. Fatigue Load Limit: 5,400 N. Limiting Speed: 2,470 rpm. Weight: 3.79 kg. Internal Clearance: C3. Precision Class: PN, normal to ISO 492:2023. Cage Material: pressed steel. Cage Type: sheet metal. Bore Type: cylindrical. Closure Type: contact seals both sides. Number Of Rows: 1. Rolling Elements: balls. Lubricant: ball bearing grease, GA13. Operating Temperature: –20 °C to 100 °C. Series: 63. Base Number: 6316. Bearing Material: chrome steel. Design Units: Metric.

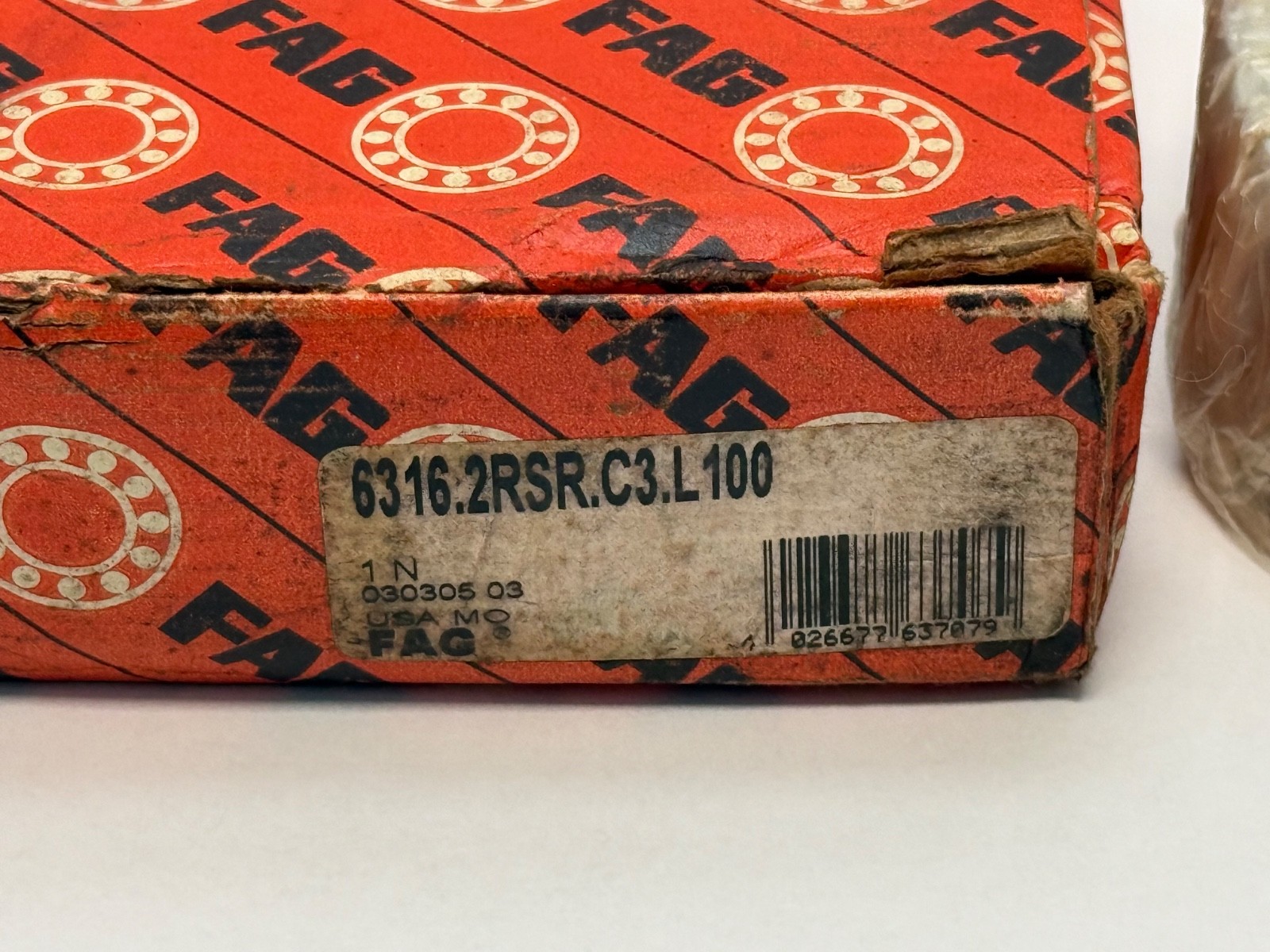

Decoding the designation

63 — the heavy dimension series, which puts a 170 mm outside diameter and a 39 mm width over an 80 mm bore.

16 — the bore code: 16 x 5 gives the 80 mm bore.

2RSR — contact lip seals on both sides, Schaeffler’s seal code.

C3 — radial internal clearance greater than normal.

JN — pressed steel sheet metal cage.

What these specs mean in practice

The 63 heavy series carries a larger ball complement in a thicker section than a 62 or 60 bearing on the same shaft, so it takes markedly more radial load. Dynamic Load Rating: 131,000 N governs rotating life. Static Load Rating: 87,000 N sets the shock and stationary ceiling. Fatigue Load Limit: 5,400 N is the load below which fatigue life is effectively unlimited.

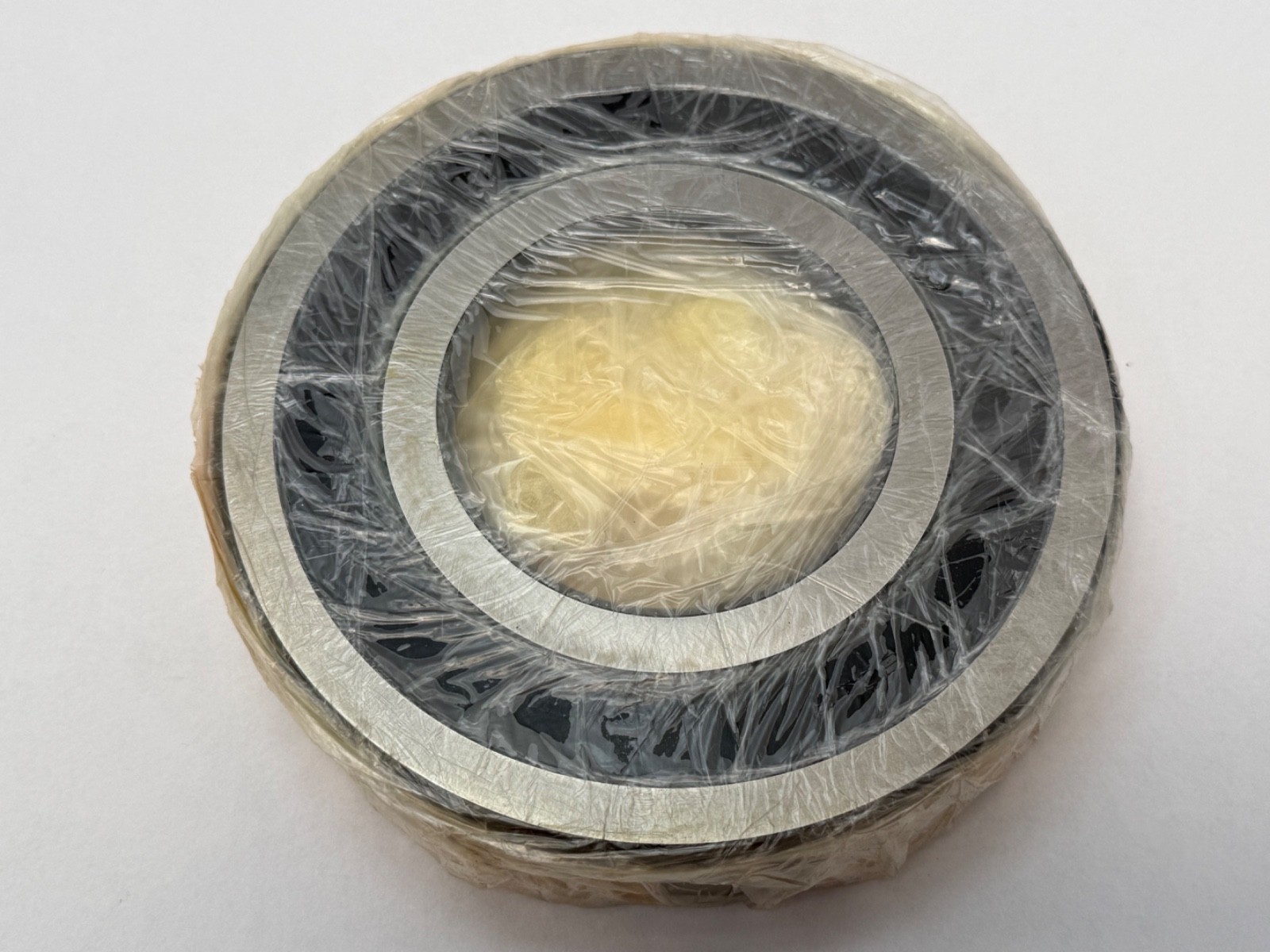

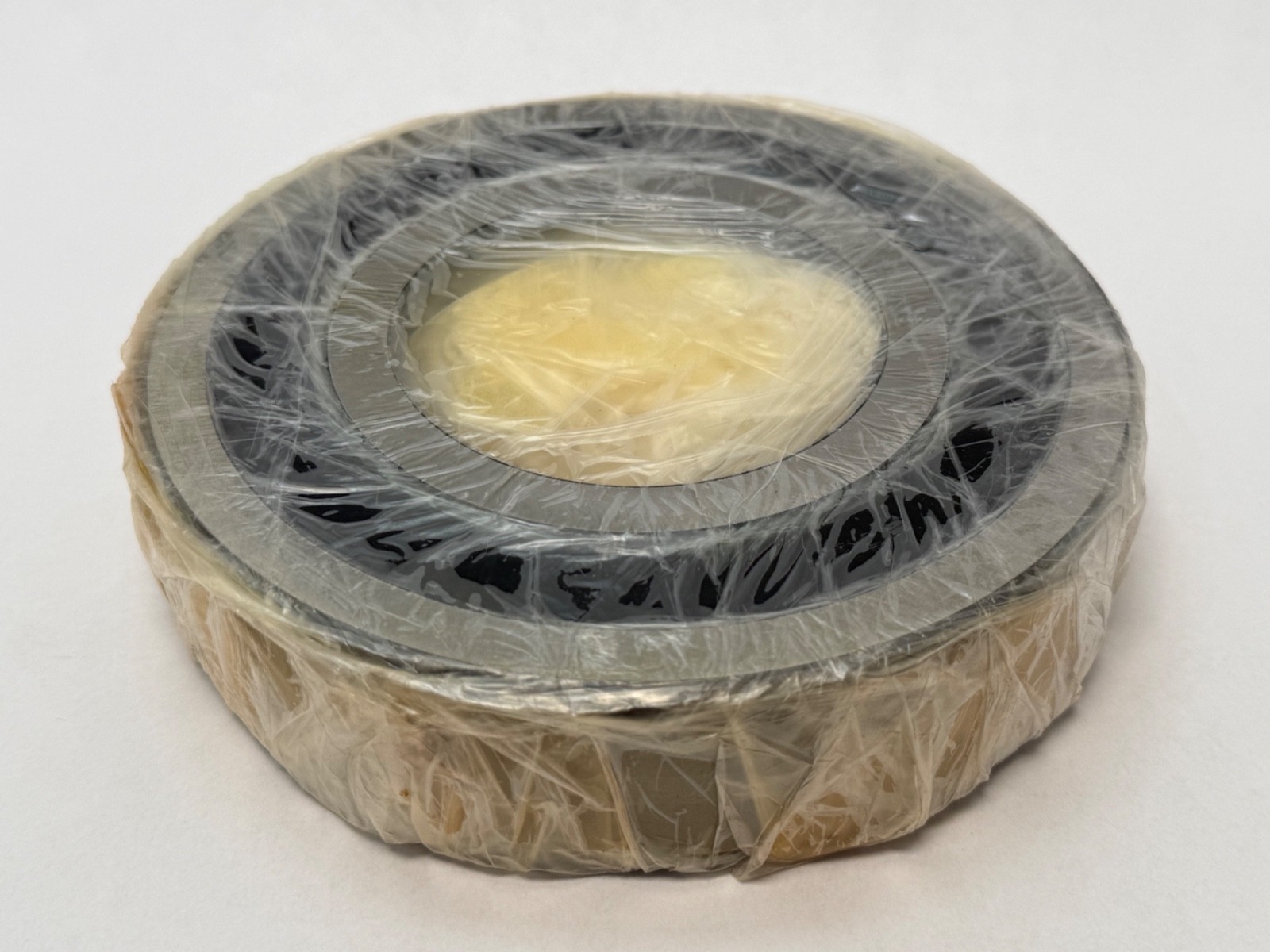

Closure Type: contact seals both sides. The seals hold the factory grease charge in and keep dust, coolant and washdown out for the life of the bearing. Typical duty is conveyors, fans, crushers and outdoor drives. The rubbing lips cost some running torque, which is why the Limiting Speed of this sealed execution is 2,470 rpm.

Internal Clearance: C3 gives more room than normal before the balls are preloaded. That headroom absorbs a heavy interference fit on the shaft and the temperature difference between the inner and outer ring, which is why C3 is specified on hot and hard-driven shafts.

Mounting data

Shaft seat 80 mm; housing bore 170 mm; seat length 39 mm. Minimum diameter of shaft shoulder da min: 92 mm. Maximum diameter of housing shoulder Da max: 158 mm. Maximum fillet radius ra max: 2.1 mm. Minimum chamfer dimension r min: 2.1 mm. Shoulder diameter of the outer ring D1: 141.92 mm. Caliber diameter of the outer ring D2: 145.48 mm. Shoulder diameter of the inner ring d1: 108.2 mm. Weight 3.79 kg.

Quantity and configuration

Unit Quantity: 1 Pc.

Interchange guidance
