Availability:
1 in stock

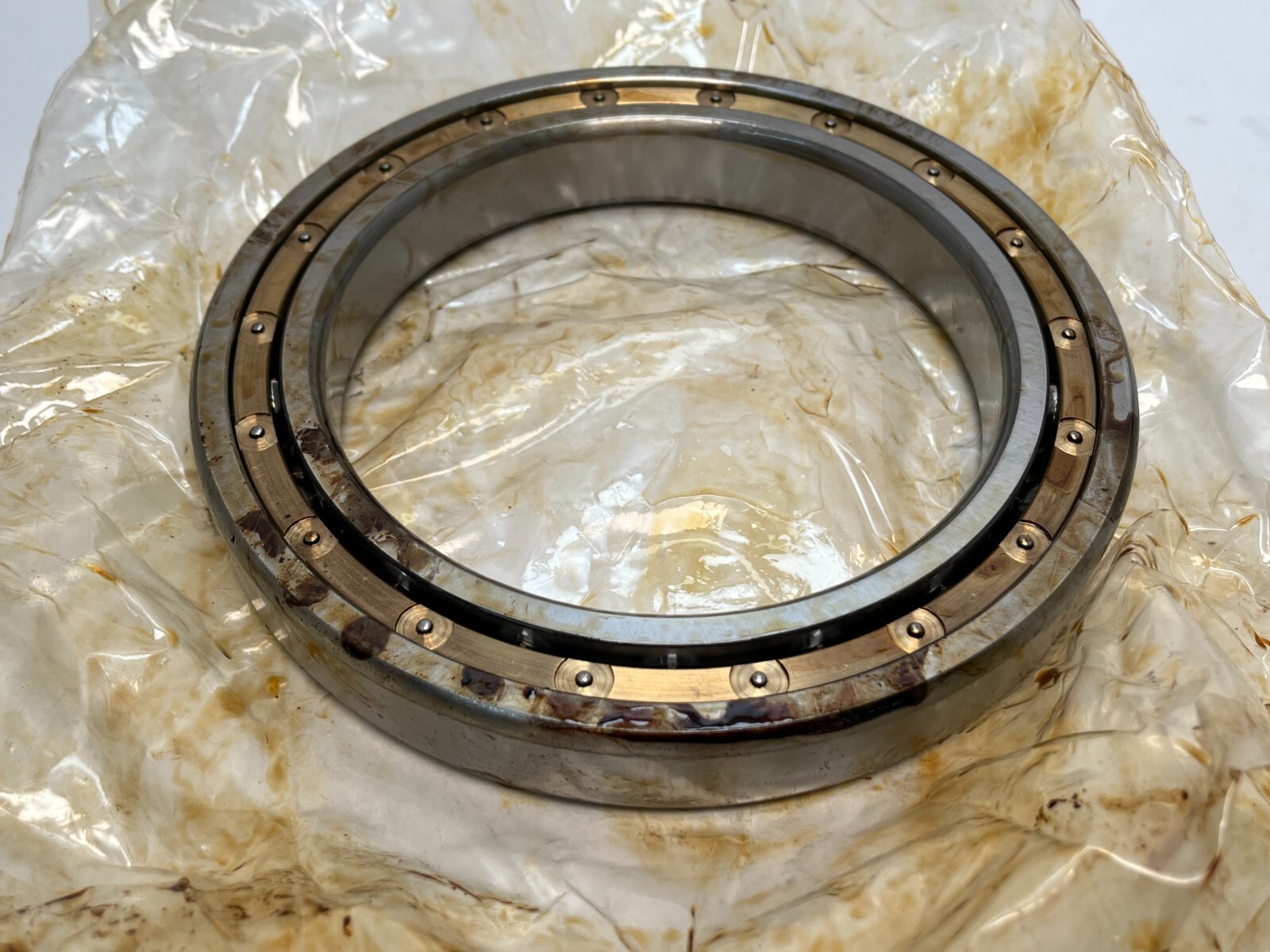

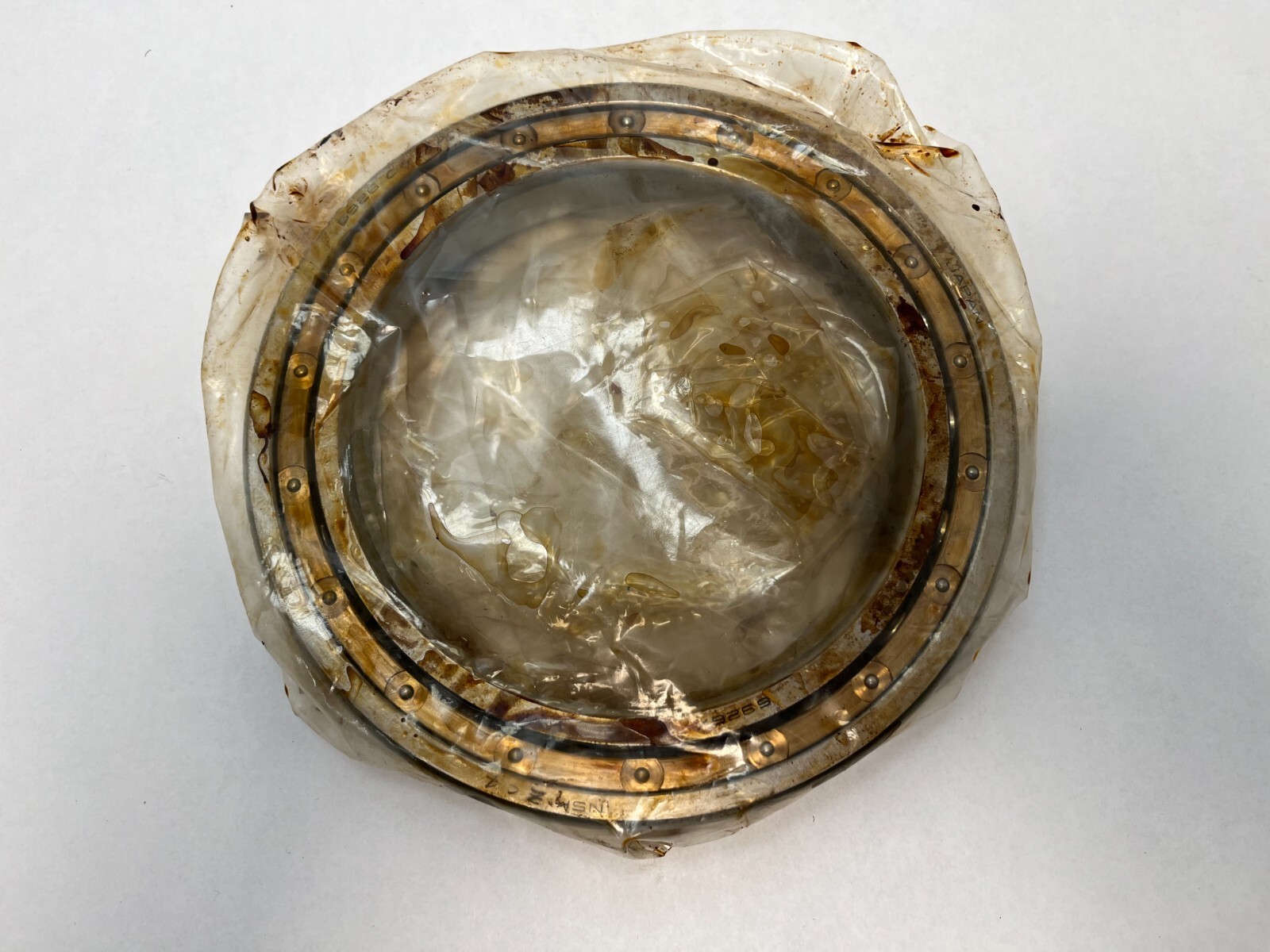

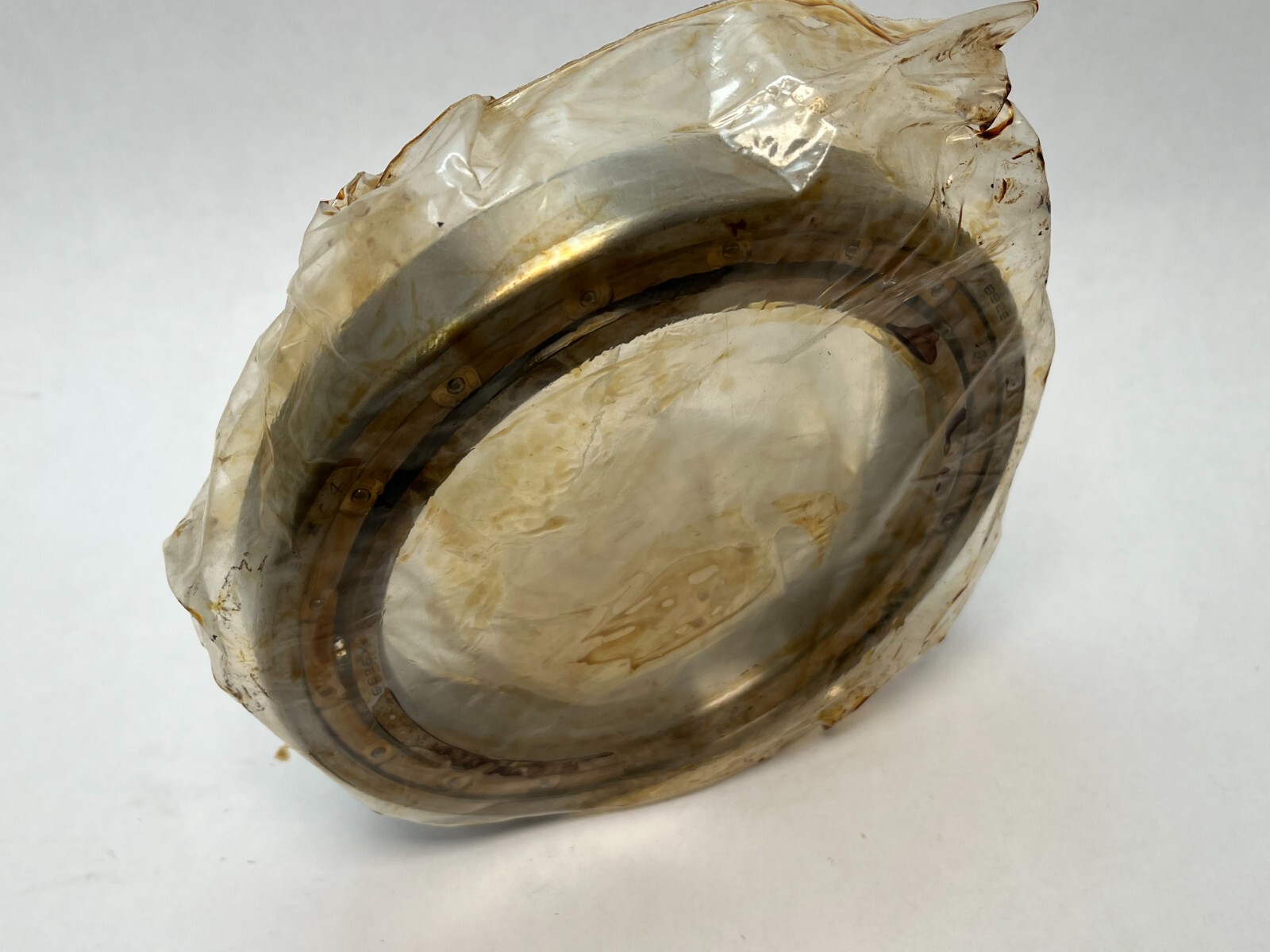

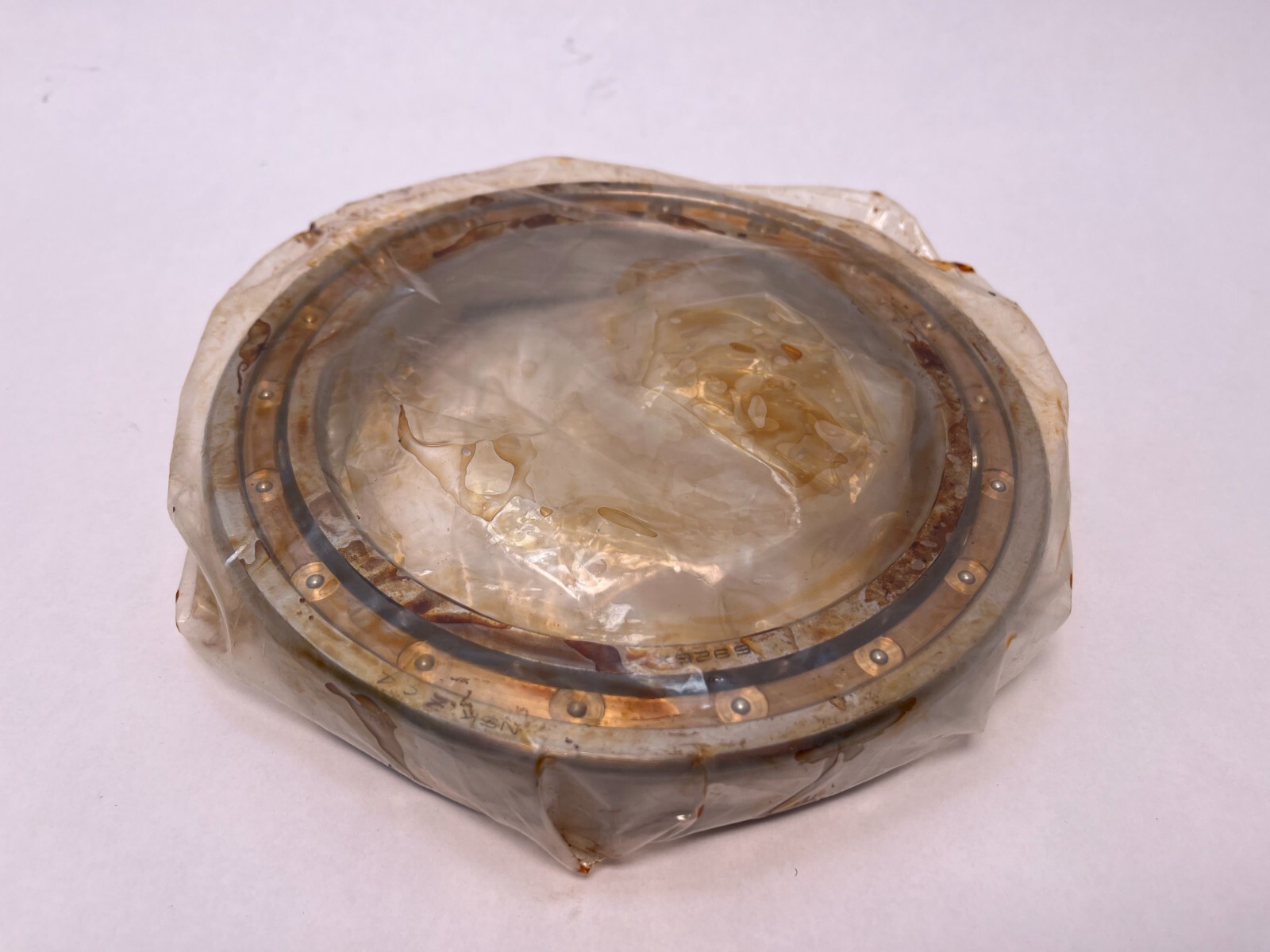

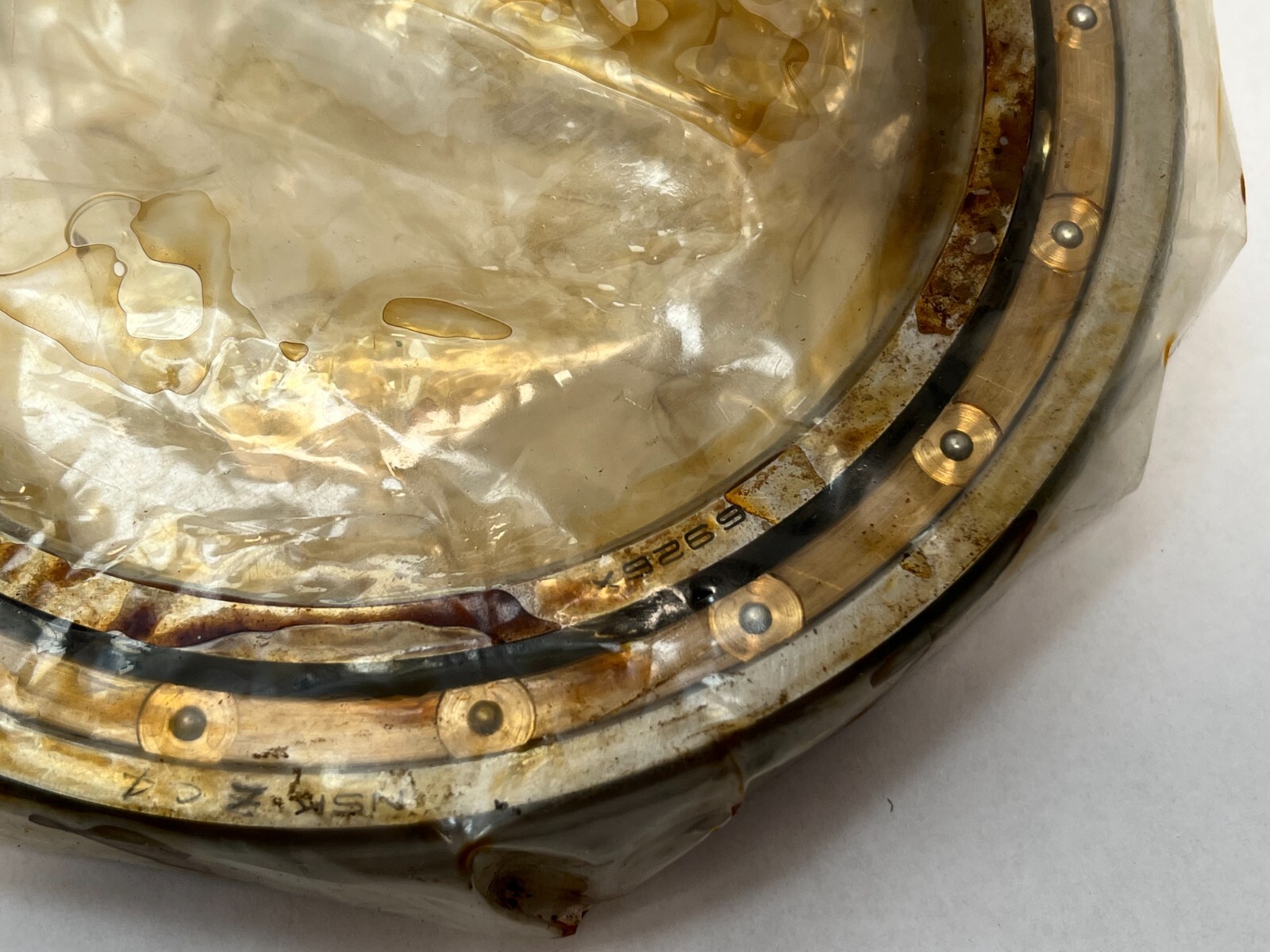

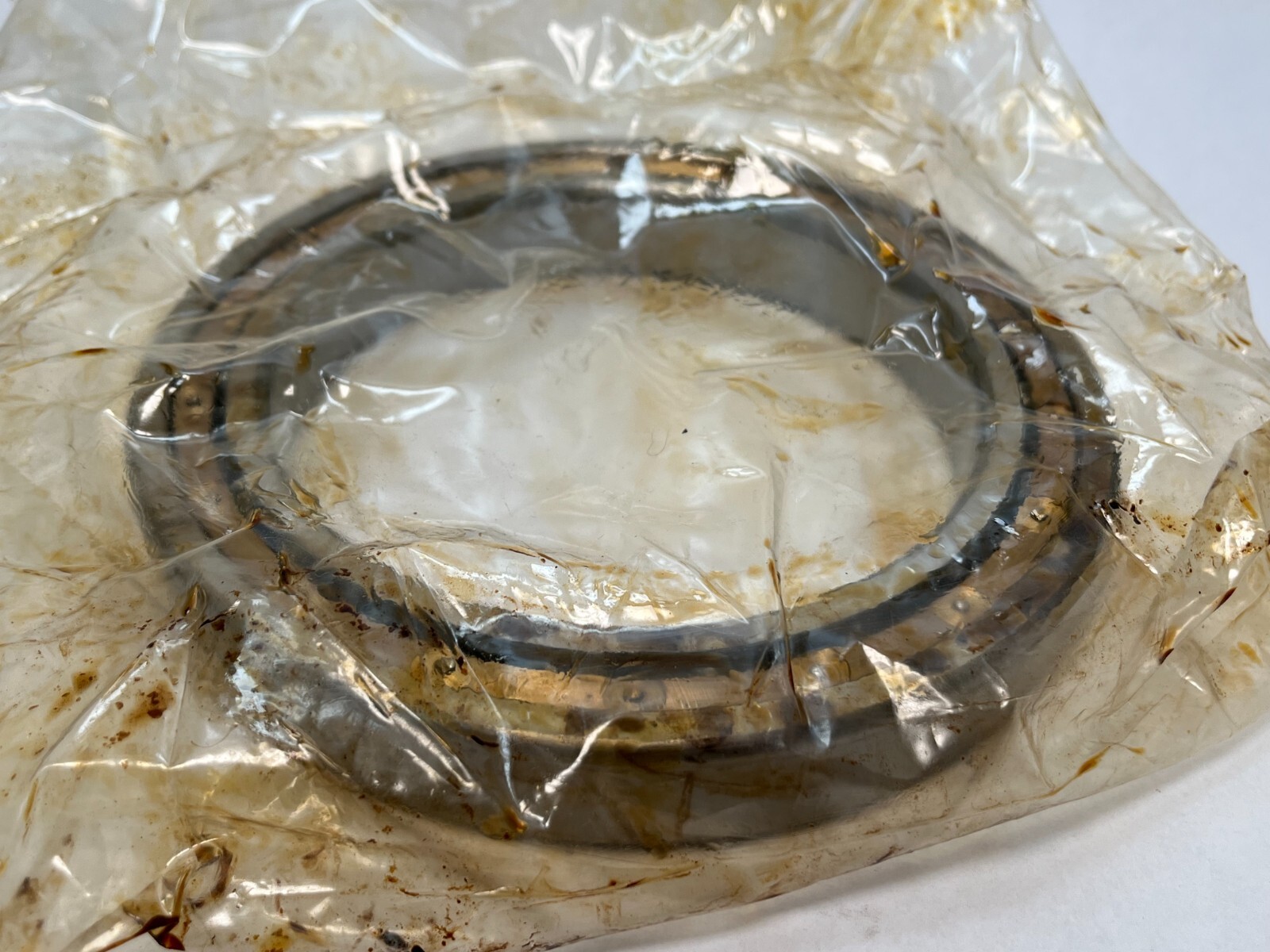

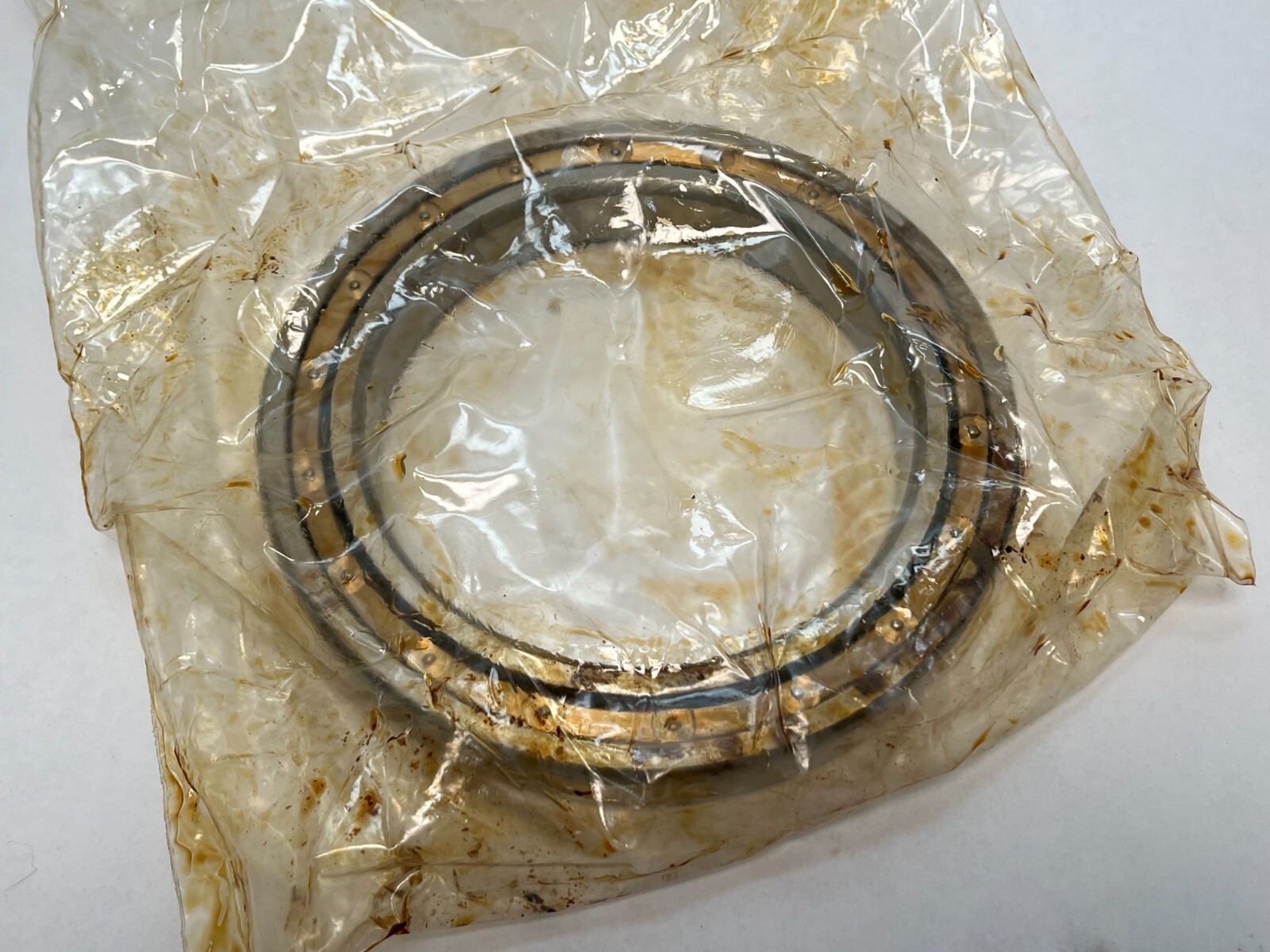

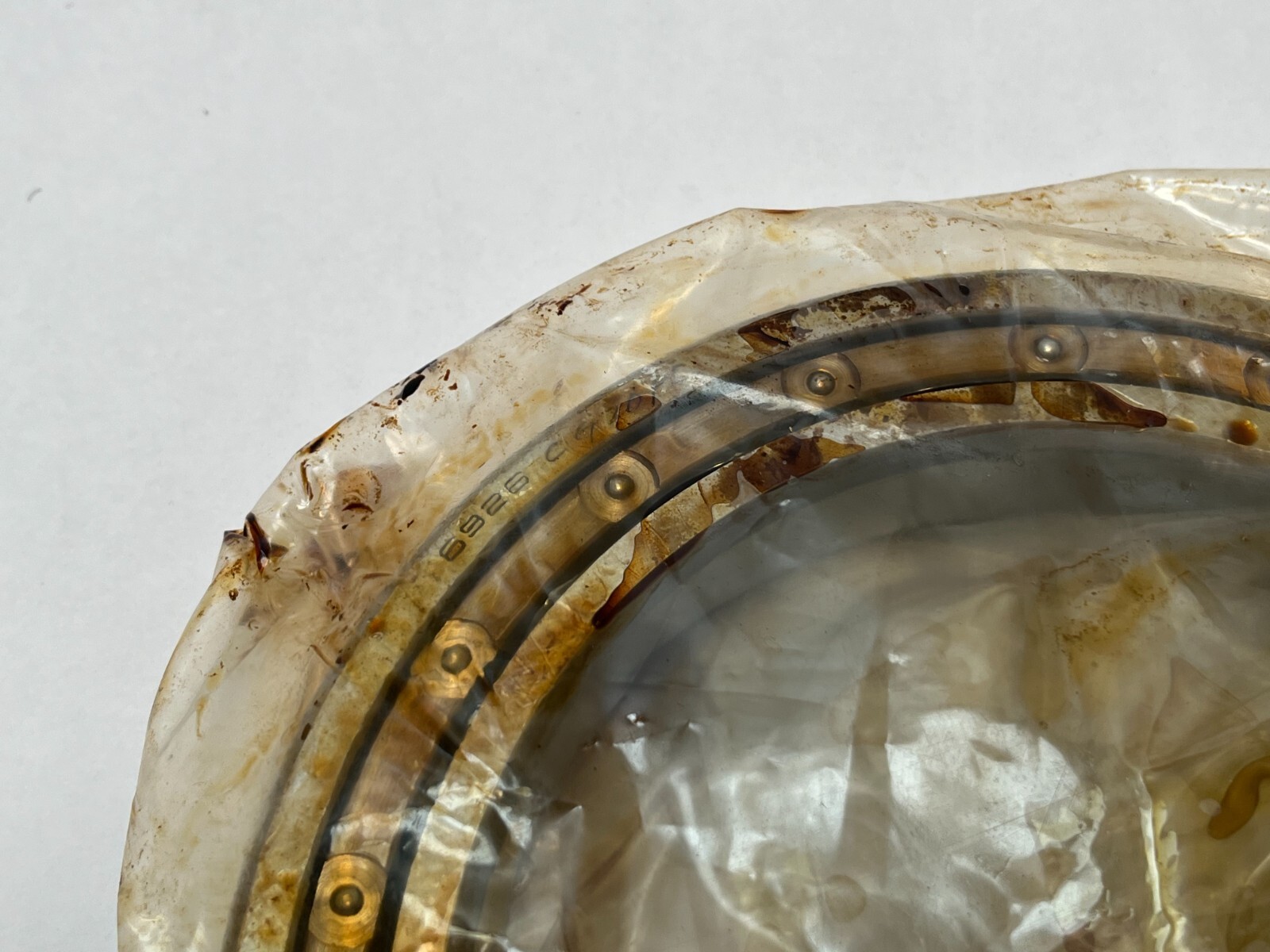

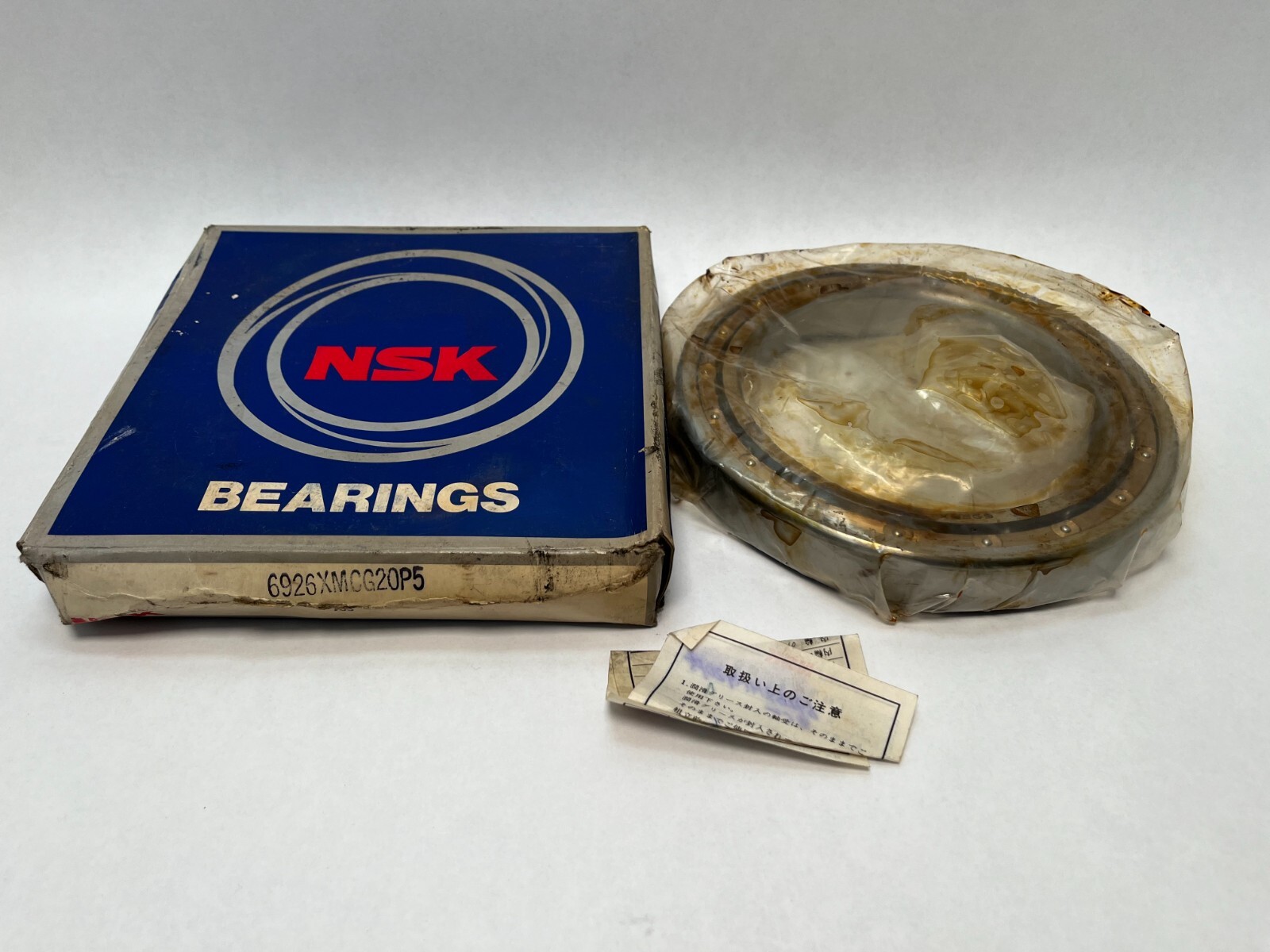

Thin-section deep groove ball bearing, 130 x 180 x 24 mm, ABEC 5 / P5 precision. NSK 6926 XM CG20 P5, 71,500 N dynamic rating, open on both sides.
List Price
$191.22
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 6926XMCG20P5 |
| Model | 6926 X M C G20 P5 / 6926CMG20P5 / 6926-C-M-G20-P5 |
| Bearing Type | Deep Groove Ball Bearing, Open |
| ID | 130 mm |
| OD | 180 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Series | 69 |
| Base Number | 6926 |
| Industry Terms | deep groove ball bearing; thin section bearing; radial ball bearing; single row ball bearing; precision ball bearing; slim line bearing |
| Common Misspellings | 6926 XM CG 20 P5; 6926XMCG2OP5; 69 26 XM P5; 6926XMC G20P5; 6926 x m cg20 p5 |
| Application Types | machine tool rotary tables; robotics and rotary joints; semiconductor equipment; medical imaging gantries; large gearheads |
| Total Width | 24 mm |
| Overall Width | 24 mm |
| Mpn Variants | 6926XMCG20P5; 6926-X-M-CG20-P5; 6926 X M CG20 P5; 6926XM; 6926 CG20; 6926P5; 61926; 6926 |
| Precision Class | ABEC 5 / P5 |
| Additional Attributes | Bearing chamfer r min 1.5 mm. da 138-144 mm; Da max 172 mm; ra max 1.5 mm. ISO 69 thin dimension series; full ISO designation 61926. |
| Dynamic Load Rating | 71,500 N |
| Static Load Rating | 67,500 N |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Cylindrical |
| Snap Ring Included | Without Snap Ring |
| Limiting Speed | 3,400 rpm grease; 4,000 rpm oil |
| Lubricant | grease or oil |
| Harmonization Code | 8482.10.50 |
| Cross Reference 1 | SKF 61926 |
|---|---|
| Cross Reference 2 | FAG 61926 |
| Cross Reference 3 | NTN 6926 |
| Cross Reference 4 | Koyo 6926 |
| Cross Reference 5 | NACHI 6926 |
NSK 6926 single-row thin-section deep groove ball bearing, open on both sides. Bore Diameter: 130 mm. Outside Diameter: 180 mm. Overall Width: 24 mm. Rolling Elements: Ball. Number Of Rows: 1. Precision Class: ABEC 5 / P5. Closure Type: Open. The 69 thin series holds a 25 mm radial section on a 130 mm bore, which suits large-diameter rotary joints where housing depth is limited.
6926 — ISO deep groove ball size in the 69 thin dimension series, 130 mm bore, 180 mm outside diameter, 24 mm width. The same size appears in full ISO form as 61926.
P5 — ISO class 5 precision, equivalent to ABEC 5.
Dynamic Load Rating: 71,500 N (16,074 lbf). Static Load Rating: 67,500 N (15,174 lbf). Limiting Speed: 3,400 rpm grease; 4,000 rpm oil. Lubricant: grease or oil. Bearing chamfer r min: 1.5 mm. The P5 grade holds bore, outside diameter and running accuracy to class 5 limits, which keeps runout low on a large-diameter rotating face.
Shaft abutment diameter da: 138–144 mm. Housing abutment diameter Da max: 172 mm. Maximum abutment fillet radius ra: 1.5 mm.
Unit Quantity: 1 Pc. Number Of Rows: 1.
The 6926 / 61926 envelope is shared by SKF 61926, FAG 61926, NTN 6926, Koyo 6926 and NACHI 6926. The P5 grade is an execution variant on that envelope.
