SKFNU 213 MA/P6Single-Row Cylindrical Roller Bearing 65 x 120 x 23 mm, NU Non-Locating Design, Machined Brass Cage, P6

Product Description

What this part is:

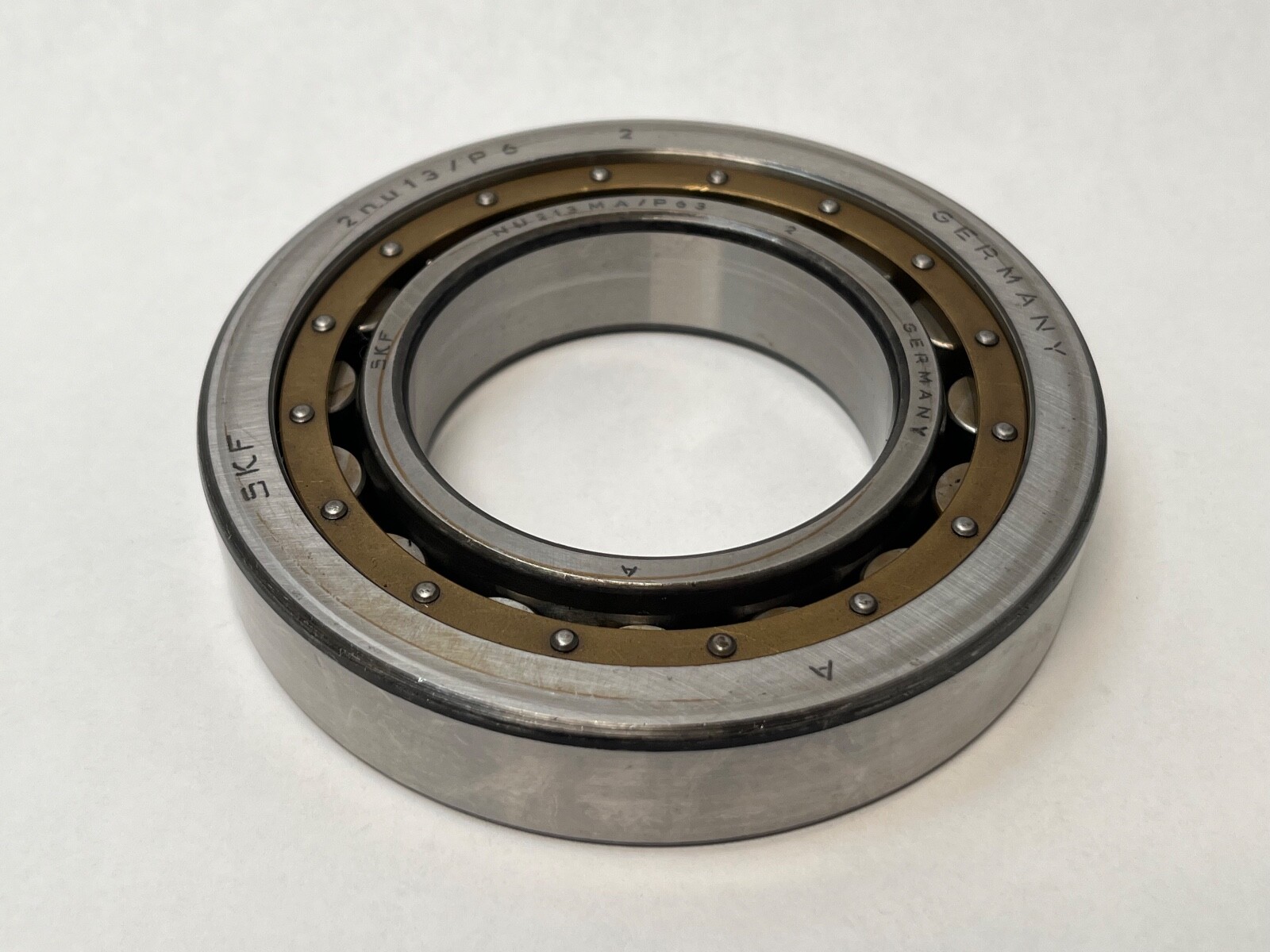

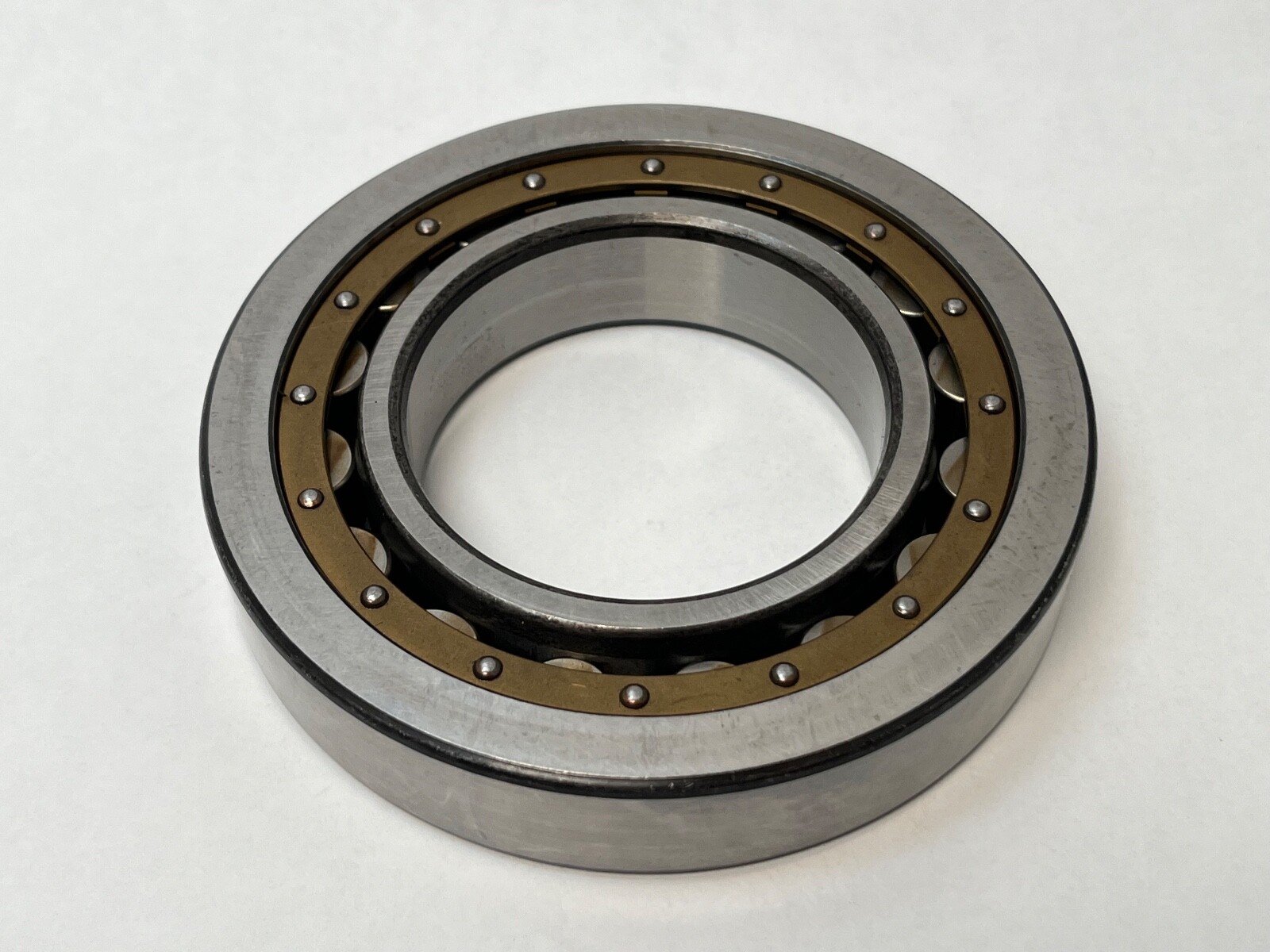

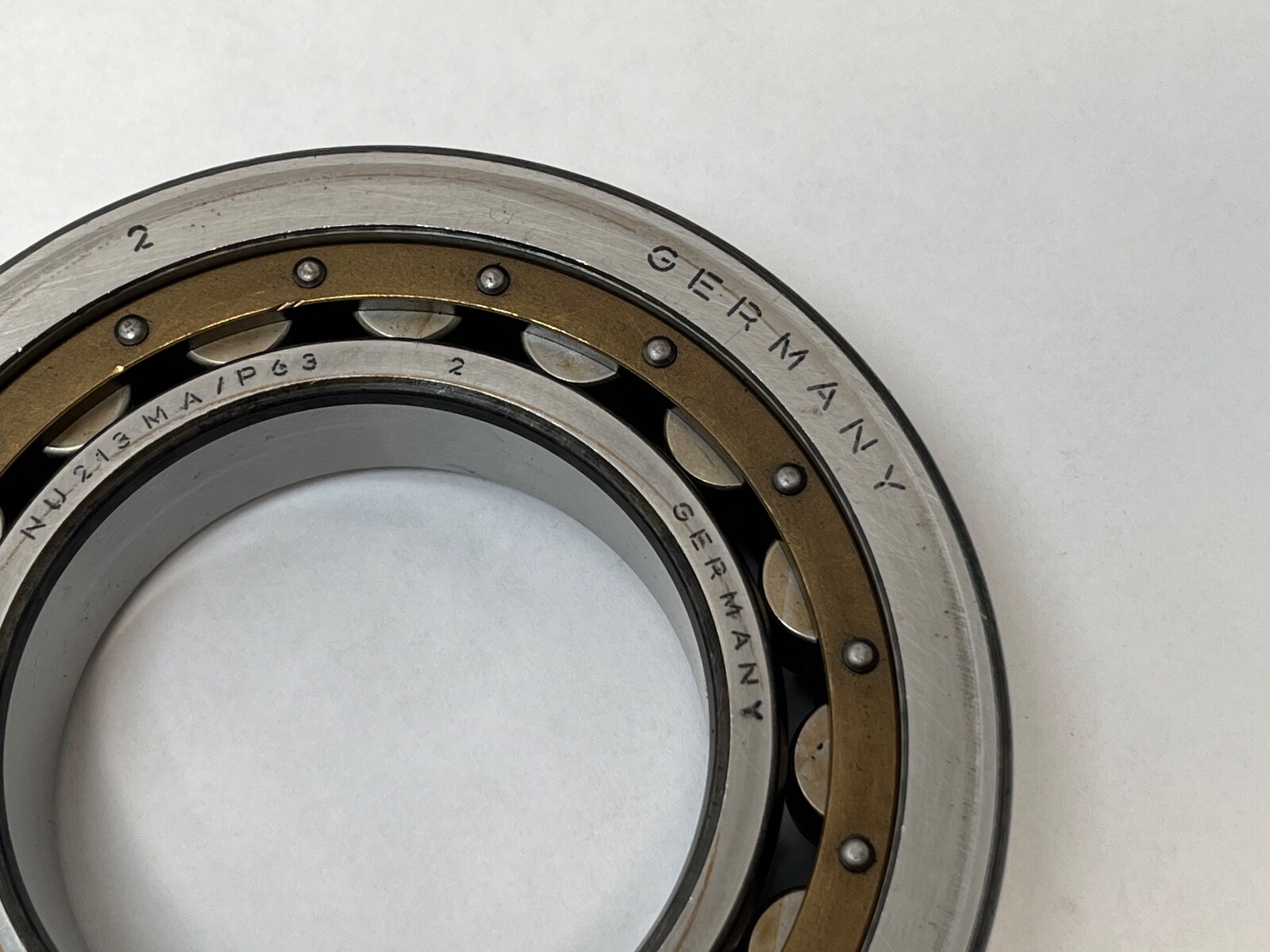

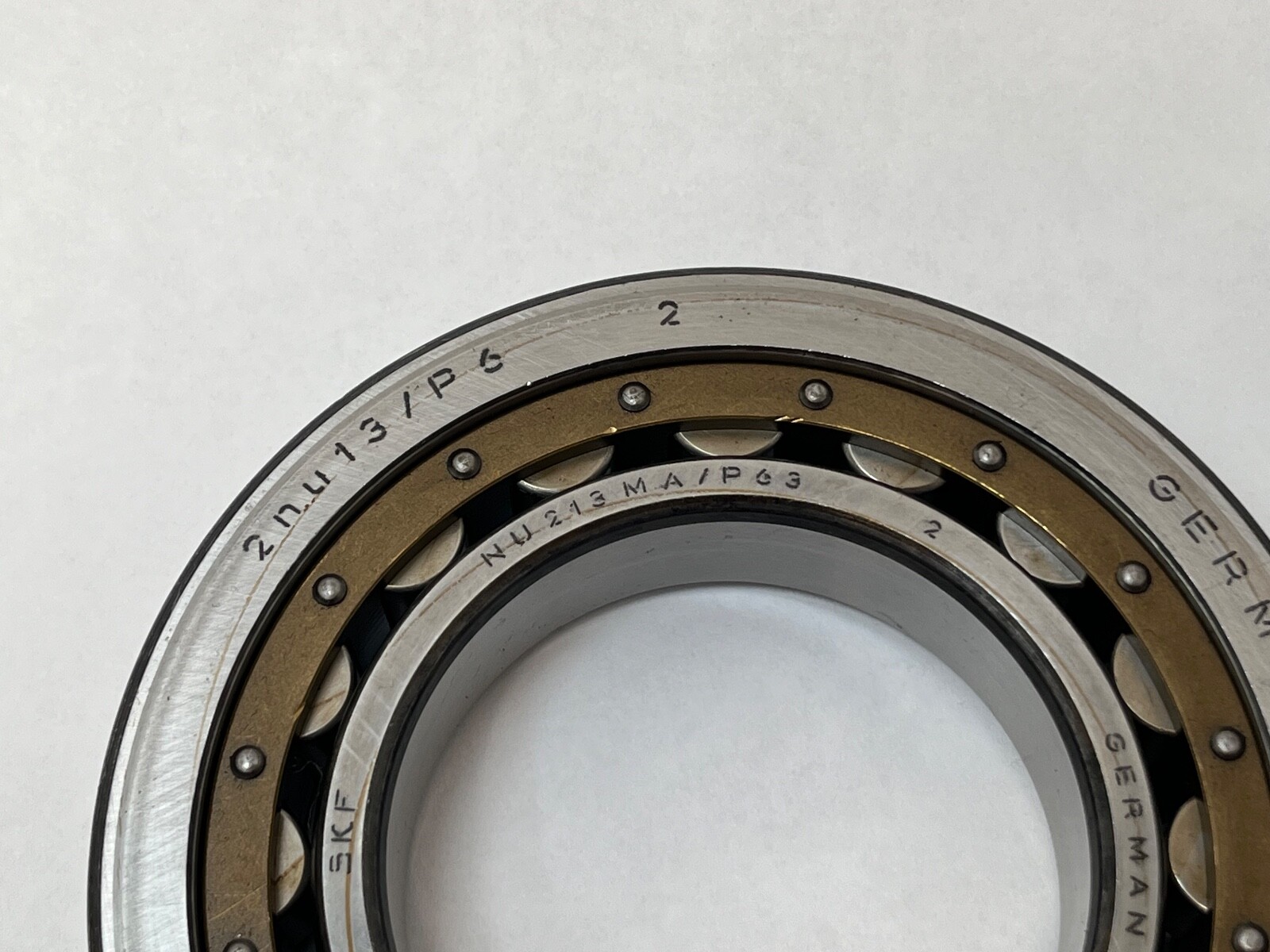

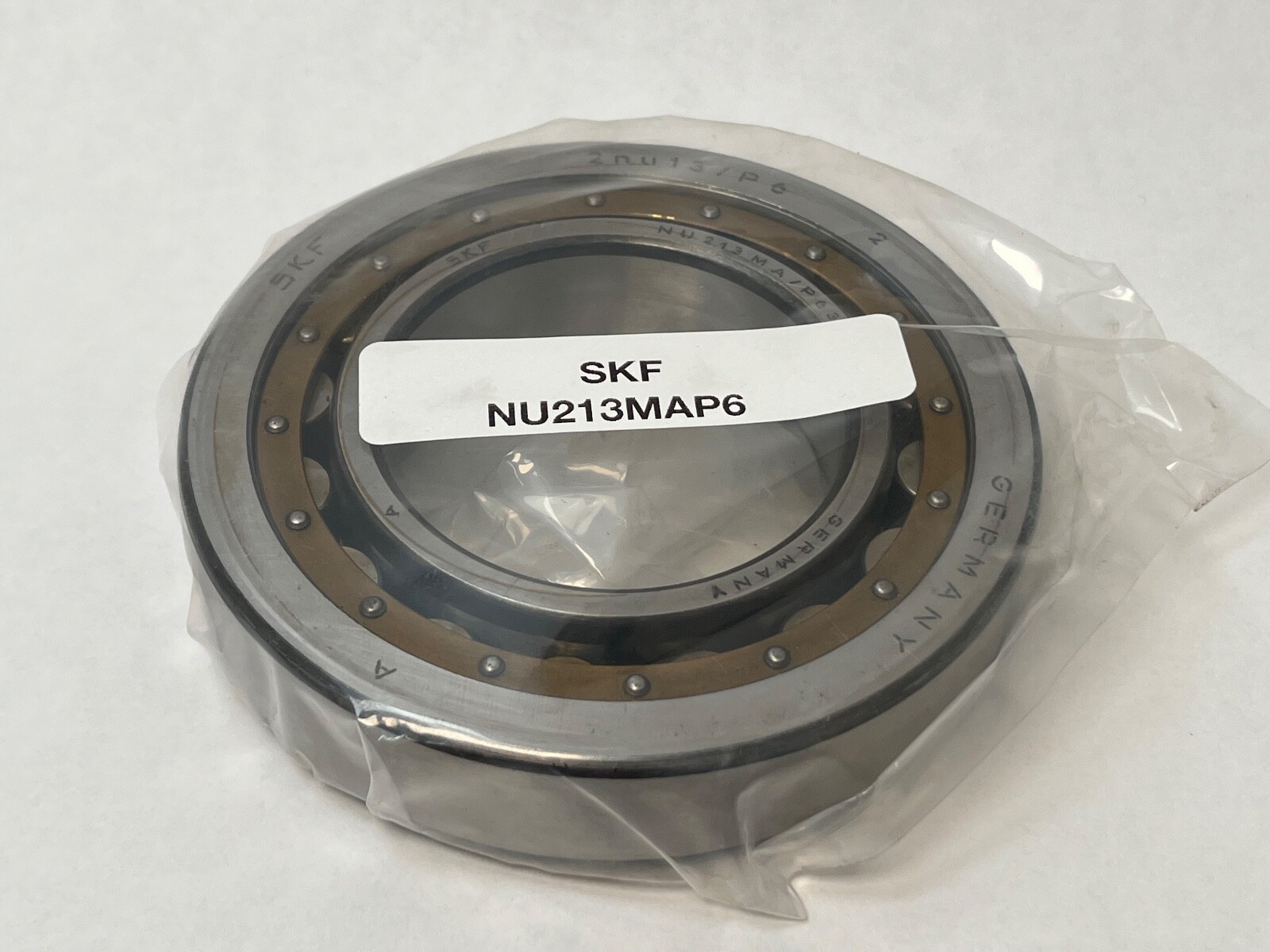

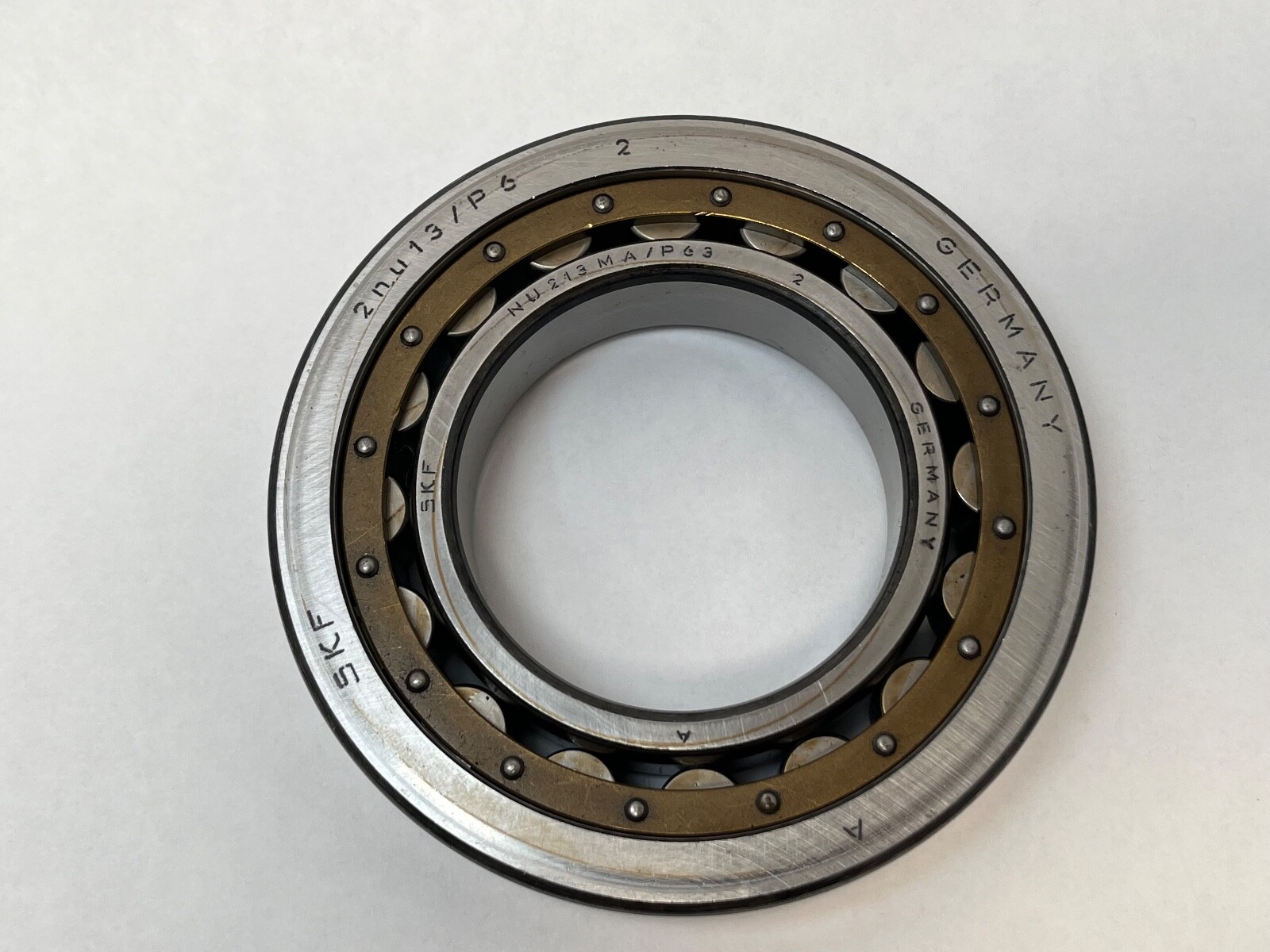

An SKF NU 213 MA/P6 single-row cylindrical roller bearing, NU non-locating design, machined brass cage, P6 precision class. Straight bore, open, separable. Unit Quantity: 1 Pc.

Decoding the designation:

NU — the non-locating design: the inner ring has no guiding flanges, so the roller set can move axially along it.

13 — bore code, 65 mm.

MA — machined brass cage.

P6 — precision class, equivalent to ABEC 3.

Specifications:

Bore Diameter: 65 mm (2.5591 in), straight bore. Outside Diameter: 120 mm. Overall Width: 23 mm. Number Of Rows: 1. Rolling Elements: Cylindrical Roller. Cage Material: Machined brass. Precision Class: P6. Closure Type: Open. Series: NU 2 (ISO dimension series). Unit Quantity: 1 Pc.

Dimensions and mounting:

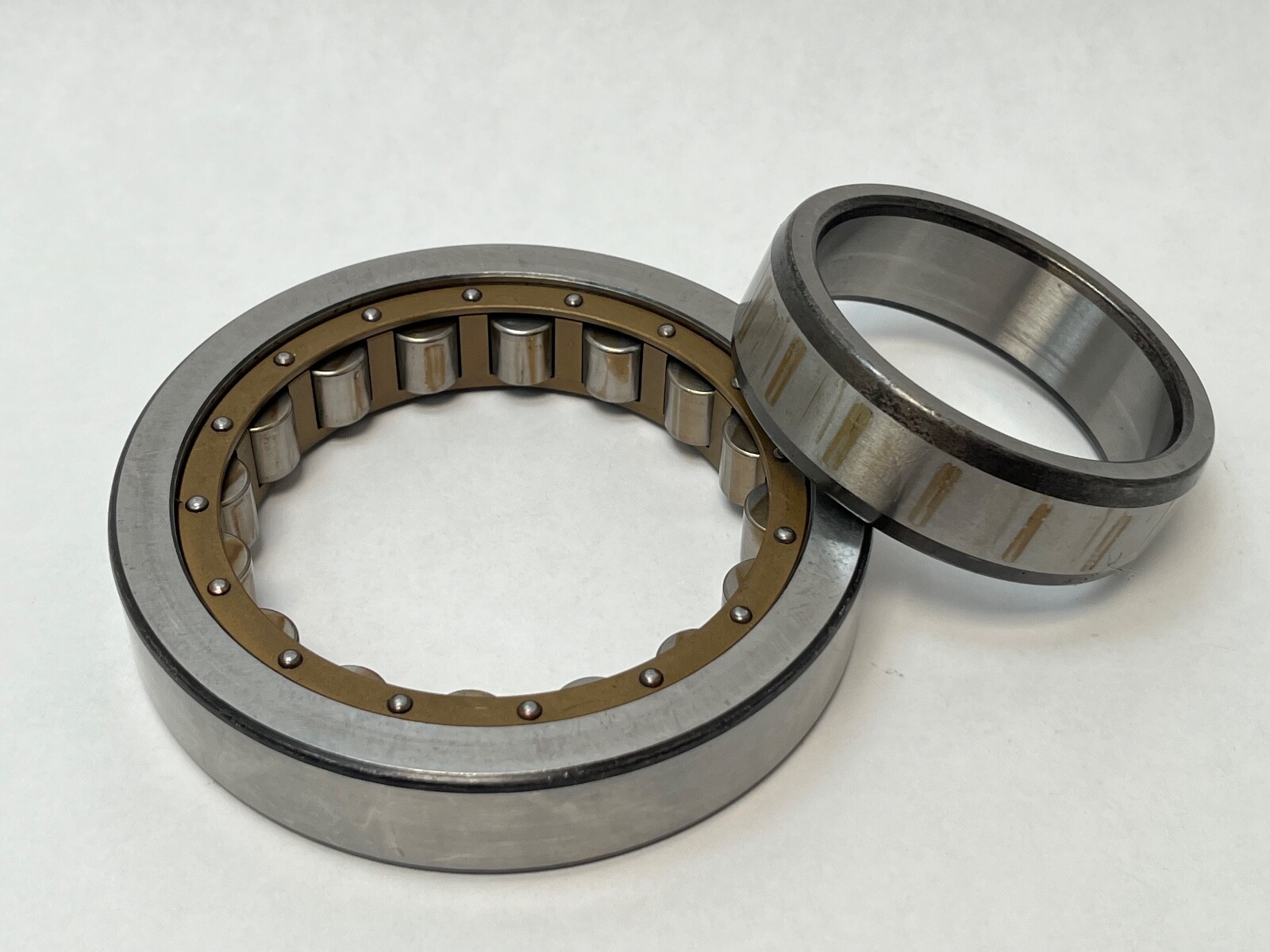

Bore Diameter: 65 mm. Outside Diameter: 120 mm. Overall Width: 23 mm. The outer ring with the roller and cage assembly separates from the inner ring, so each ring mounts independently on the shaft and in the housing. Straight bore, mounting directly onto a cylindrical shaft seat.

Compatibility and replacement:

FAG NU213-E-M1-P6 (E design, P6, machined brass cage) and NSK NU213MP6 (P6, machined brass cage) are 65 x 120 x 23 mm NU-design cylindrical roller bearings. NJ213 and NUP213 share the envelope and locate the shaft axially; a normal-class NU213 differs in precision. MPN Variants: NU 213 MA/P6, NU-213-MA/P6, NU213MAP6, NU 213 MA P6, NU-213-MA-P6, NU213MA, NU213MAP63.

Frequently asked questions:

What size is the SKF NU 213 MA/P6?

Bore Diameter: 65 mm. Outside Diameter: 120 mm. Overall Width: 23 mm.

What does NU mean?

The non-locating design: the inner ring has no guiding flanges and the roller set moves axially along it.

What cage and precision class does it have?

Cage Material: Machined brass. Precision Class: P6.
