FAGNU2034-E-XL-M1-C3Cylindrical Roller Bearing – Straight Bore, 170 mm ID, 260 mm OD, 54 mm Width, 1 Row, C3 Internal clearance

Product Description

What this part is:

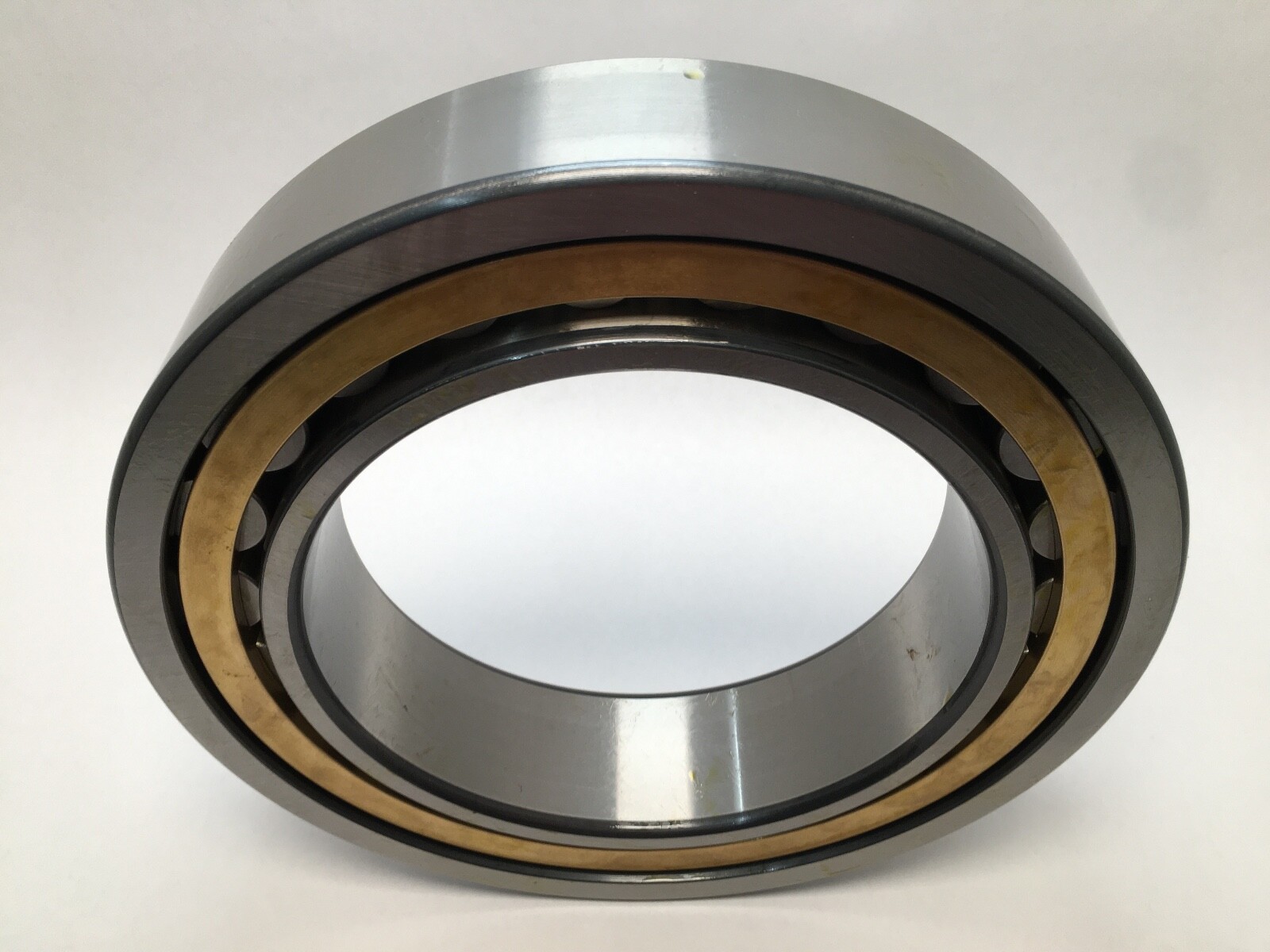

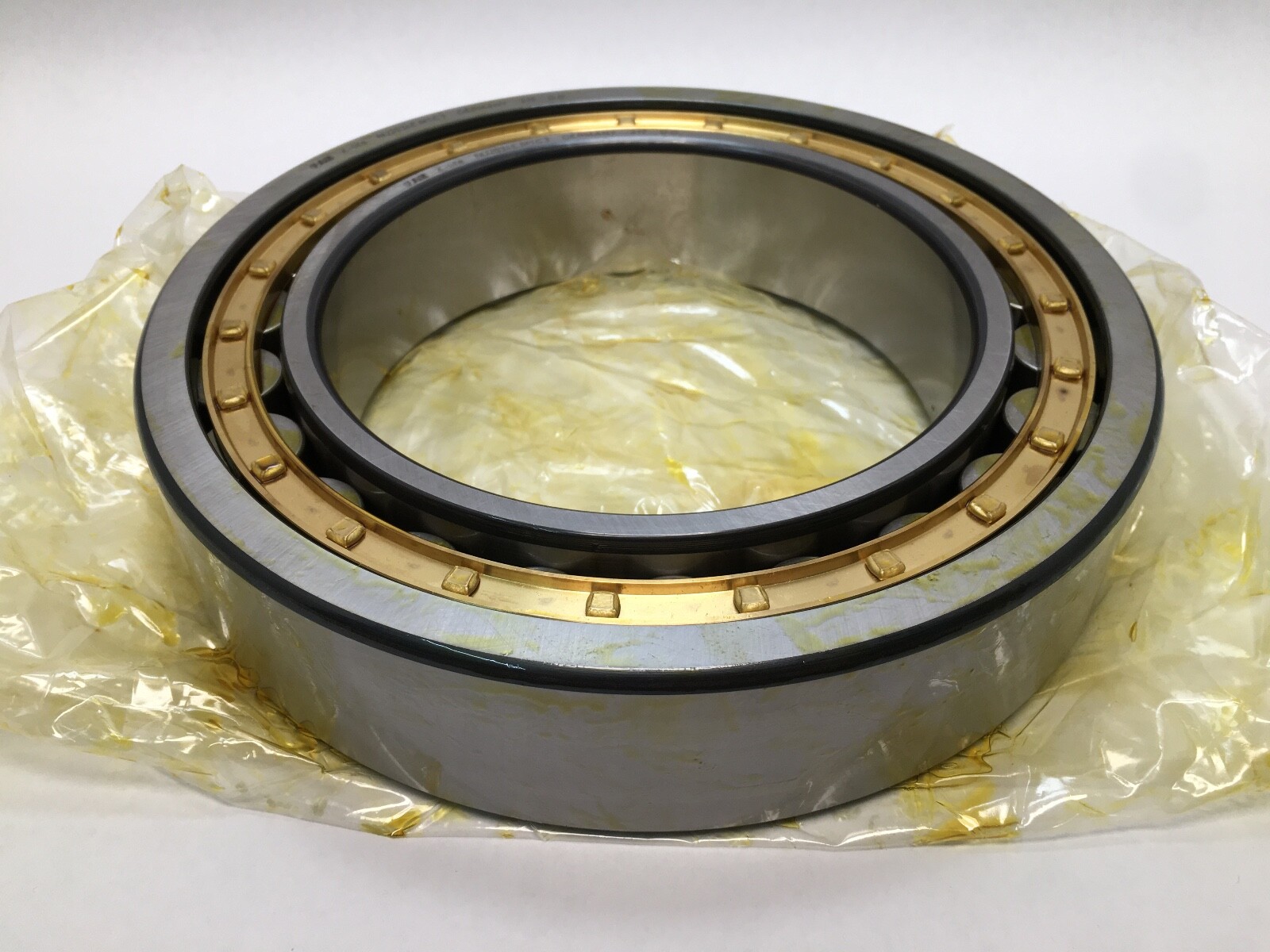

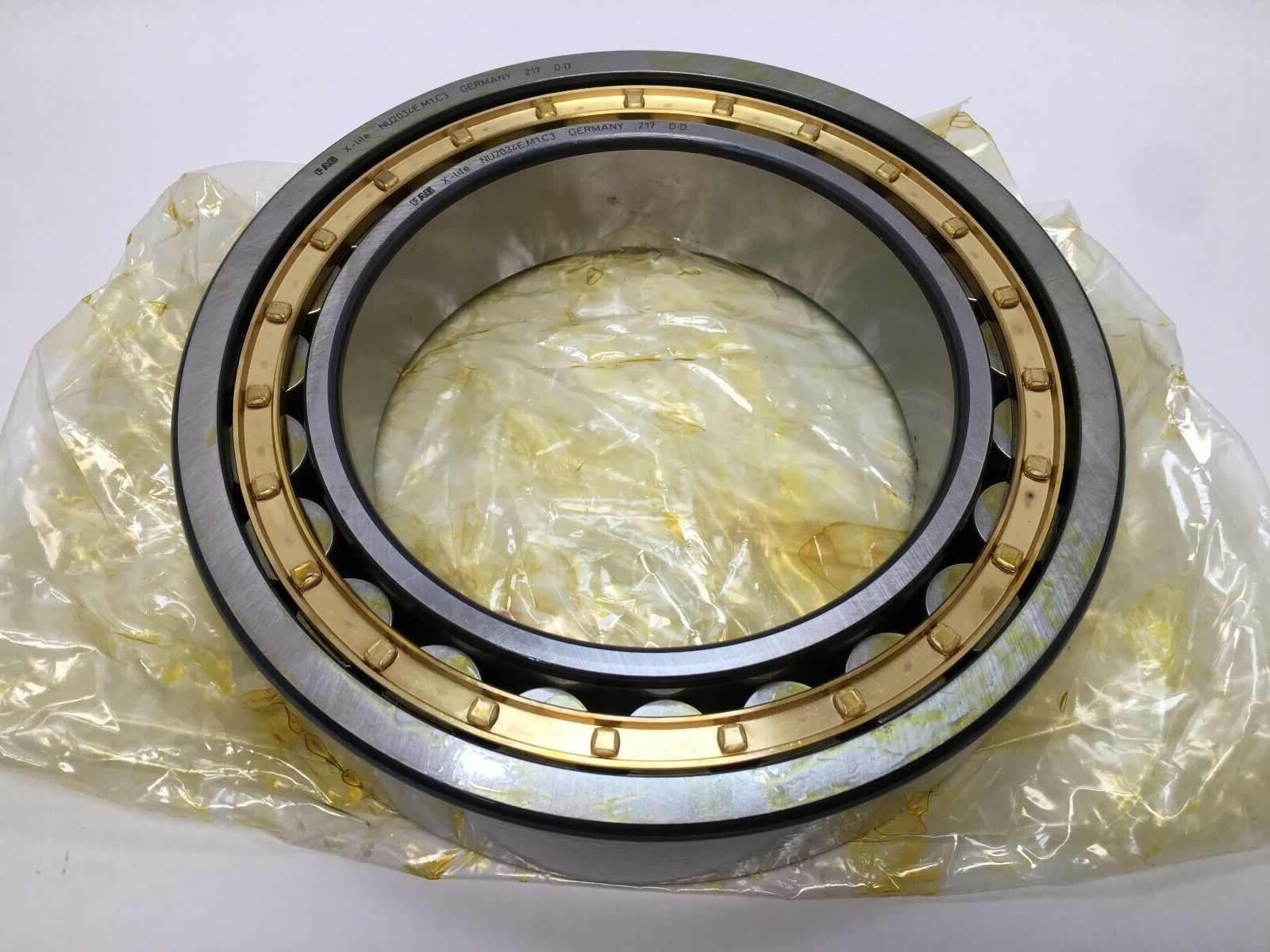

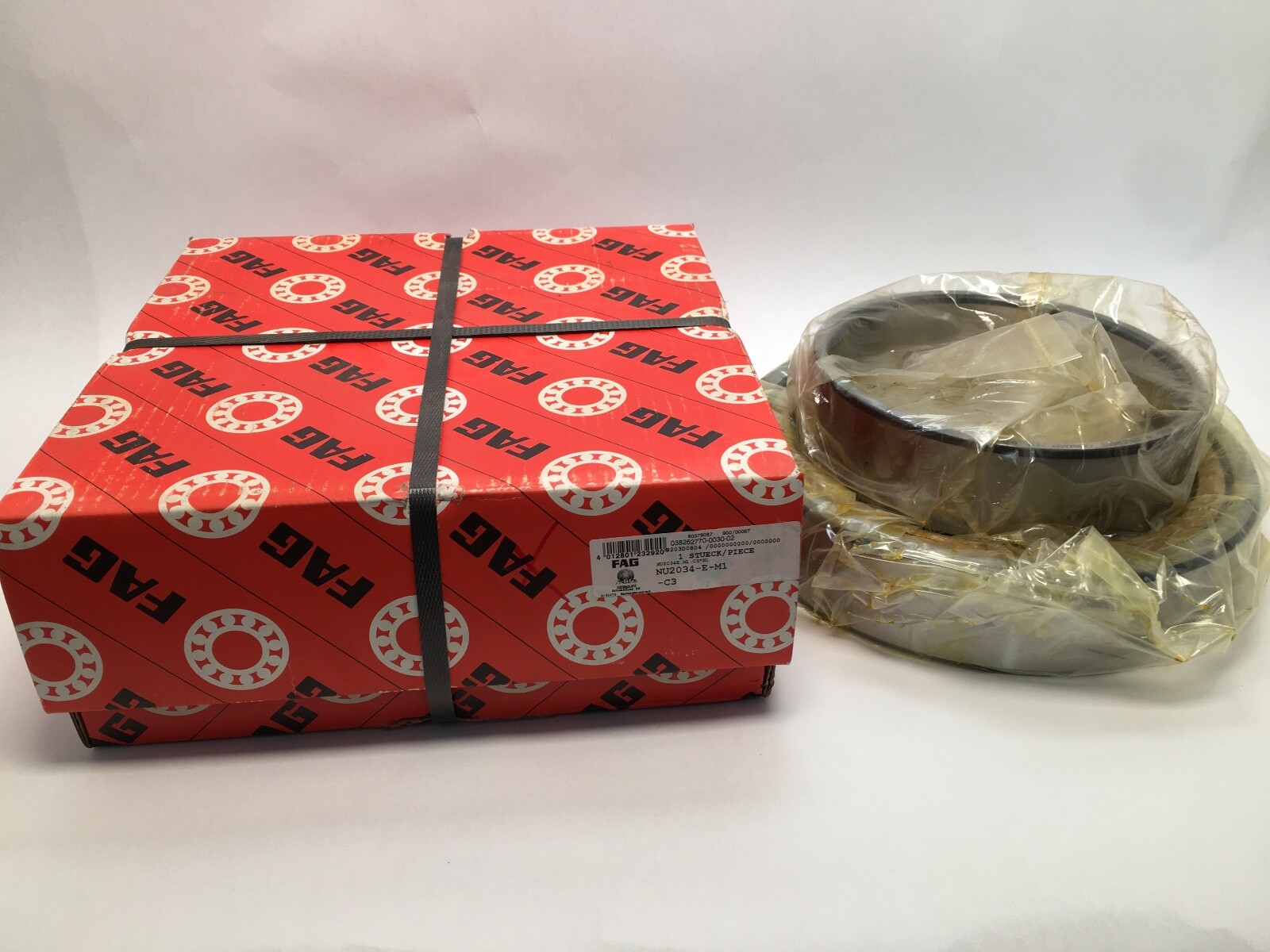

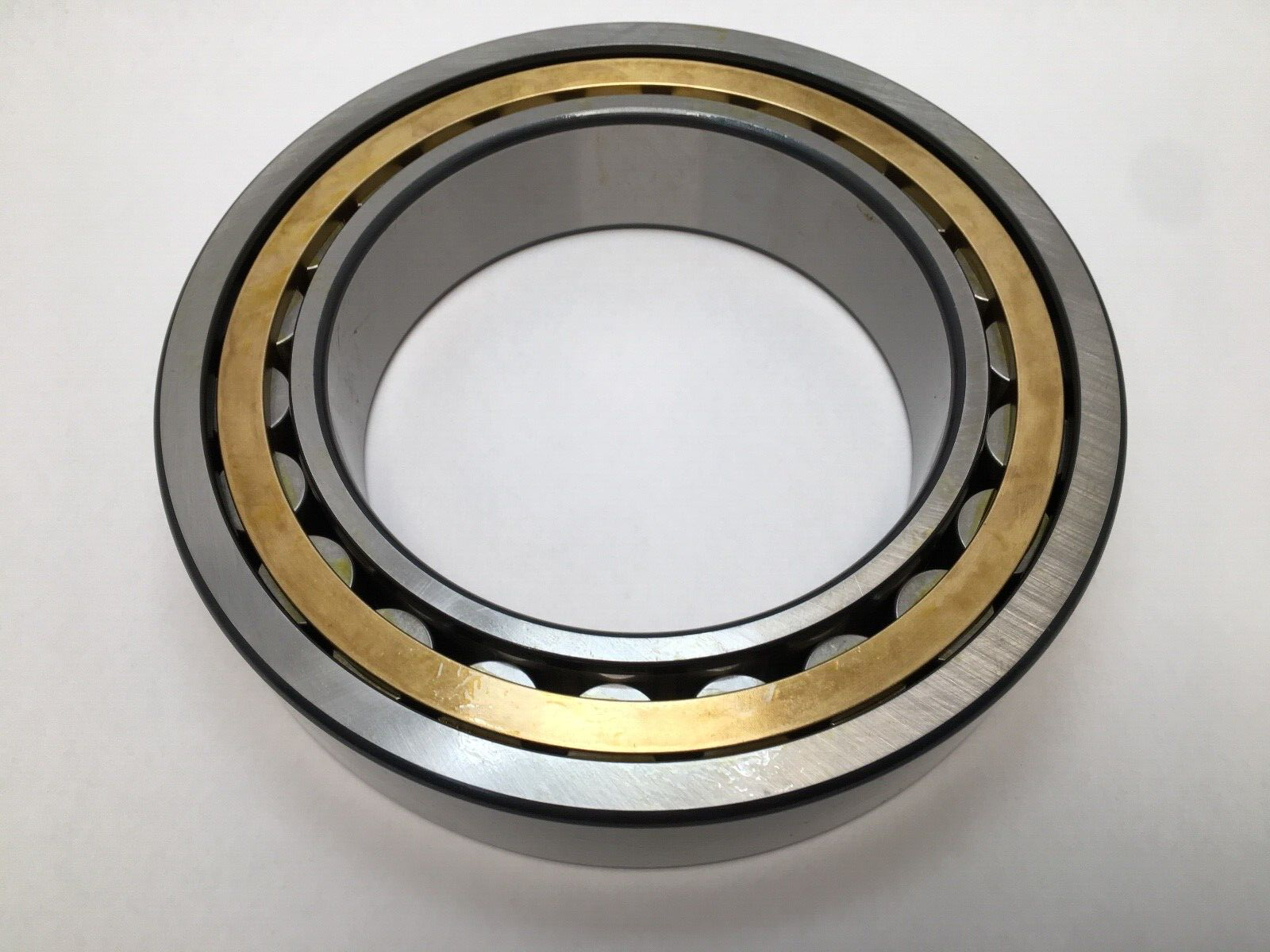

FAG NU2034-E-XL-M1-C3 single-row cylindrical roller bearing, 170 mm bore, 260 mm outside diameter, 54 mm width. Straight bore, machined brass cage, open on both faces, C3 radial internal clearance. Unit Quantity: 1 Pc. Country of origin: Germany.

Decoding the designation:

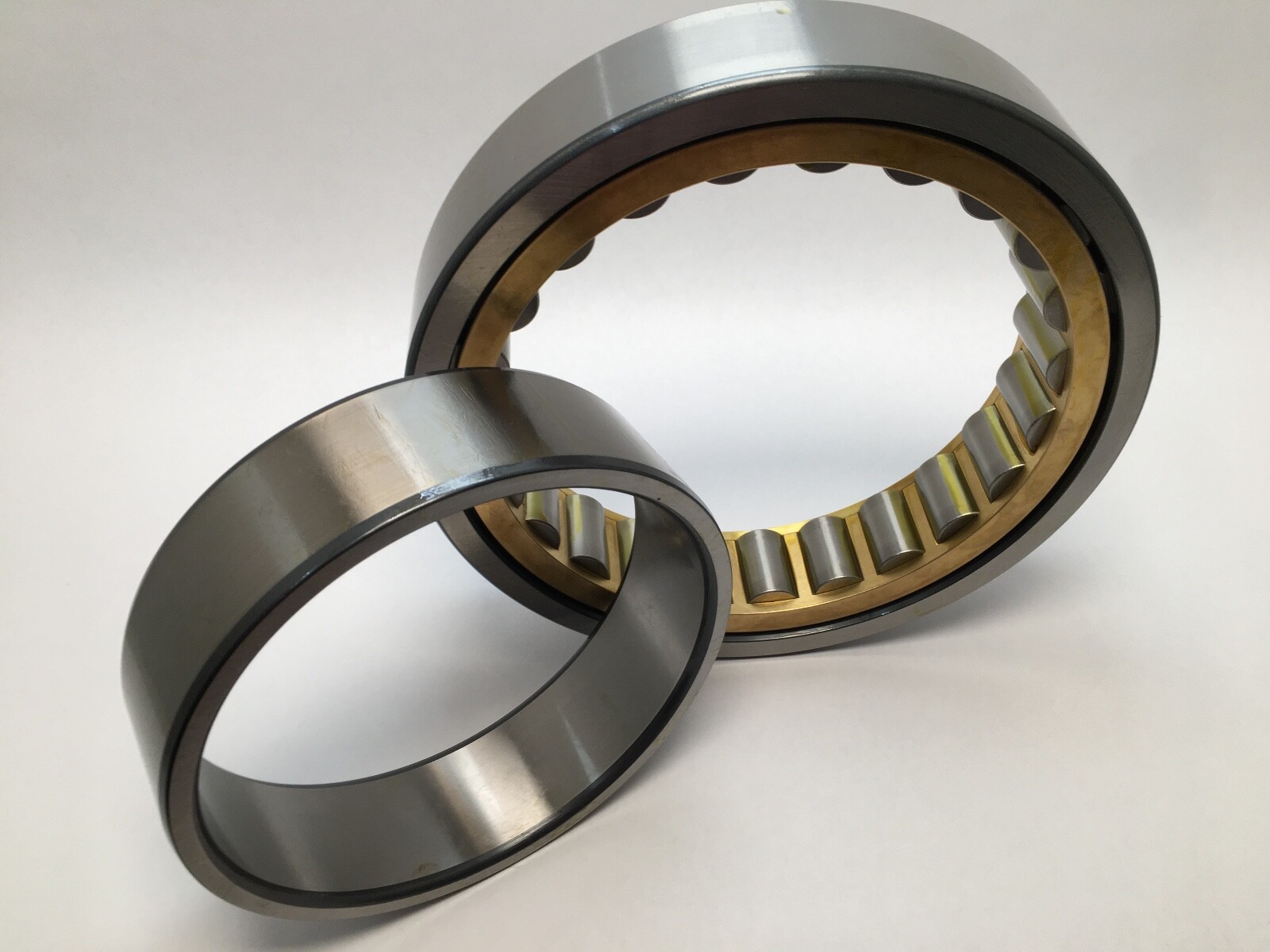

NU — one row of cylindrical rollers with two integral ribs on the outer ring and a ribless inner ring; non-locating design.

E-XL — reinforced high-capacity Schaeffler design.

M1 — machined brass cage.

C3 — radial internal clearance greater than normal.

Specifications:

Bore Diameter: 170 mm. Outside Diameter: 260 mm. Width: 54 mm. Number Of Rows: 1. Rolling Elements: cylindrical rollers. Bore Type: Straight. Cage Material: Machined brass. Internal Clearance: C3. Seal Type: Open. Expansion Type: Non-locating. Base Number: NU2034. Unit Quantity: 1 Pc.

Dimensions and mounting:

Straight bore for a cylindrical shaft seat. Non-locating NU design carries radial load; axial location comes from the locating bearing in the arrangement.

Compatibility and replacement:

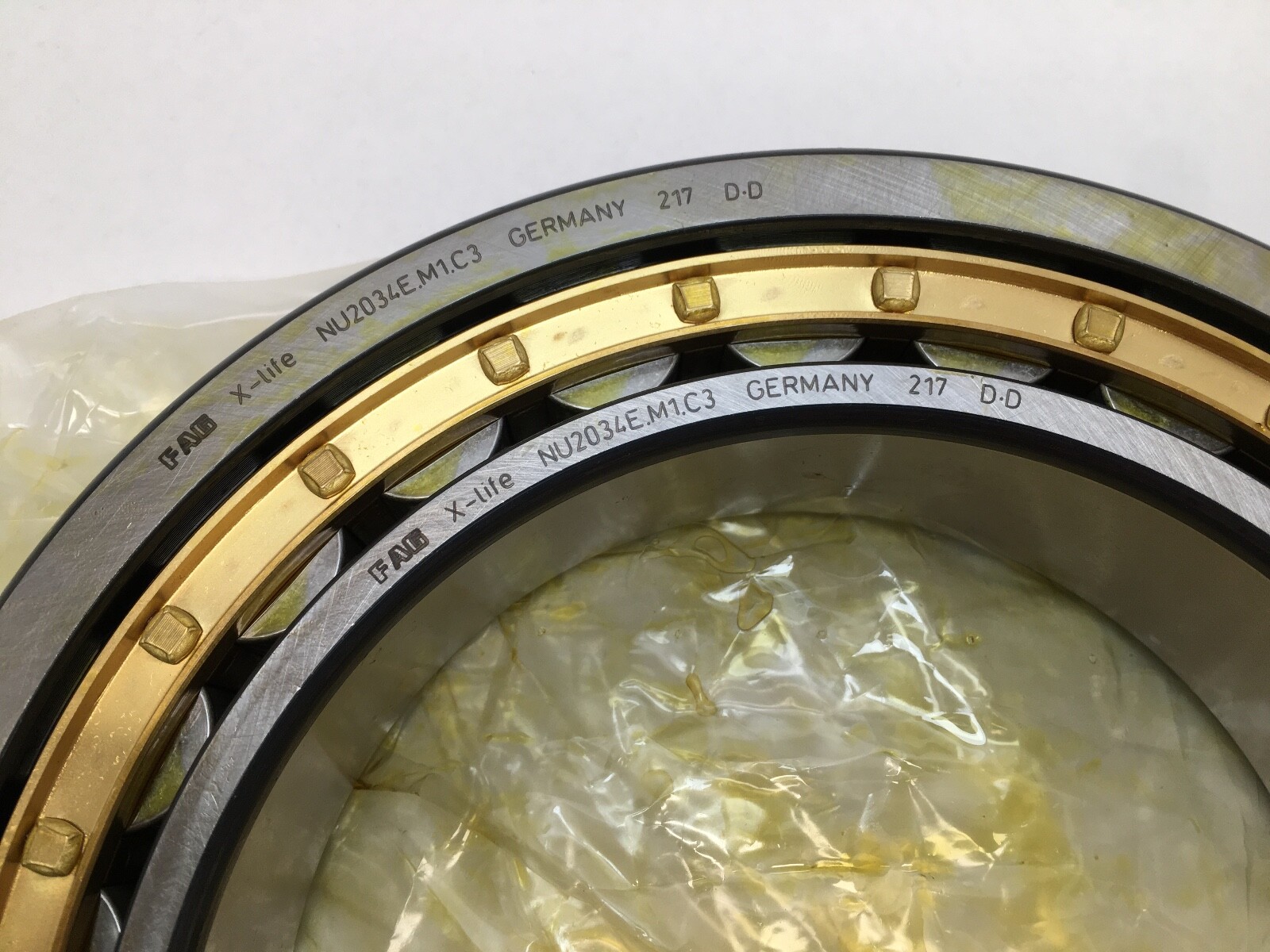

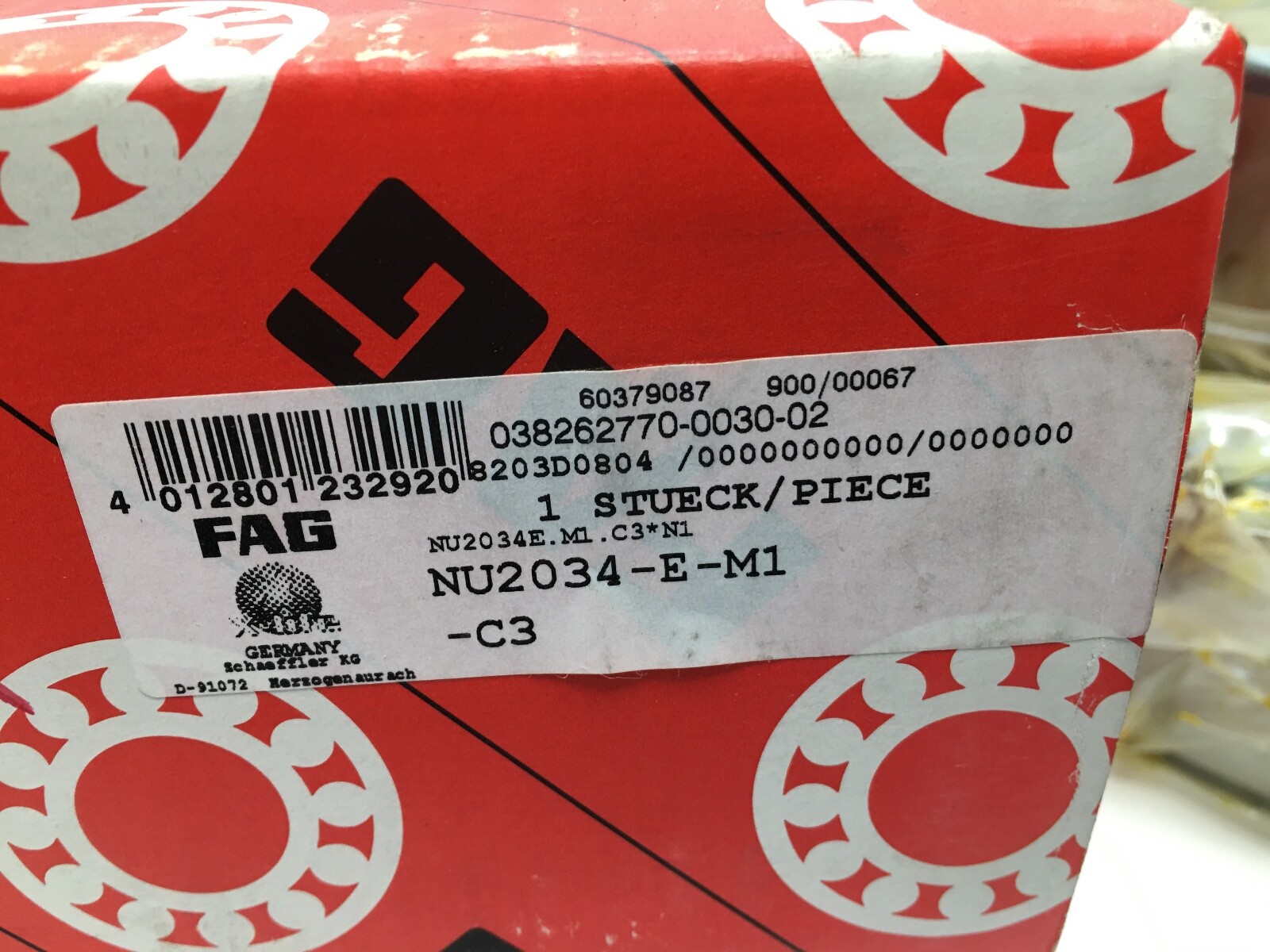

Searchable forms of the number: NU2034EXLM1C3, NU2034-E-XL-M1-C3, NU 2034 E XL M1 C3, NU2034-E-M1-C3 and NU2034.

Frequently asked questions:

What are the dimensions of the FAG NU2034-E-XL-M1-C3?

Bore 170 mm, outside diameter 260 mm, width 54 mm.

What does M1 mean in NU2034-E-XL-M1-C3?

M1 denotes a machined brass cage.

What does NU mean?

NU is a single-row cylindrical roller bearing with two ribs on the outer ring and a ribless inner ring, which makes it non-locating.
