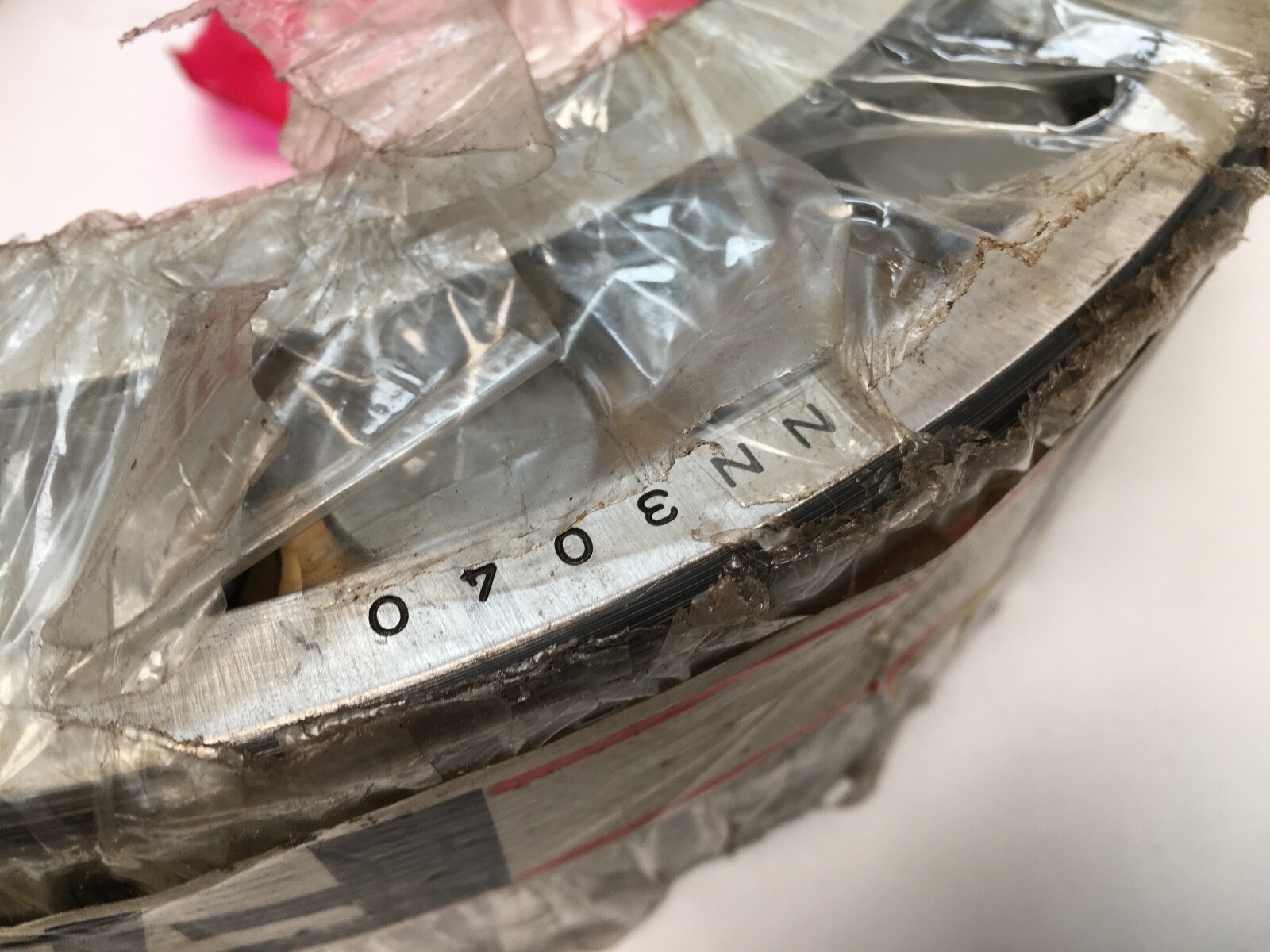

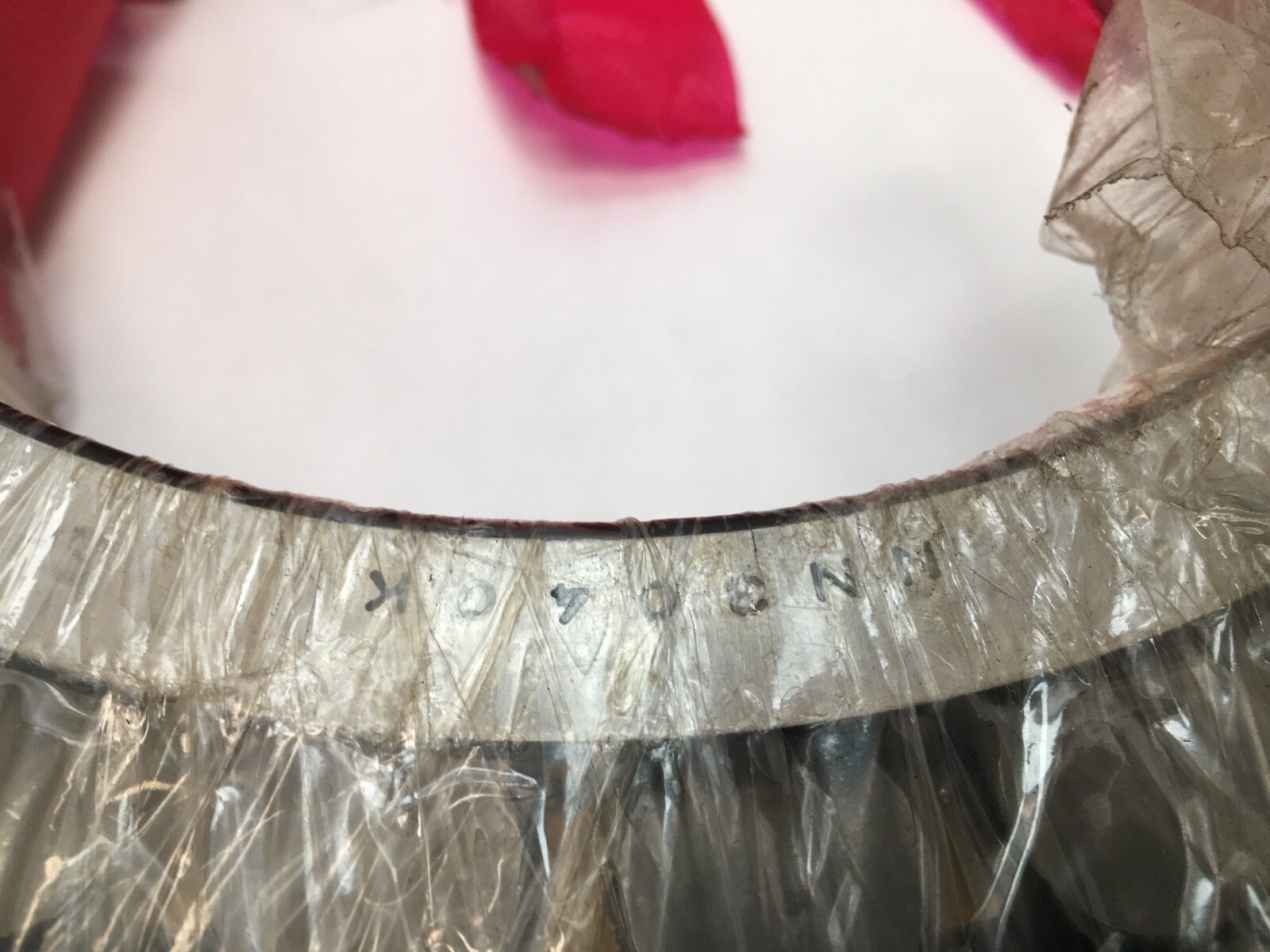

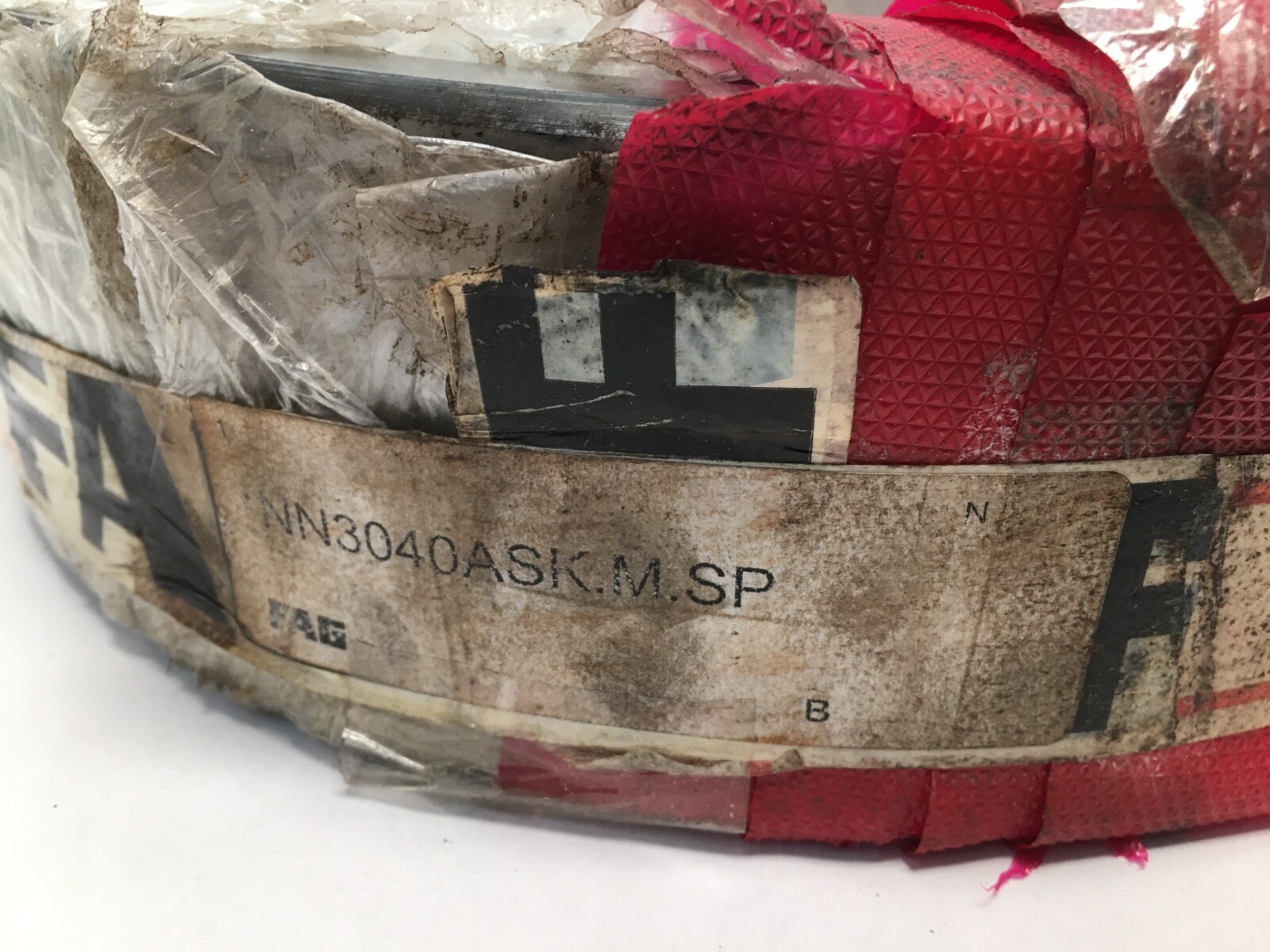

FAG NN3040-AS-K-M-SP cylindrical roller bearing – image 1

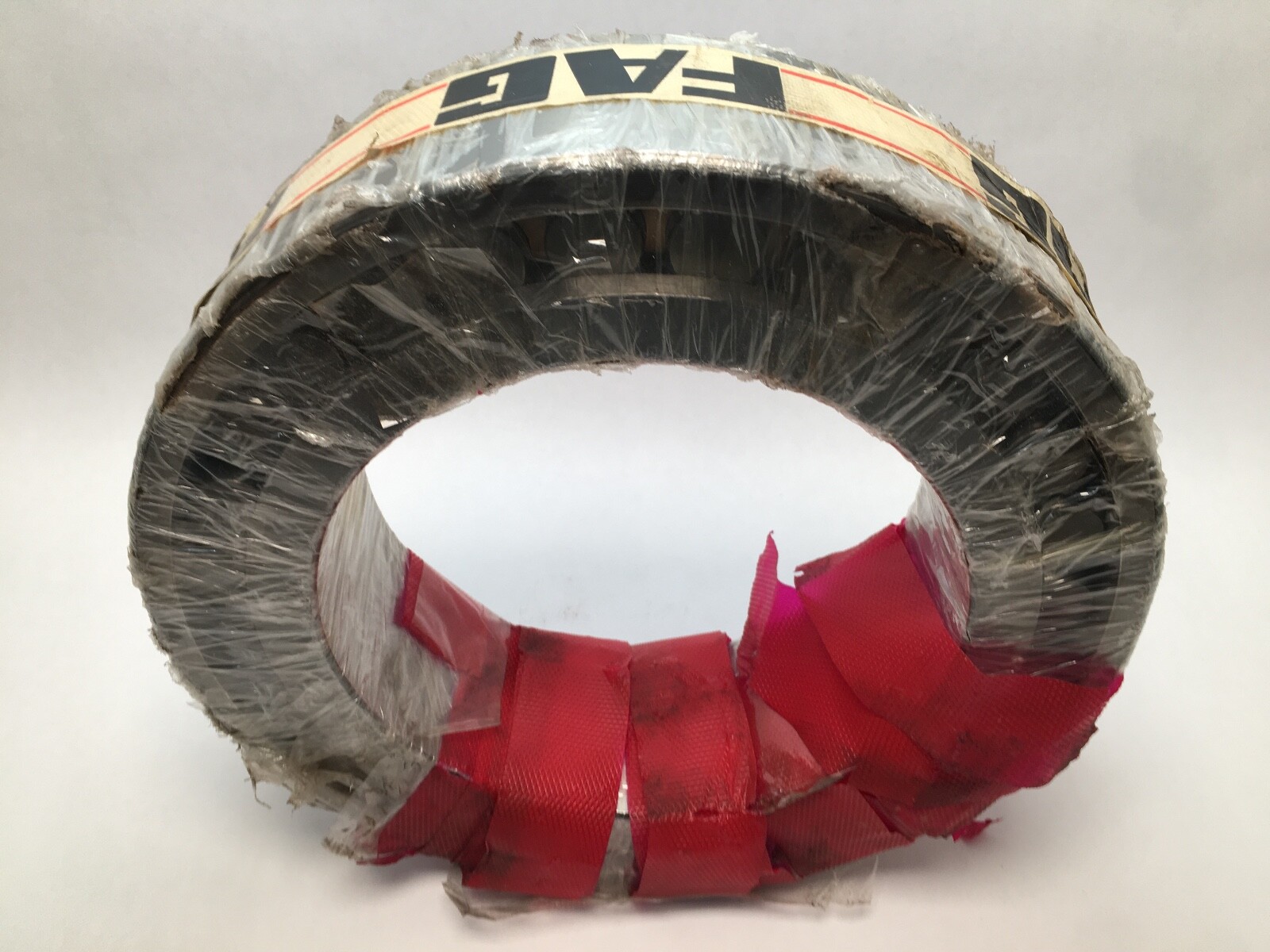

FAG NN3040-AS-K-M-SP cylindrical roller bearing – image 2

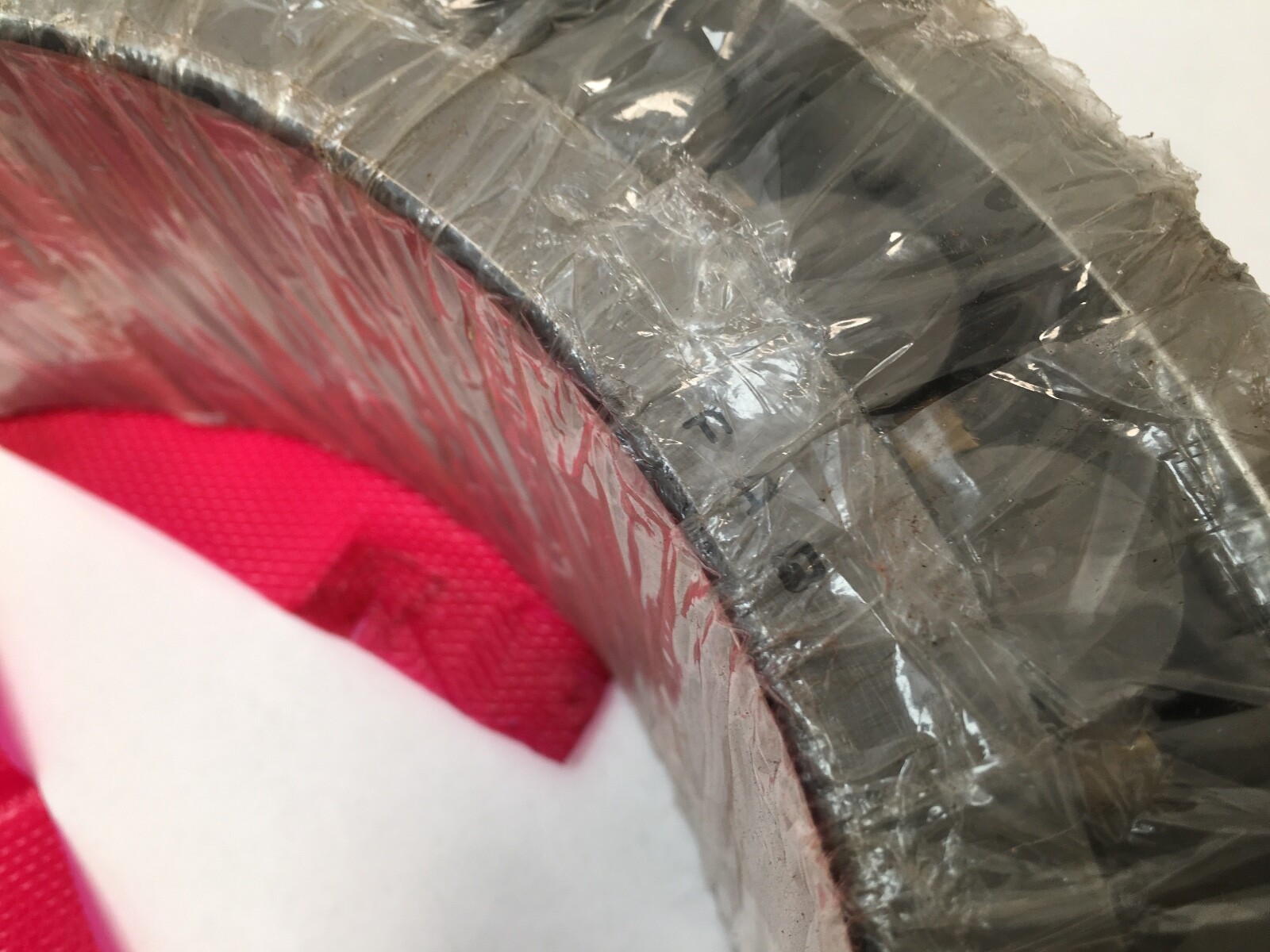

FAG NN3040-AS-K-M-SP cylindrical roller bearing – image 3

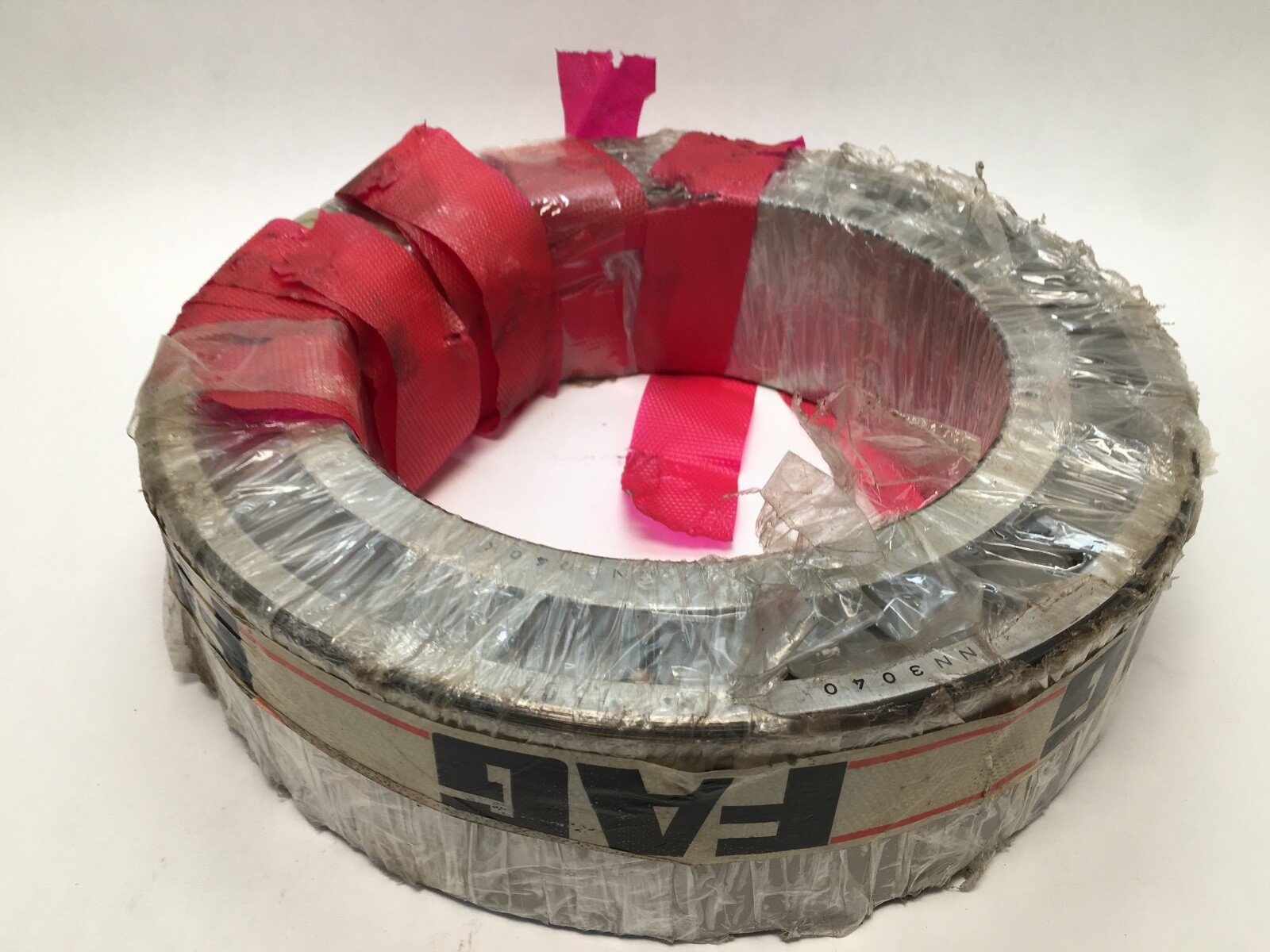

FAG NN3040-AS-K-M-SP cylindrical roller bearing – image 4

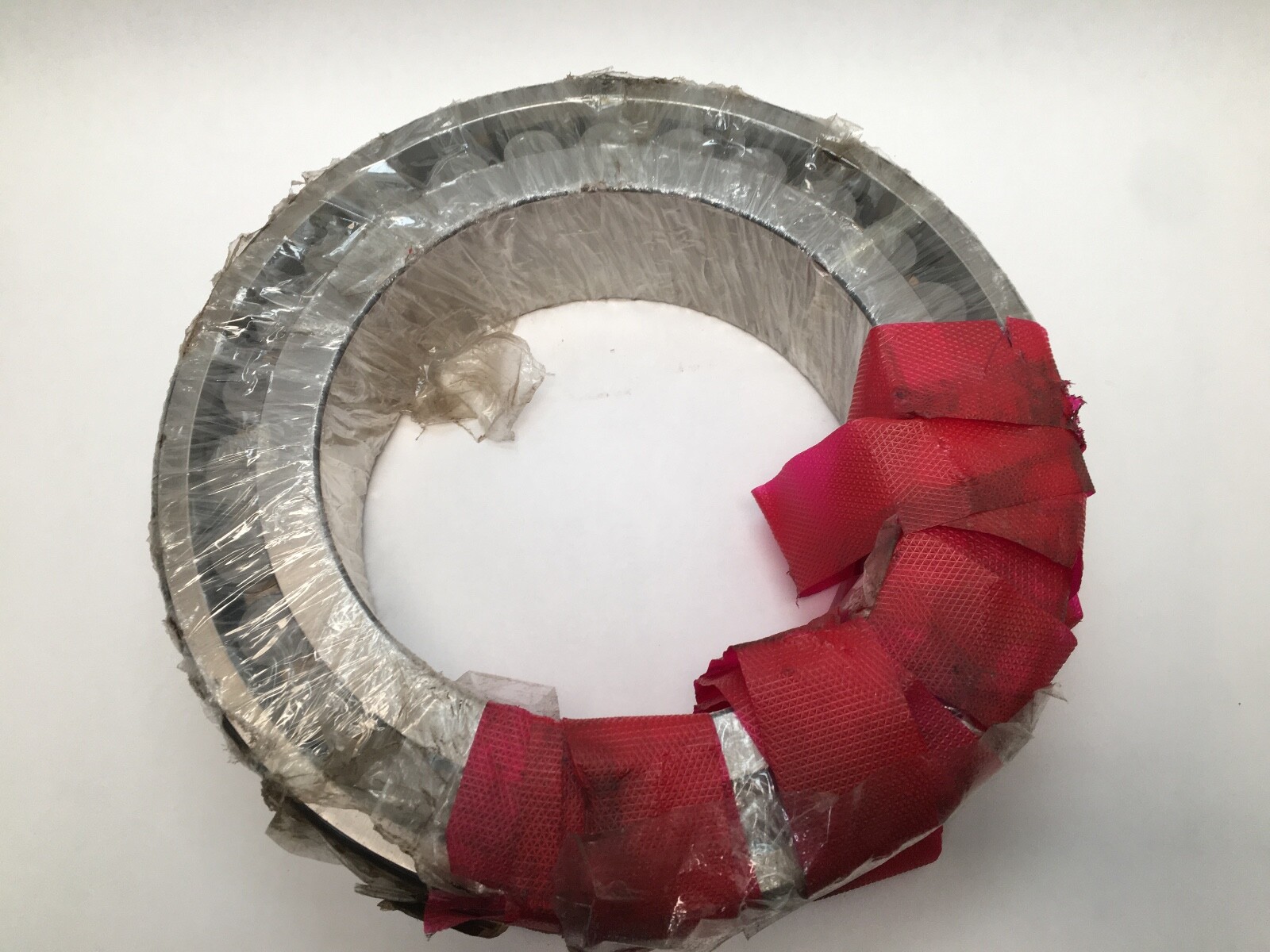

FAG NN3040-AS-K-M-SP cylindrical roller bearing – image 5

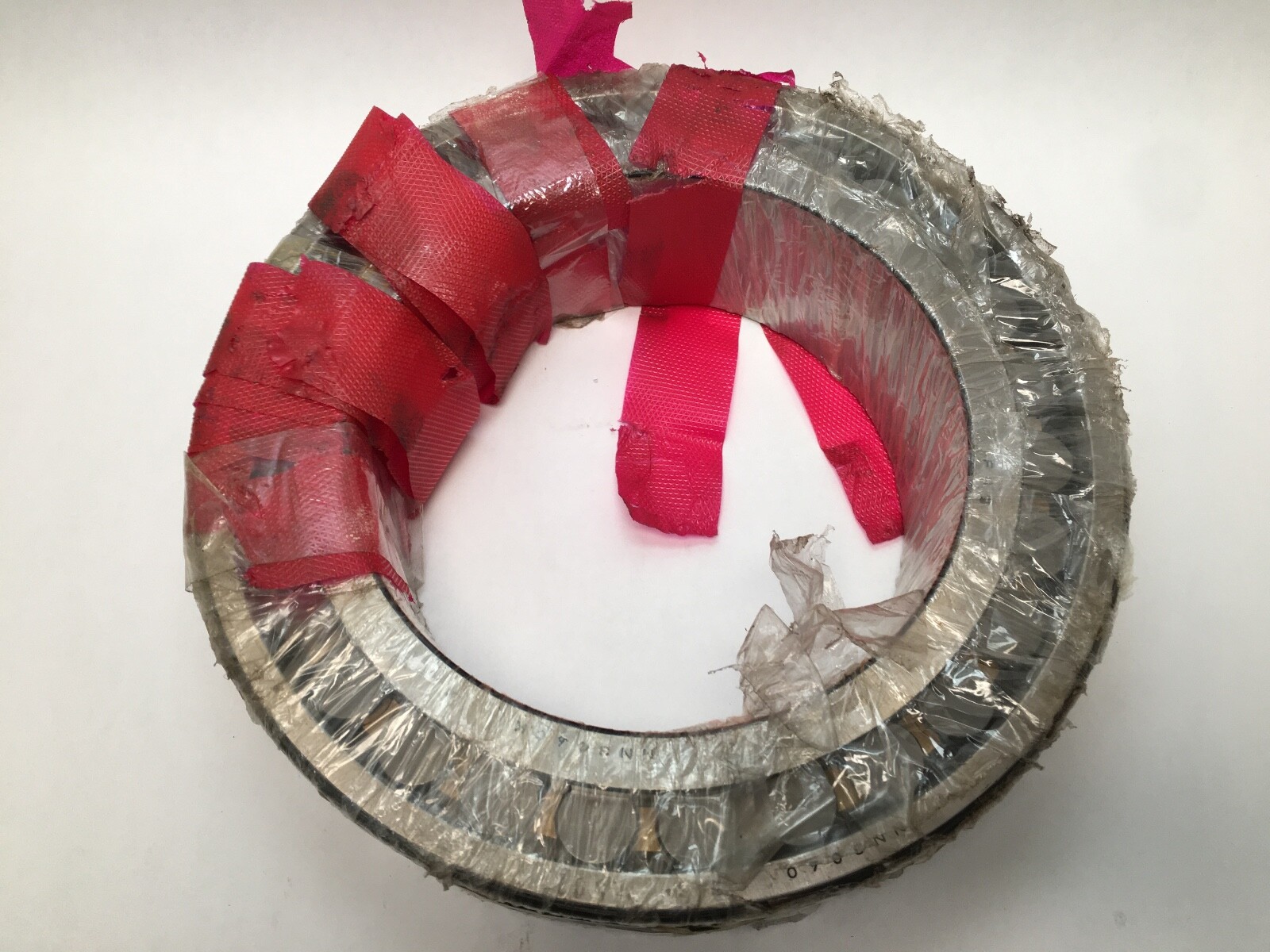

FAG NN3040-AS-K-M-SP cylindrical roller bearing – image 6

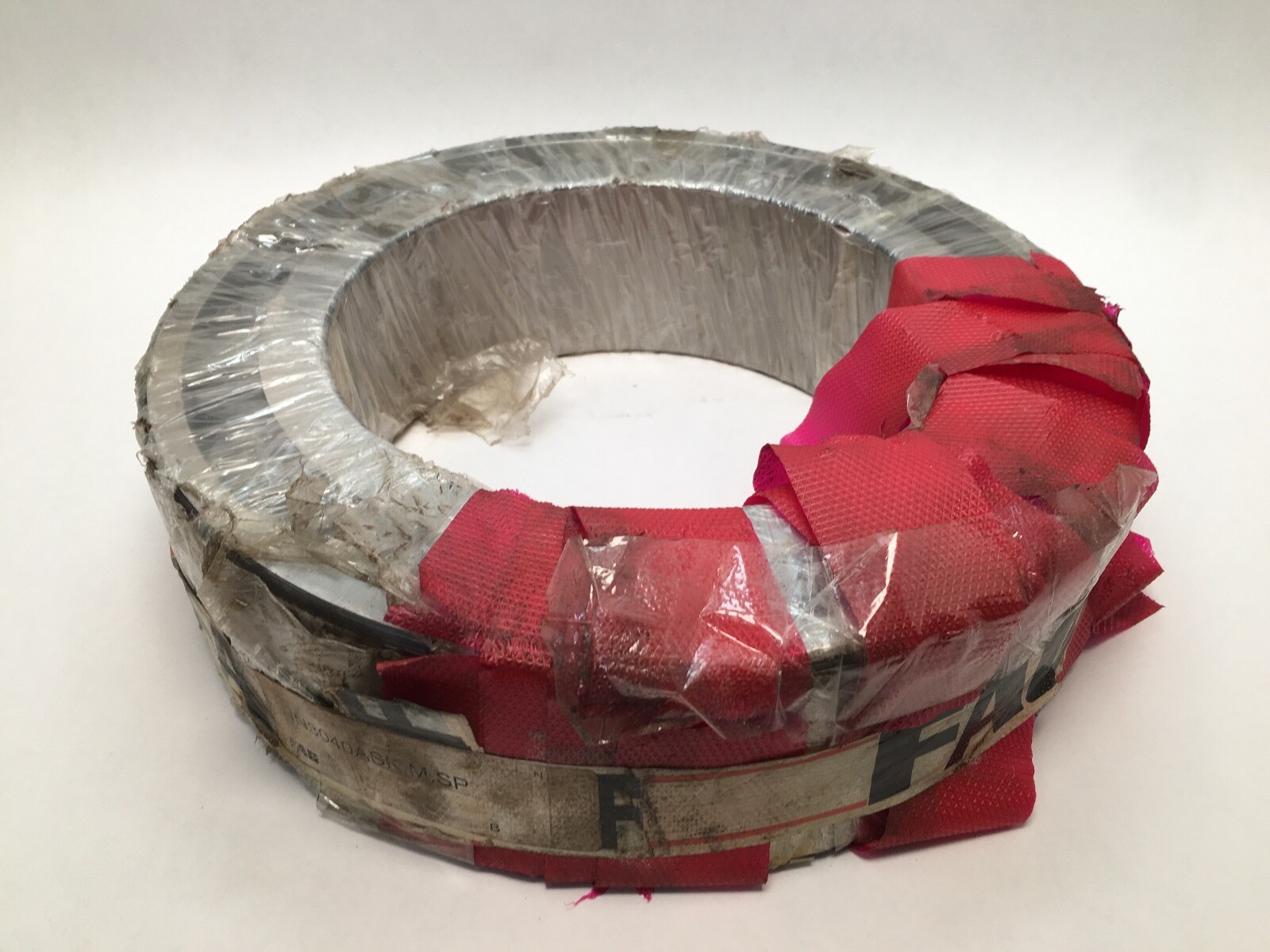

FAG NN3040-AS-K-M-SP cylindrical roller bearing – image 7

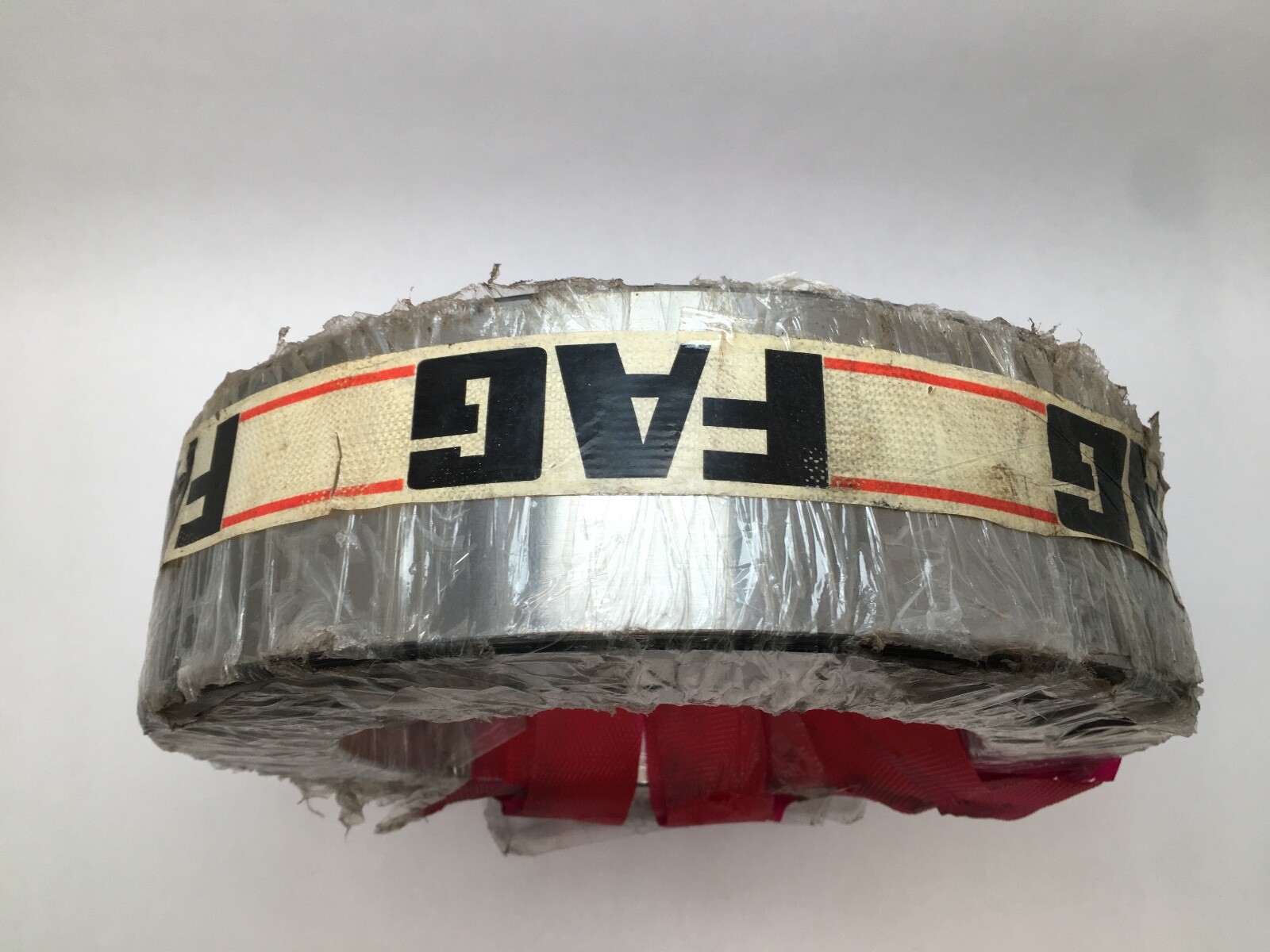

FAG NN3040-AS-K-M-SP cylindrical roller bearing – image 8

FAG NN3040-AS-K-M-SP cylindrical roller bearing – image 9

FAG NN3040-AS-K-M-SP cylindrical roller bearing – image 10

13k+ reviews

See our eBay reviews

FAGNN3040-AS-K-M-SPDouble Row Cylindrical Roller Bearing 200 mm Taper Bore x 310 x 82 mm, SP Super Precision, Brass Cage

Name: FAG NN3040-AS-K-M-SP Double Row Cylindrical Roller Bearing 200 mm Taper Bore x 310 x 82 mm, SP Super Precision, Brass Cage
Brand: FAG
SKU: B-DC5#KKDYVO
Price: 1962.01 USD
Availability: InStock

Condition: New – Open box

Condition Note: Made In Germany, New Old Stock

Availability:

1 in stock

Categories: Bearings, Cylindrical Roller Bearing

Super-precision double-row cylindrical roller bearing, 200 mm 1:12 tapered bore, 310 x 82 mm, machined brass cage, SP class, C1 clearance. 1 Pc.

Same day shipment

List Price

$1,962.01

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	FAG
MPN	NN3040-AS-K-M-SP
Model	NN3040ASK.M.SP
Bearing Type	Cylindrical Roller Bearing, Open
ID	200 mm
OD	310 mm
Width	82 mm

Technical Specifications

Material	Steel
Series	NN30
Base Number	NN3040K
Industry Terms	double row cylindrical roller bearing; machine tool spindle bearing; NN taper bore roller bearing; super precision cylindrical roller; spindle front bearing; two row straight roller bearing
Common Misspellings	NN3040ASKMSP; NN3040ASK MSP; NN340ASK; NN3040-ASK-M-SP; NN3004ASK; cylindrical rolller bearing; cylindricle roller bearing
Application Types	Machine tool spindles; grinding and milling headstocks; precision gearboxes; rotary tables; high-stiffness rotary axes
Bore Shaft Size	200 mm, tapered 1:12
Locking Method	1:12 tapered bore, mounted directly on a tapered spindle journal (no adapter sleeve)
Mpn Variants	NN3040ASK.M.SP; NN3040-AS-K-M-SP; NN3040SK.M.SP; NN3040ASKMSP; NN 3040 AS K M SP; NN3040K; NN3040KMSP; NN3040
Compatible With Replaces	NN3040ASK.M.SP; NN3040SK.M.SP; SKF NN 3040 K/SPW33
Precision Class	SP (FAG super-precision)
Min Temp	-30 °C
Dynamic Load Rating	660,000 N
Static Load Rating	1,190,000 N
Rolling Elements	Cylindrical Roller
Max Temp	150 °C
Item Weight	22.797 kg
Cage Material	Machined brass
Number Of Rows	2
Bore Type	Tapered 1:12
Snap Ring Included	No
Harmonization Code	8482.50.00
Part Number	NN3040-AS-K-M-SP
Limiting Speed	2,550 rpm grease; 3,000 rpm oil
Additional Attributes	Fatigue load limit 142,000 N; shaft shoulder dia 232 mm; housing shoulder dia 288 mm; outer ring raceway dia 282 mm; axial displacement 5.7 mm; max recess radius 2.1 mm; lube groove width 12.2 mm; lube hole dia 6.3 mm
Internal Clearance	C1
Bearing Material	Bearing steel
Closure Type	Open

Cross-References

Cross Reference 1	SKF NN 3040 K/SPW33

Seller Part Number: B-DC5#KKDYVO

Product Description

What this part is:

FAG NN3040-AS-K-M-SP is a super-precision double-row cylindrical roller bearing, non-locating and separable, with a 1:12 tapered bore. Bore Diameter: 200 mm, tapered 1:12. Outside Diameter: 310 mm. Overall Width: 82 mm. Number Of Rows: 2. Rolling Elements: Cylindrical Roller. Cage Material: Machined brass. Closure Type: Open. Precision Class: SP. Internal Clearance: C1. Unit Quantity: 1 Pc. The outer ring has a lubrication groove with radial holes.

Decoding the designation:

NN — double-row cylindrical roller bearing, two rows of straight rollers.

3040 — NN30 dimension series, 200 mm bore.

AS — lubrication groove in the outer ring with radial holes.

K — 1:12 tapered bore.

M — machined brass cage.

SP — FAG tolerance class SP, the super-precision spindle grade.

Specifications:

Dynamic Load Rating: 660,000 N. Static Load Rating: 1,190,000 N. Fatigue Load Limit: 142,000 N. Limiting Speed: 2,550 rpm grease; 3,000 rpm oil.

Item Weight: 22.797 kg. Operating Temperature: -30°C to 150°C. Internal Clearance: C1. Precision Class: SP. Series: NN30. Base Number: NN3040K. Harmonization Code: 8482.50.00.

Dimensions and mounting:

Bore Diameter: 200 mm, tapered 1:12. Outside Diameter: 310 mm. Overall Width: 82 mm. Shaft Shoulder Diameter: 232 mm. Housing Shoulder Diameter: 288 mm. Raceway Diameter, Outer Ring: 282 mm. Maximum Recess Radius: 2.1 mm. Minimum Chamfer Dimension: 2.1 mm. Axial Displacement: 5.7 mm. Lubrication Groove Width: 12.2 mm. Lubrication Hole Diameter: 6.3 mm. The tapered bore mounts directly on a tapered journal.

Compatibility and replacement:

Replaces FAG NN3040ASK.M.SP and NN3040SK.M.SP (Schaeffler change mark A). Cross-reference: SKF NN 3040 K/SPW33.

Frequently asked questions:

What are the dimensions of the FAG NN3040-AS-K-M-SP?

Bore 200 mm with a 1:12 taper, outside diameter 310 mm, width 82 mm.

What do NN, K and SP mean in NN3040-AS-K-M-SP?

NN is a double-row cylindrical roller bearing, K is a 1:12 tapered bore and SP is FAG tolerance class SP. M is a machined brass cage and AS a lubrication groove with radial holes.
