Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

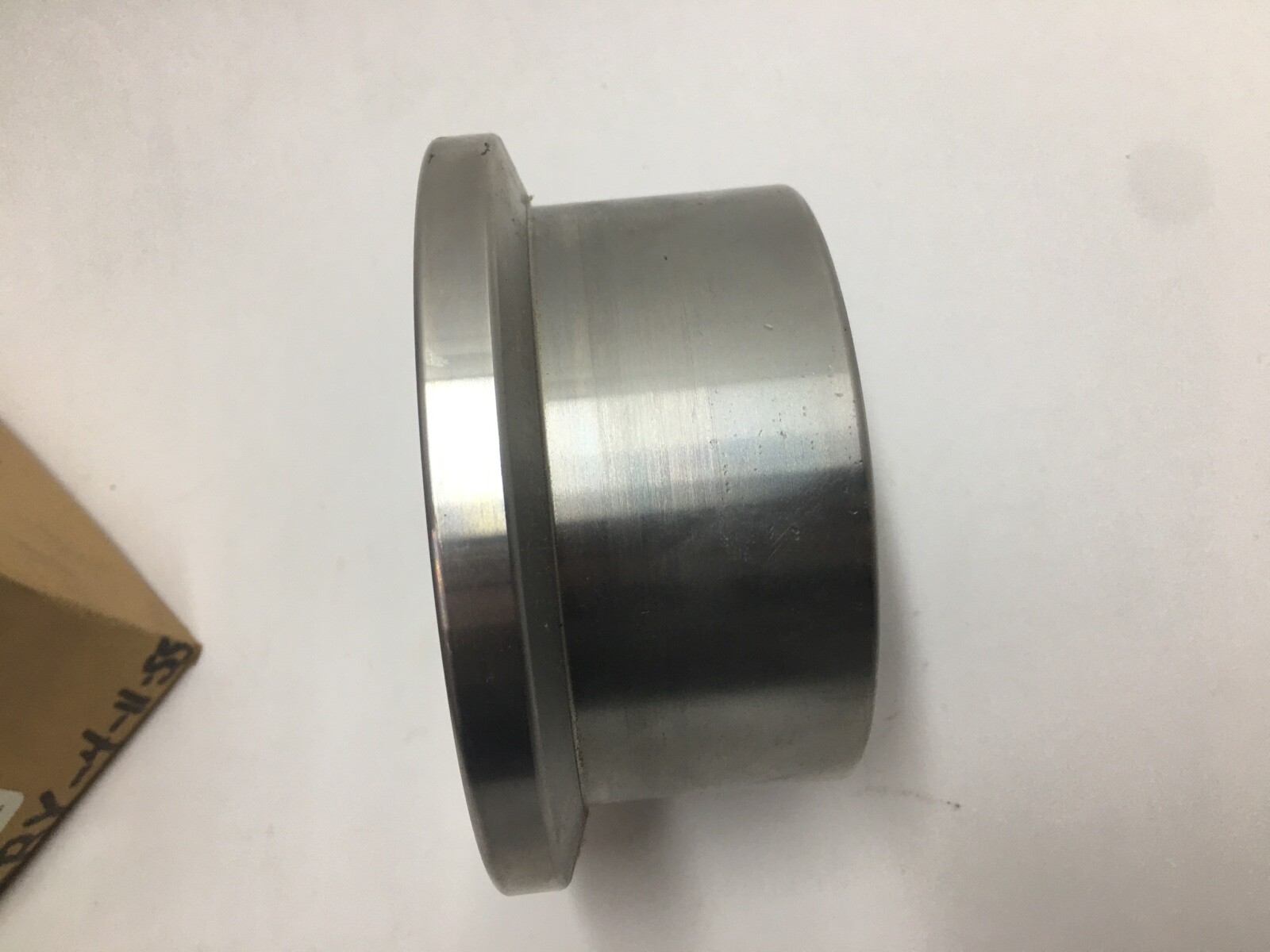

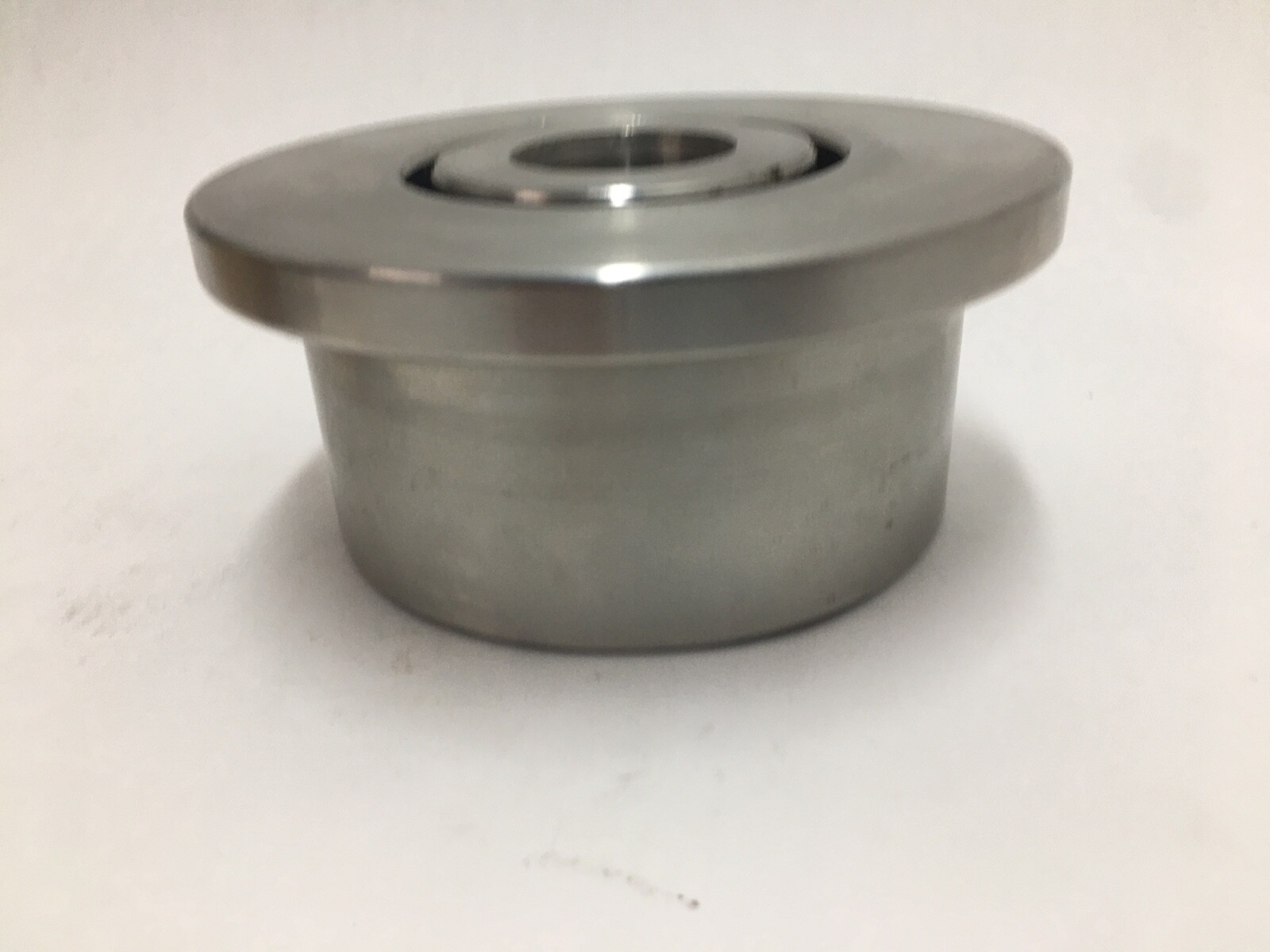

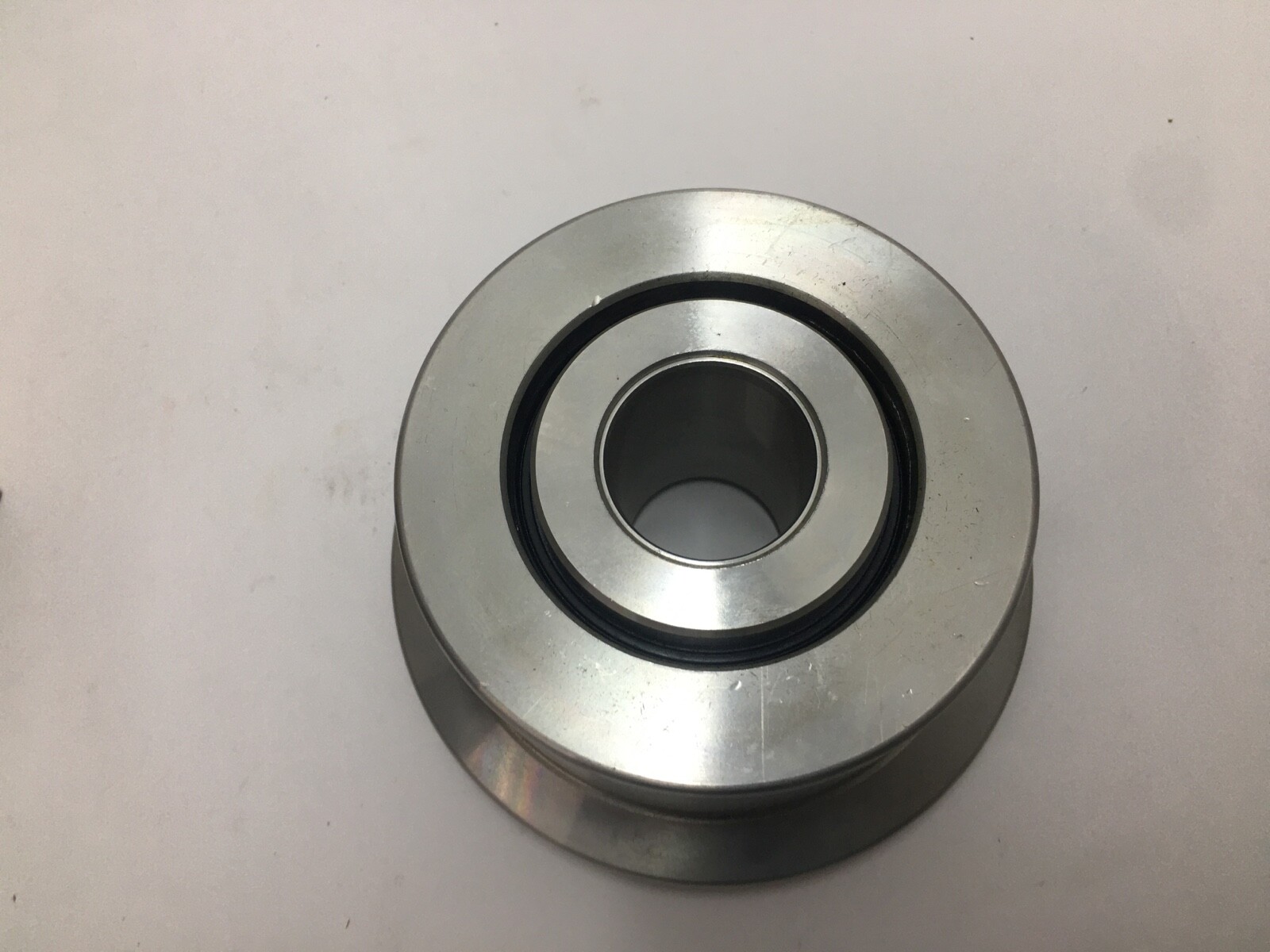

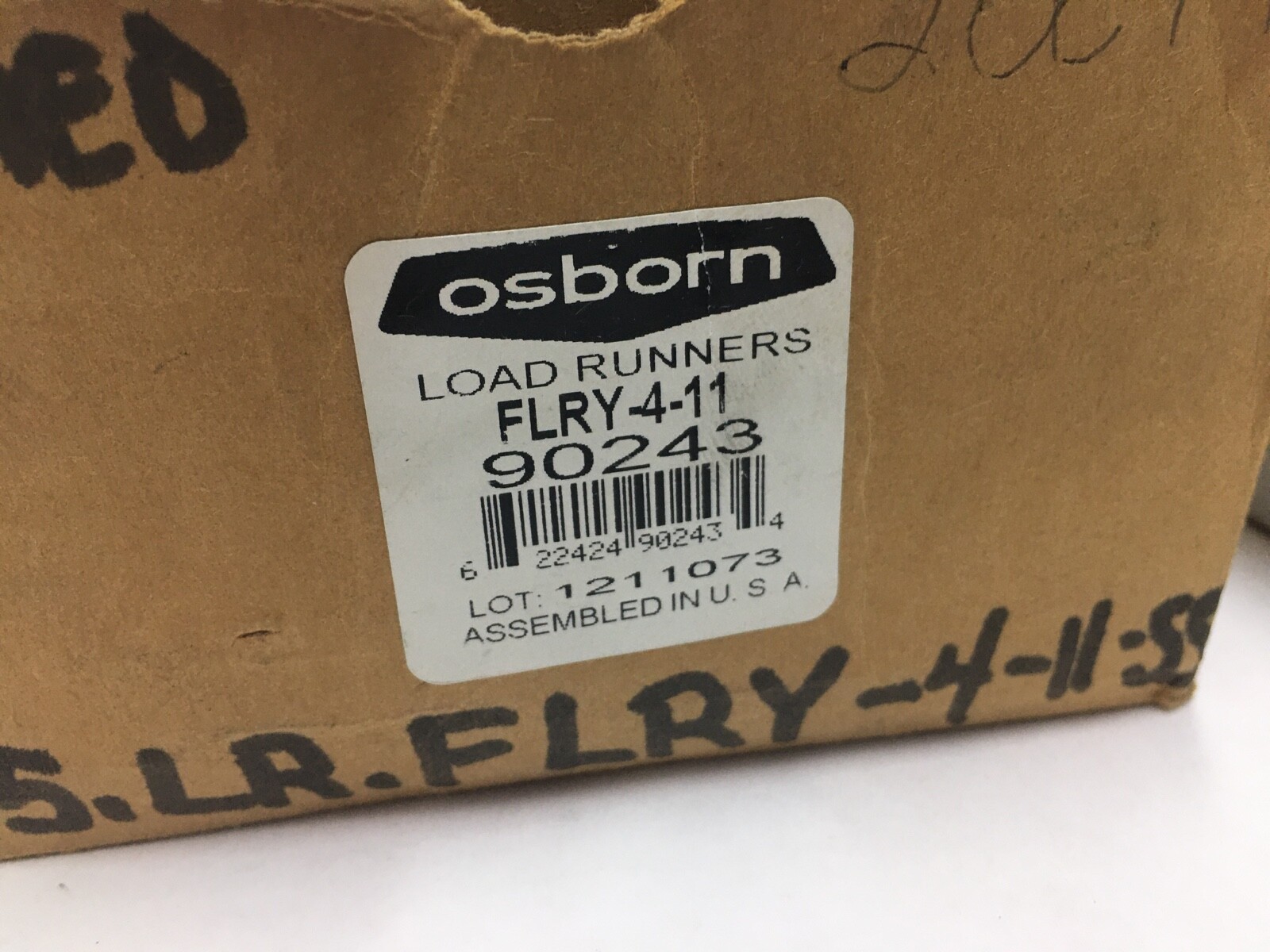

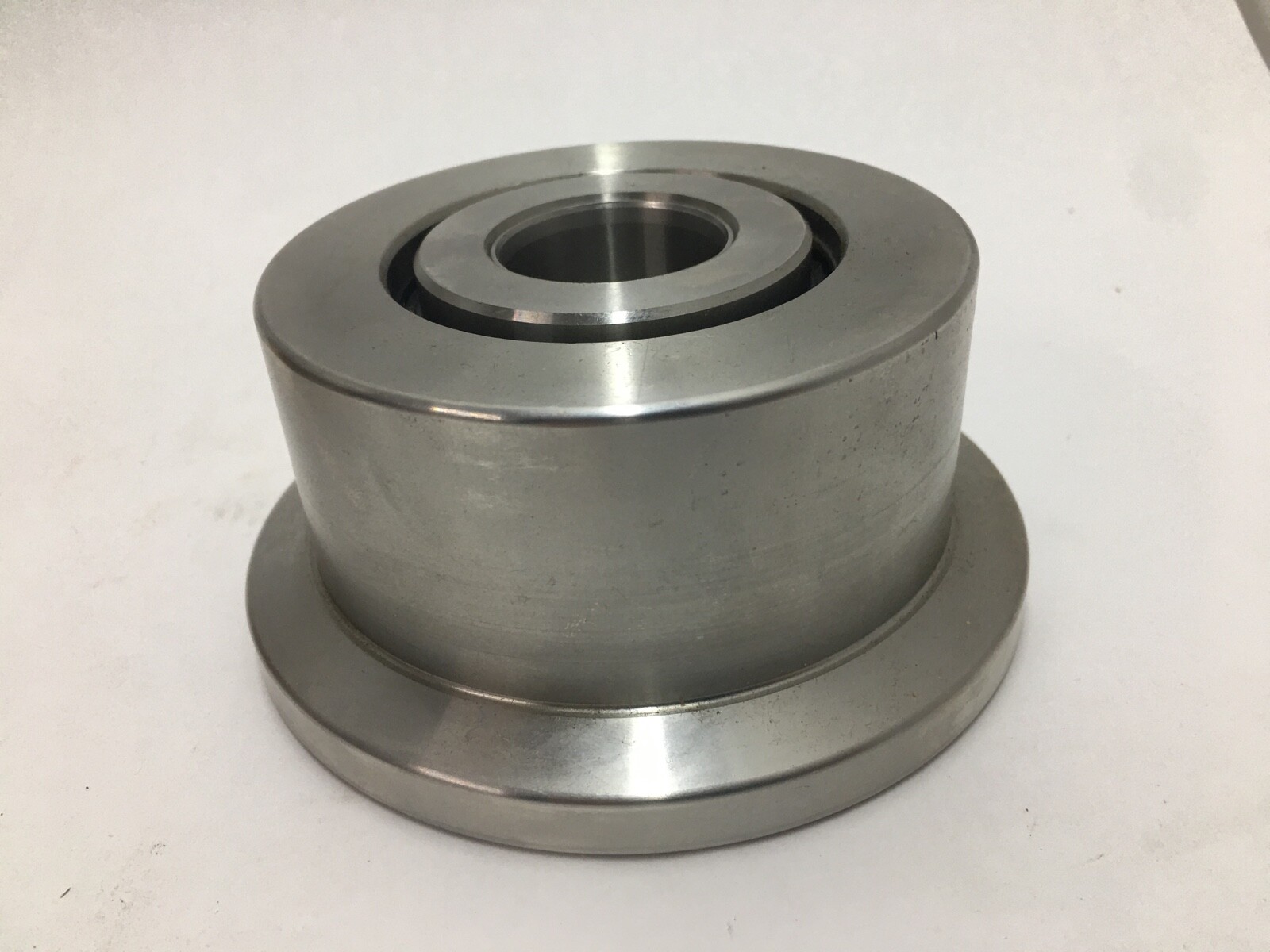

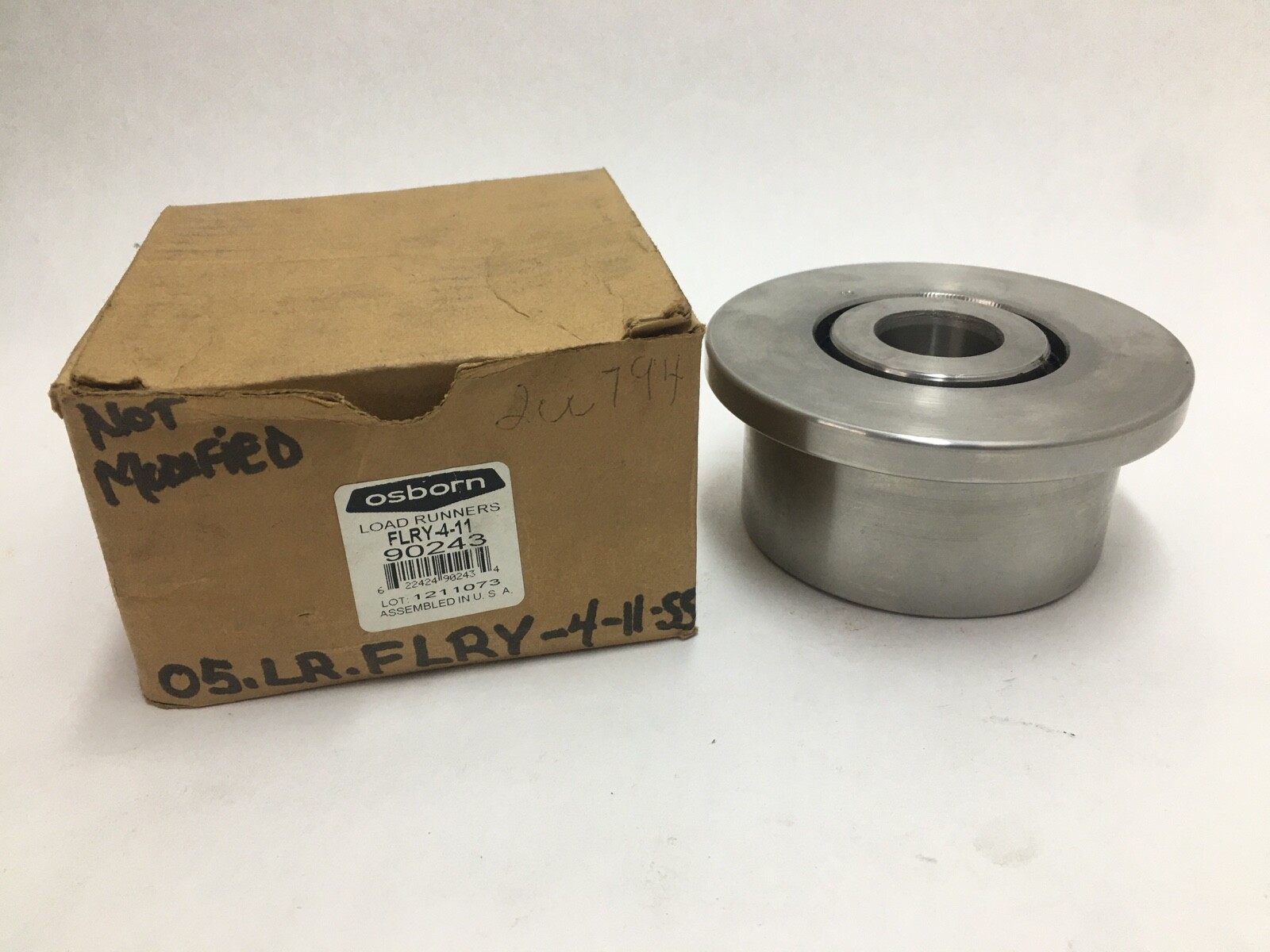

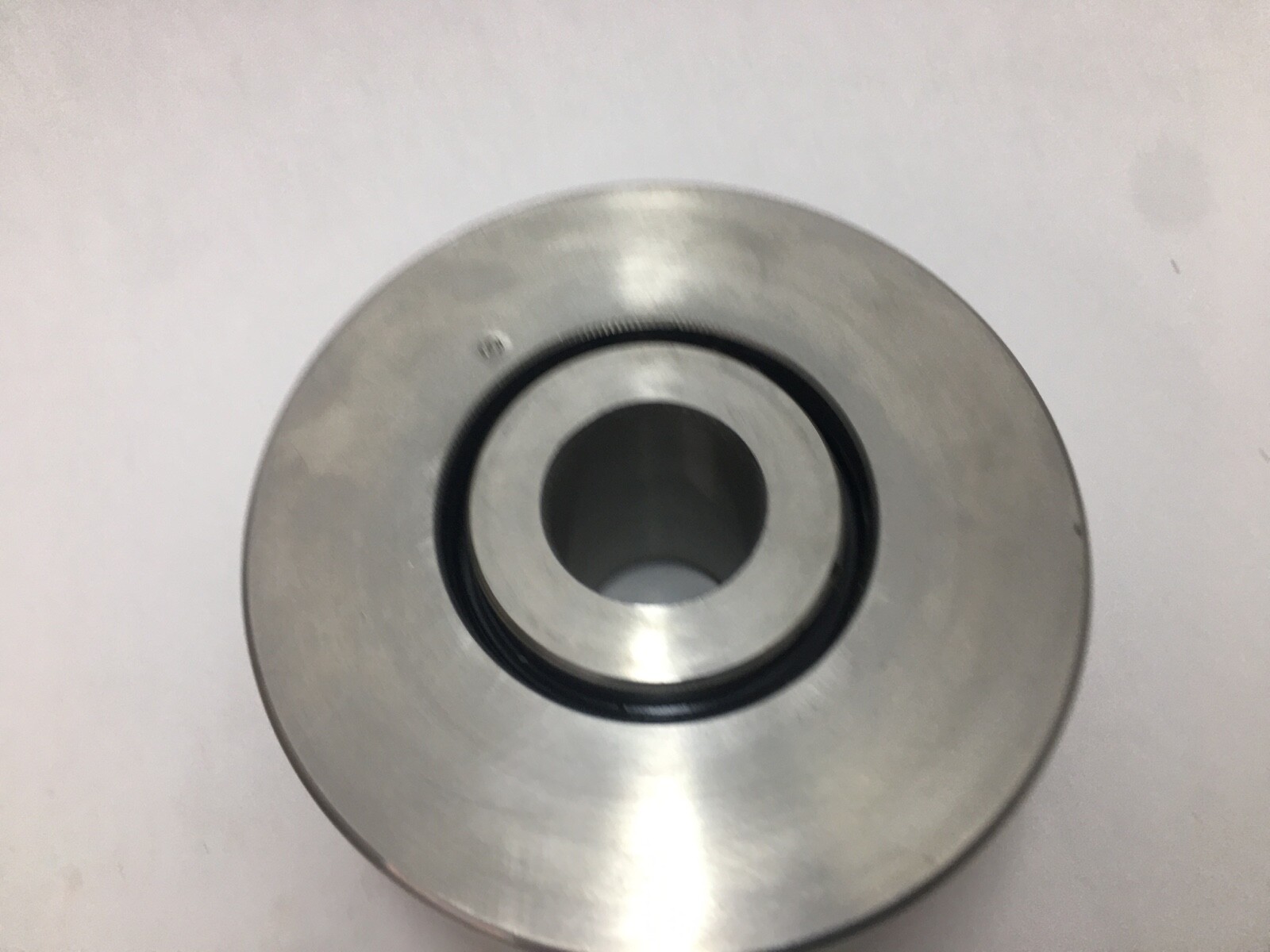

Osborn Load Runner FLRY-4-11 flanged yoke track roller, 1-1/4 in bore, 4 in roller OD, 4.937 in flange, tapered roller bearing. Item 90243, FLRY-4 size.
List Price
$254.90
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Osborn |
|---|---|
| Model | FLRY-4-11 |
| Bearing Type | Ball Bearing |
| ID | 1.25 in |
| OD | 4 in |
| Width | 2.312 in |
| Base Number | FLRY-4 |
|---|---|
| Industry Terms | Load Runner, yoke roller, flanged track roller, cam follower yoke type, guide roller |
| Application Types | Overhead conveyors, lift trucks, telescoping masts, steel mill transfer cars, track guidance |
| Mpn Variants | FLRY-4-11, FLRY411, FLRY 4-11, 90243 |
| Dynamic Load Rating | 7,390 lb (3000 hr L10 at 100 rpm) |
| Static Load Rating | 27,200 lb radial static limit; 13,100 lb thrust static limit |
| Series | FLRY Flanged Yoke Load Runner |
| Rolling Elements | Tapered Roller |
| Item Weight | 7.7 lb |
| Cross Reference 1 | Osborn FLRY-4 item 96229 - catalogue base size, no -11 suffix |
|---|
Osborn Load Runner FLRY-4-11, item 90243, a flanged yoke-style track roller built on the FLRY-4 size. Bore Diameter: 1.250 in. Roller Diameter: 4 in. Flange Diameter: 4.937 in. Roller Width: 2.312 in. Tread Width: 2.25 in. Bearing: sealed tapered roller bearing.
FLRY-4 base data from Osborn. Radial Capacity, 3000 hr L10 at 100 rpm: 7,390 lb. Radial Capacity, 500 hr L10 at 33-1/3 rpm: 17,590 lb. Radial Static Limit: 27,200 lb. Thrust Static Limit: 13,100 lb. Approximate Weight: 7.7 lb. The integral flange guides the roller against side thrust on a rail or track edge.
Bore Tolerance: +0.0005 / -0.0000 in. Shoulder Diameter: 2.25 in. Shoulder Length: 0.031 in. Flange Thickness: 0.59 in. The yoke design mounts on a through pin or clevis, supported on both sides.
Unit Quantity: 1 Pc. Overall flange OD: 4-15/16 in.
Osborn FLRY-4 (item 96229) is the catalogue base size this part is built on, listed without the -11 suffix. The load and weight figures above are its published data.
