Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

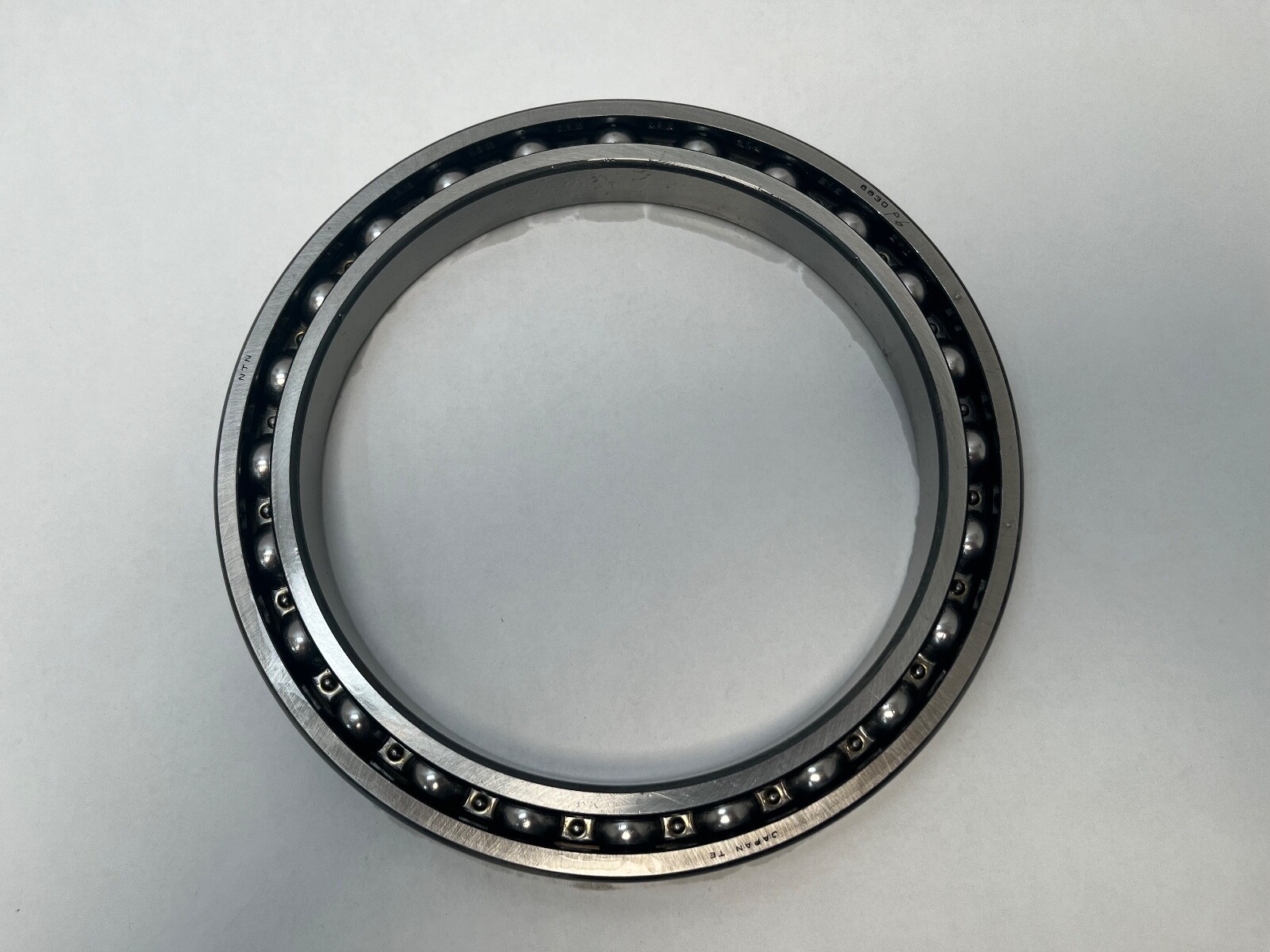

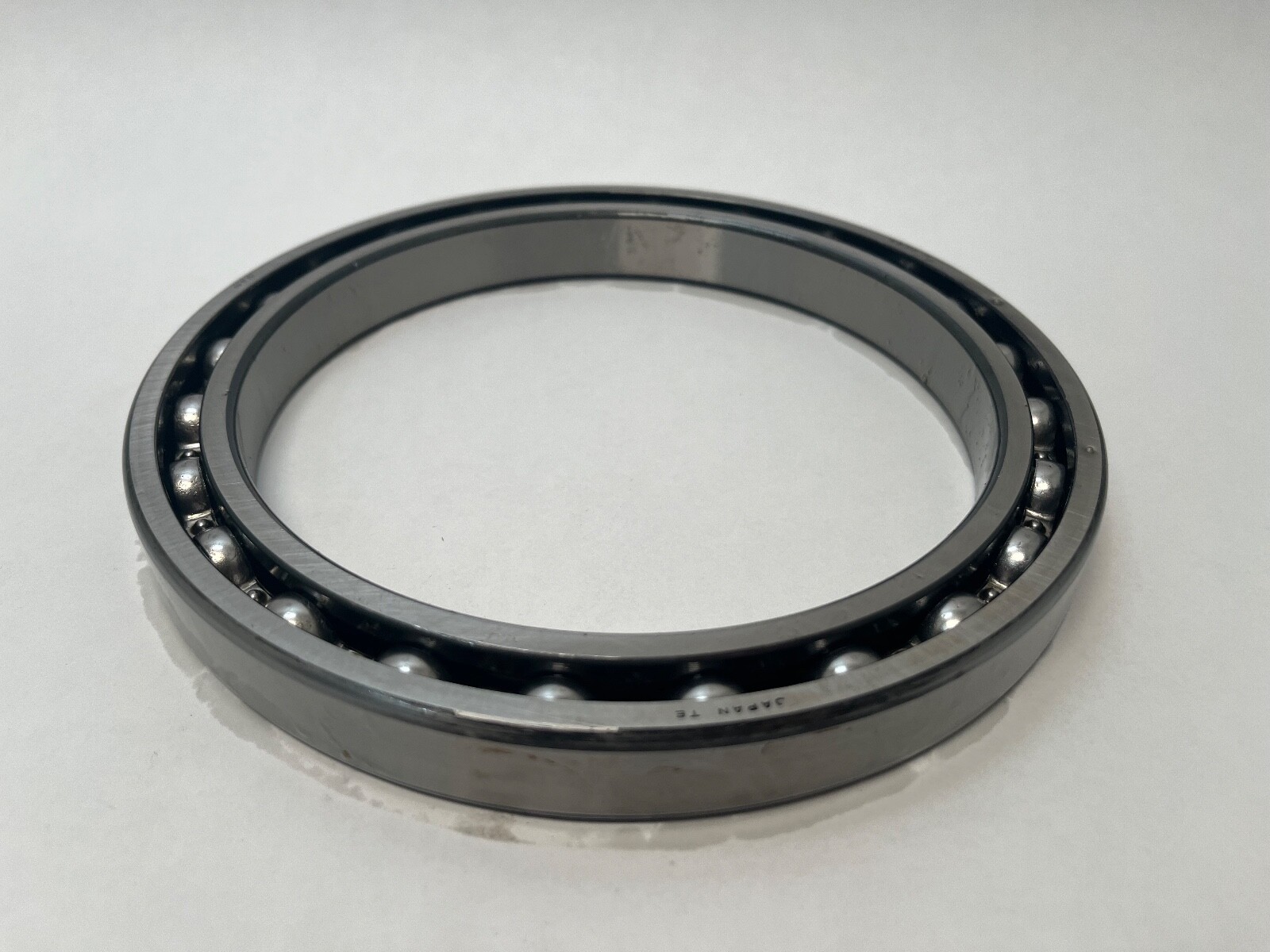

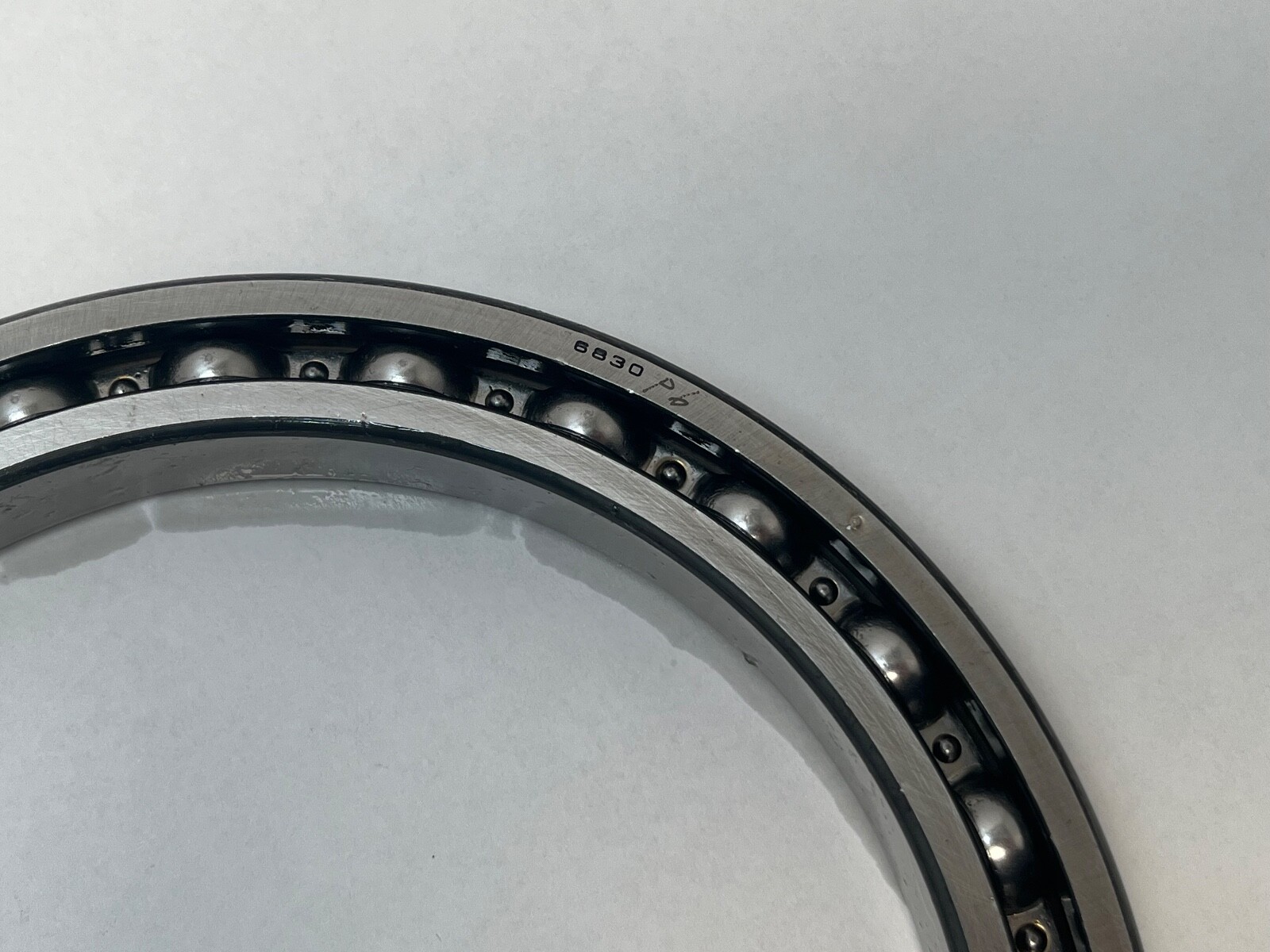

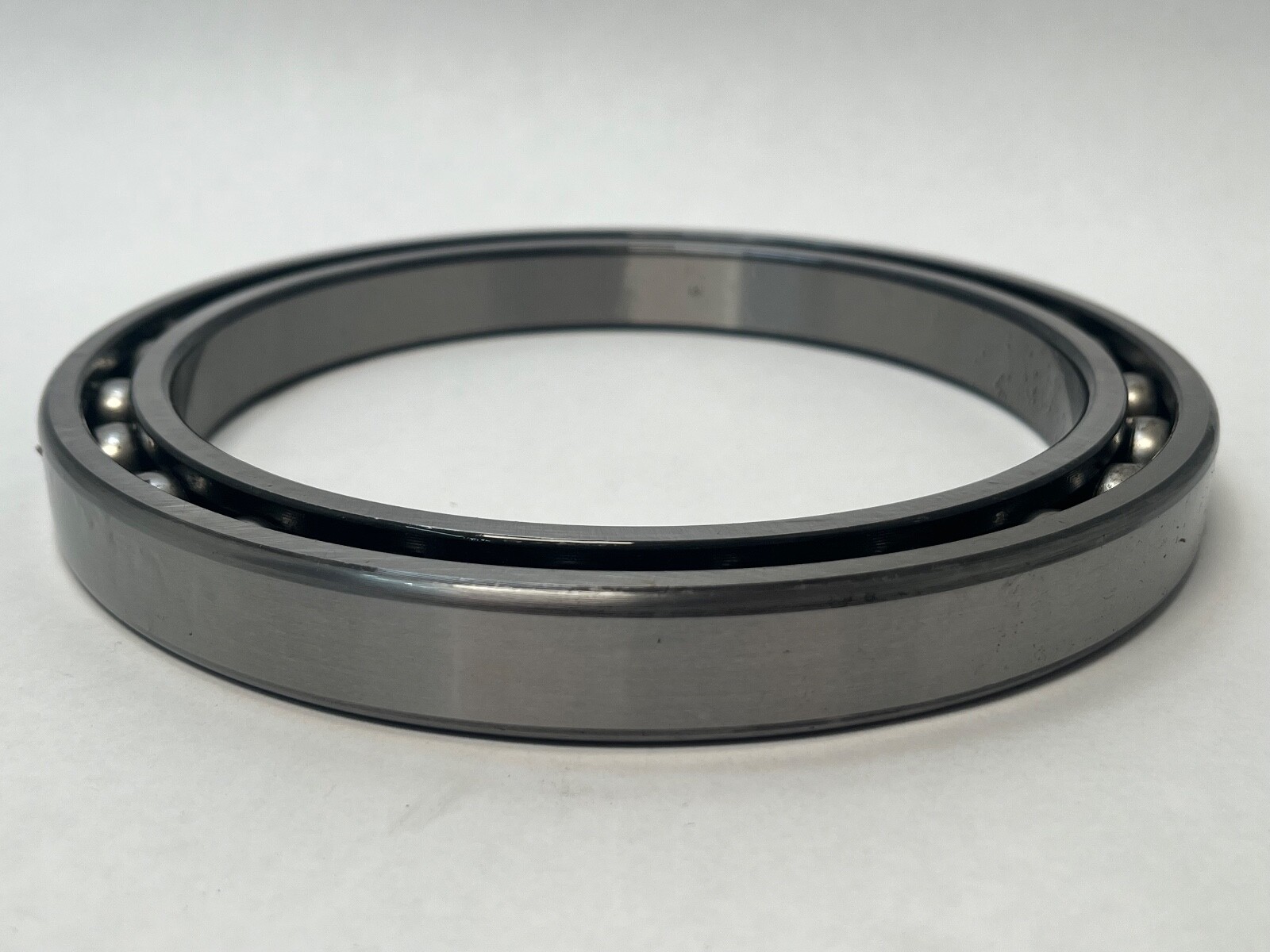

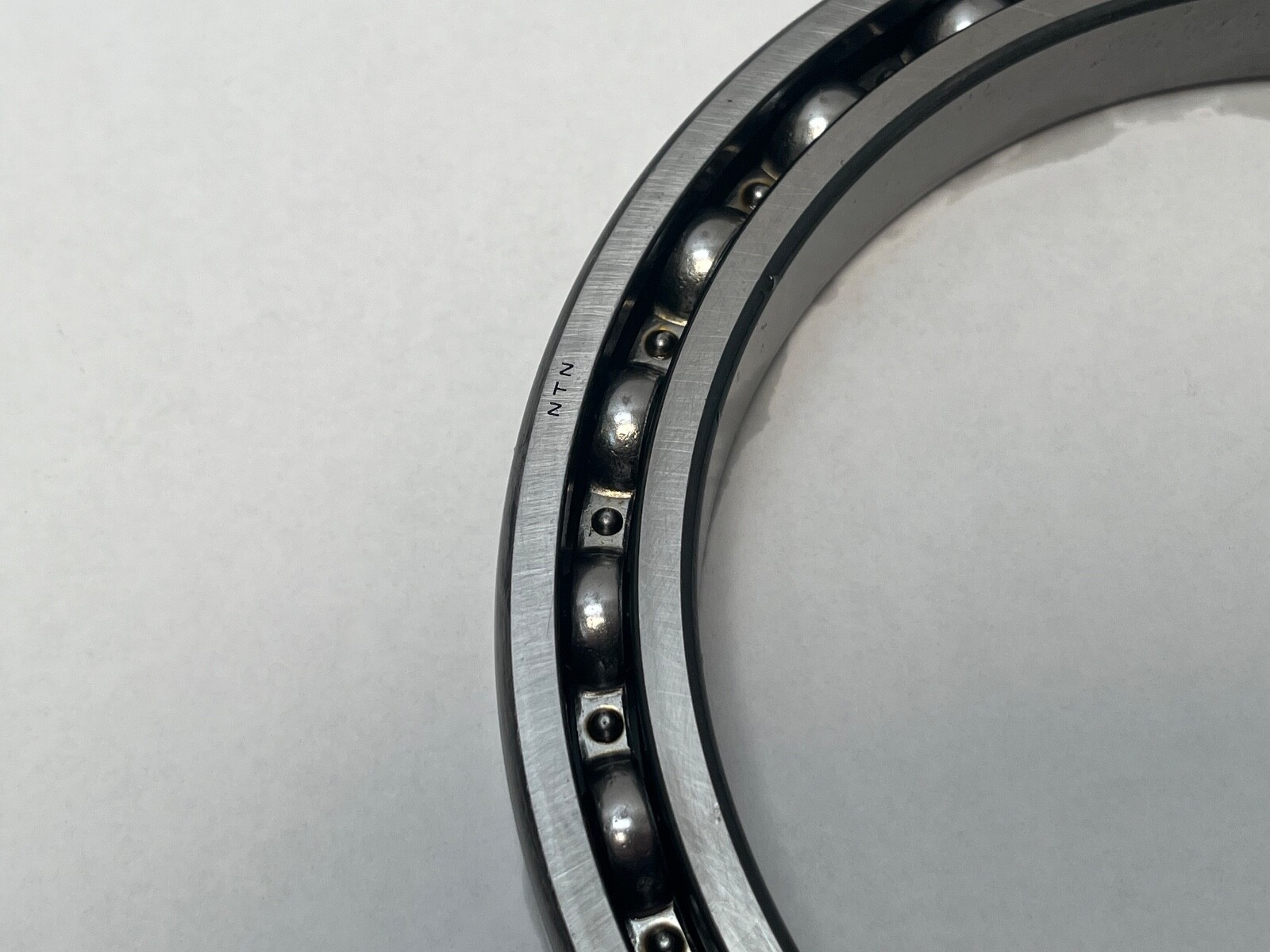

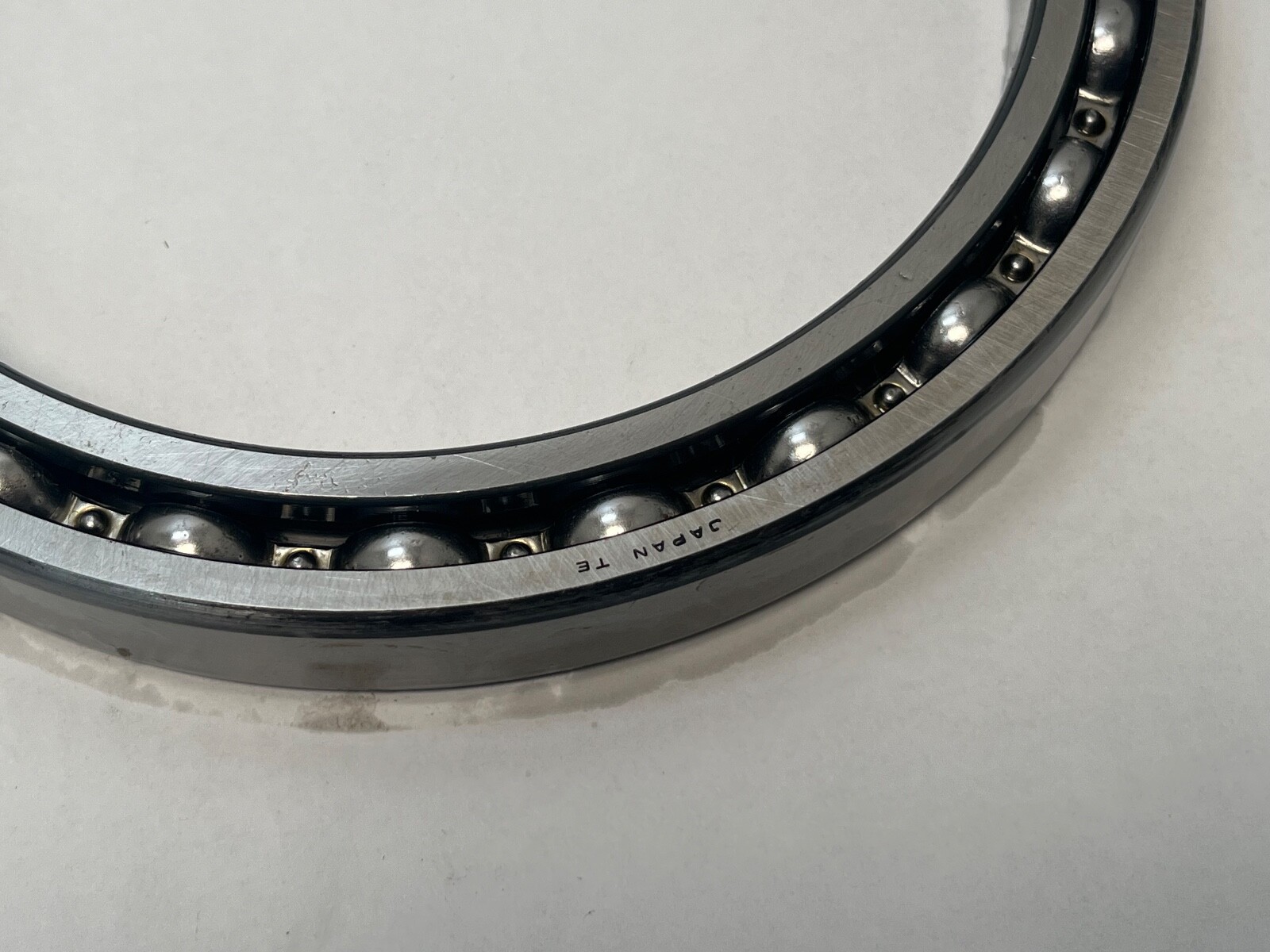

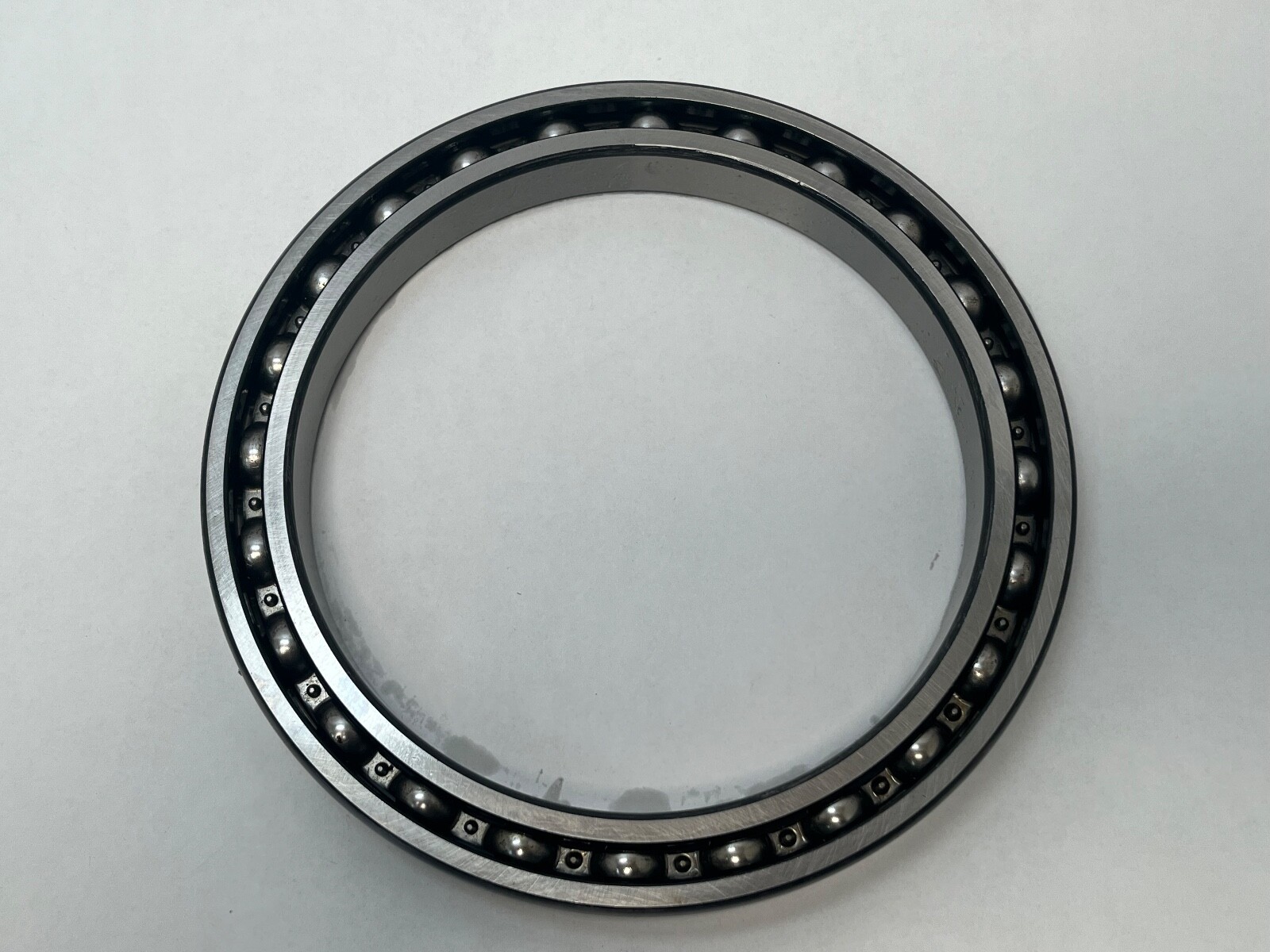

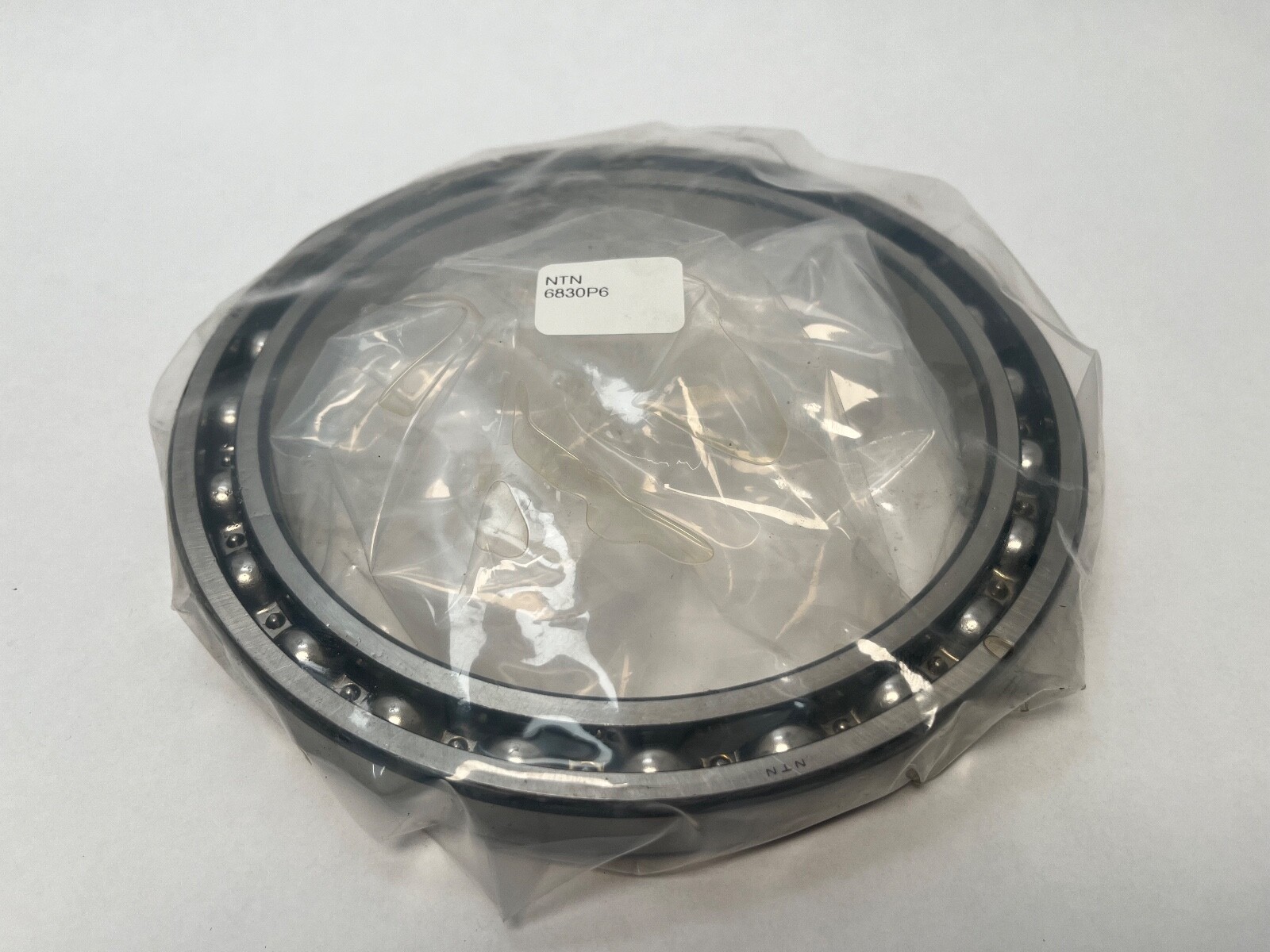

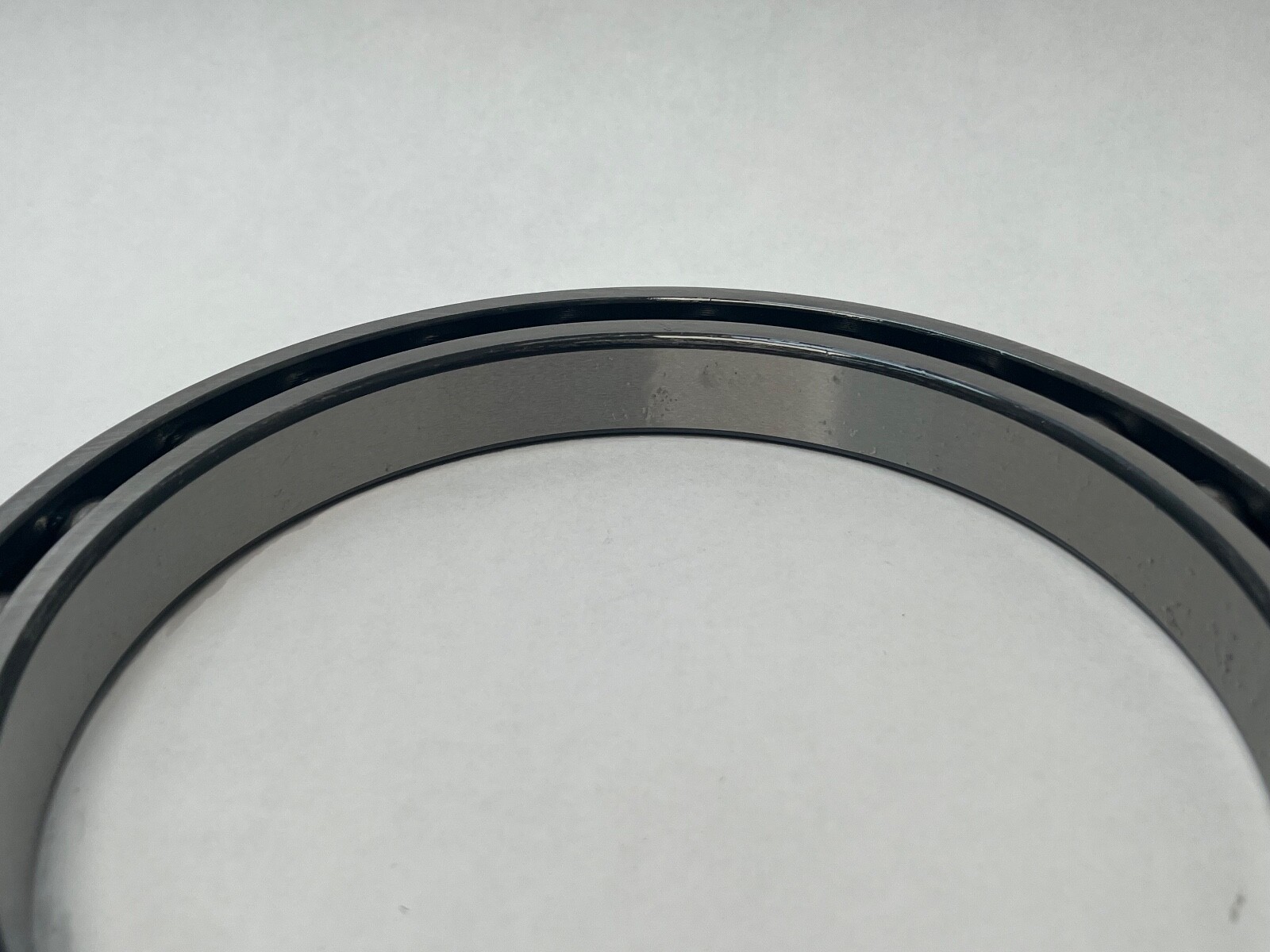

Deep groove ball bearing, 150 mm bore, 190 mm OD, 20 mm wide, open, ABEC 3 / P6. Thin-section 68 series, 53,000 N dynamic rating, pressed steel cage.
List Price
$229.49
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 6830P6 |
| Model | 6830 P6 |
| Bearing Type | Ball Bearing, Open |
| ID | 150 mm |
| OD | 190 mm |
| Width | 20 mm |
| Material | Bearing Steel |
|---|---|
| Series | 6800 |
| Lubricant | Grease or oil |
| Base Number | 6830 |
| Mpn Variants | 6830P6, 6830-P6, 6830 P6 |
| Precision Class | ABEC 3 / P6 |
| Dynamic Load Rating | 53,000 N |
| Static Load Rating | 55,000 N |
| Rolling Elements | Ball |
| Item Weight | 1.160 kg (2.56 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 3,100 rpm grease; 3,700 rpm oil |
| Internal Clearance | CN |
| Harmonization Code | 8482.10.50 |
| Cross Reference 1 | SKF 61830 |
|---|---|
| Cross Reference 2 | FAG 61830 |
| Cross Reference 3 | NSK 6830 |
| Cross Reference 4 | Koyo 6830 |
NTN 6830P6 is a thin-section single-row deep groove ball bearing, open, in ISO 6 tolerance class. Bore Diameter: 150 mm. Outside Diameter: 190 mm. Width: 20 mm. Closure Type: Open. Cage Material: Pressed steel. Precision Class: ABEC 3 / P6. Internal Clearance: CN.
6830 — NTN single-row deep groove ball bearing, 68 (extra-thin) series, 150 mm bore.
P6 — ISO tolerance class 6, equivalent to ABEC 3.
Dynamic Load Rating: 53,000 N. Static Load Rating: 55,000 N. Limiting Speed: 3,100 rpm grease; 3,700 rpm oil. Item Weight: 1.160 kg (2.56 lb). The 20 mm section keeps a large 150 mm bore inside a compact housing. P6 tolerances tighten running accuracy over standard P0 parts.
Fillet Radius r min: 1.1 mm. Shaft Abutment da min: 156.5 mm. Housing Abutment Da max: 183.5 mm.
Unit Quantity: 1 Pc.
SKF 61830, FAG 61830, NSK 6830 and Koyo 6830 share the 150 x 190 x 20 mm envelope, open. Specify P6 class on the equivalent.
