Availability:
1 in stock
Deep groove ball bearing, 75 x 160 x 37 mm, open, MRC 300-S medium series. Dynamic Load Rating 114,000 N, Static 76,500 N. Pressed steel cage, CN clearance.
List Price
$45.14
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | MRC |
|---|---|
| MPN | 315S |
| Model | 315S |
| Bearing Type | Ball Bearing, Open |
| ID | 75 mm |
| OD | 160 mm |
| Width | 37 mm |
| Series | 300-S Medium |
|---|---|
| Dynamic Load Rating | 114,000 N |
| Static Load Rating | 76,500 N |
| Rolling Elements | Ball |
| Cage Material | Pressed steel |
| Limiting Speed | 4,300 rpm grease; 5,000 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 84821000 |
| Internal Clearance | CN |
| Base Number | 6315 |
| Industry Terms | Single row ball bearing, radial ball bearing, open ball bearing, Conrad bearing, 75mm bore ball bearing, medium series ball bearing |
| Common Misspellings | MRC 315s bearing, MCR 315S, 315-5, 6315 bearing MRC, MRC315S |
| Total Width | 37 mm |
| Overall Width | 37 mm |
| Bore Shaft Size | 75 mm |
| Mpn Variants | 315S, 315-S, 315 S |
| Additional Attributes | Maximum fillet radius (shaft or housing): 2.0 mm |
| Design Units | Metric |
| Part Number | 315S |
| Application Types | Electric motors; pumps; gearboxes; industrial machinery |
| Cross Reference 1 | SKF 6315 |
|---|---|
| Cross Reference 2 | FAG 6315 |
| Cross Reference 3 | NSK 6315 |
| Cross Reference 4 | NTN 6315 |
| Cross Reference 5 | Koyo 6315 |
| Cross Reference 6 | Fafnir 315K |

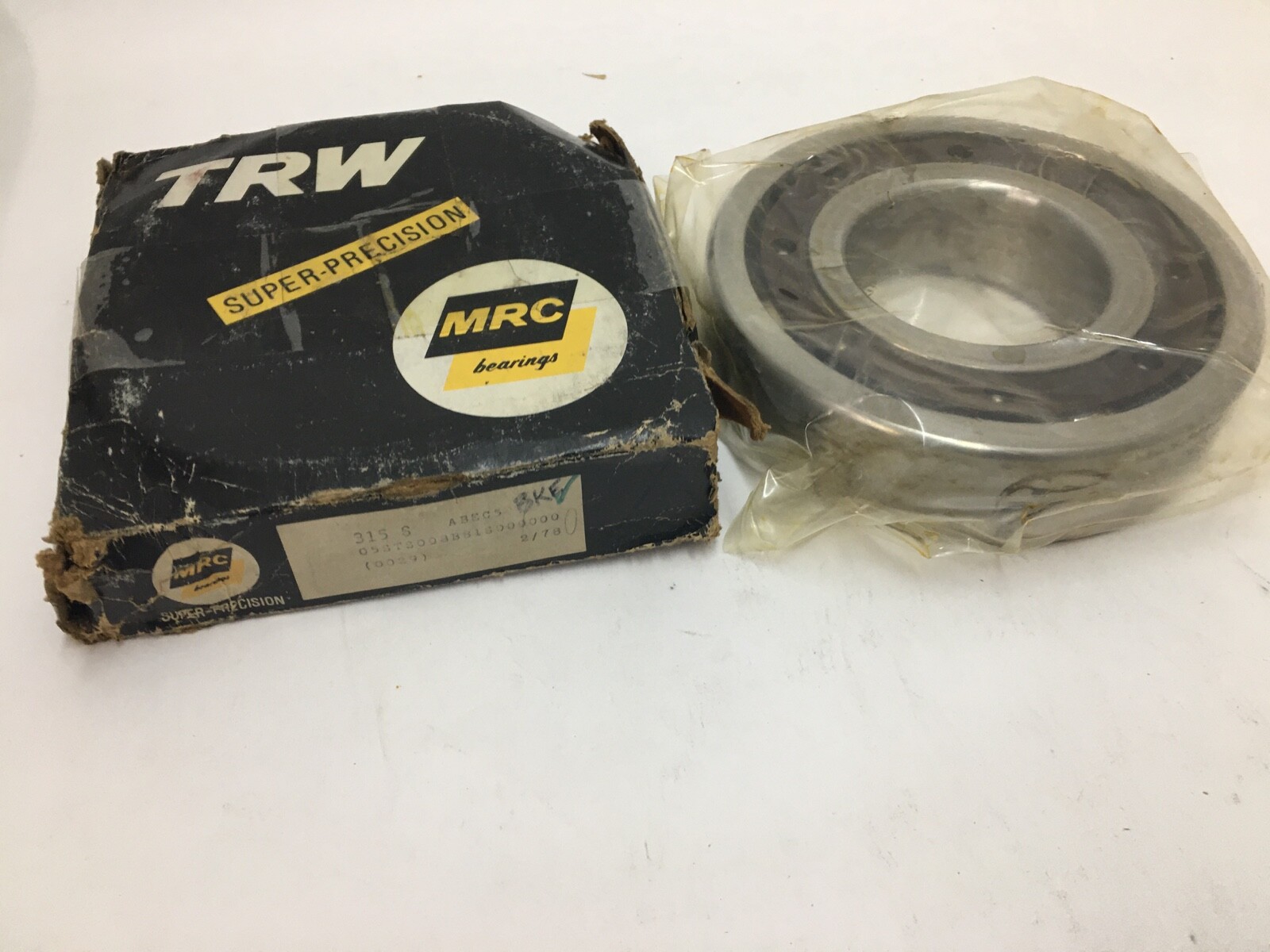

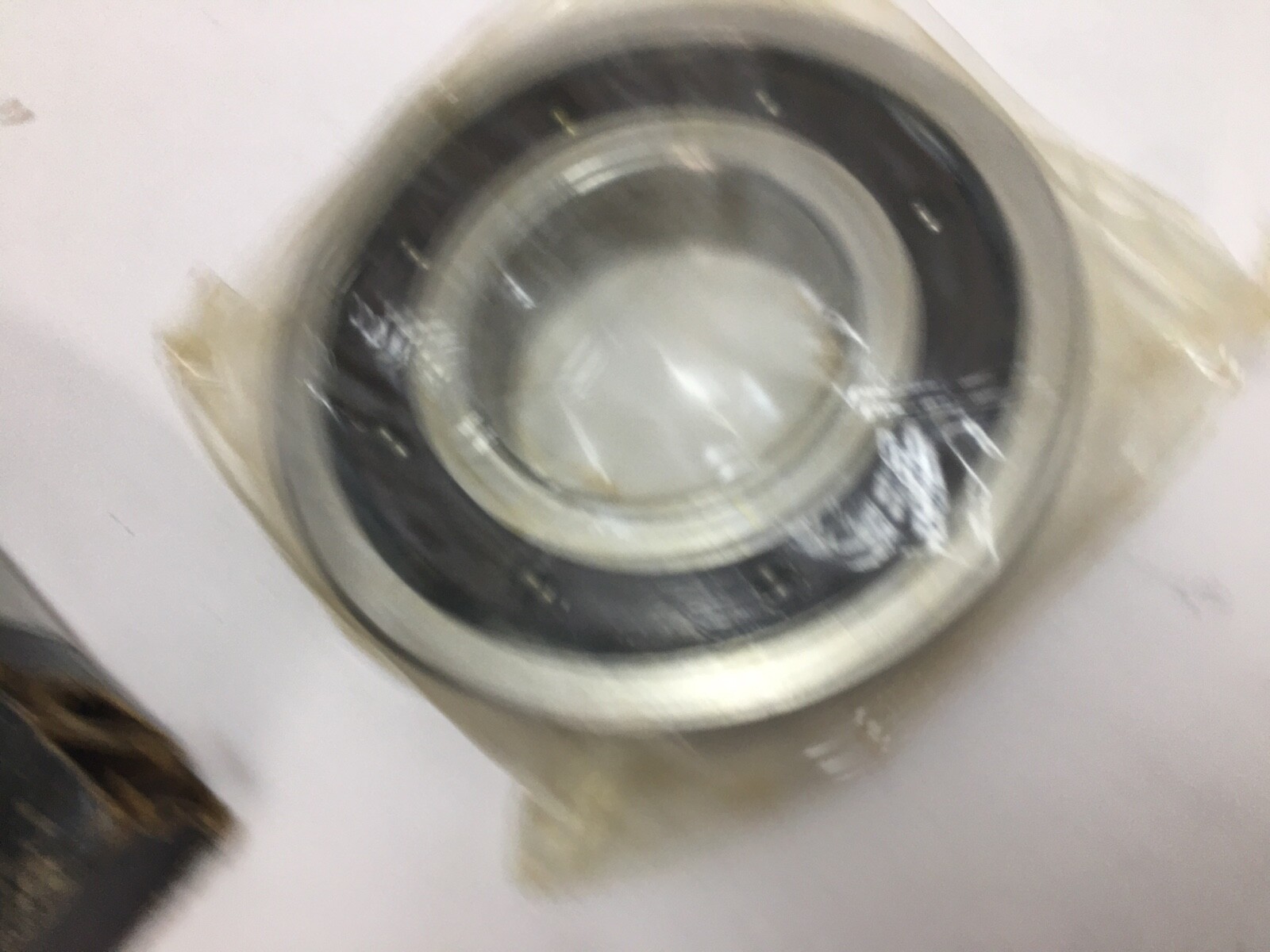

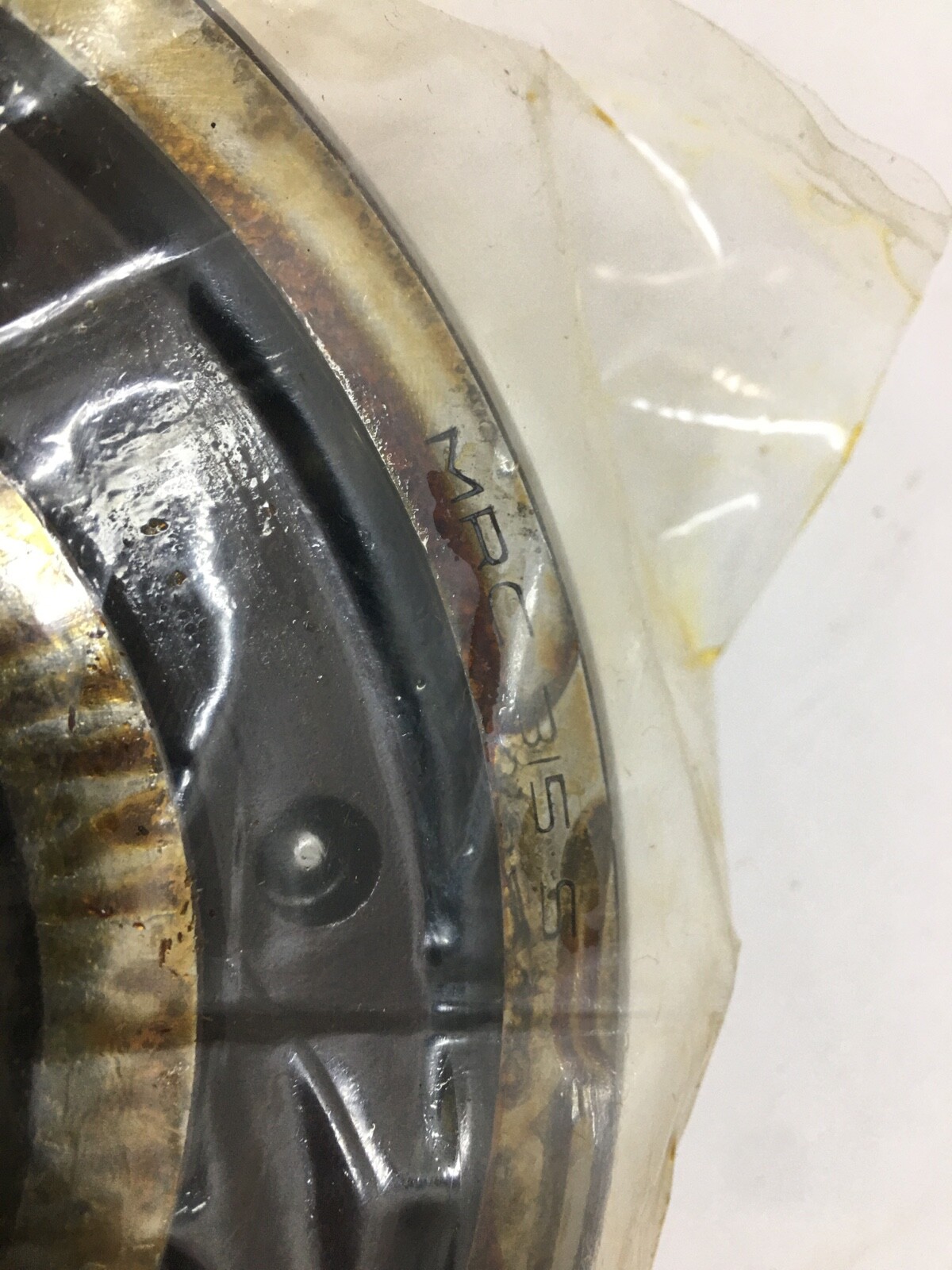

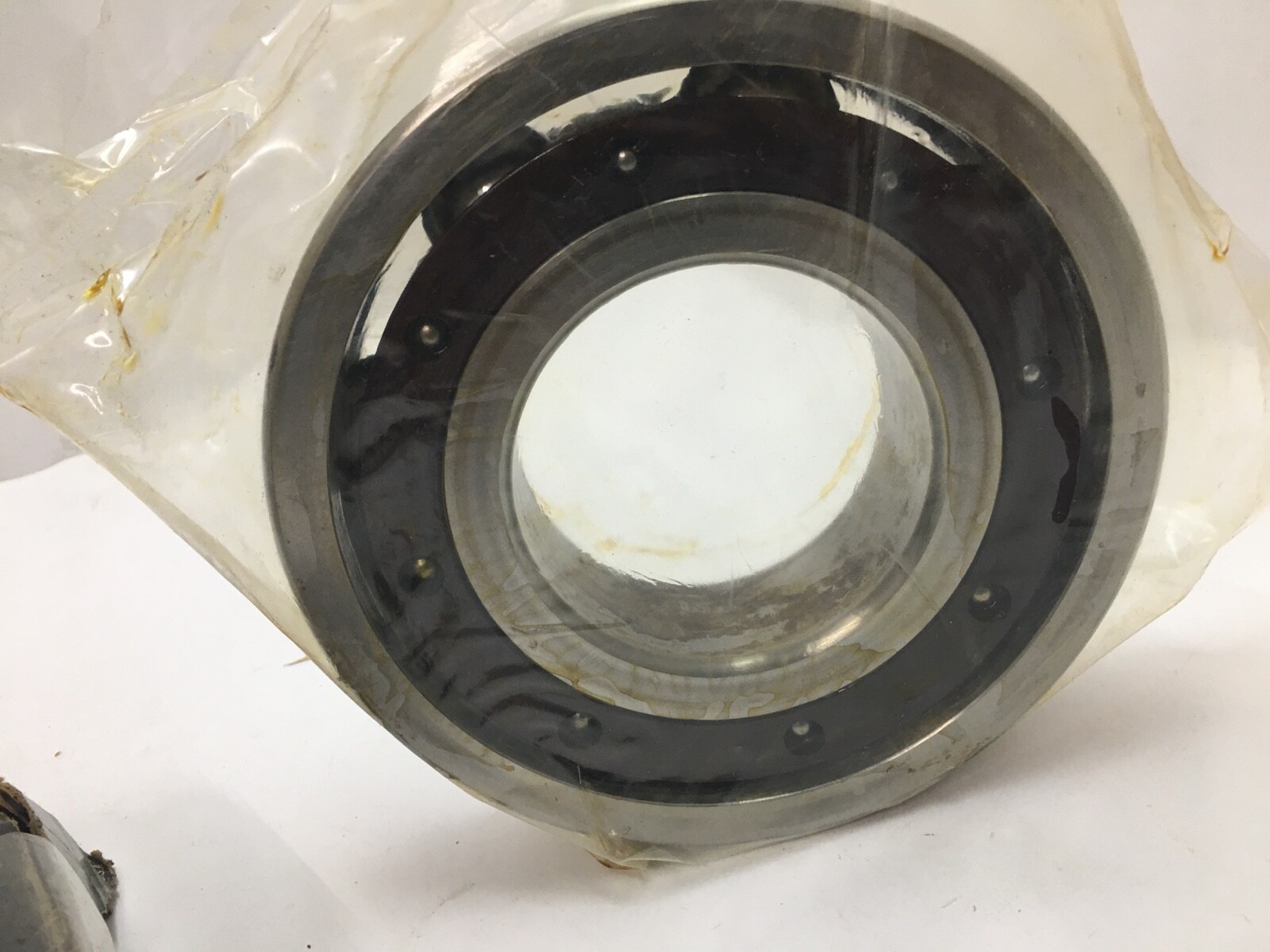

MRC 315S single-row Conrad deep groove ball bearing, open on both faces, from the MRC 300-S Medium Series. Unit Quantity: 1 Pc.
315 — MRC 300-S Medium Series, bore code 15, giving a 75 mm bore.
S — Conrad-type single-row deep groove construction with no filling notches.
Bore Diameter: 75 mm. Outside Diameter: 160 mm. Overall Width: 37 mm. Rolling Elements: Ball. Number Of Rows: 1. Closure Type: Open. Dynamic Load Rating: 114,000 N. Static Load Rating: 76,500 N. Limiting Speed: 4,300 rpm grease; 5,000 rpm oil. Cage Material: Pressed steel. Internal Clearance: CN. Bore Type: Straight. Snap Ring Included: No.
Maximum Fillet Radius (shaft or housing): 2.0 mm. Straight bore for a 75 mm shaft seat; 160 mm housing bore. Uninterrupted raceway grooves carry radial load together with thrust load in either direction.
Cross-references: SKF 6315, FAG 6315, NSK 6315, NTN 6315, Koyo 6315 and Fafnir 315K, all 75 x 160 x 37 mm open deep groove bearings. Also written as 315S, 315-S and 315 S.
75 mm bore, 160 mm outside diameter and 37 mm width, open on both faces.
Dynamic Load Rating 114,000 N, Static Load Rating 76,500 N, Limiting Speed 4,300 rpm grease and 5,000 rpm oil.
A pressed steel cage and CN (normal) internal clearance.
