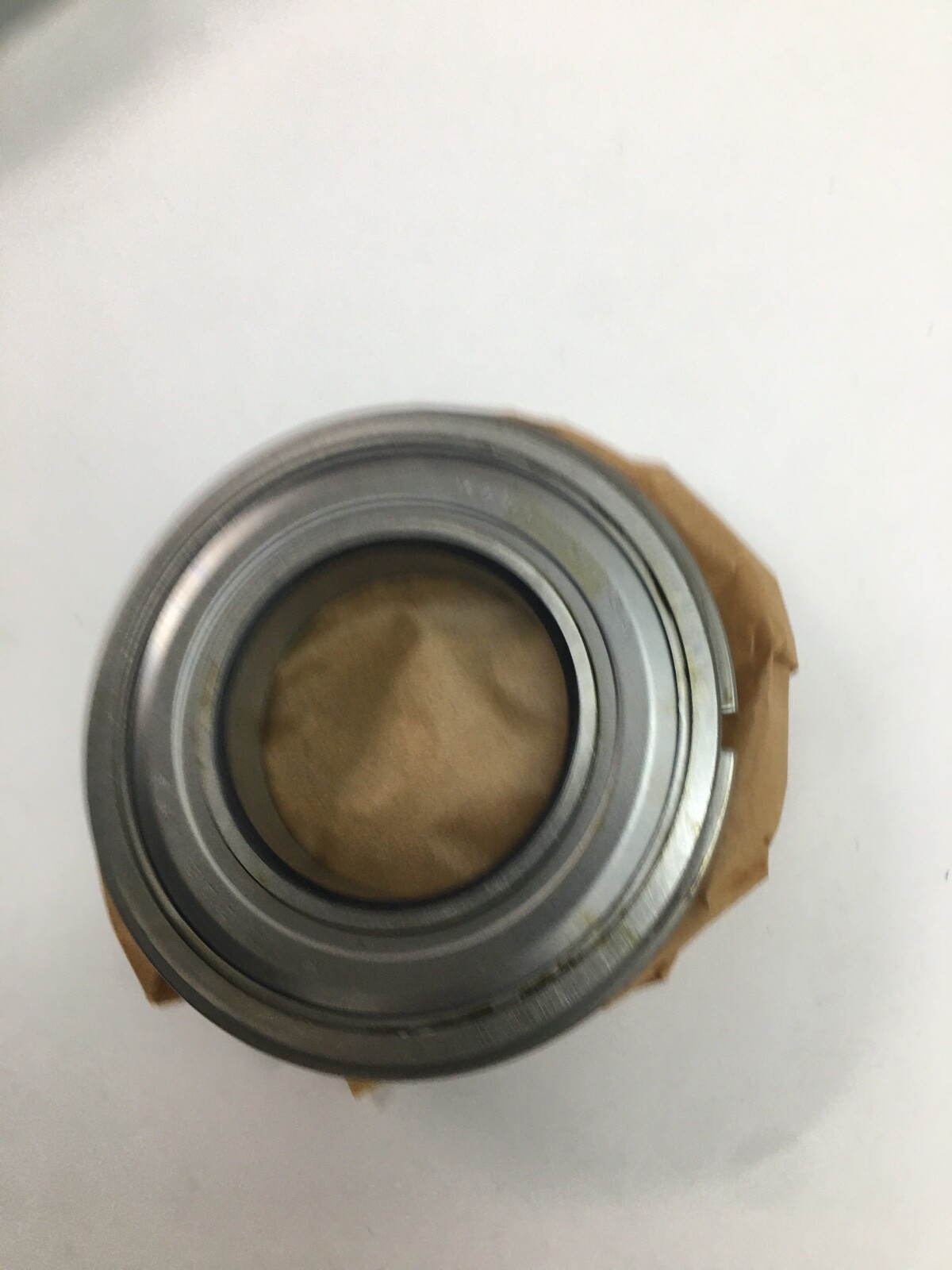

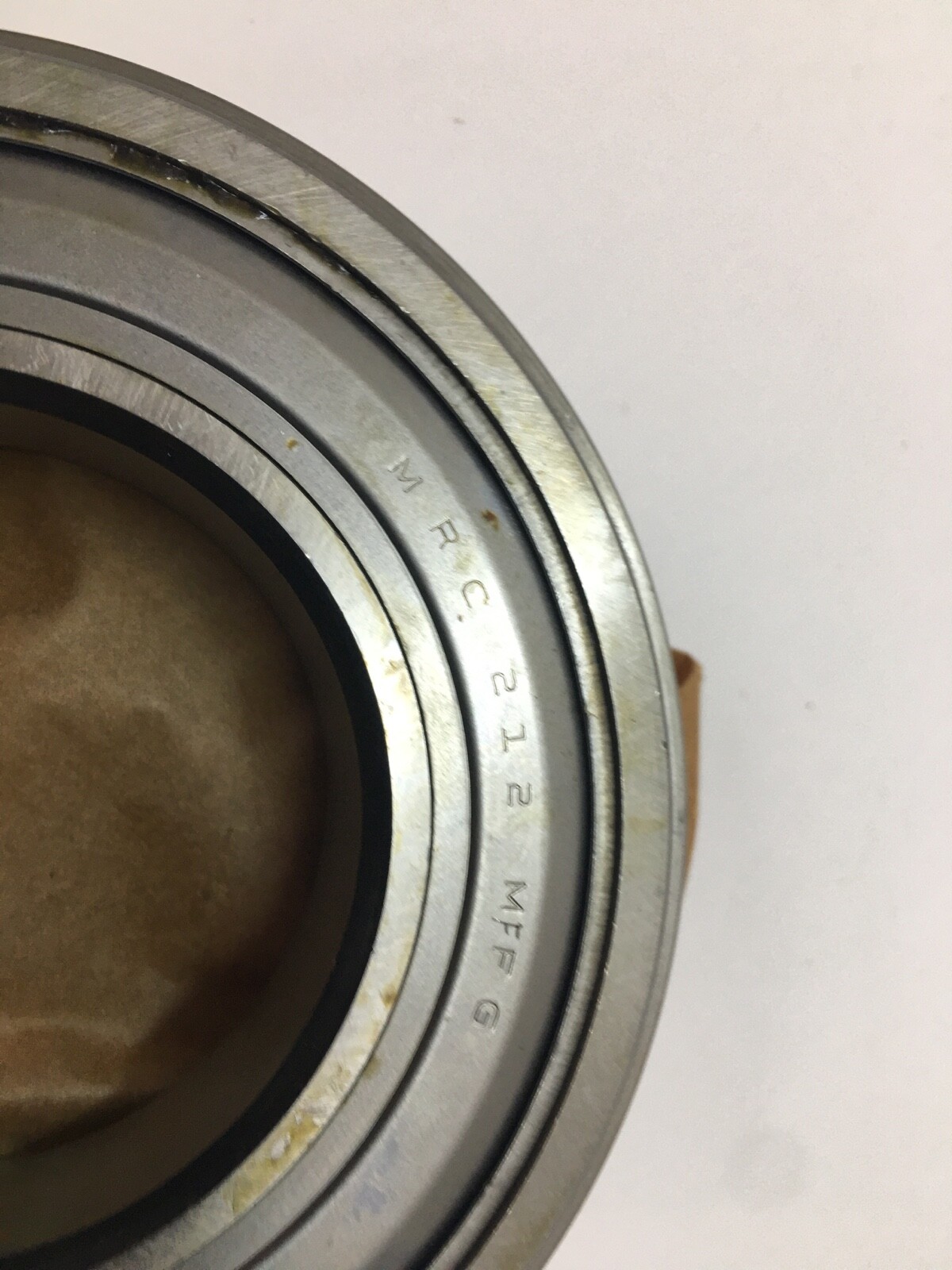

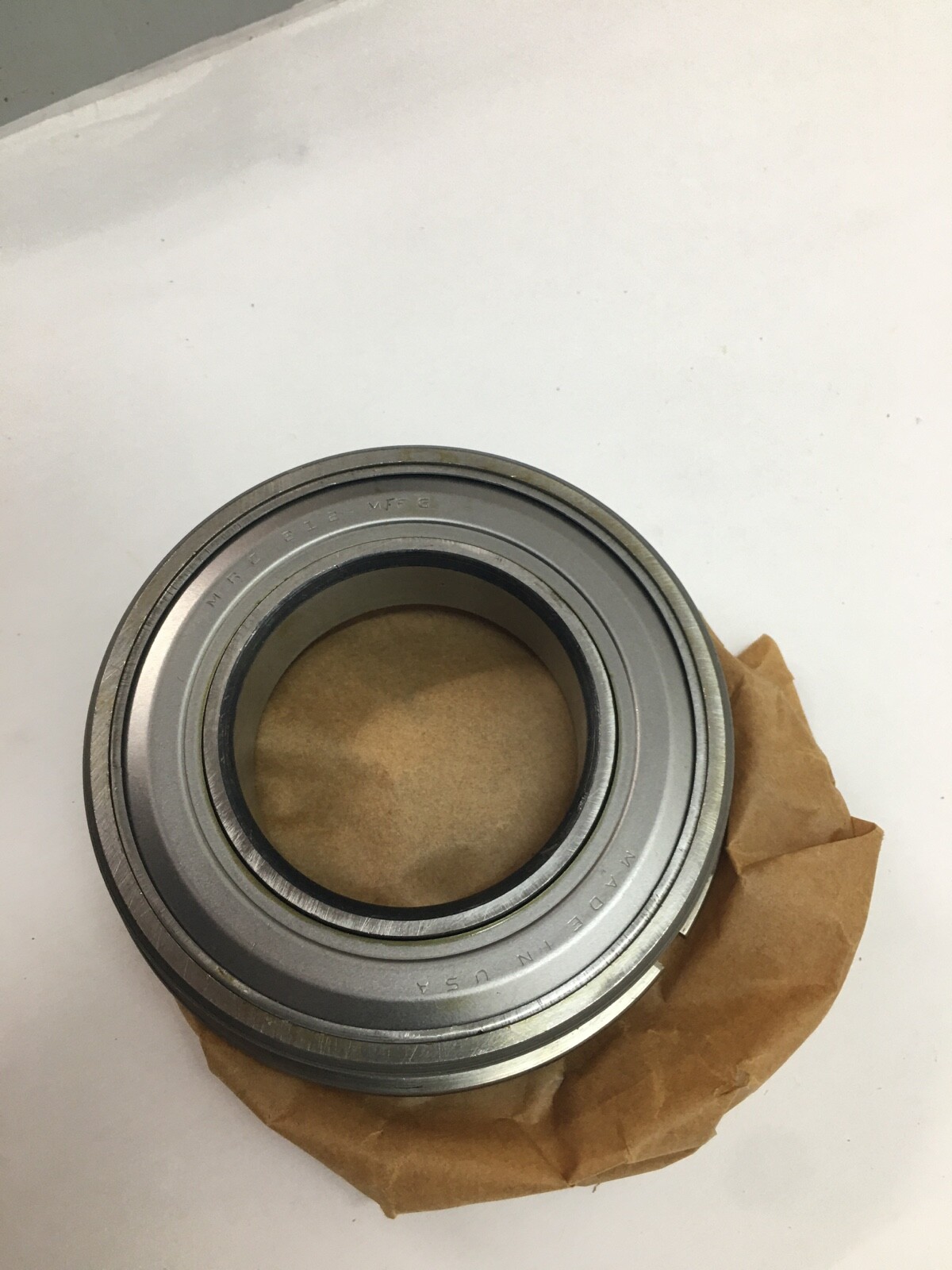

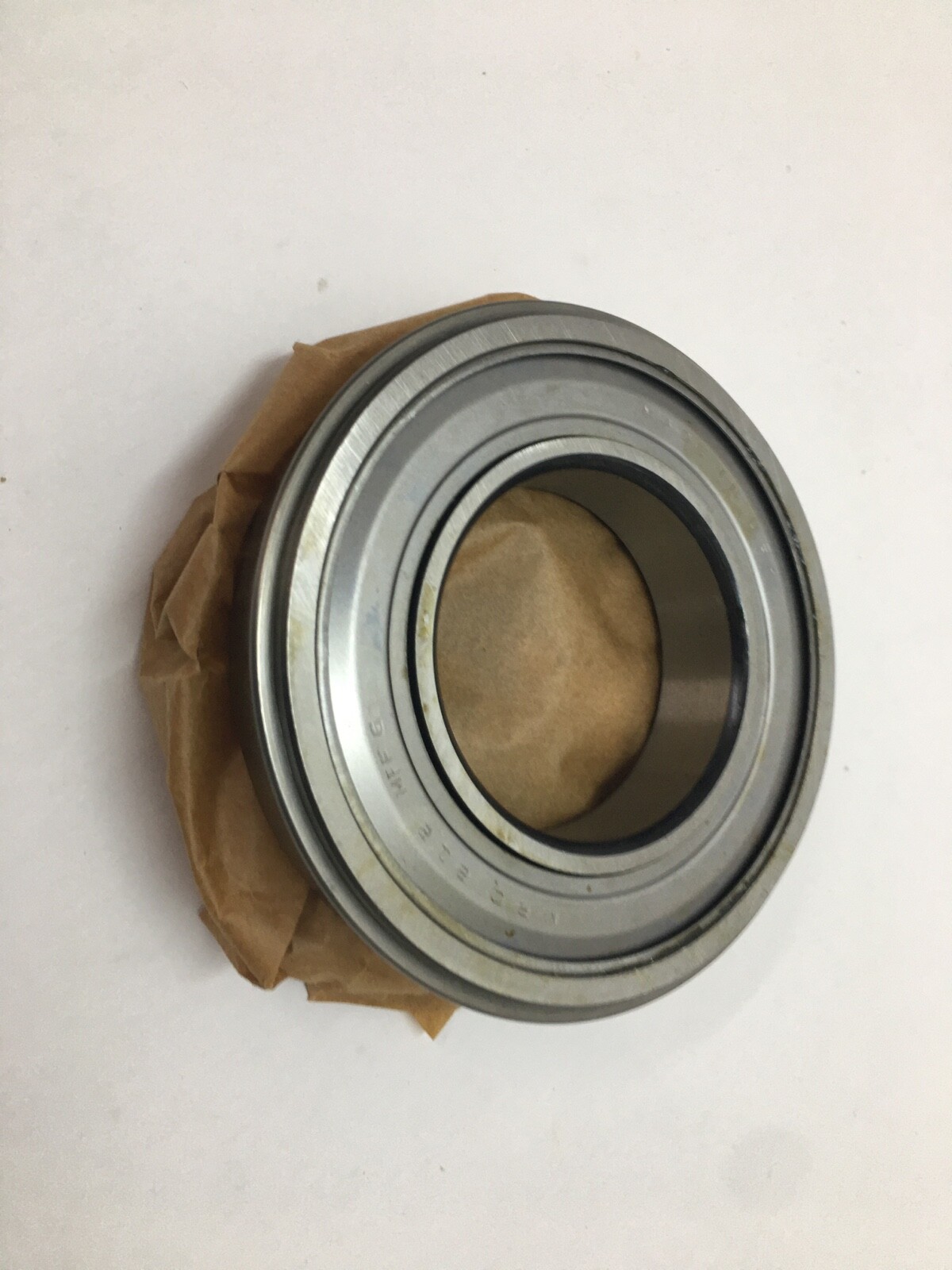

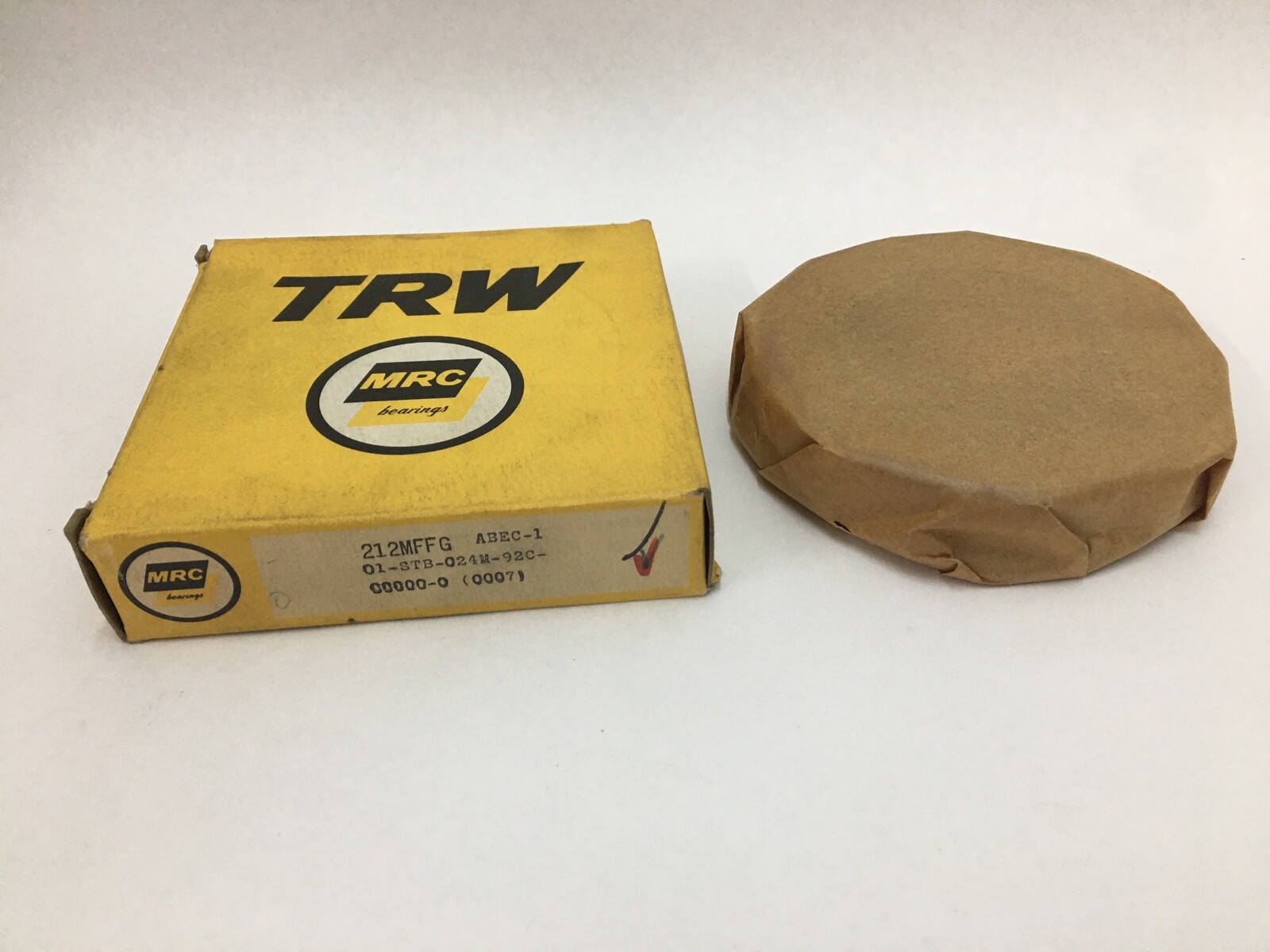

MRC 212MFFG filling-notch deep groove ball bearing, 60 x 110 x 22 mm, two shields and snap ring, 56,100 N dynamic rating. Max type, NSK BL212ZZNR equivalent.
List Price
$49.34
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | MRC |
|---|---|
| MPN | 212MFFG |
| Model | 212-MFFG |
| Bearing Type | Ball Bearing, Two shields |
| ID | 60 mm |
| OD | 110 mm |
| Width | 22 mm |
| Series | MRC 200-M Light Series |
|---|---|
| Dynamic Load Rating | 56,100 N |
| Static Load Rating | 51,000 N |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Yes |
| Limiting Speed | 4,900 rpm grease; 6,000 rpm oil |
| Harmonization Code | 8482.10.50 |
| Mpn Variants | 212MFFG, 212-MFFG, 212 MFFG, 6212ZZNRC3, 6212-ZZ-NR-C3 |
| Compatible With Replaces | NSK BL212ZZNR |
| Additional Attributes | Max Fillet Radius: 1.5 mm; Construction: maximum-capacity filling-notch (Max type) |
| Industry Terms | filling notch ball bearing; Max type deep groove bearing; deep groove ball bearing with snap ring; shielded ball bearing with snap ring; 6212 ZZ NR style |
| Common Misspellings | MRC 212 MFFG; MRC212MFFG; MCR 212MFFG; MRC 212MFG; MRC 212MFFG bearing |
| Application Types | Electric motors; gearboxes; pumps; general industrial machinery with predominantly radial load |
| Cross Reference 1 | NSK BL212ZZNR |
|---|---|
| Cross Reference 2 | 6212-2Z/NR (related, Conrad type) |
The MRC 212MFFG is a single-row, maximum-capacity (Max type) filling-notch deep groove ball bearing from the MRC 200-M Light Series, with two shields and a snap ring on the outer ring. The filling notch admits a larger ball complement than a Conrad bearing of the same envelope, raising radial capacity for applications where radial load predominates. Unit Quantity: 1 Pc.
212 — 200 light series, 60 mm bore.
M — maximum-capacity filling-notch (Max type) construction.
FF — two shields.
G — snap ring fitted in an outer-ring groove for axial location in the housing.
Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 22 mm. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Shields both sides. Snap Ring: Yes. Series: MRC 200-M Light Series.
Dynamic Load Rating: 56,100 N. Static Load Rating: 51,000 N. Limiting Speed: 4,900 rpm grease; 6,000 rpm oil.
Max Fillet Radius: 1.5 mm (maximum shaft or housing fillet the bearing corner clears). The snap ring seats in an outer-ring groove for axial location in the housing.
Filling-slot equivalent: NSK BL212ZZNR. The Conrad-type 6212-2Z/NR is a 60 x 110 x 22 mm related part with a smaller ball complement and different load ratings.
Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 22 mm.
Dynamic Load Rating: 56,100 N. Static Load Rating: 51,000 N. Limiting Speed: 4,900 rpm grease; 6,000 rpm oil.
M is maximum-capacity filling-notch construction, FF is two shields, and G is a snap ring fitted in an outer-ring groove.
