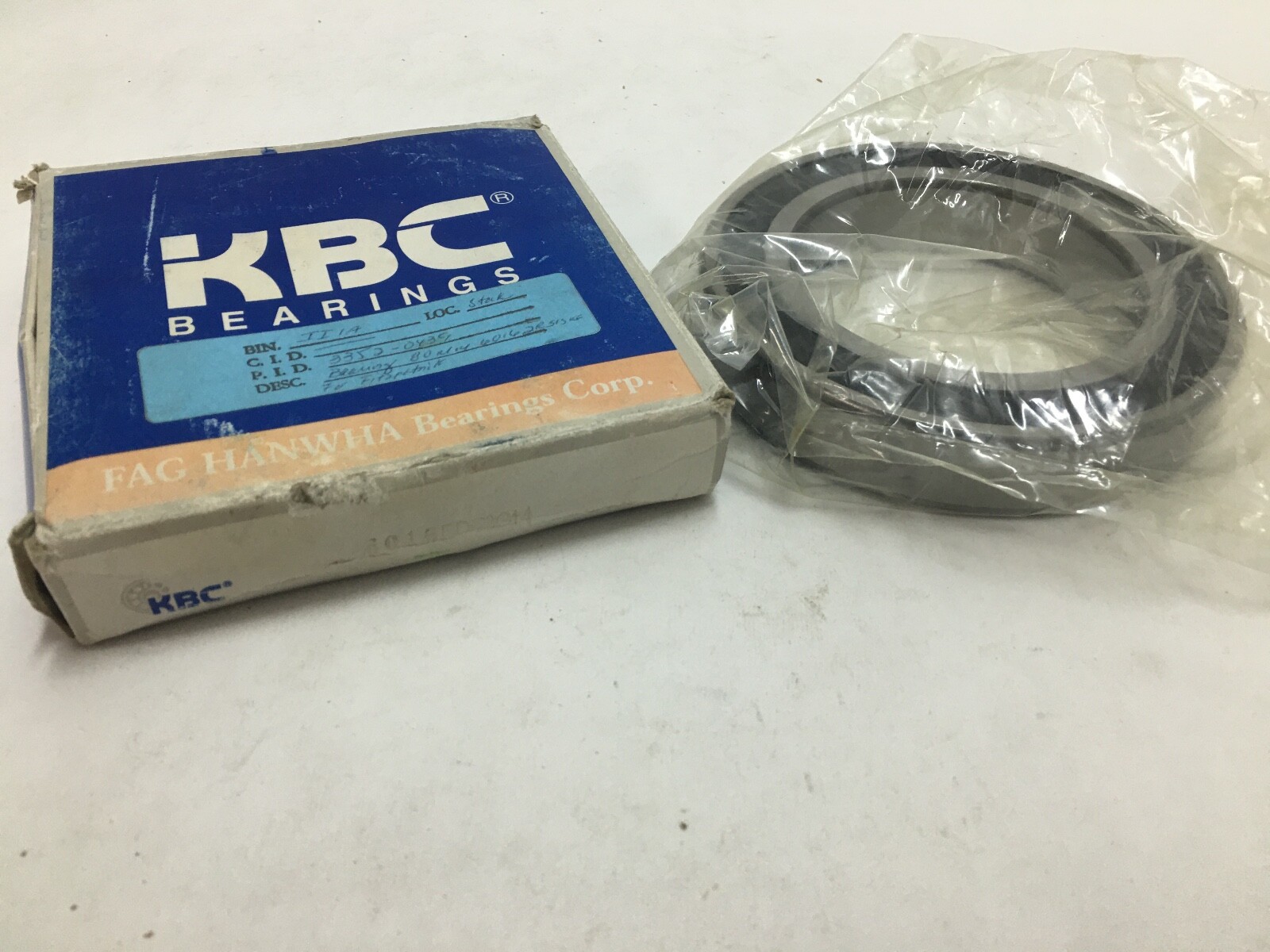

KBC6016DDC3Deep Groove Ball Bearing – 80 mm ID, 125 mm OD, 22 mm Width, Rubber Seals Both Sides, C3 Clearance

Product Description

What this part is:

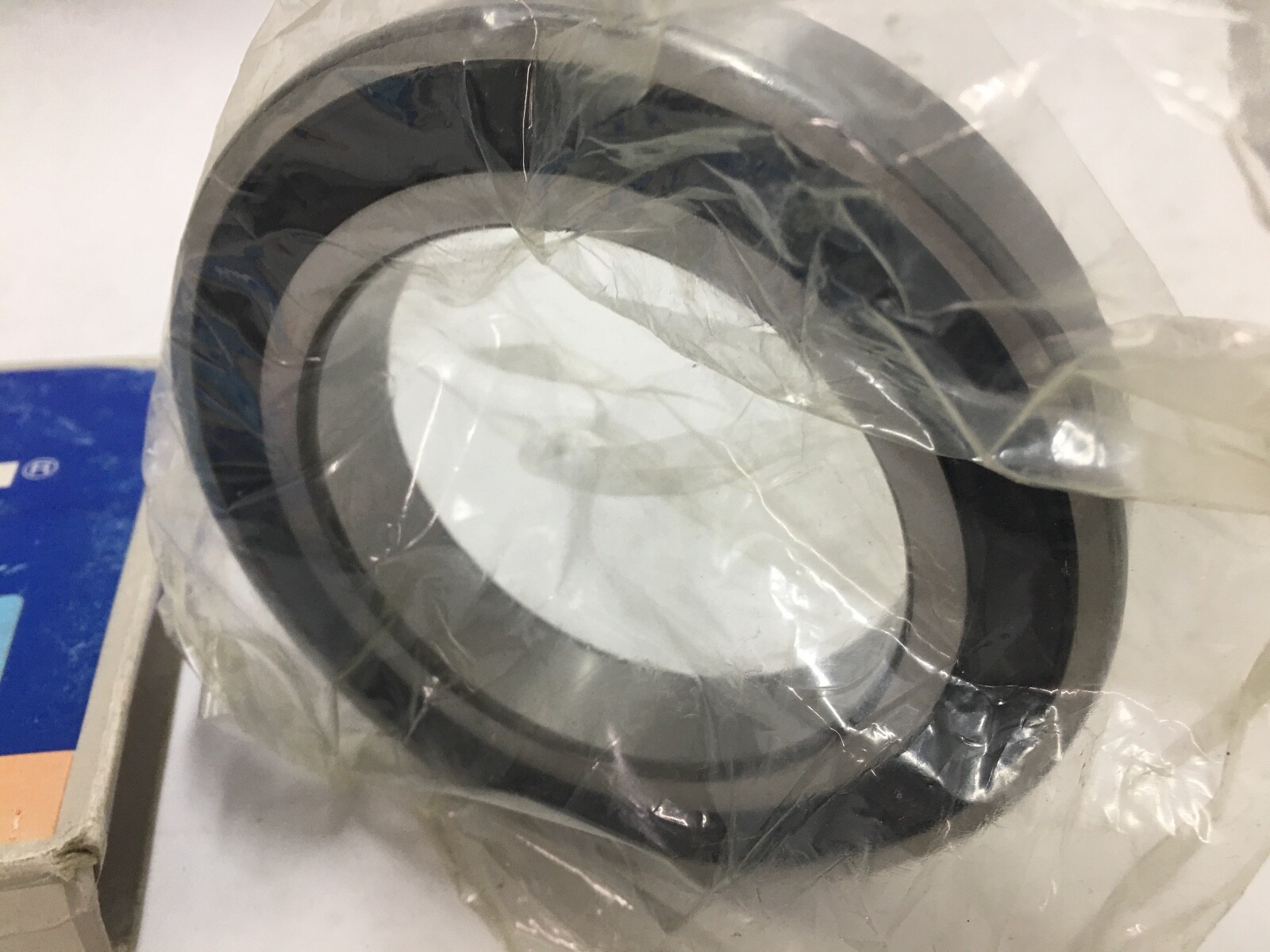

The KBC 6016DDC3 is a single-row deep groove ball bearing in the ISO 6016 size, with a rubber contact seal on each side and C3 internal clearance. It carries radial load and moderate axial load in both directions, and the seals retain the factory grease fill and exclude contamination.

Decoding the designation:

6016 — 60 series deep groove ball bearing, bore code 16, 80 mm bore, 125 mm OD, 22 mm width.

DD — KBC code for rubber contact seals on both sides, equivalent to 2RS.

C3 — internal radial clearance greater than normal.

Specifications:

Bore Diameter: 80 mm. Outside Diameter: 125 mm. Overall Width: 22 mm. Rolling Elements: Ball. Number Of Rows: 1. Closure Type: Contact seals both sides. Internal Clearance: C3. Lubricant: Grease. Bore Type: Straight. Series: 6000. Unit Quantity: 1 Pc.

Dimensions and mounting:

The 80 mm straight bore mounts on an 80 mm shaft seat and the 125 mm outer ring fits a 125 mm housing bore. Width: 22 mm.

Compatibility and replacement:

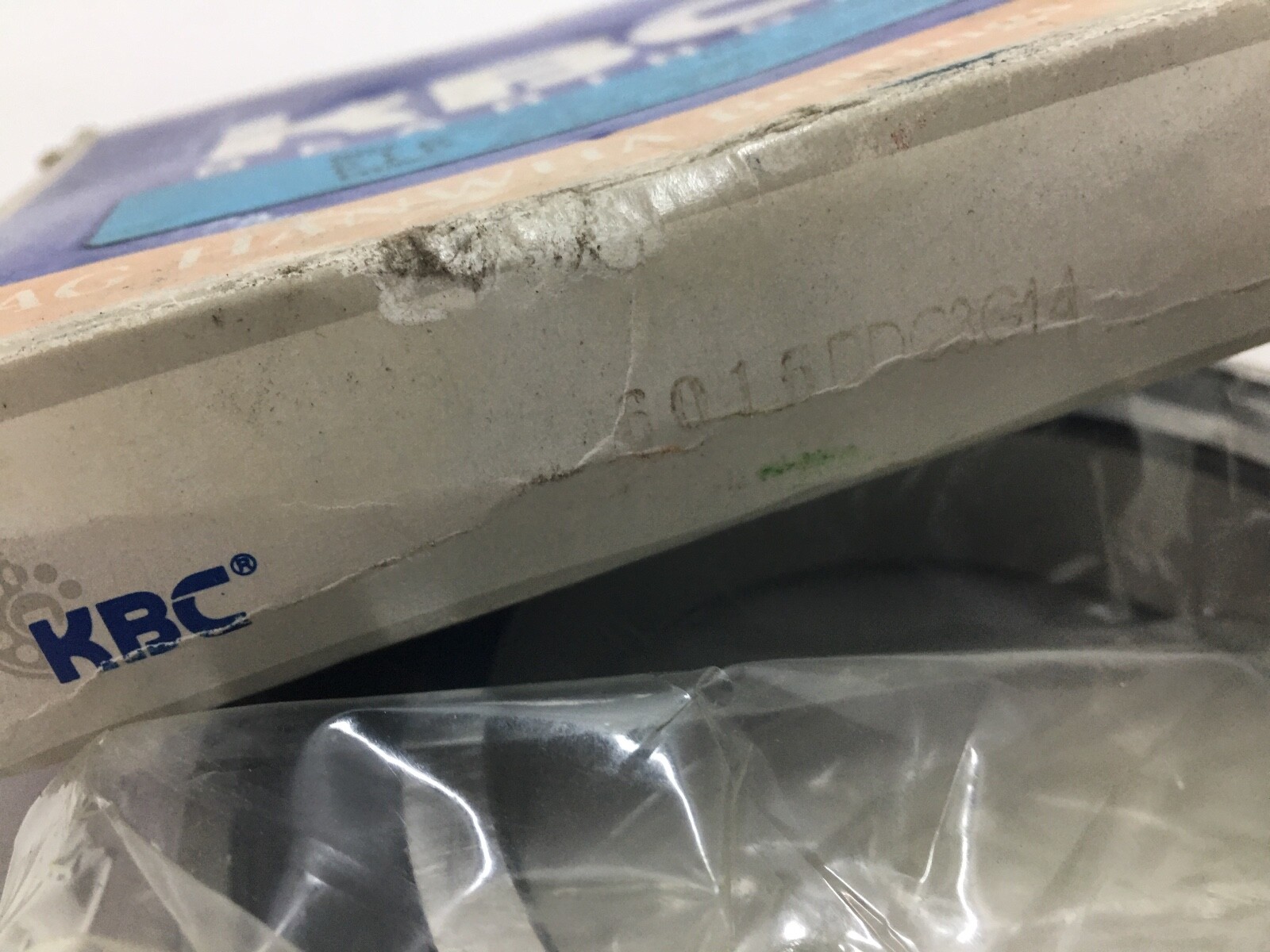

Crosses: SKF 6016-2RS1/C3, FAG 6016-2RSR-C3, NSK 6016DDUC3, NTN 6016LLUC3 and Koyo 6016-2RSC3. Also marked 6016 DD C3, 6016-2RS C3 and 6016RS. Harmonization Code: 8482.10.50.

Frequently asked questions:

What size is a 6016 bearing?

80 mm bore, 125 mm outside diameter and 22 mm width.

What does DD mean on a KBC bearing?

Rubber contact seals on both sides, the same as 2RS.

Which bearings cross to the KBC 6016DDC3?

SKF 6016-2RS1/C3, FAG 6016-2RSR-C3, NSK 6016DDUC3, NTN 6016LLUC3 and Koyo 6016-2RSC3.
