Deep Groove Ball Bearings: The Industry Default and When to Reach for Something Else
If you pulled a bearing off general industrial equipment at random, there’s a good chance
Availability:
1 in stock
INA 6200ZZC3 deep groove ball bearing, 10 mm bore, 30 mm OD, 9 mm wide, steel shields both sides, C3 clearance, grease filled. Four pieces per listing.
List Price
$24.59
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | INA |
|---|---|
| MPN | 6200-2Z-C3 |
| GTIN | 035373247424 |
| Model | 6200-ZZ-C3 |
| Bearing Type | Ball Bearing, Shields both sides |
| ID | 10 mm |
| OD | 30 mm |
| Width | 9 mm |
| Series | 6200 |
|---|---|
| Lubricant | Grease |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.10.50 |
| Internal Clearance | C3 |
| Base Number | 6200 |
| Industry Terms | deep groove ball bearing, shielded ball bearing, radial ball bearing, 2Z bearing |
| Overall Width | 9 mm |
| Mpn Variants | 6200-2Z-C3, 6200ZZC3, 6200-ZZ-C3, 6200 ZZ C3, 6200ZZ, 6200-2Z |
| Cross Reference 1 | FAG 6200-2Z-C3 |
|---|---|
| Cross Reference 2 | SKF 6200-2Z/C3 |
| Cross Reference 3 | NTN 6200ZZC3 |
| Cross Reference 4 | NSK 6200ZZC3 |
| Cross Reference 5 | Peer 6200ZZC3 |
| Cross Reference 6 | Koyo 6200ZZC3 |

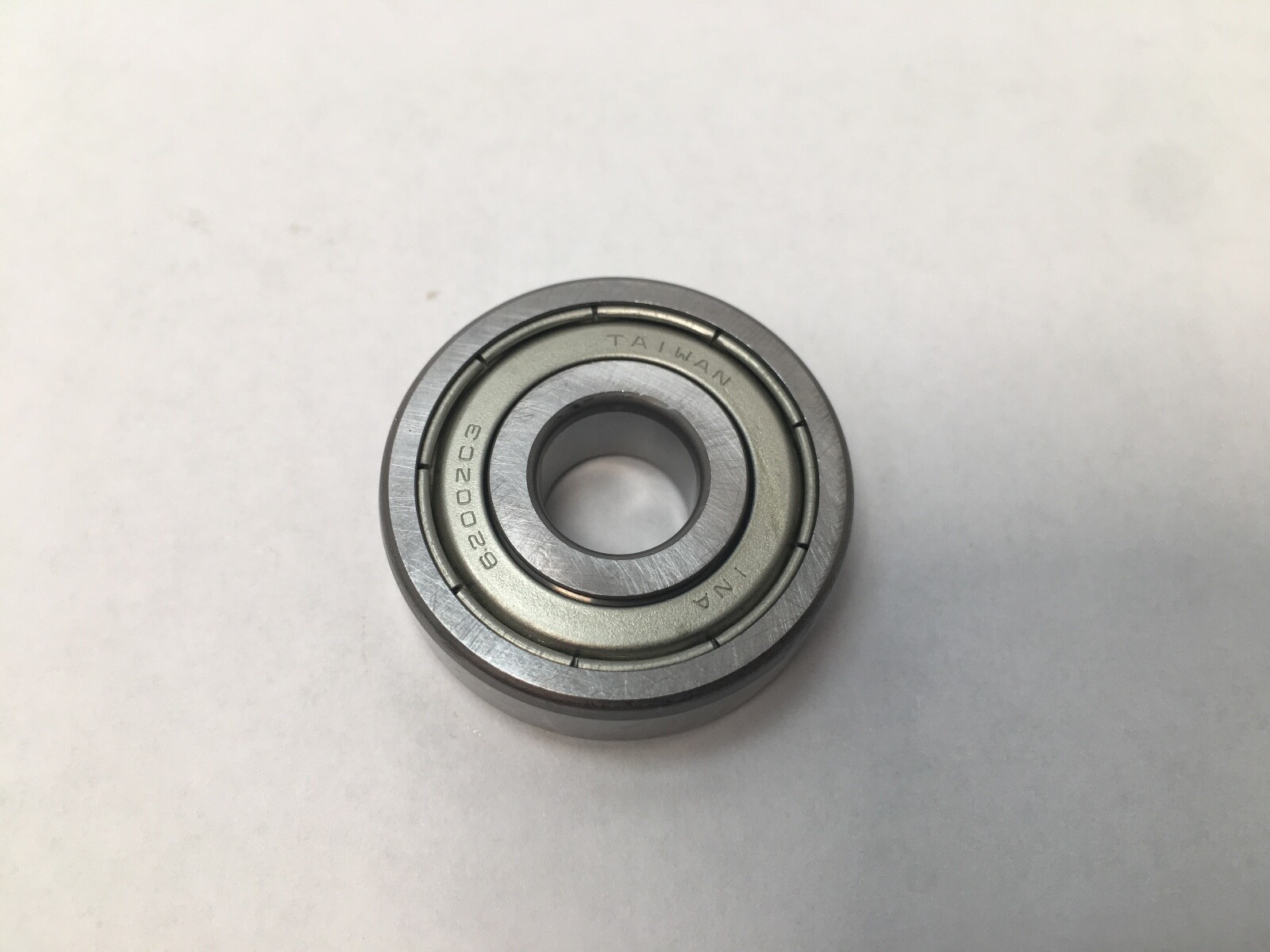

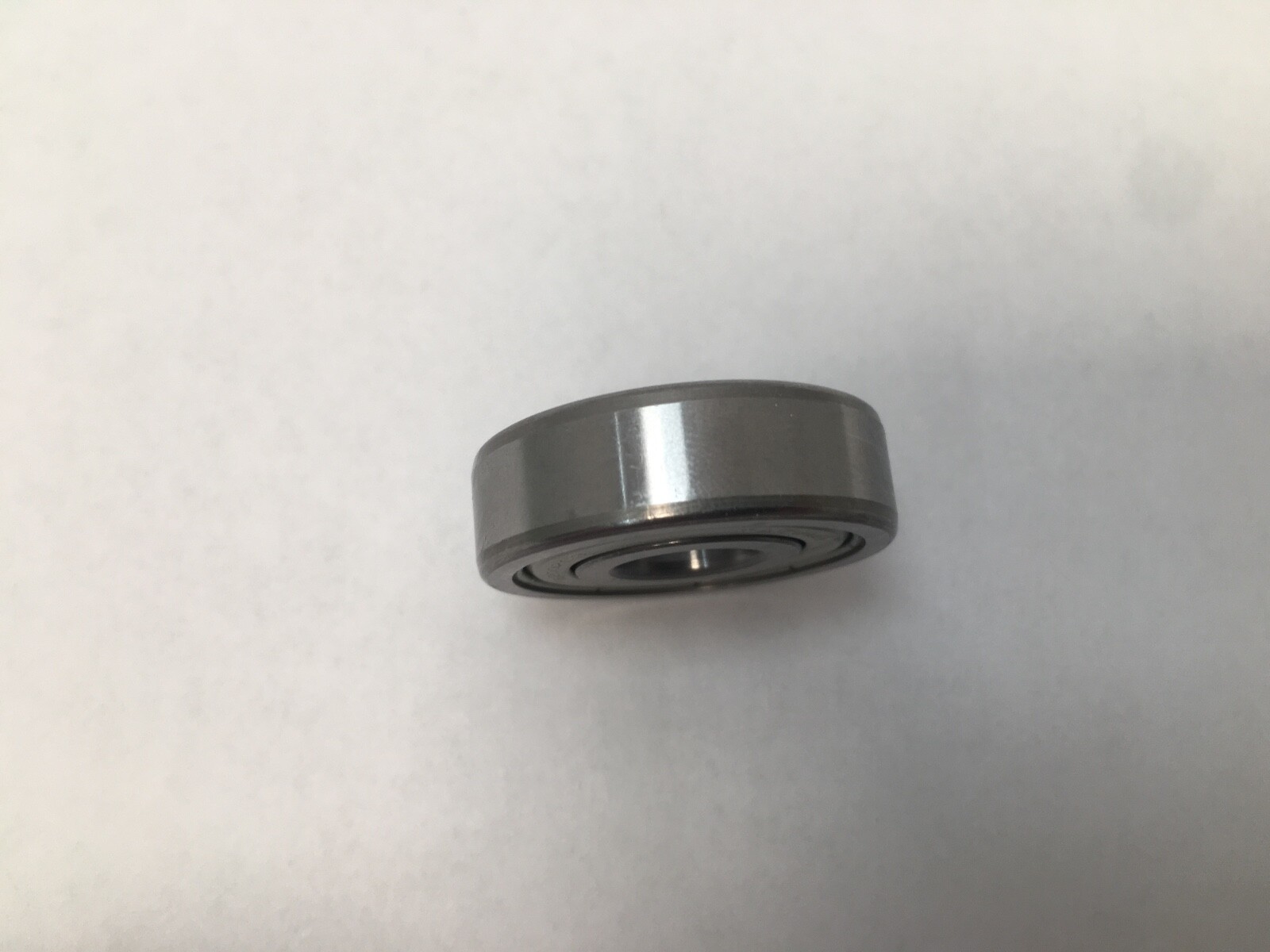

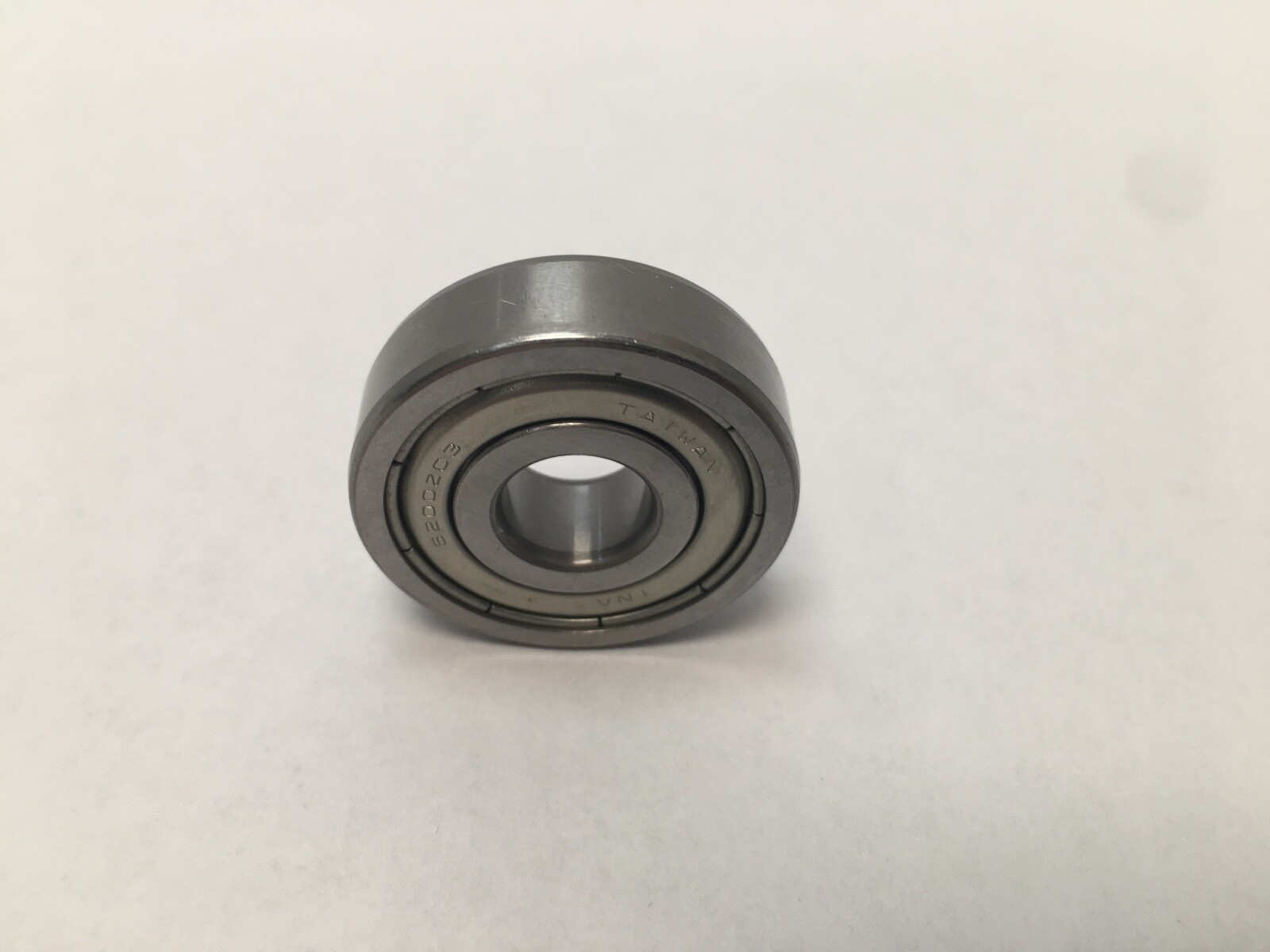

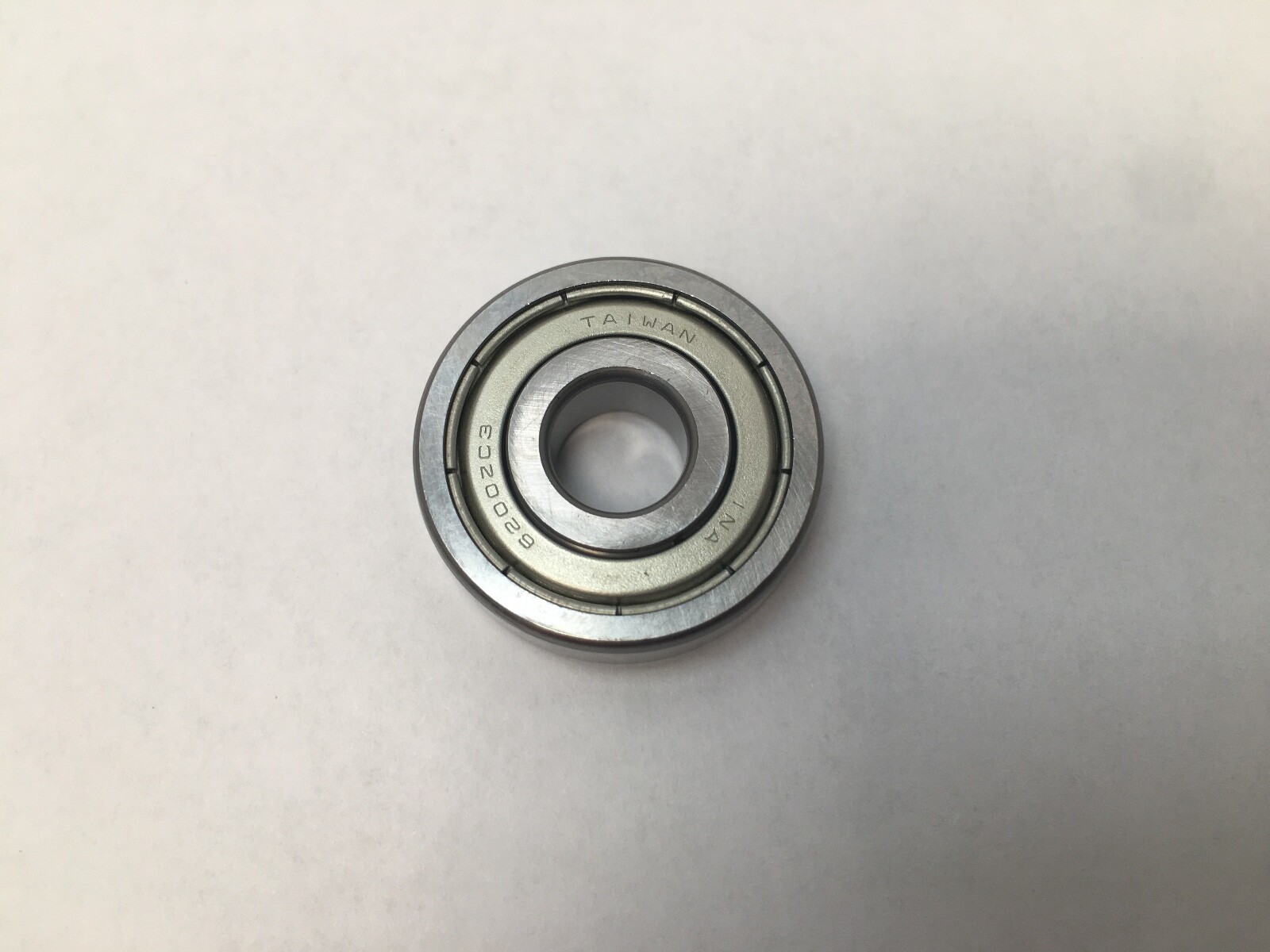

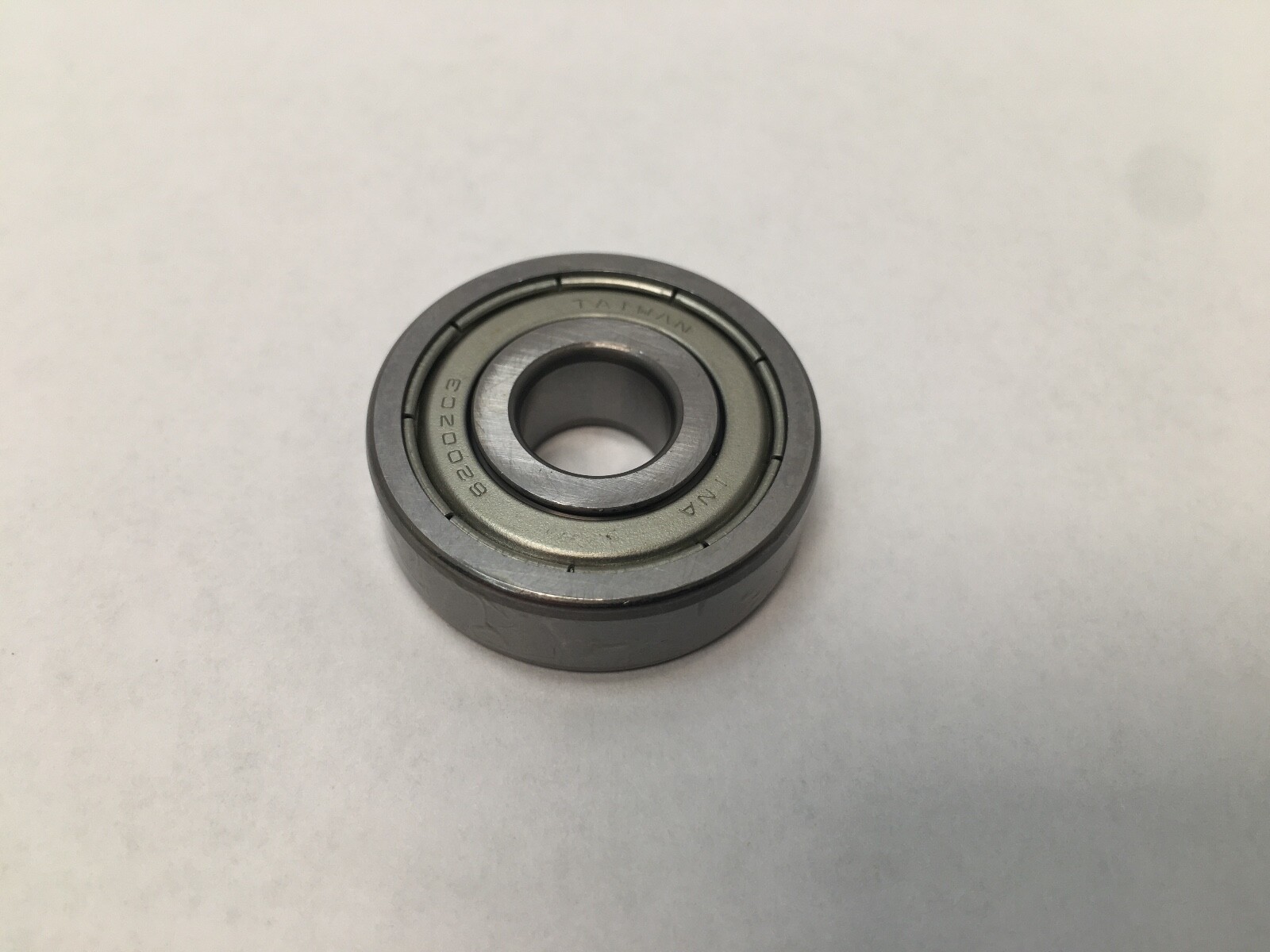

INA 6200ZZC3 single-row deep groove ball bearing in the ISO 6200 size, with a steel shield on each side and C3 internal clearance. It carries radial load and moderate axial load in both directions; the shields retain the factory grease fill. Unit Quantity: 4 Pcs.
6200 — 62 series deep groove ball bearing, bore code 00, 10 mm bore, 30 mm OD, 9 mm width.
ZZ — steel shield on both sides, written 2Z in the Schaeffler scheme.
C3 — internal radial clearance greater than normal.
Bore Diameter: 10 mm. Outside Diameter: 30 mm. Overall Width: 9 mm. Rolling Elements: Ball. Number Of Rows: 1. Closure Type: Shields both sides. Internal Clearance: C3. Lubricant: Grease. Bore Type: Straight. Series: 6200. Unit Quantity: 4 Pcs.
Shaft seat: 10 mm straight bore. Housing bore: 30 mm outer ring. Width: 9 mm.
Cross-references: FAG 6200-2Z-C3, SKF 6200-2Z/C3, NTN 6200ZZC3, NSK 6200ZZC3, Peer 6200ZZC3 and Koyo 6200ZZC3. Also marked 6200-ZZ-C3 and 6200 ZZ C3. Harmonization Code: 8482.10.50.
10 mm bore, 30 mm outside diameter and 9 mm width.
ZZ is a steel shield on both sides and C3 is greater-than-normal internal clearance.

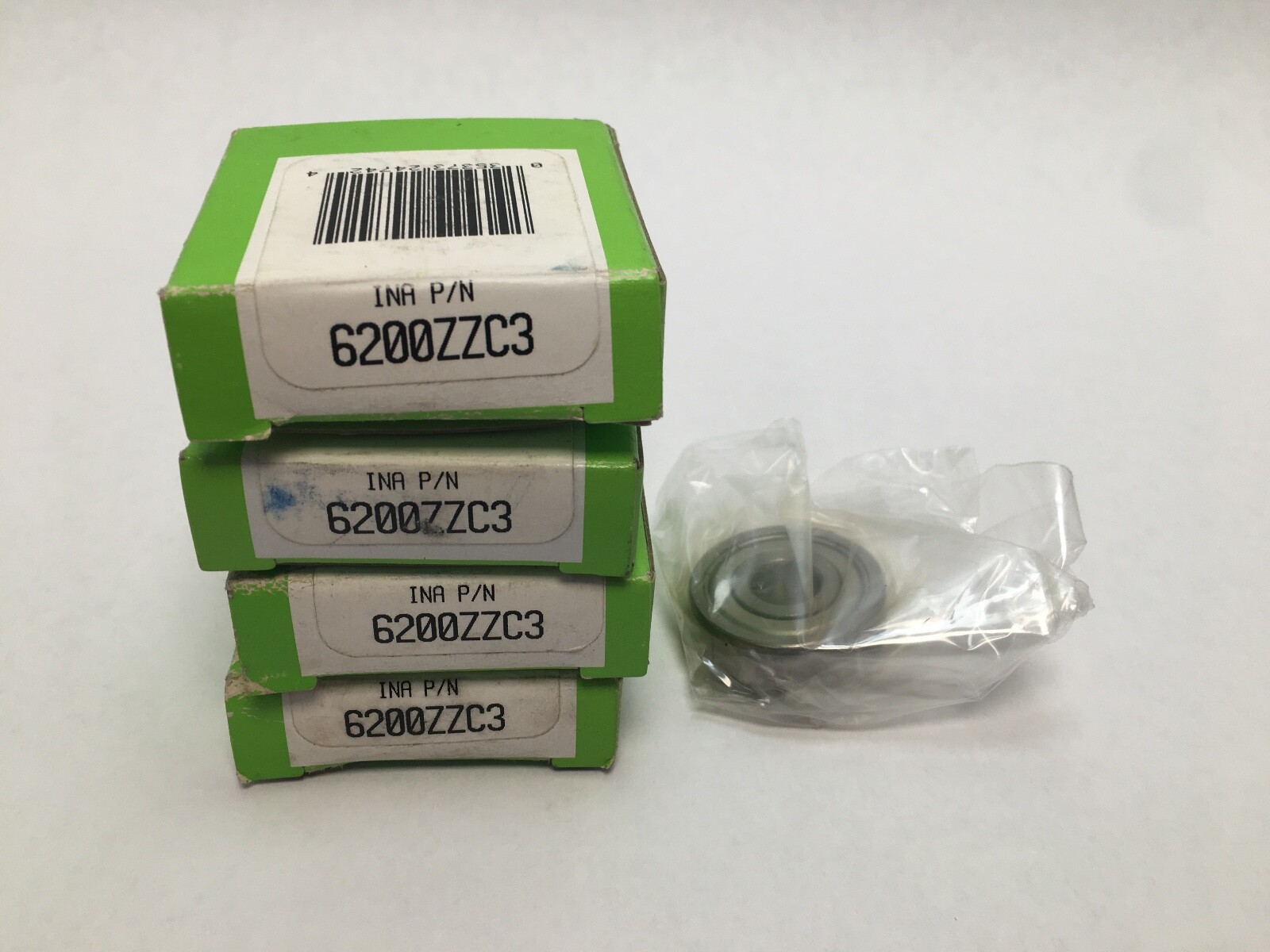

Four INA 6200ZZC3 bearings.
