Availability:
1 in stock

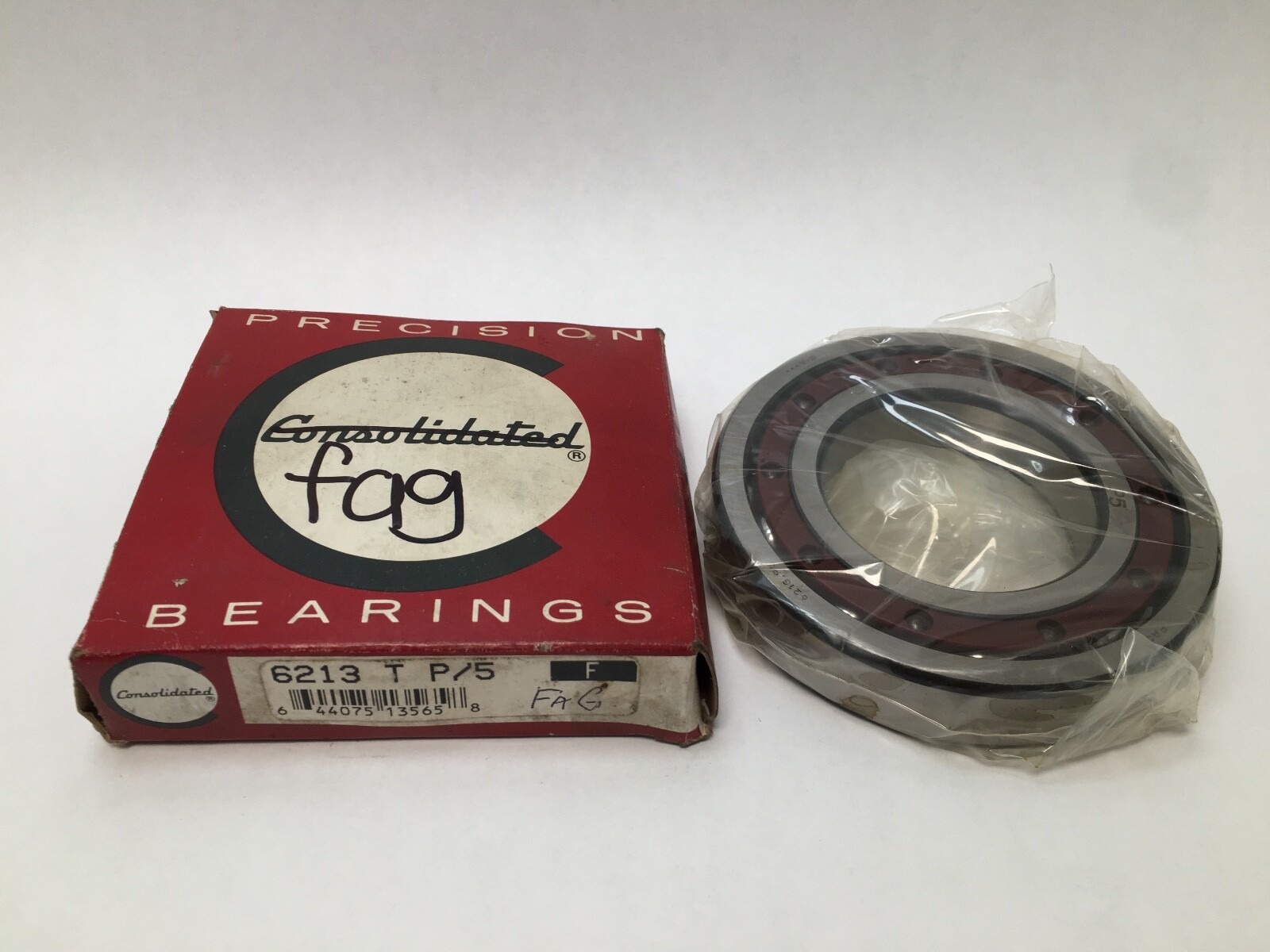

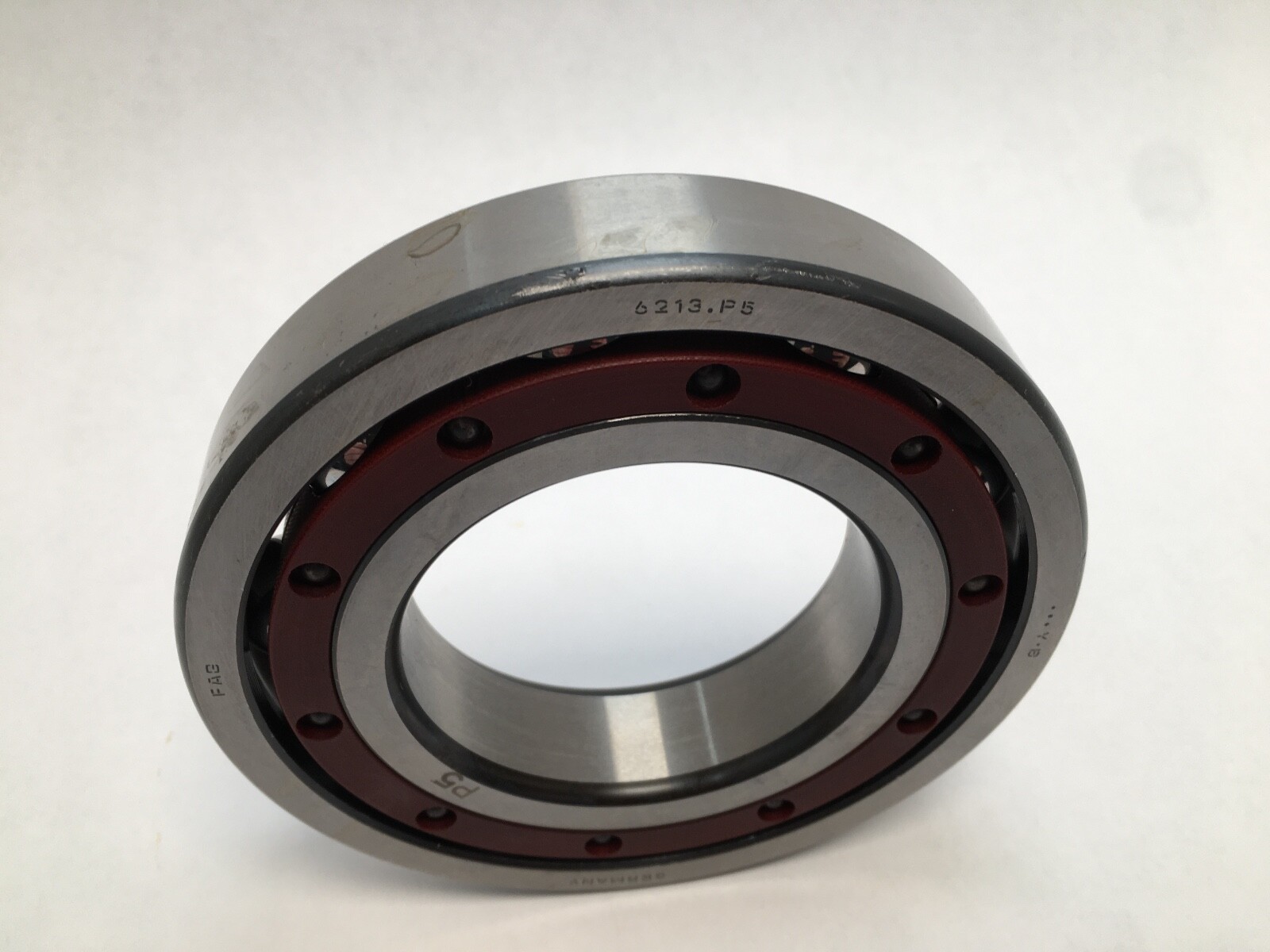

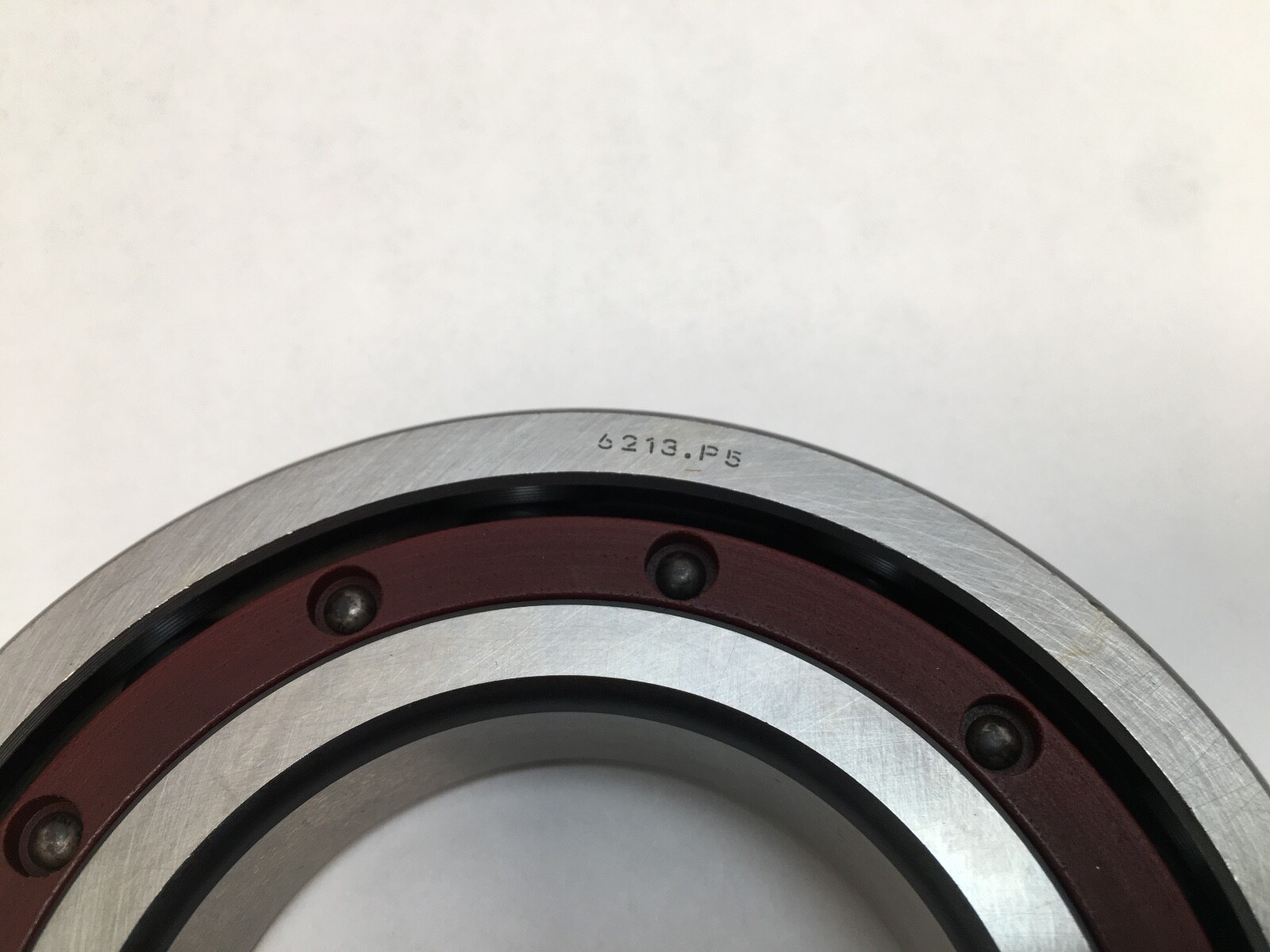

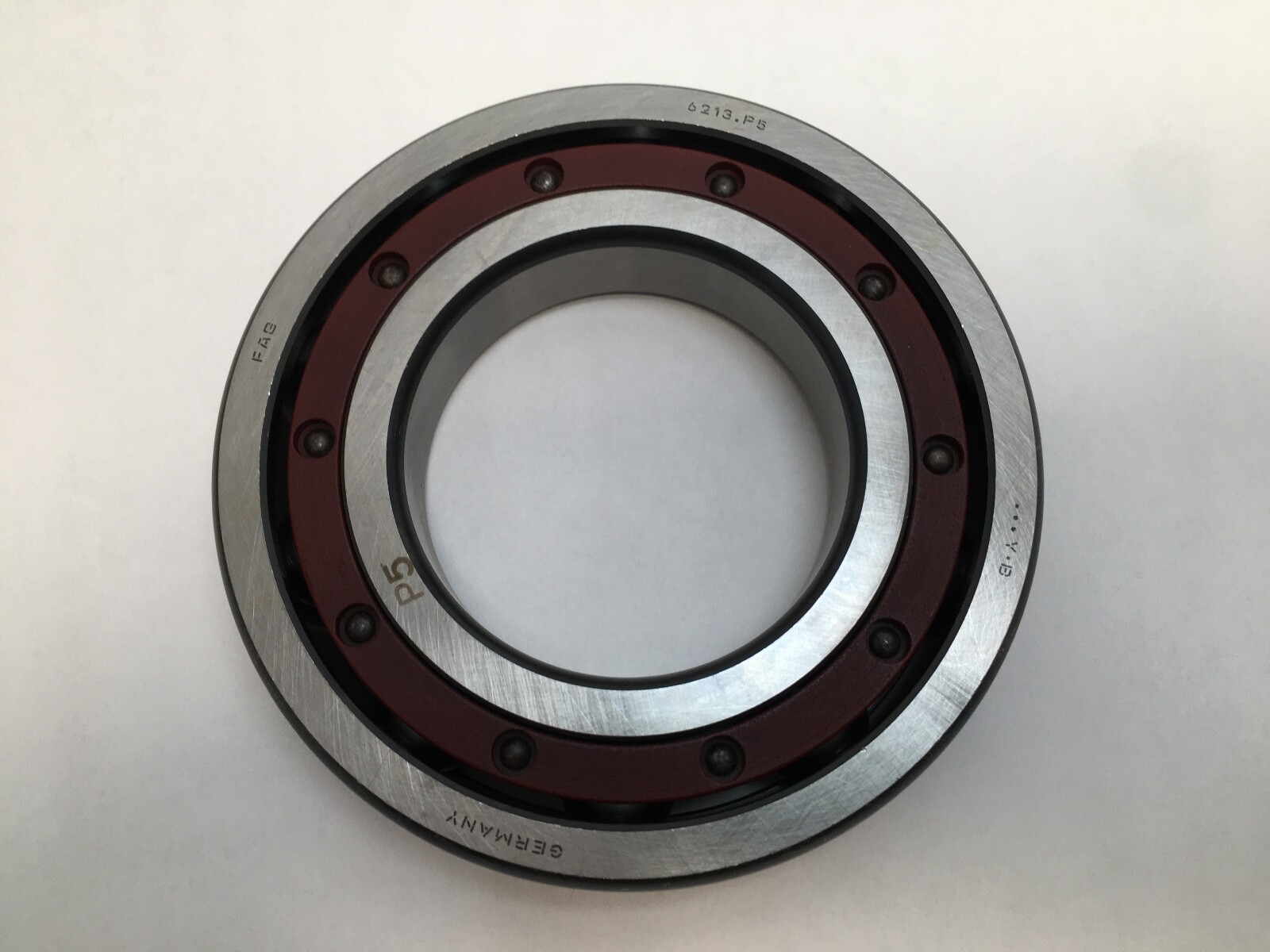

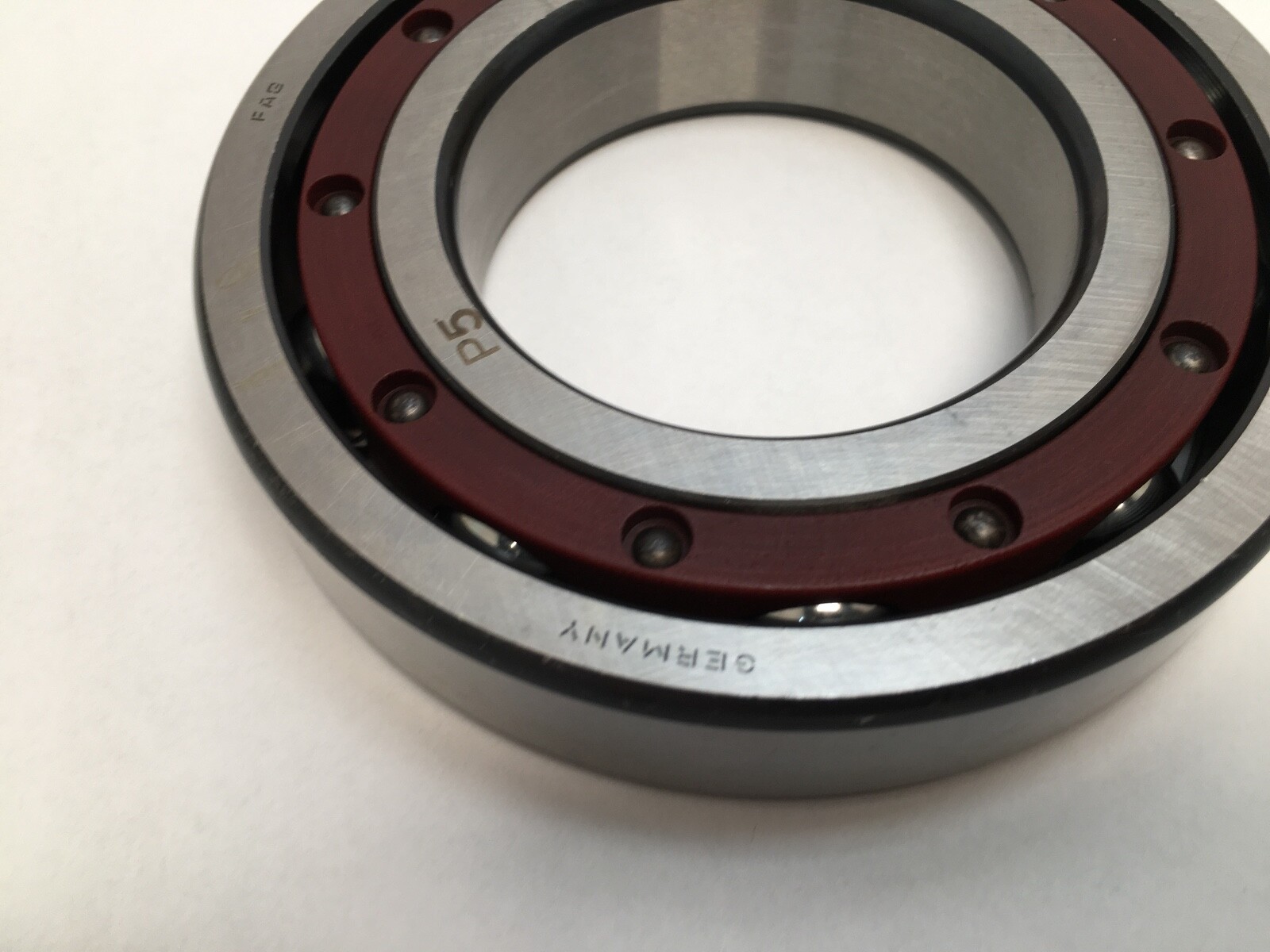

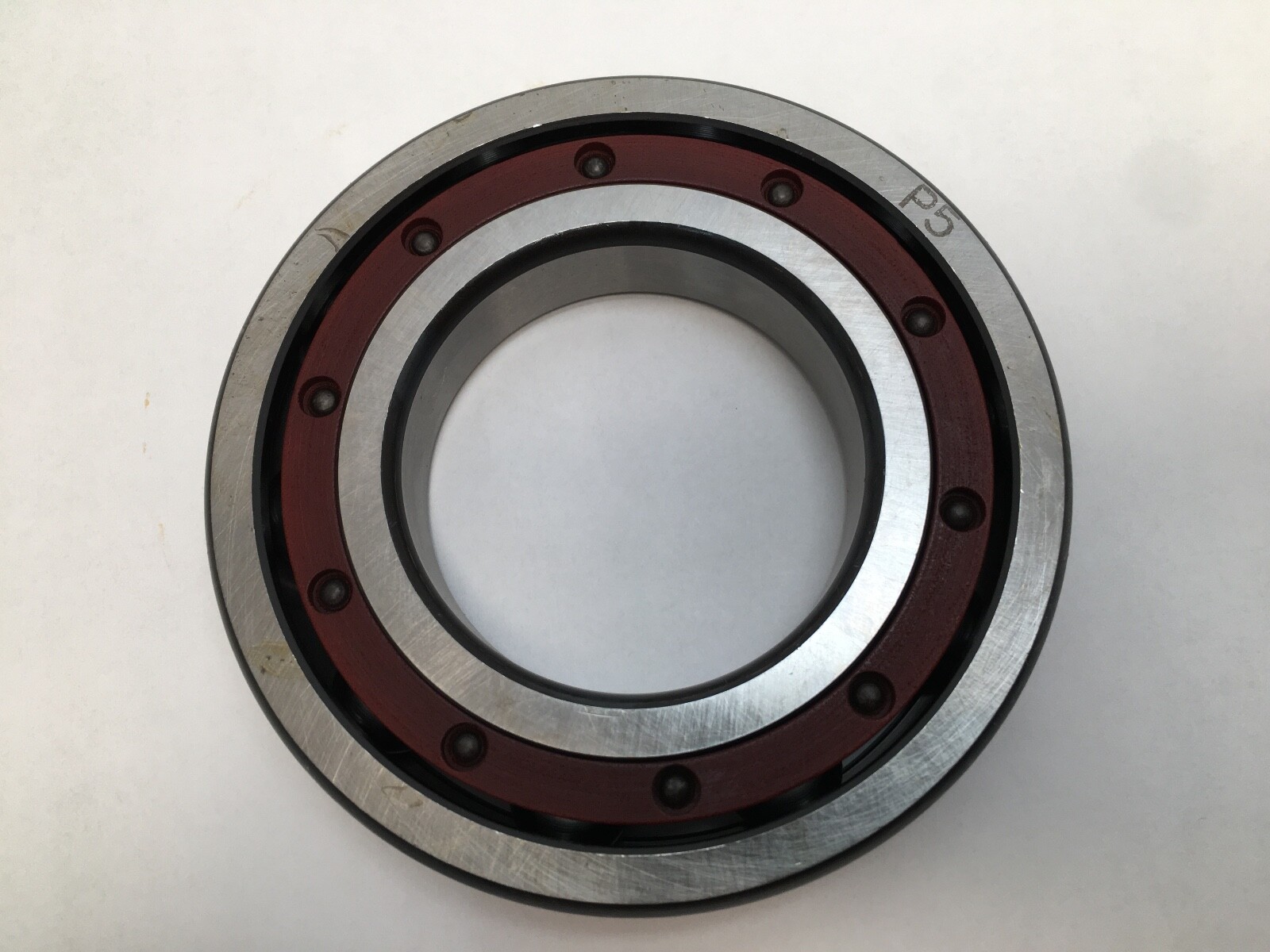

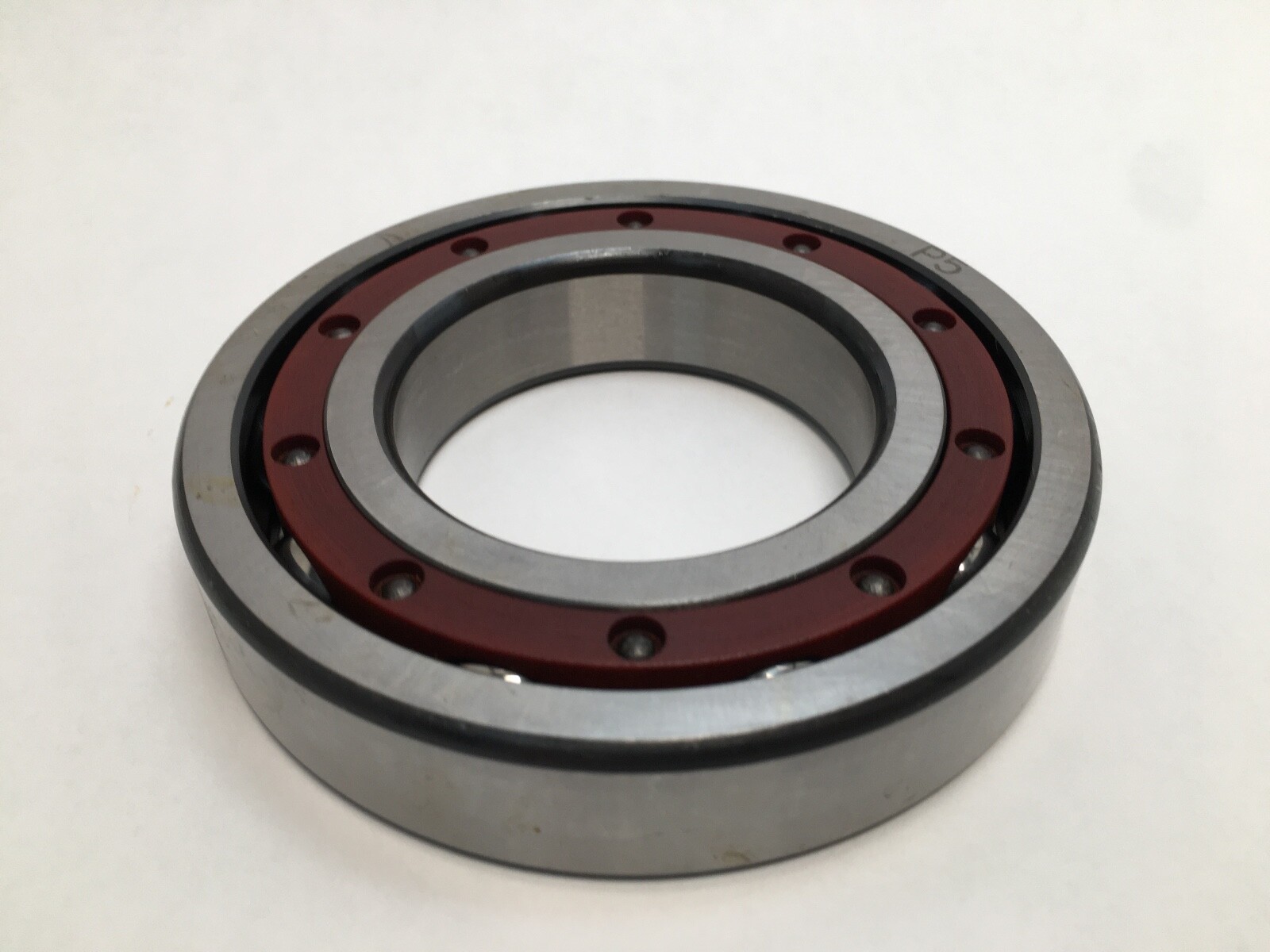

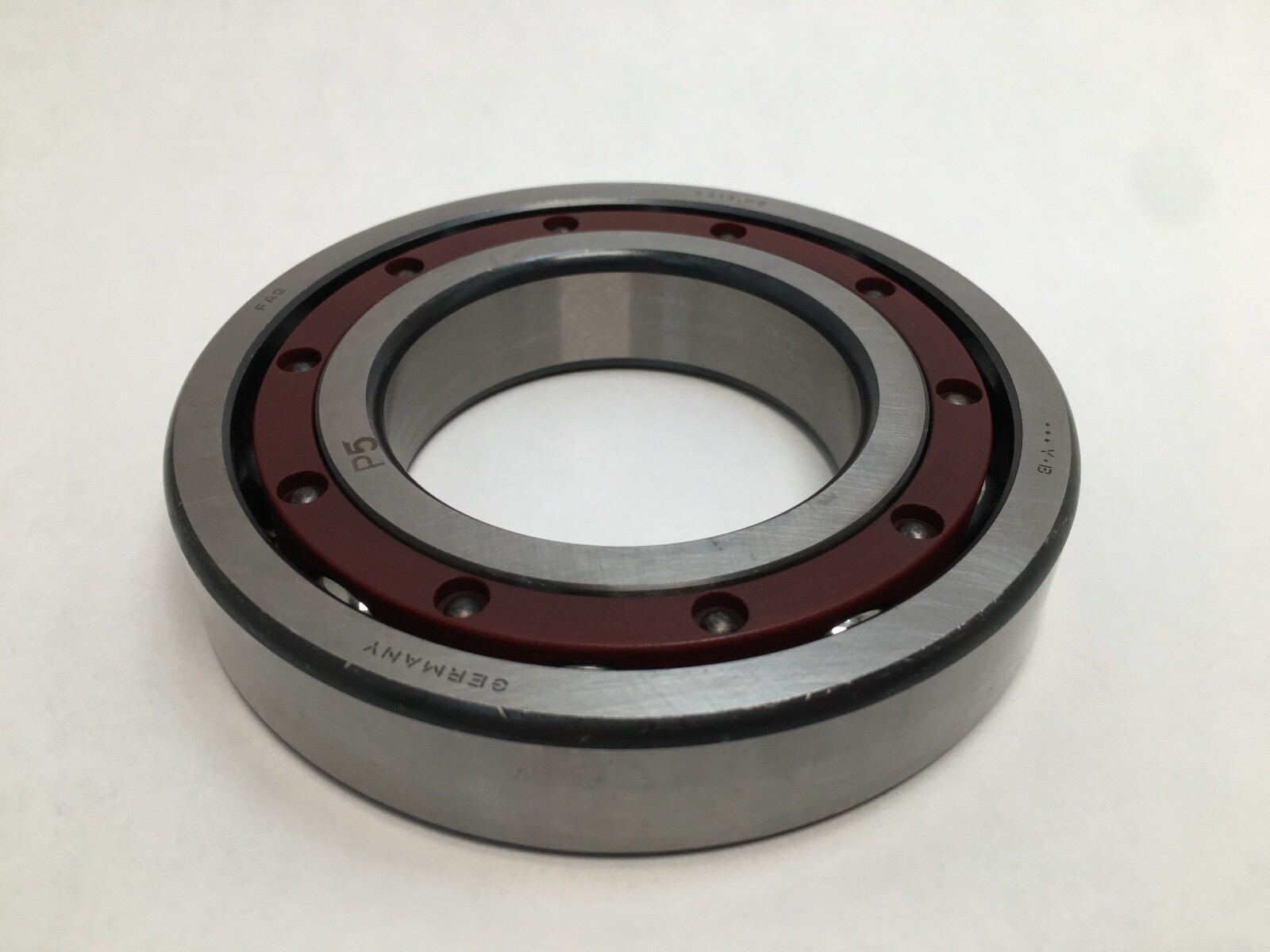

Deep groove ball bearing, 65 mm bore x 120 mm OD x 23 mm width, ABEC 5 / P5, phenolic cage, CN clearance. Consolidated (FAG designation) 6213T.P5.
List Price
$53.42
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 6213T.P5 |
| Model | 6213 T P5 |
| Bearing Type | Ball Bearing, Open |
| ID | 65 mm |
| OD | 120 mm |
| Width | 23 mm |
| Mpn Variants | 6213T.P5, 6213-T-P5, 6213TP5, 6213-TB-P5, Consolidated 6213T.P5 |
|---|---|
| Precision Class | ABEC 5 / P5 |
| Series | 6200 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Common Misspellings | FAG 6213 T P5; FAG 6213TP5; FGA 6213T.P5 |
| Cross Reference 1 | SKF 6213/P5 |
|---|---|
| Cross Reference 2 | NSK 6213P5 |
| Cross Reference 3 | NTN 6213P5 |
| Cross Reference 4 | Koyo 6213P5 |
Consolidated (FAG designation) 6213T.P5 single-row deep groove ball bearing in the ISO 6213 envelope, with a phenolic cage and P5 precision.
6213 — 62 light diameter series, bore code 13 = 65 mm bore.
T — phenolic laminate cage.
P5 — precision class P5, equivalent to ABEC 5.
Bearing Type: Deep Groove Ball Bearing. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Snap Ring Included: No. Cage Material: Phenolic. Internal Clearance: CN. Precision Class: ABEC 5 / P5. Series: 6200. Unit Quantity: 1 Pc.
Bore Diameter: 65 mm. Outside Diameter: 120 mm. Width: 23 mm. Chamfer r min: 1.5 mm. Shaft abutment diameter da min: 74 mm. Housing abutment diameter Da max: 111 mm. Fillet radius ra max: 1.5 mm.
P5 class bearings in the 65 x 120 x 23 mm envelope: SKF 6213/P5, NSK 6213P5, NTN 6213P5, Koyo 6213P5. Current FAG form: 6213-TB-P5. MPN Variants: 6213T.P5, 6213-T-P5, 6213TP5, 6213-TB-P5, Consolidated 6213T.P5.
65 mm bore, 120 mm outside diameter, 23 mm wide.
A phenolic laminate cage, coded T.
P5, equivalent to ABEC 5.
