Deep groove ball bearing, 100 x 150 x 24 mm, open, C3 clearance, rings heat-stabilised to 250 °C (S2), pressed steel cage. Base-size 6020 C3 equivalents listed.
List Price
$71.43
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 6020C3S2 |
| Model | 6020-C3-S2 |
| Bearing Type | Ball Bearing, Open |
| ID | 100 mm |
| OD | 150 mm |
| Width | 24 mm |
| Series | 6000 |
|---|---|
| Closure Type | Open |
| Cage Type | Pressed steel sheet cage (JN) |
| Dynamic Load Rating | 64,000 N |
| Static Load Rating | 54,000 N |
| Rolling Elements | Ball |
| Item Weight | 1.225 kg |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Internal Clearance | C3 |
| Limiting Speed | 6,100 rpm |
| Overall Width | 24 mm |
| Mpn Variants | 6020C3S2, 6020-C3-S2, 6020.C3.S2, 6020 C3 S2 |
| Compatible With Replaces | FAG 6020-C3 (base part, without S2 stabilisation) |
| Precision Class | PN (normal tolerance) |
| Additional Attributes | Base-part 6020-C3 data: Reference speed 5,100 rpm; cage JN pressed steel sheet; tolerance PN. S2: rings dimensionally stabilised for operating temperatures up to 250 °C. |
| Cross Reference 1 | SKF 6020/C3 - no S2 stabilisation |
|---|---|
| Cross Reference 2 | NSK 6020C3 - no S2 stabilisation |
| Cross Reference 3 | NTN 6020C3 - no S2 stabilisation |
| Cross Reference 4 | Koyo 6020C3 - no S2 stabilisation |

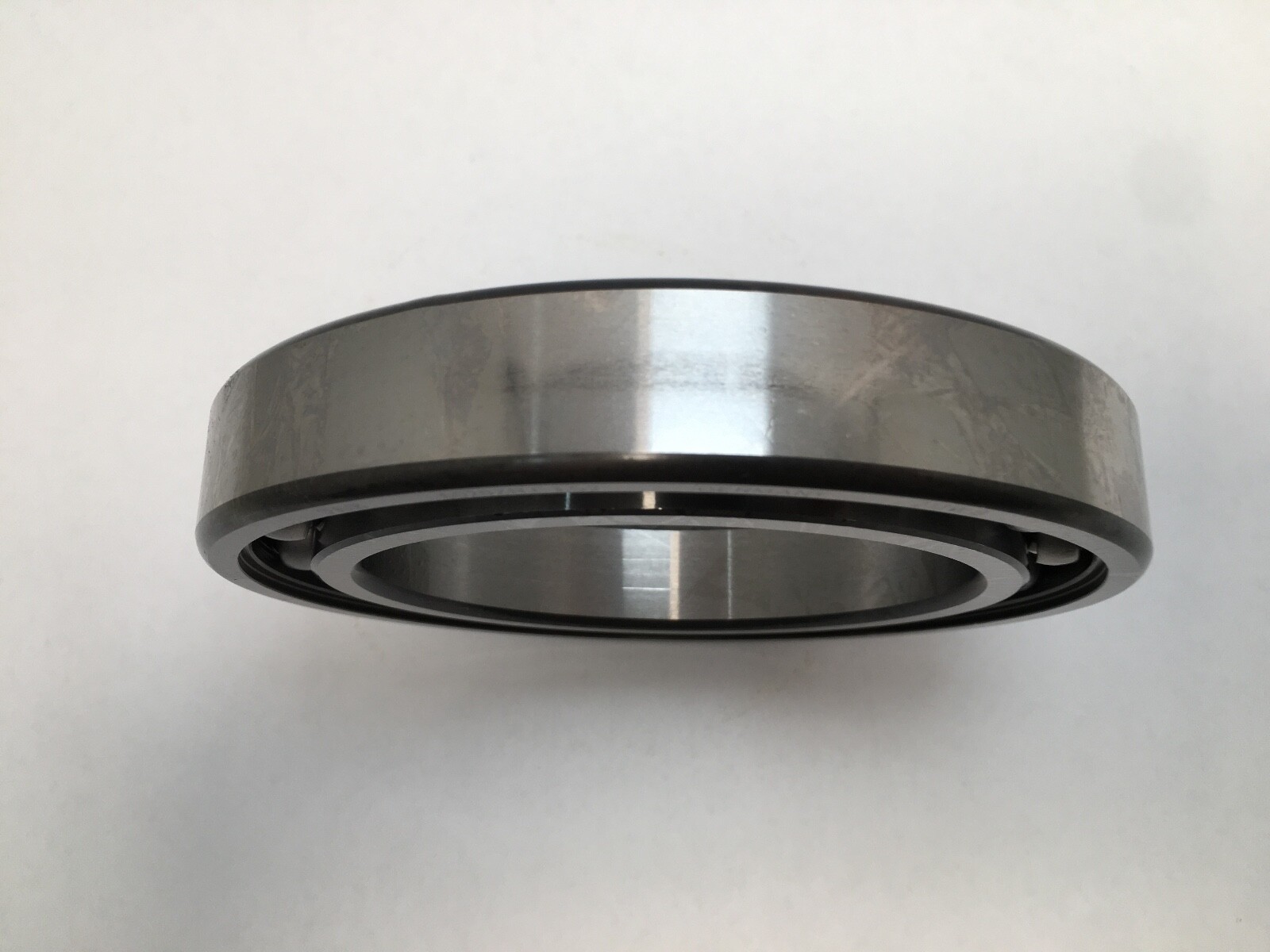

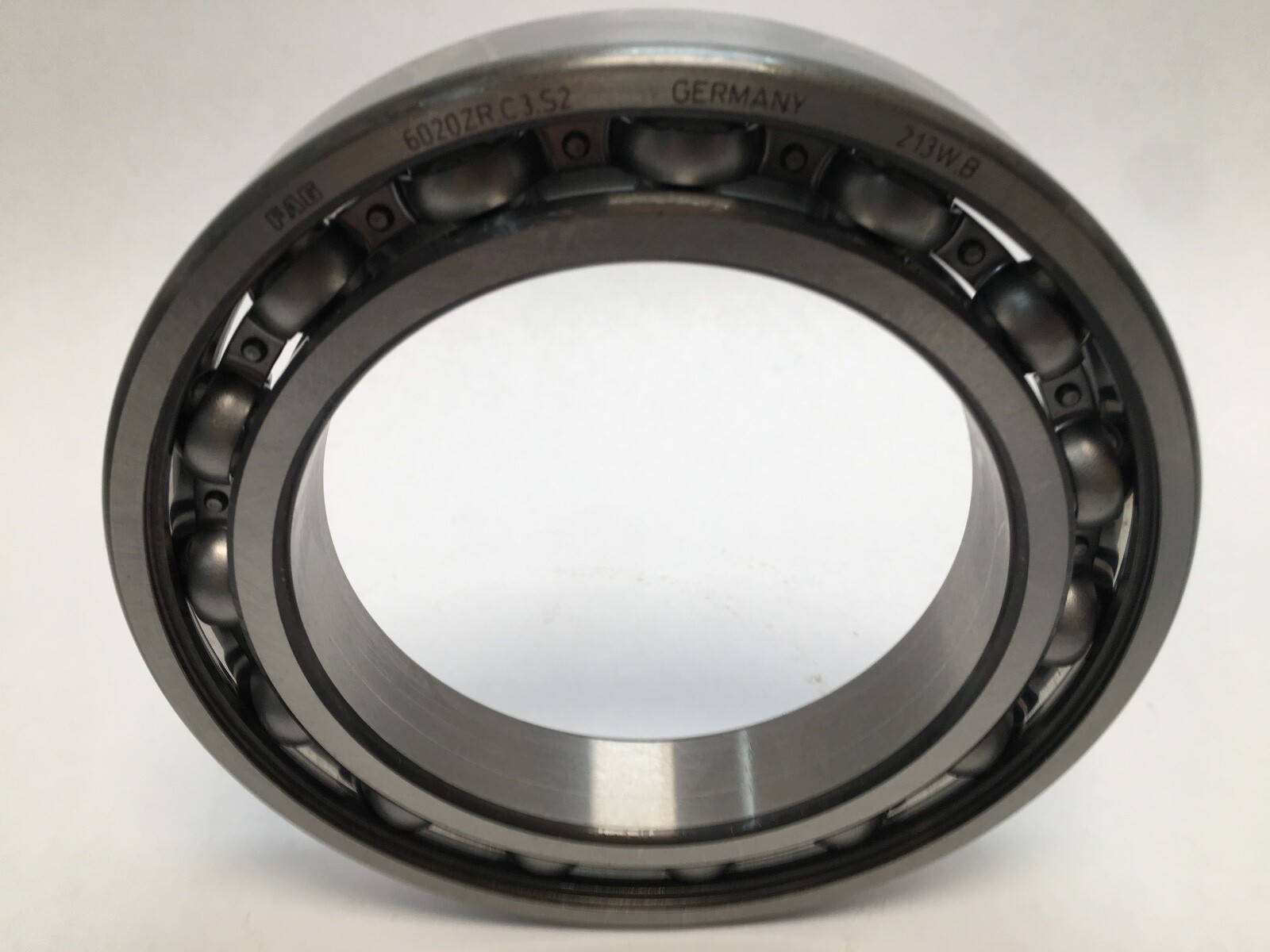

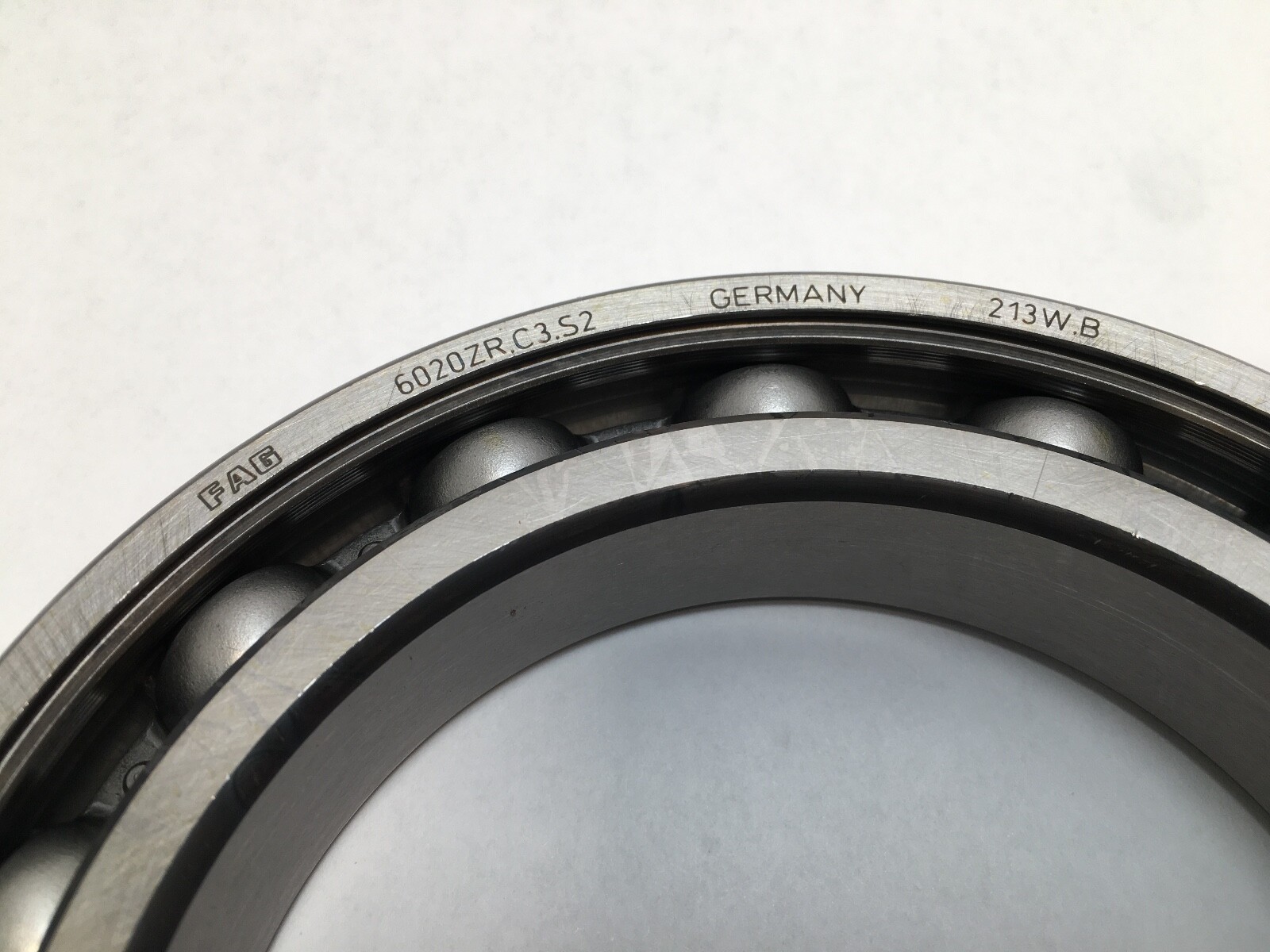

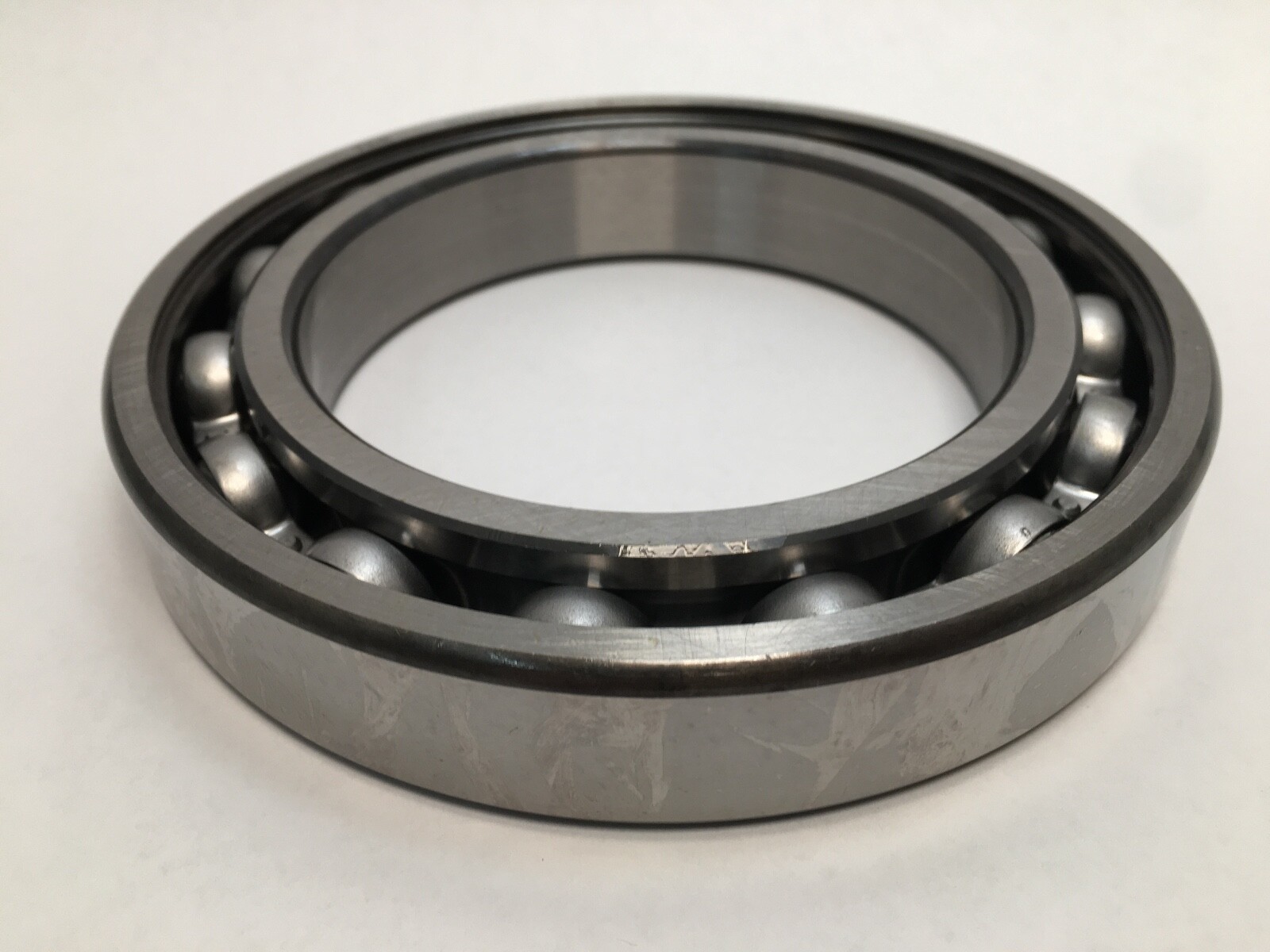

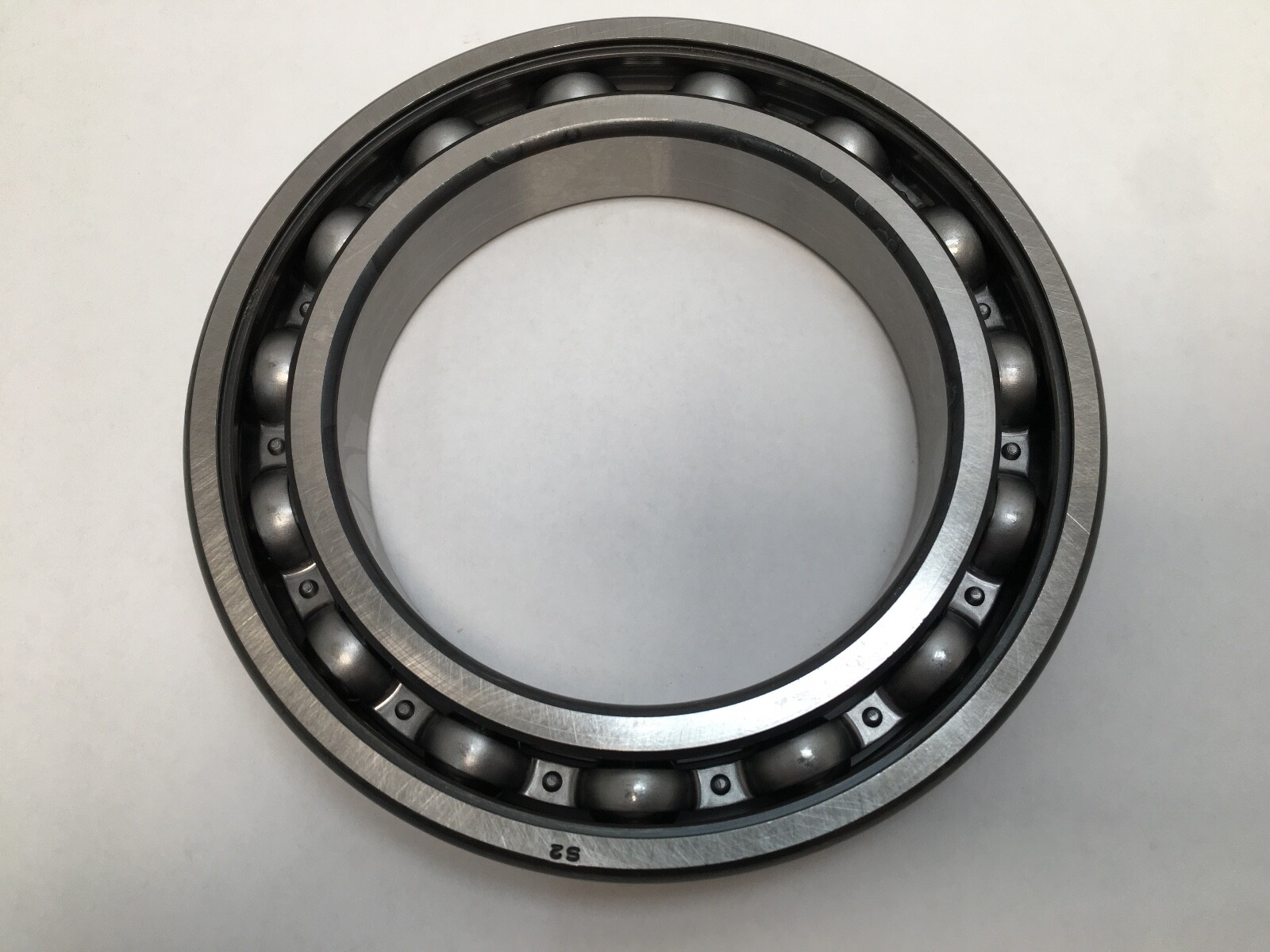

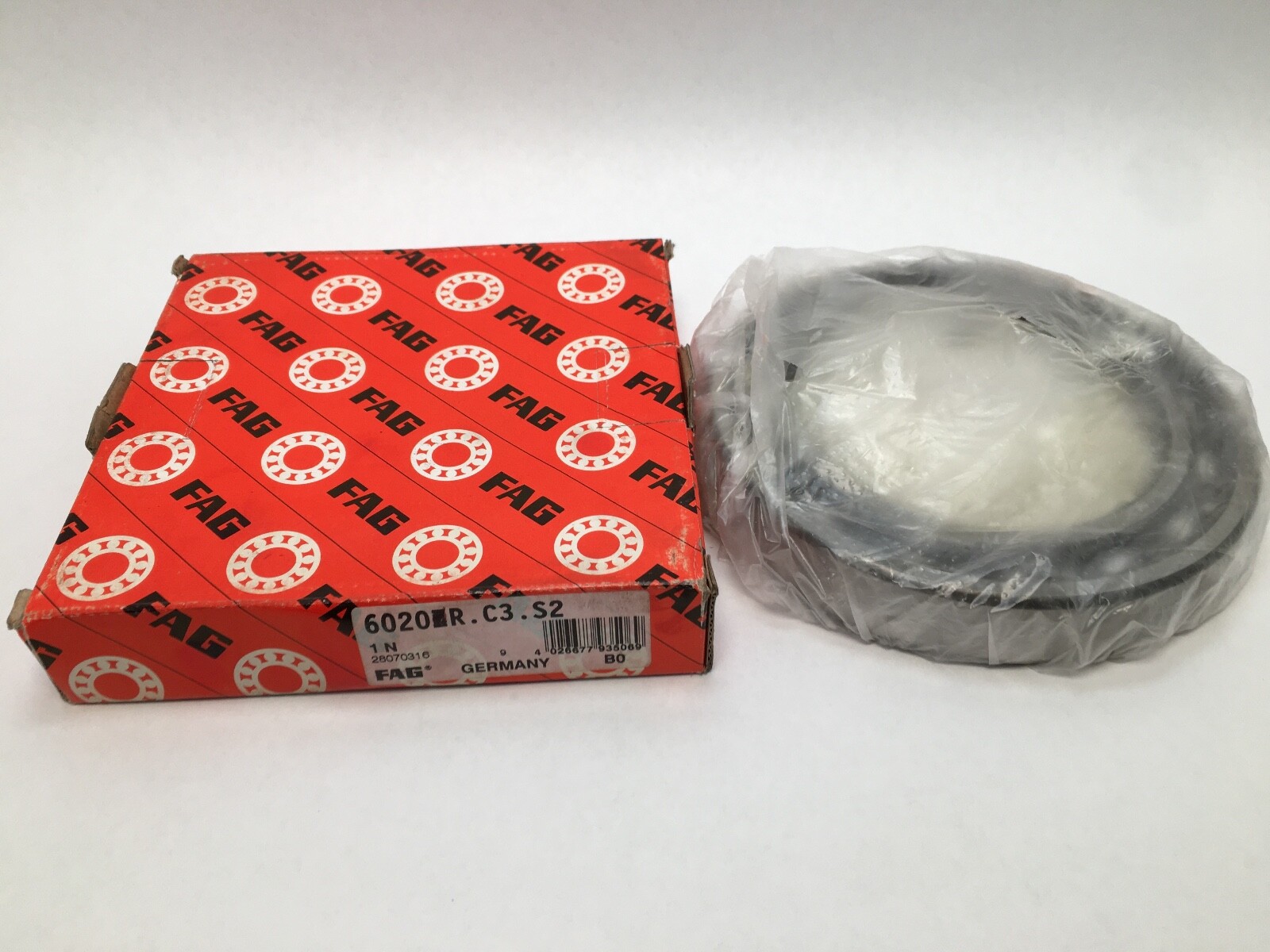

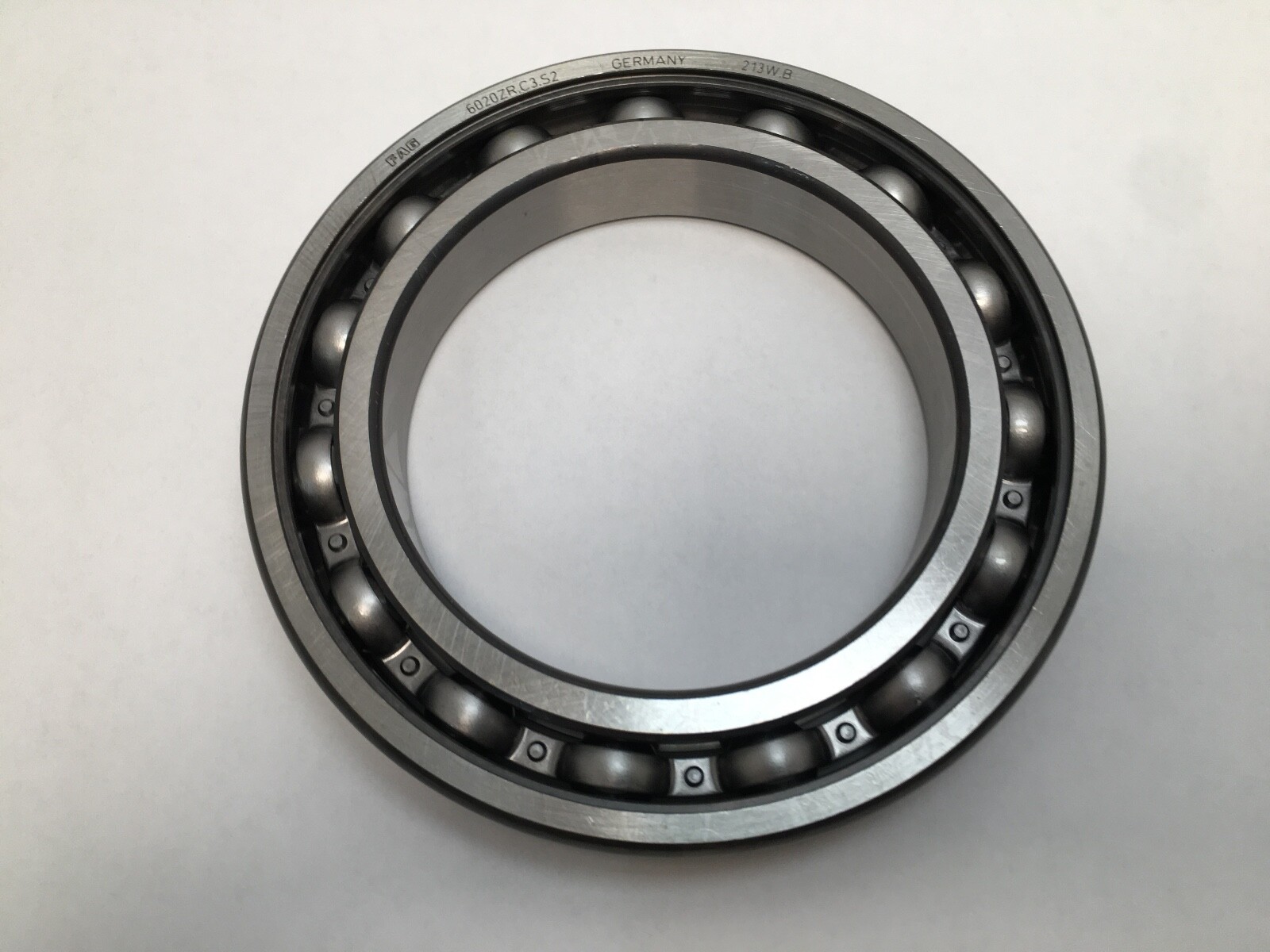

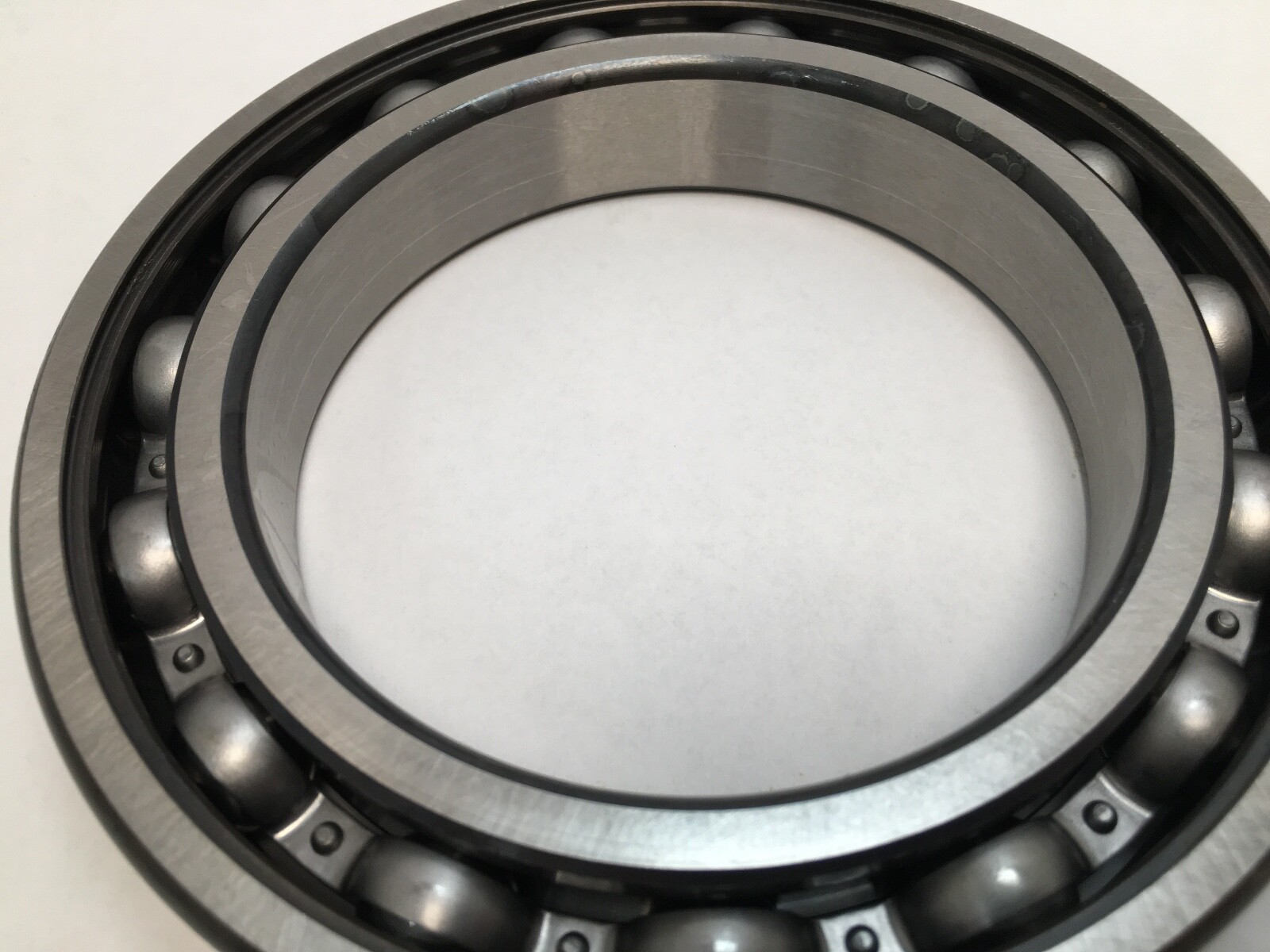

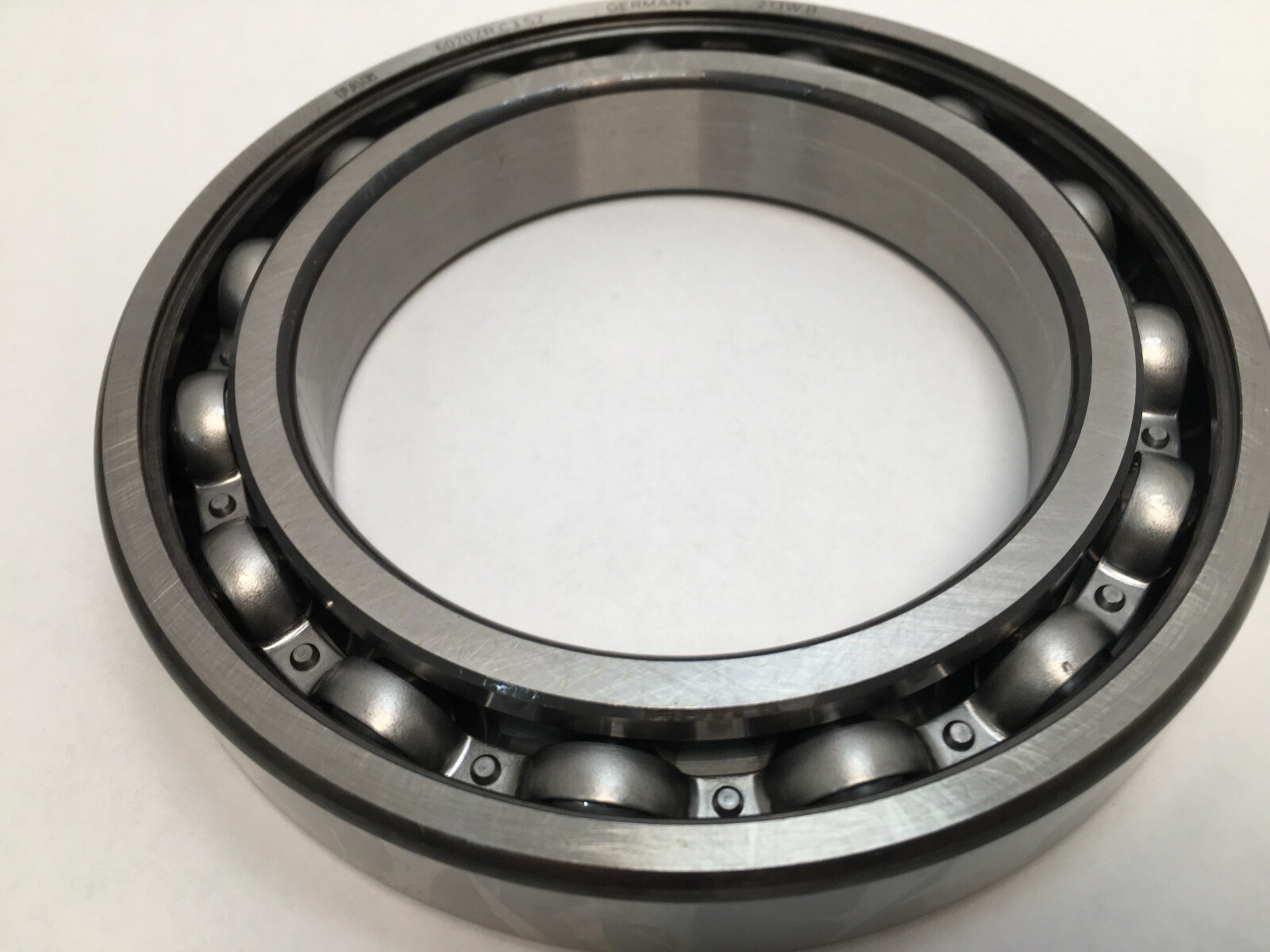

FAG 6020C3S2 (6020-C3-S2) is a single-row deep groove ball bearing with heat-stabilised rings, open on both faces, 100 mm bore, 150 mm outside diameter, 24 mm width. Unit Quantity: 1 Pc. Single bearing.
6020 — deep groove ball bearing, 60 series, 100 mm bore, 100 x 150 x 24 mm.
C3 — radial internal clearance greater than normal.

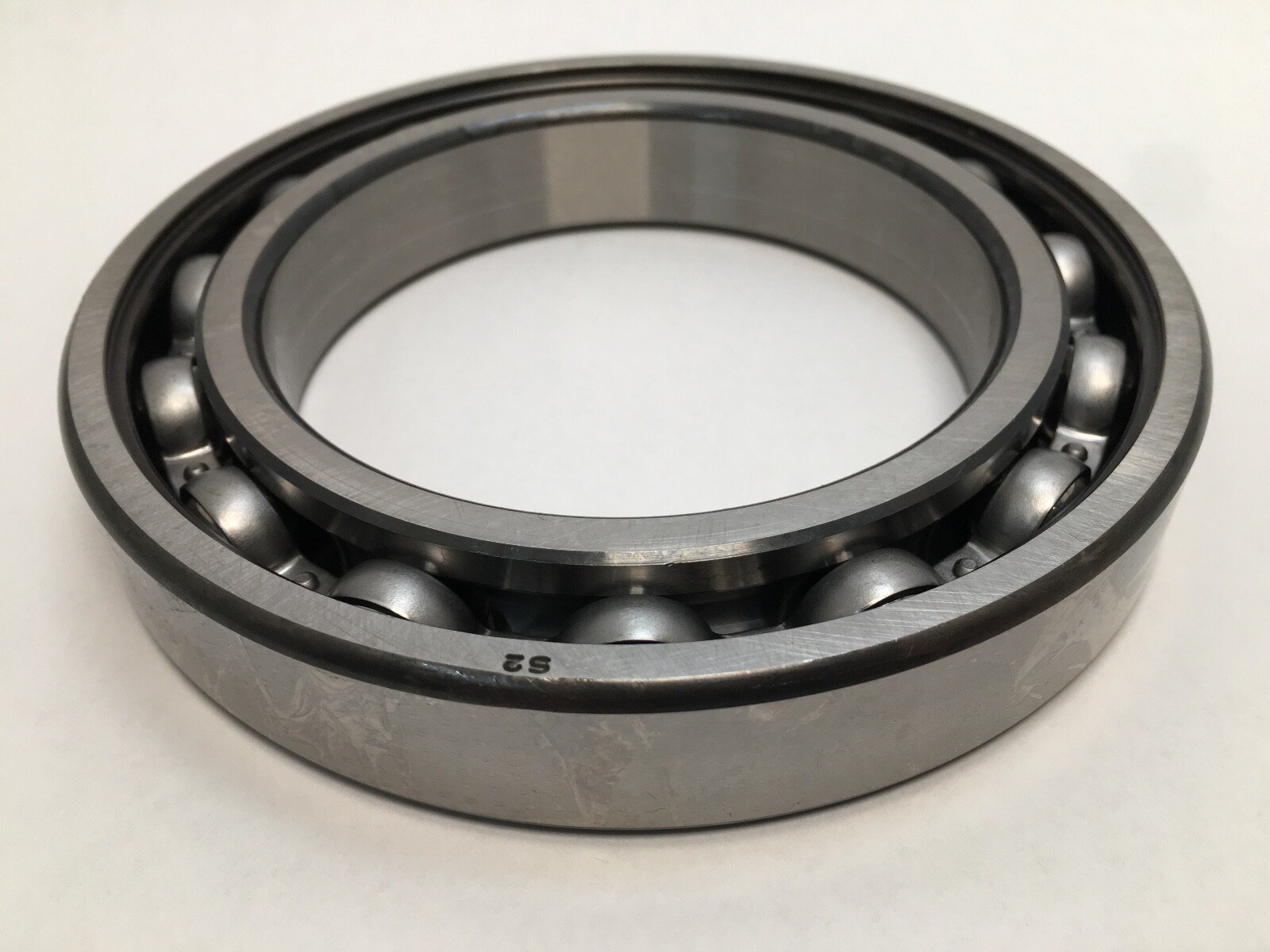

S2 — rings dimensionally stabilised for operating temperatures up to 250 °C.
Bore Diameter: 100 mm. Outside Diameter: 150 mm. Overall Width: 24 mm. Closure Type: Open. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Series: 6000. Internal Clearance: C3.
Base-part 6020-C3 data: Dynamic Load Rating: 64,000 N. Static Load Rating: 54,000 N. Limiting Speed: 6,100 rpm. Reference Speed: 5,100 rpm. Item Weight: 1.225 kg. Cage Material: Pressed steel. Cage Type: Pressed steel sheet cage (JN). Precision Class: PN (normal tolerance). S2 stabilisation holds ring dimensions at operating temperatures up to 250 °C.
Bore Diameter: 100 mm. Outside Diameter: 150 mm. Overall Width: 24 mm. Straight bore, open both faces.
Cross-Reference 1: SKF 6020/C3. Cross-Reference 2: NSK 6020C3. Cross-Reference 3: NTN 6020C3. Cross-Reference 4: Koyo 6020C3. All are 100 x 150 x 24 mm with C3 clearance and are standard-temperature parts without S2 ring stabilisation. Base part: FAG 6020-C3.
100 mm bore, 150 mm outside diameter, 24 mm width.
Rings dimensionally stabilised for operating temperatures up to 250 °C.
Radial internal clearance greater than normal.
