Fafnir211PPDeep Groove Ball Bearing – 55 mm Bore, 100 mm OD, 21 mm Width, Contact Seals Both Sides, Straight Bore

Name: Fafnir 211PP Deep Groove Ball Bearing – 55 mm Bore, 100 mm OD, 21 mm Width, Contact Seals Both Sides, Straight Bore
Brand: Fafnir
SKU: B-AA5B4#G4GKZ6
Price: 66.33 USD
Availability: InStock

Condition: New

Availability:

1 in stock

Categories: Bearings, Ball Bearing

Deep groove ball bearing, 55 x 100 x 21 mm, contact seals both sides. Chrome steel, CN clearance, ABEC 1 / P0, 48,100 N dynamic rating.

List Price

$66.33

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	Fafnir
MPN	211PP
GTIN	087796041967
Model	62112RS
Bearing Type	Ball Bearing, Contact seals both sides
ID	55 mm
OD	100 mm
Width	21 mm

Technical Specifications

Series	200
Lubricant	Grease
Material	Chrome steel
Base Number	211
Common Misspellings	Fafner 211PP; Faffnir 211PP; 211 P P; 2112RS; Fafnir 211PPP
Overall Width	21 mm
Mpn Variants	211PP; 211 PP; 211-PP; 6211-2RS; 6211 2RS; 62112RS; 6211RS
Precision Class	ABEC 1 / P0
Dynamic Load Rating C1	48,100 N
Additional Attributes	Maximum shaft fillet radius 1.5 mm; shaft backing shoulder diameter 61.19 mm; housing backing shoulder diameter 93.50 mm; outer ring to-clear radius 1.5 mm; manufacturing part number 211PP Z6 FS50000
Dynamic Load Rating	48,100 N
Static Load Rating	29,200 N
Precision Rating	ABEC 1 / P0
Rolling Elements	Ball
Item Weight	0.64 kg (1.40 lb)
Limiting Speed	3,871 rpm grease; 4,516 rpm oil
Number Of Rows	1
Bore Type	Straight
Internal Clearance	CN
Harmonization Code	8482.10.50
Design Units	Metric
Bearing Material	Chrome steel

Cross-References

Cross Reference 1	SKF 6211-2RS1
Cross Reference 2	FAG 6211-2RSR
Cross Reference 3	NSK 6211DDU
Cross Reference 4	NTN 6211LLU
Cross Reference 5	Timken Fafnir 6211-2RS
Cross Reference 6	RHP 6211-2RS
Cross Reference 7	Koyo 6211-2RS
Cross Reference 8	MRC 211SZZ
Cross Reference 9	SNR 6211EE

Seller Part Number: B-AA5B4#G4GKZ6

Product Description

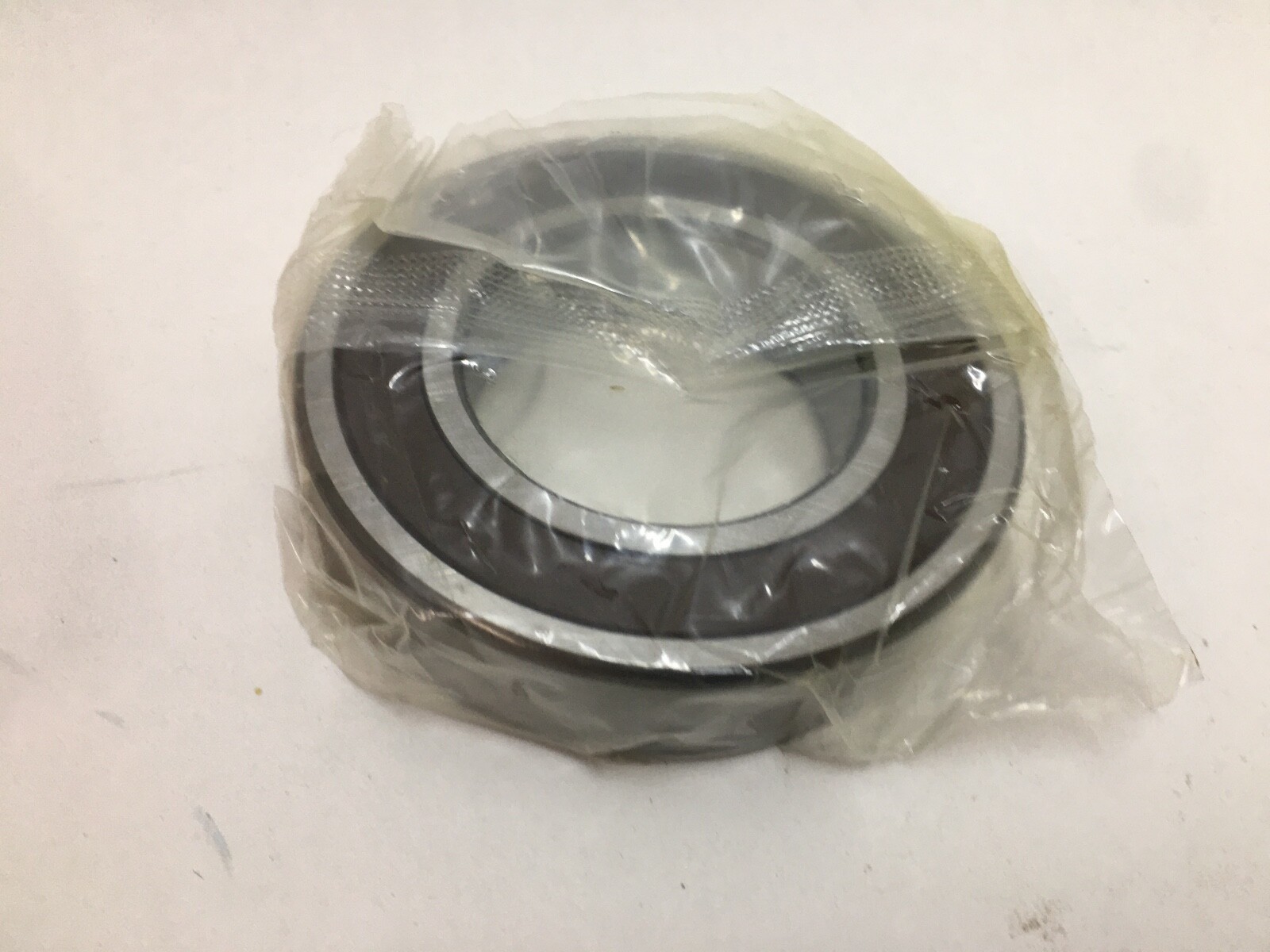

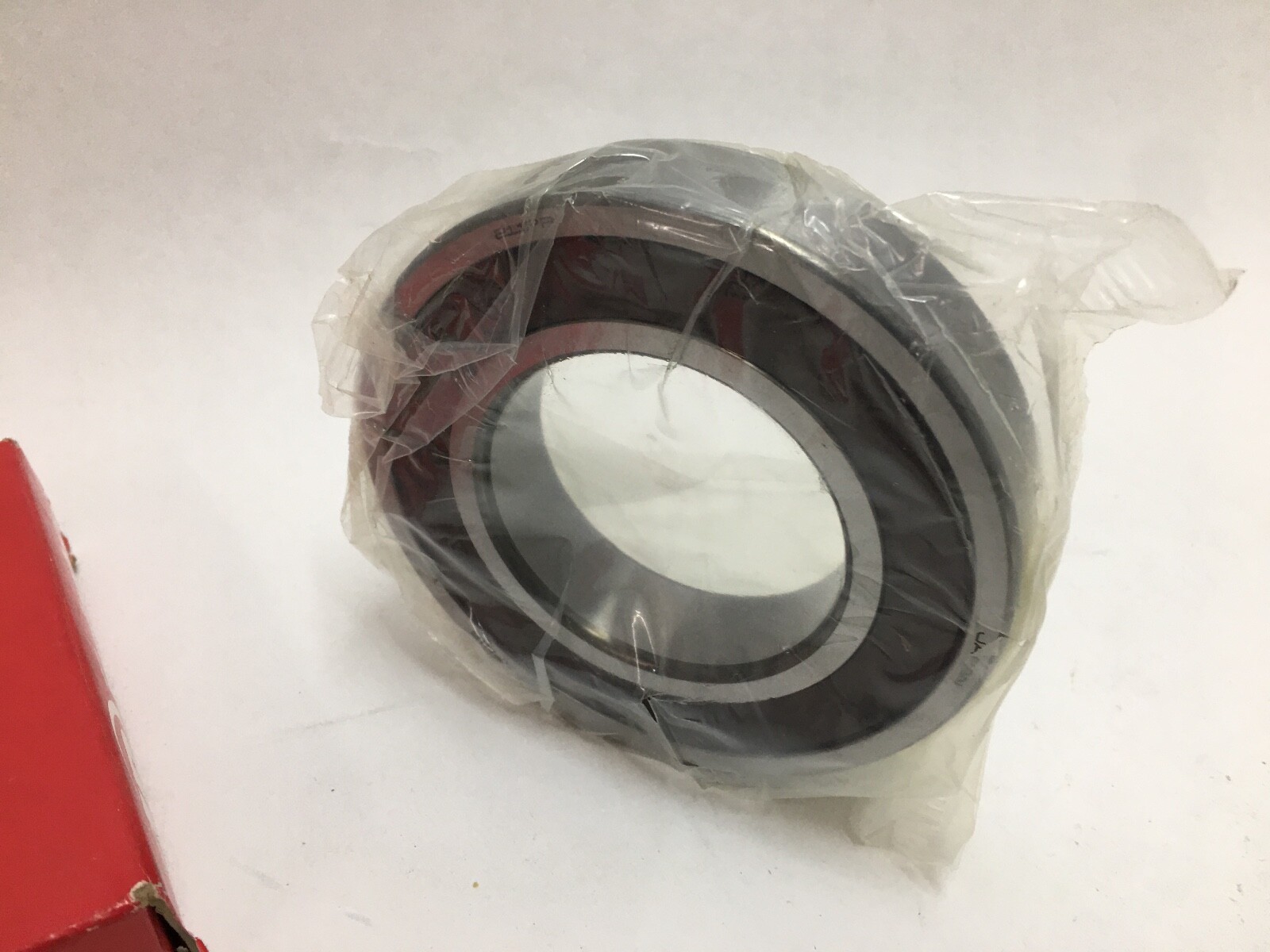

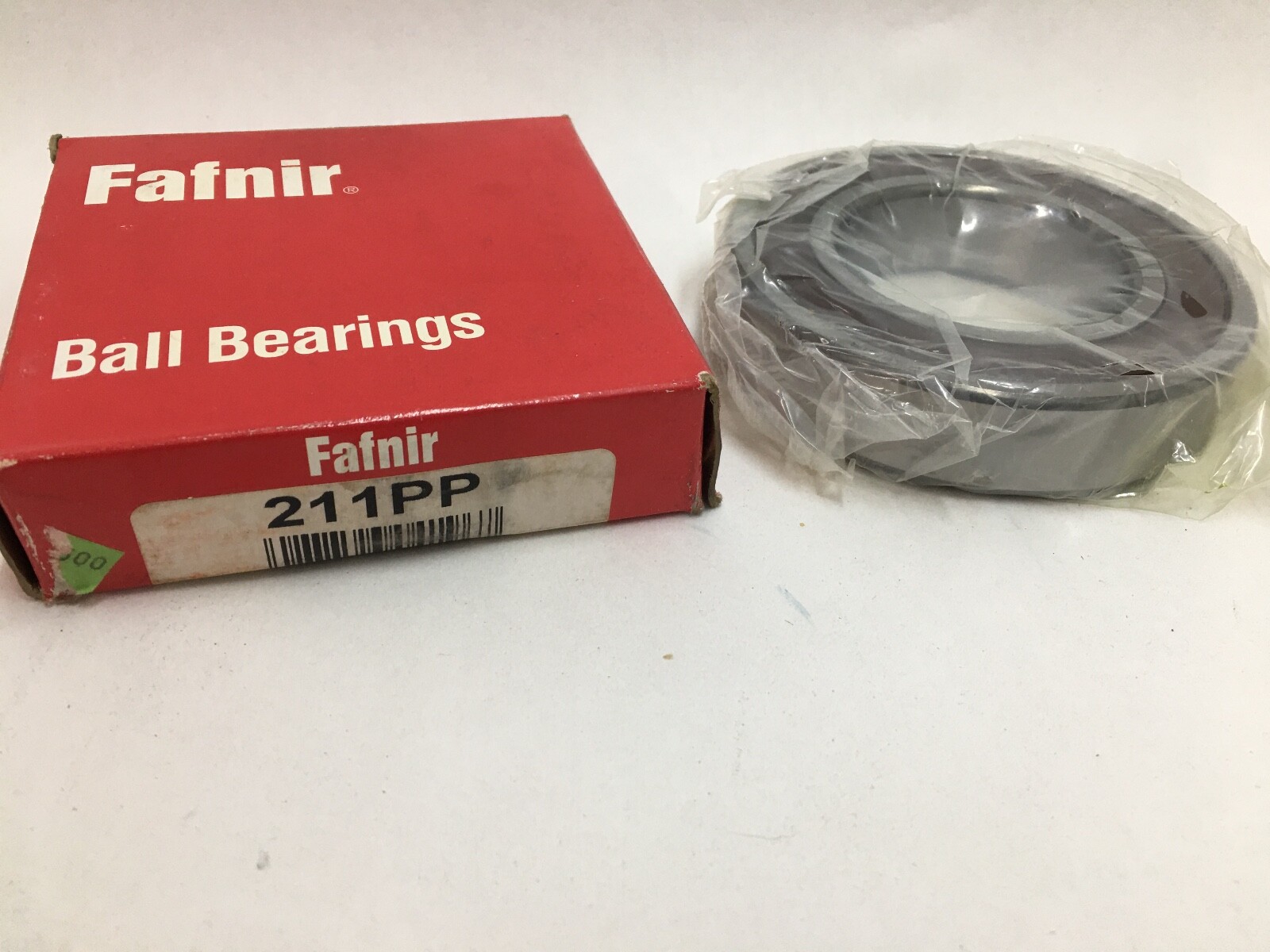

What this part is

Fafnir 211PP single-row deep groove ball bearing, built by The Timken Company. Bore Diameter: 55 mm. Outside Diameter: 100 mm. Overall Width: 21 mm. Series: 200. Base Number: 211. Closure Type: Contact seals both sides. Bore Type: Straight. Number Of Rows: 1. Rolling Elements: Ball. Bearing Material: Chrome steel. Lubricant: Grease. Item Weight: 0.64 kg (1.40 lb).

Decoding the designation

211 — Fafnir 200 light series, bore code 11, giving a 55 mm bore in a 100 mm outside diameter.

PP — contact seals both sides. Rubber land-riding lips run against the inner ring, holding grease in and contamination out.

What these specs mean in practice

Dynamic Load Rating: 48,100 N. Static Load Rating: 29,200 N. Limiting Speed: 3,871 rpm grease; 4,516 rpm oil. Precision Class: ABEC 1 / P0. Internal Clearance: CN.

The 48,100 N dynamic rating is the load at which the bearing reaches one million revolutions of calculated fatigue life. The 29,200 N static rating governs shock loading and standstill duty, where permanent raceway deformation rather than fatigue sets the limit. The 200 light series carries less load than a 300 series bearing of the same bore, and returns a narrower, lighter section and higher permissible speed. Contact seals hold factory grease for the life of the bearing and keep the running-in charge clean in dusty or wet drives.

Mounting data

Maximum shaft fillet radius: 1.5 mm. Shaft backing shoulder diameter: 61.19 mm. Housing backing shoulder diameter: 93.50 mm. Outer ring to-clear radius: 1.5 mm.

Quantity and configuration

Unit Quantity: 1 Pc. One complete sealed bearing per unit.

Interchange guidance

The 211PP is the Fafnir designation for the 55 x 100 x 21 mm sealed 6211 envelope, so a 6211-2RS from any ISO-numbering maker is a direct substitution on the same shaft seat and housing bore. Each equivalent is listed individually in the Cross-Reference attributes.
