This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Deep Groove Ball Bearing - 75 mm Bore, 160 mm OD, 37 mm Width, Open, Pressed Brass Window Cage$51.04
Deep Groove Ball Bearing - Straight Bore, 75 mm ID, 160 mm OD, 37 mm Width, Open, Without Snap Ring$60.40
Single Row Deep Groove Ball Bearing 75x160x37 mm, Open, Heavy 6300 Series$135.32
Deep Groove Ball Bearing - Straight Bore, 75 mm ID, 115 mm OD, 20 mm Width, Open.$35.37| MFR / Brand | EBC |
|---|---|
| MPN | 6315ZZC3 |
| Model | 6315-Z |
| Bearing Type | Ball Bearing, Double Shield |
| ID | 75 mm |
| OD | 160 mm |
| Width | 37 mm |
| Series | 6300 |
|---|---|
| Condition | New |
| Lubricant | Grease |
| Material | Bearing Steel |
| Min Temp | -30°C |
| Cage Type | Pressed |
| Dynamic Load Rating | 114 kN / 25628 lbf |
| Static Load Rating | 76.5 kN / 17198 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Max Temp | 120°C |
| Item Weight | 6.70 lbs |
| Cage Material | Steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.1 |
| Internal Clearance | C3 |
| Limiting Speed | 5600 rpm |
| Cross Reference 1 | SKF 6315-2Z/C3 |
|---|---|
| Cross Reference 2 | FAG 6315-2Z-C3 |
| Cross Reference 3 | NTN 6315ZZC3 |

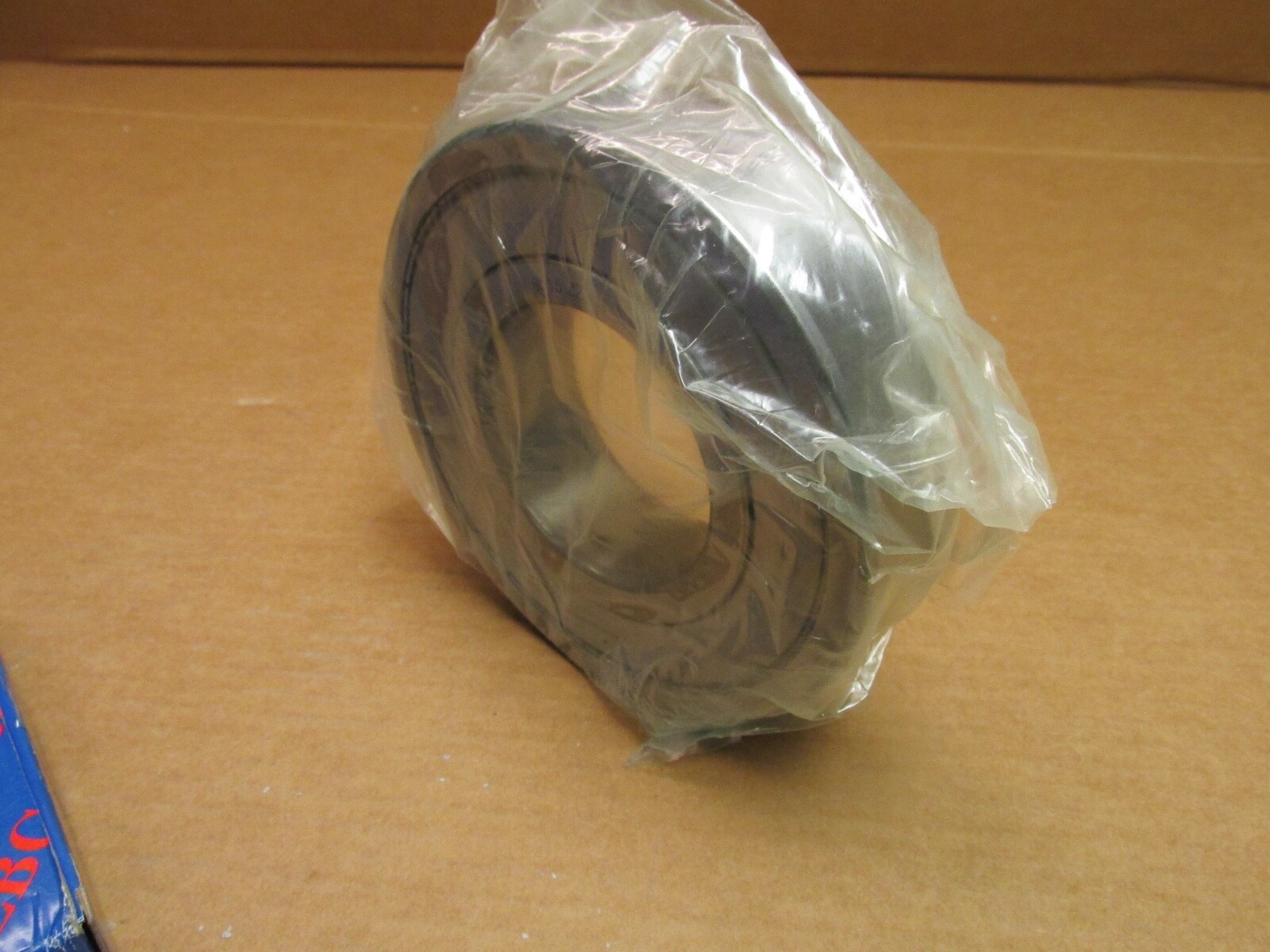

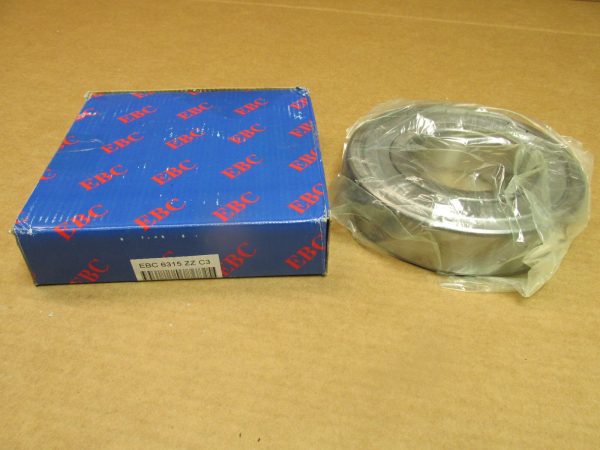

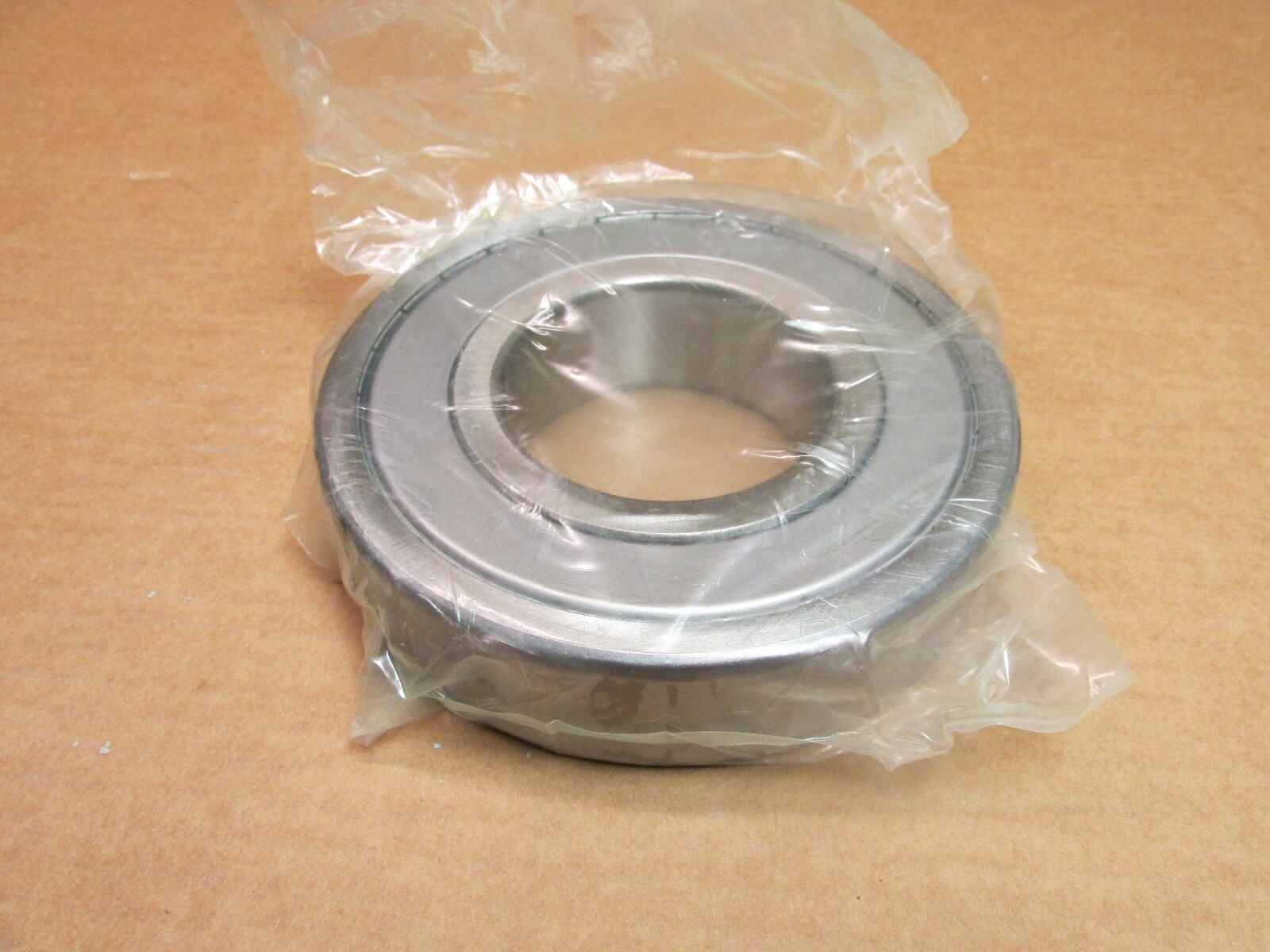

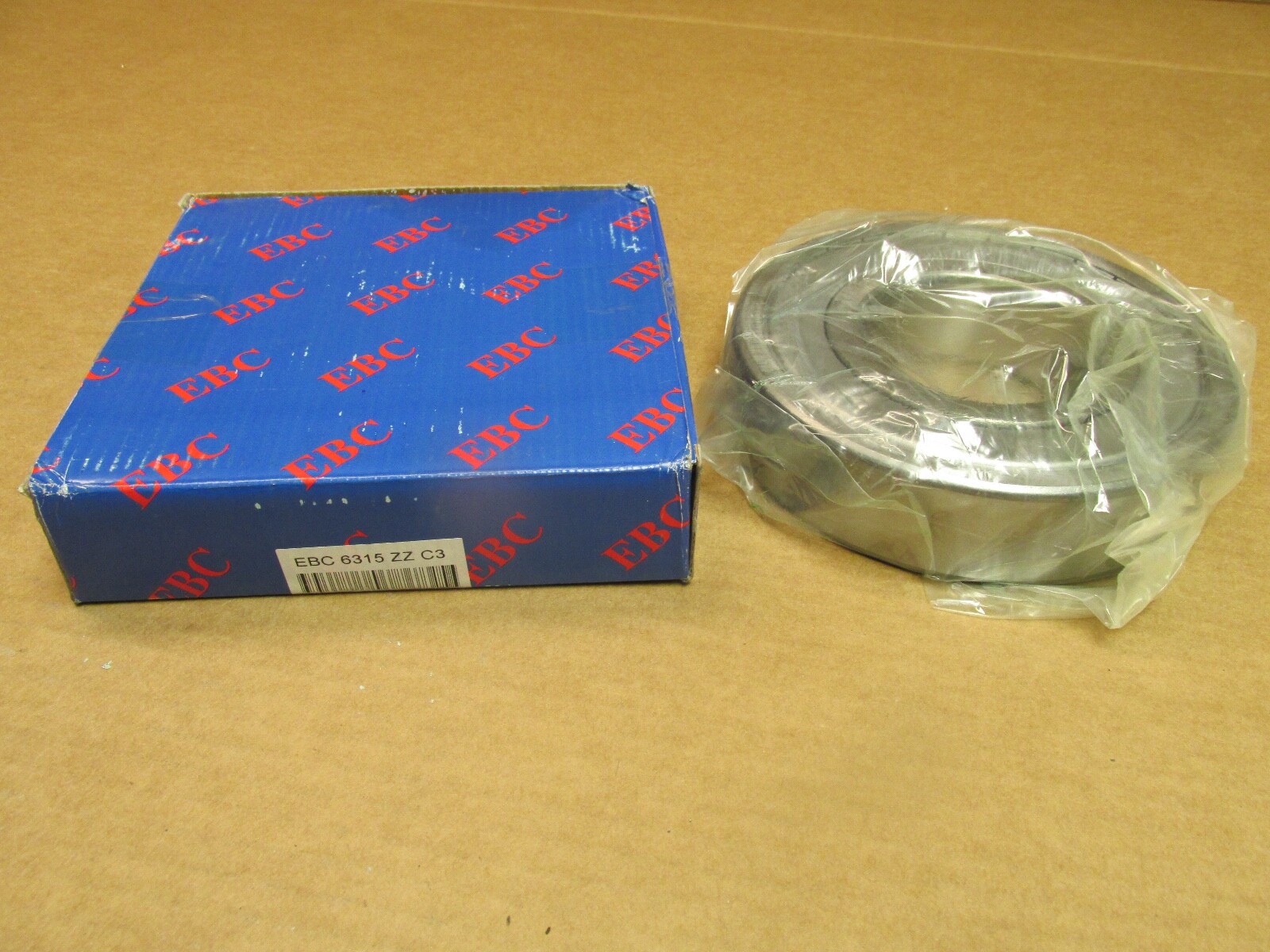

Deep Groove Ball Bearing – Straight Bore, 75 mm ID, 160 mm OD, 37 mm Width, Double Shield, C3 Internal Clearance
$51.96
28 in stock
$26.58
199 in stock
$44.54
6 in stock
$33.98
11 in stock
$61.17
66 in stock
