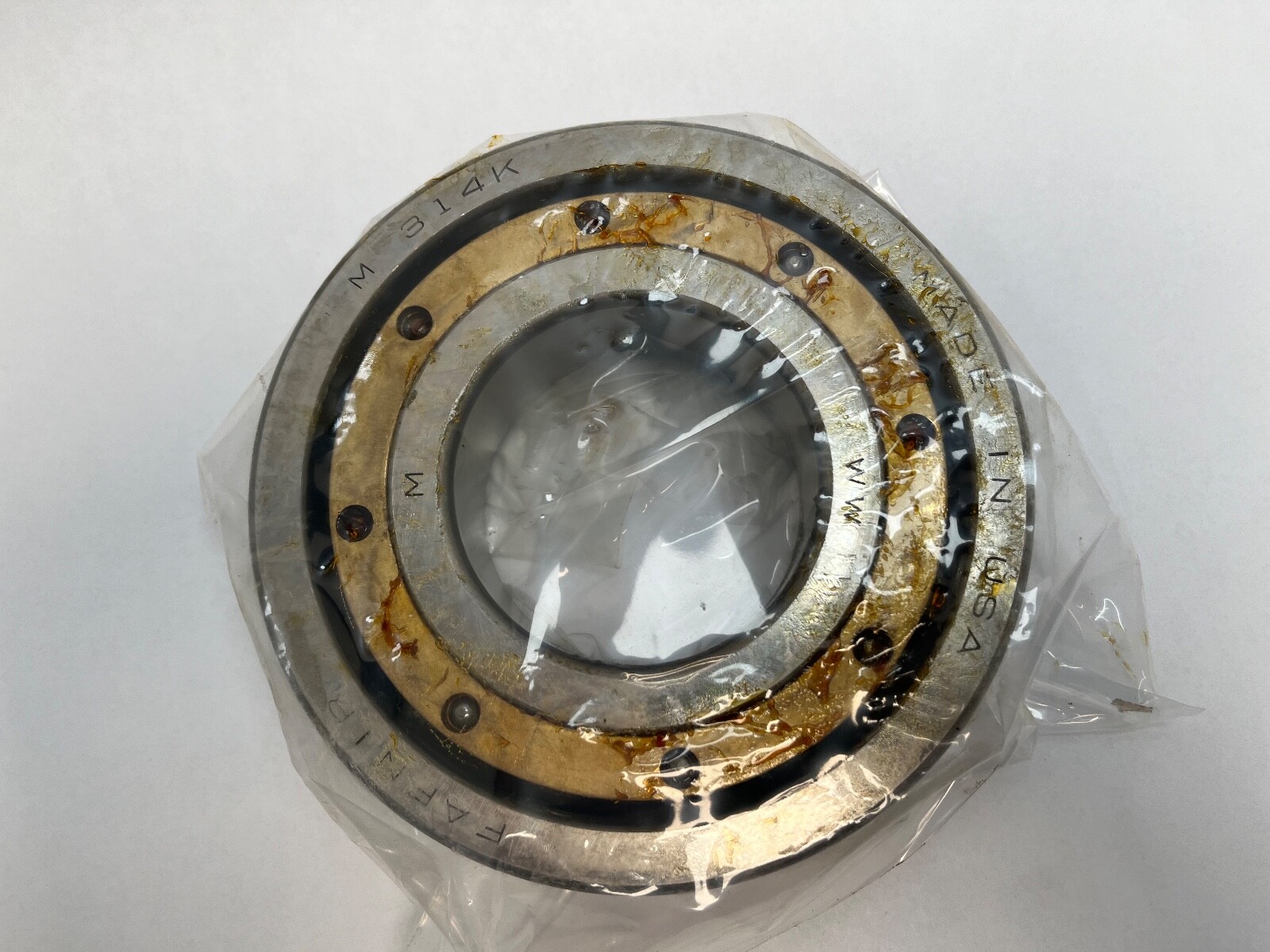

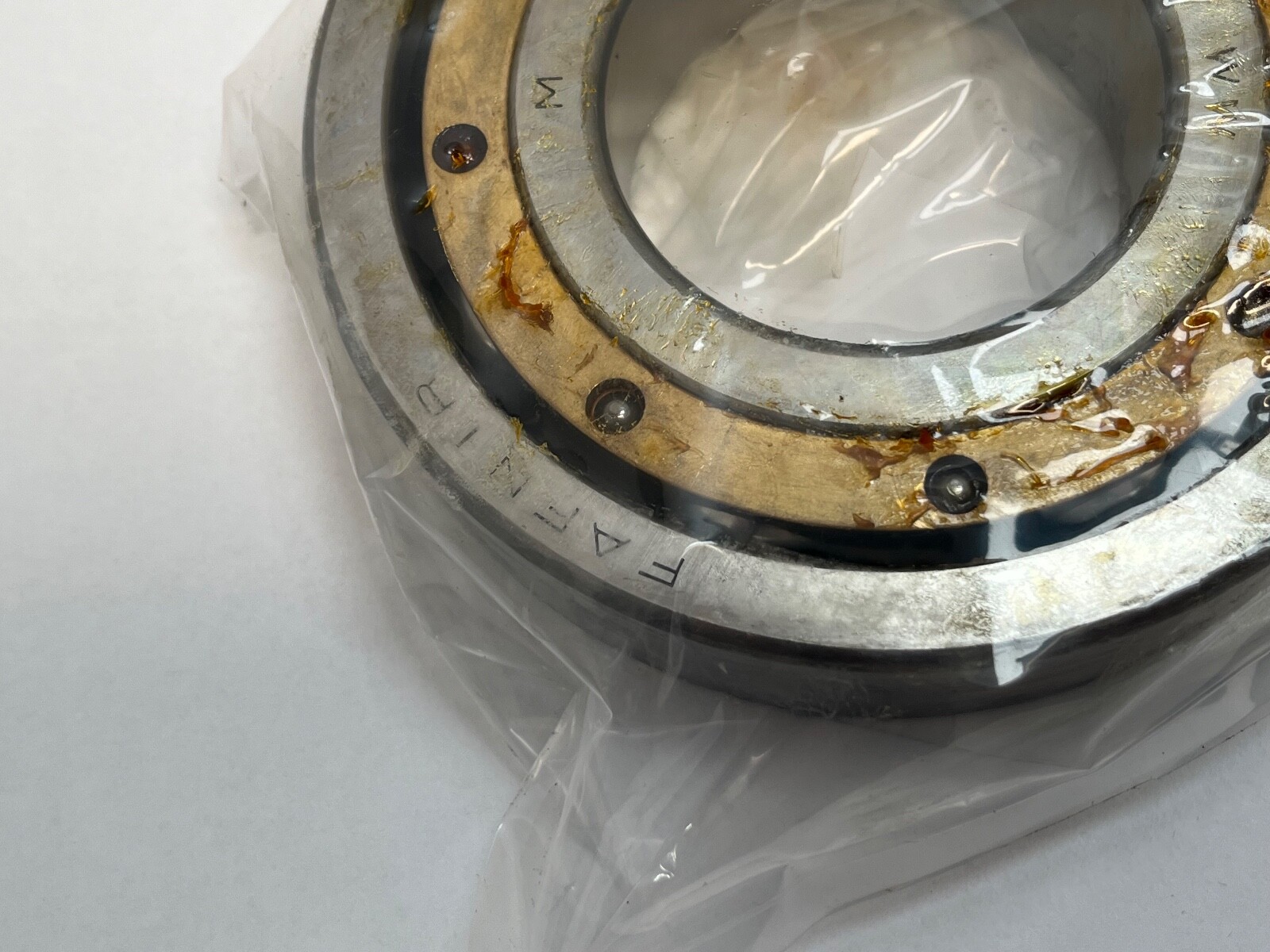

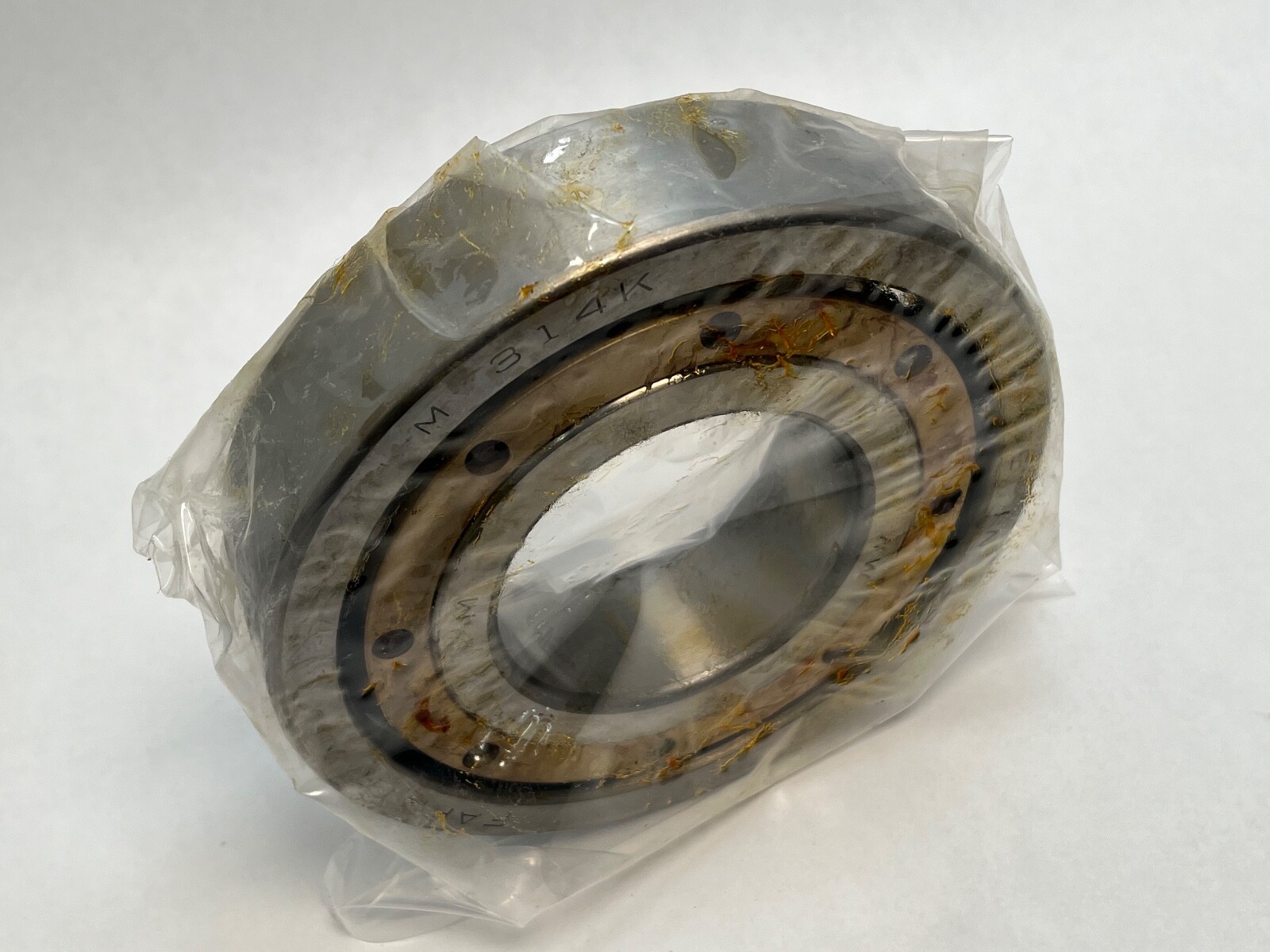

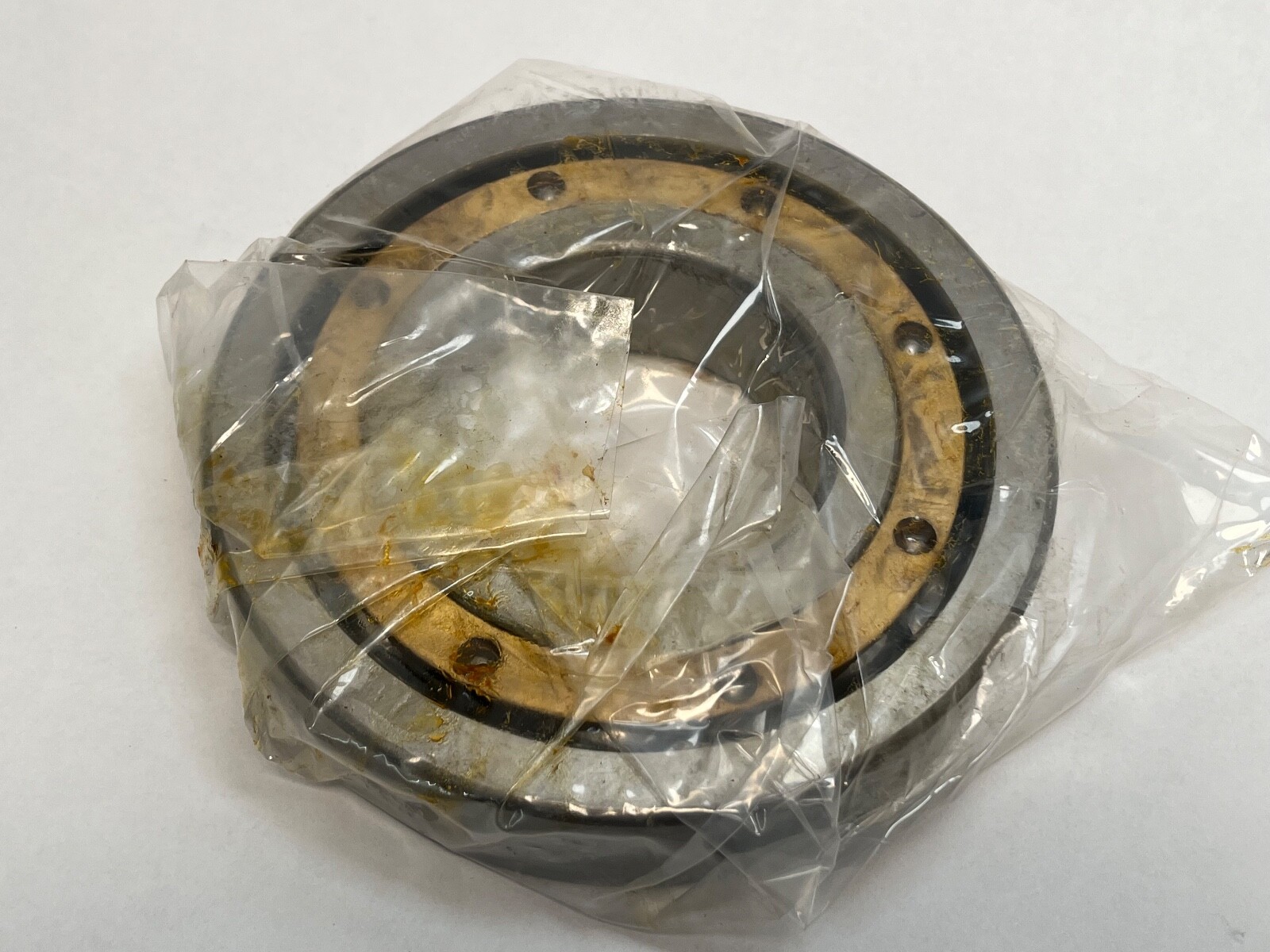

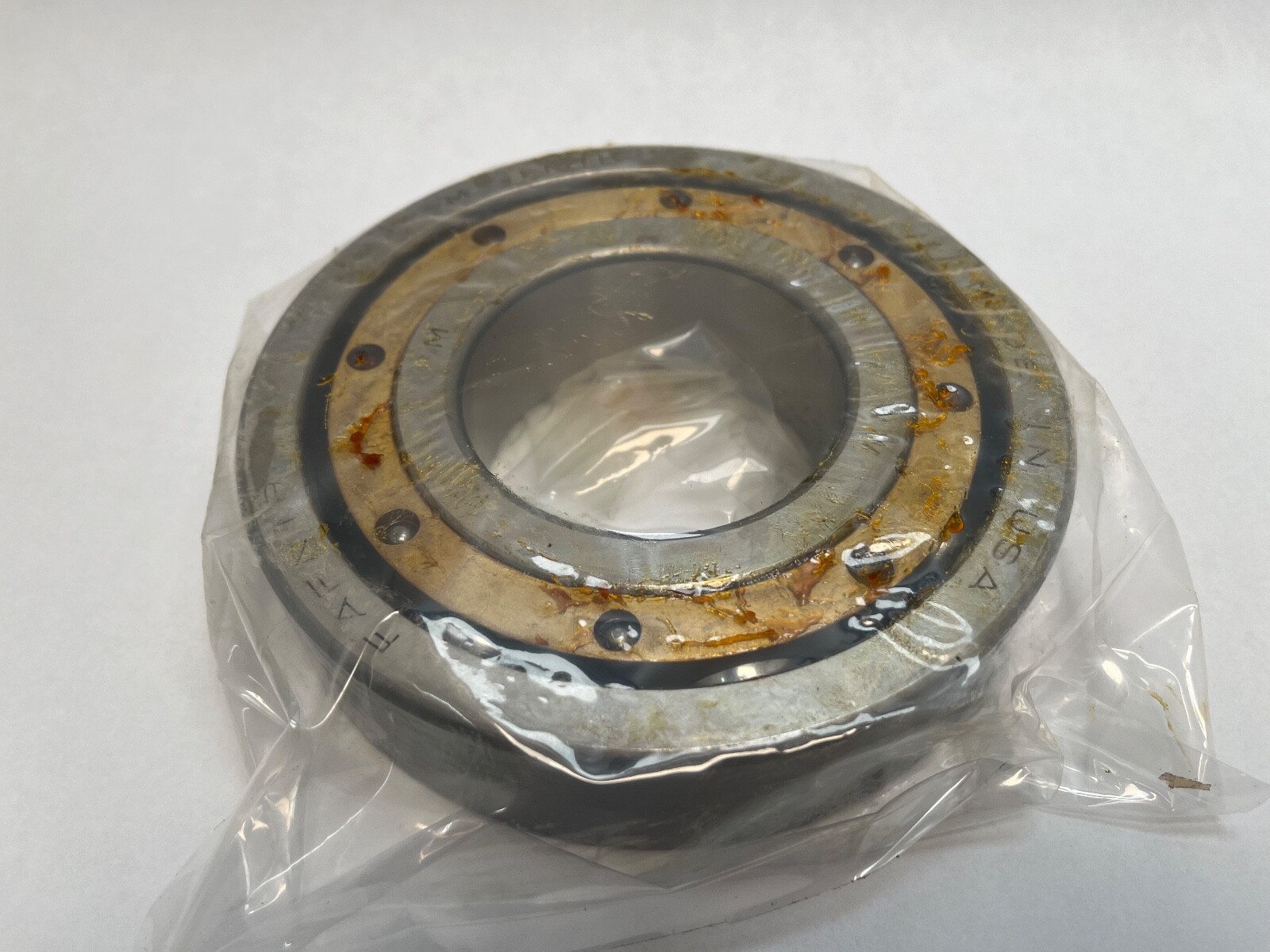

Fafnir M314KBR precision deep groove ball bearing, 70 x 150 x 35 mm, open, ABEC 5 / P5, machined bronze cage, CN clearance, 111 kN dynamic load rating.
List Price
Original price was: $99.42.$74.57Current price is: $74.57.
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | Fafnir |
|---|---|
| MPN | M314KBR |
| Model | M-314-K-BR / 6314 MB/BR P5 |
| Bearing Type | Ball Bearing, Open |
| ID | 70 mm |
| OD | 150 mm |
| Width | 35 mm |
| Material | Bearing Steel |
|---|---|
| Series | 300 |
| Condition | New – Open box |

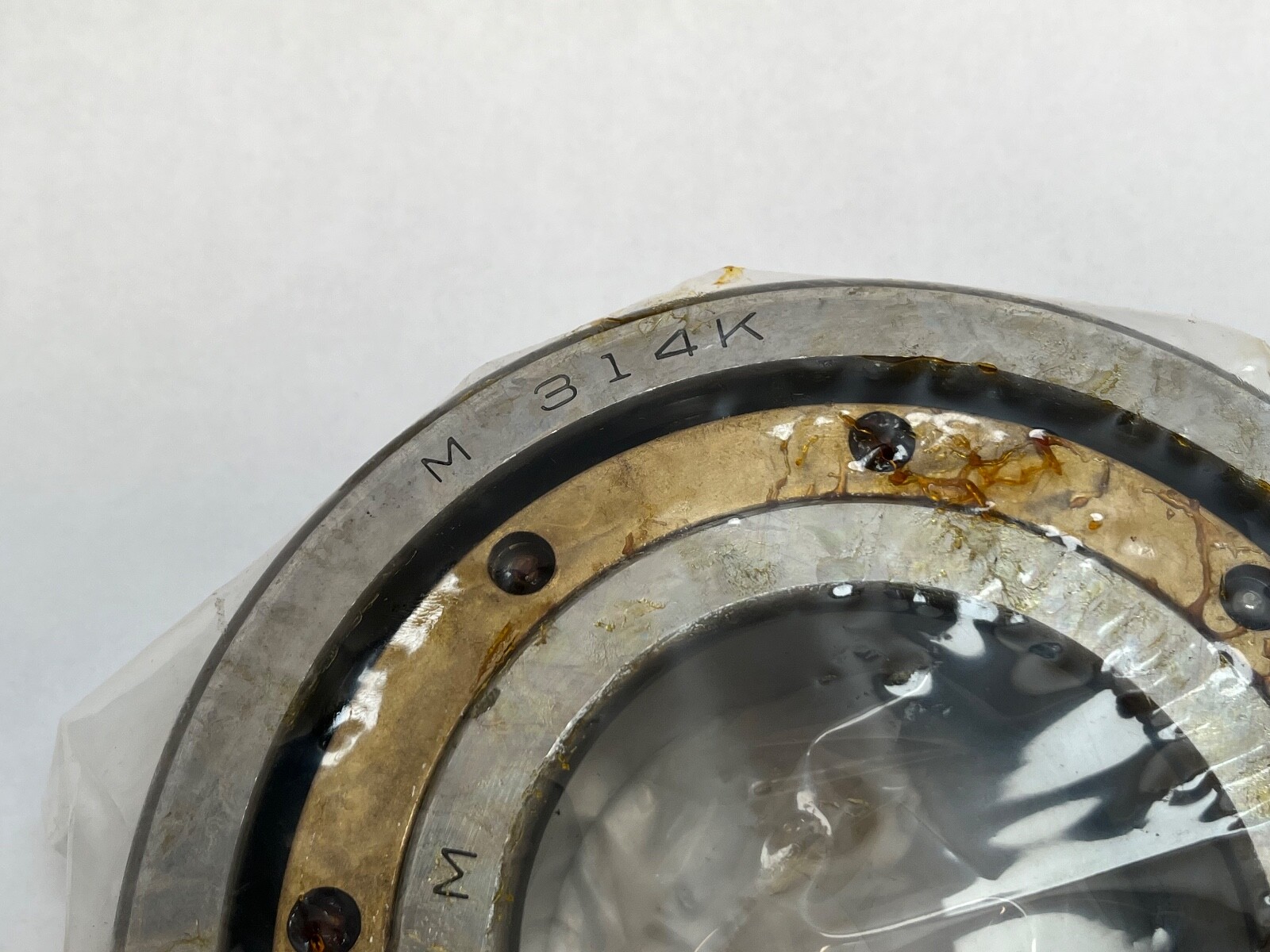

| Base Number | M314K |
| Industry Terms | Precision deep groove ball bearing, spindle ball bearing, 6314 P5, bronze cage ball bearing, Fafnir 300 series |
| Common Misspellings | Fafner, Faffnir, M314KBR, M-314-KBR, M314 KBR, 6314P5 |

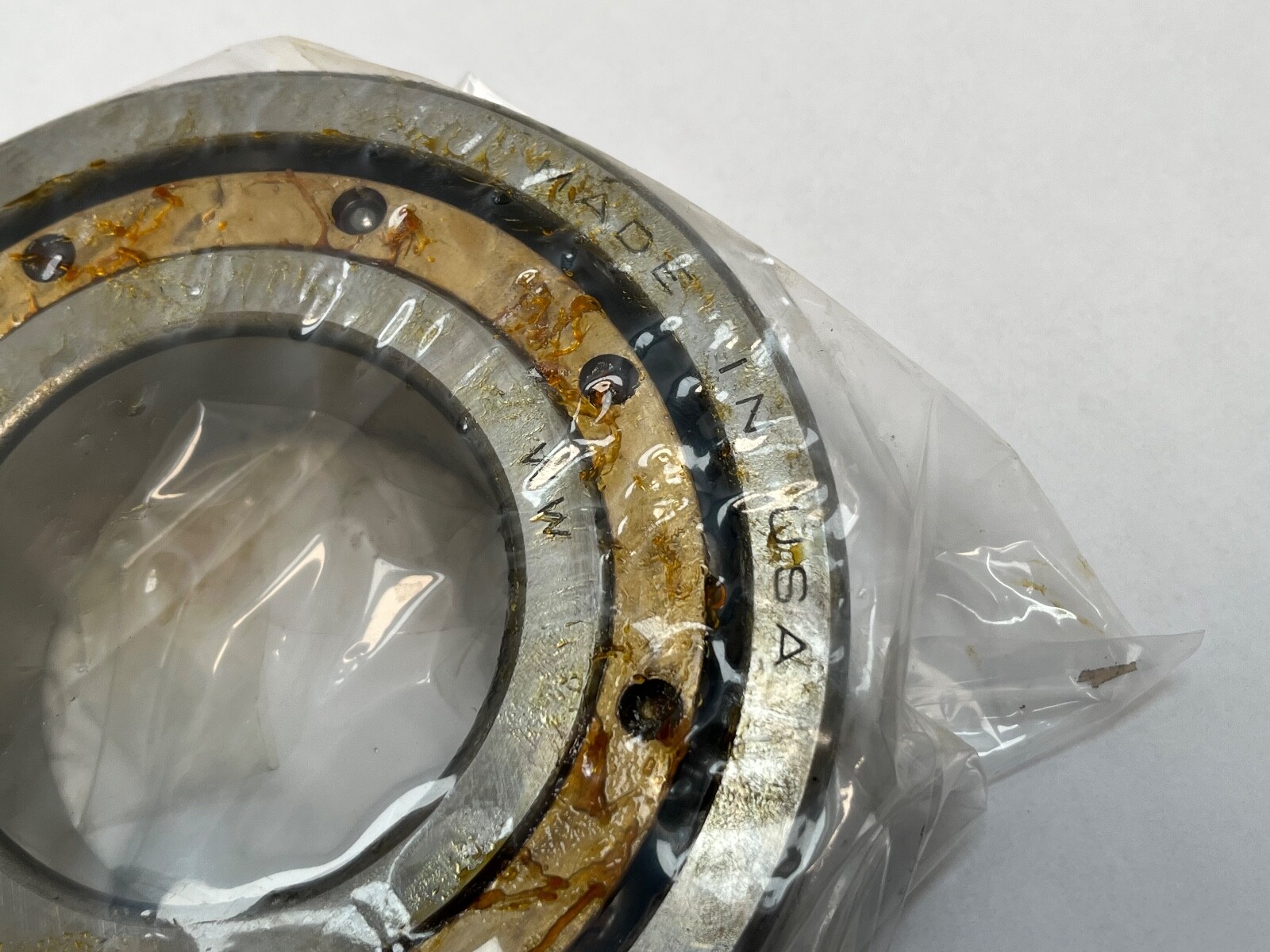

| Condition Note | Made In USA |
| Bore Shaft Size | 70 mm |
| Mpn Variants | M314KBR, M-314-K-BR, M 314 K BR, M314K-BR, 6314 MB/BR P5, 6314-P5 |
| Precision Class | P5 |
| Min Temp | -30°C |
| Cage Type | Machined |
| Dynamic Load Rating | 111 kN |
| Static Load Rating | 68 kN |
| Precision Rating | ABEC 5 |
| Rolling Elements | Ball |
| Max Temp | 120°C |
| Item Weight | 5.56 lbs |
| Cage Material | Bronze |
| Limiting Speed | 5600 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Relubrication Feature | No |
| Harmonization Code | 8482.10.50.68 |
| Design Units | Metric |
| Bearing Material | Chrome bearing steel |
| Part Number | M314KBR |
| Cross Reference 1 | SKF 6314 M |
|---|---|
| Cross Reference 2 | FAG 6314-M |
Fafnir M314KBR precision deep groove ball bearing, 300 heavy series. Brand: Fafnir (Timken). Part Number: M314KBR. Base Number: M314K. Bearing Type: Precision Deep Groove Ball Bearing. Series: 300 (ISO 63 heavy), Fafnir heavy dimension series, ISO 6314 envelope. Country of Origin: United States.
Bore: 70 mm. Bore / Shaft Size: 70 mm. Outside Diameter: 150 mm. Overall Width: 35 mm. Design Units: Metric. Item Weight: 5.56 lbs.
Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Seal Type: Open. Material: Bearing Steel. Bearing Material: Chrome bearing steel. Cage Material: Bronze. Cage Type: Machined. Internal Clearance: CN. Precision Class: P5. Precision Rating: ABEC 5. Snap Ring Included: No. Relubrication Feature: No. The BR suffix marks the machined bronze cage.
Dynamic Load Rating: 111 kN. Static Load Rating: 68 kN. Limiting Speed: 5600 rpm.
Lubricant: oil or grease. Max Temp: 120°C. Min Temp: -30°C.
Unit Quantity: 1 Pc.
Cross-References: SKF 6314 M, FAG 6314-M, NSK 6314M P5, 6314 P5. Each shares the 70 x 150 x 35 mm envelope. Harmonization Code: 8482.10.50.68.
MPN Variants: M314KBR, M-314-K-BR, M 314 K BR, M314K-BR, 6314 MB/BR P5, 6314-P5.
