This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Deep Groove Ball Bearing - Straight Bore, 40 mm ID, 62 mm OD, 12 mm Width, Rubber Contact Seals Both Sides, 69 Thin Section Series$27.51
Deep Groove Ball Bearing — 40 mm ID, 80 mm OD, 18 mm Width, Non-Contact Seals Both Sides, C3 Clearance$41.57
Spindle Deep Groove Ball Bearing, 40 x 90 x 23 mm, ABEC 3 / P6$25.46
Deep Groove Ball Bearing — Filling-Notch Max Type, 40 mm ID, 90 mm OD, 23 mm Width, Single Shield, Snap-Ring Groove$30.24| MFR / Brand | NSK |
|---|---|
| MPN | 6908DDU |
| Model | 6908 2RS RS DU DDU / 61908 |
| Bearing Type | Ball Bearing, Double Rubber Seal |
| ID | 40 mm |
| OD | 62 mm |
| Width | 12 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | 6900 Series |
| Lubricant | Grease |
| Closure Type | Double Rubber Seal |
| Min Temp | -20°C |
| Cage Type | Stamped Steel |
| Dynamic Load Rating | 13.7 kN / 3080 lbf |
| Static Load Rating | 9.95 kN / 2237 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Balls |
| Max Temp | 110°C |
| Item Weight | 0.26 lbs |
| Cage Material | Steel |
| Limiting Speed | 7100 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.5016 |
| Internal Clearance | CN |
| Running Accuracy | P0 |
| Running Accuracy Radial And Axial Runout | P0 |
| Cross Reference 1 | SKF 61908-2RS1 |
|---|---|
| Cross Reference 2 | FAG 61908-2RSR |

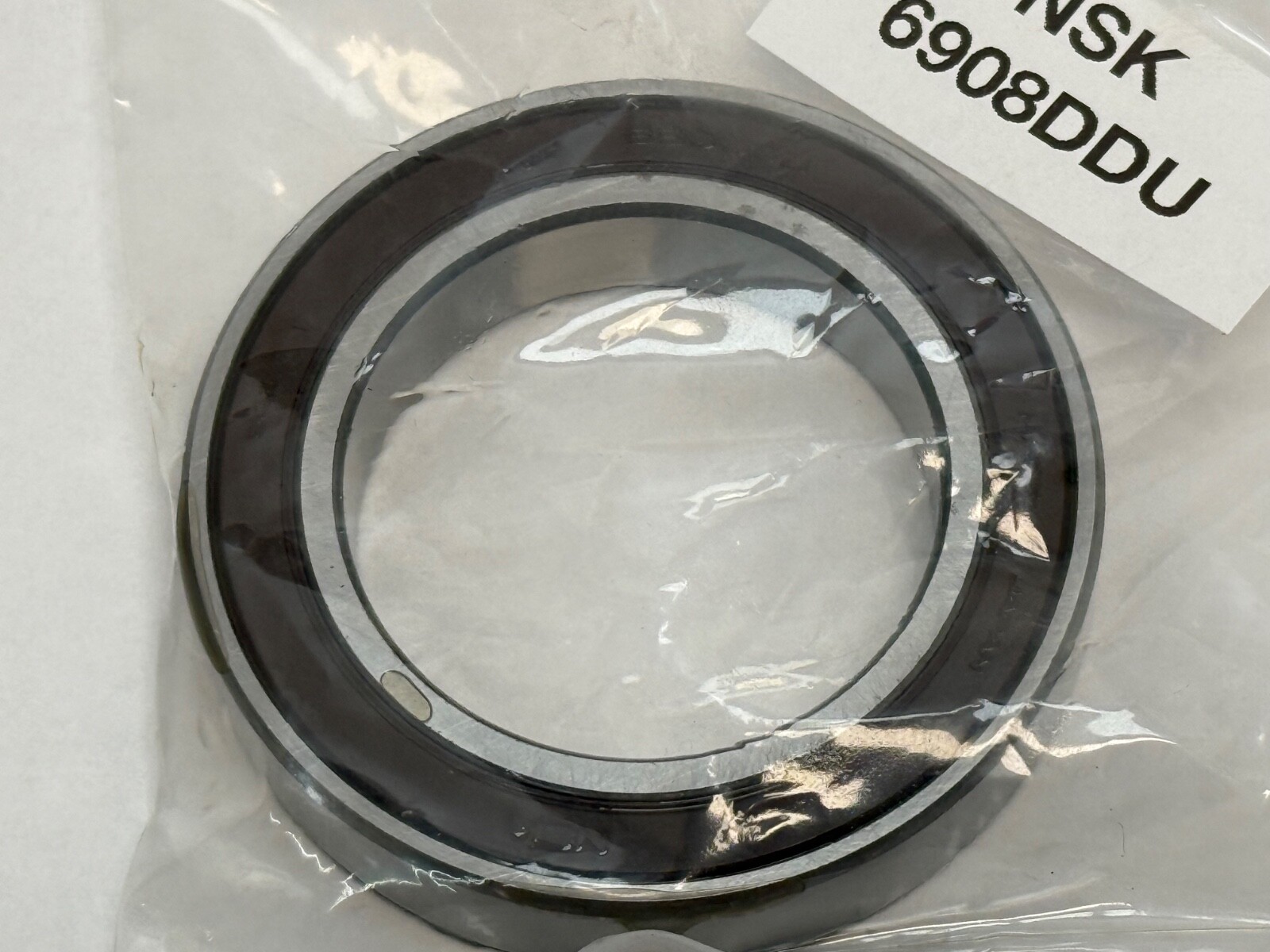

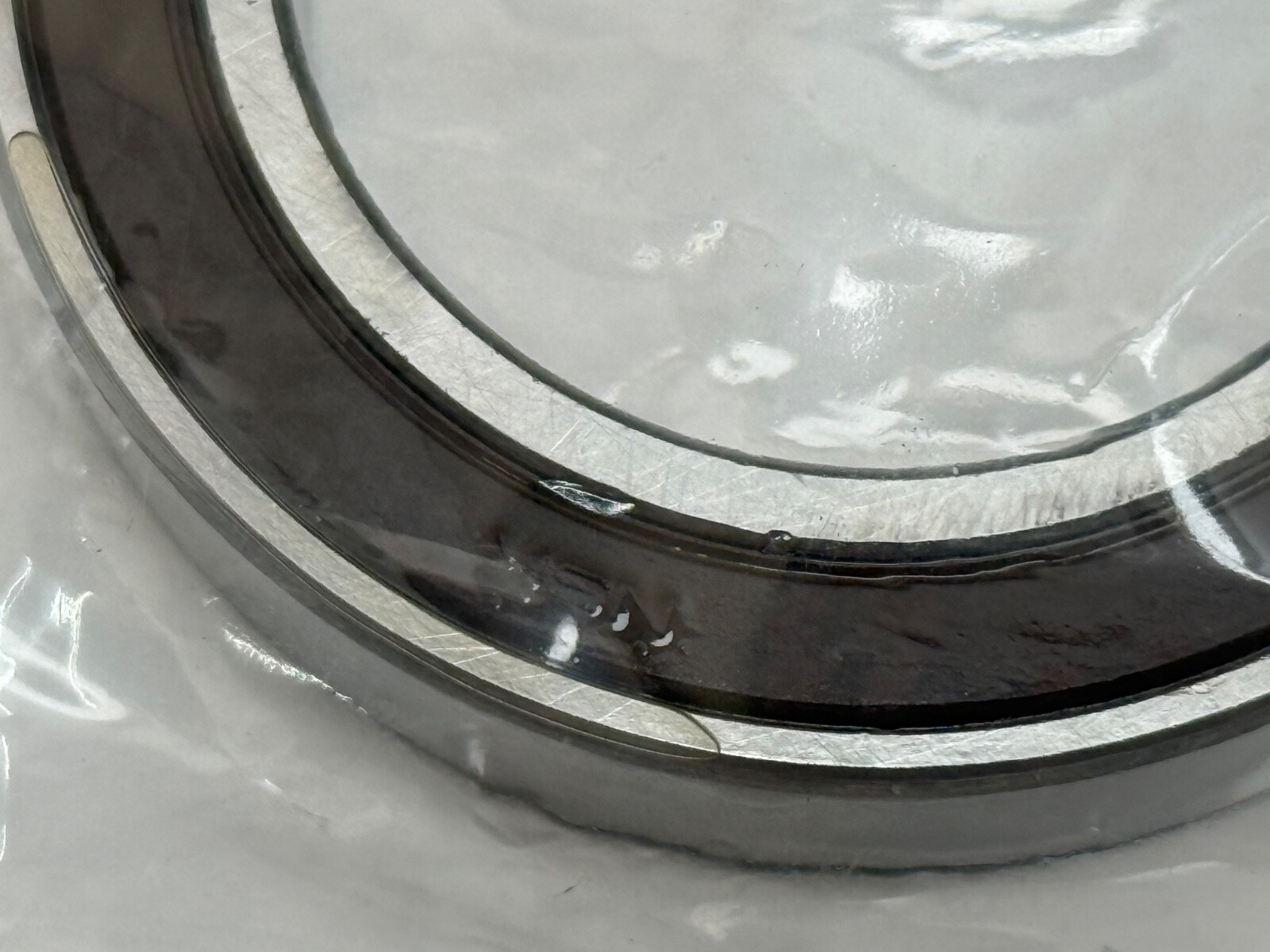

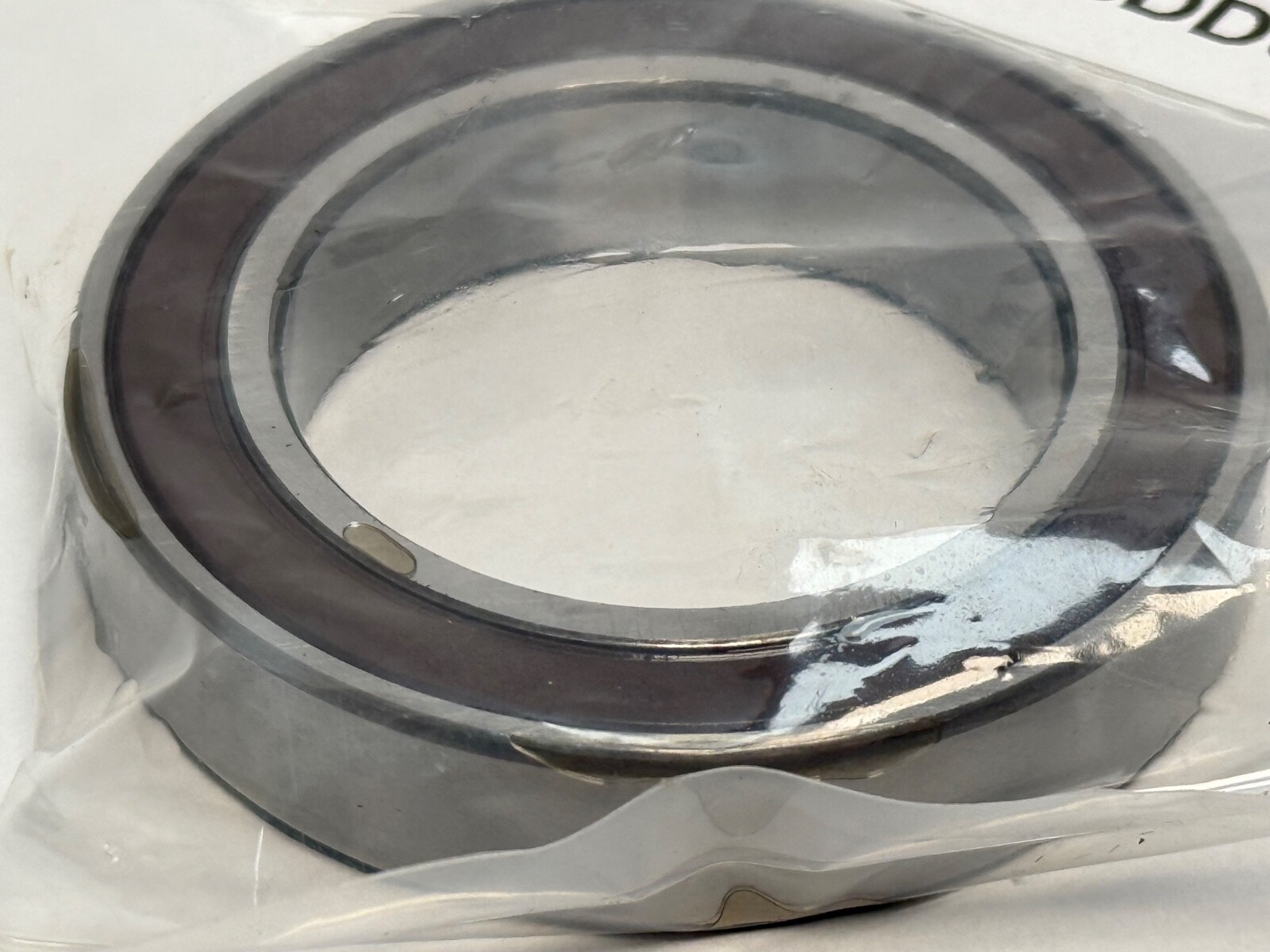

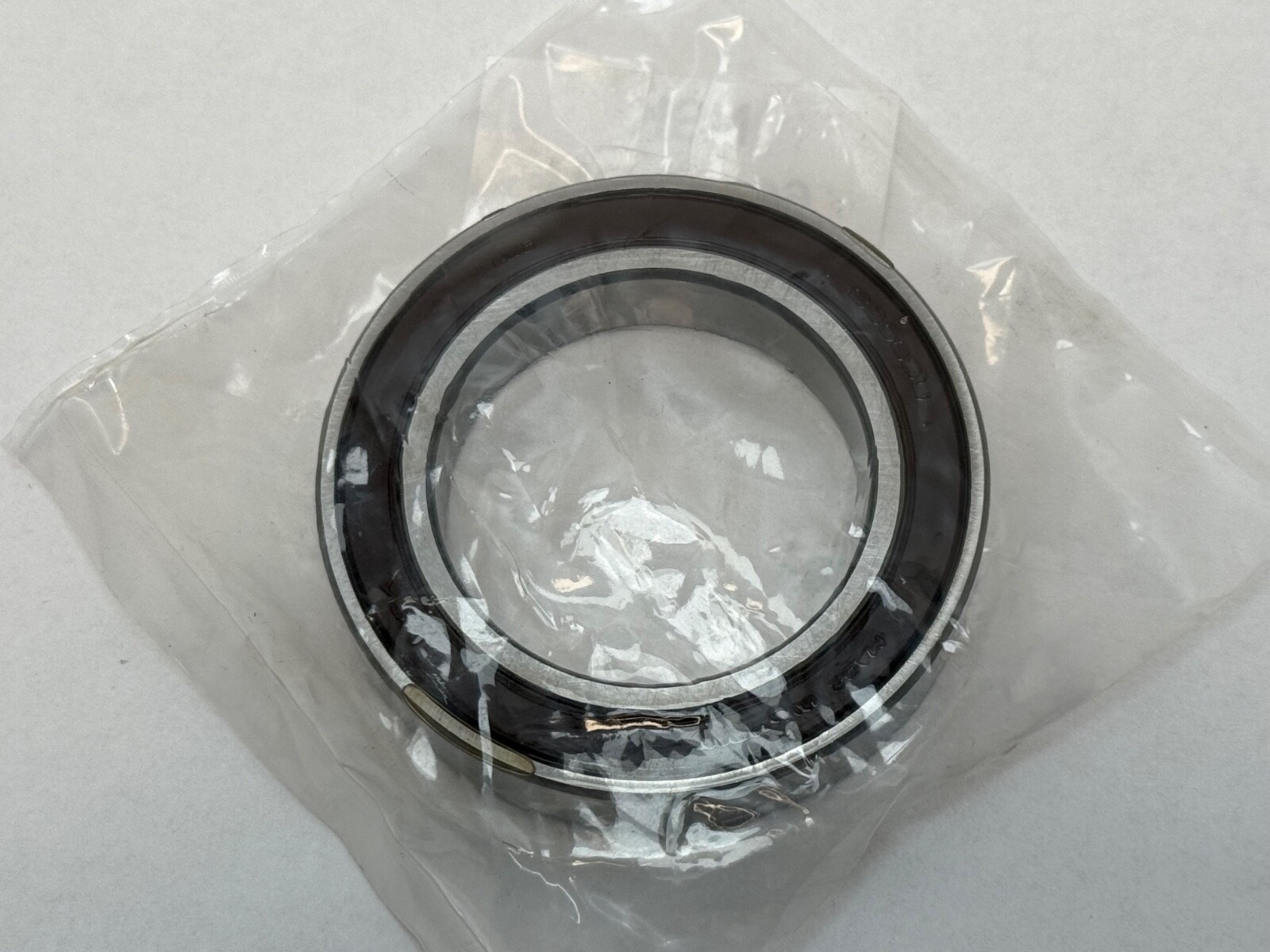

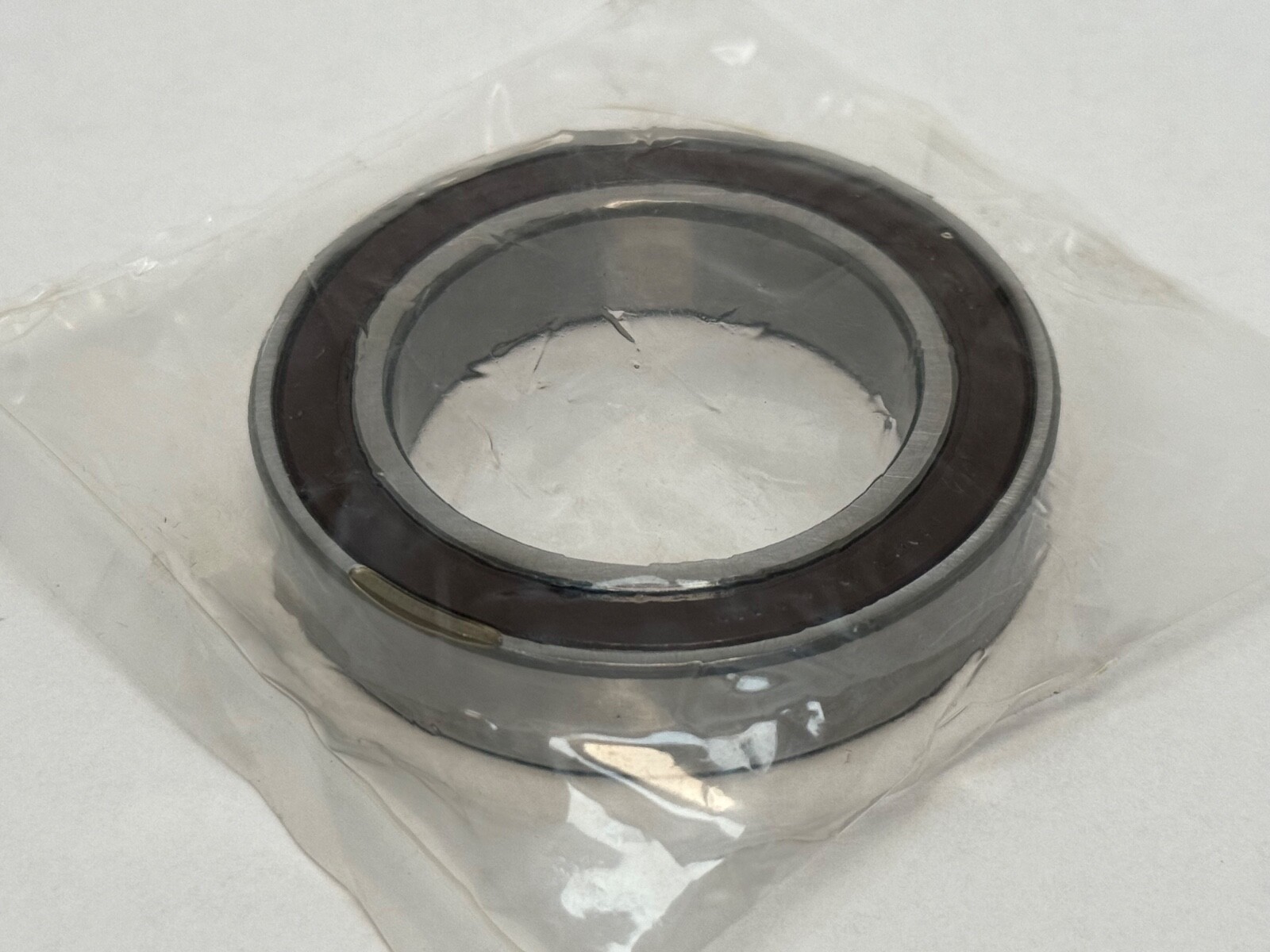

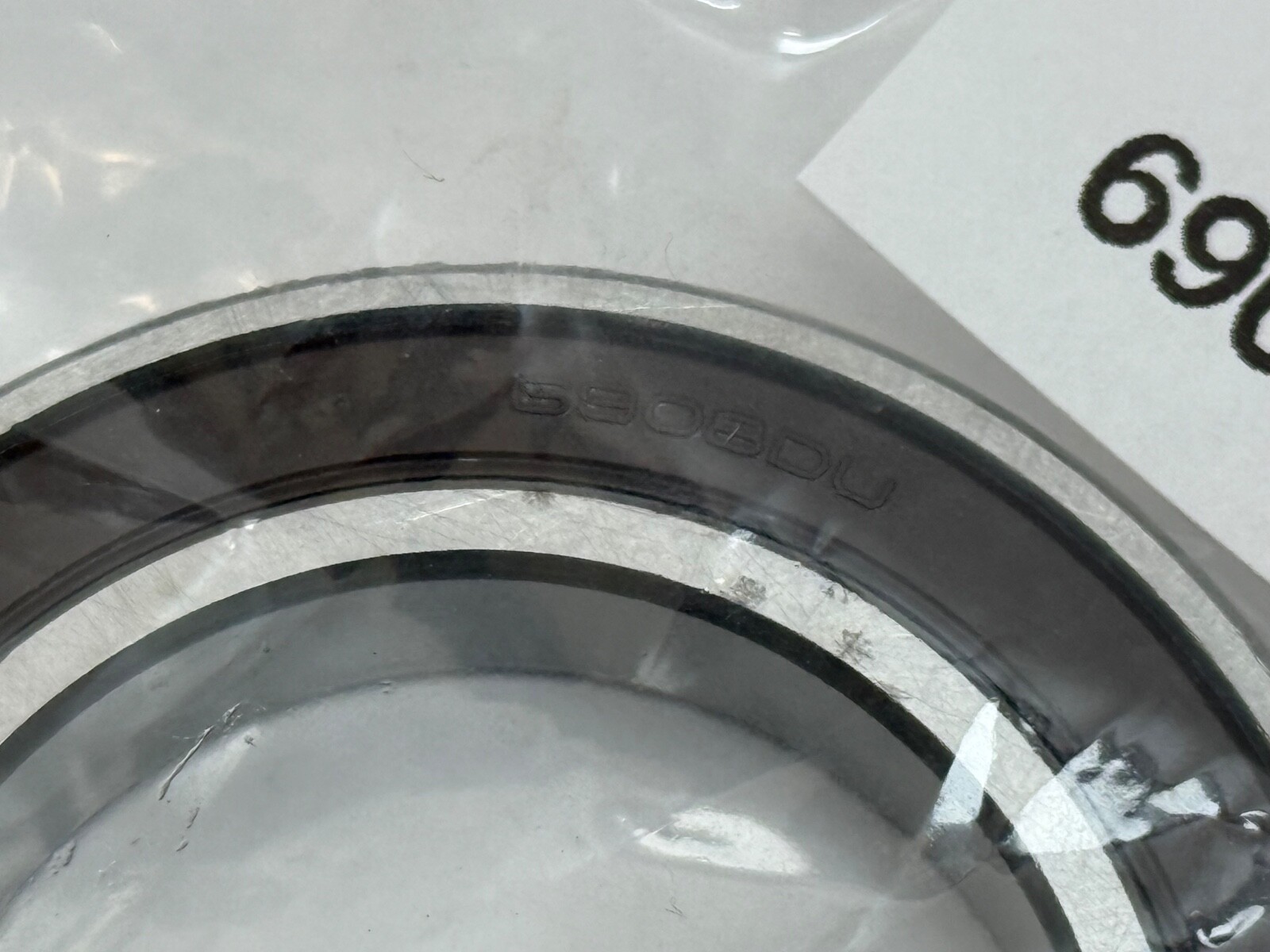

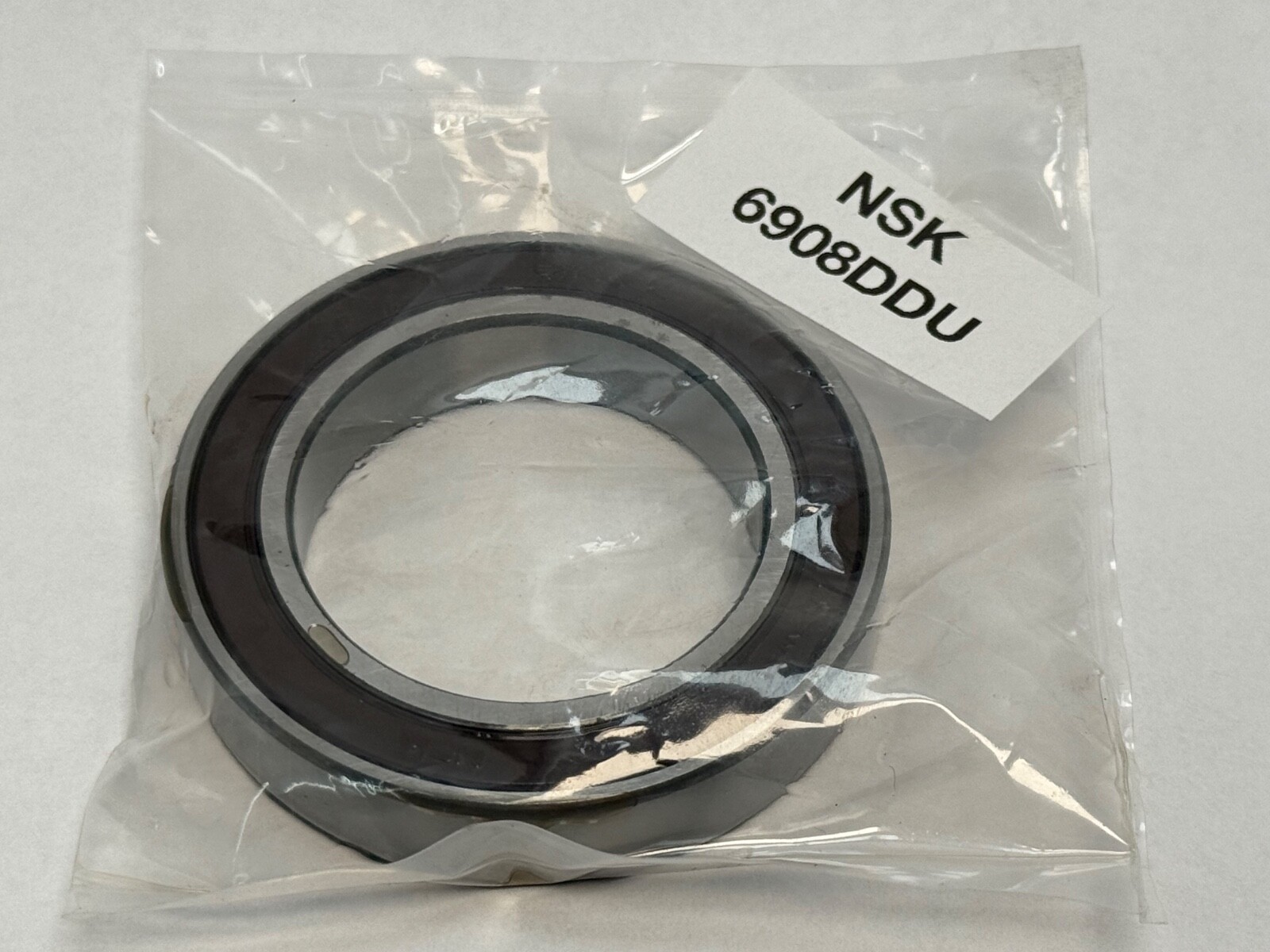

Introducing the NSK 6908DDU Bearing, your reliable solution for all your bearing needs. This rubber-sealed ball bearing is engineered for optimal performance and durability. With a bore diameter of 40 mm, an outside diameter of 62 mm, and a width of 12 mm, it is designed to meet various industrial applications. This specific model, 6908 2RS RS DU DDU / 61908, is manufactured in the United States by the renowned brand NSK, renowned for its quality and reliability. The rubber sealing provides excellent protection against contaminants, ensuring longevity and enhanced performance of your machinery. We also understand how important timely delivery is for your projects. That is why we offer same day shipping on all items and next day shipping options available at checkout. Our shipping service is internationally recognized, and we combine shipping for all orders to save you costs. Need a part that you cannot find? Please contact us, and we will source it for you at competitive prices. Do not compromise on quality; choose the NSK 6908DDU Bearing for superior efficiency and reliability in your applications.
