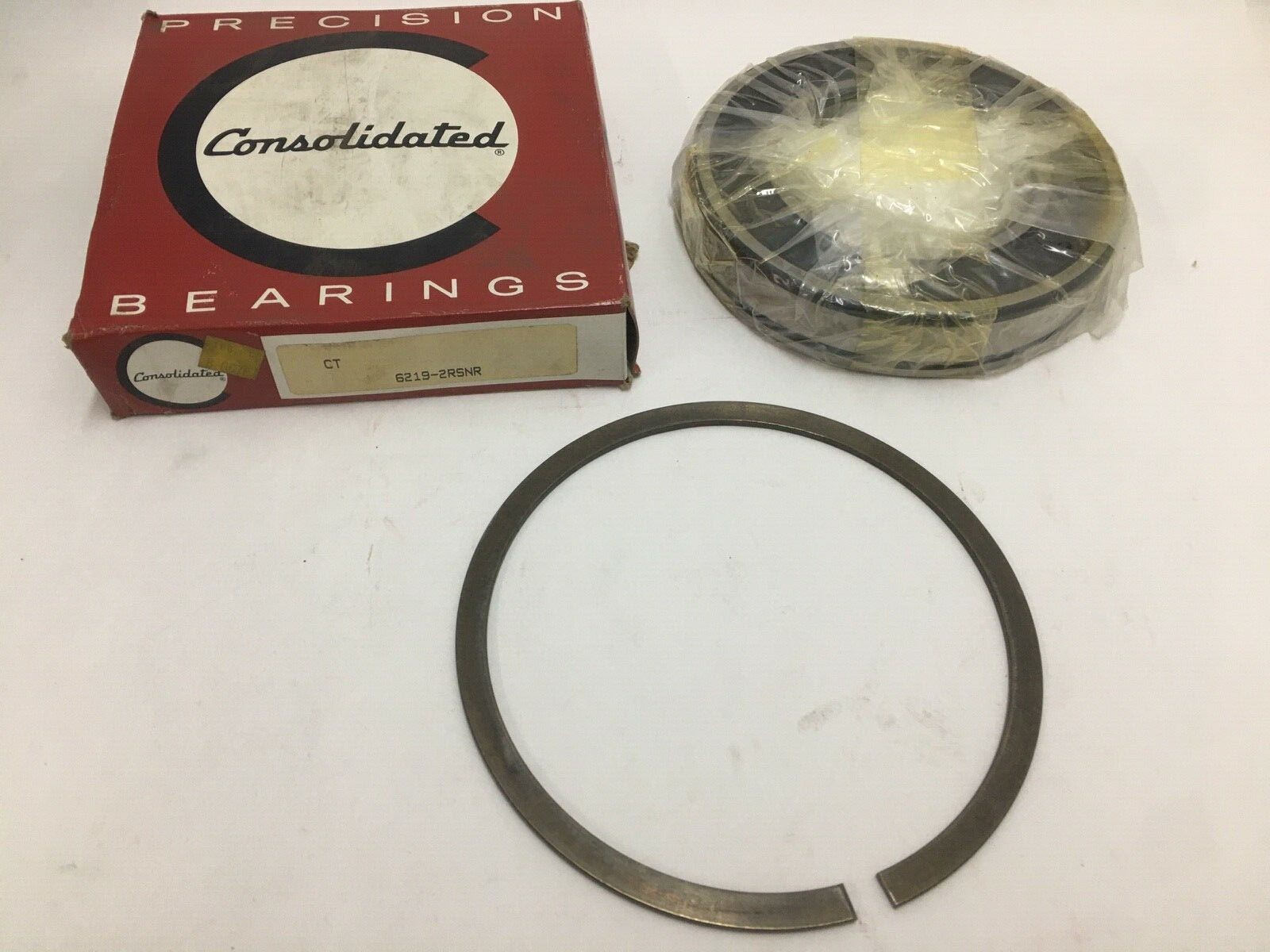

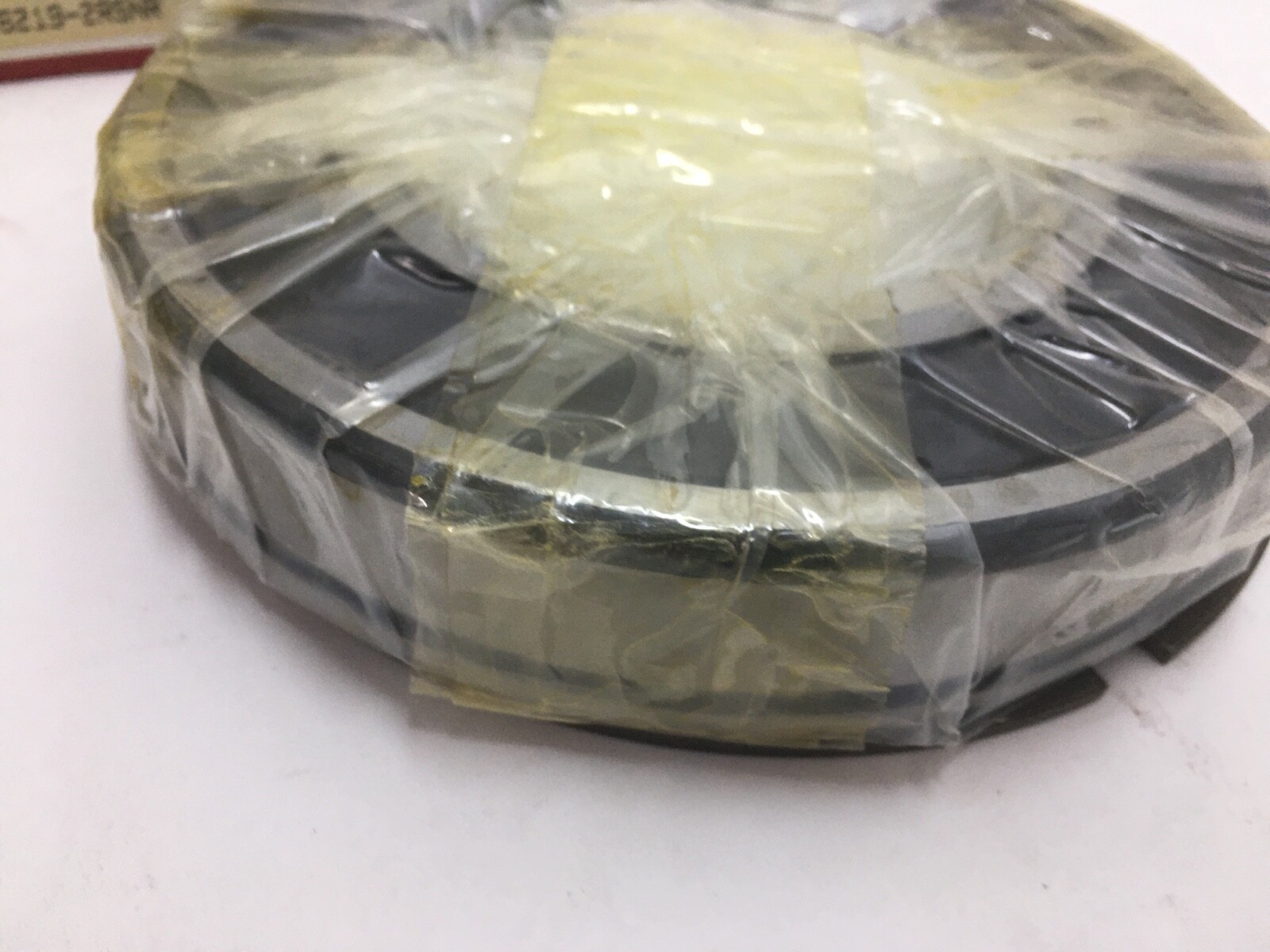

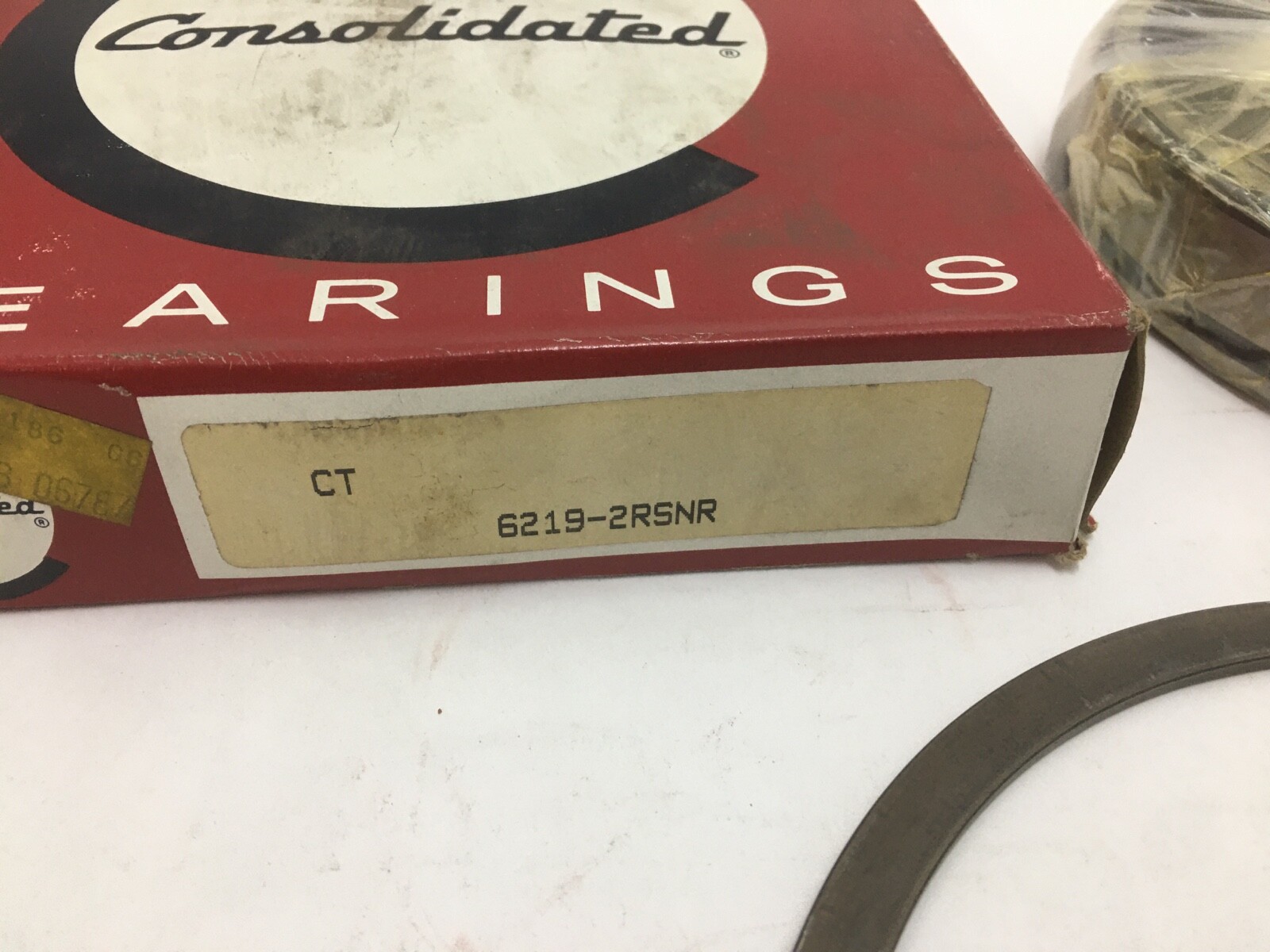

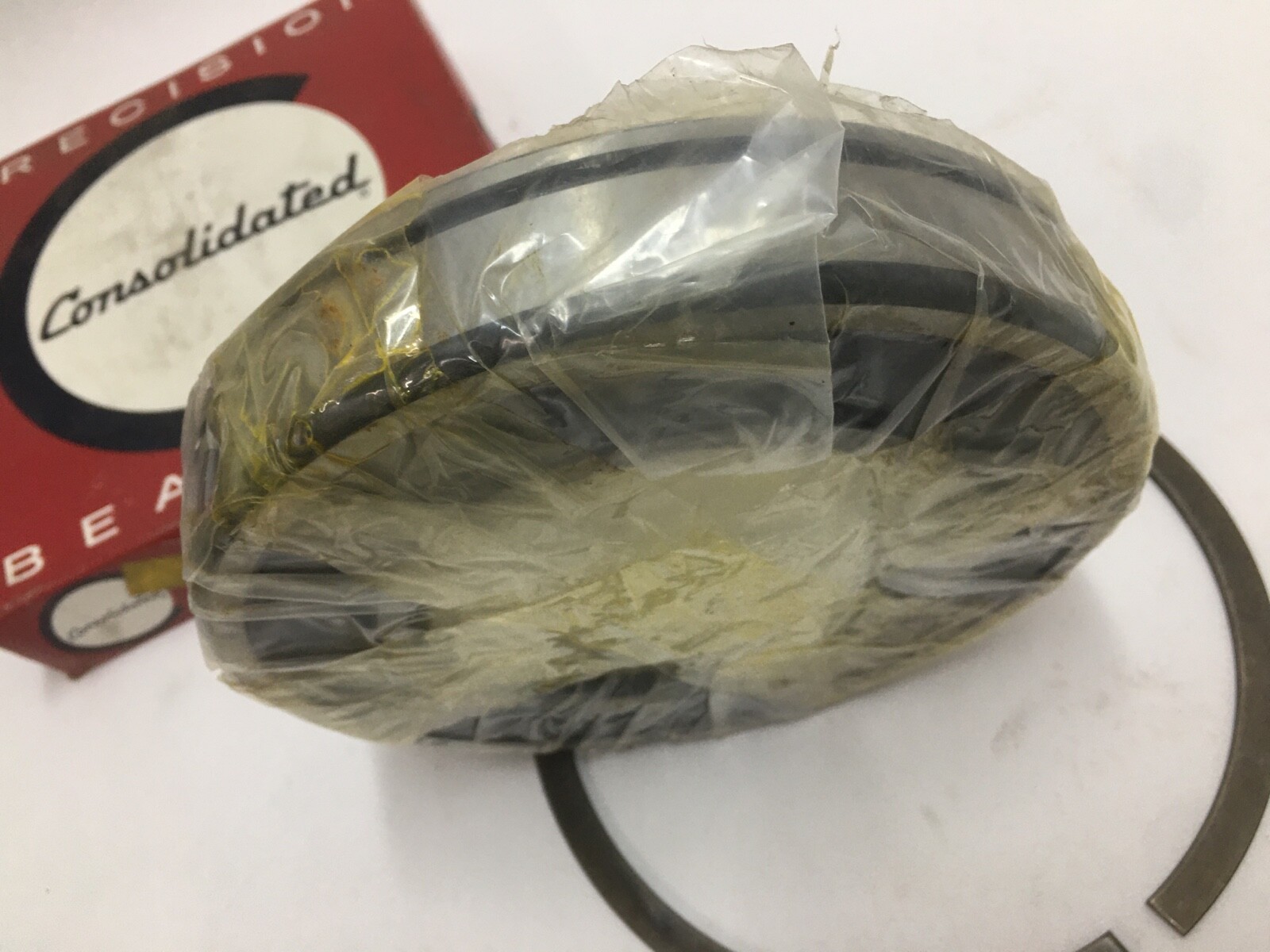

Consolidated 6219-2RS-NR deep groove ball bearing, 95 mm bore x 170 mm OD x 32 mm wide, rubber seals both sides, outer-ring snap ring fitted. New old stock.
List Price
$103.75
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Deep Groove Ball Bearing — 95 mm ID, 170 mm OD, 32 mm Width, Open$41.52
Deep Groove Ball Bearing — 95 mm Bore, 170 mm OD, 32 mm Width, Shielded, ABEC 3$44.32
Deep Groove Ball Bearing - 95 mm ID, 170 mm OD, 32 mm Width, Open$42.73
Open Deep Groove Ball Bearing 95 x 145 x 24 mm, C3 Greater Clearance, Single Row, 1 Pc$67.16| MFR / Brand | Consolidated |
|---|---|
| MPN | 6219-2RS-NR |
| Model | 6219-2RS-NR |
| Bearing Type | Ball Bearing, Contact seals both sides |
| ID | 95 mm |
| OD | 170 mm |
| Width | 32 mm |
| Series | 62 |
|---|---|
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.10.5028 |
| Mpn Variants | 6219-2RS-NR, 62192RSNR, 6219-2RSNR, 6219RS-NR, 6219NR, 6219-2RS1NR, 6219-2RSR-NR |
| Snap Ring Included | Yes |
| Lubricant | Grease |
| Cross Reference 1 | SKF 6219-2RS1NR |
|---|---|
| Cross Reference 2 | FAG 6219-2RSR-NR |
Consolidated 6219-2RS-NR single-row deep groove ball bearing, sealed both sides, with an outer-ring snap-ring groove and snap ring. Unit Quantity: 1 Pc.
6219 — ISO 62-series deep groove ball bearing, 95 mm bore, 170 mm OD, 32 mm width.
2RS — rubber contact seals on both sides, factory greased.
NR — snap-ring groove in the outer ring with the snap ring fitted.
Bore Diameter: 95 mm. Outside Diameter: 170 mm. Overall Width: 32 mm. Closure Type: Contact seals both sides. Lubricant: Grease. Snap Ring: Yes. Rolling Elements: Ball. Bore Type: Straight. Number Of Rows: 1. Series: 62.
Envelope: 95 x 170 x 32 mm. The outer-ring snap-ring groove with fitted snap ring locates the bearing axially in a housing bore.
SKF 6219-2RS1NR and FAG 6219-2RSR-NR: 95 x 170 x 32 mm, contact seals both sides, snap-ring groove with snap ring. Designation forms: 6219-2RS-NR, 62192RSNR, 6219-2RSNR, 6219RS-NR, 6219NR.
Bore 95 mm, outside diameter 170 mm, width 32 mm.
2RS is rubber contact seals on both sides, factory greased. NR is a snap-ring groove in the outer ring with the snap ring fitted.
SKF 6219-2RS1NR and FAG 6219-2RSR-NR, both 95 x 170 x 32 mm with contact seals both sides and a snap-ring groove with snap ring.
