Availability:
Out of stock

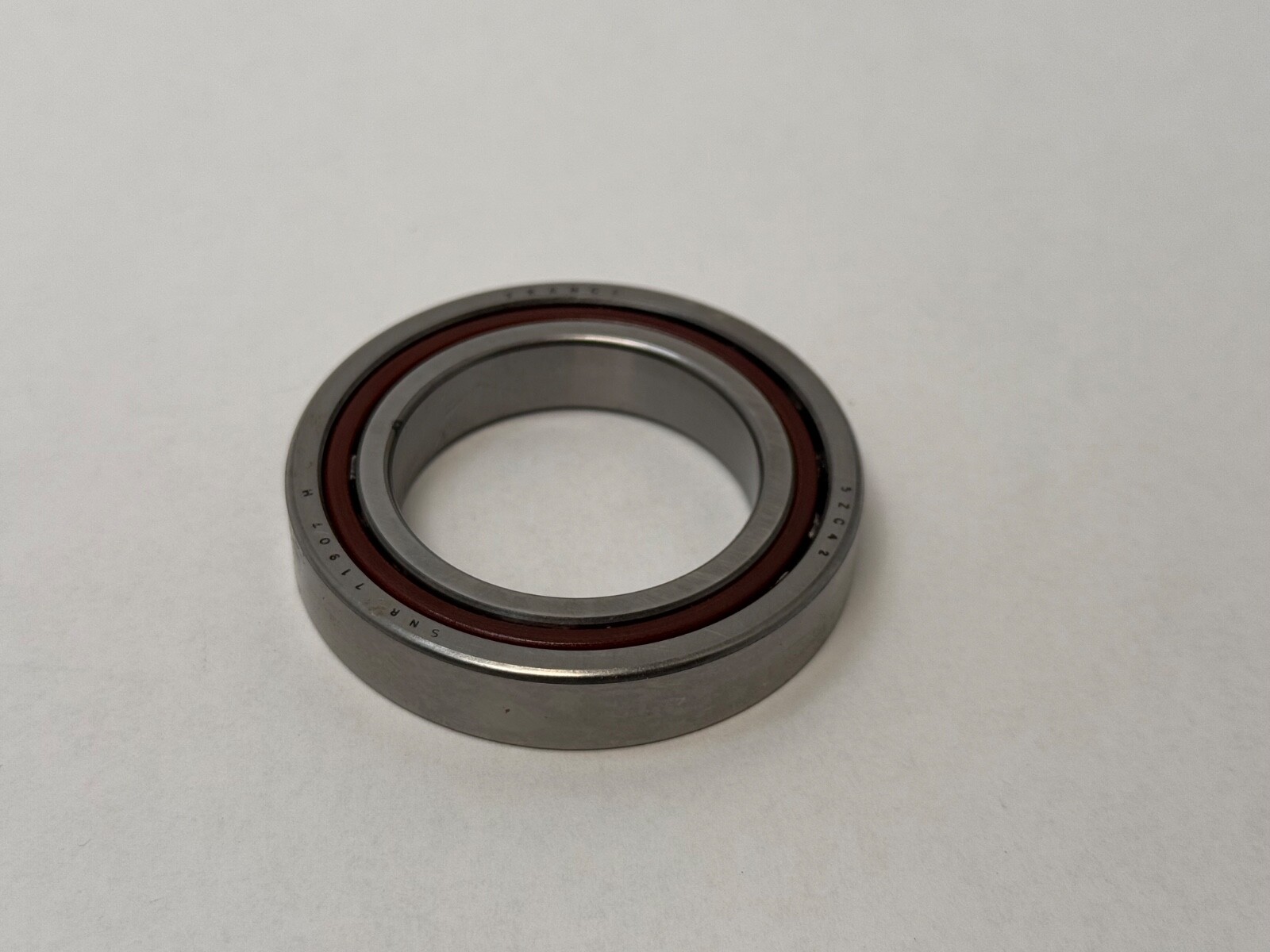

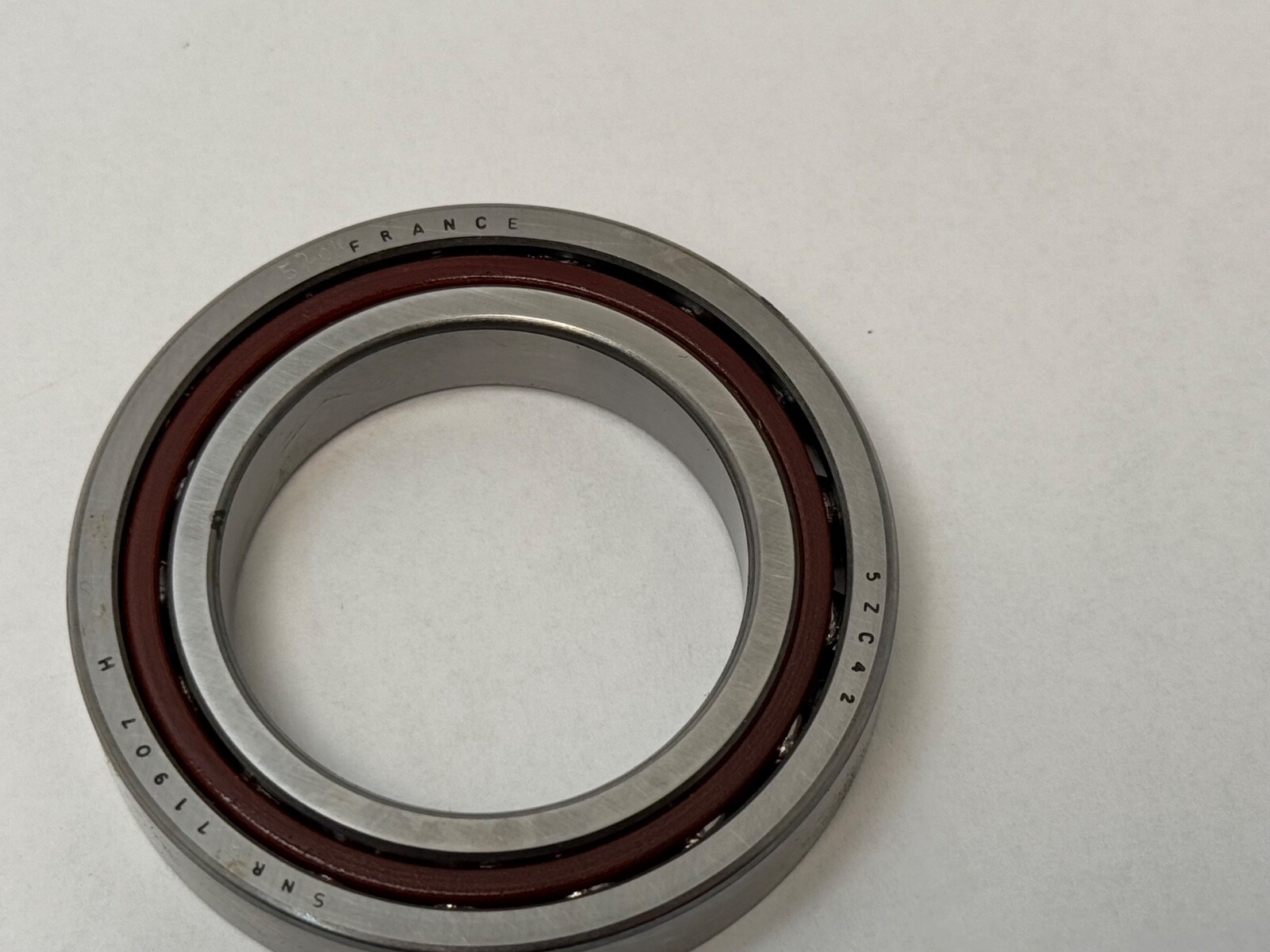

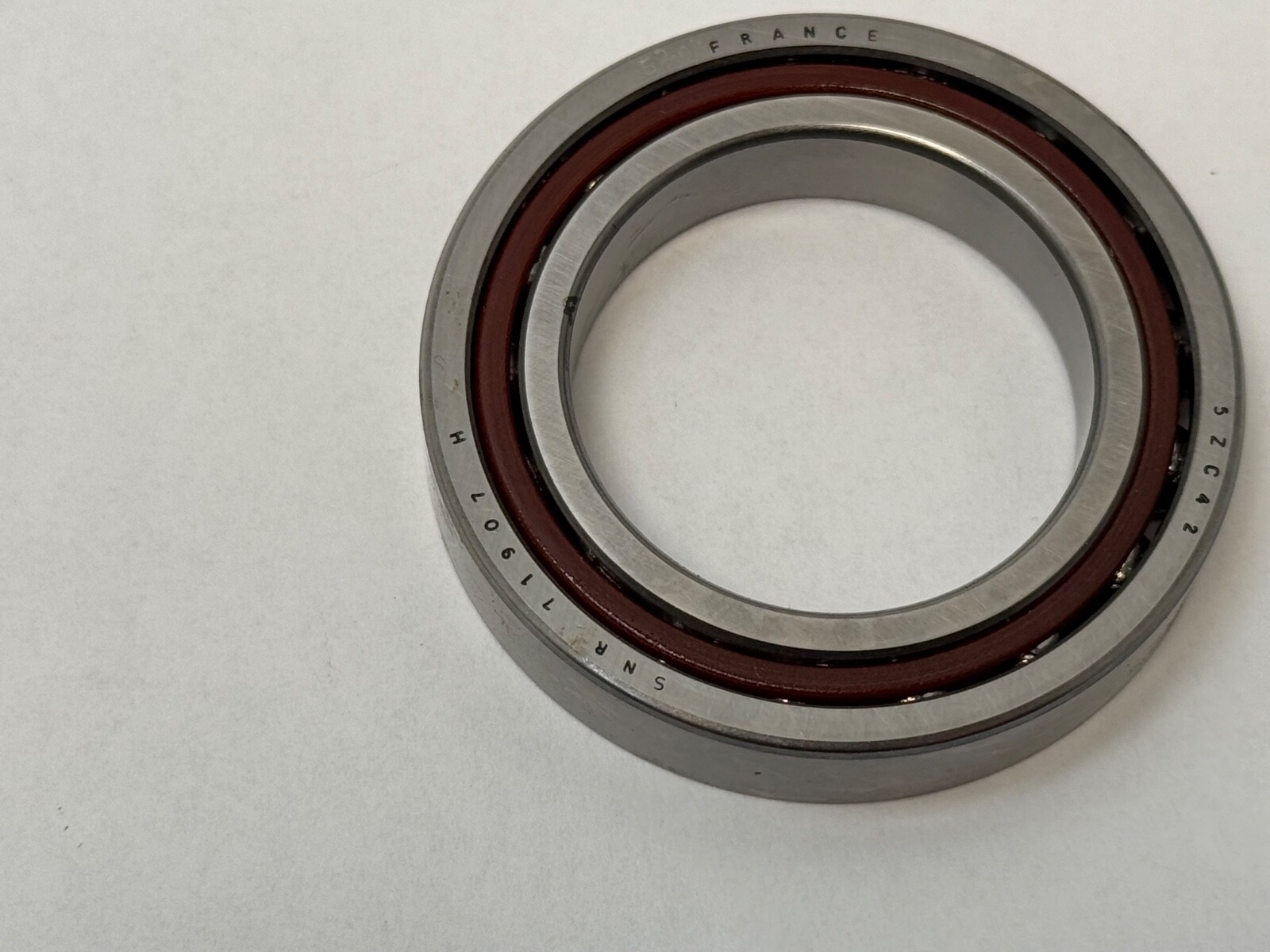

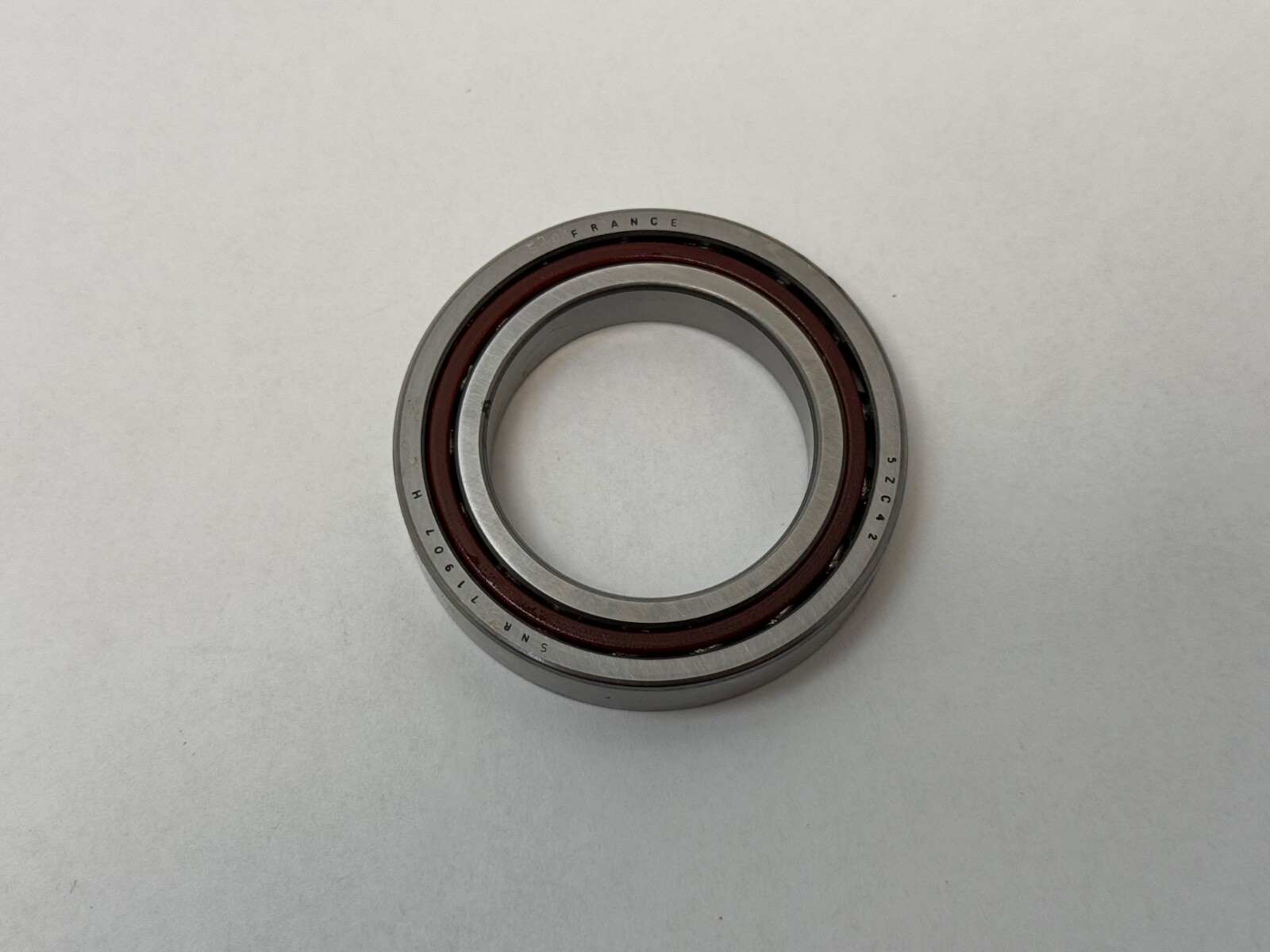

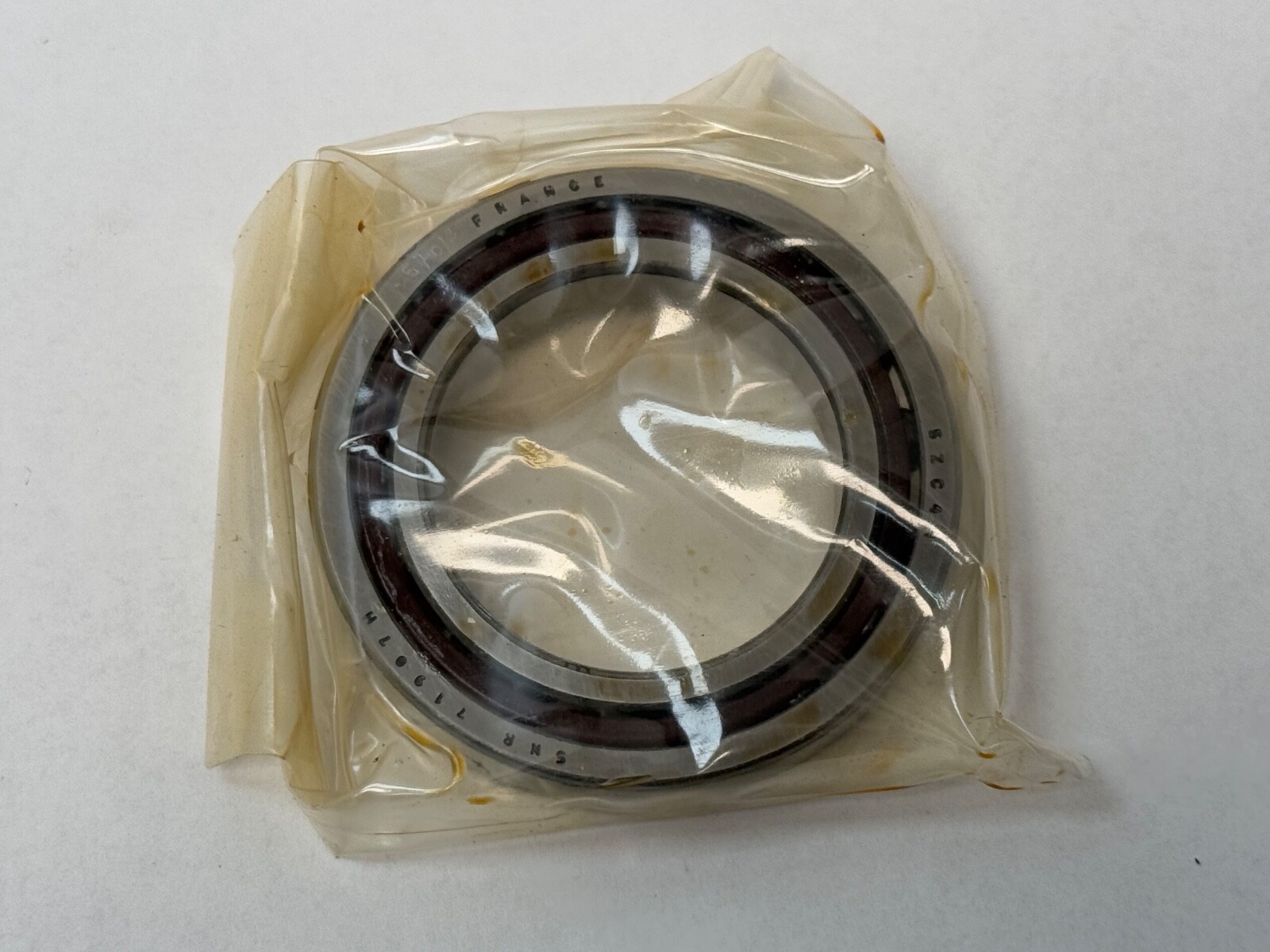

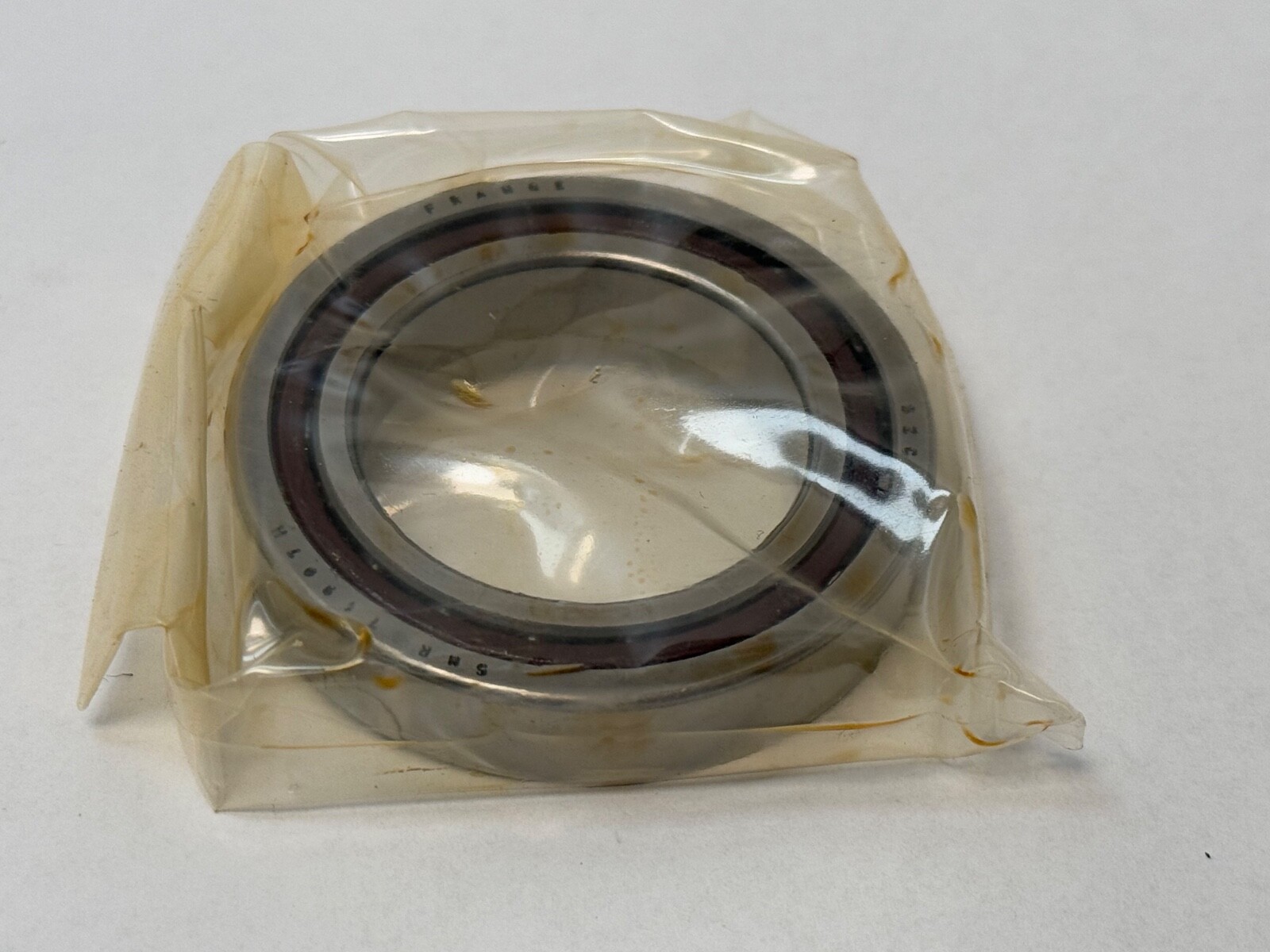

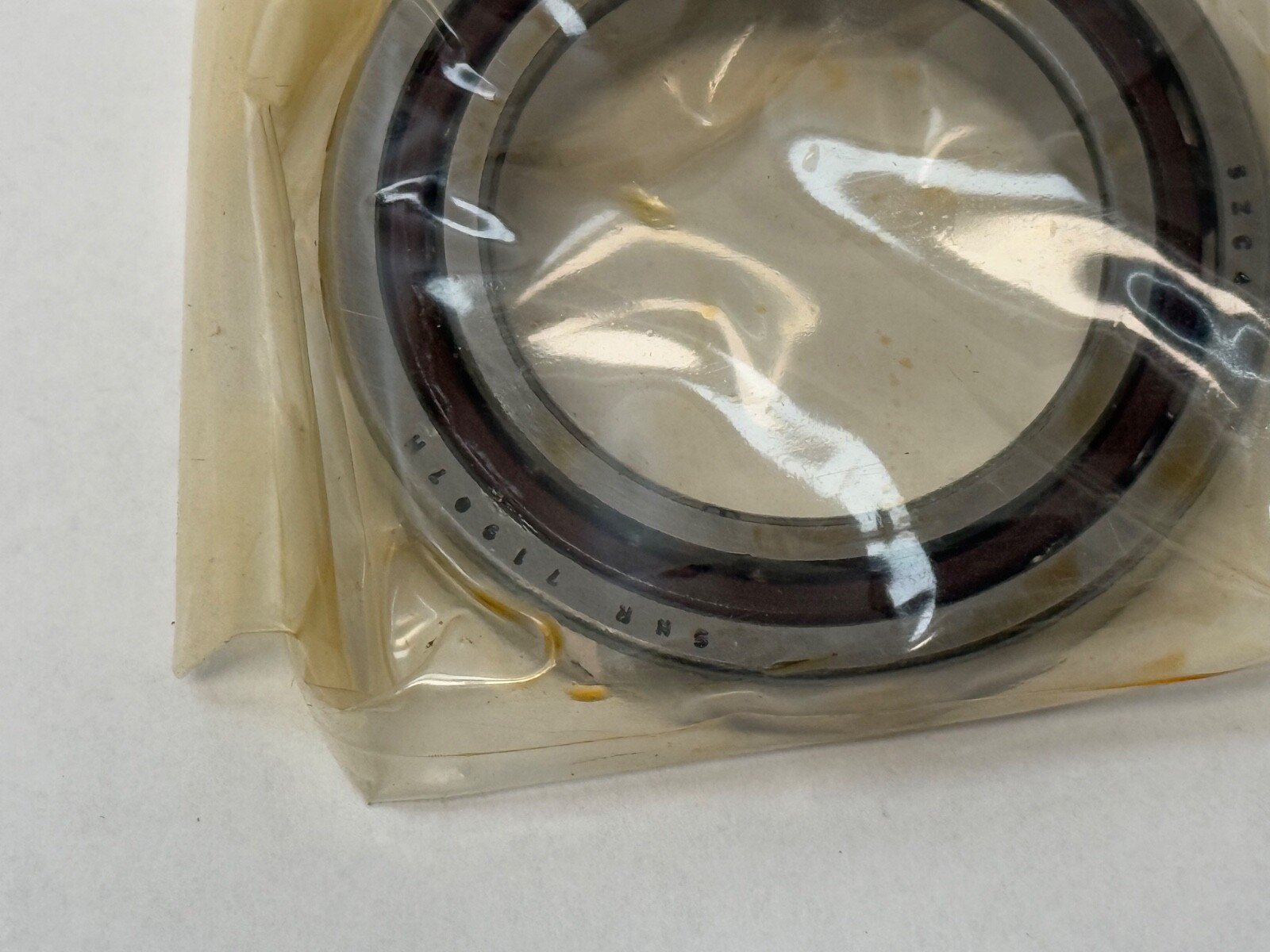

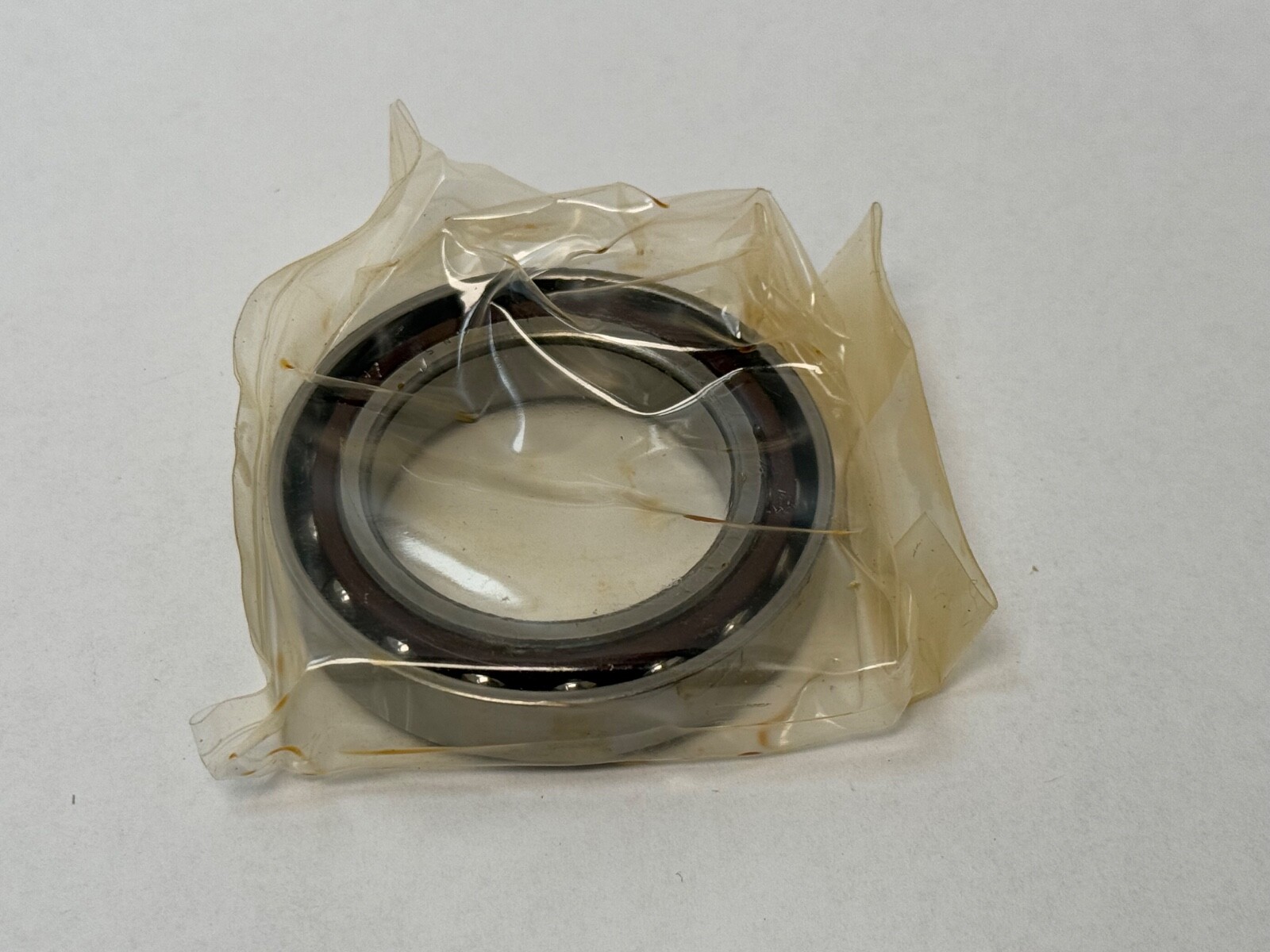

Super-precision angular contact ball bearing, 35 x 55 x 10 mm, 25° contact angle, phenolic cage, open, universally ground. 71907 extra-light section.
List Price
$66.70
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Spindle Angular Contact Ball Bearing - 35 mm ID, 55 mm OD, 10 mm Width, Open, 25° Contact Angle, Light Preload, Phenolic Cage, ABEC 7.$188.49
Angular Contact Ball Bearing — 35 mm ID, 55 mm OD, 10 mm Width, 25° Contact Angle, Phenolic Cage, Universal Light Preload$91.75
Super-Precision Angular Contact Ball Bearing 35 x 55 x 10 mm, ABEC 7, Single Universal Grind, Medium Preload, Thin Extra-Light Section$96.96
Angular Contact Ball Bearing Duplex Set - 35 mm ID, 55 mm OD, 10 mm Width, Straight Bore, Open, 15 Degree, Back-to-Back, Extra-Light 719 Series$66.03| MFR / Brand | SNR |
|---|---|
| MPN | 71907HQ16J75 |
| Model | 7907A5/ACD 7907E T DUL P4 / 3MM9307WI CR DUL / 71907 H G1 DU J74 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 35 mm |
| OD | 55 mm |
| Width | 10 mm |
| Material | Steel |
|---|---|
| Preload | Light |
| Series | 71900 |
| Lubricant | Grease or oil |
| Base Number | 71907 |
| Bore Shaft Size | 35 mm |
| Mpn Variants | 71907-H-Q16-J75, 71907-E-TPA-PA7-UL, 3MM9307WI CR DUL, 7907A5, 7907ACD |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Part Number | 71907HQ16J75 |

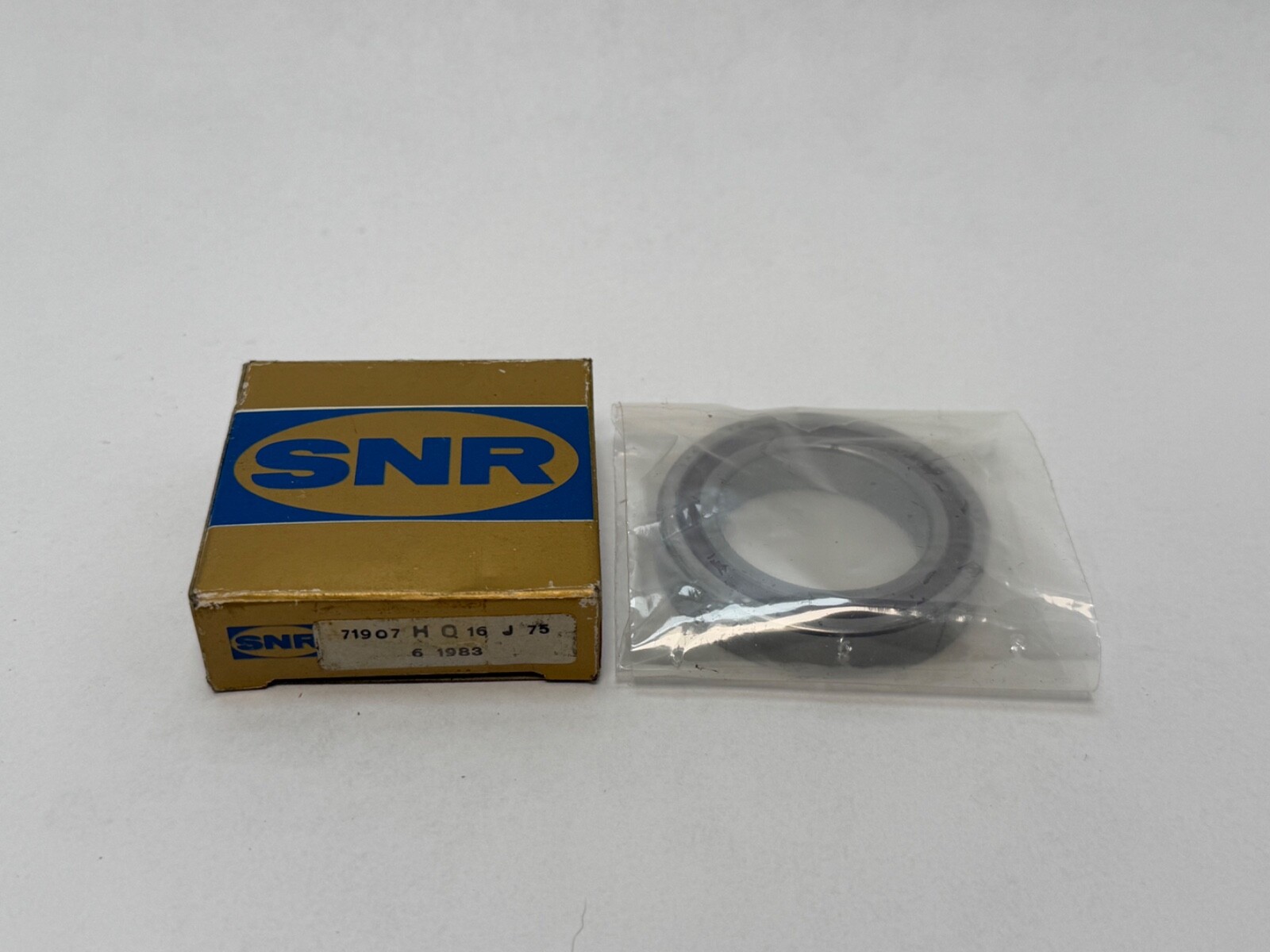

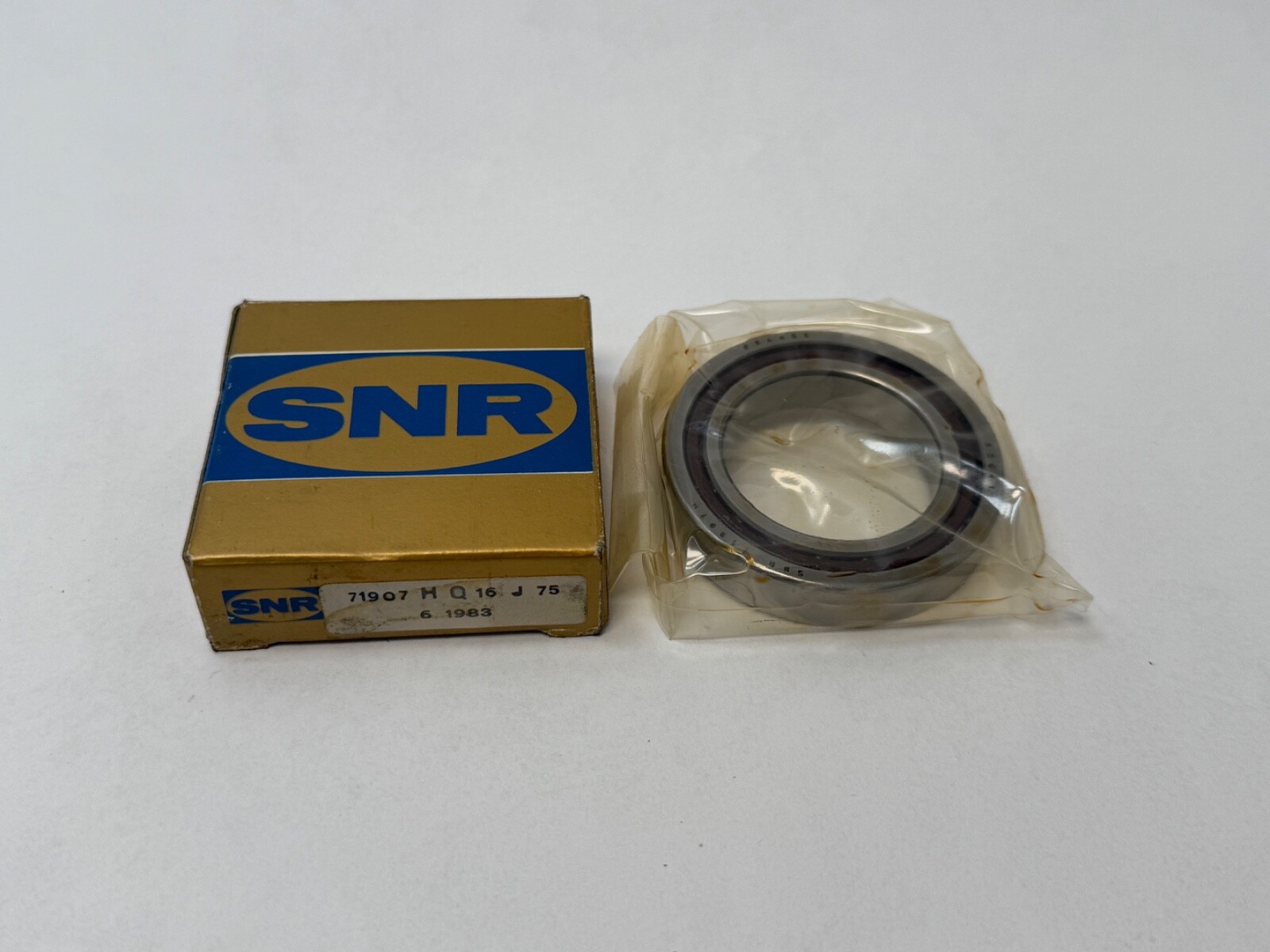

SNR 71907HQ16J75 super-precision angular contact ball bearing. Bore: 35 mm. Outside Diameter: 55 mm. Overall Width: 10 mm. Series: 71900. Number Of Rows: 1. Rolling Elements: Ball. Bearing Material: Bearing steel. Closure Type: Open. Bore Type: Straight.
Contact Angle: 25°. Cage Material: Phenolic. Cage Type: Machined, outer-ring land-riding. Mounting Arrangement: Universal. Running Accuracy — Radial And Axial Runout: P4. Base Number: 71907. Part Number: 71907HQ16J75.
Dynamic Load Rating: 13.5 kN. Static Load Rating: 9.3 kN. Limiting Speed: 30000 rpm. A 25° contact angle carries more thrust and less speed than a 15° execution on the same envelope, which suits a shaft taking a substantial axial load. The 719 extra-light section keeps the cross-section thin on a 35 mm shaft, which is what supports the high speed ceiling. Internal Clearance: N/A — the rings are universally ground for matched mounting.

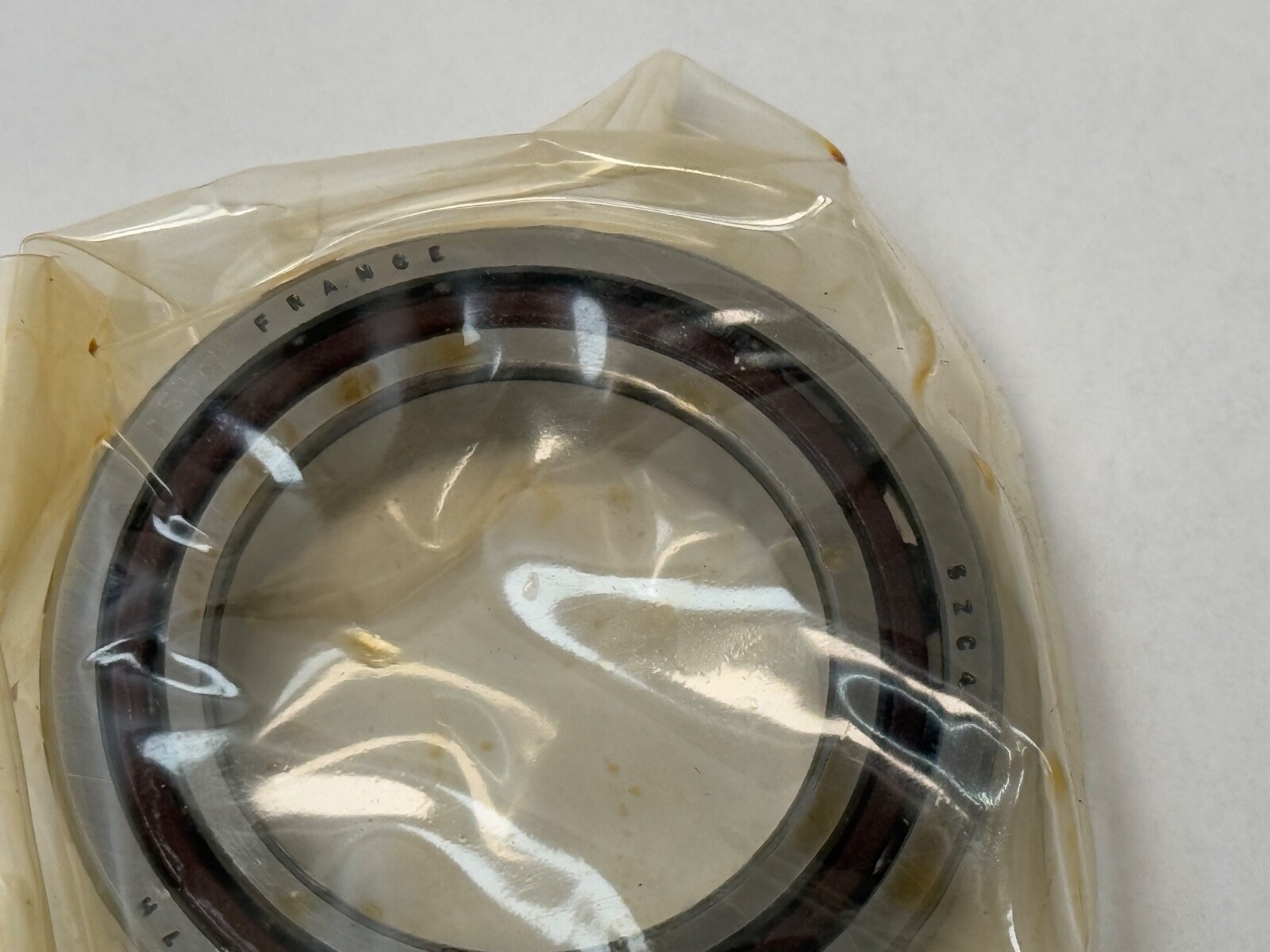

The machined phenolic cage is guided on the outer-ring land, which keeps it stable at high speed and gives it low mass. Lubricant: grease or oil. Max Temp: 120°C. Min Temp: -30°C. Item Weight: 0.16 lbs.
Unit Quantity: 1 Pc. A single universally ground bearing, which can run alone or be set against another universally ground 71907H in back-to-back, face-to-face or tandem.
Cross-Reference 1: SKF 71907 ACD/P4A. Cross-Reference 2: FAG B71907-E-T-P4S-UL. Both are 25° super-precision steel bearings, open, on the same 35 x 55 x 10 mm envelope. MPN Variants: 71907-H-Q16-J75, 71907-E-TPA-PA7-UL, 3MM9307WI CR DUL, 7907A5, 7907ACD.
