SNR71907HG1DUJ74Spindle Angular Contact Ball Bearing – 35 mm ID, 55 mm OD, 10 mm Width, Open, 25° Contact Angle, Light Preload, Phenolic Cage, ABEC 7.

Product Description

What this part is:

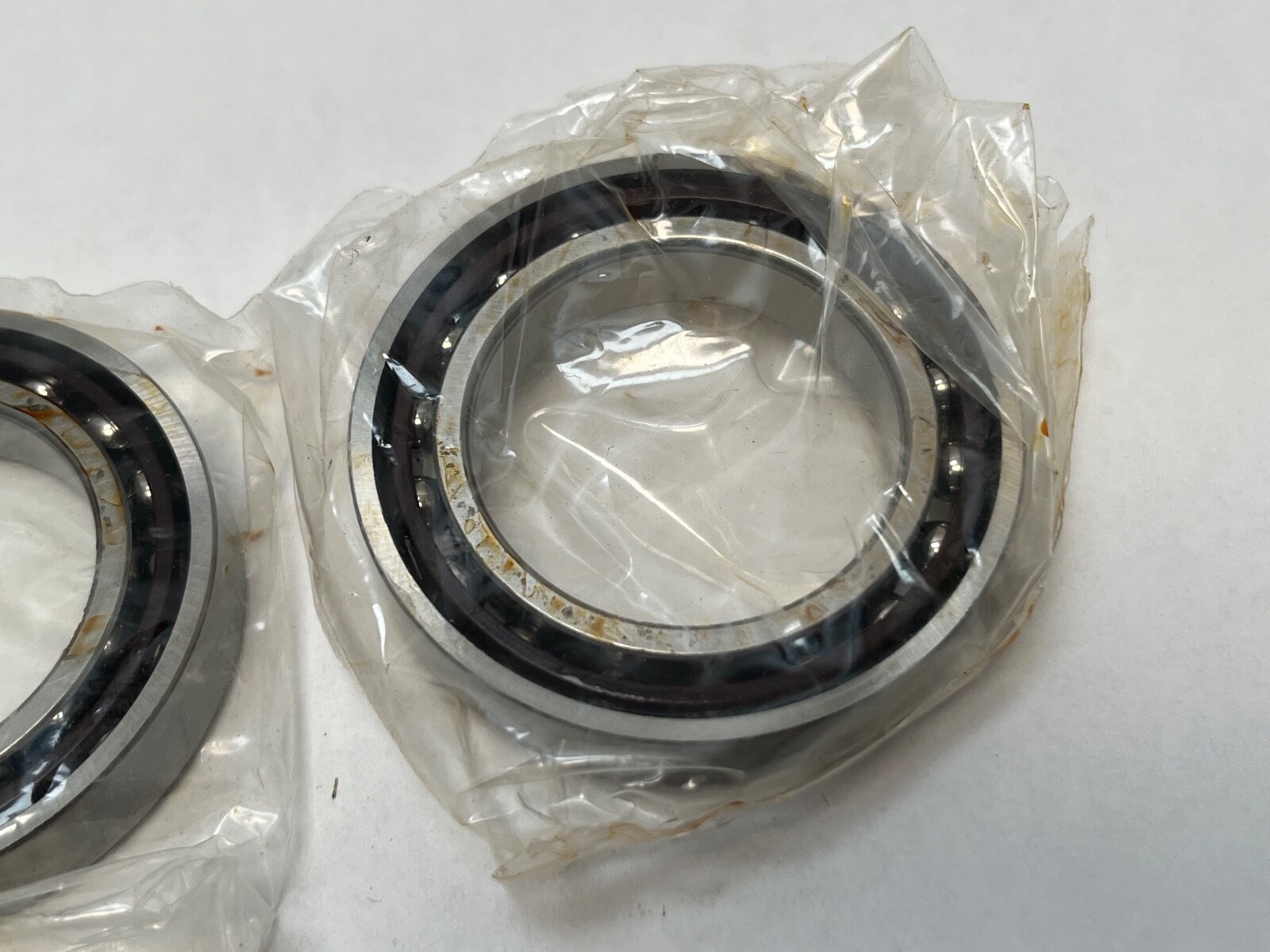

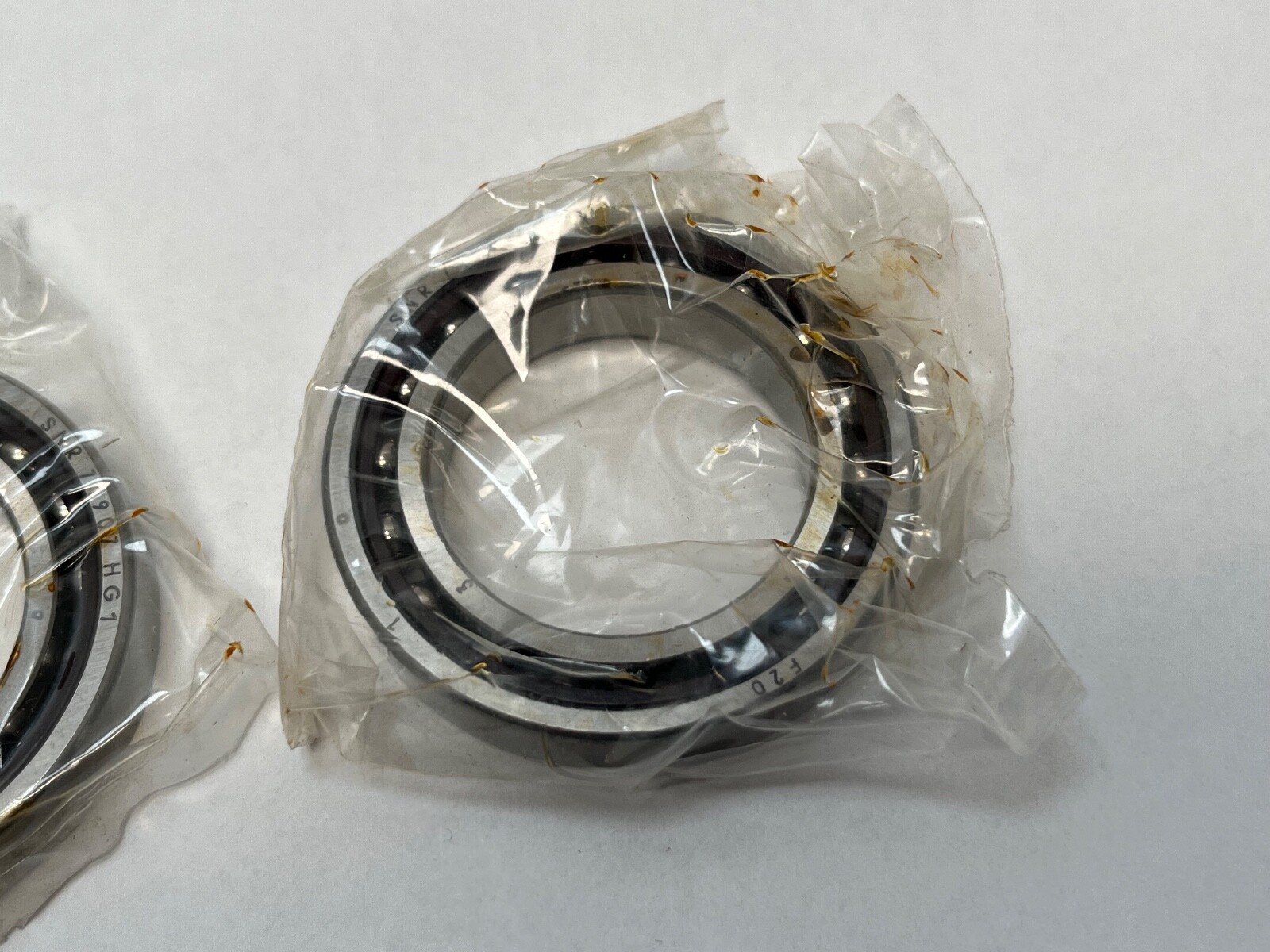

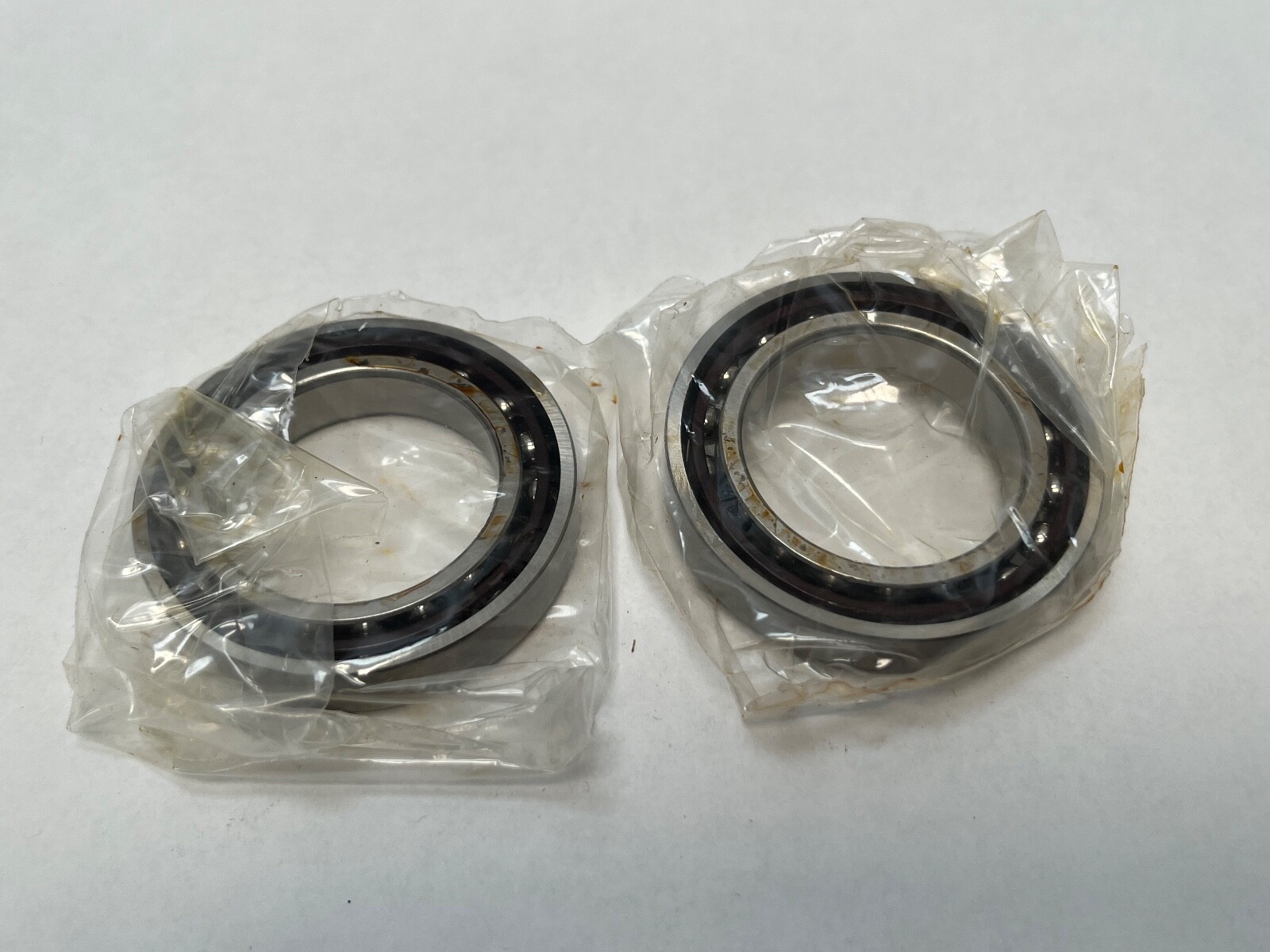

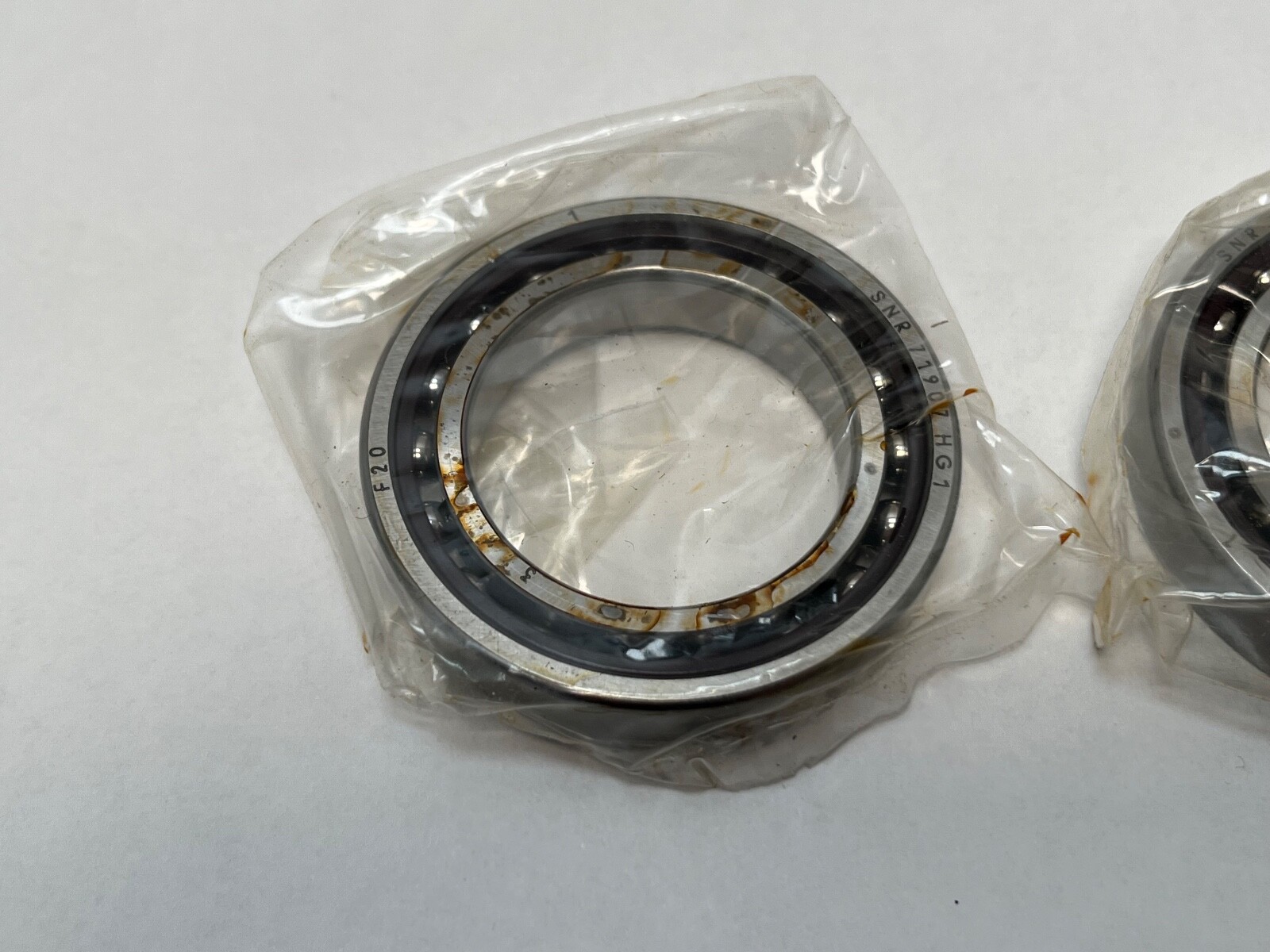

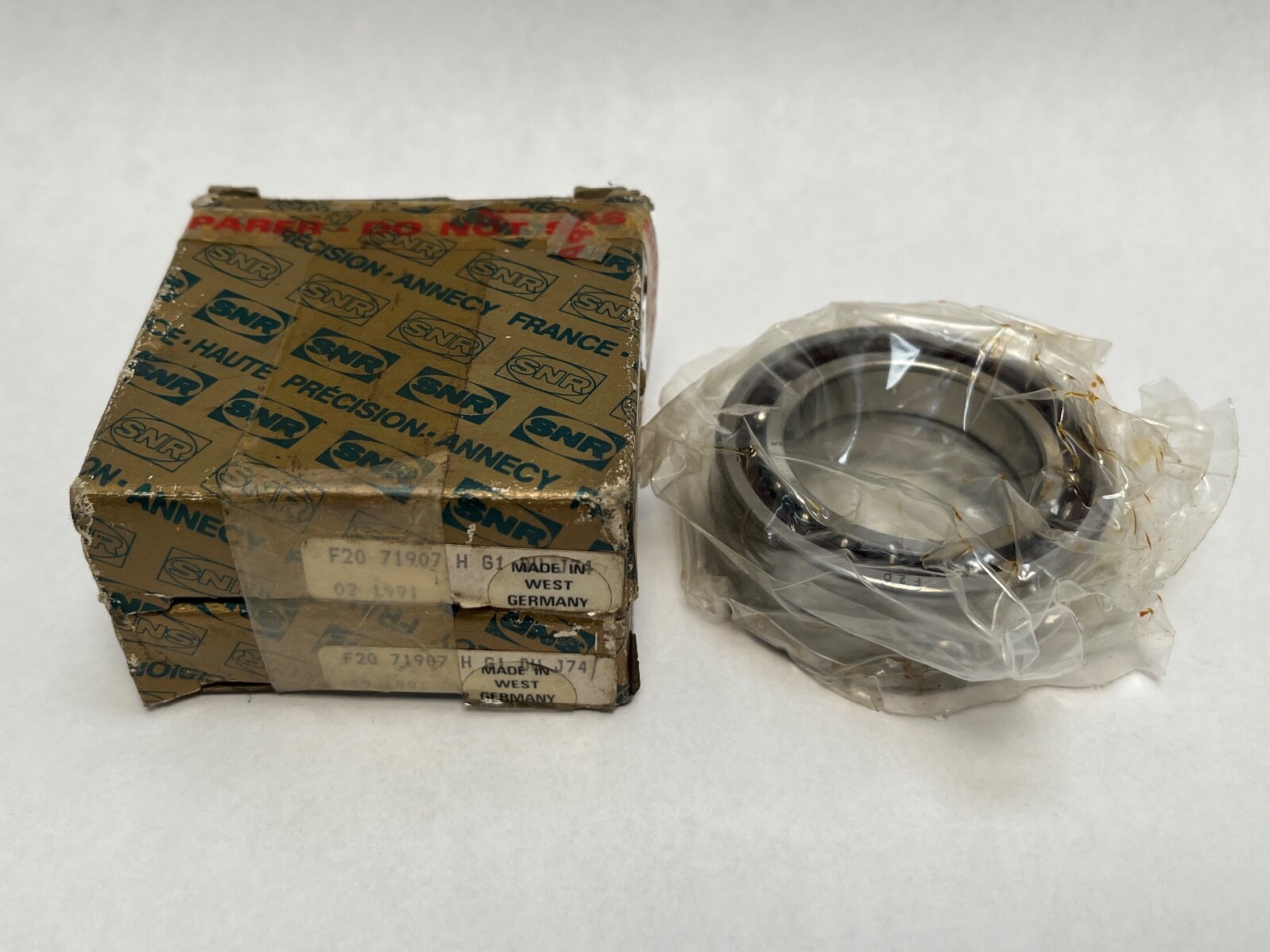

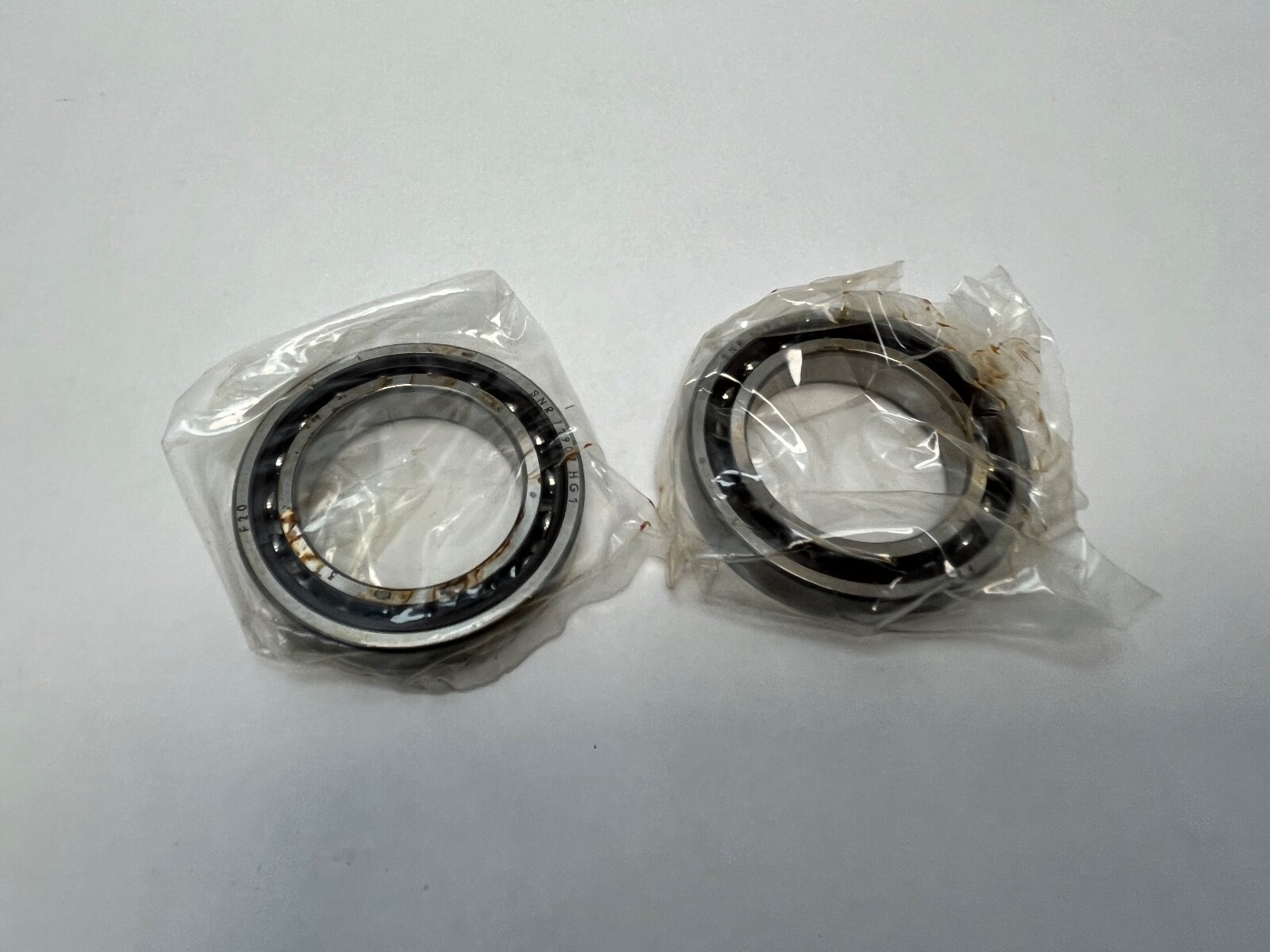

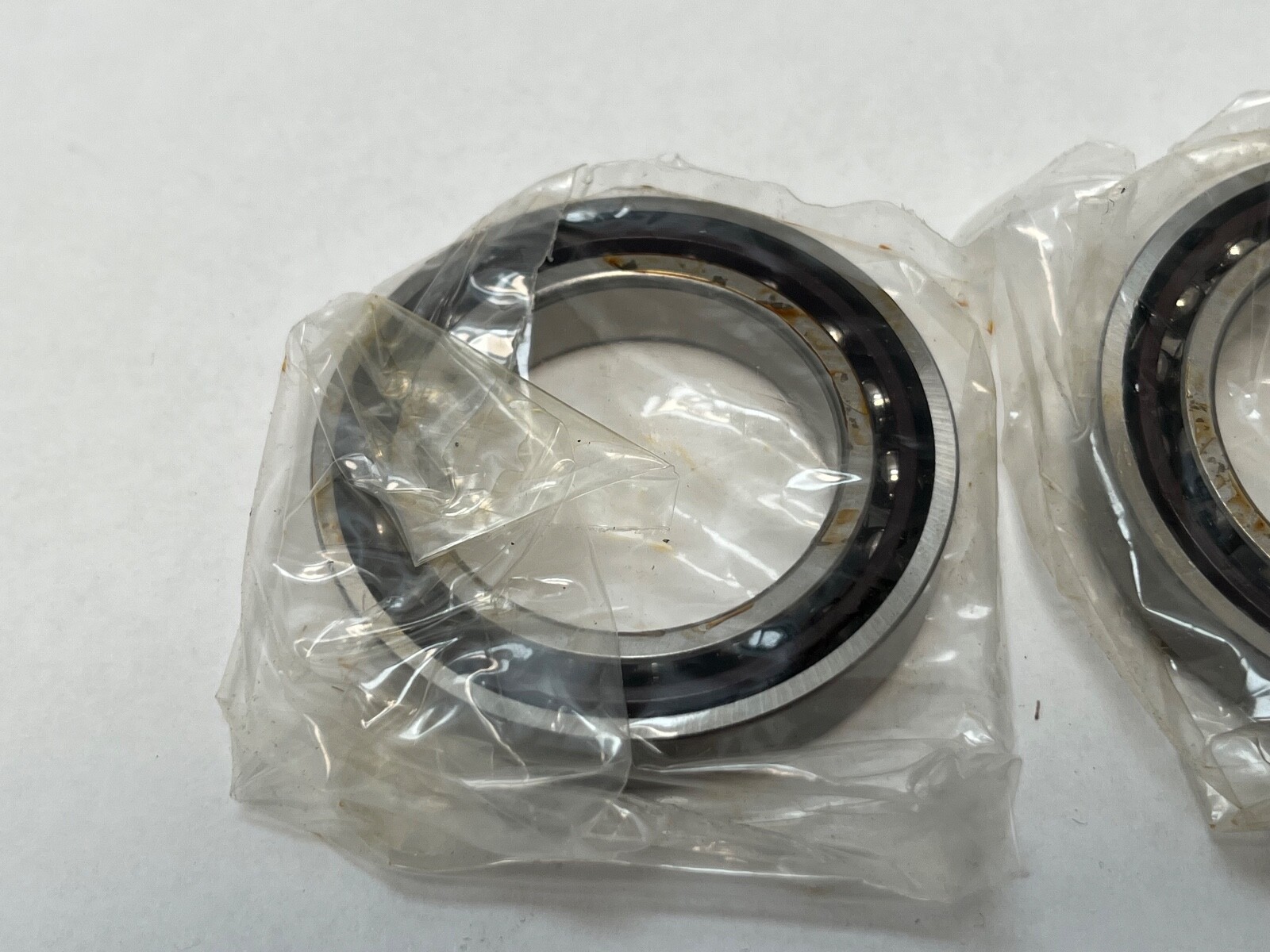

SNR 71907HG1DUJ74 is a matched pair of spindle angular contact ball bearings from the ISO 719 extra-light series, 35 mm bore, 55 mm outside diameter, 10 mm width. Single row, open, straight bore, high carbon chrome steel, phenolic cage, light preload. Unit Quantity: 2 Pcs.

Decoding the designation:

71907 — ISO 719 extra-light series dimension number, 35 x 55 x 10 mm.

H — 25° contact angle.

G1 — laminated phenolic cage centred on the outer ring.

J74 — light preload; the second digit, 4, is ISO precision class 4 (P4, equivalent to ABEC 7).

Specifications:

Bearing Type: Spindle Angular Contact Ball Bearing. Contact Angle: 25°. Precision Class: ABEC 7 / P4. Cage Material: Phenolic (laminated resin). Cage Type: Outer-ring centred. Preload: Light. Mounting Arrangement: Universal (DB, DF or DT). Number of Rows: 1. Rolling Elements: Ball. Closure Type: Open. Bore Type: Straight. Bearing Material: High Carbon Chrome Steel. Series: 71900 (ISO 719). Unit Quantity: 2 Pcs.

Dimensions and mounting:

Bore Diameter: 35 mm. Outside Diameter: 55 mm. Overall Width: 10 mm. Base Number: 71907. Harmonization Code: 8482.10.50.

Compatibility and replacement:

Cross-references: FAG B71907-E-T-P4S-DUL (P4S class), Fafnir 3MM9307WICRDUL (P4 class), SKF 71907 ACD/P4ADGA (extra light preload). MPN variants: 71907 H G1 DU J74, 71907-H-G1-DU-J74, 7907HG1DUJ74, 7907A5/ACD.

Frequently asked questions:

What are the dimensions of the SNR 71907HG1DUJ74?

Bore 35 mm, outside diameter 55 mm, width 10 mm.

What contact angle and preload does the SNR 71907HG1DUJ74 have?

25° contact angle (H) and light preload (J74).

What precision class and cage does the SNR 71907HG1DUJ74 have?

ISO class 4 (P4, ABEC 7) and a laminated phenolic cage centred on the outer ring (G1).
