Availability:
1 in stock

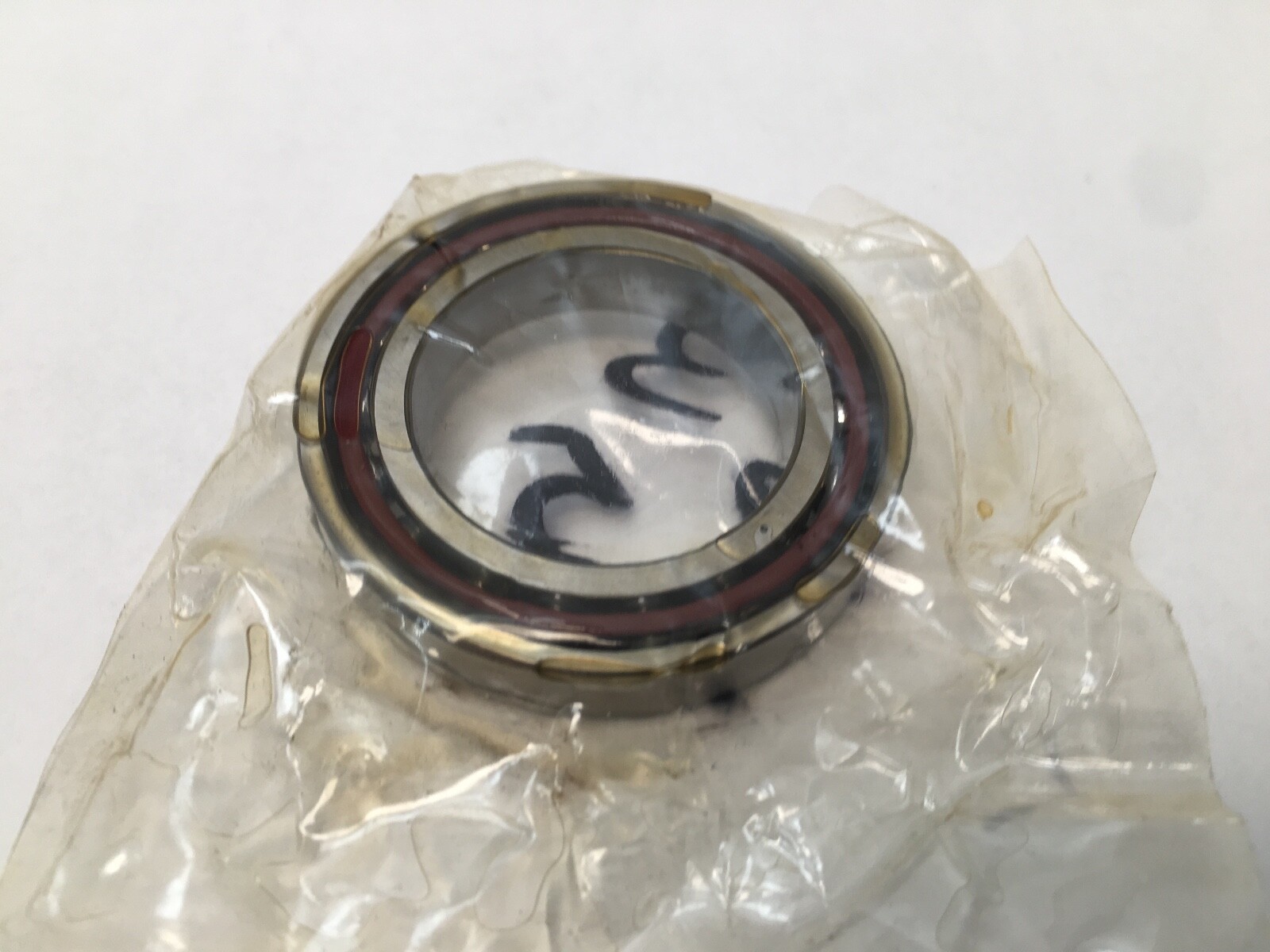

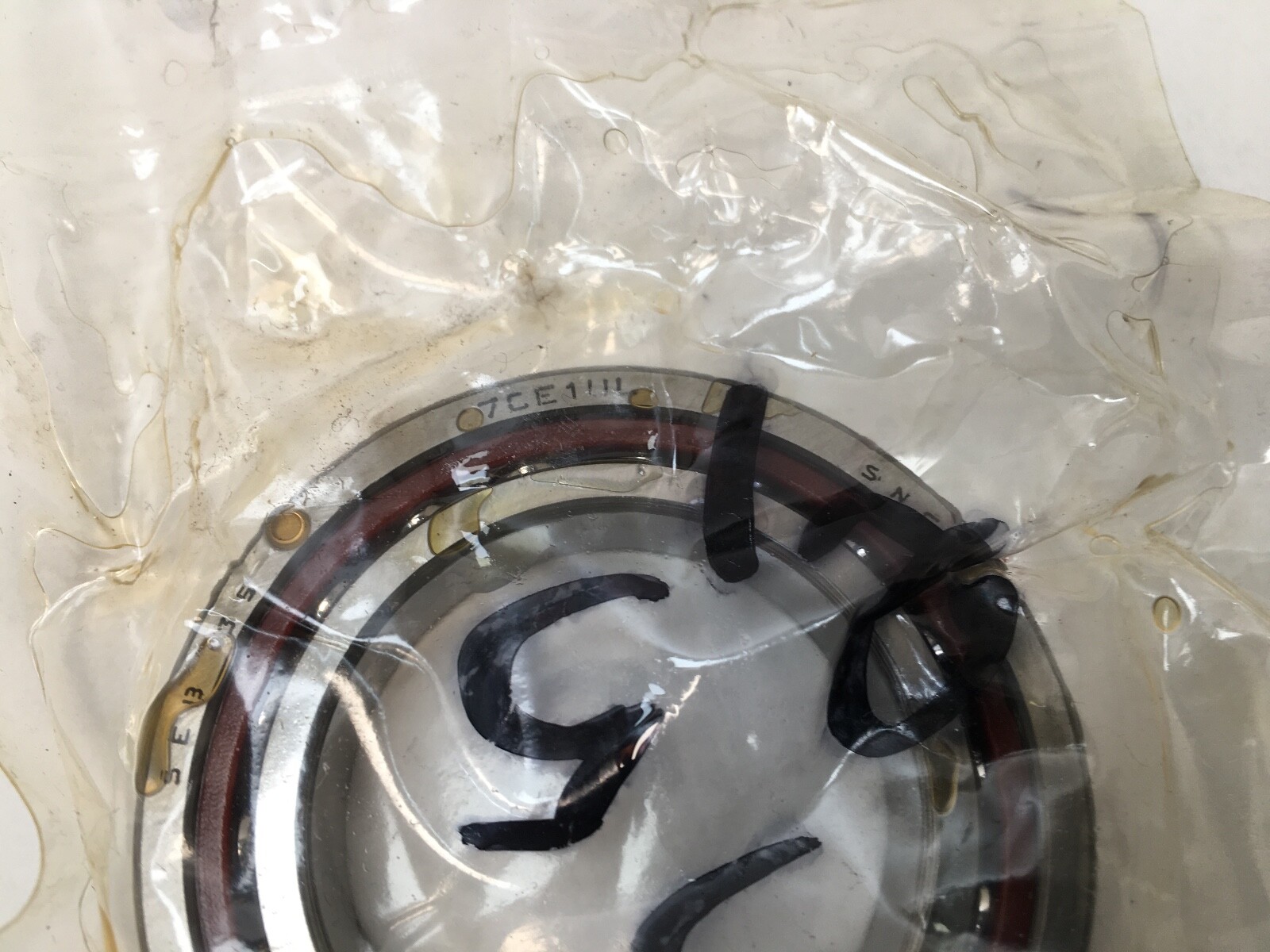

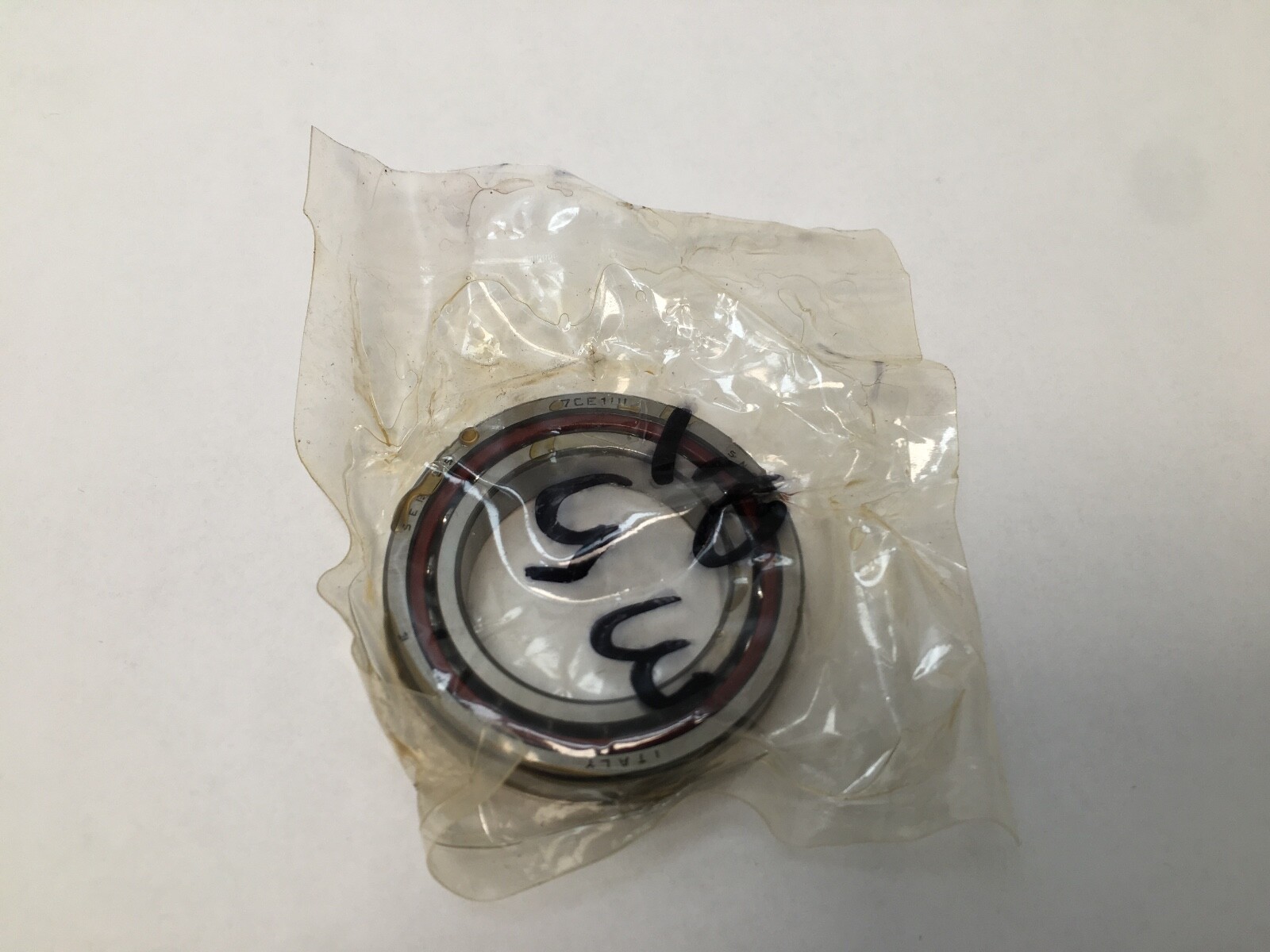

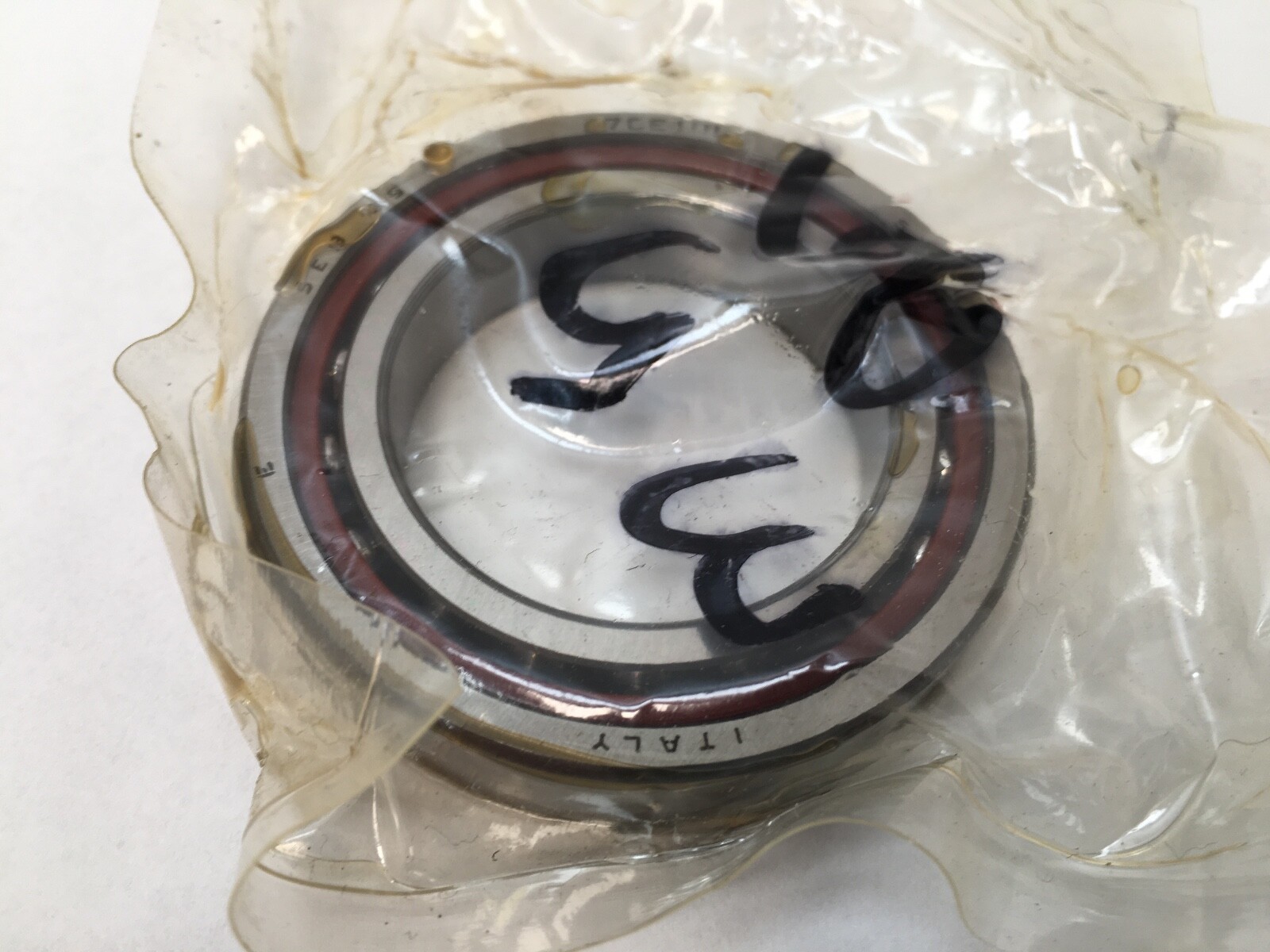

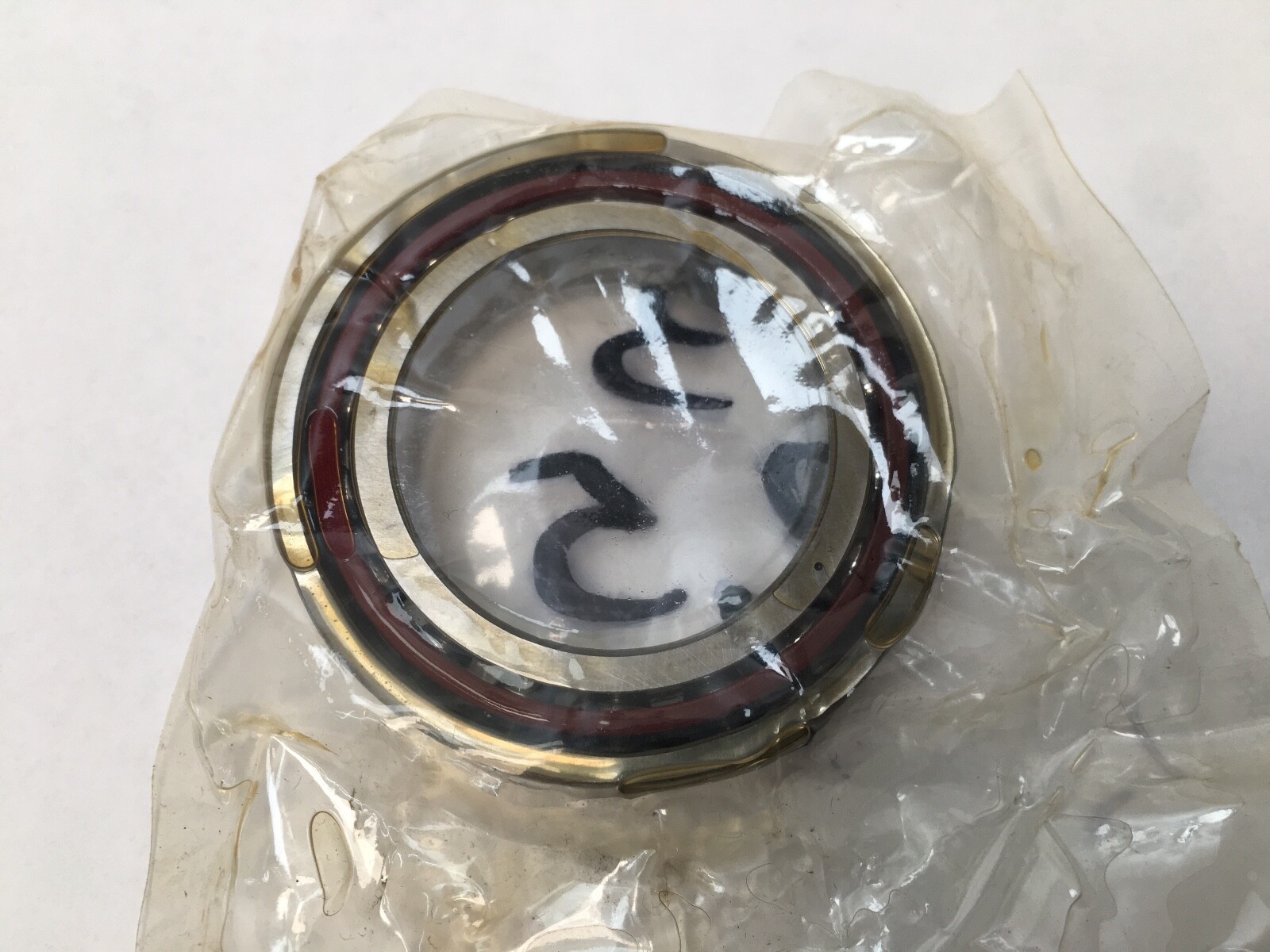

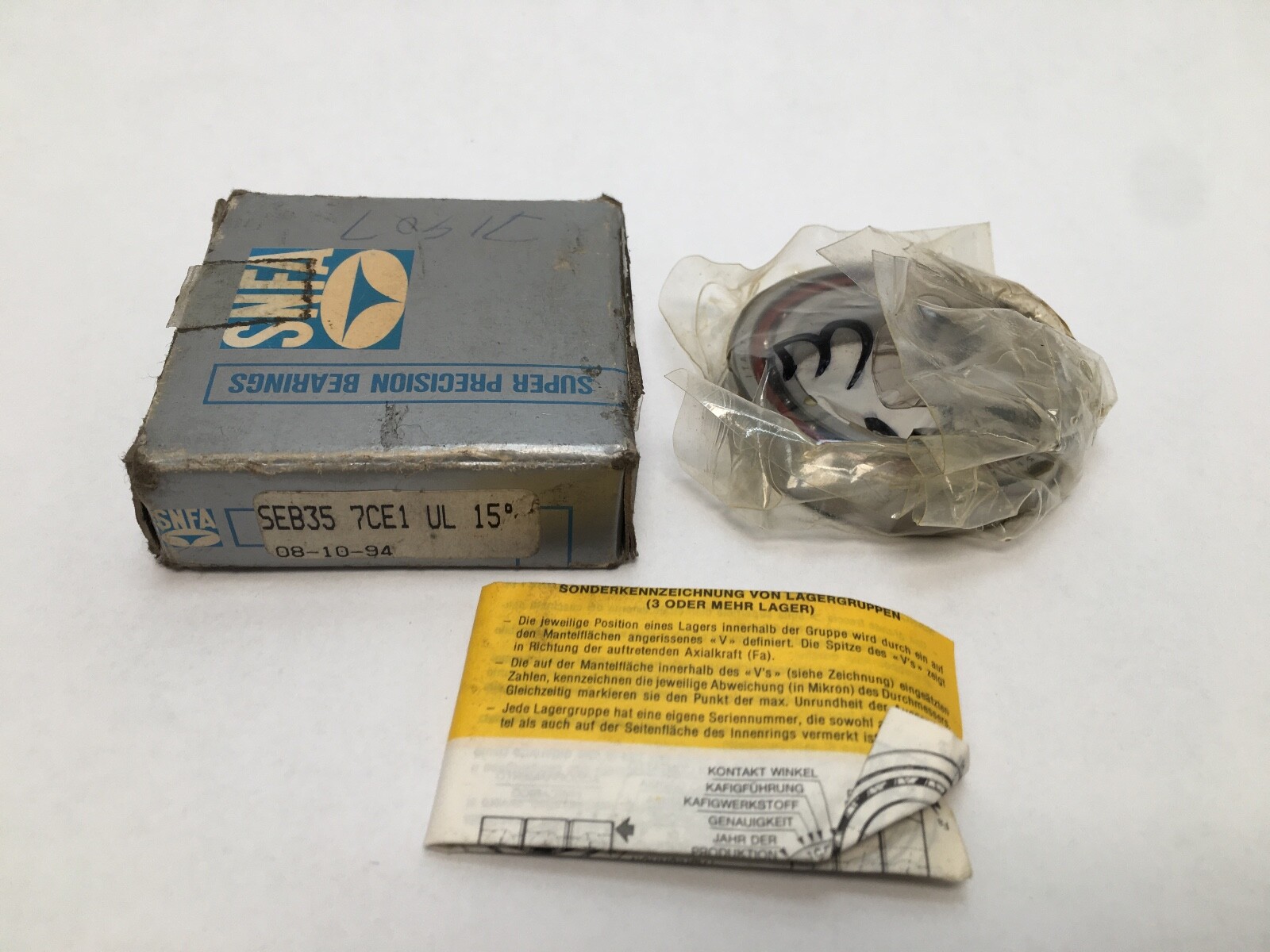

SNFA SEB35-7CE1UL angular contact ball bearing, 35 x 55 x 10 mm, 15° contact angle, ABEC 7 / P4, universal, light preload, phenolic cage. One bearing.
List Price
$113.90
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNFA |
|---|---|
| MPN | SEB35-7CE1UL |
| Model | SEB35-7CE1UL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 35 mm |
| OD | 55 mm |
| Width | 10 mm |
| Series | SNFA SEB (ISO 19) |
|---|---|
| Preload | Light (L) |
| Cage Type | Machined, outer-ring located |
| Dynamic Load Rating | 1,115 daN (C33) |
| Static Load Rating | 1,090 daN (C0) |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 15° |
| Base Number | 71907 |
| Overall Width | 10 mm |
| Mpn Variants | SEB35-7CE1UL, SEB-35-7-CE-1-UL, SEB 35-7 CE 1 U-L, 71907-C, 7907-C P4 U, 2MM-9307 WI |
| Arrangement Configuration | Universal (U), single bearing |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Minimum chamfer Rmin 0.6 mm; rmin 0.3 mm |
| Cross Reference 1 | Fafnir 2MM9307WI |
|---|---|
| Cross Reference 2 | NSK 7907CTYNDULP4 (pair, polyamide cage) |
SNFA SEB35-7CE1UL is a single universally matchable super-precision angular contact ball bearing, SNFA SEB series, ISO dimension series 19, size 71907. Bore Diameter: 35 mm. Outside Diameter: 55 mm. Overall Width: 10 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: Light.
SEB — SNFA SEB series, ISO dimension series 19.
35 — bore diameter, 35 mm.
7 — ABEC 7 precision.
C — stratified textile resin (phenolic) cage.
E — cage located on the outer ring.
1 — 15° nominal contact angle.
U — universal. Ground to pair with any other SNFA U bearing of the same size and preload.
L — light preload.
Dynamic Load Rating: 1,115 daN (SNFA C33 rating). Static Load Rating: 1,090 daN (C0). Cage Material: Phenolic. Cage Type: Machined, outer-ring located. The thin 19-series section suits compact spindle housings.
Minimum chamfer, outer ring (Rmin): 0.6 mm. Minimum chamfer, inner ring (rmin): 0.3 mm. Bore Type: Straight. Closure Type: Open. Snap Ring: No.
Unit Quantity: 1 Pc. Single universal bearing, light preload when paired.
ISO size 71907, 35 x 55 x 10 mm, 15°, ABEC 7 / P4. Fafnir 2MM9307WI shares the envelope and angle; NSK 7907CTYNDULP4 is the same size as a light-preload pair with a polyamide cage.
