Super-precision angular contact ball bearing set, 130 x 180 x 24 mm, 15° contact angle, ABEC 7 / P4, universal light preload. SKF 71926 CD/P4A equivalent.
List Price
$2,007.75
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNFA |
|---|---|
| MPN | SEB130-7CE14UL |
| Model | 2MM-9326 DUL / 7926-C /SEB 130-7 CE 1 4UL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 130 mm |
| OD | 180 mm |
| Width | 24 mm |
| Series | SEB (ISO 19) |
|---|---|
| Preload | Light |
| Mpn Variants | SEB130-7CE14UL, SEB 130 7CE1 4UL, SEB-130-7-CE-1-4UL, SEB130-7CE1UL |
| Precision Class | ABEC 7 / P4 |
| Cage Type | Outer-ring guided |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal (back-to-back, face-to-face or tandem) |
| Common Misspellings | SNFA SEB130 7CE1 4UL; S.N.F.A. SEB130-7CE14UL; SNFA SEB 130-7CE14UL; SNFA SEB130-7CE1UL |
| Cross Reference 1 | SKF 71926 CD/P4ADGA |
|---|---|
| Cross Reference 2 | SKF 71926 CDGA/P4A |
| Cross Reference 3 | FAG B71926-C-T-P4S-UL |
| Cross Reference 4 | Fafnir 2MM9326WICRDUL |

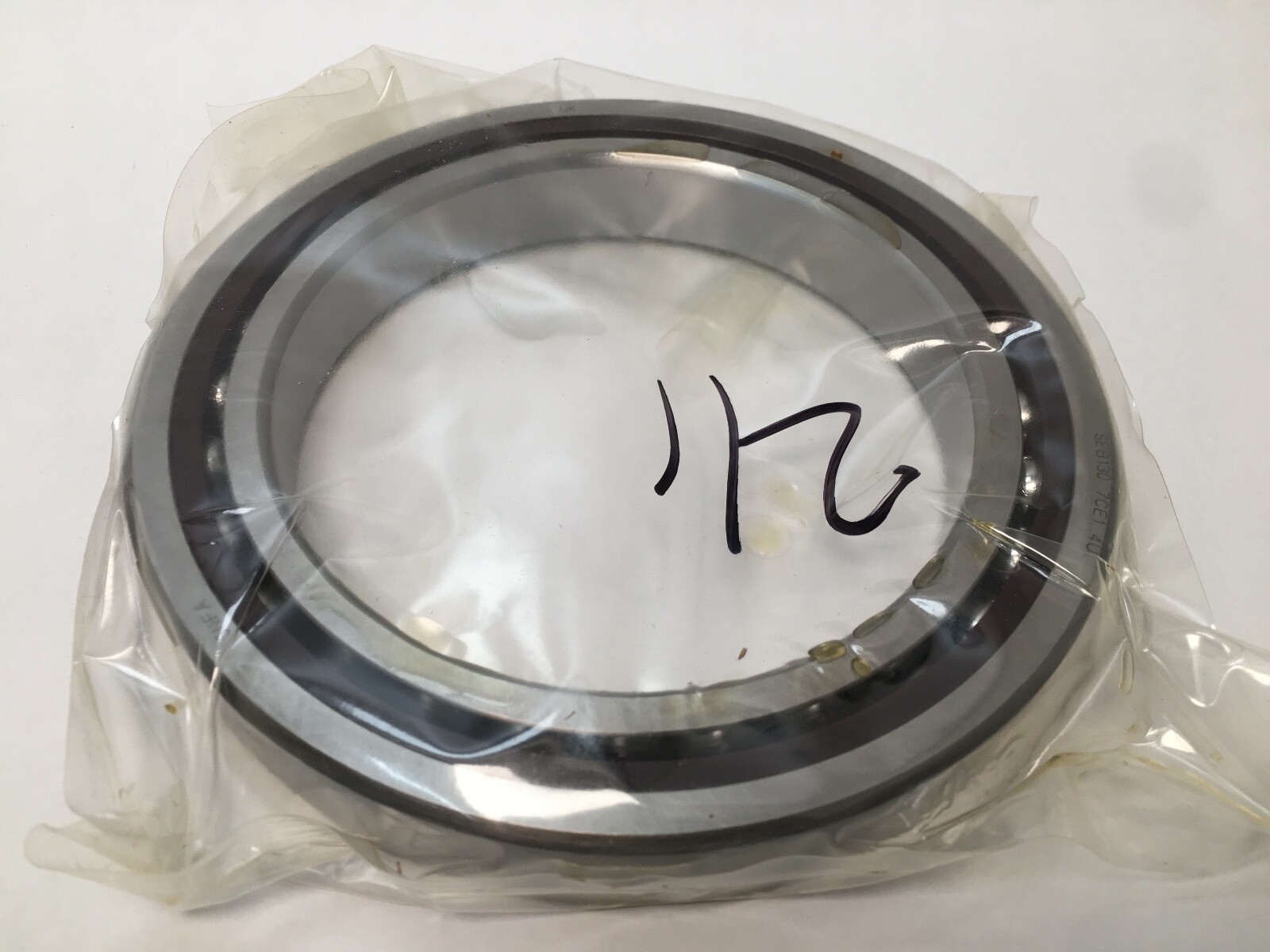

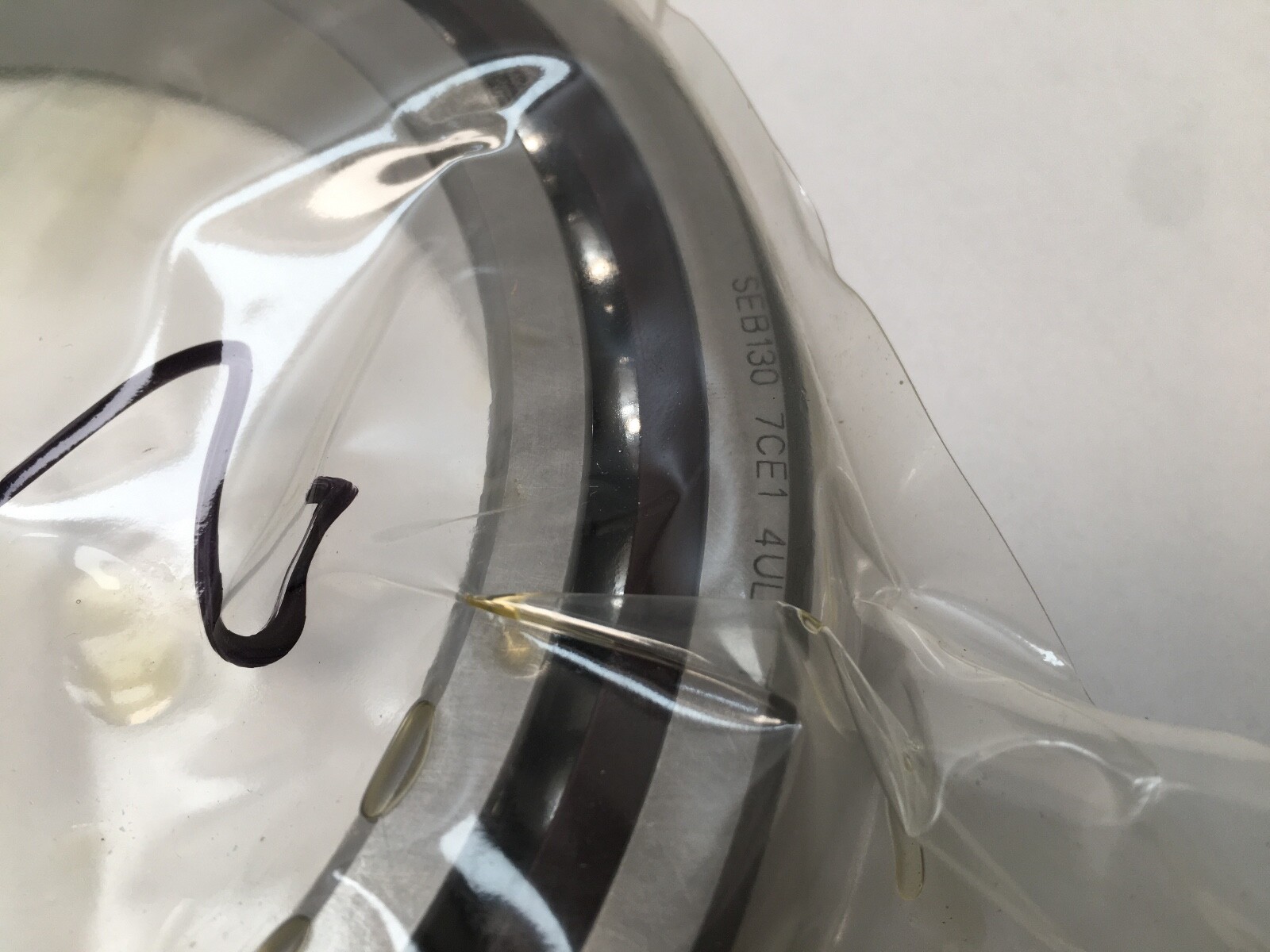

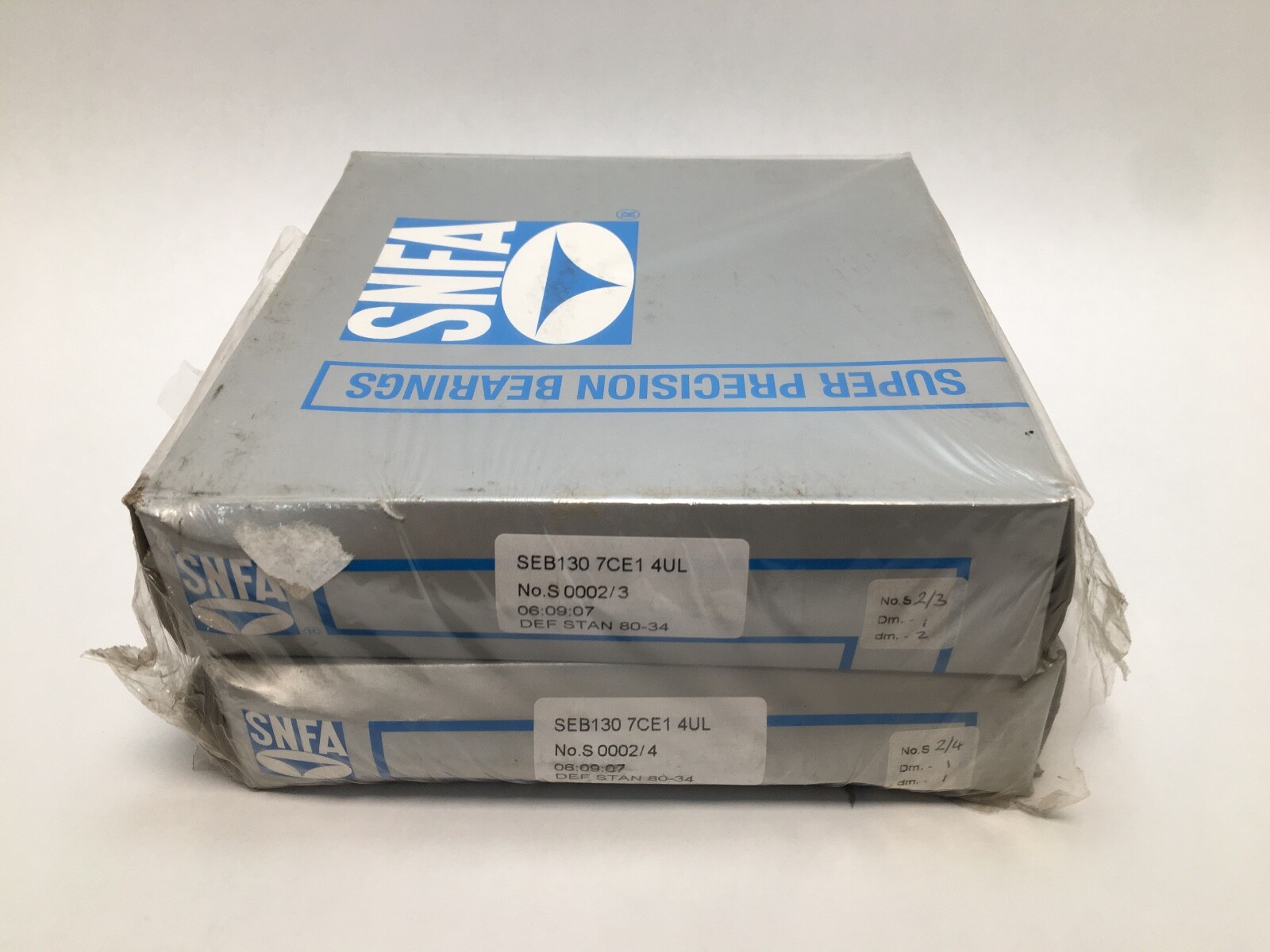

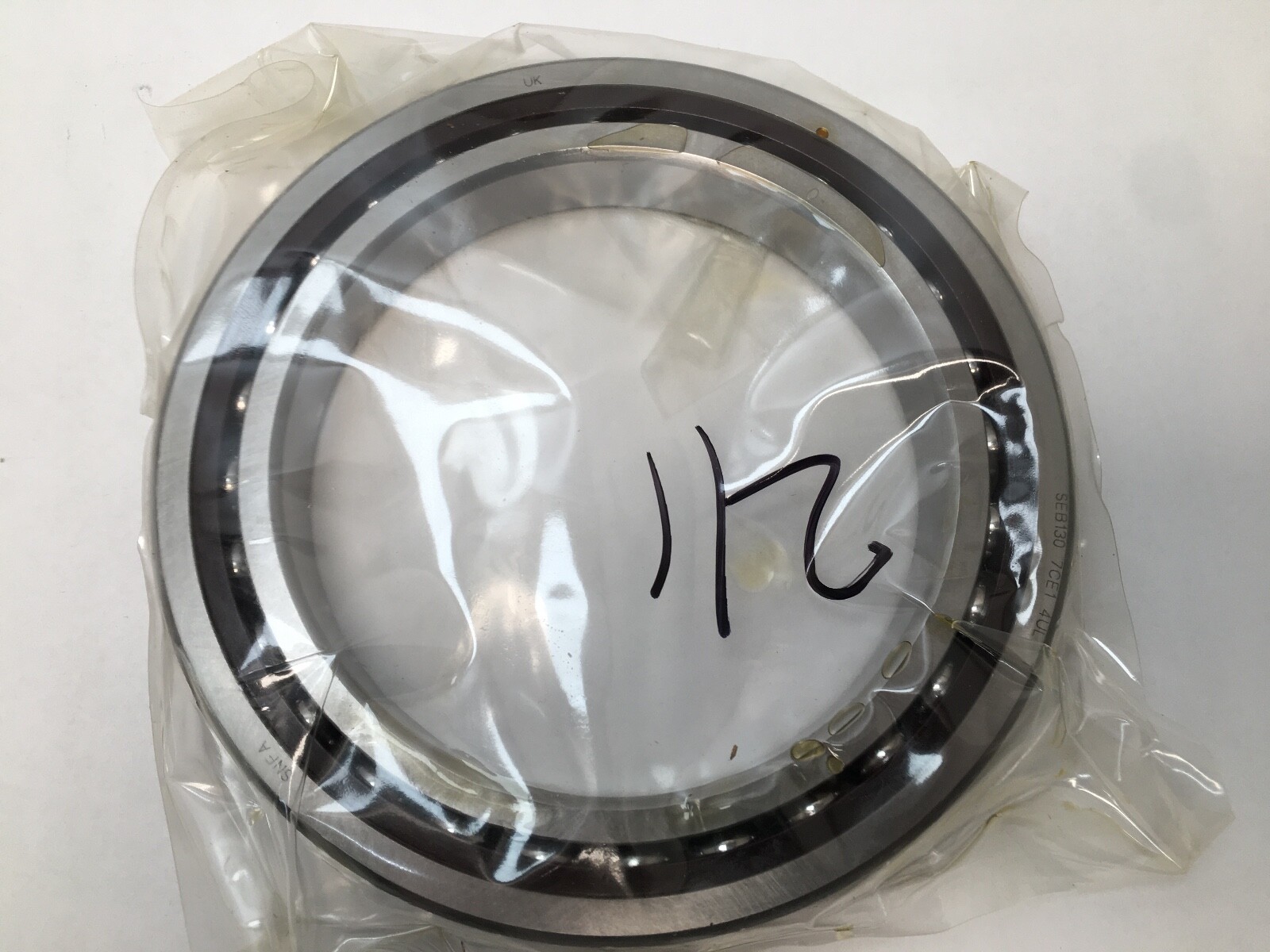

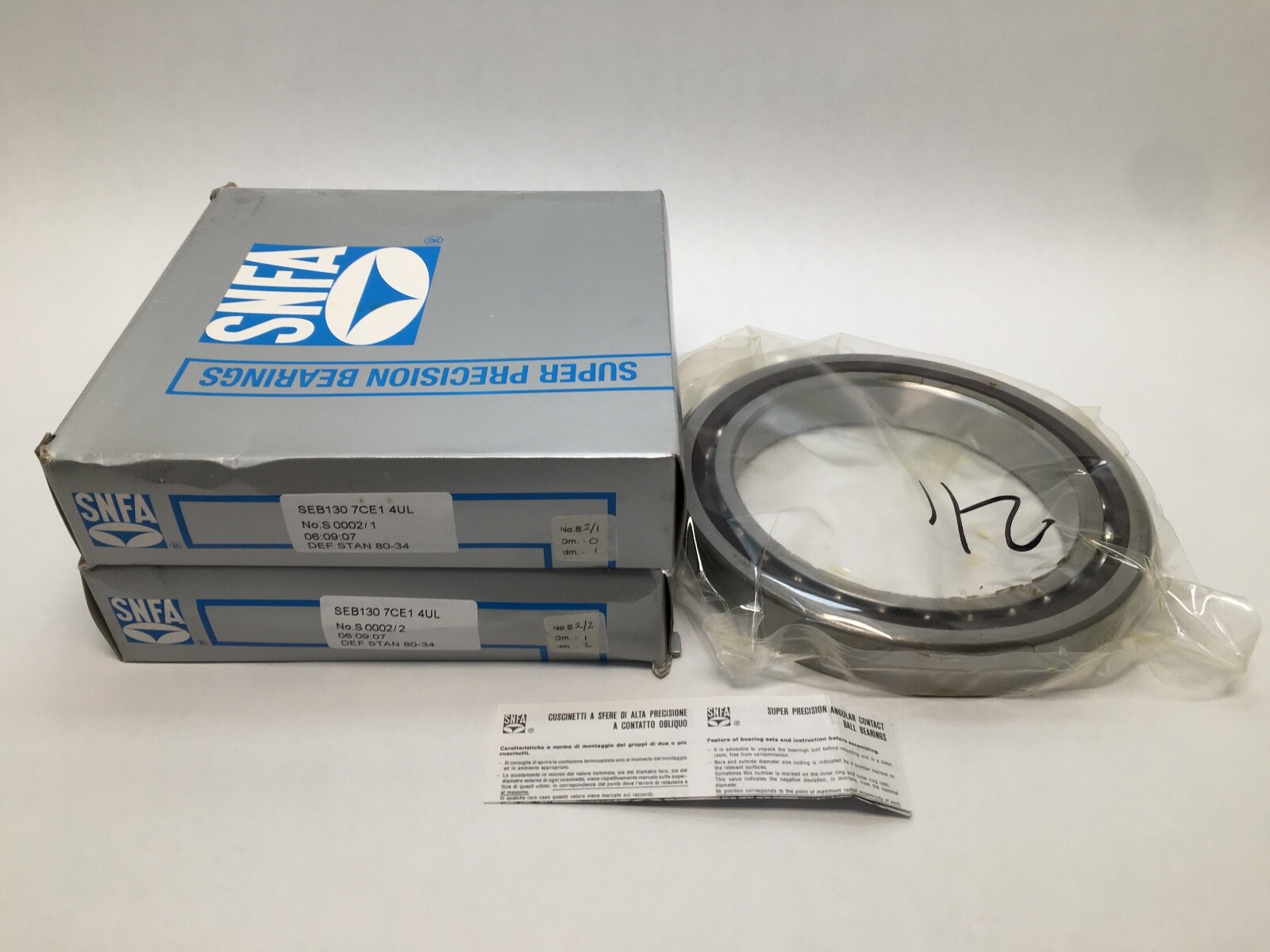

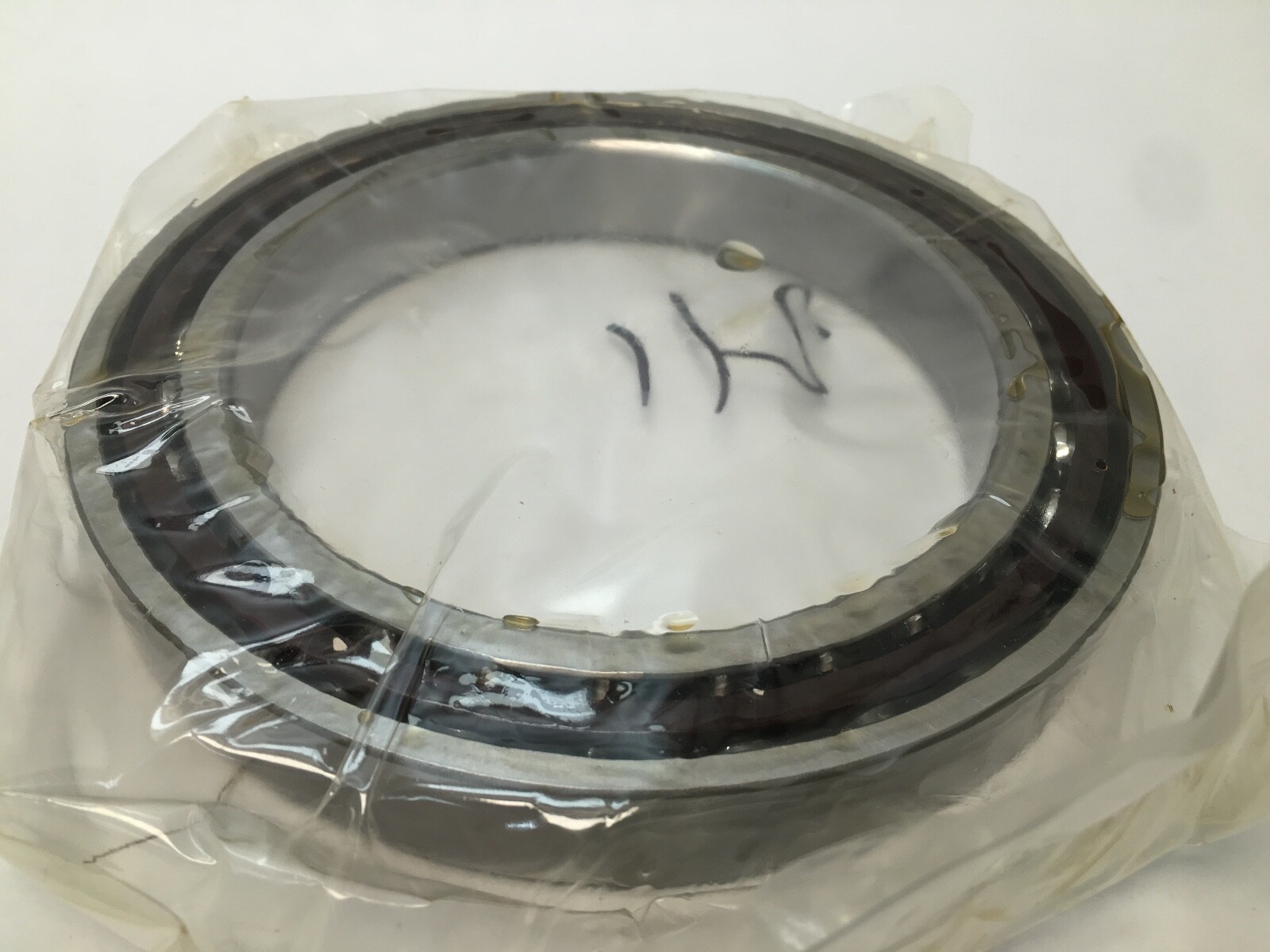

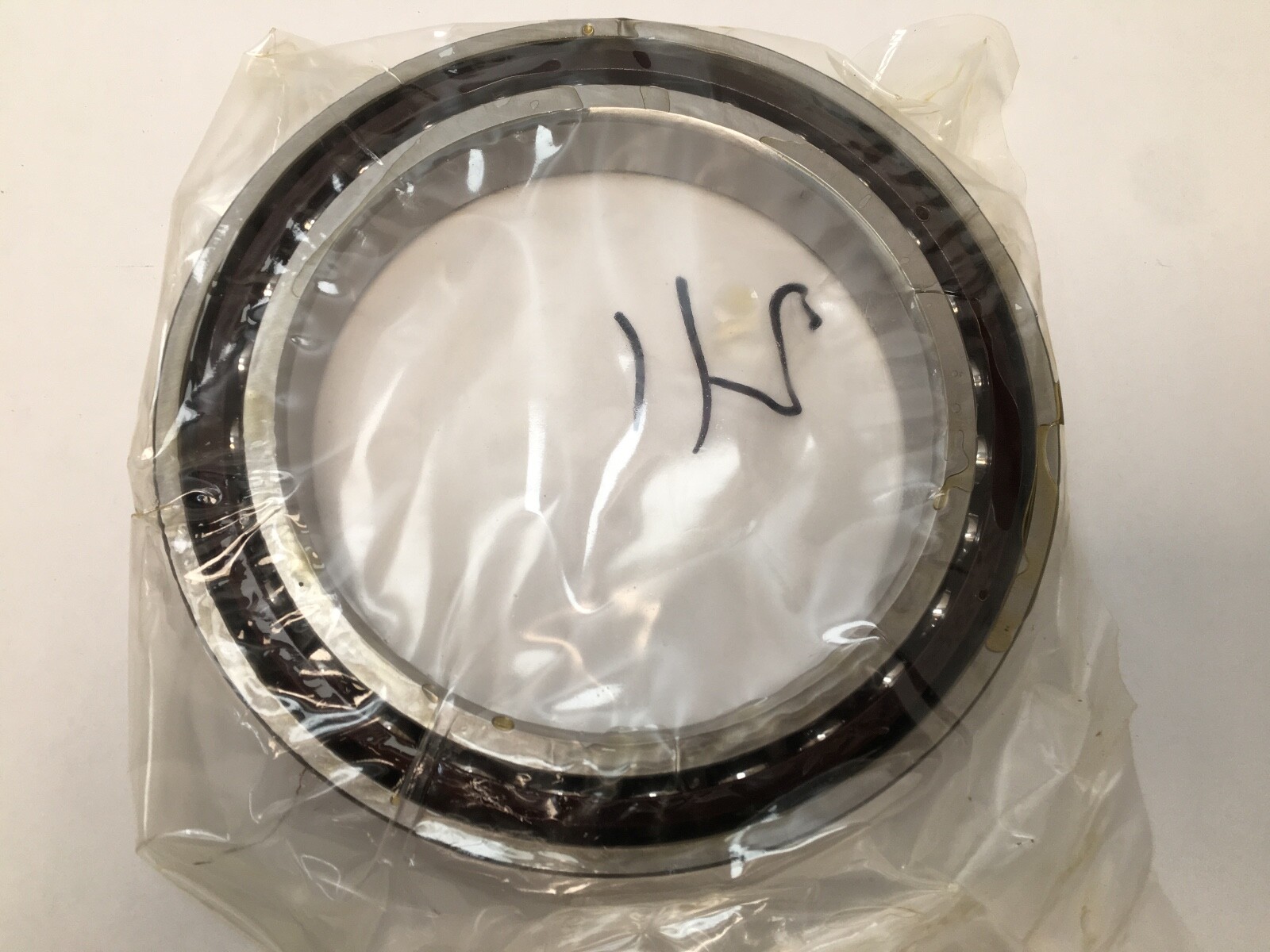

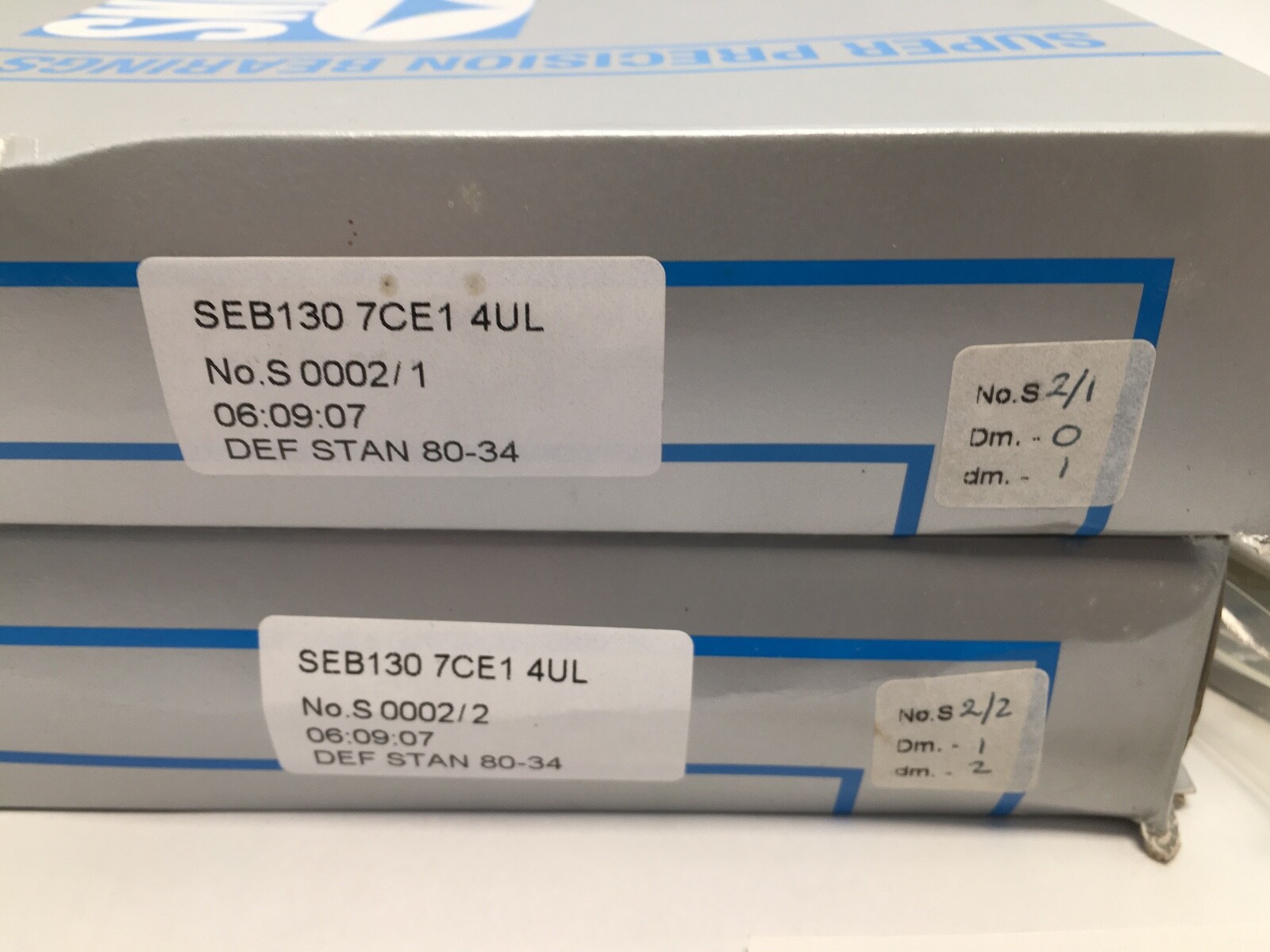

SNFA SEB130-7CE14UL, a set of two super-precision single-row angular contact ball bearings from the SNFA SEB series, ISO dimension series 19 (Unit Quantity: 2 Pcs). Universally ground, light preload, open, phenolic cage. Bore 130 mm, outside diameter 180 mm, width 24 mm per bearing, 15° contact angle, ABEC 7 / P4.
SEB — SNFA angular contact series, ISO dimension series 19 (719xx envelope).
130 — bore diameter in millimetres.
7 — SNFA precision grade, ABEC 7 (ISO P4).
C — phenolic resin cage.
E — cage centred on the outer ring.
1 — 15° contact angle.
U — universal grinding for back-to-back, face-to-face or tandem mounting.
L — light preload.
Bore Diameter: 130 mm. Outside Diameter: 180 mm. Width: 24 mm per bearing. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Cage Type: Outer-ring guided. Preload: Light. Mounting Arrangement: Universal. Closure Type: Open. Number Of Rows: 1. Rolling Elements: Ball. Country of Origin: United Kingdom.
Envelope 130 x 180 x 24 mm, the ISO 71926 size. Universally ground for back-to-back, face-to-face or tandem sets.
SKF owns SNFA and lists the SEB series as the SNFA equivalent of its 719 .. CD range. Cross-references with the same 130 x 180 x 24 mm envelope and 15° contact angle: SKF 71926 CD/P4ADGA, SKF 71926 CDGA/P4A, FAG B71926-C-T-P4S-UL, Fafnir 2MM9326WICRDUL. Searchable variants: SEB130-7CE14UL, SEB 130 7CE1 4UL, SEB-130-7-CE-1-4UL, SEB130-7CE1UL.
Bore 130 mm, outside diameter 180 mm, width 24 mm per bearing.
15° contact angle; precision grade 7, ABEC 7 (ISO P4).
SKF 71926 CD/P4A on the same 130 x 180 x 24 mm envelope.
