IBC71907-E-TPA-PA7-ULAngular Contact Ball Bearing — 35 mm ID, 55 mm OD, 10 mm Width, 25° Contact Angle, Phenolic Cage, Universal Light Preload

Product Description

What this part is:

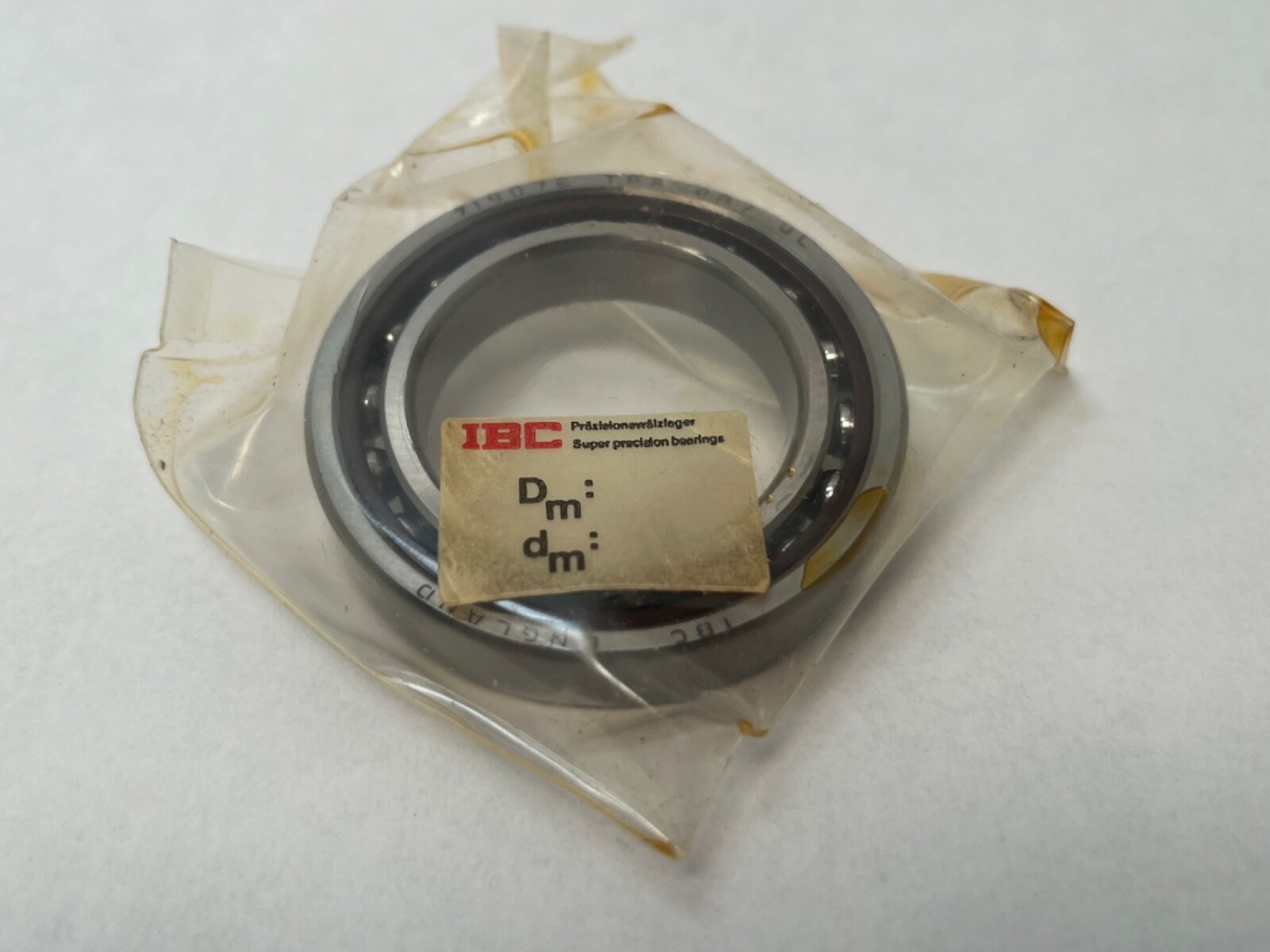

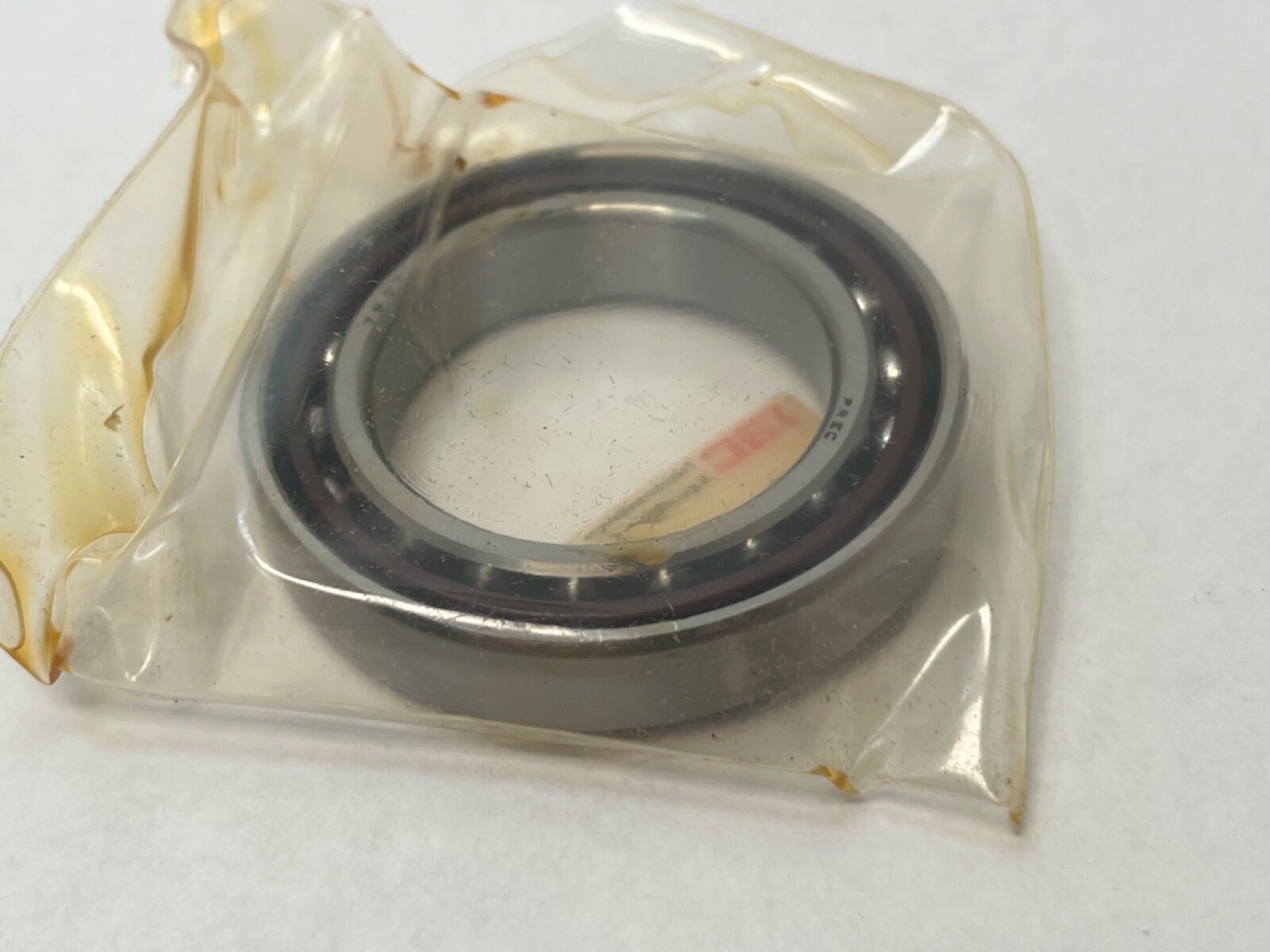

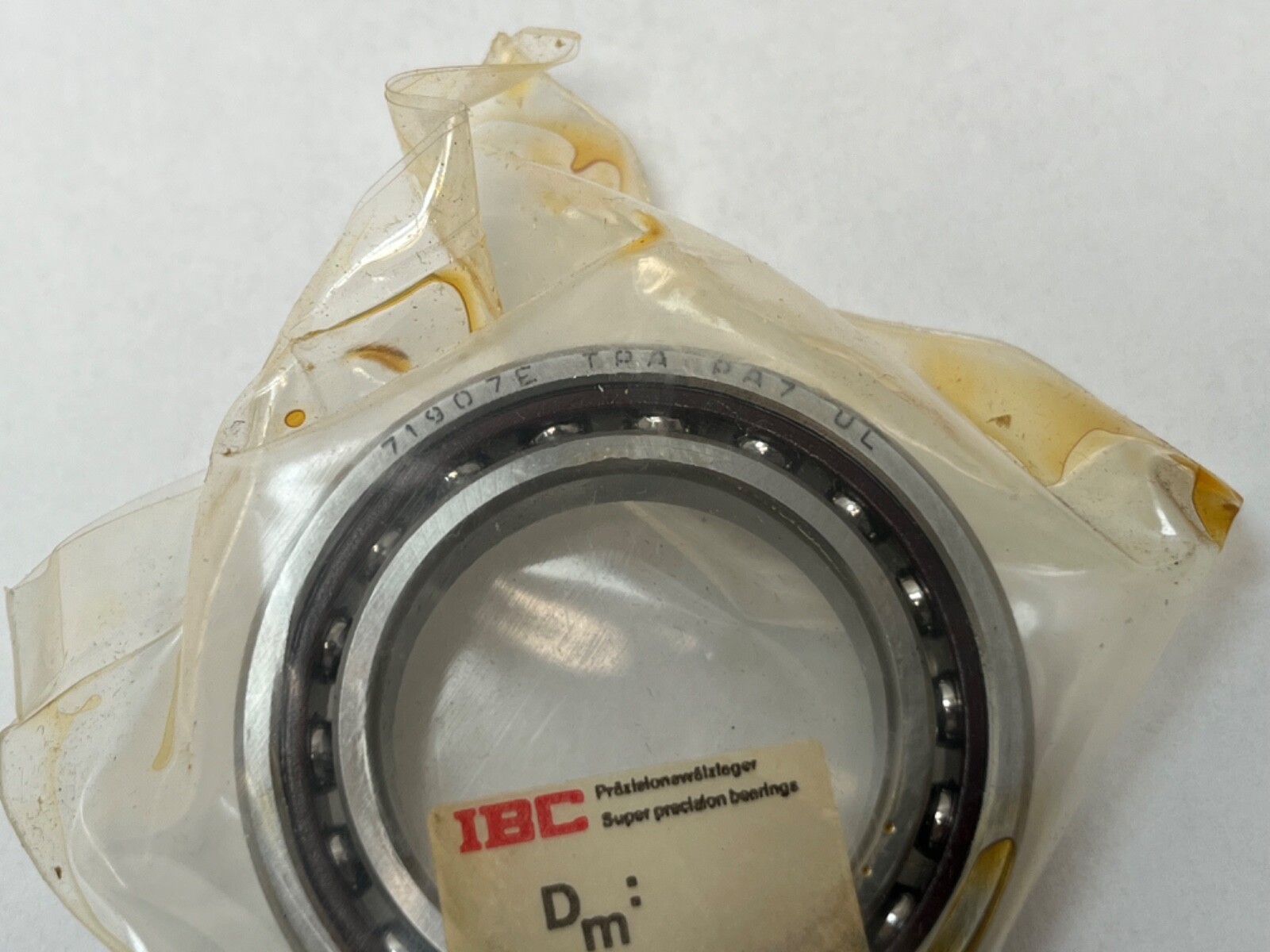

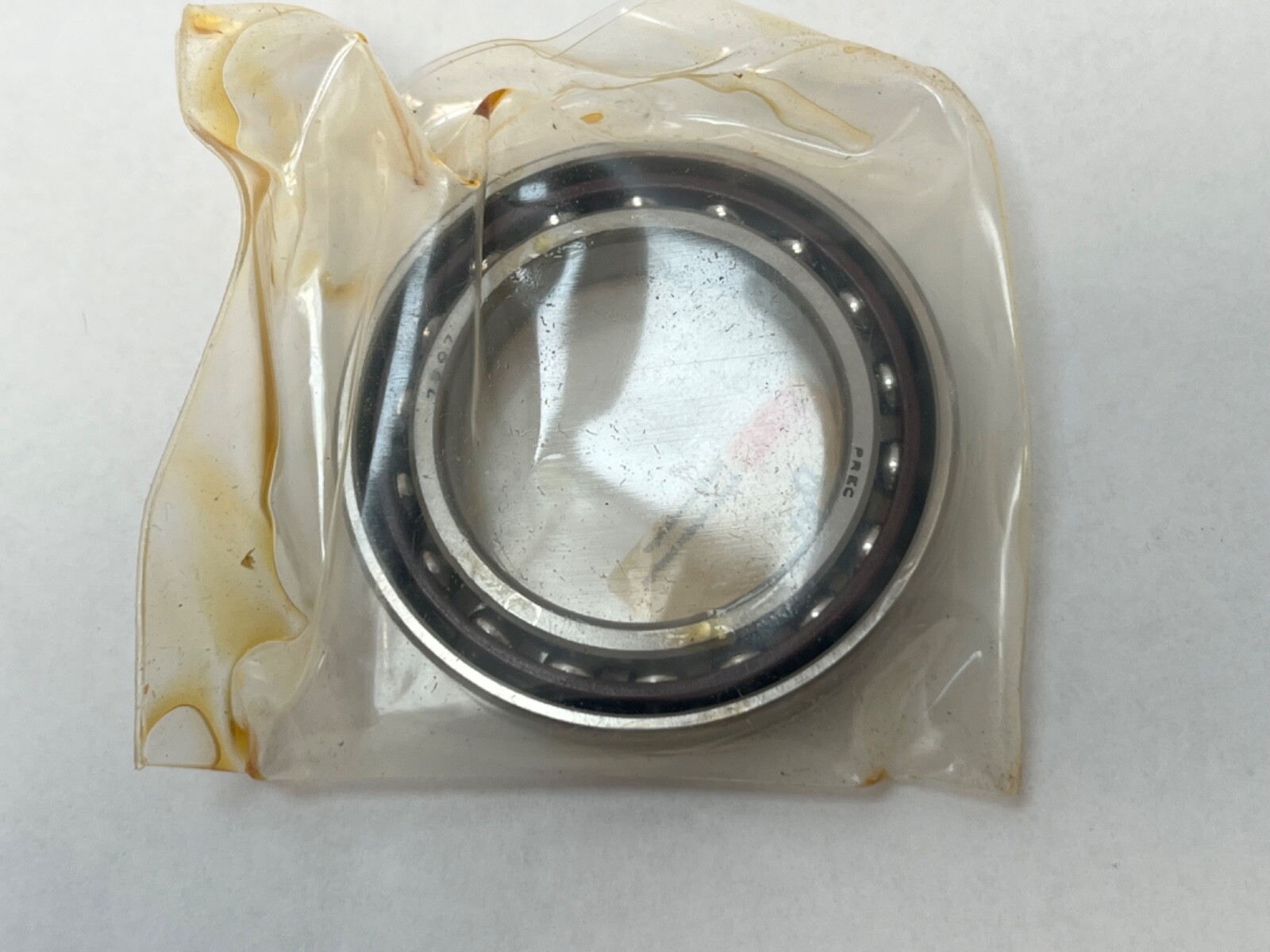

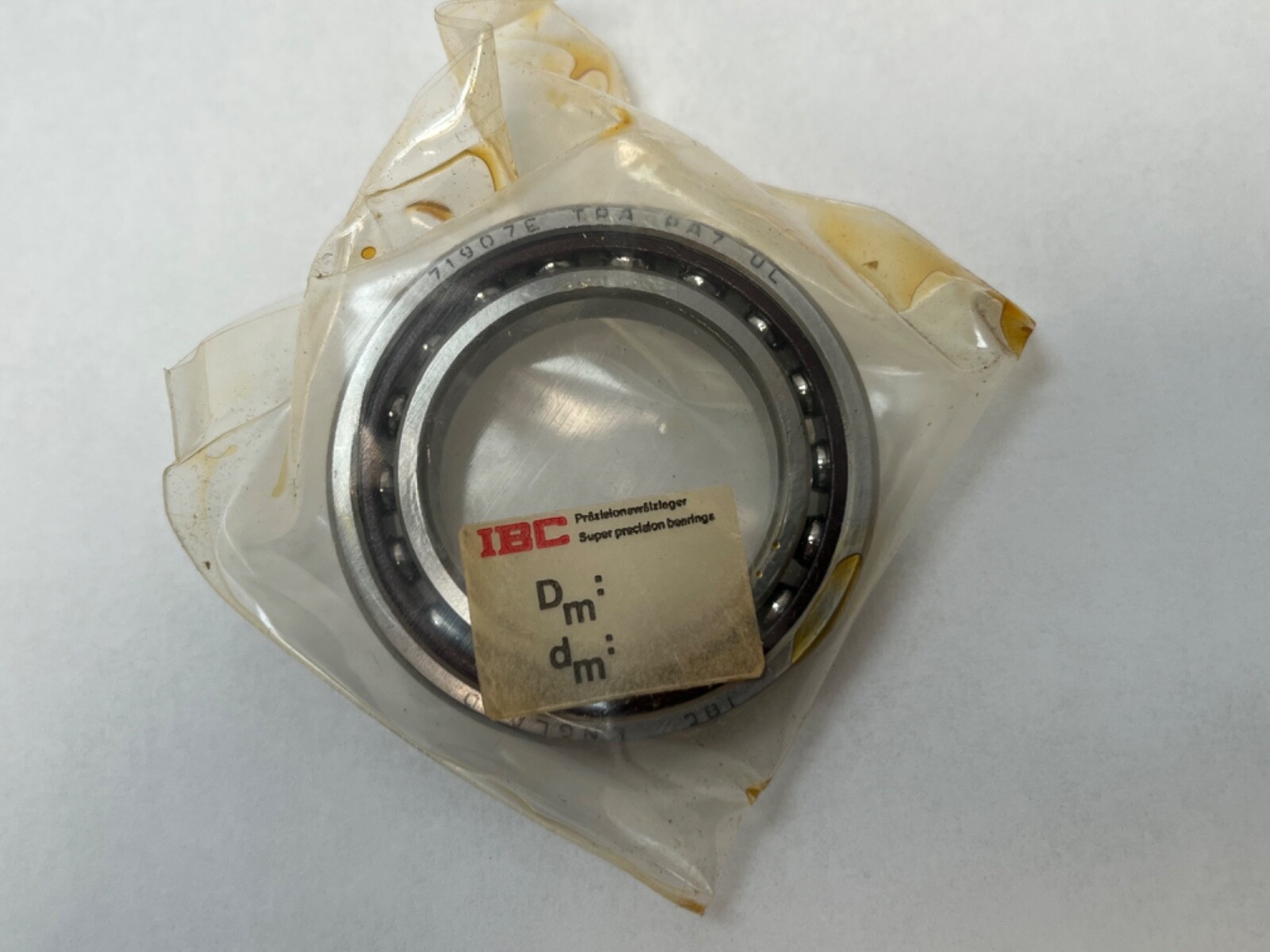

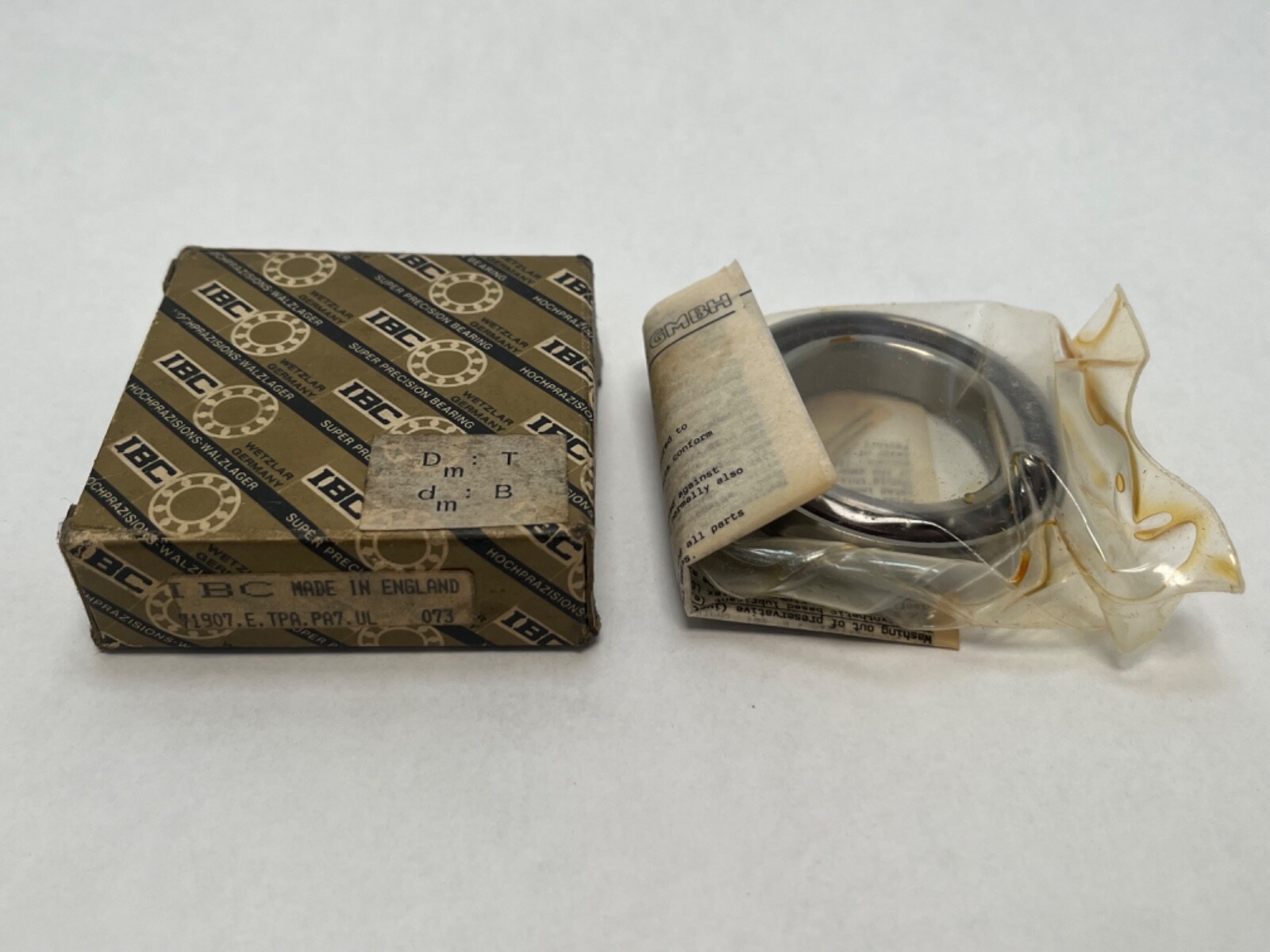

IBC 71907-E-TPA-PA7-UL single-row angular contact ball bearing in the ISO 719 extra-light series, 35 x 55 x 10 mm, 25° contact angle, phenolic cage, universal light preload. Single universally ground bearing.

Decoding the designation:

719 — ISO extra-light series 19 angular contact ball bearing.

07 — 35 mm bore.

E — 25° contact angle.

T — phenolic cage.

UL — universally ground for any duplex arrangement, light preload.

Specifications:

Bore Diameter: 35 mm. Outside Diameter: 55 mm. Overall Width: 10 mm. Contact Angle: 25°. Cage Material: Phenolic. Preload: Light (universal). Closure Type: Open. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Series: 71900. Mounting Arrangement: Universal (DB, DF or DT). Unit Quantity: 1 Pc. Harmonization Code: 8482.10.50.28.

Dimensions and mounting:

Universal grinding lets two or more of these bearings be mounted back-to-back, face-to-face or tandem with a defined light preload. Typical uses: machine tool spindles, high-speed spindles, precision rotary assemblies.

Compatibility and replacement:

25° parts from other makers, 35 x 55 x 10 mm: FAG B71907-E-T-P4S-UL, SKF 71907 ACD/P4A, Timken Fafnir 3MM9307WI, SNR 71907HG1UJ74, NSK 7907A5. Alternate part numbers: 71907ETPAPA7UL, 71907-E-TPA-PA7-UL, 71907 E TPA PA7 UL, 7907E, 7907A5/ACD.

Frequently asked questions:

What are the dimensions of the IBC 71907-E-TPA-PA7-UL?

Bore 35 mm, outside diameter 55 mm, width 10 mm.

What contact angle does it have?

25° (E).

What does UL mean?

Universally ground for any duplex arrangement, with light preload.
