Super-precision angular contact ball bearing, 85 x 130 x 22 mm, 15° contact angle, light preload, ISO P4 tolerances, phenolic cage, straight bore.
List Price
$147.79
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNR |
|---|---|
| MPN | 7017CDUJ74 |
| Model | 7017 C T SUL P4 / 2MM9117WI CR SUL / 7017 C DU J74 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 85 mm |
| OD | 130 mm |
| Width | 22 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Preload | Light |
| Base Number | 7017 |
| Bore Shaft Size | 85 mm |
| Mpn Variants | 7017CDUJ74-1/2PR; 7017-C-DU-J74; 7017 C DU J74; 7017C; 7017-C-T-SUL-P4; 2MM9117WI CR SUL |
| Precision Class | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Cage Material | Phenolic resin |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Part Number | 7017CDUJ74 |
| Industry Terms | super precision angular contact bearing; machine tool spindle bearing; universally ground matched bearing; 85mm bore angular contact; 7017 C P4 bearing |
| Common Misspellings | SNR 7017CDUJ47; SNR 7017 CDU J74; SRN 7017CDUJ74; SNR7017CDUJ74 |
| Application Types | Machine tool spindles; high-speed precision spindles; precision positioning equipment |
| Cross Reference 1 | SKF 7017 CD/P4A |
|---|---|
| Cross Reference 2 | NSK 7017CTYNSULP4 |
| Cross Reference 3 | FAG B7017-C-T-P4S |
| Cross Reference 4 | Fafnir 2MM9117WI CR SUL |

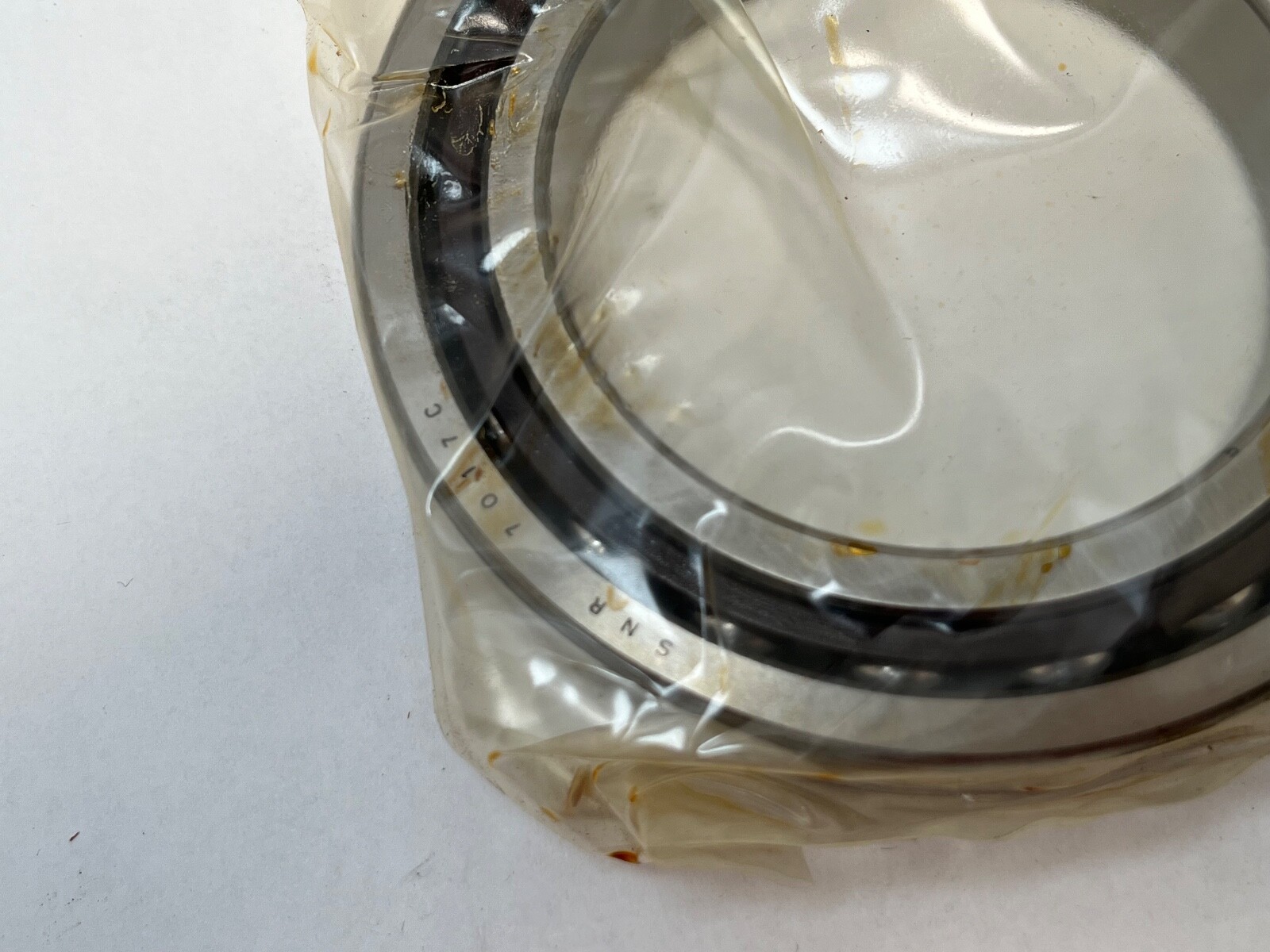

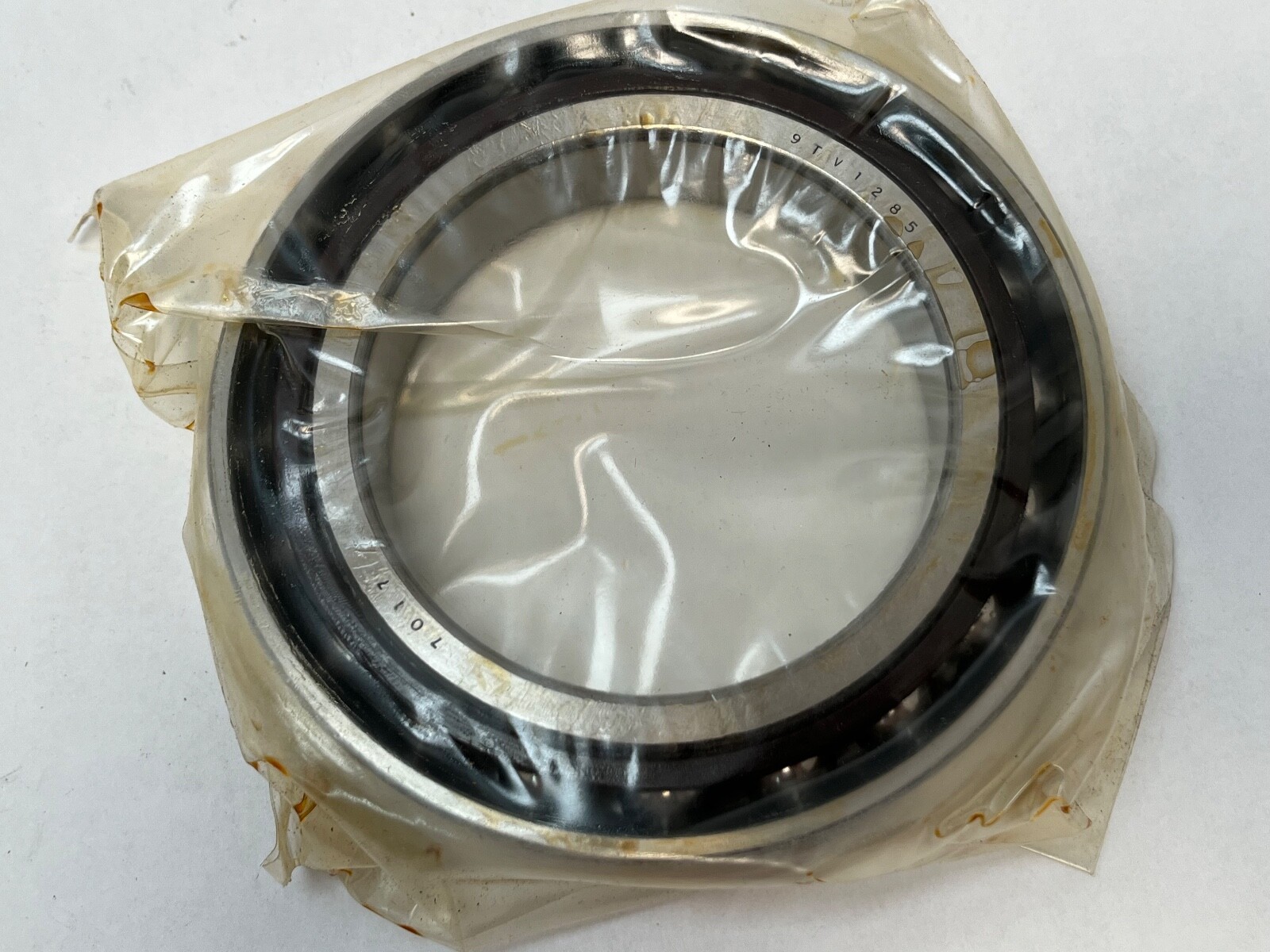

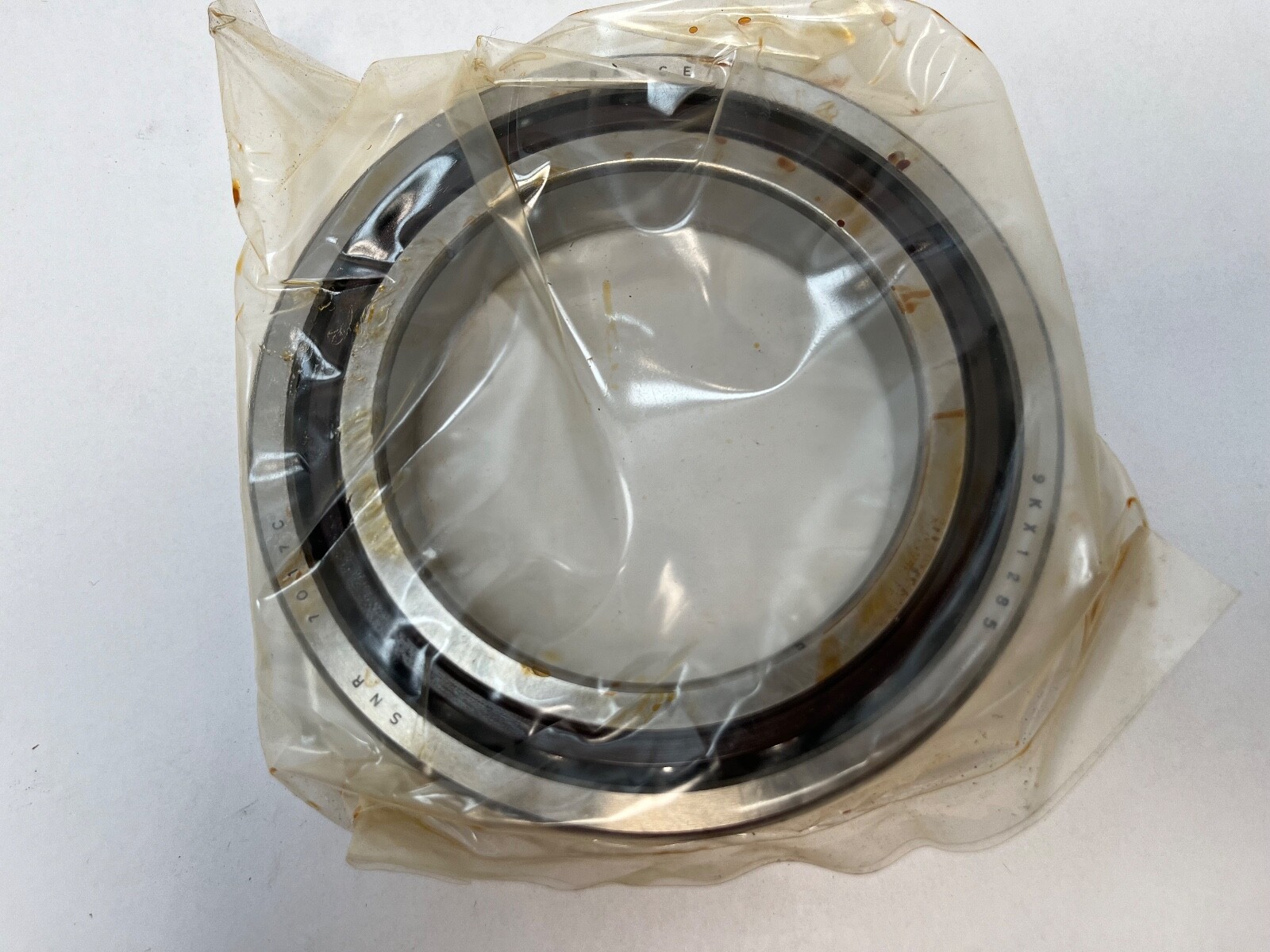

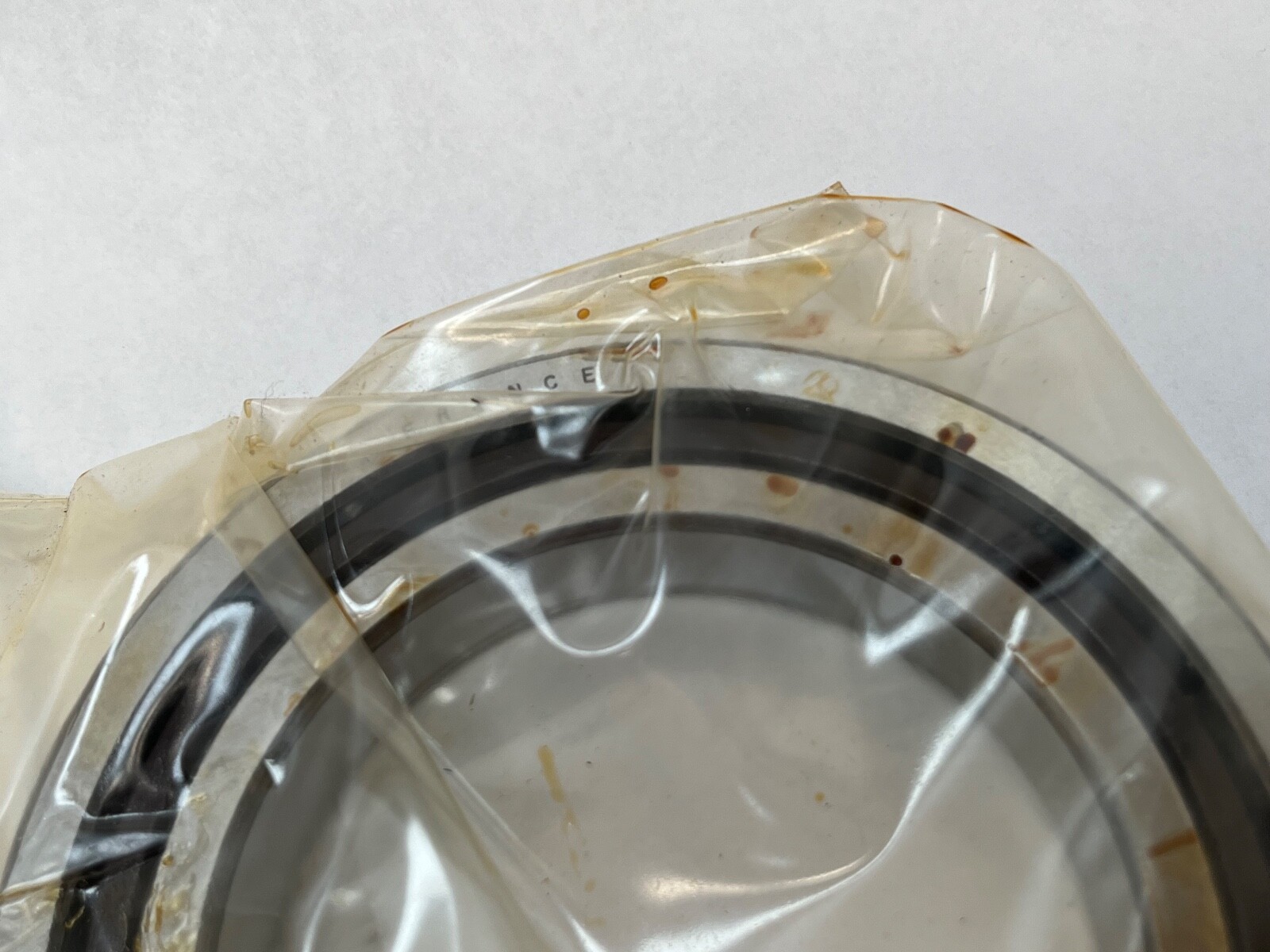

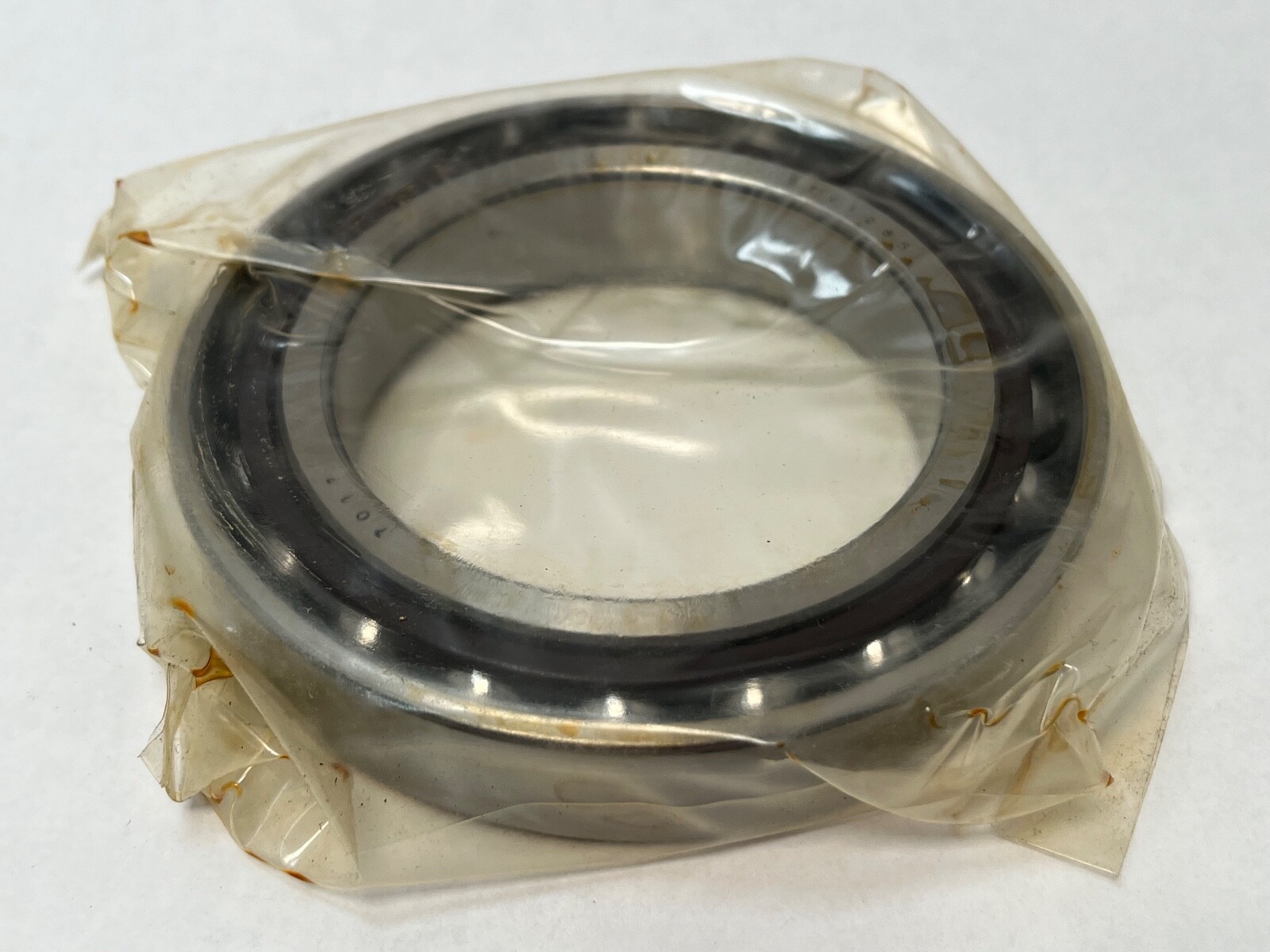

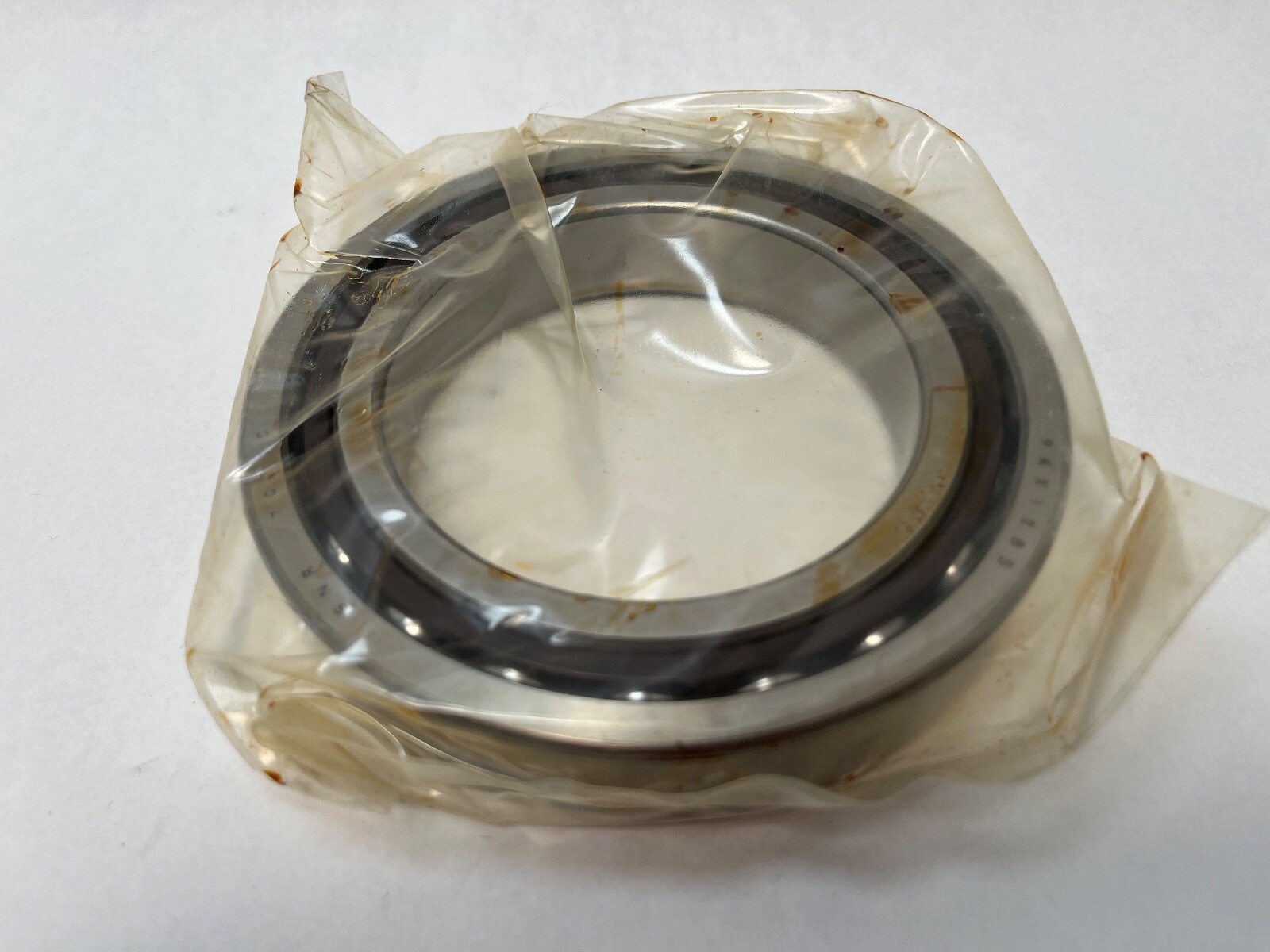

SNR 7017CDUJ74 super-precision angular contact ball bearing, ISO 70 series, 85 x 130 x 22 mm. Single bearing (Unit Quantity: 1 Pc) from a factory matched pair. Open design, straight bore, 15° contact angle, light preload, ISO P4 precision.
7017 — ISO 70 series size: 85 mm bore, 130 mm outside diameter, 22 mm width.
C — 15° contact angle.
J74 — light preload; the second digit of the J-code is the ISO precision class, here class 4 (P4, equivalent to ABEC 7).
-1/2PR — one bearing of a two-bearing pair.
Bearing Type: Angular contact ball bearing. Contact Angle: 15°. Preload: Light. Precision Class: ABEC 7 / P4. Cage Material: Phenolic resin. Closure Type: Open. Number Of Rows: 1. Rolling Elements: Ball. Series: 7000. Unit Quantity: 1 Pc.
Bore Diameter: 85 mm. Outside Diameter: 130 mm. Overall Width: 22 mm. Bore Type: Straight. Universally ground, so it sets against a like bearing at the stated preload.

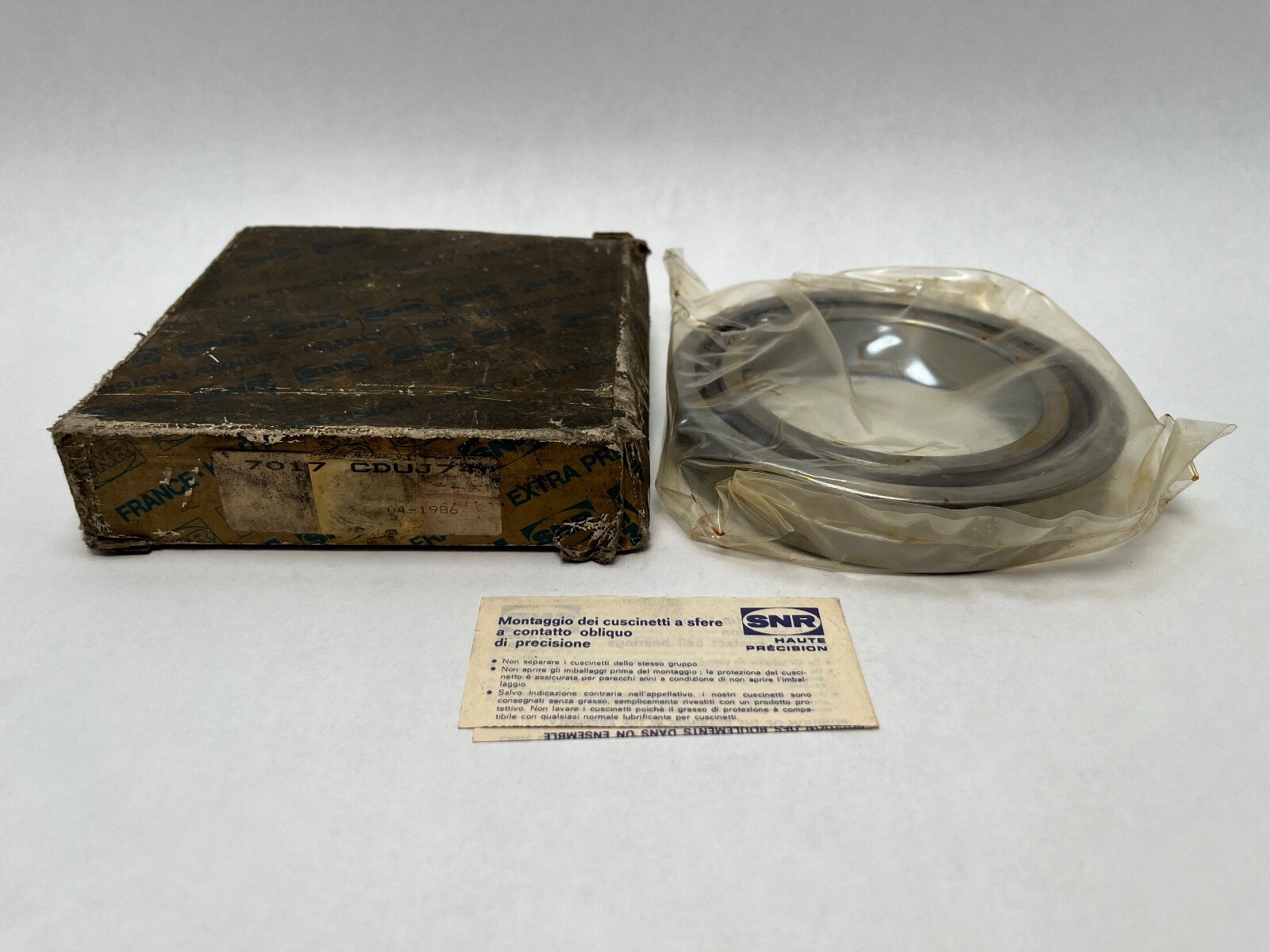

Cross-Reference 1: SKF 7017 CD/P4A. Cross-Reference 2: NSK 7017CTYNSULP4. Cross-Reference 3: FAG B7017-C-T-P4S. Cross-Reference 4: Fafnir 2MM9117WI CR SUL. Carton markings: 7017-C-T-SUL-P4 and 7017-C-DU-J74.
Bore Diameter: 85 mm. Outside Diameter: 130 mm. Overall Width: 22 mm.
Contact Angle: 15°, from the C in the designation. Preload: Light, from the J74 code.
ISO P4, equivalent to ABEC 7, from the second digit of the J74 code.
