Availability:
3 in stock

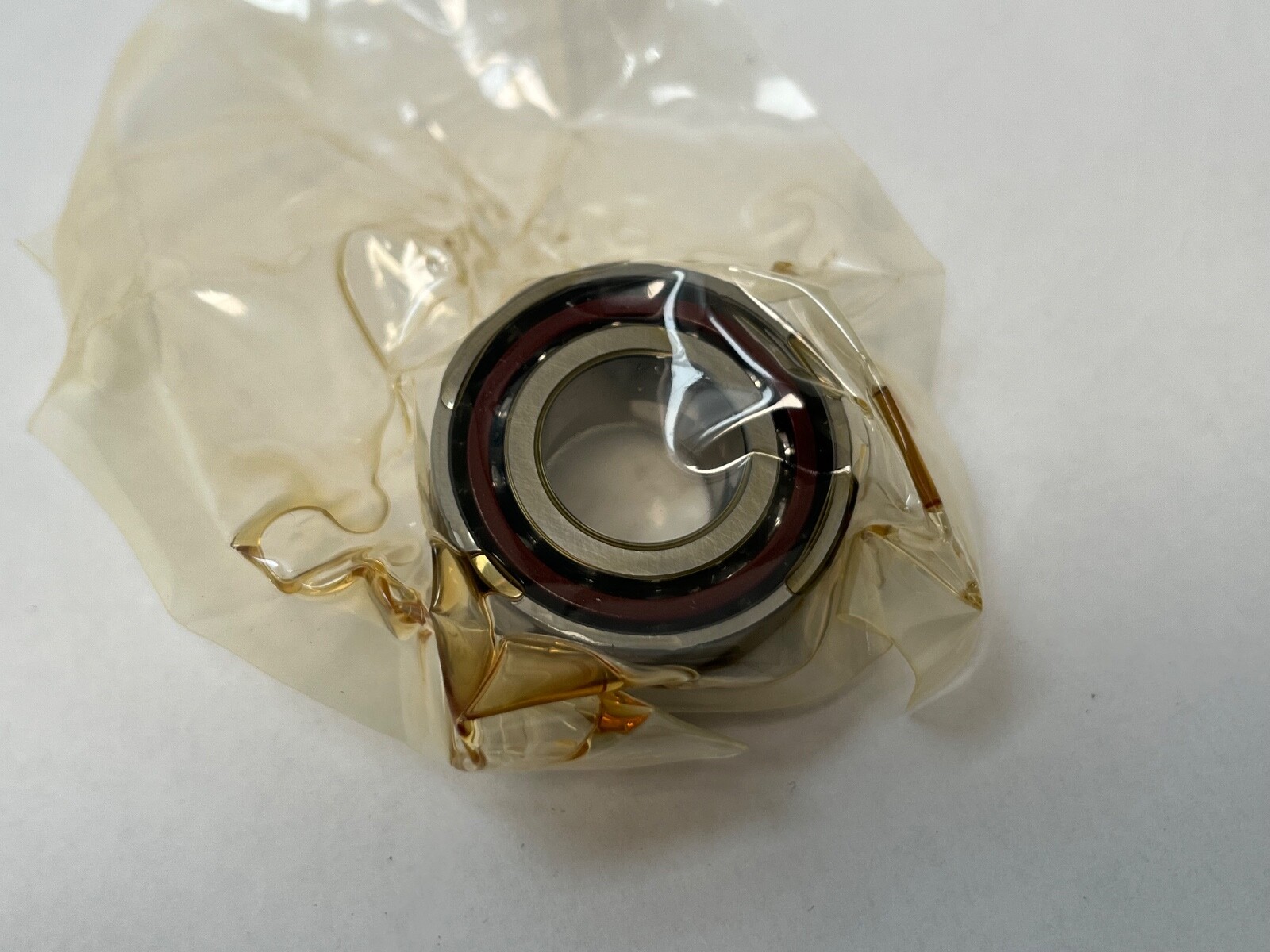

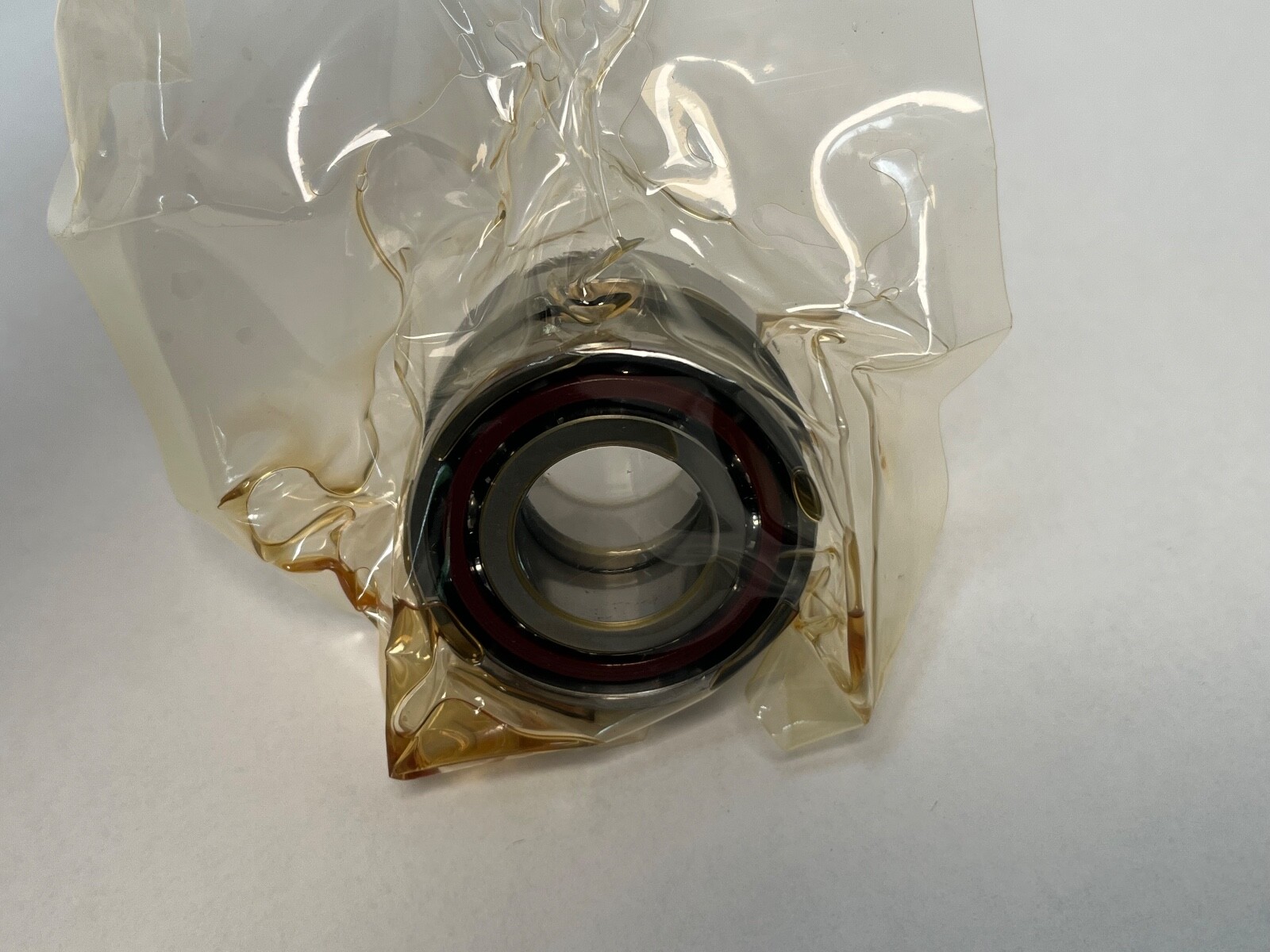

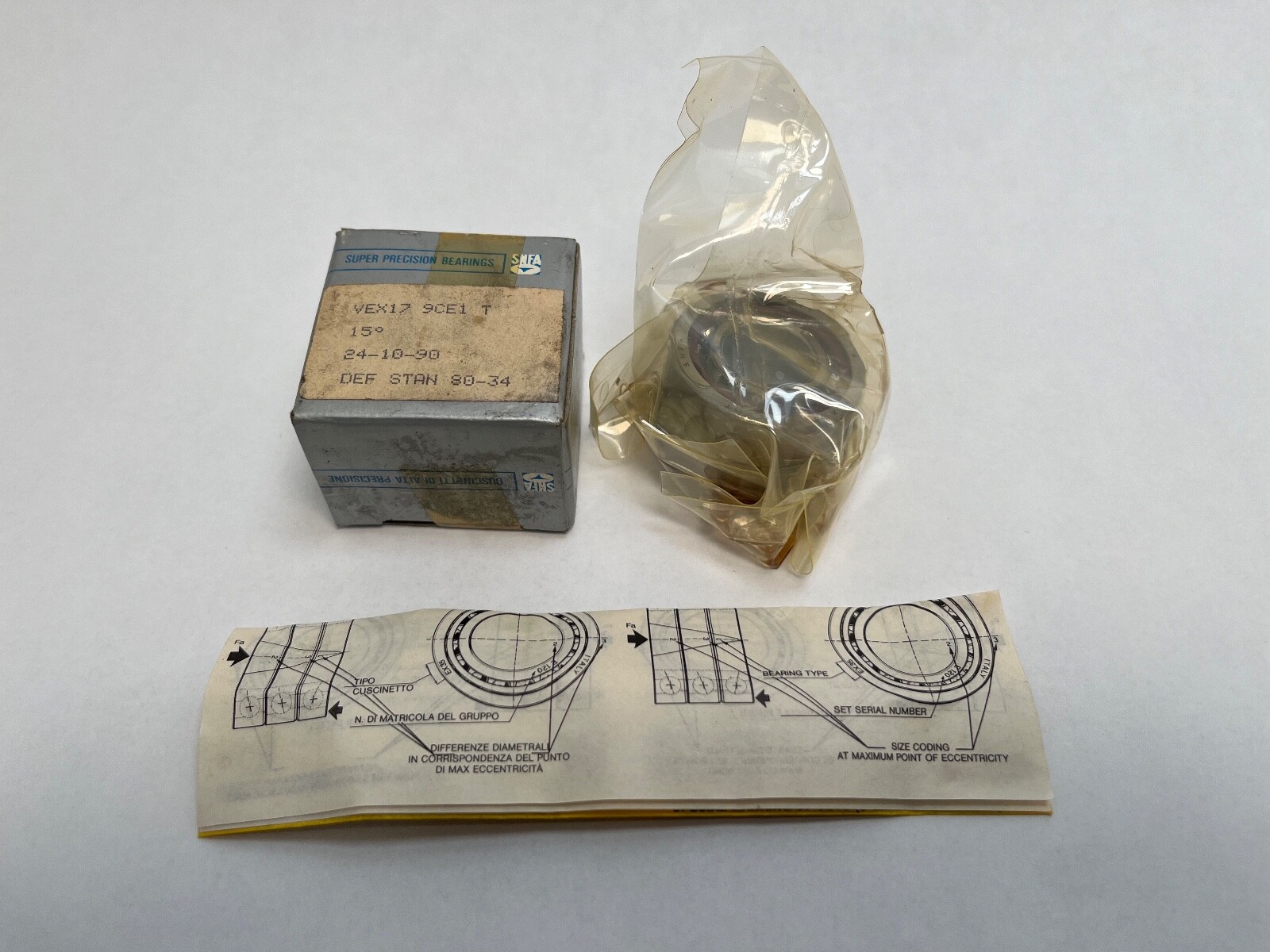

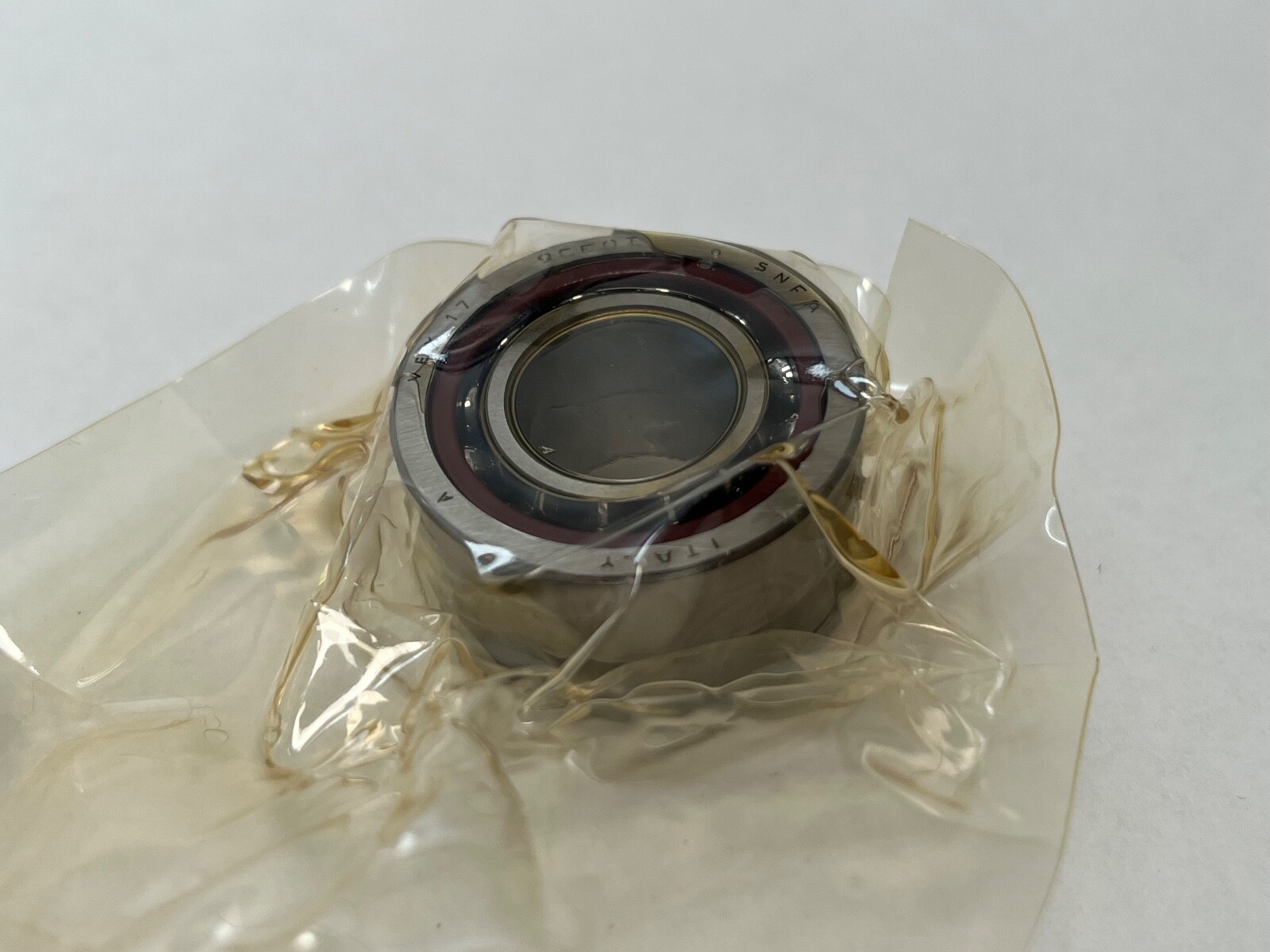

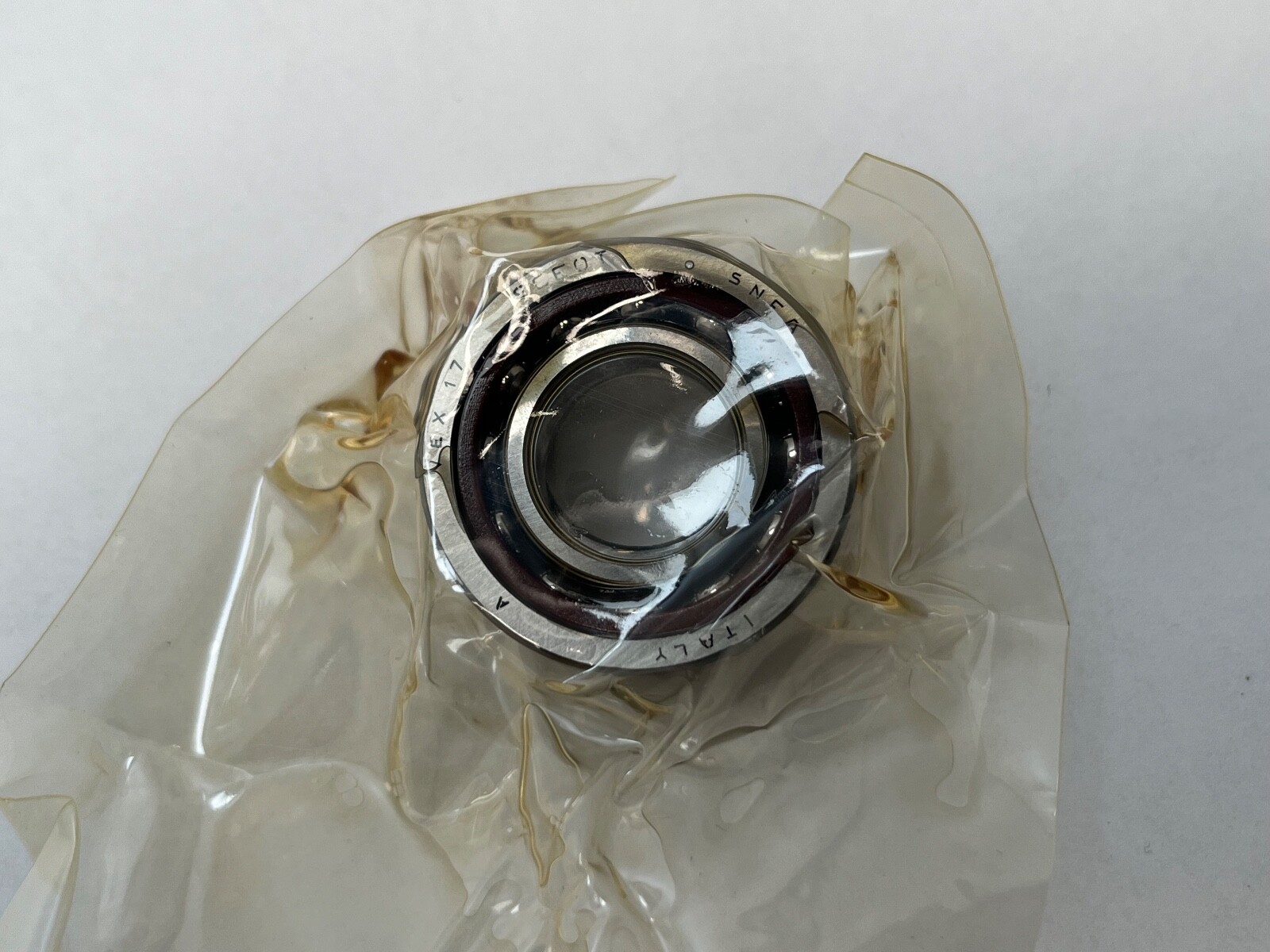

SNFA VEX17-9CE1T high-speed angular contact ball bearing tandem set, 17 x 35 x 10 mm, 15° contact angle, ABEC 9 / P2, phenolic cage. Two bearings.
List Price
$166.10
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNFA |
|---|---|
| MPN | VEX17-9CE1T |
| Model | VEX17-9-CE-1-T |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 17 mm |
| OD | 35 mm |
| Width | 10 mm |
| Series | SNFA VEX (ISO 10) |
|---|---|
| Cage Type | Machined, outer-ring located |
| Dynamic Load Rating | 600 daN (C33, per bearing) |
| Static Load Rating | 310 daN (C0, per bearing) |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Tandem |
| Base Number | 7003 |
| Overall Width | 10 mm |
| Mpn Variants | VEX17-9CE1T, VEX17-9-CE-1-T, VEX17 9 CE 1 T, 7003-P2, 7003 C T P2 DTL, 2MM9103 WI CR DTL |
| Arrangement Configuration | Tandem (T) |
| Precision Class | ABEC 9 / P2 |
| Additional Attributes | Minimum chamfer Rmin 0.3 mm; rmin 0.15 mm |
| Cross Reference 1 | Fafnir 2MM9103WI CR DT – 15° tandem, ABEC 7 vs ABEC 9 |
|---|
SNFA VEX17-9CE1T is a tandem set of two high-speed super-precision angular contact ball bearings, SNFA VEX series, ISO dimension series 10, size 7003. Bore Diameter: 17 mm. Outside Diameter: 35 mm. Overall Width: 10 mm. Contact Angle: 15°. Precision Class: ABEC 9 / P2. Arrangement / Configuration: Tandem.
VEX — SNFA high-speed series, ISO dimension series 10.
17 — bore diameter, 17 mm.
9 — ABEC 9 precision.
C — stratified textile resin (phenolic) cage.
E — cage located on the outer ring.
1 — 15° nominal contact angle.
T — tandem set. Both bearings face the same direction and share the axial load in one direction.
Dynamic Load Rating: 600 daN per bearing (SNFA C33 rating). Static Load Rating: 310 daN per bearing (C0). Cage Material: Phenolic. Cage Type: Machined, outer-ring located. The VEX high-speed design runs faster than the standard EX series of the same size.
Minimum chamfer, outer ring (Rmin): 0.3 mm. Minimum chamfer, inner ring (rmin): 0.15 mm. Bore Type: Straight. Closure Type: Open. Snap Ring: No.
Unit Quantity: 2 Pcs. Two bearings matched as a tandem set.
ISO size 7003, 17 x 35 x 10 mm, 15°. Fafnir 2MM9103WI CR DT shares the envelope, angle and tandem arrangement at ABEC 7 / P4 precision.
